Observation of metastability in open quantum dynamics of a solid-state system

Abstract

Metastability is a ubiquitous phenomenon in nonequilibrium physics and classical stochastic dynamics. It arises when the system dynamics settles in long-lived states before eventually decaying to true equilibria. Remarkably, it has been predicted that quantum metastability can also occur in continuous- and discrete-time open quantum dynamics. However, the direct experimental observation of metastability in open quantum systems has remained elusive. Here, we experimentally observe metastability in the discrete-time evolution of a single nuclear spin in diamond, realized by sequential Ramsey interferometry measurements (RIMs) of a nearby nitrogen-vacancy electron spin. We demonstrate that the metastable polarization of the nuclear spin emerges at a metastable region of measurement times determined by the spectral structure of the quantum channel induced by the RIM. Such metastable polarization enables high-fidelity single-shot readout of the nuclear spin and the observation of an ultralong spin relaxation time of more than 10 s at room temperature. Our results represent a concrete step towards uncovering nonequilibrium physics in open quantum dynamics, which is practically relevant for the utilization of metastable information for various quantum information processing tasks.

Introduction

Metastability, similar to prethermalization in nonequilibrium physics¹, arises when the system relaxes into long-lived states before subsequently decaying to true stationarity much slowly. The concept of metastability is widely used, for example, in the description of the long-lived atomic state of individual atoms², the magnetic state of single nanoparticle³, and the metastable structure and phase of condensed matter systems^4,5. In these systems, metastability is mainly due to the barriers separating local minima in the energy levels of the systems.

In classical stochastic dynamics, metastability is a manifestation of a separation of time scales that arises from the splitting in the spectrum of the dynamical generator. Recently, quantum metastability theory has been extended to Markovian open quantum dynamics with a similar spectral structure in the generator^6,7,8, where the manifold of metastable states is argued to be composed of disjoint states, decoherence-free subspaces, and noiseless subsystems. Such metastability theory is physically interesting in its own right and stimulates the prediction of metastability phenomena in various quantum models^{9,10,11,12,13,14,15,16,17}. It is also of practical importance to utilize the preserved information of quantum processes for quantum information processing^18,19, especially in the presence of control imperfections or environmental noise.

For the continuous-time dynamics described by the Lindblad master equation, metastability can be observed from the distinct two-step decay of temporal correlations⁶. However, experimental observations remain scarce, mainly due to the difficulty in measuring temporal second- or higher-order correlations with good resolution^20,21. Alternatively, certain signatures of metastability can be observed without measuring the temporal correlations (e.g., through the high-accuracy time-resolved heterodyne detection in the superconducting cavities)²²; however, such approaches are often not applicable to other experimental settings.

A recent advance in quantum metastability theory is the generalization of the setting from continuous-time to discrete-time open quantum dynamics^23,24. Such a framework describes the more general scenario in which each discrete evolution is induced by a quantum channel (or a completely positive and trace-preserving quantum map)²⁵, which may not be generated by continuous-time master equations^26,27. With this framework, metastable open quantum dynamics of a quantum system can be directly observed by only sequentially measuring an ancilla qubit, instead of continuously measuring the temporal correlations. Remarkably, metastability has been predicted in the commonly used Ramsey interferometry measurements (RIMs)^28,29,30, which is easy to realize in various quantum platforms. By repeating the RIM on a probe qubit, a nearby bath system can be metastably polarized, which is manifested in statistics of the probe measurement outcomes associated with different quantum trajectories of the bath system.

Here, we report an observation of the metastable open dynamics in diamond based on sequential RIMs, using a nitrogen (¹⁴N) nuclear spin as the bath system and the nitrogen-vacancy (NV) electron spin as the probe. Due to the hyperfine coupling between the bath and the probe during free evolution, each round of RIM solely applied on the probe spin induces a quantum channel on the nuclear spin, and sequential RIMs induce discrete-time open quantum dynamics on the nuclear spin (Fig. 1a). By recording the statistical results of the sequential probe measurement, we can continuously monitor the state evolution of the target spin. We directly observe the metastable polarization when varying the number of repetitions m, i.e., the bath spin is first steered to metastable (polarized) states for a finite range of m, and eventually relaxes towards the true stable (maximally mixed) state as m continues to increase.

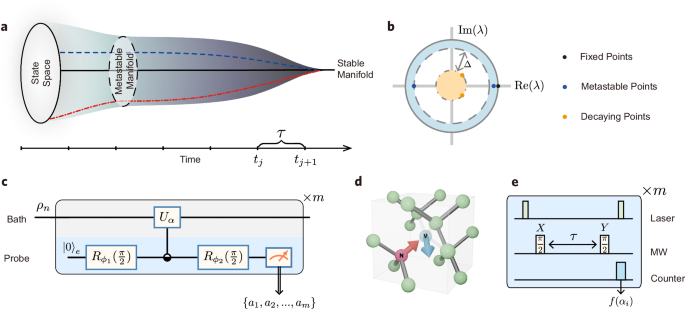

Fig. 1: Metastability in discrete-time open quantum dynamics and its observation in diamond.

a Schematic of metastability in open quantum dynamics. The states outside the metastable manifold (MM, red dot-dashed line) exhibit a two-step relaxation, i.e., first quickly relaxing into the MM and then slowly decaying into the stationary manifold (SM). The discrete-time axis implies that the open quantum dynamics is described by sequential quantum channels. b Spectrum of a quantum channel, with all eigenvalues located within the unit circle (solid circle) of the complex plane. Metastable points are located in the region with ∣λ∣ ≈ 1 (labeled with blue ring in the spectrum). The metastable region of measurement times is determined by the spectral gap Δ between the decaying region (labeled in orange) and the metastable region in the spectrum. c Quantum circuit of sequential RIMs, where R_ϕ(ϑ) is the rotation operator of the probe qubit, U_α is a unitary operator of the bath conditioned on the probe state ${| \alpha \left.\right\rangle }_{e}$ (α = 0, 1), and {a₁, …, a_m} (a_i = 0, 1) is the sequence of measurement outcomes. d The experimental system, with the electron spin of a nitrogen-vacancy (NV) center in diamond serving as the probe qubit, and the host ¹⁴N nuclear spin as the quantum bath system. e Pulse sequences to implement sequential RIMs in experiments. Laser pulses are used to polarize and read out the NV spin state, and resonant microwave (MW) pulses are used to manipulate the probe spin state.

Results

Metastability in sequential RIMs

We illustrate the principle of metastability by considering a typical class of sequential quantum channels on a quantum bath system, with the channel being induced by a probe qubit under a RIM sequence²³. The probe qubit is coupled to the bath through the general pure-dephasing coupling

$$H={\sigma }_{e}^{z}\otimes {B}_{n}+{{\mathbb{I}}}_{e}\otimes {C}_{n},$$

(1)

where the subscripts e and n refer to the probe and bath, respectively, ${\sigma }_{e}^{i}$ is the Pauli-i operator of the qubit (i = x, y, z) with ${\sigma }_{e}^{z}={| 0\left.\right\rangle }_{e}\left\langle \right.0| -{| 1\left.\right\rangle }_{e}\left\langle \right.1|$, ${{\mathbb{I}}}_{e}$ is the identity operator of the qubit, and B_n(C_n) is the interaction (free) operator of the bath. We denote the probe qubit rotation along an axis in the equatorial plane as ${R}_{\phi }(\vartheta )={e}^{-i(\cos \phi {\sigma }_{e}^{x}+\sin \phi {\sigma }_{e}^{y})\vartheta /2}$, with ϕ denoting the rotation axis and ϑ the rotation angle.

For a single RIM, the probe qubit is first initialized to state ${| 0\left.\right\rangle }_{e}$, and then prepared in a superposition state ${| \psi \left.\right\rangle }_{e}=({| 0\left.\right\rangle }_{e}-i{e}^{i{\phi }_{1}}{| 1\left.\right\rangle }_{e})/\sqrt{2}$ by a rotation ${R}_{{\phi }_{1}}(\frac{\pi }{2})$. After the composite system evolving with the pure-dephasing coupling [Eq. (1)] for time τ, the probe undergoes another rotation ${R}_{{\phi }_{2}}(\frac{\pi }{2})$, and is finally projectively measured in the basis of ${\sigma }_{e}^{z}$ with the measurement outcome a ∈ {0, 1}.

The RIM sequence of the probe spin induces a quantum channel Φ on the bath,

$$\Phi ({\rho }_{n})={{{\rm{Tr}}}}_{e}\left[U({\rho }_{e}\otimes {\rho }_{n}){U}^{{\dagger} }\right]=\sum_{a=0,1}{M}_{a}{\rho }_{n}{M}_{a}^{{\dagger} },$$

(2)

where ${\rho }_{e}={| \psi \left.\right\rangle }_{e}\left\langle \right.\psi |$ (ρ_n) is the initial state of the probe (bath) spin, U = e^−iHτ is the propagator for the composite system. By partially tracing over the probe spin, we obtain the Kraus operator M_a = [U₀ − (−1)^ae^iΔϕU₁]/2, where ${U}_{\alpha }={e}^{-i[{(-1)}^{\alpha }{B}_{n}+{C}_{n}]\tau }$ is a unitary operator of the bath spin conditioned on the probe spin state ${| \alpha \left.\right\rangle }_{e}$ (α = 0, 1), and Δϕ = ϕ₁ − ϕ₂ is the phase difference between the rotation axes of two π/2 pulses in a RIM. With the measurement outcome a, the bath state is steered to ${M}_{a}{\rho }_{n}{M}_{a}^{{\dagger} }/p(a)$ with probability $p(a)=\,{\mbox{Tr}}\,({M}_{a}{\rho }_{n}{M}_{a}^{{\dagger} })$. Note that the Kraus operators satisfy ${\sum }_{a}{M}_{a}^{{\dagger} }{M}_{a}={{\mathbb{I}}}_{n}$ with ${{\mathbb{I}}}_{n}$ being the identity operator on the bath, which ensures that ∑_ap(a) = 1.

The behaviors of repetitive quantum channels can be clearly revealed by the spectral decomposition of a single channel (see “Methods”). A quantum channel has at least one fixed point (Fig. 1b), which is the state that remains unchanged after the channel^31,32. It has been proved that the fixed points of the channel in Eq. (2) depend on the commutativity of B_n and C_n (see “Methods”)²³. If B_n commutes with C_n, i.e., [B_n, C_n] = 0, the fixed points include the simultaneous eigenstates of B_n and C_n, then sequential RIMs of the probe spin will polarize the bath system to one of the eigenstates, also constituting a quantum non-demolition (QND) measurement on the bath spin^{33,34,35,36,37,38}. However, if [B_n, C_n] ≠ 0, the fixed points are the maximally mixed state in the whole space (or subspace) of the bath, then sequential RIMs cannot effectively measure the bath system but only perturb it.

Quantum metastability emerges when [B_n, C_n] ≠ 0, but C_n is a small perturbation of B_n, then the bath will be polarized for a finite range of repetitions of RIMs. We suppose that the channel has r fixed points and q − r (q > r) metastable points, which collectively span a (q − 1)-dimensional metastable manifold (MM). The region of repetition numbers for metastable polarization of the bath spin can be estimated as ${(1-| {\lambda }_{q+1}| )}^{-1} \, \ll \, m \, \ll \, {(1-| {\lambda }_{q}| )}^{-1}$ when λ_q is very close to 1, where λ_q is the eigenvalue of metastable point with the smallest eigenvalue. As m increases and enters the metastable region, the bath state evolves into the MM. Beyond this region, the system further relaxes into the stationary manifold (SM), which is spanned by the fixed points. This process, during which the system first reaches the MM and then relaxes to the SM, is referred to as a two-step relaxation (see Fig. 1a).

The metastability behaviors in sequential RIMs can be directly monitored by the measurement statistics of the probe spin²³. To see this, we decompose the average dynamics of sequential quantum channels into stochastic trajectories,

$${\Phi }^{m}({\rho }_{n})=\sum _{{a}_{1},\ldots,{a}_{m}=0}^{1}{{{\mathcal{M}}}}_{{a}_{m}}\cdots {{{\mathcal{M}}}}_{{a}_{1}}({\rho }_{n}),$$

(3)

where ${{{\mathcal{M}}}}_{{a}_{i}}(\cdot )={M}_{{a}_{i}}(\cdot ){M}_{{a}_{i}}^{{\dagger} }$ with a_i ∈ {0, 1} being the measurement outcome of the ith RIM. For a trajectory with the sequence of measurement outcomes {a₁, . . . , a_m}, the bath is steered to ${\rho }_{n}^{{\prime} }={{{\mathcal{M}}}}_{{a}_{m}}\cdots {{{\mathcal{M}}}}_{{a}_{1}}({\rho }_{n})/p({a}_{1},...,{a}_{m})$ with probability $p({a}_{1},...,{a}_{m})=\,{\mbox{Tr}}\,[{{{\mathcal{M}}}}_{{a}_{m}}\cdots {{{\mathcal{M}}}}_{{a}_{1}}({\rho }_{n})]$. With the number of outcome 0(1) in {a₁, . . . , a_m} denoted as m₀(m₁) satisfying m₀ + m₁ = m, we can define the measurement polarization X = (m₀ − m₁)/(2m)^23,24,39, which can be used to classify different classes of stochastic trajectories that the bath system undergoes. The measurement distribution of X can show several peaks, with each peak corresponding to the quantum trajectories that lead to a fixed point (or metastable state) of the channel (see “Methods”). So in the metastable region, the distribution exhibits up to q peaks, corresponding to the metastable states. However, as m surpasses this region, the number of peaks gradually reduces to r, reflecting the final stationary states of the bath.

Experimental implementation in the NV system

We demonstrate this protocol experimentally on an NV center and a nearby ¹⁴N nuclear spin in a high-purity diamond (Fig. 1d). Nuclear spins around NV centers have great potential for building quantum networks⁴⁰, storing quantum information³⁸, performing quantum simulations^41,42,43 and sensing inertial parameters⁴⁴. Access to the nuclear spins is usually based on their hyperfine interaction with the electron spin and the optical interface of the NV center. It is therefore an interesting and fundamental problem to monitor and understand the dynamics of these nuclear spins under sequential measurements acting on the central electron spin.

Specifically, an NV electron spin is a spin-1 system with a zero-field splitting D = 2.87 GHz between its ${| 0\left.\right\rangle }_{e}$ (m_s = 0) and ${| \pm 1\left.\right\rangle }_{e}$ (m_s = ±1) state. In our experiment, a moderate external magnetic field of B = 108.4 ± 0.2 G is applied along the NV symmetry axis (z axis) to lift the degeneracy of the ${| \pm 1\left.\right\rangle }_{e}$ states and we work in the $\{{| 0\left.\right\rangle }_{e},{| -1\left.\right\rangle }_{e}\}$ subspace. The Hamiltonian in Eq. (1) becomes (in the rotating frame)

$$H={A}_{zz}{S}_{z}{I}_{z}+Q{I}_{z}^{2}-{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}}+{\tilde{H}}_{1},$$

(4)

where S = (S_x, S_y, S_z) is the NV electron spin-1 operator, I = (I_x, I_y, I_z) is the ¹⁴N nuclear spin-1 operator, A_zz = −2.16 MHz (A_⊥ = −2.63 MHz) is the zz-component (transverse component) of the hyperfine tensor, Q = −4.95 MHz is the quadrupolar splitting, γ_n = 1.071 kHz/G (γ_e = 2.802 MHz/G) being the gyromagnetic ratio of ¹⁴N nuclear spin (electron spin), and ${\tilde{H}}_{1}={\sum }_{\alpha }{| \alpha \left.\right\rangle }_{e}\left\langle \right.\alpha | \otimes {H}_{n}^{\alpha }$ is a second-order perturbation term with ${H}_{n}^{\alpha }\approx \frac{{\gamma }_{e}(2-3| \alpha | )}{2D}[-{\gamma }_{e}({B}_{x}^{2}+{B}_{y}^{2})+2{A}_{\perp }({B}_{x}{I}_{x}+{B}_{y}{I}_{y})]$. To introduce a non-commutativity between B_n = A_zzI_z and ${C}_{n}=Q{I}_{z}^{2}-{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}}+{\tilde{H}}_{1}$, the external magnetic field is slightly misaligned with the NV axis, i.e., there is a small tilt angle θ between the magnetic field and NV axis. Under this circumstance, the perturbation terms  −γ_n(B_xI_x + B_yI_y) and ${\tilde{H}}_{1}$ lead to the metastable polarization of ¹⁴N nuclear spin.

For each RIM, the resulting quantum state of the NV spin is read out by counting its spin-dependent photon number. As shown in Fig. 1e, a 532-nm laser is used to excite the NV center, and all experiments are performed at room temperature. Due to the low photon emission rate of the NV center and the poor collection efficiency, only 0.05 photons can be detected on average in each measurement, which is not sufficient to distinguish the spin states. Fortunately, the spin relaxation time of the ¹⁴N nuclear spin is very long (see “Discussion” below), and many RIMs can be performed before a state jump occurs. Therefore, to obtain a reasonable signal-to-noise ratio (SNR) and to distinguish the nuclear spin states, we simply sum up the counts of the sequential measurements. We expect that the metastable polarization is easier to observe by readout methods with higher SNR, for example, the resonant excitation of the NV electron spin at low temperature^45,46.

Figure 2 presents the metastable dynamics of the target nuclear spin under sequential RIMs acting on the NV electron spin. Before the measurement, the ¹⁴N nuclear spin is in the thermal state, which means that its population is evenly distributed among the set of states $\left.{\{{| 0\left.\right\rangle }_{n},| \pm 1\left.\right\rangle \}}_{n}\right\}$ (m_I = 0, ±1). For a small number of RIMs (m < 5 k), the shot noise of the photon counts exceeds the count difference of the measured states, so that no efficient signal can be detected in this range. As the number of RIMs increases (m > 5 k), the measurement results begin to concentrate on two regions, which is a clear signature of the metastable polarization of the bath spin, as can be seen in the middle slice of Fig. 2a, b. We classify the trajectories based on the average photon counts with a threshold value of 0.05. If the average photon counts are less than 0.05, it is classified as a dark state; otherwise as a bright state. The experimentally resolved bright state corresponds to the maximally mixed state of the subspace spanned by $\{{| 0\left.\right\rangle }_{n},{| -1\left.\right\rangle }_{n}\}$, i.e., ${\rho }_{{{\rm{B}}}}=({| 0\left.\right\rangle }_{n}{\langle 0|+| -1\rangle }_{n}\left\langle \right.-1| )/2$. This bright state, together with the dark state ${\rho }_{{{\rm{D}}}}={| 1\left.\right\rangle }_{n}\left\langle \right.1|$, are the extremely metastable states (EMSs) of the one-dimensional MM spanned by the fixed point and the metastable point with higher eigenvalue, as shown in Fig. 2d. Beyond the metastable region (m > 600 k), the two peaks mentioned above gradually disappear and a single peak appears, corresponding to the stable state of the system, i.e., the maximally mixed state in the whole space ${{\mathbb{I}}}_{n}/3$. More data and simulations can be found in Figs. S4–S6.

Fig. 2: Metastable dynamics of a ¹⁴N nuclear spin induced by sequential RIMs of a nearby NV electron spin.

a, b Typical PL time trace of an NV center under sequential RIMs and the corresponding distribution of the measurement results. The total and average photon counts are shown on the left and right axes, respectively. The duration of free evolution, τ = 374 ns. The number of measurement repetition m is 5 k, 60 k, 250 k, 600 k from top to bottom. When m = 5 k, it is difficult to distinguish the nuclear spin quantum states. When m = 60 k, the jump signal is concentrated in two distinct photon count intervals. As m increases further to 250 k, the overlap between the two distribution peaks becomes more pronounced. When m exceeds the metastable region, the photon counting peaks gradually merge. The blue envelopes in (b) indicate the normalized numerical simulation results. c Numerical results. The evolution of the nuclear spin state fidelity under sequential RIMs. The initial thermal state of the nuclear spin is polarized to either the dark state ${| 1\left.\right\rangle }_{n}\left\langle \right.1|$ or the bright state $({| 0\left.\right\rangle }_{n}\left\langle \right.0|+{| -1\left.\right\rangle }_{n}\left\langle \right.-1| )/2$. The solid lines are fits to the simulation results. The fidelity F_D,B quantifies how close the quantum states represented by the trajectories are to the ideal dark or bright states, respectively. d The channel spectrum, with one fixed point, two metastable points and six decaying points. The right pane is a magnified view of the spectrum near the metastable points, and the deviations of their eigenvalues from 1 (1 − ∣λ∣) are shown accordingly. The metastable region and the underlying channel spectrum gap are marked with blue shades in (c) and (d), respectively. Monte Carlo simulations are conducted with a tilt angle θ = 8.8° and 3000 samples.

To quantitatively understand the metastable dynamics of the nuclear spin, we perform numerical simulations that take into account the parameters of hyperfine coupling, the strength and orientation of the external magnetic field, and the readout efficiency of the NV electron spin. The metastable states can be characterized by comparing them with the ideal polarized states, i.e., by the fidelity ${F}_{{{\rm{D(B)}}}}=F({\rho }_{{{\rm{D(B)}}}},{\rho }_{n}^{{\prime} })$, where $F(\rho,\sigma )=\,{\mbox{Tr}}\,\sqrt{{\rho }^{1/2}\sigma {\rho }^{1/2}}$ and ${\rho }_{n}^{{\prime} }$ is the actual state. As shown in Fig. 2c, the experimentally observed metastable dynamics of the ¹⁴N can be well reproduced with a tilt angle of the magnetic field of θ = 8.8°.

Since the ¹⁴N nuclear spin is a three-level system, three-state jumps are expected in the PL time trace. The fact that only two stages appear indicates that two of them cannot be distinguished under the current experimental conditions (B = 108.4 G and θ = 8.8°). Interestingly, when a smaller angle of the external magnetic field (θ < 2°) is chosen, three-state jumps are observed in the experiment, as shown in Fig. 3a, b. The physical picture behind this is that the external magnetic field can influence the metastability behavior by changing the value of [B_n, C_n]. Through numerical simulations we find that under the magnetic field with θ = 8.8°, three peaks emerge at around 5 k measurements and two of them merge into one before 60 k measurements, so that only two-state jumps are observed in our measured region (Fig. 2a). Figure 3c shows the calculated dependence of the two-state jump and three-state jump regions as a function of the orientation of the magnetic field. For a smaller tilt angle of the external magnetic field (e.g., θ = 2°), the metastable region of the three-state jump can survive under a large number of RIM measurements, which allows the experimental observation of the three-peak signals (see Supplementary Note II for more details).

Fig. 3: Magnetic field dependence of the metastable region.

a Three-state jump signal of the ¹⁴N nuclear spin. The signal is observed when the magnetic field is close to the NV axis (θ = 2°), with a RIM duration τ = 374 ns and the number of repetitions m = 60 k. The red fitting line is extracted from the hidden Markov model. b The first 100 points of of three-state jump signal. The three plateau levels correspond to the states ${|+1\left.\right\rangle }_{n}$, ${| 0\left.\right\rangle }_{n}$, and ${| -1\left.\right\rangle }_{n}$ of the ¹⁴N nuclear spin. c Phase diagram for metastability. The metastable region for the number of measurements m depends on the orientation of the magnetic field. The dashed line marks the case of m = 60 k, with the two black triangles indicating experimental conditions used. The left point with θ = 2° gives the three-state jump signals explicitly shown in (a) and (b). The corresponding metastable region, quantified by the deviations of their eigenvalues from 1, is shown in the inset. The right point with θ = 8.8° corresponds to the two-state jump signal shown in Fig. 2a.

Single-shot readout of a single nuclear spin

The observed metastability provides a simple and efficient way to realize high-fidelity single-shot readout of the nuclear spin. Under a magnetic field tilt angle θ = 7° ± 2° and a RIM interval of τ = 374 ns, the quantum jumps of the nuclear spin are clearly observed in the range of measurement numbers from 5 k to 250 k, as shown in Fig. 2a. We then characterize the readout fidelity of the nuclear spin using the method developed in ref. ^36,47. By pre-selecting bright-state and dark-state photon count thresholds, we filter quantum jump signals across different measurement repetitions. This results in photon number distributions for bright and dark states with initialization fidelity higher than 99%. We then quantify the state-dependent readout fidelities, as summarized in Fig. 4a and Fig. S9b, c. It is worth noting that both the external magnetic field and the RIM interval affect the occurrence of the metastable states, so as to the optimal readout region. With a repetition number of m = 80 k (total measurement time 1.695 s), a readout fidelity of 97% ± 2% with a threshold count value of 2950 is achieved.

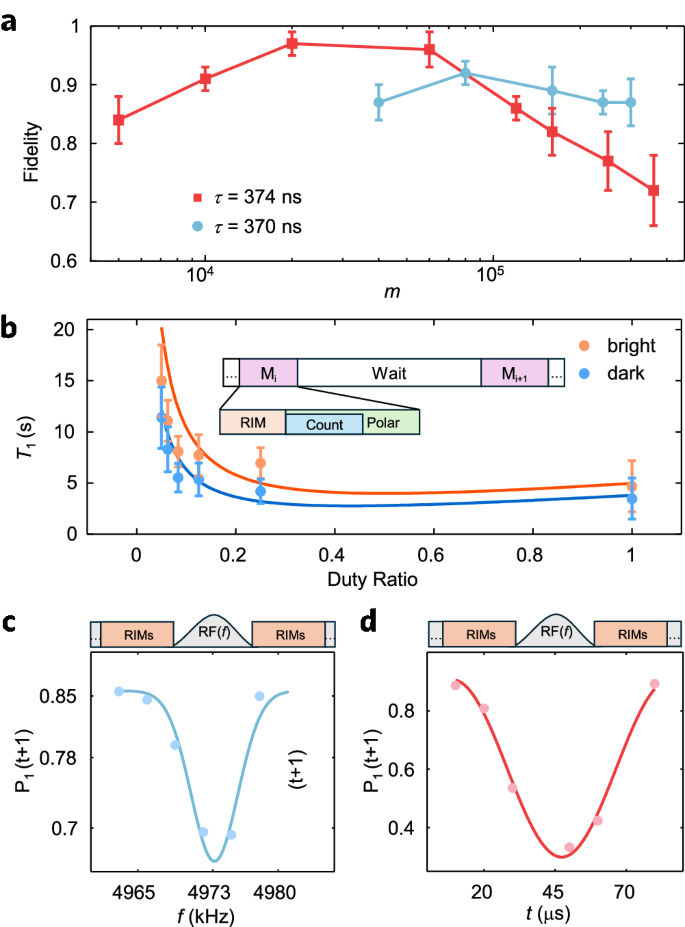

Fig. 4: Single-shot readout of the nuclear spin state.

a Readout fidelity of the ¹⁴N nuclear spin as a function of the measurement repetition number. The data points with θ = 7° ± 2°, τ = 374 ns are shown in red squares, while the data points with θ = 7° ± 2°, τ = 370 ns are shown in blue circles. b ¹⁴N nuclear spin relaxation time (bright state in orange and dark state in blue) as a function of the duty cycle of the excitation laser pulses. The inset illustrates the experimental pulse sequence. The duty cycle is defined as the ratio of the measurement time to the waiting time in the sequence. In (a) and (b), the vertical error bars display the statistical error (s.d.) from the fit. c ¹⁴N nuclear spin NMR, obtained by varying the radio-frequency (RF) pulse frequency at a fixed pulse duration of 30 μs. d ¹⁴N nuclear spin Rabi oscillations. A resonant RF pulse of a specific length is applied between every two sequential RIMs to flip the nuclear spin between the ${| 0\left.\right\rangle }_{n}$ and ${|+1\left.\right\rangle }_{n}$ states, while the electron is at the ${| 0\left.\right\rangle }_{n}$ state.

Next, we investigate the relaxation mechanism of the ¹⁴N nuclear spin under repeated measurements. Previous studies have shown that the flip-flop process in the excited state of the NV center is the dominant factor, and usually a large external magnetic field (>2000 G) is applied to suppress this term so that single-shot readout of the nuclear spin can be achieved^36,37. Alternatively, our results show that the nuclear spin relaxation can be largely suppressed by simply shortening the duration of the excitation laser. Moreover, by inserting additional waiting intervals between the sequential RIMs, a longer nuclear spin T₁ is observed, as summarized in Fig. 4b. The longest T₁ measured in our experiment is 15  ± 3.5 s. To our knowledge, this is the first time that a single-shot readout of the ¹⁴N nuclear spin has been achieved at room temperature and under a small magnetic field.

Finally, we perform nuclear magnetic resonance (NMR) and Rabi measurements to demonstrate coherent control of the ¹⁴N nuclear spin. The nuclear spin state is first prepared by a RIM measurement sequence (either in the bright or dark state), then an RF pulse is applied to flip the nuclear spin, and a second RIM measurement is performed to determine the nuclear spin state. The RF pulse has either a fixed duration (30 μs for NMR) or a fixed frequency (at the resonance frequency of NMR). The sequence is repeated 80 k times, and the probability of nuclear spin flip is recorded. Figure 4c shows the NMR signal at 4973.0 kHz, which corresponds to the ¹⁴N nuclear spin being in ${|+1\left.\right\rangle }_{n}$ state. Figure 4d shows the Rabi oscillation of the ¹⁴N nuclear spin between the states ${|+1\left.\right\rangle }_{n}$ and ${| 0\left.\right\rangle }_{n}$. These results further confirm that the observed quantum jump signal originates from the ¹⁴N nuclear spin.

Discussion

In conclusion, we have directly observed metastability in the discrete-time open quantum dynamics of a single nuclear spin in diamond, induced by sequential RIMs of a probe NV electron spin. The observed metastable polarization of the nuclear spin demonstrates that QND measurements of an arbitrary quantum system can be realized in a much broader range of conditions, and go far beyond the QND experiments where the ancilla and the measured system are tuned to maximally entangled states^36,37,38. Such schemes can also be easily extended to other physical platforms, including trapped ions, superconducting circuits, and other semiconductor single-spin systems.

The framework for constructing QND measurements can be generalized to implement dynamical-decoupling-based quantum metrology in noisy environments, which enables us to learn the probe-bath and bath-bath coupling strengths^48,49, the magnetic field^46,50,51 and bath spin polarization^52,53. On the other hand, our results point out a potential issue in constructing quantum networks with NV centers or other single-spin systems, since sequential measurements of an ancilla can cause its nearby memory to equilibrate towards a maximally mixed state, leading to the loss of information about the stored state.

The generality of our protocols also sets a blueprint for future studies of nonequilibrium phenomena in open quantum systems. It will be interesting future work to realize more general channels in both theory and experiments, whose fixed points may include decoherence-free subspaces or noise-free subsystems, and to explore the metastability phenomena for protected coding and logical gates. Such phenomena can be directly relevant to quantum information processing, since the fixed points of a quantum channel with preserved information can become metastable when control errors or environmental noise are taken into account.

Methods

Experimental setup and sample information

The experiments are performed with a [100]-oriented, type IIa single-crystal diamond produced by Element Six, with a natural ¹³C isotopic abundance of 1.1%. The NV centers used in this study are generated through electron irradiation and subsequently annealed under vacuum conditions. To improve photon collection efficiency, a solid immersion lens (SIL) is etched onto the diamond surface. Under saturation conditions, the photon counting rate of the NV center is about 300 kcps. The diamond was mounted on a custom-built confocal microscope, and a 532-nm laser was used to initialize and read out the NV spin states. The laser pulses are timing-controlled with an acoustic optical modulator (AOM, Gooch & Housego 3350-199) and focused on the diamond sample through an objective (NA = 0.9). The fluorescence emitted from the NV center is collected with the same objective, passed through a dichroic mirror and a 650-nm long-pass filter, then coupled into a multimode fiber and detected with a single photon detector (SPD). The fluorescence photons are counted with an data acquisition card (NI-6343).

To control the NV electron spin and the ¹⁴N nuclear spins, we use an arbitrary waveform generator (AWG, Techtronix 5024C) to generate transistor-transistor logic (TTL) signals and low-frequency analog signals. The synchronized TTL signals are used to control the AOM, RF switches and counters. For electron spin manipulation, the microwave (MW) carrier signal from a MW source (Rohde & Schwarz SMIQ03B) is combined with two analog signals using an IQ-mixer (Marki Microwave, IQ1545LMP). An additional analog channel is used to generate the RF signal for nuclear spin manipulation. Both the MW and RF signals are amplified by amplifiers (Mini Circuits, ZHL-16W-43-S+ and ZHL-32A-S+). The MW and RF signals are combined by a customer-designed duplexer (DC-200 MHz, 1200 MHz-4000 MHz) and transmitted to the NV position via a gold co-planar waveguide deposited on the diamond surface.

As can be seen in the ODMR spectrum of the NV center, there is no splitting due to hyperfine interaction with strongly coupled ¹³C nuclear spin, and a static magnetic field B = 108.4  ± 0.2 G is applied close to the NV symmetry axis. The transition between the ${| 0\left.\right\rangle }_{e}\leftrightarrow {| -1\left.\right\rangle }_{e}$ NV spin states is addressed via resonant microwave pulses (at the m_I = 0 state of the ¹⁴N nuclear spin). To compensate for the temperature drift of the experimental system, we re-measured the ODMR spectra and adjusted the microwaves accordingly before each of the sequential RIMs. Figure S8b shows the free-induction decay (FID) signal of the measured NV center, which yields ${T}_{2e}^{*}=1.15\,\mu {{\rm{s}}}$.

For the ¹⁴N nuclear spin, the measurement strength oscillates as a function of the RIM duration τ. Considering the nuclear spin relaxation and the NV electron spin dephasing time, τ = 374 ns is chosen to perform the experiments. Under these circumstances, the dynamics induced by sequential RIMs precedes the ¹⁴N nuclear spin T₁ process. For each RIM, an optical pulse of 220 ns is used to read out the population of the NV electron spin. After the first measurement, the nuclear spin randomly collapses to ${| 0\left.\right\rangle }_{n}$ or ${| \pm 1\left.\right\rangle }_{n}$, and in the following measurement, it remains at the same state until a quantum jump occurs. Results with more τ value can be found in the Supplementary Information Note III.

Quantum channels and their representations

Quantum channel, also called completely positive and trace-preserving (CPTP) map, describes the most general (closed or open) quantum dynamics that a quantum system can undergo. Each quantum channel has four different representations: the Kraus representation, the Stinespring representation, the natural representation, and the Choi representation. The Kraus representation is the most commonly used one and characterizes a channel by a set of Kraus operators ${\{{M}_{a}\}}_{a=1}^{r}$, which satisfy ${\sum }_{a=1}^r{M}_{a}^{{\dagger} }{M}_{a}={\mathbb{I}}$, such that $\Phi (\cdot )={\sum }_{a=1}^{r}{M}_{a}(\cdot ){M}_{a}^{{\dagger} }=\mathop{\sum }_{a=1}^{r}{{{\mathcal{M}}}}_{a}(\cdot )$. The Stinespring representation is a dilation of a quantum channel, which is realized by coupling the bath system to a probe system, subjecting the composite system to a unitary evolution and then tracing over the probe system, i.e., Φ(ρ_n) = Tr_e[U(ρ_e ⊗ ρ_n)U^†], where ${{{\rm{Tr}}}}_{e}[\cdot ]$ denotes the partial trace over the probe qubit.

Since a quantum channel acts on the operator space of the bath system and can be considered as a superoperator, it is more convenient to use its natural representation in the Hilbert-Schmidt (HS) space. In the HS space, an operator is transformed into a vector ($X=\mathop{\sum }_{i,j=1}^{d}{x}_{ij}| i\left.\left.\right\rangle \langle j| \leftrightarrow | X\rangle \right\rangle=\mathop{\sum }_{i,j=1}^{d}{x}_{ij}| ij\left.\right\rangle \left.\right\rangle$), so that each superoperator is transformed into a single matrix (X(⋅)Y → X ⊗ Y^T). Thus, the natural representation of Φ is $\hat{\Phi }=\mathop{\sum }_{a=1}^{r}{\hat{{{\mathcal{M}}}}}_{a}$ with ${\hat{{{\mathcal{M}}}}}_{a}={M}_{a}\otimes {M}_{a}^{*}$. Note that we add hats on the operators of the HS space. In the natural representation, we can spectrally decompose the quantum channel as

$$\hat{\Phi }=\mathop{\sum}_{i}{\lambda }_{i}| {R}_{i}\left.\right\rangle \left.\right\rangle \left\langle \right.\left\langle \right.{L}_{i}|,$$

(5)

where λ_i is the ith eigenvalue with the corresponding right (left) eigenvector $\left.| {R}_{i}\left.\right\rangle \right\rangle \,(\left.| {L}_{i}\left.\right\rangle \right\rangle )$, satisfying $\hat{\Phi }\left.| {R}_{i}\left.\right\rangle \right\rangle={\lambda }_{i}\left.| {R}_{i}\left.\right\rangle \right\rangle$, ${\hat{\Phi }}^{{\dagger} }\left.| {L}_{i}\left.\right\rangle \right\rangle={\lambda }_{i}^{*}\left.| {L}_{i}\left.\right\rangle \right\rangle$, and the biorthonormalization condition $\langle \langle {L}_{i}| {R}_{j}\rangle \rangle={{\rm{Tr}}}({L}_{i}^{{\dagger} }{R}_{j})={\delta }_{ij}$ with δ_ij being the Kronecker delta. The eigenvalues {λ_i} of a quantum channel are all located within a unit disk of the complex plane. The eigenspaces with λ = 1 are called fixed points denoted by $\left.| {\rho }_{{{\rm{fix}}}}^{i}\left.\right\rangle \right\rangle$, those with λ = e^iφ and φ ≠ 0 are rotating points, and those with ∣λ∣ < 1 are decaying points that decay fast under repetitive channels since ${\hat{\Phi }}^{m}\left.| {R}_{j}\left.\right\rangle \right\rangle={\lambda }_{j}^{m}\left.| {R}_{j}\left.\right\rangle \right\rangle \to 0$ for ∣λ_j∣ < 1.

Metastability in sequential quantum channels

Of particular interest are the decaying points with eigenvalue ∣λ_i∣ ≈ 1, which are called metastable points Quantum metastability emerges when there are metastable points in the channel spectrum²³. Although the information of these metastable points will be finally lost, it can be well preserved within a certain range of m. Specifically, for the channel with r fixed points and q − r metastable fixed points, the contributions of the metastable points cannot be neglected when $m \, \ll \, {\mu }^{{\prime} }=1/\left\vert \ln | {\lambda }_{q}| \right\vert$, while the contribution of the other decaying points decays fast as m grows and can be omitted when $m \, \gg \, {\mu }^{{\prime\prime} }=1/\left\vert \ln | {\lambda }_{q+1}| \right\vert$. So ${\mu }^{{\prime} }$ and μ″ delimit a metastable region:

$$\frac{1}{\left\vert \ln \left\vert {\lambda }_{q+1}\right\vert \right\vert }\ll \, m \, \ll \frac{1}{\left\vert \ln \left\vert {\lambda }_{q}\right\vert \right\vert }.$$

(6)

When the eigenvalue of metastable points is very close to 1, and the decaying points relax fast, which is suitable for our case, the metastable region can be estimated as

$$m \, \ll \, \frac{1}{| \ln | {\lambda }_{q}| | }\approx \frac{1}{1-| {\lambda }_{q}| }$$

(7)

In the metastable region, $|{\lambda }_{i}|^{m}\approx 1$ for i ≤ q and ${|\lambda }_{j}|^{m}\approx 0$ for j > q, then we have

$${\hat{\Phi }}^{m}\left.| \rho \left.\right\rangle \right\rangle \simeq \sum _{i=1}^{r}{c}_{i}\left.| {\rho }_{{{\rm{fix}}}}^{i}\left.\right\rangle \right\rangle+\sum _{j=r+1}^{q}{\tilde{c}}_{j}\left.| {R}_{j}\left.\right\rangle \right\rangle,$$

(8)

for initial state $\left.| \rho \left.\right\rangle \right\rangle={\sum }_{i}{c}_{i}\left.| {R}_{i}\left.\right\rangle \right\rangle$ with ${\tilde{c}}_{j}={c}_{j}{e}^{im{\varphi }_{j}}$. We note that the metastable points, as well as decaying points, are trace-zero, so any metastable state in metastable manifold is a superposition of both fixed points (trace-one) and metastable points, denoted by $\{{c}_{1},\ldots,{c}_{r},{\tilde{c}}_{r+1},\ldots,{\tilde{c}}_{q}\}$ with ${\sum }_{i=1}^{r}{c}_{r}=1$, corresponding to a point in the (q − 1) dimensional HS subspace.

We can transform from the HS subspace to the metastable manifold (MM), which contains the metastable states as a convex combination of q extreme metastable states (EMSs)

$$| {\rho }_{{{\rm{MS}}}}\left.\right\rangle \left.\right\rangle=\mathop{\sum }_{\nu=1}^{q}{p}_{\nu }| {\rho }_{{{\rm{EMS}}}}^{\nu }\left.\right\rangle \left.\right\rangle$$

(9)

with p_ν = ⟨⟨P_ν∣ρ_MS⟩⟩ satisfying ∑_νp_ν = 1. Here, P_ν is the projector to $\left.| {\rho }_{{{\rm{EMS}}}}^{\nu }\left.\right\rangle \right\rangle$, satisfying $\langle \langle {P}_{\nu }| {\rho }_{{{\rm{EMS}}}}^{\mu }\rangle \rangle={\delta }_{\nu \mu }$ and ${\sum }_{\nu }{P}_{\nu }={\mathbb{I}}$.

For the case of r = 1 and q = 2, i.e., the channel has one fixed point and one metastable point, forming a one-dimensional MM with the EMSs²³

$$| {\rho }_{{{\rm{EMS}}}}^{1,2}\left.\right\rangle \left.\right\rangle=| {\rho }_{{{\rm{fix}}}}\left.\right\rangle \left.\right\rangle+{c}_{2}^{M,m}| {R}_{2}\left.\right\rangle \left.\right\rangle /h,$$

(10)

where ${c}_{2}^{M}$ (${c}_{2}^{m}$) is the maximal (minimal) eigenvalue of L₂, and $h=\sqrt{\langle \langle {L}_{2}| {L}_{2}\rangle \rangle \langle \langle {R}_{2}| {R}_{2}\rangle \rangle }$ is a normalization coefficient.

Metastability in sequential RIMs

The dynamics of the bath system after a RIM sequence of the probe is described by a quantum channel, which can be represented in the Stinespring representation as

$$\Phi ({\rho }_{n})={{\mbox{Tr}}}_{e}[U({\rho }_{e}\otimes {\rho }_{n}){U}^{{\dagger} }]$$

(11)

where ${\rho }_{e}={R}_{{\phi }_{1}}(\frac{\pi }{2}){| 0\left.\right\rangle }_{e}\left\langle \right.0| {R}_{{\phi }_{1}}^{{\dagger} }(\frac{\pi }{2})$. For the Hamiltonian

$$H={\sigma }_{e}^{z}\otimes {B}_{n}+{{\mathbb{I}}}_{e}\otimes {C}_{n},$$

(12)

the unitary evolution can be decomposed as $U={e}^{-iH\tau }={\sum }_{\alpha=0,1}{| \alpha \left.\right\rangle }_{e}\left\langle \right.\alpha | \otimes {U}_{\alpha }$ with ${U}_{\alpha }={e}^{-i[{(-1)}^{\alpha }{B}_{n}+{C}_{n}]\tau }$. After partially tracing over the probe, the channel can be transformed to the Kraus representation as

$$\Phi ({\rho }_{n})=\mathop{\sum}_{a=0,1}{{{\mathcal{M}}}}_{a}({\rho }_{n})=\sum_{a=0,1}{M}_{a}{\rho }_{n}{M}_{a}^{{\dagger} },$$

(13)

where ${{{\mathcal{M}}}}_{a}(\cdot )={M}_{a}(\cdot ){M}_{a}^{{\dagger} }$ is a superoperator with the Kraus operator M_a = [U₀ − (−1)^ae^iΔϕU₁]/2 and Δϕ = ϕ₁ − ϕ₂ is the phase difference between the rotation axes of ${R}_{{\phi }_{1}}(\frac{\pi }{2})$ and ${R}_{{\phi }_{2}}(\frac{\pi }{2})$. Then, the natural representation of the channel for the RIM case is

$$\hat{\Phi }={\hat{{{\mathcal{M}}}}}_{0}+{\hat{{{\mathcal{M}}}}}_{1}=({\hat{{{\mathcal{U}}}}}_{0}+{\hat{{{\mathcal{U}}}}}_{1})/2,$$

(14)

where ${\hat{{{\mathcal{M}}}}}_{a}={M}_{a}\otimes {M}_{a}^{*}$ and ${\hat{{{\mathcal{U}}}}}_{\alpha }={U}_{\alpha }\otimes {U}_{\alpha }^{*}$.

It has been proved that the spectrum of the quantum channel induced by RIM is determined by the commutativity of B_n and C_n²³. If [B_n, C_n] = 0, then B_n and C_n can be diagonalized simultaneously

$${B}_{n}=\sum _{k=1}^{d}{b}_{k}| k\left.\right\rangle \left\langle \right.k|,\quad {C}_{n}=\sum _{k=1}^{d}{h}_{k}| k\left.\right\rangle \left\langle \right.k| .$$

(15)

The fixed points are spanned by all the rank-1 projectors ${\{| k\left.\right\rangle \left\langle \right.k| \}}_{k=1}^{d}$. While if [B_n, C_n] ≠ 0, B_n and C_n can only be block diagonalized with a unitary transformation,

$${B}_{n}=W\left({\bigoplus }_{j=1}^{r}{B}_{n,j}\right){W}^{{\dagger} },\quad {C}_{n}=W\left({\bigoplus }_{j=1}^{r}{C}_{n,j}\right){W}^{{\dagger} }$$

(16)

where r (<d) is the number of blocks. Such a block diagonalization partitions the Hilbert space of the bath system into a direct sum of r subspaces ${{\mathcal{H}}}{=\bigoplus }_{j=1}^{r}{{{\mathcal{H}}}}_{j}$. Then it can be proved that the fixed points in this case are spanned by all the projectors ${\{{\Pi }_{j}\}}_{j=1}^{r}$ to the blocks.

Moreover, it has also been demonstrated that when C_n is a perturbation of B_n, i.e., ||C_n||/||B_n|| is small with ||⋅|| denoting the operator norm, the EMSs are approximately the eigenstates of B_n²³.

Model for the NV system

The full Hamiltonian for the system containing the NV electron and the ¹⁴N nuclear spin is

$$H=D{S}_{z}^{2}+{\gamma }_{e}{{\bf{B}}}\cdot {{\bf{S}}}+{{\bf{S}}}\cdot {\mathbb{A}}\cdot {{\bf{I}}}+Q{I}_{z}^{2}+{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}},$$

(17)

where ${\mathbb{A}}$ is the hyperfine interaction tensor, containing only the zz-component A_zzS_zI_z and the transverse component A_⊥(S_xI_x + S_yI_y) for the ¹⁴N nuclear spin. Since the large zero-field splitting of the NV electron spin suppresses the transition between $| {m}_{s}=0\left.\right\rangle$ and $| {m}_{s}=\pm 1\left.\right\rangle$, the Hamiltonian Eq. (17) can be well approximated as a pure-dephasing form in Eq. (1) under the second-order perturbation⁵⁴.

Let ${H}_{0}=D{S}_{z}^{2}-{\gamma }_{e}{B}_{z}{S}_{z}+{S}_{z}{A}_{zz}{I}_{z}+Q{I}_{z}^{2}-{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}}$ and H₁ = −γ_e(B_xS_x + B_yS_y) + A_⊥(S_xI_x + S_yI_y), then H₁ is a perturbation on H₀. The second-order perturbation gives ${\tilde{H}}_{1}={\sum }_{\alpha }{| \alpha \left.\right\rangle }_{e}{\left\langle \right.\alpha | \otimes H}_{n}^{\alpha }$, in which

$${H}_{n}^{\alpha }={P}_{\alpha }^{e}{H}_{1}\frac{1}{{E}_{\alpha }-({{\mathbb{I}}}_{e}-{P}_{\alpha }^{e}){H}_{0}({{\mathbb{I}}}_{e}-{P}_{\alpha }^{e})}{H}_{1}{P}_{\alpha }^{e},$$

(18)

with E_α = Dα² − γ_eB_zα. Specifically, we have

$${H}_{n}^{\alpha }\approx \frac{{\gamma }_{e}(2-3| \alpha | )}{2D}\left[-{\gamma }_{e}\left({B}_{x}^{2}+{B}_{y}^{2}\right)+2{A}_{\perp }\left({B}_{x}{I}_{x}+{B}_{y}{I}_{y}\right)\right].$$

(19)

In the rotating frame associated with ${H}_{R}=D{S}_{z}^{2}+{\gamma }_{e}{B}_{z}{S}_{z}$, the Hamiltonian becomes

$$H ={e}^{i{H}_{R}t}(H-{H}_{R}){e}^{-i{H}_{R}t}\\ ={A}_{zz}{S}_{z}{I}_{z}+Q{I}_{z}^{2}-{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}}+\tilde{{H}_{1}},$$

(20)

which is time-independent since $[{H}_{R},{\tilde{H}}_{1}]=0$ under the second-order perturbation. The above equation can be cast in the form of Eq. (12) with B_n = A_zzI_z and ${C}_{n}=Q{I}_{z}^{2}-{\gamma }_{n}{{\bf{B}}}\cdot {{\bf{I}}}+\tilde{{H}_{1}}$.

When the magnetic field is perfectly aligned along the NV axis, [B_n, C_n] = 0, the fixed points of the channel are ${P}_{\beta }^{n}={| \beta \left.\right\rangle }_{n}\left\langle \right.\beta |$, with β = 0, ±1. But when the magnetic field deviates slightly from the axis, [B_n, C_n] ≠ 0, the channel has only one fixed point, which is the maximum mixed state ${{\mathbb{I}}}_{n}/3=({P}_{1}^{n}+{P}_{0}^{n}+{P}_{-1}^{n})/3$, and two metastable points. The convex combination of the fixed point and the two metastable points spans a two-dimensional MM holding three EMSs, which are approximately ${P}_{\beta }^{n}$. We note that the eigenvalues λ₂ and λ₃ of two metastable points with eigenvalues are usually different (∣λ₂∣ > ∣λ₃∣), which makes it difficult to directly observe the three-peak feature in experiments.

As m is so large that the contribution of one metastable point can be neglected (∣λ₃∣^m → 0), the remaining metastable point, together with the fixed point, span a one-dimensional MM with two EMSs, which can be calculated by Eq. (10). For Fig. 2, numerical calculations show that the two observed EMSs are ${\rho }_{{{\rm{D}}}}={P}_{1}^{n}$ and ${\rho }_{{{\rm{B}}}}=({P}_{0}^{n}+{P}_{-1}^{n})/2$.

Model for the optical readout process

In this section, we model the optical readout process of NV centers at room temperature. In the readout process, we use a green laser to excite the NV electron and collect the emitted photons. The NV electron spin in state ${| \pm 1\left.\right\rangle }_{e}$ has a greater chance to relax to the singlet state (via inter-system crossing), resulting in a lower photon number in the detection window (650–800 nm). This provides a convenient and efficient mechanism to distinguish the NV spin states by the “bright-dark” contrast, corresponding to the ${| 0\left.\right\rangle }_{e}$ and ${| \pm 1\left.\right\rangle }_{e}$ states, respectively.

The optical readout process corresponds to a non-selective projective measurement of the NV electron spin, and can be modeled as a series of Kraus operators ${\{{K}_{n}\}}_{n=0}^{\infty }$. If n photons are collected by the counter, the Kraus operator K_n acting on the NV electron spin is⁵⁵

$${K}_{n}=\sum_{\alpha=0,1}\sqrt{p(n| \alpha )}{P}_{\alpha }^{e},$$

(21)

where ${P}_{\alpha }^{e}$ is projector on subspace α and collected photon numbers obey Poisson distribution $p(n| \alpha )=\frac{1}{n!}{e}^{-{n}_{\alpha }}{n}_{\alpha }^{n}$ with n_α being the average photon number obtained for state ${| \alpha \left.\right\rangle }_{n}$. If n_α is small (about 0.05 in our experiments), truncating to K₀ and K₁ is a good approximation with p(1∣α) = n_α and p(0∣α) = 1 − p(1∣α).

Then, the Kraus operator on the ¹⁴N bath spin when obtaining n photons can be derived as

$${W}_{n}(\rho ) ={{\mbox{Tr}}}_{e}\{{K}_{n}{{\mathcal{P}}}[{R}_{{\phi }_{2}}U{R}_{{\phi }_{1}}({| 0\left.\right\rangle }_{e}\left\langle \right.0| \otimes \rho ){R}_{{\phi }_{1}}^{{\dagger} }{U}^{{\dagger} }{R}_{{\phi }_{2}}^{{\dagger} }]{K}_{n}^{{\dagger} }\}\\ =\sum_{\alpha=0,1}p(n| \alpha ){M}_{\alpha }\rho {M}_{\alpha }^{{\dagger} },$$

(22)

where ${{\mathcal{P}}}(\cdot )={\sum }_{\alpha=0,1}{P}_{\alpha }^{e}(\cdot ){P}_{\alpha }^{e}$ is the channel for non-selective projective measurement of the electron spin, and M_α = [U₀ − (−1)^αe^iΔϕU₁] is the Kraus operator introduced in Eq. (2) for the nuclear spin. Note that

$${\hat{\Phi }}^{{\prime} }=\sum_{n}{\hat{W}}_{n}=\sum_{\alpha=0,1}\sum_{n}p(n| \alpha ){\hat{M}}_{\alpha }=\hat{\Phi },$$

(23)

then the channel with the set of Kraus operators ${\{{W}_{n}\}}_{n=0}^{\infty }$ is the same as that with ${\{{M}_{\alpha }\}}_{\alpha=0,1}$, so the analysis of the channel decomposition in the section above also applies here.

Measurement statistics of sequential RIMs

The fixed points (or metastable points) can be observed by the measurement statistics of sequential RIMs. A single RIM on the probe spin has an outcome a ∈ {0, 1}, and for sequential RIMs we obtain a sequence of binary numbers {a₁, ⋯  , a_m}. This sequence of measurement outcomes defines a quantum trajectory. We then look for some statistical observable that can characterize different quantum trajectories and their corresponding fixed points.

In practice, we often focus on the average of the m measurement results and its expectation, i.e., $\bar{a}=\frac{1}{m}{\sum }_{n=1}^{m}{a}_{n}$, which in our case coincides with the measurement frequency f₁ = m₀/m and can be related to the measurement polarization by X = 1/2 − f₁. The expectation of f₁ can be written as

$$\langle {f}_{1}\rangle=\sum_{{a}_{1}}\cdots \sum_{{a}_{m}}{f}_{1}p({a}_{1},\cdots \,,{a}_{m}| \rho ),$$

(24)

where the probability to get a specific sequence of measurement results {a₁, ⋯  , a_m} is given by

$$p({a}_{1},\cdots \,,{a}_{m}| \rho )=\langle \langle {\mathbb{I}}| {\hat{{{\mathcal{M}}}}}_{{a}_{m}}\cdots {\hat{{{\mathcal{M}}}}}_{{a}_{1}}| \rho \rangle \rangle .$$

(25)

It can be shown that in the asymptotic limit, i.e., when the number of repetitions is large enough m → ∞, 〈f₁〉 is only determined by fixed points²⁴,

$${\mathop{\lim }\limits_{m\to \infty }}\langle {f}_{1}\rangle=\sum _{j=1}^{J}{c}_{j}{\langle {f}_{1j}\rangle }_{*},$$

(26)

where we assume there are J fixed points with

$${\langle { \, f}_{1j}\rangle }_{*}=\langle \langle {\mathbb{I}}| {\hat{{{\mathcal{M}}}}}_{1}| {\rho }_{{{\rm{fix}}}}^{j}\rangle \rangle=p(1| {\rho }_{{{\rm{fix}}}}^{j}),$$

(27)

with ${c}_{j}=\,{\mbox{Tr}}\,({\rho }_{{{\rm{fix}}}}^{j}\rho )$ being the probability of obtaining the j-th fixed point given the initial state ρ. Note that the above equation indicates that the expectation of the measurement average coincides with the probability of obtaining result a = 1 for the fixed point ${\rho }_{{{\rm{fix}}}}^{j}$ in a single RIM,

$$p(a| \rho )=\,{\mbox{Tr}}\,({M}_{a}\rho {M}_{a}^{{\dagger} })=\langle \langle {\mathbb{I}}| {\hat{{{\mathcal{M}}}}}_{a}| \rho \rangle \rangle .$$

(28)

In other words, the distribution of the measured frequency f₁ can have J peaks, centering around the set of expectations ${\{{\langle {f}_{1j}\rangle }_{*}\}}_{j=1}^{J}$. Each peak includes all the trajectories with f₁ close to ${\langle {f}_{1j}\rangle }_{*}$³⁴.

Taking into account the optical readout process, the average photon number corresponding to the jth fixed (metastable) point is

$${\langle {n}_{j}\rangle }_{*} ={\sum}_{n}\langle \langle {\mathbb{I}}| n{\hat{{{\mathcal{W}}}}}_{n}| {\rho }_{{{\rm{fix}}}}^{j}\rangle \rangle \\ ={\sum}_{n,\alpha }np(n| \alpha ){\langle {f}_{\alpha j}\rangle }_{*}$$

(29)

where ${\hat{{{\mathcal{W}}}}}_{n}={W}_{n}\otimes {W}_{n}^{*}={\sum }_{\alpha=0,1}p(n| \alpha ){\hat{{{\mathcal{M}}}}}_{\alpha }$ is the superoperator of W_n in the HS space.
