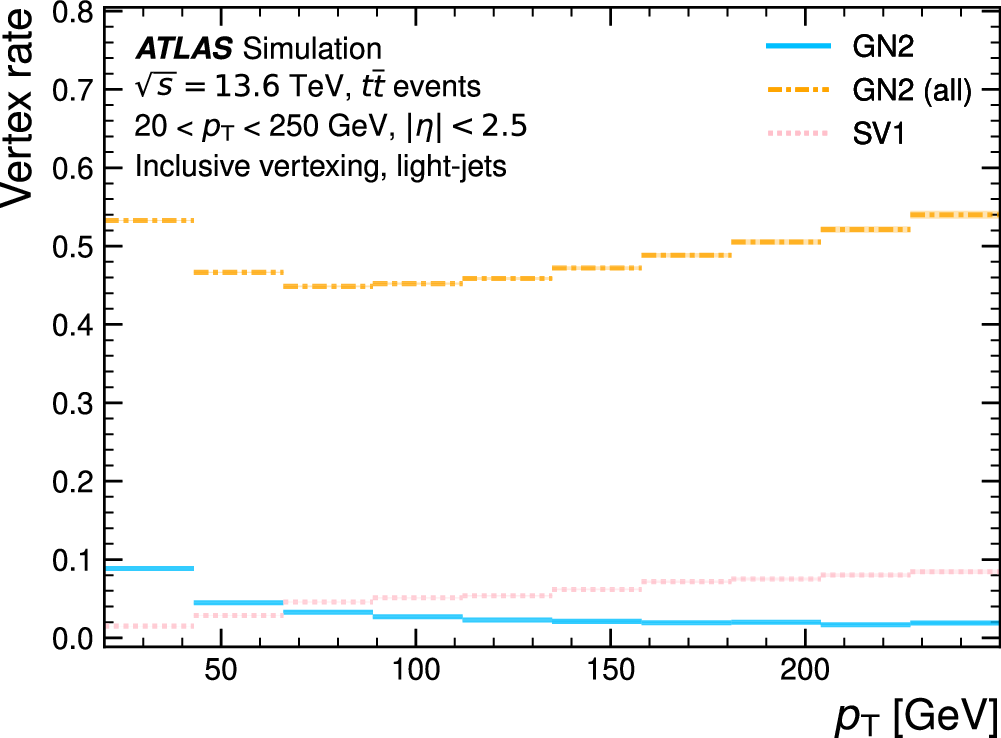

Fig. 6: The rate of inclusive vertices reconstructed by the GN2 algorithm in light-jets as a function of the jet pT, without any selections (dotted-dashed) and with the requirement of the vertex containing at least one track with predicted HF origin (solid).
Results from the SV1 algorithm are added as a reference (dotted). The 68% confidence intervals calculated according to a binomial distribution are indicated by the shaded regions.
