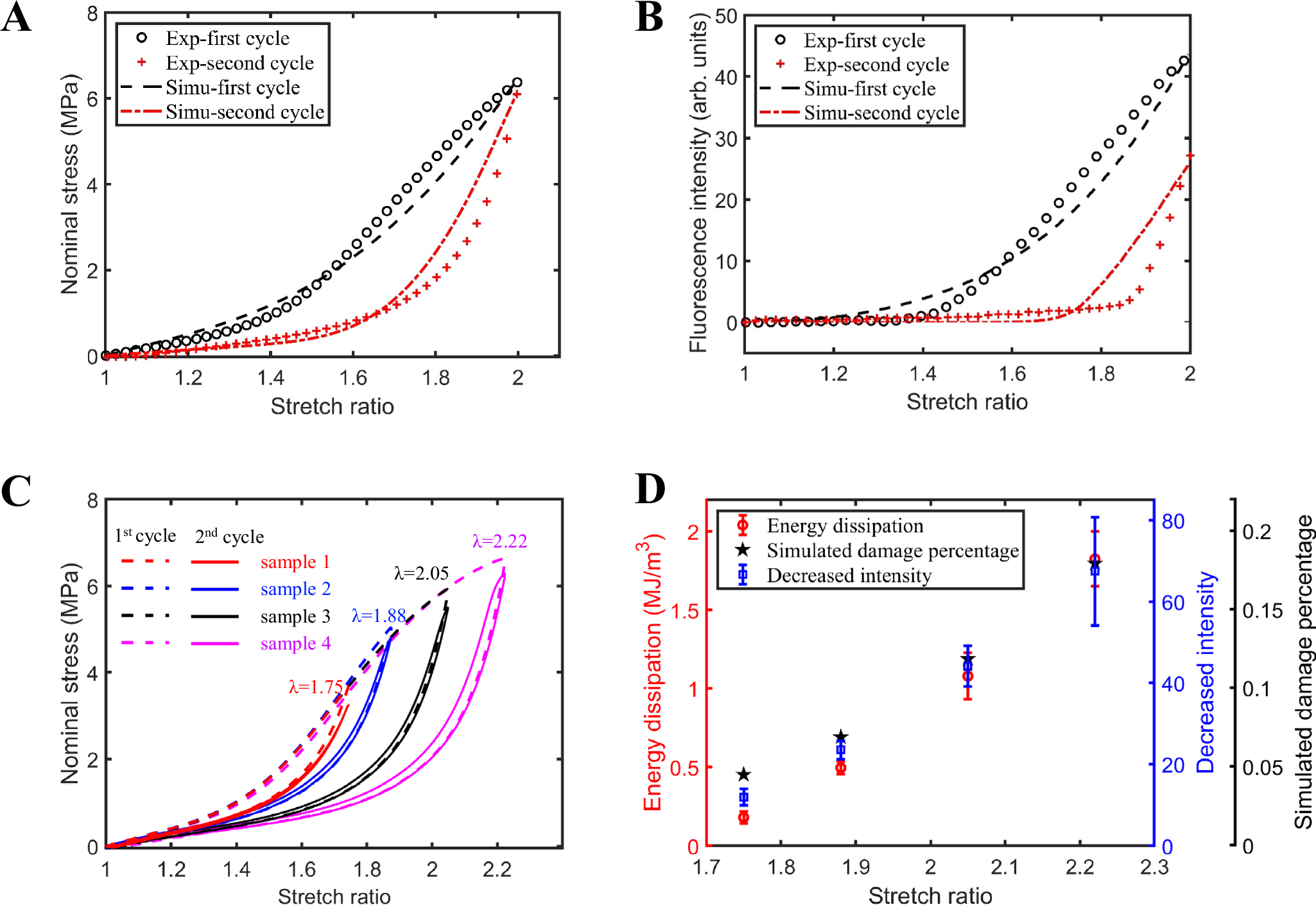

Fig. 4: Comparison of experimental and predicted results.
From: Quantitative stress and damage mapping in multiple network elastomers using a single mechanophore
. A Comparison between the experimentally measured and theoretically predicted stress responses and B the corresponding fluorescence responses for TN elastomers in cyclic tests. C The stress-strain responses of uniaxial cyclic tests for four TN samples with maximum stretch ratios of 1.75, 1.88, 2.05, and 2.22, respectively. D The energy dissipation, decreased intensity, and simulated damage percentage as functions of the stretch ratio for TN samples. Data are presented as mean values +/− SD (n ≥ 3).
