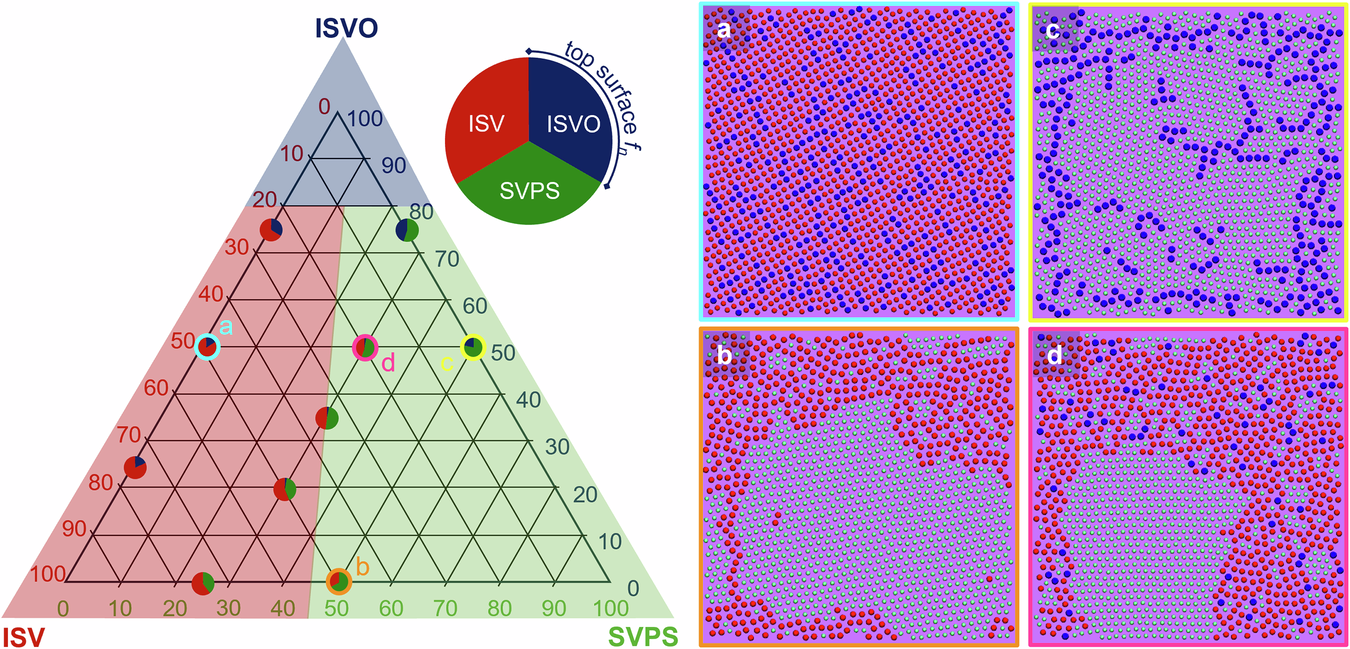

Fig. 6: Non-equilibrium derived experimental ternary BMA surface morphology diagram.
From: Film surface assemblies from chemically distinct block copolymer micelles
Experimental non-equilibrium ISV121-SVPS53-ISVO165 ternary surface morphology diagram of BMA surface compositions (\({f}_{n}\); Supplementary Table 2) following 80 s of evaporation. Each sample is denoted by a two- or three- colored circle, whose position and color reflect the relative solution (wt. %) and surface (number %) compositions, respectively. Surface compositions derived from averages of three separate 2500 × 2500 nm experimental sample regions. Regions of surface morphology diagram shaded to reflect majority surface component. a–d 2D equilibrium Monte Carlo (MC) simulation snapshots whose number fractions correspond to the surface compositions of the experimental samples (as labeled).
