Introduction

Ensuring accurate temperature monitoring in the cold chain is crucial for maintaining the quality and safety of perishable goods1,2,3. As global electronic waste (e-waste) increases at a rapid pace and poses a major challenge, the end-of-life disposal of the current battery-powered data loggers applied to cold chain monitoring and the expanding deployment of radio-frequency identification (RFID) tags contribute to this environmental problem4,5,6,7. These systems, often single-use, contain toxic materials integrated with silicon electronic components, which complicate or even prevent their harmless disposal or recycling8,9,10.

Printed electronics can lead to a more sustainable production by additive manufacturing of low-complexity electronic systems, such as RFID tags, notably by reducing material usage11,12,13. These tags still rely on silicon chips, with some concepts being recently proposed for their detachment, envisioning a more efficient e-waste management, by enabling the proper recuperation or recycling of the different components14. From a sustainability standpoint, efforts have been focused on switching from conventional plastics to renewable and recyclable substrates by using paper15. However, some work remains to be performed on the transducing materials, with conductive silver or copper inks being mainly used to form, by printing, the wireless tags16,17,18,19,20,21.

Towards achieving improved sustainability for such systems, there is a growing trend in implementing eco-friendly biodegradable materials, that can degrade naturally without releasing harmful by-products to further reduce the environmental impact22,23,24,25,26,27,28,29. When applied to printed electronics, the substrates are desired to exhibit a certain tolerance to temperature and limited roughness and hygroscopicity, which is mainly not the case for the biopolymers or resins demonstrated so far, such as polylactic acid (PLA), chitosan, and shellac30,31,32. Cellulose substrates, known for their affordability and widespread availability, are particularly notable for their relatively high temperature tolerance (~ 230 °C) in comparison to many other biopolymers33. However, the dimensions of conventional cellulose fibers and paper-making methods of pressing and dewatering can make cellulose rough and porous, posing challenges when printing and for the stable operation and reliability over time of radio-frequency (RF) systems when exposed to humidity33,34. While finer cellulose materials, e.g., nanocellulose, may help to improve surface roughness, barrier coating or chemical modification, which mostly involve toxic materials such as alkene ketene dimer or alkenyl succinic anhydride, are typically needed to improve humidity stability35,36,37,38. Therefore, it is crucial to develop robust biodegradable substrates for printed electronics and RF applications. One promising approach involves compounding cellulose with hydrophobic biodegradable polymers, such as semicrystalline polycaprolactone with a low melting point of 60 °C39. Some efforts have also been dedicated to designing, by printing, highly electrically conductive degradable metallic films based on zinc suitable for wireless communication. The zinc bioresorbability and degradation mechanisms via electrochemical corrosion, forming biocompatible zinc ions and oxides, make it particularly attractive for transient electronic applications40,41,42,43,44,45,46. The deposition and sintering methods for zinc conductive traces are compatible with biopolymeric and cellulosic-based substrates47,48. However, silicon-based RFID tags made solely of degradable structural and functional materials have not yet been demonstrated.

Passive chipless RLC resonators are emerging as promising alternatives to conventional silicon-based RFID sensors, with most implementations relying on standard printed circuit board materials like copper on FR4 and recent progress involving silver printed on polyethylene terephthalate (PET) or paper49,50,51,52,53,54,55. These devices operate by modulating electromagnetic waves, eliminating the need for silicon integrated circuits and have been used for sensing and identifcation56,57,58. By exploiting phase-changing materials (PCMs), chipless thermal indicators to irreversibly track changes in temperature, operating in the GHz range, can be realized58,59. Covering the RLC tag locally with PCMs like paraffin or bio-based fatty acids, and their spreading once reaching their melting temperature result in a modification of the dielectric and RF properties of the tag, leading to an irreversible shift in its resonance frequency60,61. PCMs offer significant advantages due to their hydrophobic nature and ease of integration into chipless devices for the irreversible detection of temperature exceedance62. While incorporating bio-based PCM materials such as grapeseed or coconut oils, these chipless temperature-responsive devices do not rely on printing technology, utilizing either etched copper or transferred aluminum on non-biodegradable substrates63,64. In summary, a holistic approach for the realization of sustainable tags for comprehensive cold chain temperature-exceedance detection is missing.

In this communication, we leverage solely eco-friendly materials and mass-production compatible additive manufacturing processes to develop sustainable tags for cold chain monitoring. Our approach relies on printing biodegradable materials to produce a wireless PCM-based indicator to irreversibly track temperature. The tag employs a chipless architecture, eliminating the need for silicon electronic chips, using as a transducer an RLC electrical circuit covered by a natural oil that melts at a specific temperature. Zinc conductive ink is printed on a newly degradable substrate made of poly(β-hydroxybutyrate) (PHBH) composited with cellulose, with a beeswax film for oxidation protection. As PCMs, frozen olive, jojoba, and coconut oils integrated over the tag induce irreversible resonance frequency shifts of more than 30 MHz upon melting at 8 °C, 15 °C, and 25 °C, respectively. A cellulose capillary element is introduced, enabling the proper operation of the devices at angles from 0° to 90° by absorbing the melting oil. The device disintegrates in compost over a few weeks, highlighting the potential to avoid electronic waste after its service life. This successful wireless demonstration of irreversible monitoring of temperature at various thresholds using entirely biodegradable materials sets the ground for sustainable thermal indicator solutions applied to smart packaging.

Results

Eco-friendly PHBH-cellulose substrate

The development of robust biodegradable substrates for printing electronics and RF applications demands to achieve a low roughness, good thermal stability, low sensitivity to moisture, and eco-friendly disposal by being recycled or degraded using the established streams. Non-petroleum-based biopolymers with thermal stability above 50 °C are available, such as cellulose, starch, chitosan, polyhydroxyalkanoate (PHA), polylactic acid (PLA), polyglycolide (PGA) and polybutylene succinate (PBS), with only cellulose, starch, chitosan and PHA being home compostable. But cellulose, starch and chitosan are hygroscopic, and water intake could affect device performance and reliability due to mechanical stress or change in dielectric properties.

Our original approach to develop a biodegradable substrate having less sensitivity to moisture relies on compositing poly(3-hydroxybutyrate-co-3-hydroxyhexanoate (PHBH), which is hydrophobic, with cellulose. The latter has the benefits of being more tolerant to temperature, widely available at low cost and having a well-established recycling stream. PHBH is a bacterial synthetized biopolymer from the PHA family with a melting temperature of 130 °C65. Cellulose acts as a rigid filler and, by varying its content, allows tuning of the mechanical properties and the biodegradation rate of the substrate as it will be shown. The PHBH-cellulose composite is produced through melt compounding and reactive extrusion. The reaction happens in a twin-screw extruder, at 175 °C, with a range of cellulose fillers of 0 – 50 wt%. The limit of fiber volume content is determined by the geometry and alignment of the fibers in the polymer66. The production of PHBH with higher cellulose fiber concentrations is not achievable due to tearing of the composite after extrusion when fibers in random orientation exceed approximately 50 wt%. Choosing to blend fibers in the biopolymer allows for a reduction of PHBH material usage for the substrate, currently with low market availability and high cost due to its confidential manufacturing65. After the extrusion, the polymer is pelletized and hot pressed to form 200 μm-thick foils. The substrates produced are flexible and have a low surface roughness, as can be seen in Fig. 1a. Tensile tests performed on PHBH substrates with 0, 20 and 50 wt% cellulose loadings (supplementary Fig. S1) show that the more cellulose fibers, the higher the Young’s modulus and the lower the elongation at break.

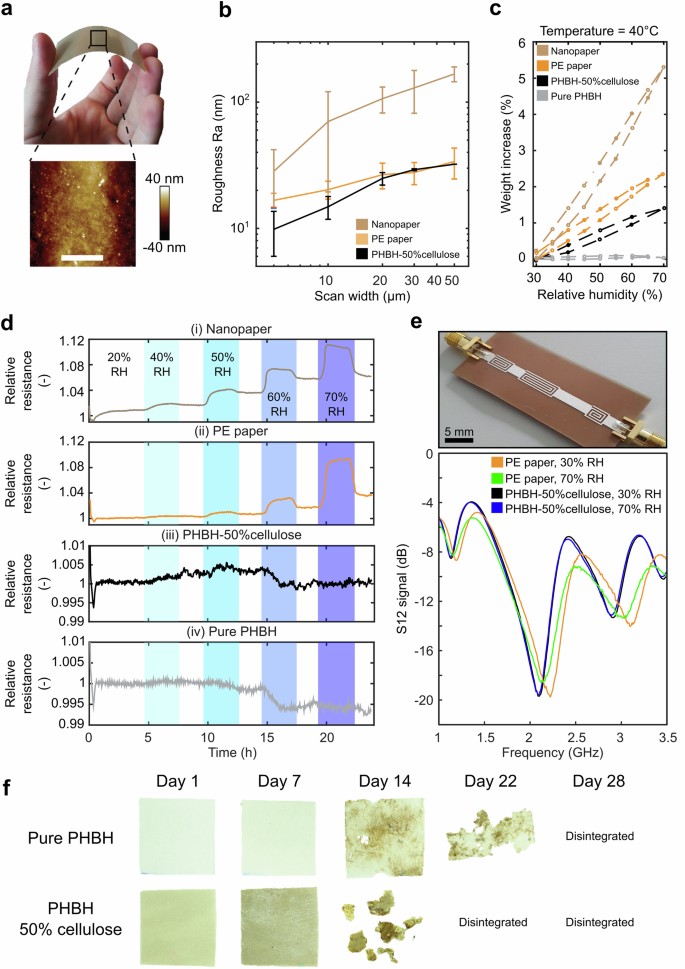

Fig. 1: Properties of the biodegradable PHBH-cellulose substrate.
figure 1

a Photograph of the 200 μm-thick PHBH-50 wt% cellulose composite, demonstrating its flexibility, with an inset showing its surface structure obtained by AFM. b Arithmetic average roughness as a function of the width of the scan area for 200 ± 15 μm-thick substrates of nanopaper, PHBH- 50%cellulose composite and the PE paper, error bars are from AFM. c Dynamic vapor sorption measurements, representing the relative mass variation of the 200 ± 15 μm-thick samples as a function of the relative humidity at 40 °C for nanopaper, PE paper, PHBH-50%cellulose composite and pure PHBH. d The relative resistance variations of the silver-printed traces on the nanopaper, PE paper, PHBH-50%cellulose and pure PHBH substrates when exposed to different levels of relative humidity from 30 to 70% at 25 °C. e Printed silver microstrip line on 200 μm PHBH-50%cellulose and the corresponding S12 signal responses on PHBH-50%cellulose and 230 μm PE paper substrates at relative humidity of 30% and 70% RH and 25 °C. f Optical images over time of the pure PHBH and 50 wt% cellulose-loaded PHBH substrates placed in a custom-made compost (ISO 20200). The initial mass of the PHBH was 160.1 mg, and the mass of the composite was 173.0 mg, with both substrates having the same surface area. The composite was 3.8% thicker than the pure PHBH sample. Compost particles, sticking to the polymer matrix, visible as dark spots on the optical images, prevented the accurate measurement of the weight of the samples and therefore the quantification of the degradation rate.

Full size image

The roughness of the 200 μm-thick PHBH-50%cellulose composite is lower than that of a paper produced from nanofibrillated cellulose (nanopaper) and a commercially available cellulose substrate for printed electronics (PE paper). We compared the roughness using AFM for different scan areas with the resulting arithmetic roughness presented in Fig. 1b. The surface roughness for a scan area of 5 ×5 μm2 is 9.8 ± 3.8 nm, 16.7 ± 2.3 nm and 28.3 ± 13.6 nm, for the PHBH-50%cellulose, PE paper and nanopaper respectively (n = 5), increasing slightly to 32.2 nm, 33.9 ± 9.3 nm, and 130.7 ± 4.0 nm for a scan area of 50 × 50 µm2 (n = 3).

The mass variation of the 200 ± 15 μm-thick substrates as a function of the relative humidity (RH) was also lower for the PHBH-cellulose composite (Fig. 1c), with mass uptakes from 30% to 70% relative humidity at 40 °C being 5.3%, 2.3% and 1.4% for the nanopaper, PE paper and the PHBH-50%cellulose substrate, respectively. This shows that the developed PHBH-cellulose composite is less hygroscopic than the other cellulose-based materials considered and therefore more adapted for RF tag applications.

Cellulose content in the composite acts as nucleating agents, therefore the size of polymer crystals is expected to be smaller in the 50% cellulose composite resulting in a slightly lower melting temperature (129 °C) for the polymer blend compared to pure PHBH (Tg = 131 °C) as can be seen in the heat flow measurements where smaller crystallization and melting peaks are visible (Supplementary Fig. S2a). The trough observed at approximately 50 °C corresponds to the cold exothermic crystallization temperature of PHBH. This crystallization process arises from the alignment of polymer chains, facilitated by the material softening as it surpasses the glass transition temperature. Notably, the troughs and peaks in the thermal analysis are consistent with similar findings reported in other scientific studies on PHBH67,68. Cellulose being stable up to roughly 200 °C, the thermogravimetric analysis shows a temperature stability improvement of 20 °C for the PHBH-50%cellulose composite when compared to the pure PHBH. The cellulose particles help to stabilize the polymer at higher temperatures, and a residue of about 7% is observed for the PHBH-50%cellulose composite (Supplementary Fig. S2b). PHBH-50%cellulose with printed silver tracks can withstand usual sintering temperatures used for printed metallic inks, with bubbles starting to appear on the surface of the composite after exposure at temperatures higher than 140 °C for 30 min. Following annealing above 140 °C, the substrate loses most of its mechanical strength and becomes too soft to be properly manipulated, leading to the breaking of the silver resistors (Supplementary Fig. S3).

To evaluate the influence of the water vapor sorption properties of the composite on the electrical stability of printed metallic films, we measured the electrical conductivity of silver traces screen-printed on a 200 μm-thick PHBH-cellulose substrate when successively exposed to various step variations in relative humidity, from 30 to 70% RH, at constant temperature. The results and their comparison with pure PHBH, nanopaper and PE paper are shown in Fig. 1d. The PHBH-cellulose provided a much higher stability for the metallic traces with a negligible effect of the humidity on their electrical resistance, i.e., <0.5%, and this for the whole humidity range tested, as opposed to the nanopaper and PE paper cellulose substrates for which a drift was observed. The change of resistance as a function of the humidity is negligible from 30% to 50% relative humidity for the PE paper and slightly increases by 1–2% for the nanopaper, but reaches up to 9–10% at 70% RH for both, when compared to 30% RH.

The lower moisture absorption of the PHBH-cellulose substrate results in a more stable RF signal transmission with varying ambient relative humidity compared to the PE paper (Fig. 1e). Using a silver microstrip line printed on both the PHBH-cellulose and PE paper substrates, we investigated the effect of relative humidity at 25 °C on the RF S12 signal at ultra-high frequency from 1 GHz to 4 GHz48. Only a small change of 5 MHz in resonance frequency ( < 0.3% variation in resonance frequency) for the printed resonators on PHBH-50% cellulose is observed for a change in relative humidity from 30% to 70% RH, which is twenty-two times smaller than the 110 MHz shift measured for the PE paper.

Finally, the 200 μm-thick PHBH-50% cellulose can be disintegrated in a lab-made compost environment following ISO 20200 for the disintegration of plastic materials in simulated composting conditions. The composite readily disintegrates in 3 weeks, faster than the pure PHBH, which decomposed after 4 weeks (Fig. 1f). The decomposition of the PHBH substrate was therefore facilitated when compounding with cellulose. This property could be used to tune the disintegration rate by adapting the cellulose content according to the end-of-life degradation scenario envisioned in practice69.

Overall, the eco-friendly PHBH-50% cellulose composite offers a reduction in PHBH usage, minimizing material cost, while improving degradability and provides thermal and moisture-resistive properties adequate for printed electronics.

Chipless tag design and test setup

This chipless temperature-responsive tag made exclusively of biodegradable materials is conceptualized to be attached to packaging in order to irreversibly monitor breaks in the cold chain (Fig. 2a). The device is shaped like a coin of 22 mm in diameter with the metallic RLC circuit printed on a PHBH-50%cellulose substrate 304 ± 57 μm-thick (n = 16). The thickness of the PHBH composite have been chosen to prevent undesired warping that could negatively impact the response of the tag when interfaced with a microwave reader antenna operating in the near-field. The RLC resonator consists of interdigitated electrodes (IDEs) as a capacitor confined by a conductive line shaped in the word “GREEN” as an inductor and resistors. The IDE design has been optimized for robustness towards the screen-printing process while minimizing the signal interference of various packaging materials onto which the tag could be attached70. The IDE is made of 4 pairs of interdigitated electrodes with a linewidth of 500 μm and a gap size of 300 μm for an overall footprint of 6 × 8 mm2. The irreversible response mechanism is based on the phase transition of a frozen phase-change material (PCM) above its threshold temperature \({T}_{{th}}\). Upon melting, the spreading of the dielectric liquid over the IDEs area will result in an increase in the RF losses, thus leading to a reduction of the resonance frequency of the tag (Fig. 2b). An exploded view of the tag with the stack of the biodegradable materials involved and their thickness can be seen in Fig. 2c.

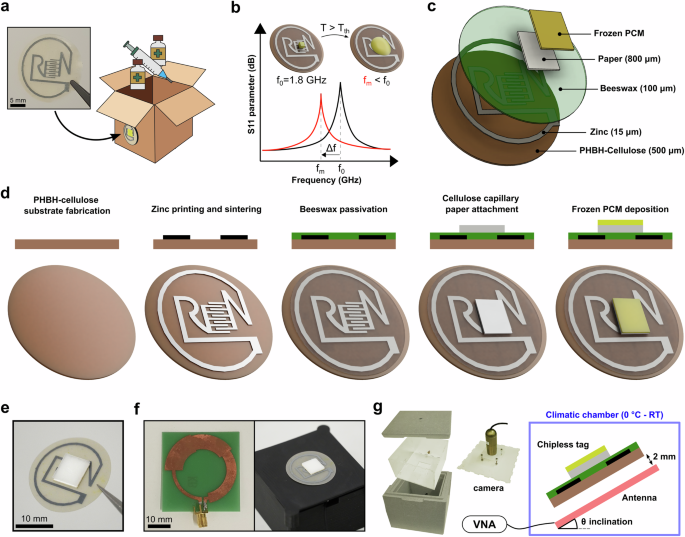

Fig. 2: Eco-friendly chipless temperature-responsive tag concept, fabrication and testing setup.
figure 2

a Image of the chipless tag and schematic of the monitoring concept for smart packaging application. b Schematic of the operation principle based on a chipless tag with pristine and melted PCM resulting in a resonance shift towards lower frequencies. c Exploded view of the multi-layered biodegradable tag and material thicknesses. d Cross-section view and 3D representation of the manufacturing process flow. e Optical image of the completed chipless tag before use. f Optical images of the reader antenna and chipless tag with PCM positioned over the antenna with a 2 mm spacer. g Climatic setup with a cold chamber and a camera, and a schematic showing the tag placed over the reader antenna inside the chamber at an inclination angle θ.

Full size image

The cross-section of the devices is depicted in Fig. 2d for each step of the fabrication process with its corresponding 3D schematic. The zinc ink is screen printed over the 300 μm-thick substrate and sintered using a hybrid chemical and photonic flash sintering method shown to reach a very high electrical conductivity for a printed zinc layer47,71. The PHBH-cellulose polymer composite withstood the 10% acetic acid treatment used to dissolve the thin oxide layer covering the zinc particles. The same level of photonic energy (i.e., approximately 5 J/cm2) from the multi-pulse exposure could be delivered as reported for printed zinc on paper substrate, but distributed over one more pulse (i.e., 3 instead of 2) to lower the temperature reached at the surface of the PHBH composite71. As seen in supplementary Fig. S4 a substrate of 300 μm in thickness was preferred over 200 μm to prevent any warping of the tag due to the photonic sintering step. The RF tag, with its 100 μm-thick hydrophobic beeswax encapsulation added to protect the 15 μm-thick biodegradable zinc layer from oxidation, is visible in Fig. 2a. The pristine tag after encapsulation can be fabricated in a repeatable way with an average resonance frequency of 1.825 ± 0.029 GHz (n = 7). The pristine tag with and without beeswax was bent over various radii of curvature, as seen in supplementary Fig. S5, and can withstand a radius of curvature down to 10 mm with little impact (3 MHz shift) on the frequency of resonance after bending (Supplementary Fig. S6). Despite the tag not being intended to be flexible, it maintained a detectable resonance frequency after bending over 100 cycles at a radius of curvature of 15 mm, with an observed shift in resonance of 4 MHz (Supplementary Fig. S7). A 10 mm radius of curvature leads to failure after 100 cycles with a loss of the frequency of resonance and a shift in resonance of 15 MHz after 80 cycles. In both cases, the signal amplitude got reduced over time due to the deterioration of the zinc conductive trace and creasing of the PHBH substrate. Furthermore, after 1 year at ambient conditions, the frequency of resonance of the pristine encapsulated tag drifted by only 4 MHz (Supplementary Fig. S8). While the signal amplitude got reduced after 1 year, allegedly due to the slight oxidation of the zinc trace, the aged tag remained functional, and the accurate melting of a PCM for temperature exceedance was able to be detected. These results indicate that the beeswax-encapsulated tag can maintain radio-frequency functionality over an extended period, despite being composed of degradable materials. To allow wireless operation at different inclinations by absorbing the melted PCM through capillary effects, as will be shown, the final version of the chipless thermal-responsive device also includes an extra 800 μm-thick cellulose absorbent fixed over the IDEs using an eco-friendly polyvinyl alcohol-based glue. Ultimately, olive, jojoba or coconut oils, melting respectively at 8, 15 and 25 °C and used as PCMs, are casted into molds to form frozen oil slabs placed over the paper well. Once fabricated, the devices are stored in a fridge, below the melting temperature of the PCM, until usage.

For RF wireless probing, the chipless tag with PCM is placed over a microwave near-field reader antenna operating between 1 GHz and 6 GHz, at a constant distance of 2 mm using a spacer (Fig. 2f). The custom-made climatic chamber setup, non-metallic to prevent RF interference, used to monitor the response of the tag as function of temperature is shown in Fig. 2g. Simulation of the tag and antenna gain, and 3D pattern indicate stable directional performance across the frequency range, making the antenna suitable for the chosen application (Supplementary Figs. S9, S10). The theoretical visualization of the tag and antenna shows that they remained coupled at 5 mm distance, with a decoupling occurring at 20 mm (Supplementary Fig. S11). The S11 parameters of the antenna and the tag are measured using a vector network analyzer (VNA), and the reader antenna with the tag can be oriented at an inclination angle θ of 0° up to 90° to simulate the orientation of the package and investigate the effect of gravity. The tag and reader antenna are positioned in the climatic chamber cooled using icepacks, and the RF signal is recorded right after exposure to room temperature with a camera to track the physical state evolution over time of the PCM as temperature varies.

Chipless tag response when coated with the phase change material

To validate the PCM melting mechanism and find the optimal volume of oil required to achieve the largest frequency shift \(\Delta f\) after exceeding \({T}_{{th}}\), various amounts of frozen oil were placed over the chipless tag positioned in a flat position (θ = 0°) over the reader antenna. Allowing for simpler testing at room temperature, frozen coconut oil liquefying at 25 °C is used as PCM. Frozen cubes of coconut oil with a square base area ranging from 2 × 2 to 7 × 7 mm2 for a height of 2 or 4 mm are centered over the IDE to analyse the effects of the initial coverage and volume of PCM on the S11 response after melting (Fig. 3a). As the temperature increases, the resonance frequency of the tag shifts as the PCM melts over the IDE due to the induced changes in the dielectric \(({\varepsilon }_{{coconut}}\approx 3)\) properties and RF losses, as can be seen on the S11 response of the tag with a 4 x 4 x 4 mm3 coconut oil cube presented in Fig. 3b. This melting of 64 μL of oil leads to an irreversible resonance frequency shift of more than \(\varDelta f=\,30{MHz}\) from \(f=1.825{GHz}\) at 24 °C down to \({f}_{m}=1.785{GHz}\) after exceeding 25 °C (Fig. 3c). A camera recording showing the evolution of the S11 response of the tag as the PCM melts following an increase in temperature is available in Supplementary Movie 1.

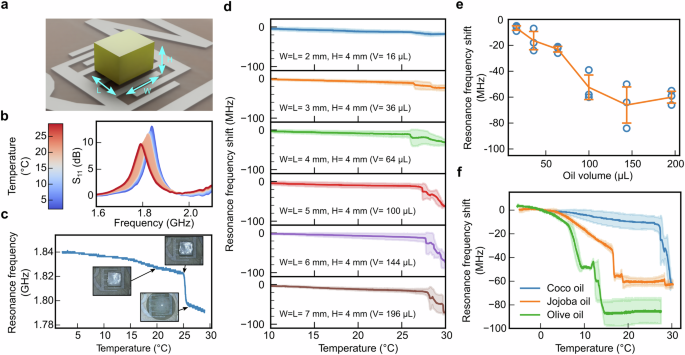

Fig. 3: Response after exceeding Tth of the chipless tag when coated with the PCM.
figure 3

a Width W, length L and height H of the PCM cube placed over the IDE without a paper capillary element. b S11 response of the tag as temperature increases from 3 °C to 27 °C using a 4 x 4 x 4 mm3 coconut oil cube. c Resonance frequency change of the chipless tag as a function of temperature for the 4 x 4 x 4 mm3 coconut oil cube and optical images showing the progressive melting of the PCM. d Evaluating the effects of the frozen coconut oil cube size on the frequency shift after melting (n = 3). e Resonance frequency shift of the tag after coconut oil melting as a function of volume (n = 3). f Validating various threshold temperatures using 6 x 6 x 4 mm3 = 144 μL oil cubes of olive oil, jojoba oil and coconut oil (n = 3).

Full size image

The best coverage and volume of frozen oil over the IDE to reach an optimal response is analysed using different chipless tags samples (n = 3 for each combination of PCM base area and height tested) (Fig. 3d). A volume of oil of 144 μL, corresponding to a 6 x 6 x 4 mm3 frozen coconut oil cube centered over the IDE, provides the best response by leading to a resonance frequency shift of \(65\,\pm \,14{MHz}\), while increasing the amount of oil further does not improve further the response (Fig. 3e). Decreasing the height of the PCM, to use less material and lower the device topography, leads to smaller shifts in resonance frequency (Supplementary Fig. S12) Finally, for the same optimal volume of the PCM material, by either using jojoba or olive oils to target lower threshold temperatures of 15 °C and 8 °C, respectively, the responses of the chipless tags were of \(27\,\pm \,4{MHz}\) and \(41\,\pm \,2{MHz}\) once exceeding the melting temperature of the respective PCMs (n = 3). These different frequency shifts observed are attributed to how the oil is melting based on its fatty acid composition and how it spreads over the beeswax, related to their surface energies and the viscosity of the PCM. A secondary unexpected frequency drop occurred for olive oil once already melted. After exceeding its threshold temperature of 8 °C, leading to the frequency drop of 41 MHz, the liquid olive oil continues to spread out over time, and at around 12 °C, seeps between the tag and the reader antenna, increasing the change in frequency to \(82\pm \,15{MHz}\), as seen on the supplementary Fig. S13. By confining the melted oil over a specific area using a circular plastic well, the induced frequency shift after transitioning of the PCM was found to be similar for all three oils, with an average frequency of resonance shift of \(34.4\pm \,2.8{MHz},\,36.5\pm \,5.3{MHz}\) and \(31.1\pm \,4.4{MHz}\) (n = 3) for olive, jojoba and coconut oil, respectively (supplementary Fig. S14). Therefore, the oil spread, impacted by the time-temperature nature of PCM transition and its interaction with the tag material, here beeswax, requires to be controlled.

Counteracting the effects of gravity with an absorbent

The low absorbance of melted PCM by the PHBH substrate decreases measurement stability due to a gravity driven spread of the PCM resulting in a resonance shift depending on the inclination of the tag (Fig. 4a). To maintain high sensitivity after PCM melting at various tag inclination angles and prevent oil leaks over the packaged product, the tag is therefore equipped with a capillary cellulose absorbent placed under the frozen oil, aligned with the interdigitated electrodes of the RLC transducing layer. The cellulose capillary element was selected between 4 types of 100% cellulose Whatman filters. The one with the highest absorption capacity per area (0.54 μL/mm2) is considered to minimize its footprint (supplementary Fig. S15). The optimal dimension of this 800 μm-thick paper absorbent is selected by varying its coverage area over the IDE and considering the largest frequency shift induced between a dry and oil-saturated paper element. The largest resonance frequency shift for a coconut oil-saturated paper of \(40\,\pm \,8{MHz}\) is obtained for a 9 x 10 mm2 cellulose absorbent capable of retaining approximately 50 μL of melted oil (n = 3) (Fig. 4b). Increasing the area of the saturated paper element above 9 x 10 mm2, and thus the total amount of oil possibly absorbed, had no further effect on the resonance shift as the oil is distributed further away from the IDE area. Using a more porous cellulosic capillary absorbent could enable larger amounts of oil to be used and confined over the IDE to obtain a larger shift of 65 MHz as seen previously with the 144 μL oil cube. For a substrate about 300 μm-thick, adding the paper element with this smaller volume of 50 μL of frozen oil leads to a reduction of the thickness of the PCM to 550 μm, compared to 4 mm for the 144 μL oil cube, resulting in an important reduction of the profile of the tag.

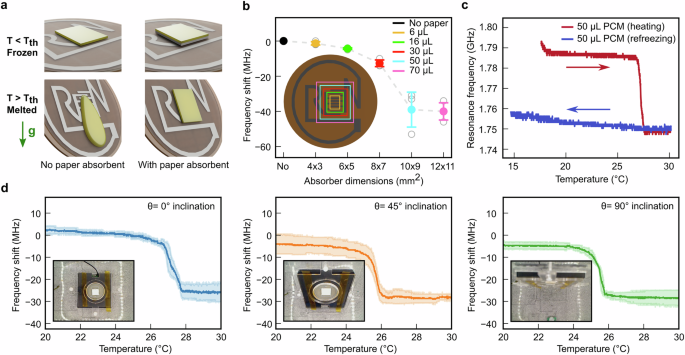

Fig. 4: Irreversible response of the chipless tag by counteracting the effects of gravity using a capillary paper absorbent.
figure 4

a Schematic representing the effects of gravity on the melting PCM with and without paper absorbent underneath. b Resonance frequency shift of the tag obtained by saturating with liquid coconut oil a paper absorbent of various sizes over the IDE area (n = 3). c Resonance frequency change of the chipless tag as a function of temperature during melting and refreezing of a frozen 50 μL coconut oil element placed over a 10 × 9 mm2 paper absorbent (Arrows indicate the evolution in temperature). d Resonance frequency shift of the tag with 50 μL of coconut oil placed over the paper absorbent as a function of temperature at 0°, 45° and 90° inclinations (n = 3).

Full size image

The chipless tag with the capillary paper and frozen oil slab placed over the IDE has a smaller pristine resonance frequency of \({f}_{0}=\,1.79{GHz}\) (Fig. 4c) due to increasing RF losses resulting from the paper element placed over the chipless tag. After exposure to rising temperatures, the resonance frequency of the tag drops by \(\varDelta f=35{MHz}\) to \({f}_{m}=1.75{GHz}\) after exceeding the coconut oil melting temperature of 25 °C. No further reduction in resonance is detected despite increasing the temperature to 30 °C, as the oil remains trapped inside the paper element thanks to capillary effects, and the shifted resonance frequency state is maintained despite refreezing the tag below the PCM melting point. The environmental parameters for testing were reproducible, as shown by the small standard deviation in the recorded temperature and relative humidity during the experiments presented in supplementary Fig. S16. After exceeding the temperature threshold, the tag with coconut oil and paper element displays irreversible shifts in frequency of resonance very similar for tilting angles varying from 0 to 90°. The shift recorded were of \(\varDelta f=30\,\pm \,5{MHz},\,29\,\pm \,4{MHz}\) and \(28\,\pm \,3{MHz}\) at 0°, 45° and 90° inclination (n = 3), respectively, showing that the retention of oil counteracts the negative effect of gravity (Fig. 4d). The largest standard deviation in the frequency shift after melting for the different inclinations was measured to be only 15% of the total response. The variability in the response is suspected to be due to manual fabrication of the tag, more precisely, the PHBH-cellulose substrate batch fabrication, its thickness, the printing of the zinc and the beeswax encapsulation. The variability in the response can also be due to the way the PCM melts and saturates the paper absorbent. The standard deviation is expected to decrease by integrating process automation in the manufacturing of the chipless tag. The time-temperature response of the tag containing coconut oil was also analysed under sudden exposure to 30 °C, simulating a rapid cold chain disruption (Supplementary Fig. S17). The response time of the tag depends on its initial temperature. A tag starting at −10 °C requires 140 s to show the first signs of a frequency shift, while a tag starting at 20 °C responds within just 10 s to a 30 °C exposure. Once the melting was initiated, the tag took 80 s to reach its final state. The system is therefore fast enough to detect a temperature breach before safety thresholds are exceeded72,73,74. If finer time-dependence is required, PCM and absorbent materials can be adjusted accordingly.

Ultimately, to miniaturize the reading VNA apparatus into a portable and affordable solution, a custom-made reading setup was developed to wirelessly detect the various states of the PCM-coated tag (Supplementary Fig. S18). Using principal component analysis (PCA), the portable reader can differentiate tags before and after melting of the PCM material and transfer the information to a smartphone over Wi-Fi. Furthermore, any potential impact due to the variability of the response after melting, measured to be at most 5 MHz or 15% of the total response, could be corrected by the PCA algorithm. A demonstration movie of the real-time identification of tags for three configurations (without PCM, with frozen PCM over paper and with melted PCM absorbed in the paper) is available in Supplementary Movie 2.

Degradation of the chipless printed tag

The eco-friendly printed zinc on PHBH-50% cellulose resonating tag encapsulated with beeswax degrades in a lab-made compost environment in less than 2 months (Fig. 5). Following ISO 20200, the 15 μm-thick printed zinc making the RLC circuit is already affected by week 1. The substrate is starting to break apart in week 3, with the 100 μm-thick beeswax encapsulation disappearing one week later. After 9 weeks, the originally 375 μm-thick PHBH composite is disintegrated into multiple pieces. Reducing the thickness of the substrate would be a way to speed up the degradation of the substrate, as shown in the Fig. 1f for the 200 μm-thick composite foil.

Fig. 5: Degradation of the eco-friendly chipless tag.
figure 5

Optical images of the printed chipless tag degrading over time in a simulated compost environment according to ISO 20200, with the various pieces composing the tag recombined for the optical image.

Full size image

Discussion

In summary, we demonstrate that a chipless temperature-responsive tag for wireless cold chain monitoring can be made solely using biodegradable materials. This innovation ensures reliable performance while promoting environmental sustainability.

We showed the applicability of PHBH-cellulose as a robust, eco-friendly substrate for printed electronics and RF applications, and that the printed zinc RLC circuit on PHBH composite, encapsulated with beeswax, disintegrated in a lab-made compost environment in less than 3 months. The combination of harmless bio-based fatty acids, a cellulose absorbent to counteract gravity, and the chipless architecture of the tag enabled the wireless and irreversible detection of temperature thresholds. Other fatty acids, tuned with salts or combinations of thereof, can be envisioned to monitor different threshold temperatures of interest62. The current version of the tag serves as a first-line indicator for cold chain breaches. It does not provide continuous monitoring, but instead offers a simple, one-time alert that can help identify if and where in the logistics chain a temperature exceedance took place. This initial indication can prompt further investigation to assess whether the goods were affected and to determine the cause of the breach. A new chipless tag can then be applied for further monitoring during the remainder of the transport. For applications requiring precise time–temperature tracking or more complex response behavior, the system could be redesigned with tailored PCMs with specific thermal profiles. The protection of the tag and its attachment to packaging remains to be tackled. The tag could be integrated with eco-friendly adhesives and a cover to prevent the deterioration of the temperature-sensitive PCM, but still allowing its spread when melting. Table 1 below provides a comprehensive comparison of chipless resonators designed for detecting the exceedance of specific temperature thresholds. The comparison includes key parameters such as fabrication method, substrate and conductor materials, sensing mechanism, temperature thresholds, frequency shifts, and eco-friendliness. Notably, this work is the only fully degradable in compost, chipless thermal indicator reported to date for irreversible detection of temperature thresholds. Unlike other systems, which are either partially eco-friendly or do not report long-term stability and variability of the response, the proposed chipless tag combines sustainability, reproducibility, and operational reliability. The use of biodegradable substrate made of PHBH-cellulose, degradable printed zinc and natural oils, along with the stability of the frequency shift and reproducibility of results, positions this work as a significant advancement over the current state-of-the-art.

Table 1 Summary of chipless resonators used for temperature-threshold excursion detection
Full size table

This system is designed for applications in the perishable goods supply chain as a simple one-time indicator of temperature-exceedance in the cold chain. Our sustainable approach provides low-cost, chip- and battery-free deployment at scale in comparison to conventional solutions that offer continuous monitoring and data logging but require embedded power supply and more consequent integration. Moreover, looking specifically at active and passive RFID devices, our chipless design removes the need for silicon-based circuitry, reducing both cost and environmental impact, and making it better suited for disposable and high-volume applications. Compared to colorimetric indicators, it offers desired performance for a similar cost and easy integration in packaging while avoiding optical sighting issues like subjective interpretation.

In terms of system implementation, having an array of such chipless tag elements with bio-based PCMs tuned for different melting temperatures could enable multi-threshold detection in an all-in-one solution. As presented in the manuscript, the interrogation range of less than 20 mm currently limits the realistic simultaneous detection of multiple tags. For that matter, the antenna footprint or emitted power would have to be increased. According to the application scenario, it would be of interest to implement identification and extend the read-out range for a simpler tracking of the products, which would demand to modify the chipless tag design. Notably, a chipless L-slot design, which passively encodes binary identification, could be incorporated in the array to provide a unique long-range identification of the products in the supply chain75. Finally, while most reader antennas for chipless technology still need to be connected to a bulky and expensive VNA76, our custom-developed reader offers a cost-effective alternative to traditional laboratory equipment, with a total cost comparable to a mid-range smartphone (under $400). The integrated nanoVNA, which facilitates S-parameter readout, is priced at approximately $200, while the Beaglebone used to run the Python PCA script costs less than $100, at the time of writing. Importantly, the reader has been designed to enhance accessibility and practicality, incorporating embedded Wi-Fi functionality that allows seamless interaction with smartphones, which are widely used in logistics and smart packaging applications. This functionality, demonstrated in the accompanying Supplementary Movie 2, highlights the potential for real-world implementation. Nevertheless, further development of alternative, cost-effective readout systems for long-range communication, leveraging advanced signal processing to mitigate environmental interference, remains an important future direction.
