Fig. 5: HOR durability.

From: Exploring a bimetallic catalyst family for hydrogen oxidation with insights into superior activity and durability

Fig. 5

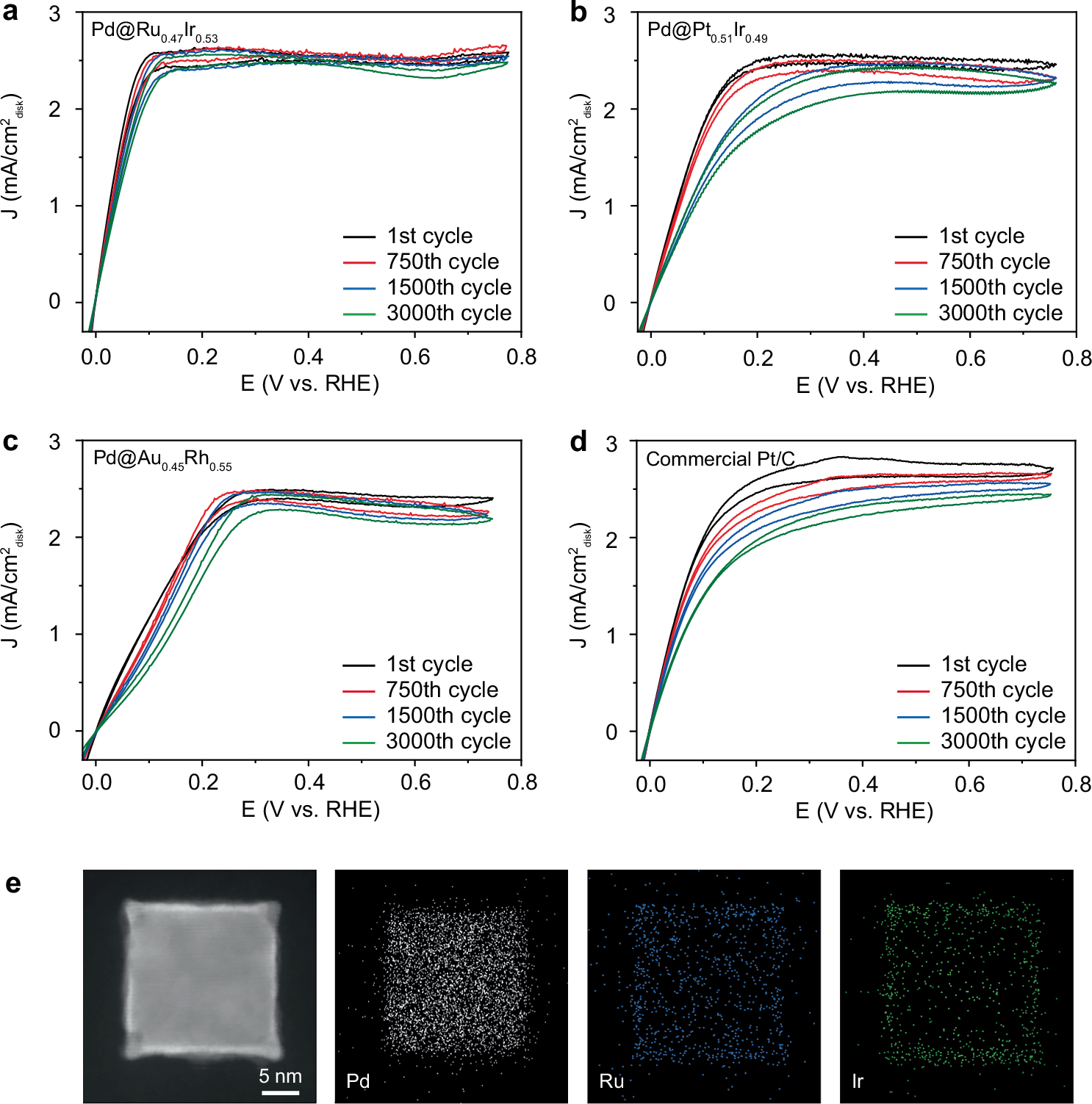

CV curves in H2-saturated 0.1 M KOH and rotating speed of 1600 rpm of a Pd@Ru0.47Ir0.53, b Pd@Pt0.51Ir0.49, c Pd@Au0.45Rh0.55 core-shell nanocubes, d Commercial Pt/C at 1st, 750th, 1500th, and 3000th cycles. e HAADF-STEM and EDS-mapping analysis of Pd@Ru0.47Ir0.53 core-shell nanocubes after 3000 CV cycles. These data are obtained with no iR correction. Source data for this Figure are provided as a Source Data file.
