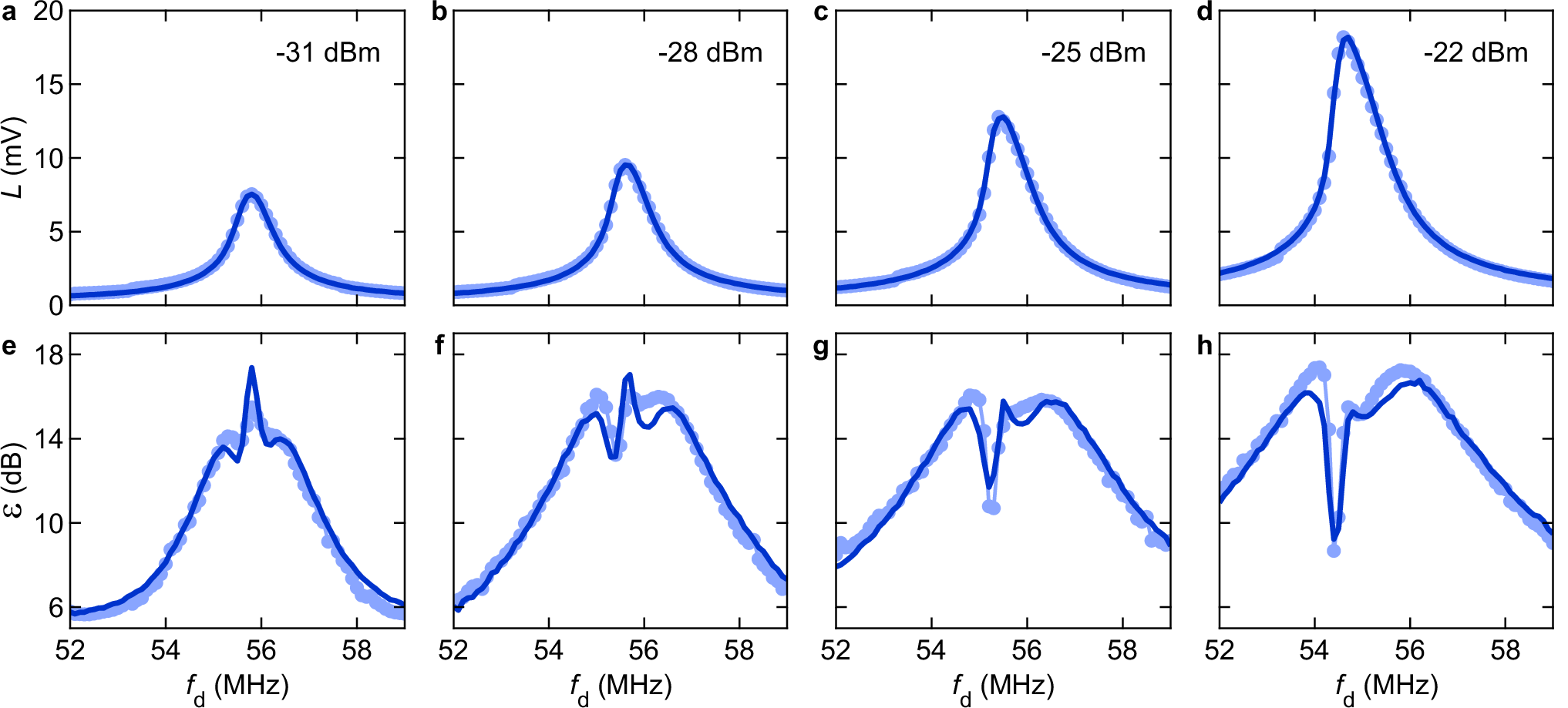

Fig. 2: Nanomechanical response to a drive modulated with a video signal at a symbol rate Rsym = 0.5 × 106 Hz.
From: A few-layer graphene nanomechanical resonator driven by multifrequency digital signals
