Introduction

Nanomechanical resonators enable the study of mesoscopic vibrations within individual systems that can be tuned and controlled1,2,3,4. Owing to their small masses, they transduce weak driving forces near resonance into vibrations of sizeable amplitude. Their frequency response resembles that of resonant tuning circuits in analogue radio receivers, with the force acting as the driving voltage and the mechanical displacement acting as the circuit charge. Just as the resonant frequency of an electrical circuit can be tuned using a variable capacitor or inductor, the resonant frequencies of the mechanical response, which are the frequencies of the vibrational modes, can be adjusted in situ using capacitive5,6 and dielectric forces7, or by straining the resonator either mechanically8 or through its thermal expansion9,10. As in the electrical case, the frequency bandwidth of the mechanical response is governed by both dissipation and resonant frequency fluctuations3. A narrower electrical response enhances frequency selectivity, while a narrower mechanical response facilitates the sensing of smaller driving forces. A broader response can also be advantageous. For instance, a wide-bandwidth tuning circuit is required to isolate a modulated radio signal and capture its full spectral content while filtering out signals in adjacent bands. Similarly, nanomechanical resonators with a large bandwidth Wm can respond to nearly resonant forces whose broad spectra are contained within the mechanical response11,12,13,14. Such large-bandwidth resonators also enable the study of resonant frequency fluctuations induced far below resonance by fluctuators with correlation times as short as 1/Wm15,16,17,18,19,20. In essence, nanomechanical resonators function as tunable bandpass filters for nearly resonant forces and as detectors for nonresonant fluctuators.

While the nanomechanical response to broadband force noise and low-frequency fluctuators has been thoroughly studied, the response to multifrequency coherent drives has received comparatively less attention. In many cases where multifrequency signals are applied, only a single frequency component is used to measure the response, while the other components serve different purposes. For example, amplitude-modulated6,21,22 and frequency-modulated signals23 have been employed to drive the resonator at the single frequency of the carrier, with the modulation sidebands used to detect the vibrations. Two-tone signals, consisting of one tone near resonance and a second tone outside the response, have been employed to explore various vibrational phenomena. Examples abound and include pump-probe spectroscopy for measuring intermode coupling24, parametrically induced mode coupling, used to heat or cool vibrations25,26,27,28 and to engineer nonlinear friction29, and symmetry-breaking parametric resonators for binary information encoding30,31,32. By contrast, applications involving multifrequency signals where the entire spectrum directly drives vibrations remain relatively limited. Two-tone drives have been used to demonstrate signal mixing with nonlinear nanomechanical resonators33,34. The interplay between a near-resonant two-tone drive and parametric pumping has enabled the realization of mechanical logic gates35. A combination of strong and weak near-resonant tones has been shown to squeeze thermomechanical noise36. Resonators driven nonlinearly by two strong tones near resonance have exhibited unconventional dynamics, where the beating between the tones acts as a slow modulation of the bifurcation points37,38. Overall, studying nanomechanical resonators driven by multifrequency signals sheds light on the physics of mesoscopic vibrations and leads to proof-of-concept demonstrations for potential applications.

Appealing demonstrations of the physics of multifrequency vibrations are provided by nanomechanical radio receivers and transmitters for frequency modulated (FM) signals39,40. Nanomechanical FM receivers have been realized using suspended nanotubes23,41,42,43 and nanomachined silicon tuning forks44. The FM voltage waveform is capacitively coupled to the receiving resonator, creating a modulated driving force that the resonator passively responds to. By contrast, nanomechanical FM transmitters output a modulated radio-frequency signal. These have been demonstrated using suspended graphene45 and nanomachined polysilicon disks46,47. In these devices, the vibrating element forms part of an electrical positive feedback loop that sustains self-oscillations. The oscillation frequency is modulated by a stream of low-frequency voltage pulses or by an audio waveform, which induces a slowly varying capacitive force between the oscillator and a nearby electrode, thereby slowly modulating the spring constant. This approach, akin to “keying” the baseband components of the vibrations, is reminiscent of Morse code telegraphy. In summary, nanomechanical radio receivers and transmitters illustrate the richness of mesoscopic vibrations driven by multifrequency signals. By producing an audible copy of these vibrations, they also appeal to science and technology enthusiasts.

Here, we demonstrate that nanomechanical resonators based on few-layer graphene (FLG) can transduce a multifrequency, digital video signal into modulated vibrations that encode an accurate copy of the video. We quantify the transduction using standard signal quality metrics for digital communications. We have chosen FLG resonators for their large resonant frequency tunability within the high-frequency (HF) and the very-high-frequency (VHF) bands of the radio spectrum, and for the compromise they offer between broad bandwidths and moderate force sensitivities. A key point in our study is that the signal bandwidth is larger than or comparable to that of the mechanical response. This contrasts with nanomechanical radio receivers and transmitters discussed above, which process audio baseband signals with bandwidths much smaller than the mechanical bandwidth. A wide-bandwidth coherent drive serves as an effective probe for exploring the physics of the mechanical response. Because the resonator behaves as a filter, it shapes the multifrequency driving signal and transduces it into multifrequency vibrations with different phases and amplitudes that superimpose and interfere. We find that these interferences have a profound impact on the signal-to-noise ratio and on the bit error ratio of the transduction. We theoretically model the response to our multifrequency drive and successfully reproduce our experimental data. We establish a relation between the mechanical bandwidth and the maximum signal bandwidth that can be transduced without information loss in the baseband components of the vibrations. Our work contributes to the recent study of resonators driven nonlinearly by multiple tones. Whereas earlier studies explored the case of two-tone driving37,38, we investigate a previously unexplored regime in which the resonator is coherently driven by a near continuum of frequency components across its full mechanical bandwidth. We also envision experimental applications in the context of renewed interest in HF and VHF band communications48. Even though data rates in these bands are low, HF and VHF remain among the most robust and reliable options for long-distance communication in scenarios where other channels are unavailable. Future HF communication systems may be required to transmit and receive weak signals encoded with compressed images or videos48, while narrowband digital television has already been demonstrated in the VHF band49. Our results suggest that nanomechanical resonators could serve as passive receivers for such signals, just as they do for audio-modulated radio waves.

Results

We begin by briefly describing the principle of our measurements. Our experimental setup is shown in Fig. 1a. The FLG resonator, estimated from its optical contrast to be composed of  ~10 layers, is shaped as a 3 μm diameter drum suspended over a local gate electrode (Supplementary Note 1). It is kept at room temperature in a vacuum enclosure and held by a piezo positioner. Two similar devices have been measured, yielding comparable results. Homemade flexible transmission lines, fabricated from copper-clad ribbons of Kapton, deliver radio-frequency signals to the gate without impeding the motion of the positioner50,51. With the resonator grounded, the voltage waveform incident on the gate, s(t), creates a capacitive force \({F}_{{{{\rm{d}}}}}(t)\simeq (1+\Gamma ){C}_{{{{\rm{g}}}}}^{{\prime} }{V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}s(t)\), where Γ ≃ 1 is the reflection coefficient at the gate, \({C}_{{{{\rm{g}}}}}^{{\prime} }\) is the derivative of the capacitance between the resonator and the gate with respect to displacement along the out-of-plane \(\hat{z}\)-direction (Fig. 1a), \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) is a dc voltage applied to the gate, and t is time. Near resonance, Fd(t) drives flexural vibrations along \(\hat{z}\). To measure these vibrations, we place the resonator in an optical standing wave formed between the gate and a quarter-wave plate52, a standard configuration for studying two-dimensional resonators1,53,54,55,56. The amount of optical energy absorbed by the resonator from the standing wave is modulated at the frequency of the flexural vibrations, resulting in oscillations in the output voltage of a photodetector placed in the path of the reflected light54.

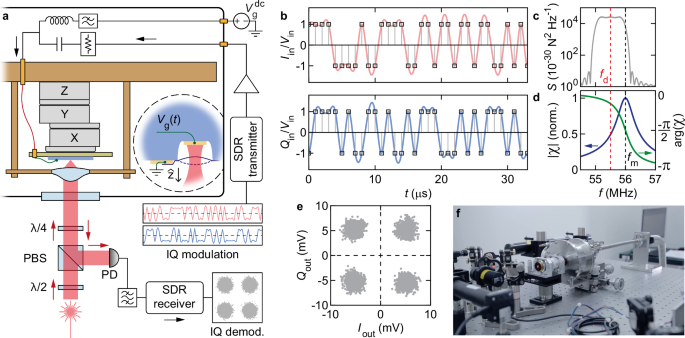

Fig. 1: Principle of the experiment.
Fig. 1: Principle of the experiment.
Full size image

a Experimental setup. XYZ: piezo positioner. Red wavy line: flexible transmission line. \({V}_{{{{\rm{g}}}}}(t)={V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}+s(t)\). PBS: polarizing beam splitter. λ/2, λ/4: half-, quarter-wave plates. An aspheric lens focuses incident light (wavelength ≃ 633 nm) onto the resonator and collects light reflected by the gate50. SDR: software-defined radio. “IQ modulation” represents two experimental streams of filtered voltage pulses forming one symbol stream. Black (red) arrows indicate the propagation direction of radio frequency (optical) waves. b Computed voltage pulse streams before (vertical bars ending in squares) and after (red and blue wavy traces) convolution with a raised cosine (RC) filter. Symbol rate Rsym = 106 Hz. c Averaged power spectral density of the driving force S(f) as a function of spectral frequency, calculated using an RC filter, for drive power at the gate Pd = − 31 dBm and Rsym = 106 Hz. S(f) is superimposed on the background of thermal forces. d Magnitude and phase of the linear mechanical response χ, calculated for a mechanical quality factor Qm = 100. e Constellation diagram of Iout and Qout, the in-phase and quadrature components of the decimated baseband signal at the photodetector output. Source data are provided as a Source Data file. f Frame from a nanomechanically processed video reconstructed from Iout and Qout.

The originality of our setup lies in our technique to create a modulated drive and demodulate the nanomechanical response. The baseband signal of the drive is built from a video in MP4 format, which we convert into a video Transport Stream (TS). The TS data stream is split into two bit streams that are used to associate each symbol in the baseband signal with 2 bits. We implement a 4-quadrature amplitude modulation scheme (4-QAM, equivalent to quadrature phase shift keying). In this scheme, each symbol is represented by two nearly simultaneous voltage pulses, Iin = Vinp and Qin = Vinq, with Vin a voltage and p = ± 1, q = ± 1 (vertical bars in Fig. 1b). These pulses are filtered using a root raised cosine (RRC) filter, producing two smoothly varying signals, \({\tilde{I}}_{{{{\rm{in}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{in}}}}}(t)\). This filter both minimizes intersymbol interference (when paired with a matched RRC filter at the receiver) and ensures that the resonator is driven by a slowly modulated waveform. Without this filtering, the resonator would attenuate much of the information encoded in the high-frequency components of the pulses. The signals \({\tilde{I}}_{{{{\rm{in}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{in}}}}}(t)\) modulate the amplitude of the in-phase and quadrature components of the driving waveform, \(s(t)={\tilde{I}}_{{{{\rm{in}}}}}(t)\cos (2\pi {f}_{{{{\rm{d}}}}}t)+{\tilde{Q}}_{{{{\rm{in}}}}}(t)\sin (2\pi {f}_{{{{\rm{d}}}}}t)\), where fd is the carrier (drive) frequency (Supplementary Note 2). Both baseband modulation (bit-to-symbol mapping) and carrier modulation of s(t) are implemented using GNU Radio, an open-source software development toolkit for signal processing57. The resulting waveform s(t) is converted into an analog signal using a low-cost software-defined radio (SDR) transmitter (HackRF One by Great Scott Gadgets58). The calculated power spectral density S of the driving force Fd(t), averaged over multiple realizations, is shown in Fig. 1c as a function of spectral frequency f. We consider a drive power at the gate \({P}_{{{{\rm{d}}}}}=10\,{\log }_{10}[{(1+\Gamma )}^{2}\langle {s}^{2}(t)\rangle /(50\times 1{0}^{-3})]\simeq -31\) dBm, where 〈 ⋅ 〉 denotes time averaging. We set \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=13\) V and estimate \({C}_{{{{\rm{g}}}}}^{{\prime} }\simeq 9\times 1{0}^{-10}\) F m−1 with COMSOL. The spectrum S(f) is centered at fd and spans a full bandwidth W ≃ 1.3Rsym, where Rsym = 106 Hz is the symbol rate and 1.3 accounts for the filter roll-off factor. The area under S(f) corresponds to the variance of Fd(t), which depends only on the drive amplitude and is independent of Rsym. Importantly, Fd(t) is not a delta-correlated noise but rather a coherent waveform (Supplementary Note 2). Figure 1d shows the normalized magnitude and the phase of the linear mechanical response. The bandwidth of the drive W exceeds the resonator’s mechanical bandwidth Wm = fm/Qm ≃ 0.56 × 106 Hz, where fm ≃ 56 × 106 Hz is the resonant frequency of the fundamental mode and Qm ≃ 100 is its quality factor.

To measure the voltage v(t) at the output of the photodetector, we use a low-cost SDR receiver (NESDR Smart by Nooelec58) that downconverts the signal to baseband. Using GNU Radio, we correct transmission delays with a polyphase filter bank59,60 and apply matched filtering using an RRC filter. This yields the in-phase and quadrature components of the received signal, expressed as \(v(t)={\tilde{I}}_{{{{\rm{out}}}}}(t)\cos (2\pi {f}_{{{{\rm{d}}}}}t)+{\tilde{Q}}_{{{{\rm{out}}}}}(t)\sin (2\pi {f}_{{{{\rm{d}}}}}t)\). We decimate \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\) at the symbol rate Rsym to obtain the discrete symbol components Iout and Qout. These values, acquired for 2 s, are plotted on a constellation diagram in Fig. 1e. This diagram helps visualize the process of converting symbols back into bits, the decision to ascribe a received symbol to a pair of bits depending on which quadrant the symbol appears in61. The GNU Radio flowcharts used for modulation and demodulation are provided in Supplementary Note 3. Finally, Fig. 1f shows a frame from a nanomechanical video obtained by converting the Iout and Qout streams back into an MP4 video using FFmpeg, an open-source multimedia processing tool62. The frame shows an early configuration of our setup, featuring an optical objective outside the vacuum enclosure.

Obtaining a nanomechanical video requires optimizing the drive power Pd, the drive frequency fd, and the symbol rate Rsym. We vary these parameters individually and monitor their impact on the constellation diagram of the demodulated outputs Iout and Qout. As fd is stepped through resonance, the constellation diagram undergoes significant changes that are best visualized as animations (Supplementary Movie 1 shows diagrams measured as fd is increased at various Pd values, with Rsym = 0.5 × 106 Hz). A simple metric we extract from the constellation diagram is the time-averaged length of the I − Q vector in one quadrant, defined as L = 〈∣Iout + iQout∣〉. The spread of the symbol clouds (Fig. 1e) also contains useful information. We quantify it within a single quadrant as \(d={\langle {({I}_{{{{\rm{out}}}}}-\langle {I}_{{{{\rm{out}}}}}\rangle )}^{2}+{({Q}_{{{{\rm{out}}}}}-\langle {Q}_{{{{\rm{out}}}}}\rangle )}^{2}\rangle }^{1/2}\). The logarithmic ratio, \(\varepsilon=20\,{\log }_{10}(L/d)\), can be interpreted as a signal-to-noise ratio, since noise at the output of the receiver and the dephasing of vibrations by the mechanical response both contribute to the spread d. In digital communications, ε is known as the reciprocal of the error vector magnitude of the symbols. Larger values of ε indicate better symbol separation and correspond to smoother video playback.

Measurements of L(fd) and ε(fd) are shown as dots in Fig. 2a–d and Fig. 2e–h, respectively, for several values of Pd at Rsym = 0.5 × 106 Hz (the minimum values of L and ε required for successful video decoding are given in Supplementary Note 4). Similar measurements at Rsym = 106 Hz are presented in Fig. 3. In all measurements, we set \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=13\) V, corresponding to a mechanical resonant frequency fm ≃ 56 × 106 Hz. For both symbol rates, the lineshapes of L(fd) broaden and become increasingly asymmetric as Pd increases, consistent with the onset of nonlinearities in the mechanical response. While the L(fd) curves resemble broadened resonance peaks, the ε(fd) traces exhibit richer features. At low drive power, ε(fd) peaks near fm and develops two local minima away from resonance (Fig. 2e), the latter being more pronounced at Rp = 106 Hz (Fig. 3e). At higher Pd, the local minimum in ε(fd) that appears where ∣∂L/∂fd∣ is largest deepens significantly, and the maxima in ε(fd) shift further from resonance (Figs. 2h and 3h). These extrema in ε(fd) are important features, as they directly affect the quality of the demodulated video.

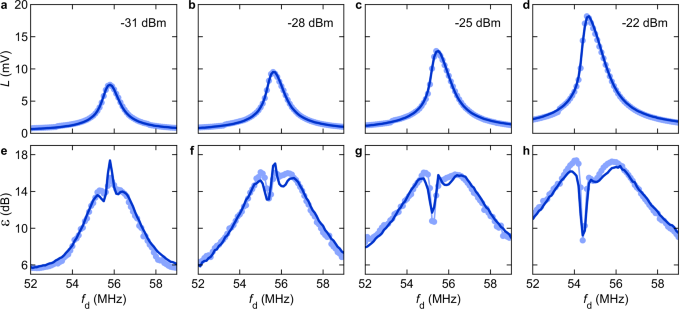

Fig. 2: Nanomechanical response to a drive modulated with a video signal at a symbol rate Rsym = 0.5 × 106 Hz.
Fig. 2: Nanomechanical response to a drive modulated with a video signal at a symbol rate Rsym = 0.5 × 106 Hz.
Full size image

a–d Time-averaged vector length L of the discrete symbol components Iout and Qout extracted from the output signal, plotted as a function of drive frequency fd. The standard deviation of the measurements is ≃ 0.4 mV, which is comparable to the size of the dots. e–h Reciprocal of the error vector magnitude, ε(fd), under the same conditions. Drive power at the gate is Pd = − 31 dBm (a, e),  − 28 dBm (b, f),  − 25 dBm (c, g), and  − 22 dBm (d, h). Dots indicate measured data; solid lines are theoretical calculations. The gate voltage is \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=13\) V in all panels. Source data are provided as a Source Data file.

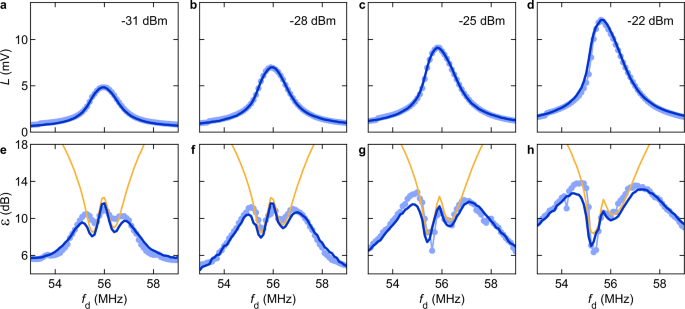

Fig. 3: Nanomechanical response to a drive modulated with a video signal at a symbol rate Rsym = 106 Hz.
Fig. 3: Nanomechanical response to a drive modulated with a video signal at a symbol rate Rsym = 106 Hz.
Full size image

a–d Time-averaged vector length L of the discrete symbol components Iout and Qout as a function of drive frequency fd. The standard deviation of the measurements is ≃ 0.4 mV, which is comparable to the size of the dots. e–h Reciprocal of the error vector magnitude, ε(fd). Drive power at the gate is Pd = − 31 dBm (a, e),  − 28 dBm (b, f),  − 25 dBm (c, g), and  − 22 dBm (d, h). Dots represent measured data [note: measurement noise in (f) is slightly higher than in (e), (g), and (h)]. Blue (orange) solid lines represent calculated traces with noise on (off). The gate voltage is \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=13\) V in all panels. Source data are provided as a Source Data file.

Discussion

To understand these observations, we numerically solve the resonator’s equation of motion in response to the multifrequency driving force Fd(t). The equation reads63,64:

$$\ddot{z}+\left[\frac{{\omega }_{{{{\rm{m}}}}}}{{Q}_{{{{\rm{m}}}}}}+\frac{\eta }{{m}_{{{{\rm{eff}}}}}}{z}^{2}\right]\dot{z}+\left[{\omega }_{{{{\rm{m}}}}}^{2}+\frac{\alpha }{{m}_{{{{\rm{eff}}}}}}{z}^{2}\right]z=\frac{{F}_{{{{\rm{d}}}}}(t)}{{m}_{{{{\rm{eff}}}}}}\,,$$
(1)

where z is the resonator displacement, ωm = 2πfm is the angular resonant frequency, η is the nonlinear damping coefficient, and α is the Duffing elastic constant. The values Qm ≃ 100, η ≃ 1.2 × 105 kg m−2 s−1 and α ≃ − 1014 kg m−2 s−2 (arising from the electrical potential acting on the resonator, see ref. 65) are estimated from the response to a single-tone drive (Supplementary Note 5). The effective mass is estimated as meff ≃ 2 × 10−17 kg based on the resonator shape and the number of graphene layers. As in the experiment, the baseband signals \({\tilde{I}}_{{{{\rm{in}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{in}}}}}(t)\) that define Fd(t) are computed from two streams of voltage pulses. The pulse amplitudes randomly take values  ± Vin at a rate Rsym. These pulse streams are processed with a raised cosine (RC) filter (Fig. 1b). The use of this filter is justified, given that most of the measured noise appears at the receiver output. For completeness, we also consider the scenario where white Gaussian force noise is added at the drive stage, in addition to receiver noise. This case requires a cascade of two RRC filters: one at the transmitter and one at the receiver. However, we find that modeling receiver noise alone suffices to explain our measurements.

We demodulate z(t) to obtain \({\tilde{I}}_{{{{\rm{out}}}}}(t)=2h(t)*[\xi z(t)\cos (2\pi {f}_{{{{\rm{d}}}}}t)]\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)=2h(t)*[\xi z(t)\sin (2\pi {f}_{{{{\rm{d}}}}}t)]\), where h is a lowpass filter, ξ is a conversion factor in V m−1, and * denotes convolution. The symbol components Iout and Qout are obtained by decimating \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\) at the symbol rate Rsym, accounting for the delay introduced by the RC filter. This simple model reproduces our measured L(fd) and ε(fd) traces (solid blue lines in Figs. 2 and 3). The only fit parameter in the analysis of L(fd) is ξ ≃ 7 × 105 V m−1. Notably, the lineshape of L(fd) is broader than that obtained with an unmodulated drive at the same Pd (Supplementary Note 2). To analyze ε(fd), we model fluctuations \(\delta {\tilde{I}}_{{{{\rm{out}}}}}\) and \(\delta {\tilde{Q}}_{{{{\rm{out}}}}}\) at the receiver output as additive white Gaussian noise with variance σ2. This noise contributes to the spread of the symbol clouds, leading to the modified expression \({d}^{2}\to {d}^{2}+\langle \delta {\tilde{I}}_{{{{\rm{out}}}}}^{2}\rangle+\langle \delta {\tilde{Q}}_{{{{\rm{out}}}}}^{2}\rangle={d}^{2}+2{\sigma }^{2}\). We use σ2 ≃ 3.9 × 10−19 m2 as a single fit parameter in the analysis of ε(fd). Measurements of the noise at the receiver output are presented in Supplementary Note 6.

Interestingly, the lineshape of ε(fd) near fm is not influenced by the noise at the receiver. The parameter σ2 is only required to capture the decay of ε(fd) away from fm, and it has only a little incidence on the most interesting features that are the minima in ε(fd). To show this, in Fig. 3e–h we display our calculations for ε(fd) with no added noise, that is, without any fit parameter (orange traces). In this case, ε increases as fd is stepped away from fm, while the features near fm remain similar to those in the presence of noise. This indicates that the spread of the symbol clouds, d(fd), near fm is caused by a process other than noise.

This process is the loss of coherence in the response, resulting from the superposition of multifrequency vibrations with different amplitudes and phases. It is a hallmark of vibrations driven by a coherent, multifrequency signal and is not seen with single-tone drives or with force noise. It is caused by the resonator acting as a filter in the case where the spectrum of the drive is broader than the response, W ≳ Wm. If the drive were narrowband, W ≪ Wm, the input symbol components (Iin, Qin) would be transformed into (Iout, Qout) by a simple rotation through the phase angle of the response. By contrast, each frequency component in the broadband drive is transduced into a vibrational frequency component with a distinct amplitude and phase. Where fd is far from fm, and provided that receiver noise is low, (Iout, Qout) still result from a simple rotation through a constant angle (≃ 0 or − π), since the magnitude and the phase of the response depend on frequency only weakly. In this case, Iout ∝ ± Iin and Qout ∝ ± Qin. Where fd ≃ fm, W ≃ Wm, and where the response is linear (that is, at low Pd), we find Iout ∝ Qin and Qout ∝ − Iin (Supplementary Note 7), meaning that input and output symbols are simply swapped. This has no adverse effect on video demodulation (Supplementary Note 8). However, the dephasing effect of the response on Iout and Qout is strongest where ∣fd − fm∣ ≃ W/2 and W ≳ Wm. This case is depicted in Fig. 1c, d, where the upper frequency edge of the drive spectrum is near resonance and the lower frequency edge is far from it. There, \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) contains dephased frequency components from both \({\tilde{I}}_{{{{\rm{in}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{in}}}}}(t)\), and similarly for \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\) [Supplementary Note 7]. The fact that the in-phase component of the vibrations depends on both the in-phase and quadrature components of the drive, and that the quadrature response likewise depends on both drive components, can already be seen by solving Eq. (1) in the linear regime, yielding:

$${\tilde{I}}_{{{{\rm{out}}}}}(t) \simeq \frac{\kappa }{4{m}_{{{{\rm{eff}}}}}{\omega }_{{{{\rm{d}}}}}}\int_{0}^{\infty }{{{\rm{d}}}}{t}^{{\prime} }\exp (-{\Gamma }_{{{{\rm{m}}}}}{t}^{{\prime} })\left[-{\tilde{I}}_{{{{\rm{in}}}}}(t-{t}^{{\prime} })\sin {\Delta}\omega {t}^{{\prime} }-{\tilde{Q}}_{{{{\rm{in}}}}}(t-{t}{^{\prime} })\cos {\Delta}\omega {t}^{{\prime} }\right]\,,\\ {\tilde{Q}}_{{{{\rm{out}}}}}(t) \simeq \frac{\kappa }{4{m}_{{{{\rm{eff}}}}}{\omega }_{{{{\rm{d}}}}}}\int_{0}^{\infty }{{{\rm{d}}}}{t}^{{\prime} }\exp (-{\Gamma }_{{{{\rm{m}}}}}{t}^{{\prime} })\left[{\tilde{I}}_{{{{\rm{in}}}}}(t-{t}^{{\prime} })\cos {\Delta}\omega {t}^{{\prime} }-{\tilde{Q}}_{{{{\rm{in}}}}}(t-{t}^{{\prime} })\sin {\Delta}\omega {t}^{{\prime} }\right]\,,$$
(2)

where \(\kappa=| \xi {V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}(1+\Gamma ){C}_{{{{\rm{g}}}}}^{{\prime} }|\), ωd = 2πfd, Γm = πWm, and Δω = 2π(fd − fm). As a result, decimating \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\) yields broad distributions of Iout and Qout going through zero, which reduces ε. Experimentally, the condition of ∣fd − fm∣ ≃ W/2 coincides with the minima observed in ε(fd) for Rsym = 0.5 × 106 Hz and 106 Hz in the linear regime.

In the nonlinear regime (high Pd), our model also captures both the deepening of the local minimum (dip) in ε(fd) near the point of steepest slope in L(fd), and the frequency shift of the dip, Δfdip, as Pd increases. In Supplementary Note 9, we show that Δfdip is approximately proportional to the square of the change in vector length, ΔLdip, that is, \({\Delta}{f}_{{{{\rm{dip}}}}} \propto ({\Delta}{L}_{{{{\rm{dip}}}}})^{2}\). This behavior is consistent with the quartic relationship between the frequency of a vibrational mode and the vibrational amplitude caused by weak conservative nonlinearities in the case where the mode is driven by a single tone drive66,67,68. It is also consistent with the lineshape broadening of the mechanical response induced by the interplay between conservative nonlinearities and a force noise13,14,69, as further detailed in Supplementary Note 9.

To complement our measurements of ε and directly quantify the effect of the mechanical response on the driving bit stream, we measure the bit error ratio (BER) of the nanomechanical transduction. This ratio represents the number of misread bits in the received stream (output bit stream) relative to the number of bits in the stream sent by the transmitter (input bit stream). Measuring BER is not straightforward because propagation and filtering delays complicate the direct comparison of the input and output bit streams. We solve this problem by inserting a marker at the beginning of the input bit stream. The marker consists of a train of bits ‘0’ followed by a train of bits ‘1’, which are easily identifiable on the receiver side. This enables a bit-by-bit comparison between the input and output streams. As an example, Fig. 4a shows a short input bit stream (hollow squares) and the corresponding received output bit stream (dots), obtained with Rsym = 0.5 × 106 Hz. This example illustrates an error-free transduction, where BER = 0. Figures 4b–f present BER as a function of fd, measured at Rsym = 0.5 × 106 Hz (blue dots) and Rsym = 106 Hz (orange dots), spanning from the linear to the nonlinear regime [with increasing Pd from (b) to (f)]. At each fd, BER is computed from a single 15-second measurement of the output bit stream. We find that BER at Rsym = 0.5 × 106 Hz is consistently lower than at Rsym = 106 Hz, indicating that the minimum bit error ratio, \({{{{\rm{BER}}}}}_{\min }\), depends on Rsym. At the largest Pd and Rsym = 0.5 × 106 Hz (Fig. 4f), we measure \({{{{\rm{BER}}}}}_{\min }\simeq 5\times 1{0}^{-6}\), corresponding to 5 misread bits per million sent to the resonator. This limit is set by noise in our setup (Supplementary Notes 4 and 6). Furthermore, we observe that BER(fd) develops a sharp peak as Pd increases. This peak coincides with the emergence of the lower frequency dip in ε(fd) (Supplementary Note 9). At the peak frequency, the symbol clouds on the constellation diagram are strongly distorted, as confirmed by our model (Fig. 4g), leading to decoding failure of the nanomechanical video. In Supplementary Note 10, we present our calculated L(fd), ε(fd), BER(fd), and constellation diagrams as an embedded animation to help visualize how these quantities relate to one another.

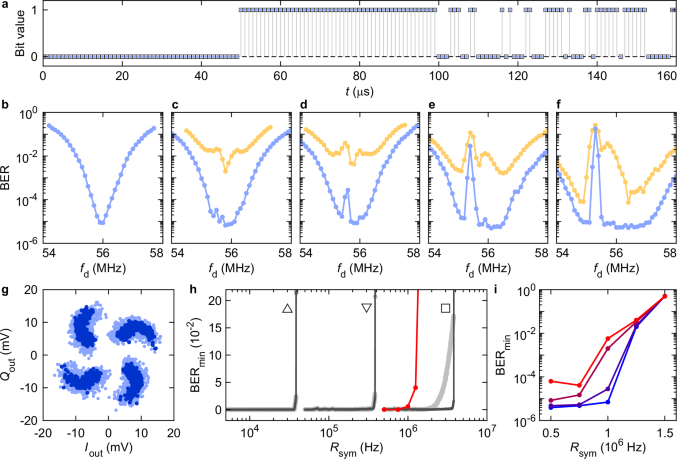

Fig. 4: Bit error ratio (BER) of the nanomechanical transduction.
Fig. 4: Bit error ratio (BER) of the nanomechanical transduction.
Full size image

a Bit stream at the transmitter (hollow squares) and at the receiver (dots), measured at Rsym = 0.5 × 106 Hz. In 4-QAM, two bits form one symbol, so the bit rate is twice the symbol rate. b–f BER as a function of drive frequency fd at Rsym = 0.5 × 106 Hz (blue dots) and Rsym = 106 Hz (orange dots) for drive powers Pd = − 34 dBm (b),  − 31 dBm (c),  − 28 dBm (d),  − 25 dBm (e), and  − 22 dBm (f). g Constellation diagram of Iout and Qout at Pd = − 25 dBm with fd set to the BER peak frequency in (e). Light blue dots: measurements; dark blue dots: calculations. h Minimum BER in the linear regime as a function of Rsym. Gray traces show calculations without (dark gray) and with (light gray) additive noise at the receiver. Upward triangle: Wm = 104 Hz; downward triangle: Wm = 105 Hz; square: Wm = 106 Hz. Red dots: measurements at Pd = − 28 dBm. i Measured \({{{{\rm{BER}}}}}_{\min }\) as a function of Rsym for different Pd values. From top (red) to bottom (blue): Pd = − 28 dBm,  − 25 dBm,  − 22 dBm,  − 19 dBm. Measurements in (h, i) were performed in a noisier environment than those in (b–g). \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=13\) V in all panels. Source data are provided as a Source Data file.

With regard to applications, we now examine the dependence of \({{{{\rm{BER}}}}}_{\min }\) on Rsym. Our goal is to determine how \({R}_{{{{\rm{sym}}}}}^{*}\), the highest symbol rate at which \({{{{\rm{BER}}}}}_{\min }\) remains low, varies with the mechanical linewidth Wm. We interpret \({R}_{{{{\rm{sym}}}}}^{*}\) as the effective filtering bandwidth of the resonator for the video signal. We focus on BER at resonance in the linear regime, where \({{{\rm{BER}}}}({f}_{{{{\rm{d}}}}})={{{{\rm{BER}}}}}_{\min }\) (Fig. 4b). In Fig. 4h, we plot \({{{{\rm{BER}}}}}_{\min }\) as a function of Rsym, calculated using Eq. (1) for Wm = 104 Hz, 105 Hz, and 106 Hz (gray traces, from left to right). The dark traces correspond to calculations without noise, while the light traces include additive Gaussian noise with variance σ2, as used in Figs. 2 and 3. Each trace computed without noise exhibits a kink near Rsym ≃ 3.5Wm, which sets an upper bound for \({R}_{{{{\rm{sym}}}}}^{*}\). When noise is added, \({R}_{{{{\rm{sym}}}}}^{*}\) shifts to lower values, particularly for larger Wm (that is, lower Qm), as \({{{{\rm{BER}}}}}_{\min }({R}_{{{{\rm{sym}}}}})\) begins to increase at lower symbol rates. The red dots in Fig. 4h represent measured values of \({{{{\rm{BER}}}}}_{\min }({R}_{{{{\rm{sym}}}}})\), obtained at Pd = − 28 dBm, near the onset of the nonlinear regime and in the presence of noise. From these data, we extract an experimental filtering bandwidth of \({R}_{{{{\rm{sym}}}}}^{*}\simeq 1{0}^{6}\) Hz. Additional measurements of \({{{{\rm{BER}}}}}_{\min }\) across a range of Pd are shown in Fig. 4i (see also Supplementary Note 11). As expected, these results indicate that nanomechanical information encoding suffers less information loss at higher drive powers.

We now demonstrate the filtering and video encoding capabilities of our resonator. Figure 5a shows that the nanomechanical response (measured here using a single-tone drive) depends on the gate voltage \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\). Since both ε and BER strongly depend on ∣fm − fd∣, we can transmit multiple videos with well separated fd simultaneously, and selectively demodulate one of them by appropriately tuning fm with \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\). Our experimental setup for broadcasting two videos in parallel is illustrated in Fig. 5b. Two SDR transmitters are used: one operating at fd = 57.8 × 106 Hz  = fA, and the other at fd = 60.8 × 106 Hz  = fB. Both transmitters are configured with Rp = 106 Hz and Pd = − 22 dBm, a power at which the resonator responds nonlinearly. The drive frequencies are chosen to avoid the dip in ε(fd). Figure 5c shows \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\), with \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) initially set to 14 V and the receiver’s center frequency fr set to fA at t = 0. Between t = 17 s and t = 19 s, \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) is ramped from 14 V to 15 V, and fr is set in software to fB. Then, between t = 40 s and t = 42 s, \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) is ramped back down from 15 V to 14 V, and fr is reset to fA. Figure 5c shows that the desired broadcast, A or B, can be selected by adjusting \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\).

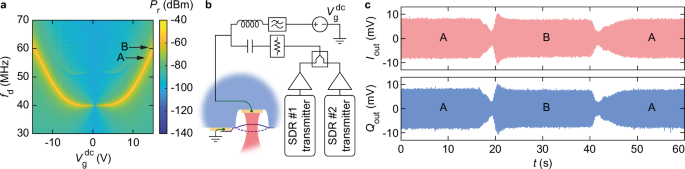

Fig. 5: Multichannel nanomechanical television broadcast.
Fig. 5: Multichannel nanomechanical television broadcast.
Full size image

a Response of the resonator to a single-tone drive as a function of gate voltage \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) and drive frequency fd, at a drive power Pd = − 40 dBm. The arrows show the two operating points \(({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}},{f}_{{{{\rm{d}}}}})\), each of which defines the carrier frequency for one of the video signals (A or B). b Experimental setup featuring two software-defined radios transmitting in parallel; a single receiver is used. c \({\tilde{I}}_{{{{\rm{out}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{out}}}}}(t)\) components of the baseband output signal. Received video A (0 s < t < 17 s): \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=14\) V, receiver center frequency fr = 57.8 × 106 Hz. Received video B (19 s < t < 40 s): \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=15\) V, fr = 60.8 × 106 Hz. Received video A (t > 42 s): \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}=14\) V, fr = 57.8 × 106 Hz. Source data are provided as a Source Data file.

In the spirit of previous nanomechanical devices used as signal processors39, we envision that our FLG resonators, as well as other resonators based on similar principles, may serve as passive radio receivers operating in the HF and VHF bands of the radio spectrum. With a resonant frequency ranging from ≃ 40 × 106 Hz to ≃ 60 × 106 Hz (Fig. 5a), our resonator operates within the 6-meter subband, which is internationally allocated for amateur radio use. In this subband, digital amateur television (DATV) broadcasts have been conducted using signals with a 300 kHz bandwidth49. In the United Kingdom, DATV with a broader bandwidth of up to 500 kHz is permitted in the 2-meter amateur radio band (144–148 MHz)49. Smaller-diameter FLG resonators, or higher-order vibrational modes, can operate in this frequency range. The filtering bandwidth of our resonator, along with the maximum 4-QAM data rate of its transduction, \(2{R}_{{{{\rm{sym}}}}}^{*}\simeq 2\times 1{0}^{6}\) bps, is fully compatible with DATV.

While our experimental setup may not yet be practical for receiving amateur radio broadcasts, it can be further simplified51. The resonator would serve a dual purpose: as a front-end, tunable bandpass filter, and as a passive optocoupler. It could be placed at the output of the preamplifier that is typically connected to the feedpoint of a receiving antenna70. As a filter, it would reject jamming and other interfering signals in a manner similar to surface acoustic wave filters, but with the added benefit of a tunable center frequency, and without the fabrication complexity of more advanced tunable front-end filters71. As an optocoupler, it would passively convert the radio signal into modulations of reflected light intensity through the nanomechanical transduction, effectively eliminating the issue of radio frequency interference caused by common-mode currents in the coaxial cable that connects the antenna to the demodulator70. The detection of weaker radio signals may be improved by using more advanced SDR systems with lower receiver noise and by engineering the mirror underneath the resonator to enhance the responsivity of the device72. Admittedly, the idea of using nanomechanical resonators for radio communication remains largely academic due to challenges related to device reproducibility and thermal drift40. Nevertheless, these resonators may eventually enable alternative architectures for shortwave radio receivers, facilitating the decoding of images and videos carried by weak signals in noisy environments61.

Methods

Optical detection of vibrations

The incident light is provided by a Helium-Neon laser operating at a wavelength of λ = 633 nm. The laser output is coupled into a single-mode optical fiber for spatial filtering. A half-wave plate sets the linear polarization of the emerging light, which then passes through a quarter-wave plate to become circularly polarized. The circularly polarized beam is focused onto the resonator with an aspheric lens and reflected by the gate electrode, acting as a mirror. After traversing the quarter-wave plate again, the reflected beam emerges linearly polarized, orthogonal to the incident polarization. A polarizing beam splitter separates the incident and reflected beams, directing the reflected light to the photodetector (Thorlabs APD430A2 avalanche photodetector). As a function of time t, the voltage at the output of the photodetector reads:

$$v(t)\simeq {P}_{{{{\rm{inc}}}}}\frac{\partial {{{\mathcal{R}}}}}{\partial z}{| }_{{z}_{{{{\rm{s}}}}}}\delta z(t) * \psi (t)+\delta {v}_{{{{\rm{b}}}}}\,,$$
(3)

where Pinc ≃ 3 × 10−6 W is the optical power incident on the resonator, \({{{\mathcal{R}}}}\) is the optical reflectance of the device composed of the resonator, the gate electrode, and the vacuum gap between them, δz is the vibrational amplitude of the resonator (that is, its dynamic displacement), zs is the static displacement of the resonator, \(| \partial {{{\mathcal{R}}}}/\partial z{| }_{{z}_{{{{\rm{s}}}}}}\simeq 3\times 1{0}^{6}\) m−1 is the calculated optical responsivity of the device52, ψ is the response function of the photodetector in units of V W−1 s−1, δvb is a background voltage noise, and * denotes convolution.

Driving voltage and driving force waveforms

To build the driving voltage and the driving force waveforms, we start with two streams of pulses pk = ± 1 and qk = ± 1, generated at a pulse (symbol) rate Rsym. The streams are filtered using either a raised cosine (RC) filter or a root raised cosine (RRC) filter, yielding waveforms \(\tilde{p}(t)\) and \(\tilde{q}(t)\) that vary continuously in time t. Where noise is added to the signal after the transmitter and before the receiver, an RRC filter is applied at the transmitter to shape the pulses, and a second RRC filter is applied at the receiver to filter the baseband signal. The cascade of these two RRC filters is equivalent to a single RC filter and serves to minimize intersymbol interference, just as a single RC filter does in a noiseless scenario. The waveforms \(\tilde{p}(t)\) and \(\tilde{q}(t)\) can be expressed as:

$$\tilde{p}(t)={\sum }_{k=0}^{\infty }{p}_{k}\,g(t-k{T}_{{{{\rm{sym}}}}})\,,\quad \tilde{q}(t)={\sum }_{k=0}^{\infty }{q}_{k}\,g(t-k{T}_{{{{\rm{sym}}}}})\,,$$
(4)

where g is the impulse response of the filter and Tsym is the reciprocal of the symbol rate, Tsym = 1/Rsym. For a RC filter, g reads:

$$g(t)=\frac{\pi }{4{T}_{{{{\rm{sym}}}}}}{{{\rm{sinc}}}}\left(\frac{1}{2\beta }\right)\quad {{{\rm{if}}}}\quad t=\pm \frac{{T}_{{{{\rm{sym}}}}}}{2\beta }$$
(5)
$$g(t)=\frac{1}{{T}_{{{{\rm{sym}}}}}}{{{\rm{sinc}}}}\left(\frac{t}{{T}_{{{{\rm{sym}}}}}}\right)\frac{\cos \left(\frac{\pi \beta t}{{T}_{{{{\rm{sym}}}}}}\right)}{1-{\left(\frac{2\beta t}{{T}_{{{{\rm{sym}}}}}}\right)}^{2}}\quad {{{\rm{otherwise,}}}}$$
(6)

where β is the roll-off factor of the filter. The filtered pulses are used to modulate the amplitude of the in-phase component and that of the quadrature component of the waveform x(t) defined as:

$$x(t)=\tilde{p}(t)\cos ({\omega }_{{{{\rm{d}}}}}t)+\tilde{q}(t)\sin ({\omega }_{{{{\rm{d}}}}}t)\,,$$
(7)

where ωd is the angular frequency of the drive. Given a peak voltage amplitude Vin, the driving voltage waveform s(t) is defined as:

$$s(t)={V}_{{{{\rm{in}}}}}x(t)={\tilde{I}}_{{{{\rm{in}}}}}(t)\cos ({\omega }_{{{{\rm{d}}}}}t)+{\tilde{Q}}_{{{{\rm{in}}}}}(t)\sin ({\omega }_{{{{\rm{d}}}}}t)\,,$$
(8)

where \({\tilde{I}}_{{{{\rm{in}}}}}(t)\) and \({\tilde{Q}}_{{{{\rm{in}}}}}(t)\) are the baseband in-phase and quadrature components of the drive, respectively. They are defined as:

$${\tilde{I}}_{{{{\rm{in}}}}}(t)={V}_{{{{\rm{in}}}}}\tilde{p}(t)\,,\quad {\tilde{Q}}_{{{{\rm{in}}}}}(t)={V}_{{{{\rm{in}}}}}\tilde{q}(t)\,.$$
(9)

The power of s(t) that would be dissipated across a 50 Ohm resistor in units of dBm is:

$${P}_{{{{\rm{in}}}}}=10\,{\log }_{10}\left(\frac{\langle {s}^{2}(t)\rangle }{50\times 1{0}^{-3}}\right)=10\,{\log }_{10}\left(\frac{{V}_{{{{\rm{in}}}}}^{2}\langle {x}^{2}(t)\rangle }{50\times 1{0}^{-3}}\right)\,,$$
(10)

where 〈 ⋅ 〉 averages over time. Hence, the peak voltage Vin reads:

$${V}_{{{{\rm{in}}}}}={\left(\frac{1{0}^{{P}_{{{{\rm{in}}}}}/10}\times 50\times 1{0}^{-3}}{\langle {x}^{2}(t)\rangle }\right)}^{1/2}\,.$$
(11)

The total voltage between the gate and the resonator is the total voltage of the standing wave at the gate:

$${V}_{{{{\rm{d}}}}}=(1+\Gamma ){V}_{{{{\rm{in}}}}}\,,$$
(12)

where Γ ≃ 1 is the reflection coefficient of s(t) at the gate. The equivalent driving power that would be dissipated across a 50 Ohm resistor in units of dBm is then:

$${P}_{{{{\rm{d}}}}}=10\,{\log }_{10}\left[\frac{{(1+\Gamma )}^{2}\langle {s}^{2}(t)\rangle }{50\times 1{0}^{-3}}\right]=20\,{\log }_{10}(1+\Gamma )+{P}_{{{{\rm{in}}}}}\simeq 6+{P}_{{{{\rm{in}}}}}\,.$$
(13)

The driving force waveform reads:

$${F}_{{{{\rm{d}}}}}(t)=| {V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}| (1+\Gamma )\left| \frac{{{{\rm{d}}}}{C}_{{{{\rm{g}}}}}}{{{{\rm{d}}}}z}\right| s(t)\,,$$
(14)

where \({V}_{{{{\rm{g}}}}}^{{{{\rm{dc}}}}}\) is the dc voltage applied between the resonator and the gate, and dCg/dz is the derivative with respect to the displacement of the resonator of the capacitance between the resonator and the gate.
