Fig. 6: Identification of cerebral malaria candidate biomarkers for P. falciparum and P. coatneyi infections.
From: Methylene blue treatment of fatal cerebral malaria and identification of potential blood biomarkers

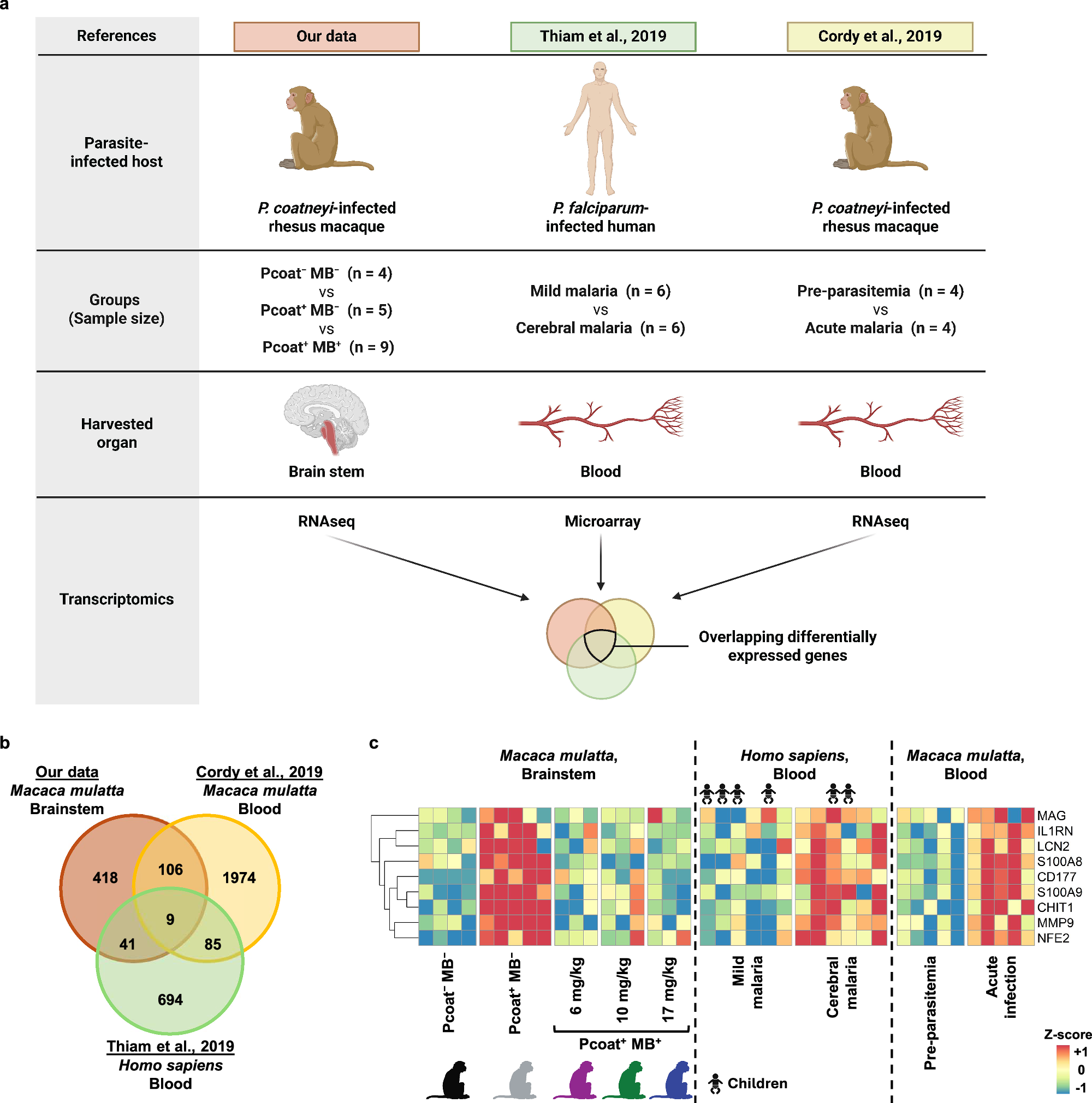

a Summary of the comparative transcriptomic analysis between our data, Thiam et al. (2019) and Cordy et al. (2019). Figure created on Biorender.com. Created in BioRender. Malleret, B. (2025) https://BioRender.com/8pe774a. b Venn diagram showing overlap of DEGs in the three different datasets. c Gene expression heatmap of the 9 candidate biomarkers across the different datasets. For the Thiam et al. (2019) dataset, children (child icon) and adult (no icon) patients were distinguished. Created in BioRender. Malleret, B. (2025) https://BioRender.com/3ksn98f.
