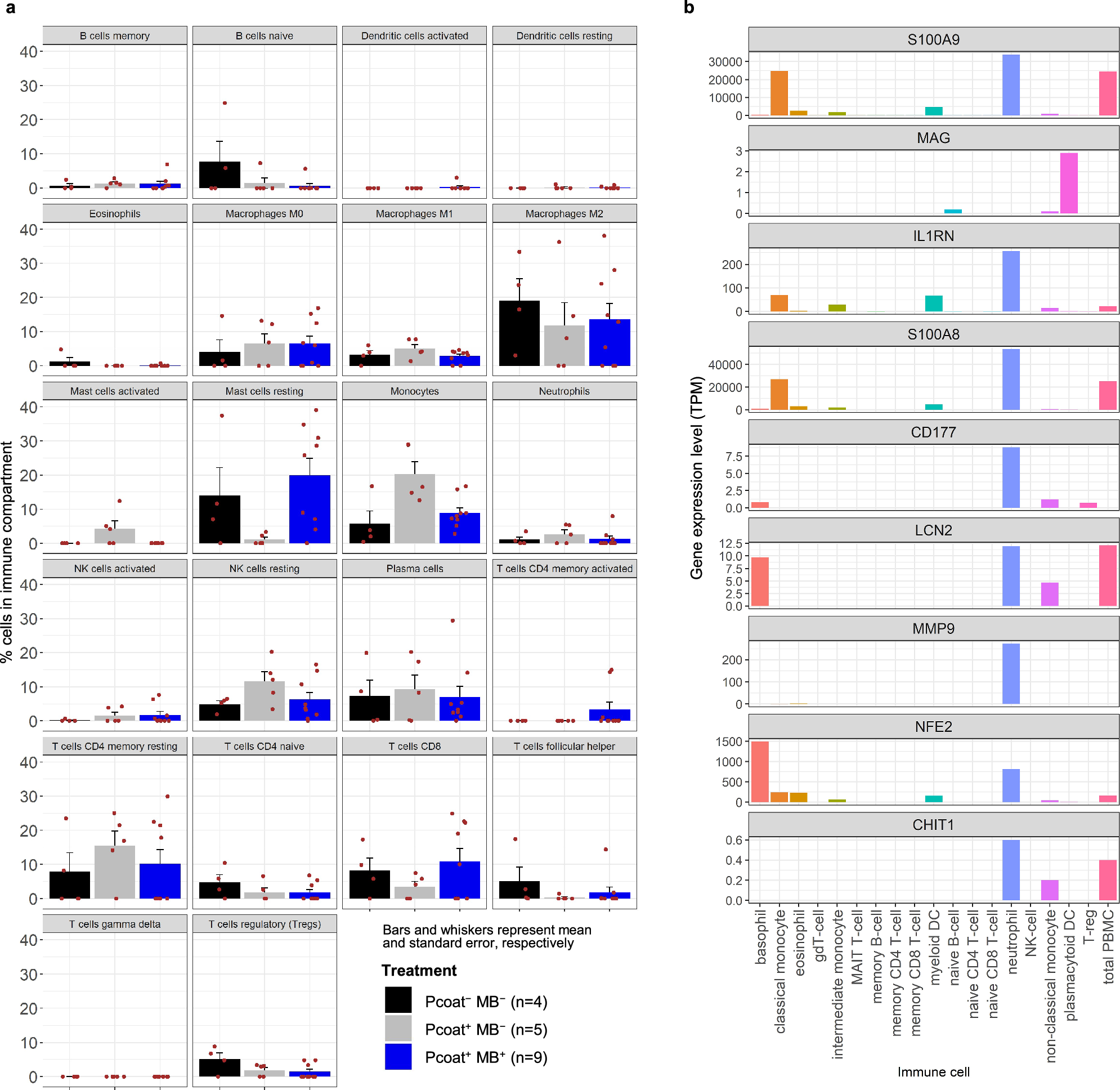

Fig. 9: Immune cell profiling and gene expression in brainstem and immune subsets.
From: Methylene blue treatment of fatal cerebral malaria and identification of potential blood biomarkers
a CIBERSORT analysis of brainstem samples. Bars and whiskers represent mean and standard error, respectively, of the % of total immune cells contributed by an immune cell subset. P-values comparing treatment groups were computed using Wilcoxon rank sum test (two-sided test, nominal unadjusted p-values). b Average expression of 9 signature genes in various immune cell subsets, data obtained from Human Protein Atlas.
