Introduction

Electrochemical water splitting in acidic media offers a cost-effective and promising approach for producing clean hydrogen with high purity through the hydrogen evolution reaction (HER)1,2,3. For practical industrial applications, it is essential to develop electrocatalysts that can maintain low overpotentials (ensuring high energy conversion efficiency from electricity to hydrogen chemical energy) and extend operating durations (to minimize the catalyst replacement frequency) with high hydrogen throughput at ultrahigh current densities (enabling higher volume hydrogen production at a given facility size). Many critical factors, such as the oxygen evolution reaction (OER) at anode catalysts, the durability of the proton exchange membrane, and the HER at cathode catalysts, affect the efficiency and long-term reliability of practical water-splitting systems. These challenges become even more severe at industrial-level high current densities (>3 A cm⁻2). Among these, cathode materials, including the best noble metal-based catalysts, often suffer from poor stability, sluggish kinetics, and mass transport limitations under such demanding conditions. For instance, noble metal-based electrocatalysts, despite their excellent performance at low current densities, still suffer from poor long-term stability4, high overpotential5,6, and costly synthesis7, resulting in overall industrial-level HER performance that falls short of the U.S. Department of Energy (DOE) target (i.e., >3 A cm−2 for 1000 h with 0.13% performance degradation)8. Transition metal-based electrocatalysts (e.g., sulfides9, oxides10,11, and carbides12,13) have emerged as promising alternatives to noble metal-based catalysts for acidic HER.

Among them, transition metal carbides have attracted particular attention because of their excellent electrical conductivity and promising electrocatalytic activity toward hydrogen evolution, stemming from their analogous d-band electronic structure to platinum14 and consequent optimal metal-H binding energy15. However, such carbide catalysts face severe performance degradation and thus exhibit unstable operation lifetime, particularly at high current densities, because of surface oxidation16,17,18. On the other hand, transition metal oxide catalysts such as MoO2, albeit with excellent chemical stability and long lifetime, generally suffer from a large bandgap and low electrical conductivity, leading to sluggish charge transfer and thus inferior HER performance19. Theoretical studies have indicated that incorporating carbon into the lattices of transition metal oxides can effectively reduce their band gaps, thereby enhancing their electrical conductivity20. In addition, designing catalysts with low oxygen vacancies and stabilized atomic bonding structures can improve corrosion resistance, chemical stability, and lifetime21,22. Moreover, metastable materials can form a kinetically stable23 phase, such as metastable β-NiMoO4, which has been reported as an efficient HER catalyst with notable stability24. Taken together, controllable insertion of carbon into the lattice structures of transition metal oxides to form metastable intermediates (i.e., transition metal oxycarbides) with a uniform phase and active metal-oxygen-carbon bonds seems quite promising to strike a balance between the electrocatalytic properties and chemical stability of catalysts operating under harsh conditions25.

Although molybdenum carbides functionalized by oxygen surface terminations or surface-oxidized transition metal carbides are well-reported26,27, incorporating carbon directly into the lattice of molybdenum oxides to synthesize metastable molybdenum oxycarbides with a uniform phase is rather challenging due to the thermodynamic tendency for phase separation into stable oxide or carbide phases25. To overcome the synthesis challenges of oxycarbides, Sun et al.25 recently utilized flame spray pyrolysis at 2200 °C with an iridium promoter to synthesize unsaturated Mo17O47, which was subsequently in-situ carburized at 600 °C for up to 100 h to form α-MoC/MoOxCy mixtures for efficient reverse water-gas shift applications. Equilibrium methods to synthesize MoOxCy require a long time and high temperature, which often leads to phase separation, grain growth, and non-uniform carbon incorporation, due to the tendency of the system to favor thermodynamically stable separated phases (e.g., pure oxides or carbides) over metastable oxycarbides26. Non-equilibrium plasmas, which are distinguished by highly energetic reactive species in a far-from-equilibrium state and their ability to work at low temperatures, provide substantial benefits over conventional approaches for the synthesis and manufacturing of novel materials28,29,30. By operating under far-from-equilibrium conditions, non-equilibrium plasma synthesis enables atomic-level carbon incorporation at reduced processing temperatures by unique plasma-matter interactions, enhancing the reactivity of surfaces exposed to plasma species. The interactions with plasma can significantly alter the nucleation and crystal growth processes involved in catalyst preparation, facilitating thermodynamically unfavorable reactions that are not possible through conventional thermal methods31,32. The plasma manufacturing method is well known to enable the synthesis of metastable phases such as diamond33, β-tungsten34, and silicon oxycarbide35. With the assistance of energetic plasma species (e.g., ions, radicals), the carbon diffusion into transition metal oxides is expected to be significantly facilitated, even at low temperatures. This makes plasma-enabled nonequilibrium synthesis quite promising to generate metastable transition metal oxycarbides with controllable chemical composition, uniformly mixed phases, and structures favorable for high-performance HER36.

In this work, we report an in-situ growth of vertically standing nanoedge-enriched transition metal oxycarbide (i.e., molybdenum oxycarbide, MoOxCy) nanosheet catalysts via plasma-enhanced chemical vapor deposition (PECVD) using earth-abundant salts (i.e., MoO3 and NaCl) as precursors. As shown in Fig. 1, the nanoedge-enriched MoOxCy catalysts fabricated through non-equilibrium plasma offer the following benefits toward HER: (1) Improved long-term stability and efficiency of catalysts because of the oxycarbide phases enabled by non-equilibrium plasma, which are thermodynamically unfavorable to obtain through conventional equilibrium thermal methods; (2) Efficient hydrogen bubble detachment from the nanoedge-enriched structure with high roughness, maintaining continuous exposure of catalytic sites to the surrounding electrolyte. (3) Lowered d-band center of the MoOxCy because of the controlled introduction of carbon atoms into the lattice of MoO2, leading to reduced Mo-H binding energy and thus improved HER. As such, the MoOxCy exhibits efficient acidic HER performance with a low overpotential (η) of 415 mV at a high current density (j) of up to 10 A cm−2 for 1000 h with negligible degradation (approx. 0.11%), corresponding to a high hydrogen (H2) throughput of over 4477.4 L cm−2 and expected lifetime of 90,909 h, surpassing the DOE goal (>1253.7 L cm−2 and 80,000 h with <10% degradation)8 and demonstrating competitiveness with state-of-the-art transition metal- and even noble metal-based catalysts. This work sheds light on the underlying mechanism of developing high-throughput transition metal oxycarbide catalysts for practical industrial applications in electrocatalytic acidic hydrogen evolution.

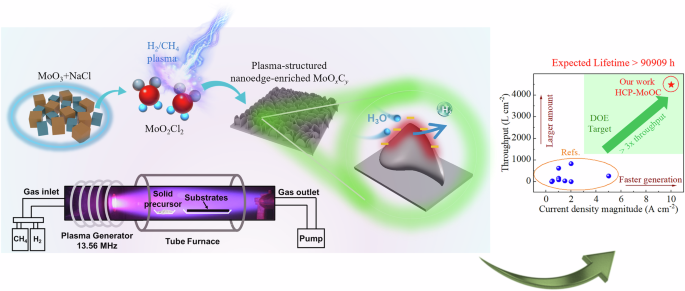

Fig. 1: Schematic illustration of the synthesis of MoOxCy electrocatalysts.
Fig. 1: Schematic illustration of the synthesis of MoOxCy electrocatalysts.
Full size image

The PECVD-grown MoOxCy nanosheets serve as a catalyst with enhanced efficiency and durability toward electrocatalytic hydrogen evolution.

Results

Synthesis and characterization of the MoOxCy catalyst

Vertically standing, nanoedge-enriched MoO2 samples (denoted as HP-MoO2) were fabricated using PECVD on nickel foam (Supplementary Fig. S1). The MoO2 arrays were synthesized through a PECVD process with a salt mixture of earth-abundant MoO3 and NaCl as the solid precursors in a non-equilibrium hydrogen plasma (HP) environment for 20 min (see details in Methods). During growth, the mixture of MoO3 and NaCl powders was introduced into the upstream of substrates inside the tube to generate volatile metal oxychlorides (i.e., MoO2Cl2) at elevated temperatures as the metal precursor37,38,39:

$${{MoO}}_{3}\left(s\right)+2{NaCl}\left(s\right)\to {{MoO}}_{2}{{Cl}}_{2}\left(g\right)+{{Na}}_{2}{{MoO}}_{4}\left(l\right)$$
(1)

The gaseous MoO2Cl2 was subsequently guided to the nickel foam substrate, promoting the growth of MoO2 within the highly reductive HP environment. The presence of a strong electric field in the plasma sheath can guide the growth of materials in a vertical orientation to the substrate (see Fig. S2)40. To incorporate the carbon element into the lattice of MoO2 and form vertically standing, nanoedge-enriched metastable MoOxCy (denoted HP-MoOC) arrays, the substrate was changed to carbon cloth. During the growth, the surface of the carbon fiber substrate was etched by HP, generating hydrocarbon species41,42 that served as the carbon source for MoOxCy formation. As shown in Fig. 2a, the PECVD-grown HP-MoOC exhibited petal-like nanosheet structures that are aligned roughly perpendicularly to the substrate. These nanostructures showed high aspect ratios and abundant exposed ultrasharp nanoedges. This morphology is distinctly different from the particle-like or horizontally stacked forms of transition metal oxides produced by conventional thermal chemical vapor deposition, as reported in previous studies37,38,43. The chemical composition of HP-MoOC was determined by using energy-dispersive X-ray (EDX) spectroscopy, revealing a Mo:O:C atomic ratio of approx. 1:1.5:0.5 (Supplementary Fig. S3).

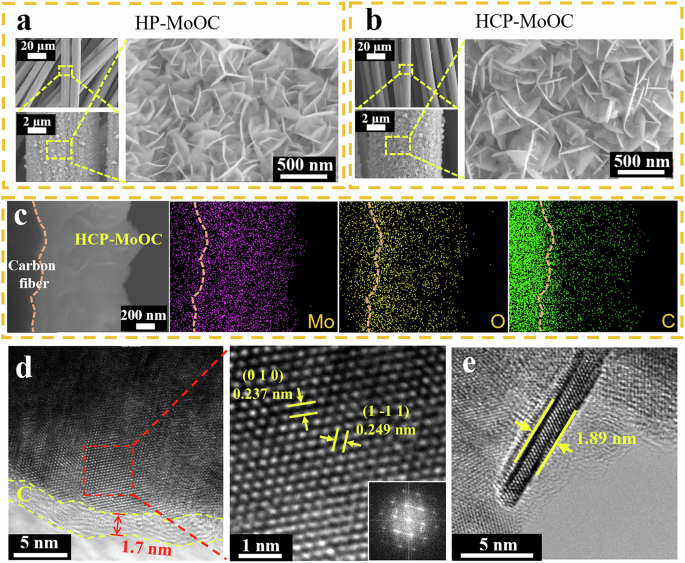

Fig. 2: Structural characterization of MoOxCy.
Fig. 2: Structural characterization of MoOxCy.
Full size image

SEM images of a HP-MoOC and b HCP-MoOC. c Cross-sectional SEM image and elemental mappings of the HCP-MoOC. d HRTEM image of HCP-MoOC with the corresponding FFT pattern in the inset. e HRTEM image showing the thickness of a single MoOxCy nanosheet within HCP-MoOC.

To achieve a tunable carbon content in HP-MoOC, the carbon source was further increased through additional methane plasma treatment during PECVD (see details in Methods). The resulting product, denoted as HCP-MoOC, still maintained the vertical-standing, nanoedge-enriched morphology (Fig. 2b), according to the cross-sectional scanning electron microscope (SEM) image (Fig. 2c). The vertical-standing, nanoedge-enriched morphology of HP-MoOC and HCP-MoOC is uniform throughout the substrate (Figs. S4 and S5). Elemental mapping obtained by EDX confirms the successful incorporation of carbon into the MoO2 structure (Fig. 2c), while additional SEM and EDX analyses further demonstrate the even distribution of Mo and O elements across the sample surface (Fig. S5a and S5b), indicating homogeneous material formation. To further evaluate the spatial distribution in both HC-MoOC and HCP-MoOC, line-scan EDX analyses (Figs. S6 and S7) were performed along the vertical axis of representative petal structures. The results revealed a carbon concentration gradient in HP-MoOC, with higher intensity near the substrate interface. In contrast, HCP-MoOC exhibited a more uniform carbon distribution throughout the structure, attributed to the dual carbon incorporation from both the carbon cloth substrate and the CH4 plasma treatment. However, the presence of Mo and O signals near the substrate in Fig. 2c can be attributed to the diffusion of these species into the substrate during plasma-assisted growth, a phenomenon that has also been reported in previous studies44,45.

The atomic structures of the PECVD-grown MoOxCy electrocatalysts were evaluated by high-resolution transmission electron microscopy (HRTEM) and fast Fourier transform analyses (Fig. 2d and Supplementary Fig. S8). The TEM result reveals atomic interlayer distances of 0.237 and 0.249 nm, corresponding to the (0 1 0) and (1 −1 1) planes, respectively, of the monoclinic crystalline structure observed in both HP-MoOC and HCP-MoOC. Notably, compared to HP-MoOC (Supplementary Fig. S8), HCP-MoOC exhibited a carbon-encapsuled crystalline structure, where the crystalline MoOxCy was covered by a thin layer of carbon with a thickness of ~1.7 nm, as shown in Fig. 2d. This thin carbon layer influences the interlayer spacing of the first few atomic layers (up to 5 layers, as shown in Fig. S9), likely due to interfacial strain effects or increased carbon incorporation near the interface. Additionally, the lattice spacings in HCP-MoOC were different from those in HP-MoOC, suggesting a higher degree of carbon atom incorporation into the crystalline structure of MoO2 during the methane plasma treatment, which also leads to the formation of additional carbon layers. The TEM images captured from different regions of the HCP-MoOC sample show that the carbon layer exhibits a typical thinness of a few nanometers (Fig. S10). The presence of this carbon layer was also confirmed by Raman spectroscopy. As shown in Supplementary Fig. S11, HCP-MoOC exhibited distinct D-band (ωD ∼ 1350 cm−1) and G-band (ωG ∼ 1584 cm−1) peaks, indicating the formation of a carbon structure46. In contrast, these peaks were absent in HP-MoOC, implying that the carbon layer forms only during the methane plasma treatment. EDX element analysis was further conducted on an individual MoOxCy nanosheet within the HCP-MoOC sample (Supplementary Fig. S12). Although a high carbon ratio was detected, we note that this result did not accurately reflect the true atomic ratio within the crystalline structure of HCP-MoOC due to the presence of a carbon coating layer. Additionally, the HCP-MoOC nanosheets synthesized via PECVD exhibited a thickness of only a few nanometers (Fig. 2e), while their height reached several hundred nanometers (Fig. 2c). This morphology resulted in a high aspect ratio, providing numerous active edge sites for high-performance catalytic applications.

X-ray diffraction (XRD) patterns of the PECVD-grown catalysts further confirmed the incorporation of carbon into the lattice structure of HP-MoOC (Fig. 3a). The peak of HP-MoO2 at \(2\theta=\sim 36.9^\circ\), which corresponded to the monoclinic crystalline MoO2 (PDF Card No. 00-032-0671)47, showed a gradual shift toward larger values of 37.1° and 37.3° for HP-MoOC and HCP-MoOC, respectively. A similar peak shift is also observed around 55°, which can be attributed to the reduced lattice spacing caused by the incorporation of carbon atoms into the MoO2 structure. In addition, no characteristic peaks of molybdenum carbides were observed, indicating that no phase separation occurred in the HCP-MoOC during the plasma synthesis process and confirming the formation of metastable MoOxCy with a uniform phase. This substitutional incorporation of carbon into the MoO2 results in lattice contraction and the corresponding peak shift to higher angles. However, the preservation of the peak shape and the absence of new reflections also suggest that the original monoclinic lattice is maintained, supporting the formation of a single-phase MoOxCy. The higher intensity of the carbon-related peak in HCP-MoOC (\(2\theta=\sim 43.5^\circ\)) is attributed to the contribution of both the carbon cloth substrate and an additional thin carbon layer on the catalyst surface.

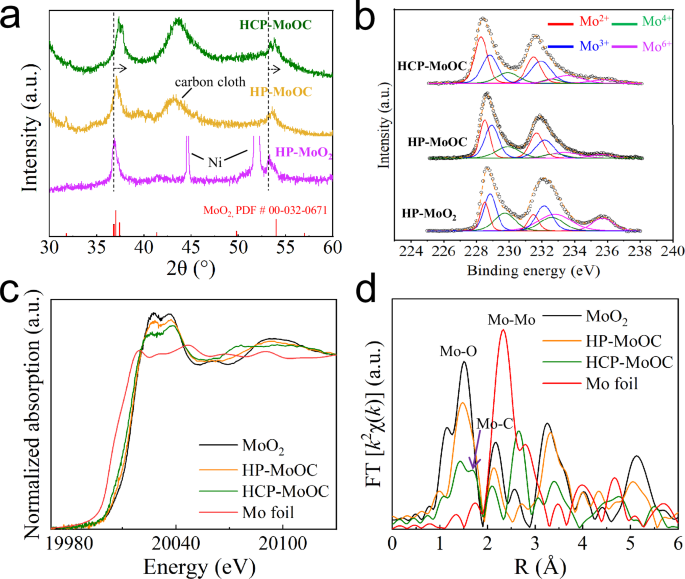

Fig. 3: Revealing the incorporation of carbon into the MoO2 lattices.
Fig. 3: Revealing the incorporation of carbon into the MoO2 lattices.
Full size image

a XRD spectra of HCP-MoOC, HP-MoOC, and HP-MoO2. b Mo 3d XPS spectra of HP-MoO2, HP-MoOC, and HCP-MoOC. c Mo K-edge XANES spectra of Mo-based and reference samples. d Mo K-edge Fourier transform EXAFS spectra of HP-MoOC, HCP-MoOC, and reference samples.

X-ray photoelectron spectroscopy (XPS) was employed to analyze the metal valence states and electronic structures of HP-MoOC and HCP-MoOC catalysts. As displayed in Fig. 3b, the Mo 3d spectra for both HCP-MoOC, HP-MoOC, and HP-MoO2 were decomposed into 3d5/2 and 3d3/2 peaks because of the spin-orbital coupling feature48. For all of the catalysts, four valence states of Mo (Mo2+, Mo3+, Mo4+, and Mo6+) were observed. The presence of Mo4+ is consistent with the characteristic oxidation state of MoO2, while the emergence of Mo2+ and Mo3+ peaks suggests partial reduction of Mo, likely due to carbon incorporation into the MoO2 lattice or the formation of oxygen vacancies in the highly reducing plasma environment. The Mo2+ peak in HCP-MoOC is shifted to a lower binding energy compared to that in HP-MoOC and HP-MoO2, as shown in Fig. 3b. This shift indicates a reduced electron density around Mo atoms in HCP-MoOC, likely due to greater carbon incorporation and the difference in electronegativity between oxygen and carbon, which alters the local chemical environment. The Mo4+ peak area is highest in HP-MoO2, followed by HP-MoOC and then HCP-MoOC, indicating that increased carbon incorporation leads to a progressive reduction of molybdenum to lower oxidation states. Notably, the atomic percentage of Mo2+ in HCP-MoOC (39.77%) was higher than that in HP-MoOC (29.24%), indicating a greater degree of chemical bonding between carbon atoms and Mo in HCP-MoOC. While the detection of Mo6+ in the HCP-MoOC is possible because of the surface sensitivity of XPS (~5–10 nm probing depth)49 and the presence of a sub-2 nm-thick carbon layer that enable detection of sub-surface Mo oxidation states, the peaks at 232.2 and 235.9 eV are characteristics of Mo6+ and likely arises from the mild surface oxidation of the Mo-based materials when exposed to air50,51.

To further elucidate the local coordination structure of the PECVD-grown MoOxCy electrocatalysts, synchrotron-radiation-based X-ray absorption fine structure (XAFS) measurements were conducted. As shown in Fig. 3c, the normalized X-ray absorption near-edge structure (XANES) at the Mo K-edge revealed that the pre-edges of both HP-MoOC and HCP-MoOC were located between those of Mo foil and commercial MoO2 powder. This finding suggested that the average valence state of Mo atoms in HP-MoOC and HCP-MoOC ranged from 0 to +4, indicating an increased electron density around the Mo atoms due to the existence of Mo-C bonding in MoOxCy. Furthermore, the pre-edge of HCP-MoOC shifted to a lower energy compared to that of HP-MoOC, suggesting a more reduced valence state of Mo in HCP-MoOC. This observation is consistent with the XPS results, confirming the higher degree of carbon integration into the HCP-MoOC lattice structure. The local environment of Mo atoms was further analyzed through the k2-weighted Fourier-transformed extended X-ray absorption fine structure (FT-EXAFS) in R-space (Fig. 3d). The intensity of the Mo-O bond peak decreased progressively from MoO2 to HP-MoOC to HCP-MoOC, while the Mo-C bond peak became prominent in HCP-MoOC. This trend indicated that carbon atoms were initially introduced into the MoO2 lattice during the first-step HP growth, with further carbon incorporation occurring during the second-step CH4 plasma treatment. These spectroscopic results suggested that carbon incorporation led to a redistribution of local electronic density, enhancing the electron-rich character of Mo while altering the polarity of Mo-O bonds, which was beneficial for stabilizing Mo in MoOxCy catalyst materials and weakening the binding strength of Mo-H, thereby enhancing the HER activity52,53.

HER activity evaluation

HER electrocatalytic activities of the plasma-grown catalysts were evaluated using a three-electrode electrochemical configuration in a 0.5 M H2SO4 electrolyte. Figure 4a shows that the plasma-grown MoOxCy catalysts significantly outperform the commercial MoO2 powder catalyst, and HCP-MoOC shows better electrocatalytic performance than HP-MoOC. Notably, the overpotentials (η) of both HP-MoOC and HCP-MoOC catalysts are competitive with those of the most widely used commercial noble metal Pt/C catalyst at large current densities (j > 1 A cm−2). Specifically, the η values for HCP-MoOC at current densities of 5 A cm−2 and 10 A cm−2 are 358 ± 2 mV and 415 ± 2 mV, respectively, which are lower than those of the existing advanced acidic HER catalysts54,55,56,57, as shown in Fig. S13 and Supplementary Table S1. HCP-MoOC also demonstrates the capability to sustain even higher current densities, highlighting its high intrinsic activity and potential for high-rate hydrogen production (Fig. S14). The relationship between current density and the ratio of overpotential change to logarithmic current density change (Δη/Δlog|j | ) is analyzed for different catalysts and shown in Fig. 4b. This metric, a critical indicator of the electrocatalysts’ energy efficiency performance at high current densities, is essential for practical hydrogen evolution applications58,59. While the Δη/Δlog|j| ratio of the Pt/C catalyst increased sharply with current density, those of HP-MoOC and HCP-MoOC maintained lower values, suggesting their better performance at higher current densities. Notably, HCP-MoOC exhibited smaller Δη/Δlog|j| ratios compared to HP-MoOC at all current densities, indicating the higher electrocatalytic performance of HCP-MoOC. Moreover, a segmented Tafel slope analysis was conducted to further analyze the HER kinetics. In the low current density regions of 1–10 and 10–50 mA cm−2, HCP-MoOC exhibited Tafel slopes of approximately 40.8 and 51.0 mV dec−1, respectively, which suggested a Volmer-Heyrovsky mechanism, indicating that electrochemical desorption (i.e., Heyrovsky step) is the primary rate-limiting step60,61. At current densities above 200 mA cm−2, the Tafel slopes increased sharply above 100 mV dec−1, likely due to mass transport limitations caused by proton depletion, which obscures the intrinsic kinetics62.

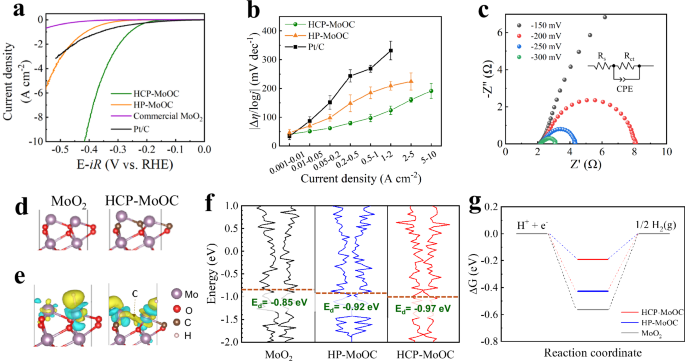

Fig. 4: Electrochemical performance and characterization of MoOxCy electrocatalysts and the underlying mechanism.
Fig. 4: Electrochemical performance and characterization of MoOxCy electrocatalysts and the underlying mechanism.
Full size image

a Polarization curves of HCP-MoOC, HP-MoOC, and commercial Pt/C and MoO2 catalysts. The polarization curves without iR compensation are shown in Fig. S15. All tests were conducted at room temperature (23 °C). b Δη/Δlog|j| ratios for Pt/C, HP-MoOC, and HCP-MoOC in different current density ranges. The error bars correspond to the standard deviation calculated from three separate experimental replicates. c Nyquist plots for HCP-MoOC at different potentials vs RHE, demonstrating the relationship between charge transfer resistance and applied potential. d Atomic models and e charge distributions of MoO2 and HCP-MoOC catalysts. f Projected density of states (PDOS) of MoO2, HP-MoOC, and HCP-MoOC catalysts. Dashed lines indicate the d-band centers of Mo. g DFT-calculated Gibbs free energy (∆GH) variations for HER on MoO2, HP-MoOC, and HCP-MoOC catalysts.

The HER performance of the HCP-MoOC catalysts at high current densities can be attributed to three factors: (i) Localized electric field effect. As reported in our previous work63, the presence of ultrasharp edges generates a strong localized electric field, effectively driving H3O⁺ ion diffusion toward the reactive surface. This effect can be further analyzed by electrochemical impedance spectroscopy (EIS). As shown in the Nyquist plots (Fig. 4c), the charge transfer resistance (Rct), represented by the diameter of the semicircles, decreases significantly as the applied potential increases, which is characteristic of enhanced reaction kinetics under higher overpotentials, as observed in other HER catalysts64, where increased driving force lowers the kinetic barrier for charge transfer. In the case of HCP-MoOC, beyond the kinetic acceleration at higher applied potentials, we hypothesize that the nanoedge-enriched morphology further enhances the local electric field at the catalyst surface63,65, which can promote more favorable hydrogen adsorption and facilitate interfacial electron transfer. Consequently, the rapid consumption of H3O+ at high current densities can be compensated, ensuring sustained high HER efficiency. (ii) Efficient H2 bubble release. One of the major challenges for HER catalysts under industrial conditions is the formation of gas bubbles, which can obstruct active sites and limit reaction efficiency66. The vertically standing petal-like morphology of HCP-MoOC reduces the interfacial adhesion to hydrogen bubbles, enabling the rapid detachment of generated H2 at high current densities, attributed to the increased surface roughness. As shown in Supplementary Fig. S16, hydrogen bubbles generated on the Pt/C surface exhibited strong adhesion and grew to significant sizes, effectively covering many active sites and consequently hindering subsequent catalytic reactions. In contrast, smaller hydrogen bubbles formed on the HCP-MoOC surface were readily detached from the catalyst, ensuring continuous exposure of active sites to the electrolyte and enabling sustained HER activity at high current densities. (iii) Weakened hydrogen adsorption free energy (ΔGH), stemming from carbon incorporation into lattices of MoO2. In addition, the reducing plasma environment (i.e., H2 and CH4) is expected to induce oxygen vacancies67,68, which could synergistically enhance the electrical conductivity and electrocatalytic HER performance69. To quantitatively determine the atomic ratio within the crystalline structure of HCP-MoOC, we further conducted HP treatment to etch the surface carbon layer (details in Supplementary Note S1). After etching, the HCP-MoOC showed a slight increase in HER activity but significantly reduced stability (Supplementary Fig. S17), indicating that the surface carbon layer played a critical role in achieving good stability of HCP-MoOC. Such a phenomenon has also been observed in previously reported carbon-encapsuled catalysts70,71. EDX analysis on the etched HCP-MoOC revealed that the Mo:O:C atomic ratio in the crystalline part of HCP-MoOC was approximately 1:1:1 (Supplementary Fig. S18), confirming a higher carbon content than that in HP-MoOC.

The electrocatalytic performance of HCP-MoOC was further supported by density functional theory (DFT) calculations. As shown in Fig. 4d and Supplementary Fig. S19a, atomic models for various catalysts, including MoO2 and MoOxCy with different Mo:O:C ratios (1:1.5:0.5 for HP-MoOC and 1:1:1 for HCP-MoOC), were constructed to simulate different Mo-based phases formed under different plasma treatment conditions. Figure 4e presents the electron charge distribution after H adsorption on MoO2 and HCP-MoOC. In the case of MoO2, the electron transfers predominantly occurred from H to Mo, leading to a strong interaction between the two elements. However, for HCP-MoOC, electron transfer from C to Mo also exists, alongside the electron transfer from H. This suggests that the presence of carbon in HCP-MoOC reduces the interaction between hydrogen and molybdenum, thereby weakening the bond strength between them. Additionally, the d-band center of molybdenum in HCP-MoOC is lower than those in MoO2 and HP-MoOC, indicating that molybdenum is more stabilized by carbon substitution in HCP-MoOC than in MoO2 or HP-MoOC. The d-band center refers to the weighted average energy level of the d-electrons in a transition metal and serves as a widely used descriptor for catalytic activity and bonding strength with adsorbates such as hydrogen. A lower d-band center typically corresponds to weaker metal–hydrogen interactions, favoring easier hydrogen desorption. This electronic stabilization induced by carbon insertion plays a crucial role in optimizing hydrogen adsorption energy, thereby improving the intrinsic catalytic activity of the material (Fig. 4f). The calculated oxidation state of Mo in HCP-MoOC (1.61) was also lower than that in MoO2 (1.66), which corresponded well with the experimental Mo K-edge XANES spectra. This stabilization of Mo in HCP-MoOC due to C substitution led to a weakened Mo-H bonding strength, enhancing the HER performance of HCP-MoOC. As illustrated in Fig. 4g, HCP-MoOC exhibited the most favorable ∆GH (i.e., closest to 0 eV) among the catalysts, indicating its optimal binding with hydrogen atoms and thus exhibiting competitive HER activity compared to other catalysts.

Long-term HER performance

Achieving high-performance hydrogen production requires overcoming several challenges, such as OER efficiency and membrane degradation72. However, enhancing HER catalyst stability under industrial-level current densities in acidic media presents a valuable opportunity for advancing practical hydrogen technologies73. Given that hydrogen production throughput, which depends on both the operating current density and the catalyst lifetime, is a critical metric for industrial applications, the development of robust, high-efficiency HER catalysts is essential for scalable and sustainable hydrogen production. This parameter directly influences the efficiency, stability, cost per liter of produced hydrogen (see note S3 for cost estimation), and scalability of hydrogen production in practice. The grown HCP-MoOC exhibited a high hydrogen production throughput of up to 4477.4 L cm−2 at a high generation rate, surpassing the DOE target (>1253.7 L cm−2) and demonstrating strong competitiveness with state-of-the-art HER catalysts54,56,57,59,74,75,76,77,78,79,80 (Fig. S20 and Supplementary Table S2). The notable H2 throughput of the HCP-MoOC is derived from the stable operation of the electrocatalyst over 1000 h at high current densities. To demonstrate the stability of the HCP-MoOC catalyst, chronoamperometric (j-t) tests were conducted at a high current density of 10 A cm−2 with the applied potential fixed at −415 mV vs RHE (Fig. 5a). The HCP-MoOC catalyst exhibited stable operation in 0.5 M H2SO4 during the tests, with negligible degradation (i.e., approx. 0.11%) over 1000 h. This performance exceeded the target (i.e., >3 A cm−2 for 1000 h with 0.13% degradation) proposed by the U.S. DOE8. Notably, the catalyst exhibited no performance degradation at 10 A cm−2 even after 1000 h of continuous operation (Fig. S21). At ultrahigh current densities (>1 A cm−2), transient performance fluctuations may be observed due to vigorous gas evolution, which can momentarily block active sites. Normal catalytic activity resumes upon bubble detachment. Future improvements in electrode architecture, advanced cell configuration design, and optimized gas release pathways may further mitigate such effects. Post-stability analysis revealed no significant changes in the microstructure or crystal structure, and the sharp nanoedges of the vertically aligned nanosheets remained intact (Figs. S22 and S23). In contrast, the commercial Pt/C catalysts displayed severe degradation during the chronoamperometry tests, with the performance decreased by 28% in 12 h, even at a much lower current density of approx. 1 A cm−2, a phenomenon that has also been reported in previous studies81,82. We note that the chronoamperometric test of the Pt/C catalyst was conducted at 1 A cm−2 instead of 10 A cm−2, because the Pt/C catalyst deteriorated rapidly at such an ultrahigh current density. Substantial performance degradation was also observed during the repeated linear sweep voltammetry tests at such ultrahigh current densities (Supplementary Fig. S24). The calculated expected lifetime of the HCP-MoOC catalyst, based on the 10% performance degradation threshold defined by the DOE, is approximately 90,909 h, which exceeds the DOE’s ultimate target (80,000 h) and demonstrates long-term durability greater than that of state-of-the-art HER catalysts reported to date (Supplementary Fig. S25 and Table S2). Notably, the hydrogen lifetime throughput of HCP-MoOC (~407,033.6 L cm−2) overpassed the DOE target (100,503.1 L cm−2), demonstrating the great potential for large-scale applications.

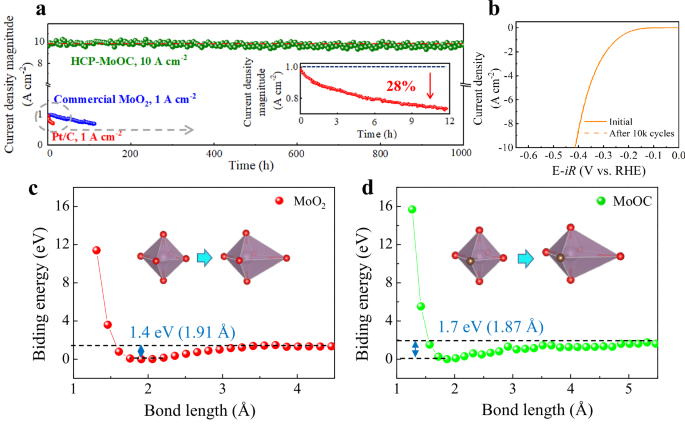

Fig. 5: Durability performance of MoOxCy and the underlying mechanism.
Fig. 5: Durability performance of MoOxCy and the underlying mechanism.
Full size image

a Chronoamperometric tests of HCP-MoOC, commercial Pt/C, and MoO2 catalysts. b Polarization curves of HCP-MoOC before and after 10,000 CV cycles. The resistivity of the catalyst (2.50 ± 0.02 Ω) remained stable throughout the cycling. Calculated Mo-O binding energy and bond length of c MoO2 and d HCP-MoOC.

Moreover, the polarization curve of HCP-MoOC showed a negligible shift after 10,000 cyclic voltammetry (CV) cycles (Fig. 5b), indicating stable performance under acidic HER conditions. To further understand the notable stability of HCP-MoOC, the binding energies between the metal atom and adjacent atoms in the Mo-based catalysts were calculated, as shown in Fig. 5c, d. This analysis is crucial to assessing the lattice stability of catalysts, which plays a vital role in combating electrochemical decomposition and maintaining long-term HER performance at high current densities. Fig. 5c, d illustrate that carbon incorporation into the MoO2 lattice increases the binding energy from 1.4 to 1.7 eV, contributing to the enhanced structural stability of the HCP-MoOC catalyst under demanding electrochemical conditions. It is inferred that this stronger atomic interaction helps preserve the crystalline framework of the catalyst during prolonged high-current operation, thereby minimizing long-term degradation. Furthermore, the Mo-O bonding lengths of MoO2 and HCP-MoOC at equilibrium states are calculated to be 1.91 Å and 1.87 Å, respectively (Fig. 5c, d), indicating that the bond length decreases as the binding energy increases. This shortened bond length suggests that the lattice would be contracted in MoOC, as evidenced by the shift of its XRD peak toward a higher angle.

In summary, we report the design and realization of an efficient and stable catalyst based on molybdenum oxycarbide (i.e., MoOxCy) nanosheets with petal-like structures and controlled chemical compositions by PECVD using salts as solid precursors. The plasma-grown, nanoedge-enriched MoOxCy catalyst with a uniform phase exhibits efficient acidic HER performance with a low overpotential of 415 mV at a high current density of up to 10 A cm−2 for 1000 h (>41 days). As a result, a high H2 throughput of 4,477.4 L cm−2 and expected lifetime of 90,909 h are achieved, highlighting its competitiveness with state-of-the-art transition metal- and even noble metal-based catalysts in both throughput and stability. This work provides a pathway for developing catalysts suitable for practical industrial electrocatalytic acidic hydrogen evolution.

Methods

Chemicals and materials

Chemicals, including MoO3 (99%), sodium chloride (99%), ethanol (200 proof), and sulfuric acid (98%), were purchased from Sigma-Aldrich. Other chemicals, including isopropyl alcohol (IPA, 98%) and acetone (>99.5%), were purchased from Thermo Fisher Scientific. Carbon cloth was purchased from Fuel Cell Earth. Silver paste was purchased from Ted Pella Inc. Graphite plates (99.99%) were purchased from CGjiogujio. Nafion 117 membrane was purchased from Ion Power Co.

Fabrication of HP-MoOCs

HP-MoOCs were synthesized by a customized inductively coupled plasma enhanced chemical vapor deposition (PECVD) system. In a typical procedure, carbon cloth was cut into 4 cm × 1 cm pieces and sequentially washed with acetone, IPA, and water. Next, 20 g MoO3 and 10 g NaCl were added to 100 mL of ethanol and stirred for 4 h. After drying overnight, the resulting salt precursors were collected for the PECVD growth of MoOxCy. 0.75 g salt precursor was placed in a crucible boat, with a piece of carbon cloth positioned 2 cm away from the precursor. The tube was then evacuated to a pressure of <3 Pa and heated to 600 °C. A hydrogen gas flow of 6 mL min–1 was introduced, and a 300 W radio frequency source was coupled into the quartz tube to initiate the growth of HP-MoOC on the carbon cloth substrate. The growth process was maintained at ∼30 Pa for 20 min. Afterward, the sample was cooled under an argon flow of 20 mL min–1 to obtain HP-MoOC.

Fabrication of HCP-MoOCs

The fabrication of HCP-MoOC involved a second step of plasma treatment after the first-step growth of HP-MoOC. For the plasma treatment, temperature was increased from 600 to 650 °C, and CH4 was introduced into the PECVD system at a flow rate of 6 mL min–1. A 300 W radio frequency source was coupled into the quartz tube to initiate methane plasma treatment. After 10 min of plasma treatment, the sample was cooled under an argon flow of 20 mL min–1 to obtain HCP-MoOC. To further investigate the tunability of carbon incorporation, additional samples were fabricated with CH4 plasma treatment times of 3 and 5 min, while all other synthesis parameters were kept constant (see Section S3 and Supplementary Fig. S26).

Materials characterization

SEM (SUPRA40, Zeiss) was applied to characterize the morphology of the samples at an acceleration voltage of 10 kV. Transmission electron microscopy (TEM) and high-resolution TEM (HRTEM) were conducted on JEOL JEM-2100F (JEOL) at an acceleration voltage of 200 kV. STEM-EDX analysis was performed on Spectra 200 at 200 kV. X-ray photoelectron spectra (XPS) were collected with a Physical Electronics Versa Probe II system. Powder XRD spectra were recorded on Bruker D8 P-XRD operating at 40 kV and 40 mA with Cu Kα radiation. The XAS characterizations were conducted at 7-BM in Brookhaven National Laboratory. All tests were conducted at a room temperature of ∼23 °C and atmospheric pressure of ∼0.1 MPa, with a humidity of ∼49%. Error analysis was conducted with multiple sets of repeatable tests.

Electrochemical characterization

Electrochemical measurements were performed using a 1010E Electrochemical Workstation (Gamry) in a conventional three-electrode setup. A graphite rod was used as the counter electrode and a saturated calomel electrode (SCE) as the reference electrode, calibrated using Pt plates as the counter and working electrodes in H2-saturated 0.5 M H2SO4. For stability tests, a graphite plate served as the counter electrode. The working electrodes were HP-MoOC or HCP-MoOC with an exposed area of 0.1 cm2. For the characterization of commercial Pt/C and MoO2 powder samples, 2 mg of each catalyst was dispersed into 1.0 mL of absolute ethanol and 40 μL of Nafion solution (5.0 wt%) to form a homogeneous catalyst ink (2 mg mL−1) via 1-h sonication. 250 μL of the ink was then dropped on the surface of a 1 cm × 1 cm (~0.5 mg cm−2) carbon cloth and dried overnight. A Nafion 117 membrane was cut into a circle (d = 16 mm) and used to separate the cathodic and anodic compartments. The membrane was pretreated with 3 wt% H2O2 for 1 h, followed by DI water at 80 °C for 2 h. HER measurements were performed in 0.5 M H2SO4 solution (pH = 0.3 ± 0.1), prepared by adding 103.24 g of concentrated H2SO4 to a 2-L flask, followed by the gradual addition of DI water with agitation for 1 h. After preparation, the electrolyte was stored in a sealed container at room temperature. The resistance (Ru) of the 0.5 M H2SO4 solution was measured to be 1.61 ± 0.04 Ω.

Polarization curves were recorded at a scan rate of 2 mV s−1 with automatic iR compensation, and the accelerated durability tests were performed by applying the cyclic potential sweeps for 10,000 cycles. The dynamic resistivity of the catalysts was recorded by the potentiostat during the test. EIS measurements were conducted across various potentials within a frequency spectrum extending from 100 kHz to 100 mHz, utilizing an alternating current (AC) amplitude of 10 mV. All potentials were recorded against the SCE and calibrated with respect to a reversible hydrogen electrode (RHE):

$${E}_{{RHE}}={E}_{{SCE}}+0.244+0.059\times {pH}$$
(2)

DFT calculations

The atomic and electronic structures of MoO2, HP-MoOC (MoO1.5C0.5), and HCP-MoOC (MoOC) were modeled by DFT using the Vienna Ab Initio Simulation Package (VASP). The exchange-correlation function and the spin-polarized generalized gradient approximation were parameterized by Perdew–Burke–Ernzerhof (PBE)83. A Monkhorst–Pack grid of 4\(\times\)4\(\times\)1 K-points sampling and a cut-off energy of 500 eV were applied. The oxidation charge state was calculated based on Bader charge analysis84. The free energy of HER was analyzed based on the Volmer mechanism (H++e−→H*), where H* represents the adsorbed hydrogen atom on the atomic models. The Gibbs free energy of H adsorption (ΔGH) was analyzed according to85:

$$\Delta {G}_{H*}=\Delta E+\Delta {E}_{{ZPE}}-T\Delta S$$
(3)

where \({\Delta E}_{{ZPE}}\) is the zero-point energy (ZPE), T is the temperature, and ΔS is the entropy variation. Here, the adsorption energy of the hydrogen atom, ΔE, was calculated by:

$$\Delta E={E}_{{{\rm{H}}}-{\mathrm{model}}}-{E}_{{\mathrm{model}}}-\frac{1}{2}{E}_{{{\rm{H}}}}$$
(4)

where \({E}_{{{\rm{H}}}-{{\rm{model}}}}\), \({E}_{{{\rm{model}}}}\), and \({E}_{{{\rm{H}}}}\) are the total energy H-adsorbed model, the H-free model, and the hydrogen gas, respectively. In addition, the binding energies of MoO2 and MoOC were calculated by changing the Mo-O bond distance in octahedral structures:

$${{\rm{Binding}}}\; {{\rm{energy}}}={{E}_{{{\rm{Stable}}}\_{{{\rm{Mo}}}}-{{\rm{O}}}}}-{{E}_{{{\mathrm{var}}}\_{{{\rm{Mo}}}}-{{\rm{O}}}}}$$
(5)

where EStable_Mo-O and EVar_Mo-O are the total energy of the most stable state and the total energy depending on variations of bond length, respectively. The relaxed atomic models (.cif format) are provided in the Supplementary Data file 1. doc file.
