Fig. 3: Strain/strain rate sensing properties of the FSSMS (flexible single-channel strain/strain rate-temperature multimodal sensor).

From: Simultaneous strain, strain rate and temperature sensing based on a single active layer of Te nanowires

Fig. 3

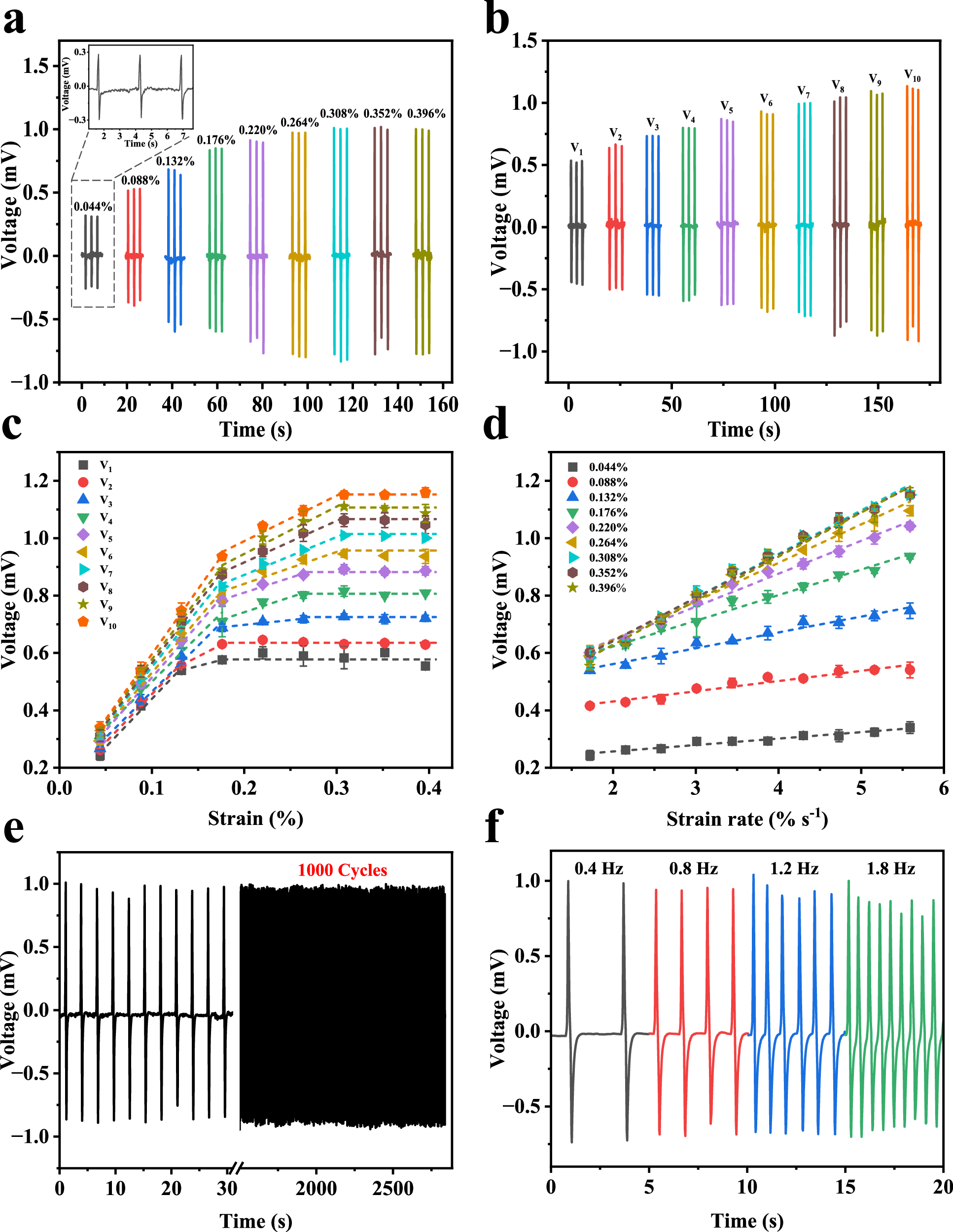

Measured output voltage signals under (a) different strain with a fixed strain rate of 4.3% s−1 and (b) different strain rate with a fixed strain of 0.264%. Strain-dependent statistic voltage under different strain rates (c) (V1 = 1.72% s−1, V2 = 2.15% s−1, V3 = 2.58% s−1, V4 = 3.01% s−1, V5 = 3.44% s−1, V6 = 3.87% s−1, V7 = 4.3% s−1, V8 = 4.73% s−1, V9 = 5.16% s−1 and V10 = 5.59% s−1) and strain rate-dependent voltage under different strain (d). The error bars (mean ± standard deviation) were obtained based on three independent tests. Stability depending on the (e) cycle and (f) frequency of the device. Source data are provided as a Source Data file.
