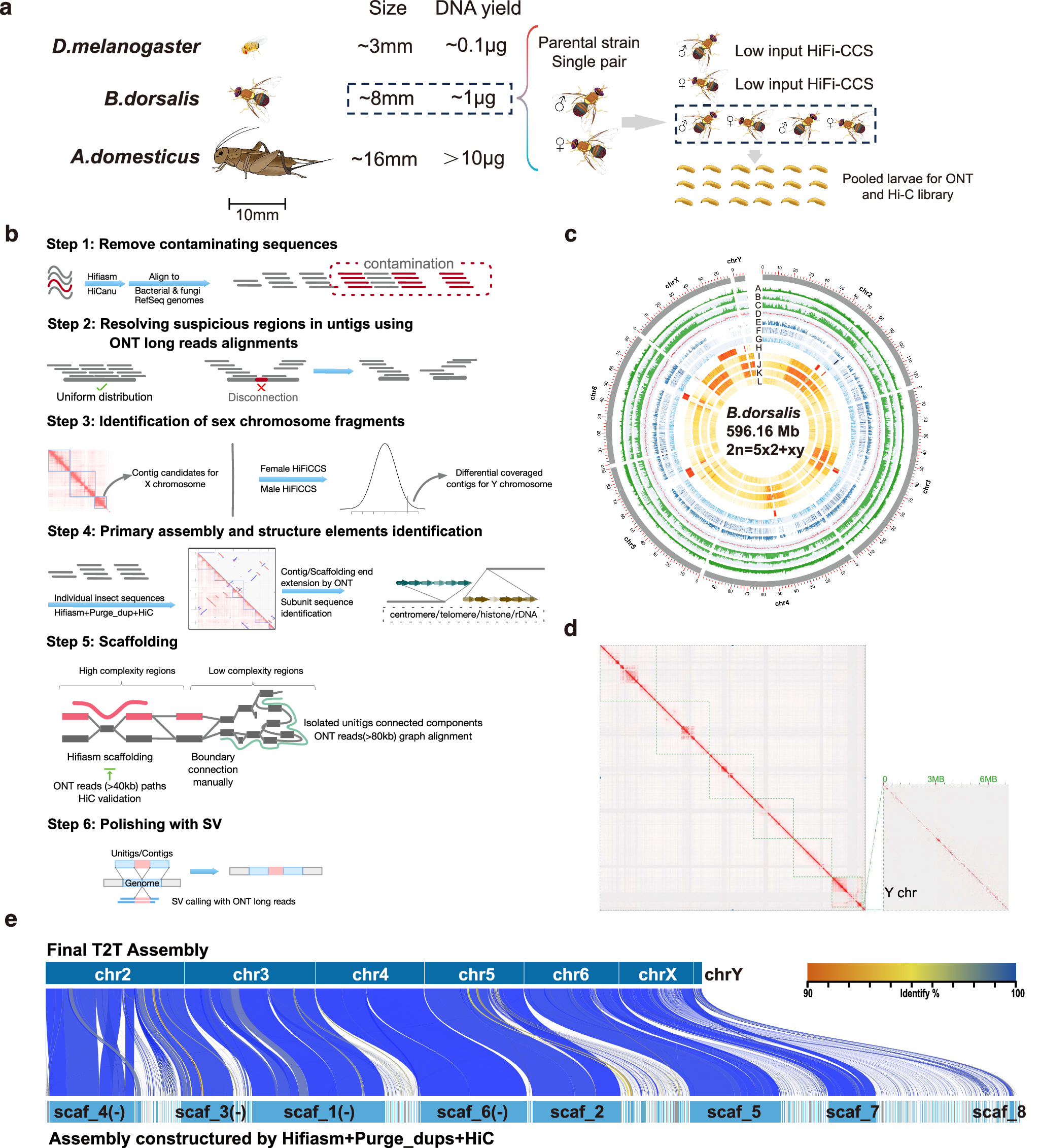

Fig. 1: Genome assembly of B. dorsalis.
From: Telomere-to-telomere genome assembly of the Dipteran Bactrocera dorsalis from a single individual
a Sample DNA content and sequencing scheme. b The genome assembly procedure (detailed in the method section). c Circos plot showing the T2T genome assembly of B. dorsalis. The tracks from A to M are as follows: [A] HiFi CCS from a male individual; [B] HiFi CCS from a female individual; [C] ONT reads coverage from mixed samples; [D] GC% content; [E] maximum FPKM value in a 500-bp bin from multiple RNA-seq data; [F] gene density; [G] ChIP-seq peak of histone H3K4me3 modification; [H] location of centromeres, telomeres and histone array; [I] LTR density; [J] DNA density; [K] nonLTR density; and [L] SSR density. d Hi-C contact map for assembly. Chromosome Y is enlarged for visualization. e Collinear regions between assemblies from the two assembling strategies.
