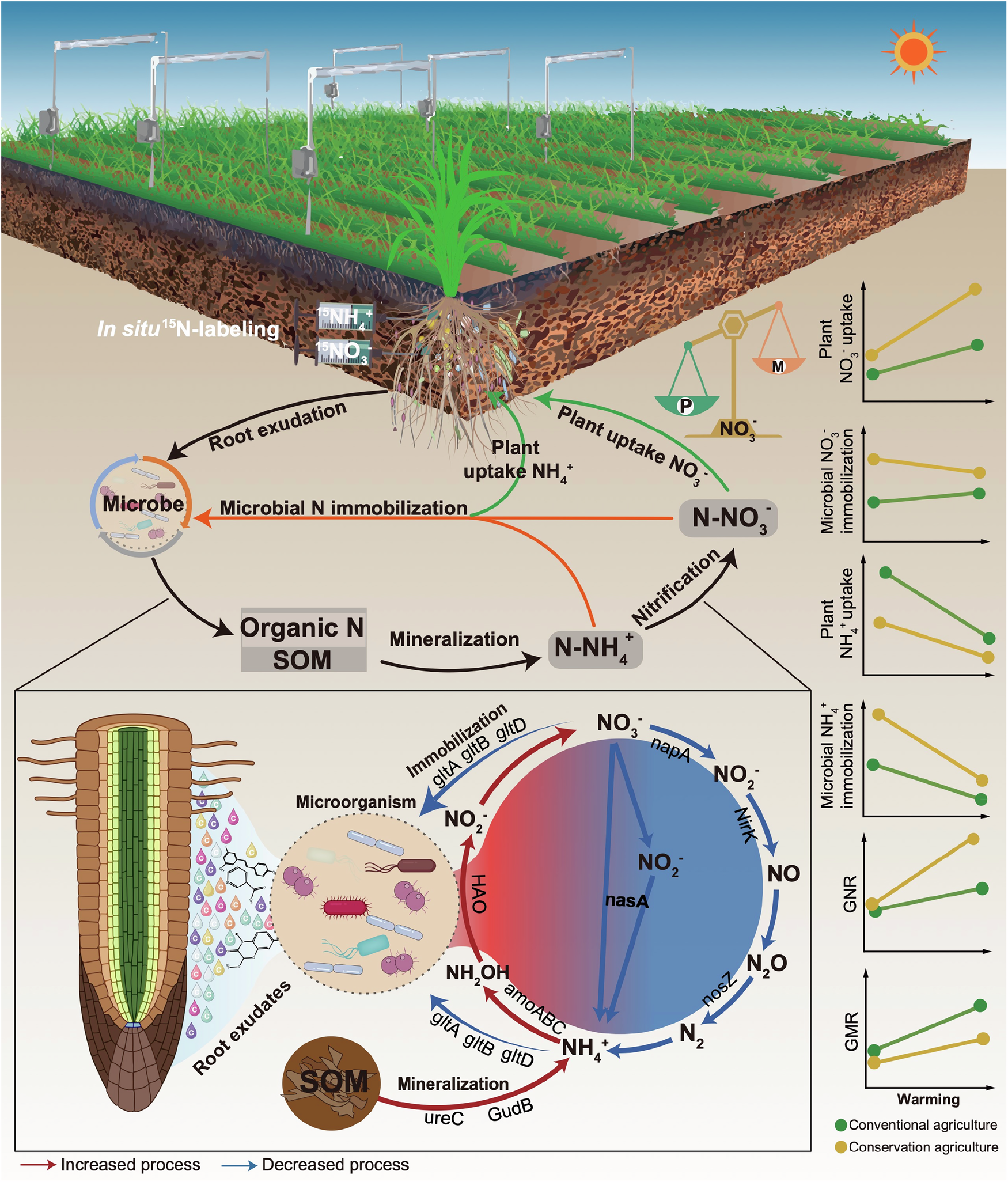

Fig. 7: Conceptual diagram describing the impact of warming on N partitioning between wheat and soil microorganisms and the underlying plant-soil-microbe interactions mechanism in conservation agriculture. | Nature Communications

Fig. 7: Conceptual diagram describing the impact of warming on N partitioning between wheat and soil microorganisms and the underlying plant-soil-microbe interactions mechanism in conservation agriculture.

From: Conservation agriculture raises crop nitrogen acquisition by amplifying plant-microbe synergy under climate warming

Fig. 7: Conceptual diagram describing the impact of warming on N partitioning between wheat and soil microorganisms and the underlying plant-soil-microbe interactions mechanism in conservation agriculture.The alternative text for this image may have been generated using AI.

To evaluate partitioning and mutualistic interactions between wheat and soil microorganisms under warming, we investigated 15N redistribution between wheat and soil microorganisms and soil gross N transformation. The results show that conservation agriculture management alleviated N competition between wheat and soil microorganisms and favored plant nitrate acquisition by accelerating soil internal N transformations through changes in root metabolites quality compared to conventional agriculture under warming. The red arrow indicates increased microbial-mediated N processes following warming, and the blue arrow indicates reduced processes. The green and yellow lines represent N partitioning between plants and microorganisms and gross N transformation rates in conventional and conservation agriculture, respectively. GMR gross N mineralization rate, GNR gross N nitrification rate, GIR gross N immobilization rate. Some elements of this figure were created in BioRender. Cunkang, H. (2025) https://BioRender.com/atwc0kv.
