Fig. 2: Atomic-scale structural and electronic properties characterization of photocatalysts.

From: Dipole synergy enables fast directional charge transport for solar hydrogen and benzaldehyde coproduction

Fig. 2: Atomic-scale structural and electronic properties characterization of photocatalysts.

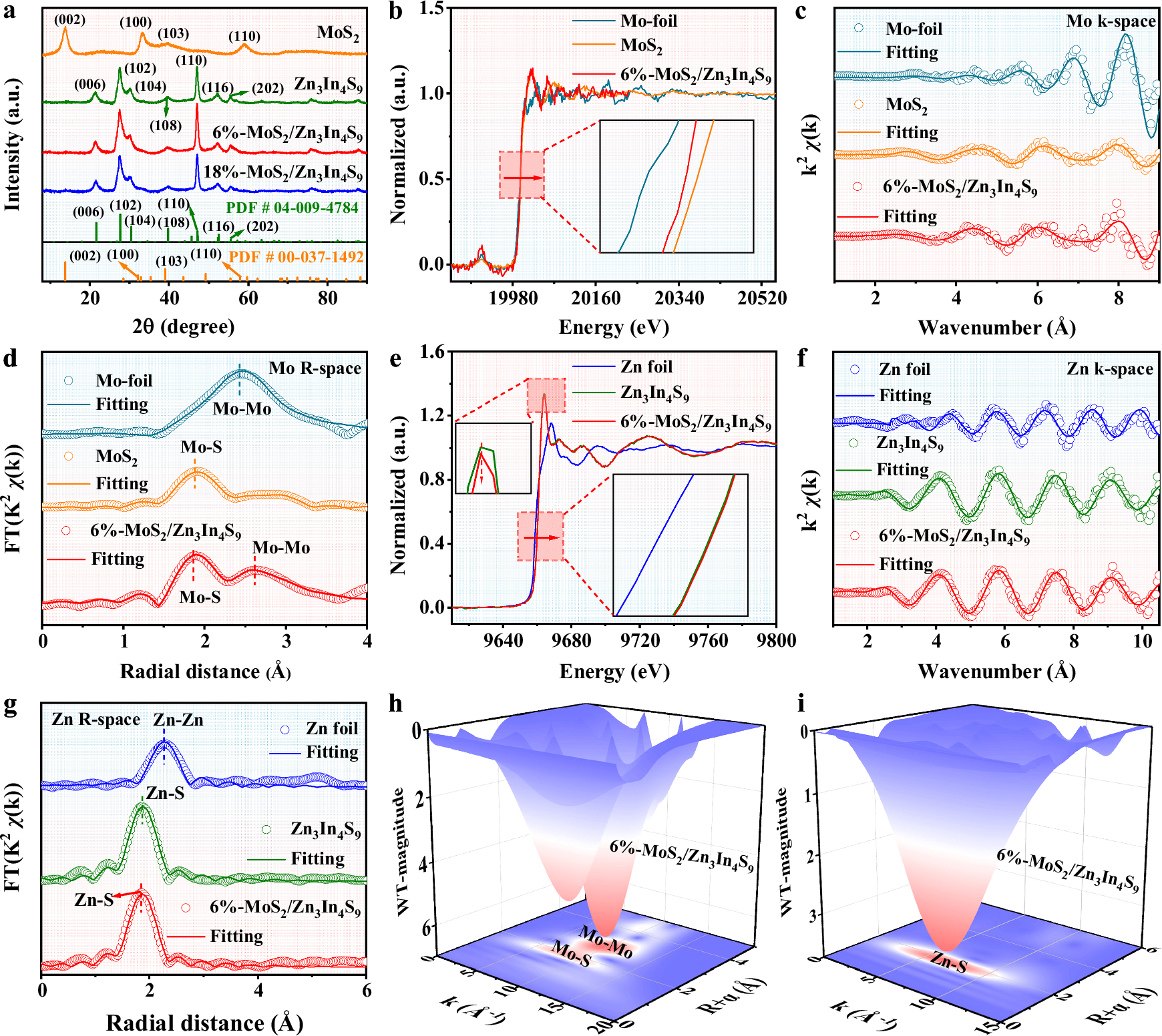

a XRD of MoS2, Zn3In4S9, and y-MoS2/Zn3In4S9. b Compare the Mo K-edge XANES spectra among Mo foil, MoS2, and 6%-MoS2/Zn3In4S9 composites. Present (c) K-space and (d) R-space EXAFS fitting spectra for Mo foil, MoS2, and 6%-MoS2/Zn3In4S9. e Contrast the Zn K-edge XANES spectra of Zn3In4S9 and 6%-MoS2/Zn3In4S9 with the reference spectrum of Zn foil. (f) K-space and (g) R-space EXAFS fitting spectra for Zn foil, Zn3In4S9, and 6%-MoS2/Zn3In4S9. Illustrate the WT-EXAFS analysis for the (h) Mo and (i) Zn K-edges in 6%-MoS2/Zn3In4S9.
