Introduction

Spin-based magnetic transitions have recently attracted a significant amount of attention in the context of quantum information and sensing technologies1,2,3, due to their potentially long coherence lifetimes, their ability to be tuned using external magnetic fields, and the possibility to optically control level population using spin-selective transitions, even at room temperature. Despite their intrinsic weakness in natural materials4, magnetic transitions can be obtained in particular systems, including rare-earth ions5, quantum dots6, nitrogen-vacancy (NV) centers in diamond7 and organic molecules like pentacene8. Controlling the emission rate of such spin-based magnetic transitions is thus pivotal for a wide range of applications, including quantum computing9,10, quantum sensing11,12, electron-spin resonance spectroscopy13, and active emission devices14.

The Purcell effect, which describes the fundamental back-action of the environment on the dynamics of quantum emitters, is a key phenomenon to control emission rates in quantum electrodynamics15. As shown by Purcell in his seminal paper16, the spontaneous emission rate of quantum emitters can be enhanced when placed in a cavity with a high quality factor (Q factor) and a small mode volume (Vm). This enhancement, characterized by the Purcell factor (\({F}_{{{{\rm{p}}}}}\propto Q{\lambda }_{{{{\rm{m}}}}}^{3}/{V}_{{{{\rm{m}}}}}\)), equivalently contributes to the stimulated emission process17. However, as spin transition frequencies are commonly in the gigahertz range, i.e., with emission wavelengths (λm) on the order of tens of centimeters, leveraging the magnetic Purcell effect comes with the inherent challenge of dealing with the large ratio between \({\lambda }_{{{{\rm{m}}}}}^{3}\) and achievable values of the mode volume Vm. In practice, the physical dimensions of gain media that can be grown experimentally, such as organic crystals or diamond-based samples, occupy physical volumes that are roughly three orders of magnitude smaller than \({\lambda }_{{{{\rm{m}}}}}^{3}\) (i.e., ∝ cm3). To address this mismatch, the resonator geometry must be engineered such that the region of strong magnetic field is confined to a volume only slightly larger than that of the gain medium, with its orientation optimized for alignment with the emitters’ magnetic dipole moments. This squeezing of the magnetic mode maximizes spatial overlap with the active medium, thereby enhancing the efficiency of energy exchange.

To circumvent this issue, many studies have instead focused on increasing the quality factor Q, for example, by using superconducting materials13,18, at the cost of operating under cryogenic conditions. At room temperature, small mode volumes and high Q have been achieved by employing dielectrics with very high permittivities and/or low dielectric losses, such as strontium titanate (SrTiO3)19 and sapphire20,21. These approaches have enabled a substantial enhancement of magnetic stimulated emission, sufficient to achieve maser action. However, dielectric resonators with extremely high permittivities, such as SrTiO3, are inherently sensitive to temperature variations due to their large temperature coefficient of permittivity. Even minor room-temperature variations, or the unavoidable thermal heating coming from optical excitation or readout22, would inevitably shift the mode frequency away from the quantum emitter linewidth. As a result, the system must be continuously retuned, hindering stable operation and limiting the practicality of such dielectric resonators.

In this study, we fix this vexing issue and demonstrate that room-temperature magnetic quantum emission enhancement can be stable over hours in a metamaterial-inspired, all-metallic magnetic resonator with a remarkably small mode volume, five orders of magnitude smaller than \({\lambda }_{{{{\rm{m}}}}}^{3}\). This is obtained with a specially designed multiple three-dimensional split-ring resonator (SRR) cluster, monolithically manufactured by lost-wax metal casting, which is an indirect additive manufacturing technique. We provide direct evidence that this resonator significantly boosts the stimulated emission rate of magnetic quantum emitters, by constructing a room-temperature pentacene maser that is completely free of high-index dielectric materials. We demonstrate maser operation stable in frequency and in output pulse shape over thousands of seconds, which is not achievable in prior dielectric-based designs.

Results

Ultra-strong magnetic Purcell-enhanced stimulated emission

Planar split-ring resonators have been widely used as metal-based resonant magnetic scatterers in metamaterials and metasurfaces23, where they provide a compact way for strong subwavelength magnetic interactions and dipolar emission control24. We have devised here a complex three-dimensional cluster of such resonators comprising four concentric split rings (see the inset in Fig. 1a), whose geometry has been optimized through full-wave finite-element simulations to yield a strong spatial confinement of magnetic energy in its middle region. The SRR cluster is shaped as a torus with an inner radius of 1.52 mm, outer radius of 6.02 mm and a height of 4.5 mm (other geometrical details are shown in Supplementary Fig. S1). To facilitate monolithic fabrication and avoid post-fabrication alignment steps, small metallic connections were added to link adjacent split rings within the cluster, with diameters of 1 mm. These interconnections have been located at adequate positions, so that they do not significantly influence the magnetic resonance. Additionally, the outermost ring is securely fixed to a circular stand via two thin posts having 1-mm diameter. This all-metal monolithic SRR cluster has a fundamental magnetic resonant mode at approximately 1.45 GHz, with a high concentration of magnetic energy at its core (1.5 mm radius × 4.5 mm height), and a magnetic field mostly oriented along the z-axis, as shown in Fig. 1a (the electric field distribution is shown in Supplementary Fig. S2). Assuming that within this region, we align uniformly an ensemble of quantum magnetic emitters along the z-axis, we would get an effective magnetic mode volume \({V}_{{{{\rm{m}}}}}=\int\frac{{\left\vert {{{\bf{H}}}}({{{\bf{r}}}})\right\vert }^{2}}{{\left\vert {{{{\bf{H}}}}}_{\max }({{{\bf{r}}}})\right\vert }^{2}}dV\) of only 0.025 cm3. Remarkably, this estimation is almost 350 thousand times smaller than \({\lambda }_{{{{\rm{m}}}}}^{3}\). Such a resonator has an unloaded Q factor (Qunload) around 700, assuming that it is fabricated in silver and enclosed within an copper cavity to reduce the radiation losses. The corresponding single-mode Purcell factor \({F}_{{{{\rm{p}}}}}=\frac{3{\lambda }_{{{{\rm{m}}}}}^{3}}{4{\pi }^{2}}\cdot \frac{Q}{{V}_{{{{\rm{m}}}}}}\)16 is estimated to be around 1.89 × 107, which is of the same order of magnitude as the one reported using strontium titanate, a record-high dielectric with ϵr ~ 32025. Our all-metallic design is also significantly different from metallic structures discussed in other works26,27,28,29. In the following, we perform a direct magnetic quantum emission experiment to establish the relevance of our design.

Fig. 1: Toroidal split-ring resonator (SRR) cluster for strong and stable Purcell enhancement, and its demonstration in a maser.
figure 1

a Highly concentrated magnetic energy density distribution within the cross-section of the resonant mode supported by the clustered SRR. The white dashed lines depict the magnetic field contours. The inset is a photograph of the clustered SRR fabricated in silver using the lost-wax metal casting method. b Room-temperature maser experiment. A pentacene:p-terphenyl crystal is loaded into the clustered SRR. Both are housed inside a cylindrical copper cavity featuring an adjustable copper top, which enables adjusting the resonance frequency. The pentacene molecules are excited by a yellow pulsed laser via an optical fiber inserted into the crystal through the cavity bottom. A loop probe is utilized to extract the maser signals.

Full size image

In light of these promising simulation results, we have selected the pentacene-based pulsed maser20 as an ideal test platform, for which we can directly compare the performance obtained with our SRR cluster and with a high-index dielectric resonator. This particular maser is distinguished by its ability to achieve room-temperature masing without requiring an external magnetic field. The maser action predominantly results from the population inversion (N) established between the X and Z sublevels within the first triplet state of pentacene molecules under optical excitation (see Supplementary Fig. S3a)30,31. As depicted in Fig. 1b, the pentacene:p-terphenyl (pc:pt) crystal (1.5 mm radius × 10 mm height) is positioned within the bore of the clustered SRR, which is enclosed inside a copper cavity. The bottom 5 mm of the pc:pt crystal includes a central axial hole of 0.5 mm radius, whereas the top 5 mm remains solid. The resonant frequency of the cavity can be manually fine-tuned to approximately 1.4493 GHz using the top tuning plate. To efficiently pump the crystal, the laser pulses (wavelength at 592 nm, pulse duration  ~ 5 ns, repetition rate 1 Hz) from an optical parametric oscillator (OPO, SL I-20 Surelite) are coupled into an optical fiber (core diameter 1 mm) with a coupling efficiency  ~ 60%. The other end of the optical fiber protrudes through the cavity bottom and is inserted into the central hole of the crystal. The maser burst following each laser pulse is then captured using a weakly coupled magnetic loop probe and recorded by an oscilloscope (Tektronix MSO64-2.5G). A schematic of the complete experimental setup can be found in Supplementary Fig. S4.

By gradually increasing the pulse energy of the pump laser from 0.8 mJ to 6 mJ, we recorded a total of 1300 maser pulses and analyzed them using a Lotka–Volterra model (L-V model, see “Methods”)32,33. A collection of the peak power in all maser pulses as a function of the laser pulse energy indicates that there is an optical pumping threshold around 2.3 mJ, below which no maser emission can be detected (Fig. 2a). The slight fluctuations in the maser output are a consequence of fluctuations in OPO output beams (see Supplementary Fig. S5). Two maser pulses under excitation energy of 2.5 mJ and 5.9 mJ are given as instances in Fig. 2b and c, respectively. When the excitation energy slightly exceeds the threshold, the maser pulse possesses a single peak in time domain and can be accurately fitted by the L-V model, yielding an initial population inversion N ~ 5.2 × 1013. With pumping energy well above the threshold (N ~ 6.8 × 1013), we observe a weak oscillatory behavior in the maser pulse. This behavior could potentially arise from coherent energy exchange between the spin ensemble and the cavity mode34, or from collective emission phenomena such as superradiance35,36. Further experimental and theoretical investigations will be necessary to determine the precise underlying mechanism of these oscillations.

Fig. 2: Experimentally measured output pulses from the SRR-cluster maser.
figure 2

a Peak power of the maser pulses as a function of the pump laser energy. The linear fit (pink line) of the measured data (blue dots) suggests that the pump threshold of the maser is around 2.3 mJ. b, c Maser pulses in time domain (top) and corresponding fast Fourier transformed (FFT) spectra (bottom) under laser excitation of 2.5 mJ and 5.9 mJ, respectively. The measured maser pulses (blue circles) are fitted using the L-V model (pink line). With higher pump energy, the maser pulse exhibits a weak oscillatory behavior and corresponding spectral broadening.

Full size image

Excellent spectral robustness against thermal variations

To demonstrate the thermal stability of the proposed clustered SRR, we consecutively recorded the temporal responses of the maser to laser excitation over a period of five hours. The successive laser excitation, operating at a 1-Hz repetition rate with pulse energy around 3 mJ, induced thermal heating in the resonator and the pc:pt crystal, since a given amount of the optical energy is dissipated without contributing to the masing process. As a reference, we built a second maser using a standard hollow cylindrical strontium titanate (SrTiO3) resonator, which is similar in size to our clustered SRR and exhibits a comparable Purcell factor. The SrTiO3 resonator possesses a high Purcell factor (Fp ~ 3.6 × 107), thanks to its high relative permittivity and low loss tangent (ϵr ~ 320, \(\tan (\delta ) \sim 9\times 1{0}^{-5}\))19. The emission spectra of all the pulses, measured under the same conditions from the clustered-SRR- and SrTiO3-based masers, are plotted in Fig. 3a, b, respectively. It is evident that the spectra of the clustered-SRR-based masers exhibit a superior stability in both signal strength and resonant frequency over at least 18,000 shots. This excellent thermal stability is attributed to silver’s high thermal conductivity and moderate thermal expansion coefficient, resulting in a temperature coefficient of resonant frequency of approximately 130 ppm/K. In contrast, the central frequency of the SrTiO3-based maser shifts from 1.449 GHz to 1.453 GHz, resulting from SrTiO3’s large temperature coefficient of resonant frequency (approximately 1700 ppm/K)25,37. We simulated the diffusion of the deposited optical pump energy and the resulting temperature variations in the SrTiO3 resonator using COMSOL. The simulation results are presented in the Supplementary Movie 1 and Fig. S6. More importantly, this frequency shift is accompanied by a variation in the signal strength, which eventually vanishes because of the limited gain linewidth of pentacene molecules (see Supplementary Fig. S3b). We terminated the measurement in the SrTiO3-based maser after 12,000 shots as no maser signal was detected during the final 200 s. After switching off the pump laser, the resonant frequency of the SrTiO3 resonator took approximately two hours to recover back to its initial value (see Supplementary Fig. S7). Apart from the self-termination, another side effect caused by the frequency shift is the transition in the maser operation mechanism: it enters the strong-coupling regime featuring a oscillatory response, and later returns to the Purcell-enhanced regime (see Fig. 3d).

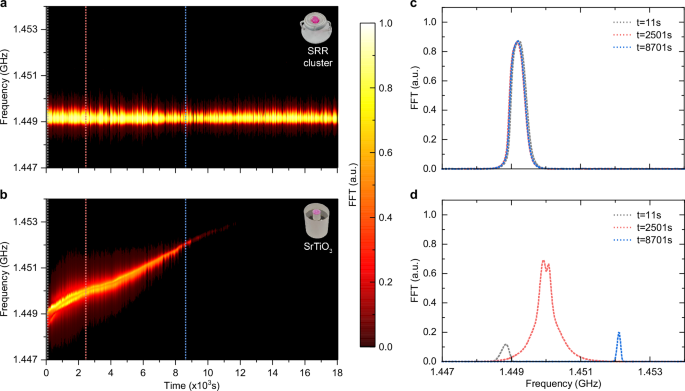

Fig. 3: Stability of operation of the clustered-SRR-based maser over a duration of 18,000 s.
figure 3

a, b Emission spectra of masers constructed with the SRR cluster and SrTiO3 resonator, respectively. Both masers were experimented under the same conditions and pumped by the OPO laser at a 1-Hz repetition rate (pulse energy around 3 mJ). Spectra of the clustered-SRR-based maser remained consistently stable throughout the entire experiment. In contrast, spectra of the SrTiO3-based maser gradually diminished with a blueshift in its central frequency. c, d Selected emission spectra from the clustered-SRR- and SrTiO3-based masers, respectively, at time 11, 2501, and 8701 s. The clustered-SRR-based maser operates within the same physical regime at all times, whereas the SrTiO3-based maser underwent a dynamic transition into the oscillatory regime and subsequently reverted to the Purcell-enhanced regime due to its shifted resonant frequency.

Full size image

Discussion

The L-V model yields an Einstein coefficient of stimulated emission, B ≈ 38.7 × 10−8 s−1, which is about 3.5 times higher than the value reported for the SrTiO3-based maser19,32. From this value, the experimentally inferred mode volume of the clustered SRR is approximately Vm ≈ 0.072 cm3, which is nearly three times larger than that obtained from the numerical simulation. Since \({V}_{{{{\rm{m}}}}}\propto \frac{1}{| {{{\bf{H}}}}\cdot {{{\bf{n}}}}{| }^{2}}\)38, where H denotes the magnetic field of the cavity mode and n is the unit vector pointing in the direction of the magnetic dipole moment, this discrepancy can be attributed to the misalignment between the magnetic dipole emitters and the magnetic field of the cavity mode. Potential sources for this misalignment include: (i) geometric deformation of the clustered SRR caused by the metal casting technique; and (ii), structural defects in the pentacene:p-terphenyl crystal that introduce variations in dipole orientation. To confirm that the simulated mode volume is not artificially reduced by local field maxima, we quantitatively analyzed the magnetic energy distribution in the resonator bore region. The field was found to be broadly uniform without strong localization, as detailed in Supplementary Discussion SII A. With Vm = 0.072 cm3 and Qload = 530, the experimental Purcell factor of the fabricated SRR cluster is calculated to be 5 × 106. Furthermore, to assess the interaction strength between the emitters and the confined EM mode in the resonator, the cooperativity of the maser, constructed with the SRR cluster, can be calculated using C = 4g2N/kcks, where \({k}_{{{{\rm{s}}}}}=2/{T}_{2}^{*}\) is the spin dephasing rate with the spin dephasing time \({T}_{2}^{*}\approx 2.9\,\mu {{{\rm{s}}}}\) and \(g={\gamma }_{e}\sqrt{{\mu }_{0}\hslash \omega /2{V}_{{{{\rm{m}}}}}}\) is the single spin-photon coupling strength. With N = max(N0) = 7.3 × 1013, the cooperativity is estimated to be C ≈ 6.4, suggesting a strong coupling between the emitters and the SRR cluster.

In many cases, optimization of the Purcell factor involves making compromises between the Q factor and the mode volume. Cavities with a high Q would be beneficial for applications such as reducing the emissive threshold of active devices (e.g., lasers and masers, etc.). However, when the emitter’s transition linewidth is much larger than the linewidth of the cavity mode (Δωe ≫ Δωc), the emission rate is no longer mainly modified by \(\frac{{\omega }_{{{{\rm{c}}}}}}{\bigtriangleup {\omega }_{{{{\rm{c}}}}}}\cdot \frac{1}{{V}_{{{{\rm{m}}}}}}\). Instead, it becomes proportional to \(\frac{{\omega }_{{{{\rm{c}}}}}}{\bigtriangleup {\omega }_{{{{\rm{e}}}}}}\cdot \frac{1}{{V}_{{{{\rm{m}}}}}}\), thus limiting the Purcell enhancement introduced by the high Q factor17,39. On the other hand, Vm still contributes to the Purcell effect without being hindered by the emitter/cavity relative linewidth. Despite having a modest Q factor, our proposed SRR cluster provides a strong Purcell enhancement thanks to its ultra-small Vm. Consequently, it imposes fewer restrictions on the spectral linewidth of emitters. Furthermore, as Q factors are inherently limited by material properties, engineering the effective mode volume of the environment is particularly advantageous in numerous applications.

In conclusion, we have experimentally demonstrated exceptionally stable maser operation using a specially designed all-metallic SRR cluster, reaching a high Purcell factor of approximately 5 × 106 at room temperature. It possesses a deep-subwavelength magnetic mode volume (\({V}_{{{{\rm{m}}}}}=0.072\,{{{{\rm{cm}}}}}^{3} \sim 8.1\times 1{0}^{-6}{\lambda }_{{{{\rm{m}}}}}^{3}\)), meanwhile provides a considerable space for positioning and aligning the dipole emitters in the region where the magnetic energy is most concentrated. Remarkably, it is resilient to the thermal variations occurring under prolonged laser excitation. For future work, we surmise that the Purcell factor of this resonator could be further improved, especially through the use of more precise fabrication techniques and by improving our control over magnetic dipole orientations and distribution in the gain medium. In addition, the geometry of the clustered SRR can be tailored to achieve operation at different frequencies, accommodating other magnetic quantum emitters such as NV defect centers in diamond, which are used in continuous-wave (CW) masers21. A detailed analysis of the thermal stability of CW masers incorporating the SRR cluster is provided in Supplementary Discussion SII B. Moreover, the utilization of quantum emitters in high concentration could promote light-matter interaction into the strong-coupling regime. Our study demonstrates the possibility to avoid the drawbacks associated with the use of high-dielectrics in room-temperature magnetic quantum technologies.

Methods

Design and fabrication of the clustered SRR

The resonator was designed using eigenmode and full-wave frequency-domain solvers in CST Studio Suite for obtaining the optimal magnetic Purcell factor. This design trajectory is concisely summarized in Supplementary Fig. S8. The optimized toroidal SRR cluster was monolithically printed in sterling silver using wax 3D printing and lost-wax metal casting (3D Print India). The 3D model of the clustered SRR is available on the repository Zenodo (see “Data availability”) for precise reproduction of the structure. No post-fabrication alignment was needed thanks to its monolithic structure. The printed SRR cluster was electroplated with 15–20 μm thick silver (Steiger galvanotechnique SA) to reduce the ohmic losses.

Pentacene:p-terphenyl crystal growth

The pentacene:p-terphenyl crystal (concentration around 0.1% mol/mol) is grown using the vertical Bridgman method. Commercially purchased p-terphenyl (A14833, Alfa Aesar) is purified by sublimation under high vacuum (≤10−6 mbar), and then mixed with the pentacene (P2524, TCI Europe NV) powder as purchased. For the purpose of creating a central hole through the crystal, a pyrex rod (diameter 1 mm) is inserted after loading the mixed powders into a doubled-layer Pyrex ampoule (inner diameter 3 mm, Tecglas), which is then sealed under vacuum (≤10−6 mbar). The ampoule has a tapered capillary at the end for self-seeding during the growth process. An in-house Bridgman furnace, which consists of a three-zone tube furnace (EVC 12/450B, 1200 °C, Carbolite Gero) and a vertical motion control system, is used to grow the crystal. The sealed ampoule is suspended in the hot top zone (Tmax ~ 240 °C) for at least 12 h to ensure that the chemicals melt homogeneously. Then, the ampoule is descended towards the colder bottom zone (Tmax ~ 80 °C) at a speed of approximately 0.53 mm/h over 14 days. Thereafter, the motor is stopped and the furnace is gradually cooled down to room temperature to prevent thermal shocks. The as-grown crystal is cut using a diamond saw and gently removed from the Pyrex tubing and the inner rod.

Maser dynamics modelling

To predict and analyze the maser dynamics, we utilize a pair of coupled first-order nonlinear differential equations, namely the Lotka-Volterra model:

$$\dot{N}=-2BNq-\gamma N$$
(1)
$$\dot{q}=-{k}_{{{{\rm{c}}}}}q+BNq$$
(2)

where N and q are the numbers of population inversion and microwave photons in the cavity. γ is the spin-lattice relaxation rate and kc is the photon decay rate in the cavity, which can be calculated from the loaded Q factor as kc = ω/Qload. B stands for the Einstein coefficient of the stimulated emission, which is directly linked to the resonator’s mode volume as follows32:

$$B=\frac{{\mu }_{0}\hslash \omega {\gamma }_{e}^{2}{T}_{2}}{4{V}_{m}}$$
(3)

where μ0 is the vacuum permeability, ℏ the reduced Planck constant, γe = 1.76 × 1011 rad ⋅ s−1 ⋅ T−1 the electron gyromagnetic ratio, and T2 = 2.1 μs the spin-spin relaxation time of pentacene. Spontaneous emission is omitted from our dynamical model because, at microwave frequencies, its rate is vanishingly small compared to stimulated emission.

For the clustered SRR resonating at ω = 1.4493 GHz ⋅ 2π, Qload of the maser, including the pc:pt crystal is determined to be 530 from the S11 parameter measured using a 2-port vector network analyzer (Rohde & Schwarz, 100 kHz ~ 20 GHz) without laser excitation, resulting in kc = 17.2 × 106 s−1. At room temperature T, the initial value of q equals the thermal photon number in the cavity without optical excitation, which can be calculated by the Bose-Einstein occupation function \({q}_{0}={({e}^{\frac{\hslash \omega }{{k}_{{{{\rm{B}}}}}T}}-1)}^{-1} \sim 4300\), where kB is the Boltzmann constant. Given proper values for B, γ, and initial value of N, the coupled equations can be integrated in time to reveal the maser dynamics. From the measured maser pulse power P(t), the microwave photon number as a function of time is given by q(t) = P(t)(1 + κ)/ℏωkcκ, where κ = 0.3 is the coupling coefficient between the magnetic probe and the cavity. Using the differential evolution algorithm40, the best agreement between the experimental data and the model is achieved with γ = 1.4 ± 0.4 × 104 s−1, B = 38.7 ± 2.9 × 10−8 s−1 while varying N0 from 4.5 × 1013 to 7.3 × 1013. We note that the spin-lattice relaxation rate obtained here is slightly higher than the reported value (1.1 ± 0.2 × 104 s−1)41. This difference might stem from the fact that spin decays from the triplet state back to the singlet ground state is not included in the L-V model. Assuming steady-state operation (\(\dot{q}=0\)), the threshold population inversion is given by: Nthreshold = kc/B = 4.4 × 1013. Since the Purcell factor scales as \({F}_{p}\propto \frac{{Q}_{load}}{{V}_{m}}\), it follows that \({N}_{threshold}\propto \frac{1}{{F}_{p}}\), confirming that an ultrasmall Vm and high Qload (i.e., a large Fp) are key to achieving low-threshold, efficient maser operation.
