Introduction

The swiftly evolved flexible electronics have demonstrated great potential in remolding the lifestyle of human beings1,2,3,4. As a crucial component of electronics, optical displays have spurred numerous applications in stretchable devices, such as visual read-out, optical communication and neurostimulation, and soft robotics5,6,7,8,9,10. To date, several mechanisms, including light-emitting diodes (LEDs) and alternating-current electroluminescent (ACEL) devices, have been proposed to achieve stretchable optical displays4,11,12,13. The LEDs, including organic light-emitting diodes (OLEDs), quantum dot light-emitting diodes (QLEDs), feature high luminance5,14,15. Unfortunately, their stretchability is still a great challenge even though remarkable progress has been made in recent years7,15,16. In addition, the LEDs require a balanced charge injection for emission, which imposes strict requirements on materials and assembly process1,5. In contrast, the ACEL devices can easily achieve excellent and intrinsic stretchability by using a light-emitting layer of ZnS phosphors embedded in elastomer17,18,19. The typical structure of ACEL devices consists of two stretchable electrodes sandwiching a light-emitting layer with a low interface requirement13,20. The structure is very simple as compared with that of the LEDs, enabling ACEL devices suitable for versatile stretchable optoelectronics, from films to textiles, for various scenarios20,21,22,23,24.

Despite numerous merits, the driving of ACEL devices usually requires high alternating electric fields (E) at high frequency to excite the ZnS phosphors, because of the low dielectric constant (k) of the elastomer11,17,25. Such driving requirements pose significant challenges to portable devices and raise safety concerns when the ACEL devices are applied for human–machine interactions11. A fundamental principle of employing high-k substrates to enhance luminance has been well-established in the industry for ACEL devices. However, the transition to stretchable electronics has revealed an unexpected issue: while the principle remains valid, its implementation becomes profoundly challenging. To achieve stretchability, researchers must employ elastomeric matrices, which typically exhibit dielectric constants below 1026,27. Hence, researchers have put great effort to explore transparent and high-k elastomer, aiming at reducing the operating requirements of the stretchable ACEL devices11,25,28,29,30. One breakthrough occurred in 2019, Tan et al. prepared a plasticized fluoroelastomer and demonstrated the record-low turn-on electric field of 0.34 V µm−1 with 50 Hz11. The total elongation of the ACEL device achieves up to 800%. Nevertheless, the recoverable elongation of the plasticized fluoroelastomer is only 50%. The ACEL devices are hard to recover after a large elongation. Besides, the color capability is also a major obstacle for the stretchable ACEL devices because of the limitation of phosphors5,31.

Herein, we present a stretchable ACEL device based on a high-k and stretchable gel dielectric, as shown in Fig. 1a. The devices exhibit a turn-on electric field as low as 0.19 V µm−1 at 50 Hz. Moreover, the stretchability of the light-emitting layer is inherited from an intrinsically stretchable gel rather than plasticized polymers, enabling the devices with an elongation up to 600%. We also employ fluorescent electrodes for multi-color displays without additional or complicated structure designs. Through the light conversion of the photoluminescence, the initial Blue color is extended to Yellow, Green, and Red colors with high luminance. The stretchable ACEL devices possess a brightness up to 1944.7 ± 99.4 cd m−2 at 2.5 V µm−1 of 1 kHz, indicating a considerable achievement in stretchable display. Subsequently, we assemble a wearable display device of 128 pixels powered by a battery. The wearable display can dynamically display information through wireless communication in real time, illustrating the promising potential for human-machine interaction as a wearable display device.

Fig. 1: High-k and stretchable dielectric gel as the emitting layer matrix for bright ACEL devices.
Fig. 1: High-k and stretchable dielectric gel as the emitting layer matrix for bright ACEL devices.
Full size image

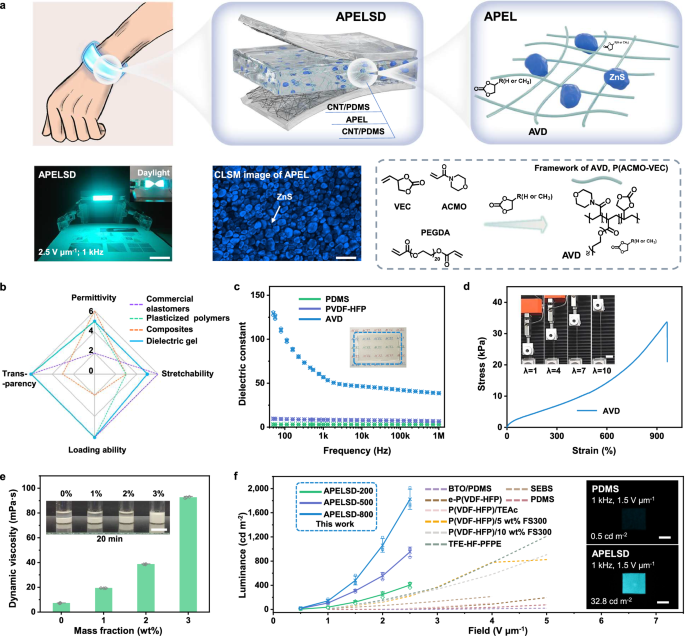

a Structure of stretchable APELSD. The digital photos are obtained by an APELSD excited at 2.5 V µm−1 with 1 kHz (scale bar, 5 cm). The CLSM image of the emitting layer, APEL, is also presented (scale bar, 60 µm). b The comparison of the different dielectrics in four dimensions for stretchable ACEL devices. c The dielectric constants of AVD compared to those of other stretchable materials. Data points represent mean ± SD (n  =  3). An image of transparent AVD is also inserted. d The stress-strain curve of the dielectric gel. Scale bar, 2 cm. e Dynamic viscosity of precursor liquid containing different contents of PVP. Data points represent mean ± SD (n  =  3). The inserted figure is the ZnS mixed precursor liquid after 20 min placement. Scale bar, 1 cm. f A comparison of the APELSD in this work with previously reported stretchable ACEL devices in terms of the operated electric fields and their corresponding luminance. The inserted digital photos are the APELSD and silicone-based device with 70 µm emitting layer in dark. Scale bar, 1 cm. The data points of this work represent mean ± SD (n  =  3).

Results and discussion

Transparent and high-κ gel enables bright ACEL devices

The dielectric constant, transparency, elastic stretchability, and space for ZnS loading are the four key characteristics for the dielectric to realize the ACEL devices with high luminance at low applied electric field. Previous studies have reported numerous dielectrics, including doped elastomer and plasticized polymers11,26,32,33. But these dielectrics are hard to achieve excellent performance in all four dimensions, as shown in Fig. 1b. Commercial elastomers have good stretchability and transparency, but their dielectric constants are usually inadequate, ranging from 3 ~ 1027. The doped elastomers could achieve a high dielectric constant, but the limited space for ZnS particles, low transparency and stretchability impede the performance of ACEL devices28,29,34. The plasticized polymers could achieve a high dielectric constant, transparency and a large space for ZnS loading. Unfortunately, the stretchability of plasticized polymers presents a challenge of very small elastic deformation, which makes it hard to recover to their initial states11. Gels are well known for their intrinsic stretchability and transparency35. To date, they have been widely applied as stretchable electrodes for ACEL by using ionic solutions36,37. Nonetheless, the solvent for ionic solutions is usually a polar liquid with a high dielectric constant. In this regard, the gels could also be employed as a high-k dielectric if the liquid is non-ionic38.

We prepared a dielectric gel (called AVD) to achieve the four key characteristics for highly stretchable and bright ACEL devices, as described in Fig. 1a and Supplementary Fig. 1a. We chose propylene carbonate (PC) and ethylene carbonate (EC) as the swelling liquid because of the high dielectric constant and high boiling point (over 240 °C)39,40. The framework of the gel is the copolymer of 4-acryloylmorpholine (ACMO) and 4-vinyl-1,3-dioxolan-2-one (VEC). The ACMO provides the stretchability, and the high polar VEC enhances the dielectric constant of the framework, as shown in Supplementary Fig. 1b–d. Using density functional theory (DFT), the dipole moments of the monomer ACMO and VEC are calculated to be 2.91 and 5.58 D, respectively. The introduction of highly polar VEC into ACMO thus enhances the polarization of the framework of the gel. Besides, the dielectric gel is free of other doped particles, enabling high-content ZnS loading similar to commercial elastomers (70 wt%, elevated ZnS contents can degrade luminance due to self-blocking effects). In general, the transparent (93%@550 nm) dielectric gel with 40% liquid content achieves a very high dielectric constant of 56.8@1 kHz, and a stretchability of over 960%, demonstrating excellent properties in all four dimensions, as illustrated in Fig. 1c, d, and Supplementary Fig. 1e (unless otherwise specified, the liquid content of AVD is 40%).

Nonetheless, a challenge of fabrication preexists in the application of gel dielectrics as the matrix of the emitting layer. The ZnS particles are prone to settle in the precursor liquid of the gel easily because of the density difference between the particles and the liquid. The rapid sedimentation behavior further induces dense packing at the bottom of the cured gel dielectrics. Therefore, the emission layer with homogeneously distributed ZnS particles is hard to obtain. Inspired by the dispersion of particles in polymer solutions, we increase the viscosity of the precursor liquid against the sedimentation process. A small amount of PVP (polyvinyl pyrrolidone) is thereby added to the precursor liquid. As shown in Fig. 1e, the viscosity of the precursor liquid is significantly increased from 7.19 mPa·s to 92.57 mPa·s. The ZnS particles are well suspended in the liquid with 3% PVP. Accordingly, the ZnS particles are homogeneously distributed in the cured gel dielectric, which is confirmed by the image of the confocal laser scanning microscope (CLSM) in Fig. 1a. We also evaluate the influence of PVP on the dielectric gel. The addition of PVP does not affect the key parameters of the gel, including dielectric constant, transmittance and stretchability, as depicted in Supplementary Fig. 2a–c. The dielectric gels with PVP additive could thus be mixed with ZnS to prepare the emitting layer, called APEL (unless otherwise specified, the ZnS content is 70 wt%), which were characterized in Supplementary Fig. 2d, e.

Stretchable devices with ultra-low-filed emission

The APEL is fabricated in stretchable ACEL devices with stretchable electrodes, called APELSD. The devices are very bright because of the high-k dielectric gel, as shown in Fig. 1f and Fig. 2a–e. The APELSDs are categorized into APELSD-200, APELSD-500 and APELSD-800 according to the thickness of the emitting layer, APEL, 200, 500, and 800 µm. A typical three-layer sandwich structure is used to evaluate the performance, in which the carbon nanotube (CNT) coated polydimethylsiloxane (PDMS) is employed as a transparent and stretchable electrodes (Supplementary Fig. 2f). Under the same operating electric field (E), the electric fields (Ef) that across the ZnS particles are significantly enhanced, owing to the high dielectric constant of the dielectric, as shown in the simulation of Fig. 2a. On the contrary, the Ef is weakened by the regular elastomers with low dielectric constant. Therefore, the luminance of APELSD is very high. Notably, APELSD-800 reaches a very high luminance of 1823.5 ± 167.0 cd m−2 at the E of 2.5 V µm−1 (Voltage = 2000 V) with 1 kHz, as shown in Supplementary Table 1. The luminance is increased with the thickness of the emitting layer and has a positive correlation with the applied electric fields, as illustrated in Fig. 2b and Supplementary Fig. 3a, b. Notably, the APELSD demonstrated the highest luminance compared to all previously reported intrinsically stretchable ACEL devices at similar operating conditions, as compared in Fig. 1f and Supplementary Table 1.

Fig. 2: The luminance and mechanical performances of APELSD.
Fig. 2: The luminance and mechanical performances of APELSD.
Full size image

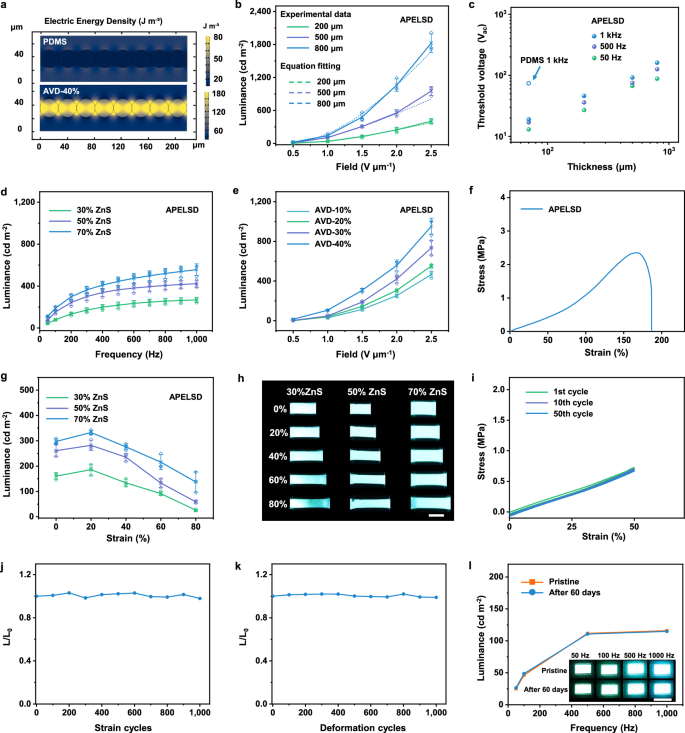

a The COMSOL simulation of the ZnS doped dielectric gel and PDMS. b The luminance of APELSD with the different thicknesses under various driving electric fields. The dashed lines are the fitting lines according to equation L = L0 exp(−(b/E)0.5), in which L represents the luminance, E denotes the electric field, and L0 and b are constants. Data points represent mean ± SD (n  =  3). c The turn-on voltage of APELSD. The turn-on threshold luminance is 0.1 cd m−2. d The luminance of APELSD-500 with the different ratios of ZnS particles at various frequencies. Data points represent mean ± SD (n  =  3). e The luminance of APELSD with different solvent contents under various driving electric fields at 1 kHz. Data points represent mean ± SD (n  =  3). f The stress-strain curve of the APELSD. g The luminance (data points represent mean ± SD, n  =  3) and (h) digital photo (scale bar, 2 cm) of APELSD with the different ratios of ZnS particles as a function of strain. Data points represent mean ± SD (n  =  3). i Cyclic stress−strain curves of APELSD for 50 cycles at 50% strain. j Relative luminance(L/L0) for strain cycling to 50% strain. k L/L0 for different deformation cycles, including twisting, bending and stretching. l Luminance stability over 60 days. The digital photos at the initial states and after 60 days are also listed.

The turn-on threshold voltage of ACEL devices depends deeply on the dielectric constant and the thickness of the emitting layer. To date, the lowest turn-on threshold E of previous works is 0.34 V µm−1 (Voltage = 23 V) with 50 Hz, which is achieved by a plasticized fluoroelastomer11. Herein, we prepare an APELSD with a similar thickness of 70 µm (APELSD-70) to demonstrate the ultra-low turn-on voltage enabled by the high-k gel. The turn-on threshold of APELSD-70 is as low as 0.19 V µm−1 (Voltage = 13 V) with 50 Hz, according to the curve of luminance versus V in Fig. 2c and Supplementary Fig. 3c. Meanwhile, a silicone-based ACEL is turned on by the E = 1.05 V µm−1 with 1 kHz, as shown in Supplementary Fig. 3d. The APELSD-70 reaches 81.3 ± 0.7 cd m−2 at a higher E of 2.5 V µm−1 (175 V) while the silicone based device exhibits a much lower luminance of 3.5 cd m−2. Such an applied frequency of 50 Hz is consistent with the utility frequency of power grid frequency (50 Hz or 60 Hz), allowing simpler power transformers in applications11. Moreover, the turn-on electric field could be further reduced by the thicker emitting layer. The APELSD-800 can be lightened by an electric field as low as 0.11 V µm−1 (Voltage = 88 V) with 50 Hz, as shown in Fig. 2c.

The content of ZnS in the emitting layer is also critical to the luminance because ZnS particles are the emitting centers for ACEL devices. Numerous works have reported that the dielectric constant of elastomers can be remarkably promoted by filler-doping methods33. However, the limited space for loading ZnS caused by the fillers results in low efficacy for improving the luminance. In this work, the dielectric gel is free of additional fillers, and the ratio of ZnS thus reaches a high level. APELSD with three mass ratios of ZnS, 30, 50, and 70%, are investigated in Fig. 2d and Supplementary Fig. 3e–g. The brightness gradually increased with the rise of ZnS content. The simulation in Supplementary Fig. 3h reveals that the Ef is boosted at higher contents. Therefore, the higher density of emitting centers as well as the enhanced Ef simultaneously contribute to the higher luminance. The CIE coordinates are also recorded and showcase a typical Blue emission of ACEL devices at high applied frequencies (Supplementary Fig. 3i). Besides, as displayed in Supplementary Fig. 4, the dielectric constant of the gel can be adjusted from 16.6 to 56.8 (1 kHz) via the changing of liquid content from 10% to 40%. As a result, the Ef is promoted by the increment of the dielectric constant. Accordingly, the luminance of corresponding ACEL devices is stepwise enhanced, as presented in Fig. 2e, and Supplementary Fig. 4.

Next, we evaluate the mechanical properties of the APELSD. The APELSD displays a working stretchability of 80%, as shown in Fig. 2f–h. Although previous works reported very bright devices with high stretchability, the maximum stretchability of those devices relied on unrecoverable plastic deformation, and the elastic deformations was very small1,11. However, the elastic stretchability of devices is more important for practical applications because the devices are expected to recover initial states after stretching. In terms of the APELSD, the high-k gel is a crosslinked gel with intrinsically high stretchability. Therefore, the APELSD could be totally recovered after it is stretched to the maximum working elongation of 80%. Moreover, we evaluate the stability of APELSD via the cyclical stretching test, as shown in Fig. 2i–k. No liquid leakage is observed in these stability tests, ensuring stable luminance performance. The APELSD does not display an obvious difference in luminance even after 1000 cycles at 50% strain or 1000 deformations, as demonstrated in Supplementary Movie 1 and Movie 2. We notice that such cyclical performance precedes that of many similar intrinsically stretchable optoelectronics with high brightness1,11,16. The stability over time of APELSD is also assessed in a test period of 60 days, as presented in Fig. 2l. The luminance is maintained during the whole test period. In a 12 h continuous experiment, the luminance remains unchanged, also demonstrating good stability, (Supplementary Fig. 5a). Furthermore, the device functions normally in environments ranging from − 10 °C to 50 °C. After VHB encapsulation, it maintains stable operation even under high humidity or immersion in saline solution (Supplementary Fig. 5b, c).

Full-color devices through fluorescent electrodes

Full color is highly desired because it can provide human beings with rich information5,41. However, the color of ZnS-based ACEL devices is not satisfactory due to the limitation of ZnS particles5. Herein, we prepare electrodes with photoluminescence to achieve full-color ACEL devices through a simple yet very efficient method42. The preparation of electrodes is the doping substrate of electrodes with fluorescent particles. As shown in Fig. 3a, the photoluminescent electrodes are employed as the front electrode, while the back electrode is still selected as the transparent electrode. The Blue (B) light from the emitting layer is absorbed and blocked by the photoluminescent electrode and further converted into desired photoluminescence, as illustrated Fig. 3b, c, and Supplementary Fig. 6. Accordingly, the front layer can achieve multiple colors through different fluorescent particles, Yellow (Y, 0.32,0.60), Green (G, 0.24,0.56), and Red (R, 0.57,0.38). Combined with the original Blue color (B, 0.18, 0.35), the full-color devices are thus achieved, as shown in Fig. 3d. In the meantime, the colors on the backsides come from the mixed light of the photoluminescence from the front electrode and the blue light from the emitting layer (Supplementary Fig. 6). The device could thus afford Janus colors for display. Moreover, this method exploits the indispensable electrode and does not need to change the structure of ACEL devices, demonstrating a general strategy for colorful ACEL devices.

Fig. 3: The colors and luminance of APELSD based on photoluminescent electrodes.
Fig. 3: The colors and luminance of APELSD based on photoluminescent electrodes.
Full size image

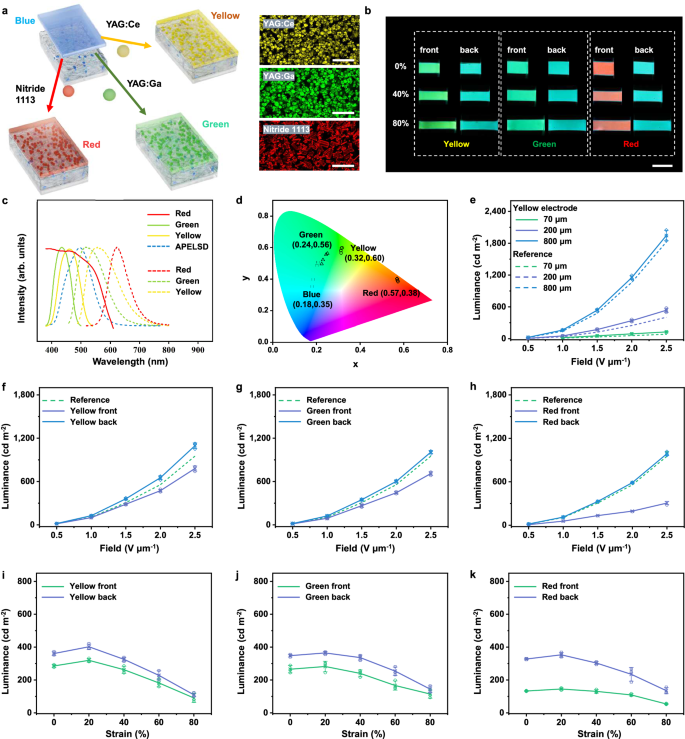

a Structure of stretchable APELSD with various photoluminescent electrodes. Images are the laser confocal characterization of the photoluminescent electrode. Scale bar, 100 µm. b The digital photos of different photoluminescent electrode devices under stretching. Scale bar, 3 cm. c Excitation spectra of the Red, Green, and Yellow electrodes. The emission spectrum of the APELSD without photoluminescent electrodes is the dashed line. The emission spectra of the Red, Green and Yellow electrodes are also in dashed line. d The CIE coordinates of APELSD with different photoluminescent electrodes under various driving frequencies, 50 Hz −1 kHz. e The backside luminance of APELSD with a Yellow electrode with the different thicknesses of APEL. The dashed lines are corresponding APELSD without photoluminescent electrodes for references. The luminance of APELSD-500 with (f) Yellow, (g) Green and (h) Red electrodes under various driving electric fields. The dashed lines are APELSD-500 without photoluminescent electrodes for references. The luminance of APELSD-500 with the (i) Yellow, (j) Green and (k) Red electrodes as a function of strain. Data points in Fig. 3e–k represent mean ± SD (n  =  3).

The luminance can be further improved by the photoluminescent electrodes. The backsides are brighter because of the mixed light, as shown in Fig. 3e–h and Supplementary Fig. 7a–d. The highest brightness reaches to 1944.7 ± 99.4 cd m−2 at a low E = 2.5 V µm−1 with 1 kHz for APELSD-800 with yellow electrode, as shown in Fig. 3e. Besides, the thinner APEL is more efficient to enhance the luminance of backside because the higher transmittance of APEL allows more photoluminescence to cross, as illustrated in Fig. 3e, f and Supplementary Fig. 7e. The luminance of the backsides increased to 1.52 folds, 1.33 folds, 1.15 folds, and 1.07 folds respectively, as the APEL are gained from 70 µm to 800 µm. The luminance of the backside could also be enhanced by the Red and Green electrodes because of the mixed light, as demonstrated in Fig. 3g, h, and Supplementary Fig. 7c, d. In terms of the fronts, the luminance of the fronts is reduced due to the blocking effect of the electrodes. Nevertheless, the luminance of the front (APELSD-500) is still maintained at a high level compared with other reported works, as shown in Supplementary Table 111,30. The stretchability performance of colorful APELSD is recorded in Fig. 3i–k and Supplementary Fig. 7f. As expected, the devices still work well within 80% strain because the structure is unchanged. The cyclical stability is assessed in Supplementary Fig. 7g, h. Neither the colors nor the luminance shows significant changes under 1000 cyclical strains at 50%.

Highly stretchable APELSD with gel electrodes

Moreover, the stretchability of APELSD could be enhanced by replacing the CNT-coated PDMS with a more stretchable gel electrode, as shown in Fig. 4a. To cooperate with the light- emitting layer of gel, additional elastomer layers are inserted to separate the emitting layer with the gel electrode, forming a five-layer device (called APELSD-F). The inserted layer is a transparent acrylate-based elastomer (PBA) with a maximum elongation of 682 ± 53%, while the gel electrode is a conductive deep eutectic solvent (DES) gel with 976 ± 76 % elongation (Supplementary Fig. 8a–d). PBA is also employed to load ZnS particles at the same content as the emitting layer to maximize its utilization. The APELSD-F with 70% ZnS could be elastically stretched up to 200%, owing to the good stretchability of all layers as well as good interfacial stickiness, as shown in Fig. 4b and Supplementary Fig. 8e. The APELSD-F exhibits slightly lower brightness compared with the three-layer APELSD, achieving a maximum luminance of 1311.1 ± 114.1 cd m–2 at 2.5 V µm−1 (Fig. 4c and Supplementary Fig. 8f–i). This reduction in brightness is attributed to the lower dielectric constant of the inserted layer, which is 5.7 at 1 kHz (Supplementary Fig. 9a, b). Nevertheless, the brightness of APELSD-F remains highly outstanding when compared with previously reported stretchable ACEL devices, as shown in Supplementary Table 1. Besides, the electrode thickness (300 ~ 800 µm) does not affect the luminous performance of the devices (Supplementary Fig. 9c).

Fig. 4: Gel electrodes enabled devices with a higher elongation based on a five-layer structure.
Fig. 4: Gel electrodes enabled devices with a higher elongation based on a five-layer structure.
Full size image

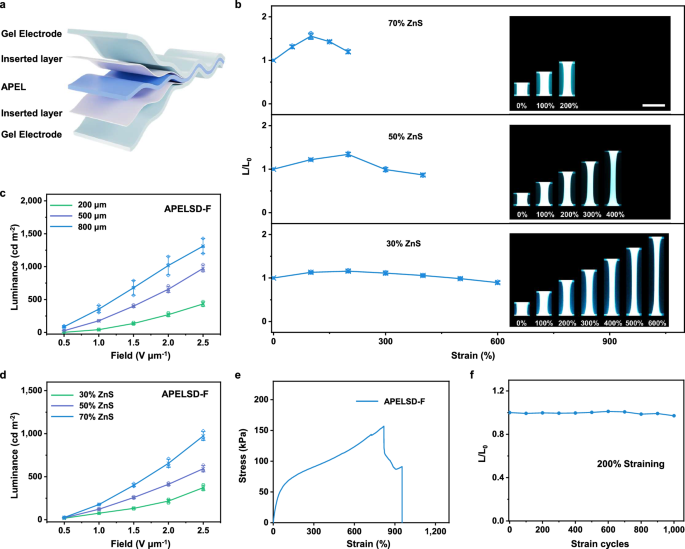

a Structure of ultra-stretchable APELSD-F. b The L/L0 of APELSD-F with different ratios of ZnS particles as a function of strain. The inserted figures illustrate the stretching ability of APELSD-F. Scale bar, 3 cm. c The luminance of APELSD-F with multiple thicknesses under various driving electric fields. d The luminance of APELSD-F with different ratios of ZnS particles under various driving electric fields. Data points in Fig. 4b–d represent mean ± SD (n  =  3). e The stress-strain curve and (f) L/L0 for cyclic strain of 200% of the APELSD-F. The content of ZnS is 30% and the thickness of APEL is 500 µm.

The elongation could be further enhanced by reducing the content of ZnS, as presented in Fig. 4b, d–f and Supplementary Fig. 10. The APELSD-F with 30% ZnS reaches a large deformation over 600% and emits stably in such process, Fig. 4b and Supplementary Movie 3. As for the cyclic performance, the APELSD-F also behaves well in a cyclic test at 200% strain on account of the intrinsic stretchability of all layers. More importantly, the luminance is also very steady in the cyclic test. As displayed in Fig. 4f and Supplementary Movie. 4, the APELSD-F maintains its brightness compared to its original value even after stretching for 1000 cycles to 200% strain. In general, the APELSD avoids the plasticized materials usually used in the high- brightness stretchable optoelectronics, demonstrating outstanding stretchability in practical application.

Dynamical display through wireless communications

Wearable display holds promising potential for interactive information that is the foundation of versatile integrated flexible electronics systems. As presented in Fig. 5a–c, a display device with an 8 × 16 pixel array is developed, enabling real-time dynamic information display via Bluetooth communication. The pixels are formed at the crossings of front and back electrode strips. Moreover, the multiple colors are also integrated into the array by the photoluminescent electrodes in the front. Those photoluminescent electrodes enable the array with Janus colors in two faces. The Red, Blue, Green, and Yellow emerge in the front, while the Blue appears in the back accordingly. The array is controlled by a microcontroller with a dynamic scanning method. As the wireless communication is established between the array and the smartphone, the real-time dynamic display can be realized. As shown in Fig. 5d and Supplementary Movie 5, the color array exhibits content received from smartphones, including characters like “20”, “25”, “BE”, “ST”, various patterns, and other custom information. In bending states, the device also functions well to display the characters “1234”, indicating good flexibility, as illustrated in Fig. 5a. Generally, the colorful array demonstrates a practical wearable display device for effective information interaction and establishes a solid foundation for other integrated flexible electronics systems.

Fig. 5: Colorful display with 128 pixels for real-time dynamic display.
Fig. 5: Colorful display with 128 pixels for real-time dynamic display.
Full size image

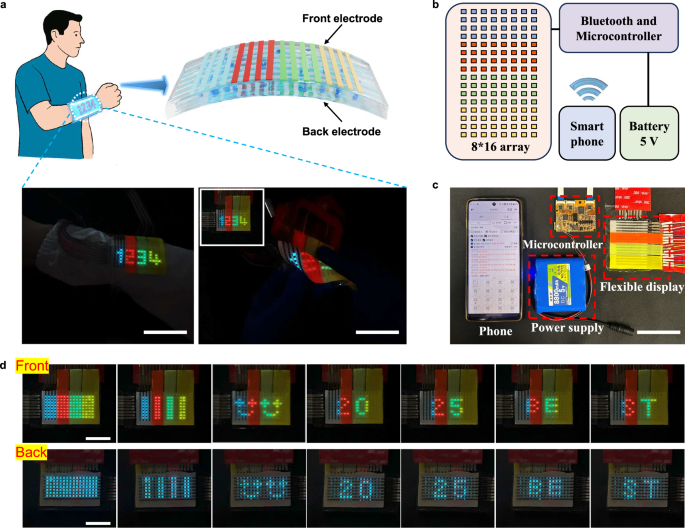

a The full-color device of 8*16 pixels displays the information through wireless communications. The inserted digital photo shows the “1234” number received from the smartphone. Scale bar = 6 cm for the left photo. Scale bar = 5 cm for the right photo. b The system-level block diagram and (c) the Digital photo of the full-color wireless display show the module connected to the microcontroller, which is powered by a 5 V battery. Scale bar, 6 cm. d Dynamic information is displayed on the front and back of the full-color display. Scale bar, 3 cm.

In summary, we present a dielectric gel that enables a stretchable ACEL device with very high brightness. For the four key dimensions of the emission layers of ACEL devices, the dielectric gel exhibits excellent overall performance: a high dielectric constant of 56.8@1 kHz, a high transmittance of 93%@550 nm, a good stretchability of 961 ± 61%, and a large space for particle loading. Such a result delegates the ACEL devices with an ultra-low turn-on voltage of 13 V and a large elongation up to 600%. The maximum luminance could achieve 1944.7 ± 99.4 cd m−2 at a low applied electric field of 2.5 V µm−1. Moreover, fluorescent electrodes are introduced, and corresponding Red, Yellow, Green could be achieved without additional or complicated structure designs. A colorful stretchable display is further fabricated, which can dynamically display designed signals in real time through Bluetooth communication. This work demonstrated the potential of the dielectric gel for ACEL devices and could significantly promote the advancement of stretchable optoelectronics, particularly for stretchable displays for human-machine interactions.

Methods

Materials and characterization

Choline chloride (ChCl), ethylene glycol (EG), acrylic acid (AA), 4-vinyl-1,3-dioxolan-2-one (VEC), poly(ethylene glycol) diacrylate (PEGDA, Mw: 1000), 2-hydroxy-2-methylpropiophenone (photoinitiator 1173), polyvinylpyrrolidone (PVP, K88-96), and single-walled carbon nanotubes (SWCNTs, OD: < 2 nm, Length: 5-30 μm) were the chemicals of Shanghai Macklin Biochemical Technology Co., Ltd. 4-acryloylmorpholine (ACMO), butyl acrylate (BA), octadecyltrichlorosilane (OTS), and 1-hydroxycyclohexyl phenyl ketone (photoinitiator 184) were the reagents of Shanghai Aladdin Bio-Chem Technology Co., Ltd. Propylene carbonate (PC) and ethylene carbonate (EC) were the reagents of Alfa Aesar Chemical Co., Ltd. PDMS (Sylgard 184) was the elastomer product of Dow Corning. Electroluminescent phosphor (ZnS:Cu) were acquired from Shanghai KPT Co., Ltd. Photoluminescent microparticles (YAG:Ce, yellow, YG-45M; YAG:Ga, green, GG-520B; Nitride 1113, red, HR-629H) were made by Grirem Advanced Materials Co., Ltd. CN9021 was the macro-crosslinker from Sartomer Co., Ltd. Isopropanol (IPA) was used to dilute the SWCNT, adjusting its concentration to 0.3. mg mL⁻¹. A 90 min sonication was needed for SWCNT dispersion. All chemicals were utilized directly as received, with no additional purification performed.

We used the Confocal White Laser Scanning microscopy (Leica STELLARIS 5) to observe the emitting layer and the fluorescent electrode. The dielectric properties were assessed with the aid of a broadband dielectric/impedance spectrometer (Concept 50, Novocontrol Technologies GmbH&Co.KG). The FTIR data were measured by a machine of Nicolet iS50-Nicolet RaptIR, Thermo Scientific. The mechanical properties were recorded by a universal testing machine (HZ-1007C, Dongguan Lixian Instrument Technology Co., Ltd.) at a constant stroke speed of 50 mm min-1. The sample sizes of the tensile test were: APEL (thickness: 0.5 mm, length: 15 mm, width: 8 mm), gels (thickness: 1 mm, length: 15 mm, width: 8 mm). The transparency test was conducted on a UV-Vis/NIR spectrophotometer (UH-5700, Hitachi) equipped with a 60-mm integrating sphere. The gel specimens were measured to be 1 mm thick. The emitting layer and CNT/PDMS electrode samples were found to have a thickness of 0.5 mm. The vacuum laminator is the machine of JKD-LH18F, Shenzhen Jingke Machinery & Electronic Equipment Co., Ltd.

The ACEL device was driven by an alternating current signal (square wave), which was generated by a function waveform generator (33509B, Keysight) and amplified by a high-voltage amplifier (EEL1102.05, EEL). Luminescent properties, including luminance values, emission spectra, and CIE coordinates, were tested by a luminance meter (SRC-200M, Everfine). The excitation fluorescence spectra data were recorded through a photoluminescence spectrometer (FLS1000, Edinburgh Instruments). Tensile and cycle tests on the stretchable ACEL device were conducted using a linear translation stage. The stretchable ACEL display was operated by a drive system consisting of a microcontroller (Arduino, STM32) and a Bluetooth module. The microcontroller can generate a voltage of 190 Vp-p with 2 kHz. The system was powered by a 5 V lithium battery (Jiangmen Baofengli New Energy Technology Co., Ltd.). All data involving mean values are derived from distinct samples.

Preparation of dielectric gel (AVD) and emitting layer APEL

The monomers for gel preparation were the mixture of ACMO and VEC (molar ratio was 1:1), while the swelling solvent for gel is the mixed liquid of EC and PC with a 4:1 volume ratio. The precursor solution was composed of monomer and swelling solvent at designed weight ratios (0% ~ 40% swelled solvent). The crosslinker and photoinitiator 184 were used at 0.1%, and 1.5% molar ratios of the total amount of the monomers, respectively. The precursor liquid of gel was thus obtained. For APEL, PVP was further added at a content of 3 wt% of the precursor liquid of gel. After that, the precursor liquid of emitting layer was obtained by the introduction of ZnS: Cu particles at designed ratios with 30 min sonication. The precursor liquid was poured into a transparent glass mold with silicone spacers and release films. After 15 minutes of UV irradiation (420 nm, 50 W), a dielectric gel or emitting layer was obtained. The thickness was controlled by adjusting the silicone spacer.

Preparation of electrodes

Transparent CNT/PDMS electrodes were fabricated by the deposition of SWCNT on a transparent PDMS film (thickness of 0.5 mm) via a spray coating method. The area density of SWCNT was approximately 90 μg cm−². The fluorescent electrodes were produced by replacing the transparent PDMS film with a fluorescent PDMS film. The fluorescent PDMS film was fabricated by the mixture of precursor solution of PDMS and photoluminescent phosphor microparticles at corresponding mass fractions. The preparation method for the ultra-stretchable DES gel electrodes was a typical gel preparation: First, ChCl and EG were mixed at a 1:2 molar ratio and stirred at 80 °C until a transparent and uniform liquid was formed, resulting in a deep eutectic solvent (DES). Next, the pre-gel solution was obtained by mixing the monomer AA, crosslinker PEGDA, photoinitiator 1173, and DES. The DES content was fixed at 50 wt%, and the molar ratios of crosslinker and photoinitiator to monomer were fixed at 0.07% and 0.5%, respectively. The solution was then poured into a transparent glass mold with a silicone spacer and release films. UV irradiation (365 nm, 300 W, 5 min) was performed to prepare the conductive DES-gel electrode.

Fabrication of ACEL devices

The three-layer ACEL device consists of an APEL sandwiched between two CNT/PDMS electrodes. For the three-layer fluorescent ACEL device, one of the transparent CNT/PDMS electrodes is replaced with a fluorescent electrode. For the ultra-stretchable ACEL device with five layers, both the front and back sides of the APEL were coated with an isolation layer of approximately 100 μm. The isolation layer was a ZnS doped elastomer, which was prepared by UV curing (10 min, 420 nm, 50 W) of CN9021 and BA in a 1:1 mass ratio. The content of ZnS in the isolation layer was the same as that of APEL. The emitting layer with the isolation layers was then sandwiched between two 1 mm thick DES-gel electrodes to form the ultra-stretchable ACEL device.

Preparation of stretchable ACEL array displays

For the array display, parallelly and equally spaced CNT/PDMS electrodes were fabricated by an OTS-modified glass through a mask spray coating method (8 or 16). A layer of PDMS was first cured on the glass surface to form an 8-array PDMS@SWCNT electrode. In the same procedure, pure PDMS was replaced with a mixture of PDMS and fluorescent powder to form a fluorescent electrode with a 16-array. Next, a prepared APEL with 110 μm thickness was sandwiched between the two electrode arrays in a perpendicular way. Finally, the assembled device was laminated at 60 kPa for 5 min to ensure a strong bond between the layers, resulting in an 8*16 array display.

Density functional theory calculations

The structures of monomer and dimer were obtained via first-principles calculations, which were carried out in Vienna ab initio simulation package (VASP) within the framework of density-functional theory43,44. The cutoff energy of basic plane wave functions was set to 600 eV. The exchange-correlation functions were described by the generalized gradient approximation within Perdew-Burke-Ernzerhof (PBE) formalism45. The convergence for the forces was set to smaller than 0.01 eV·Å−1.
