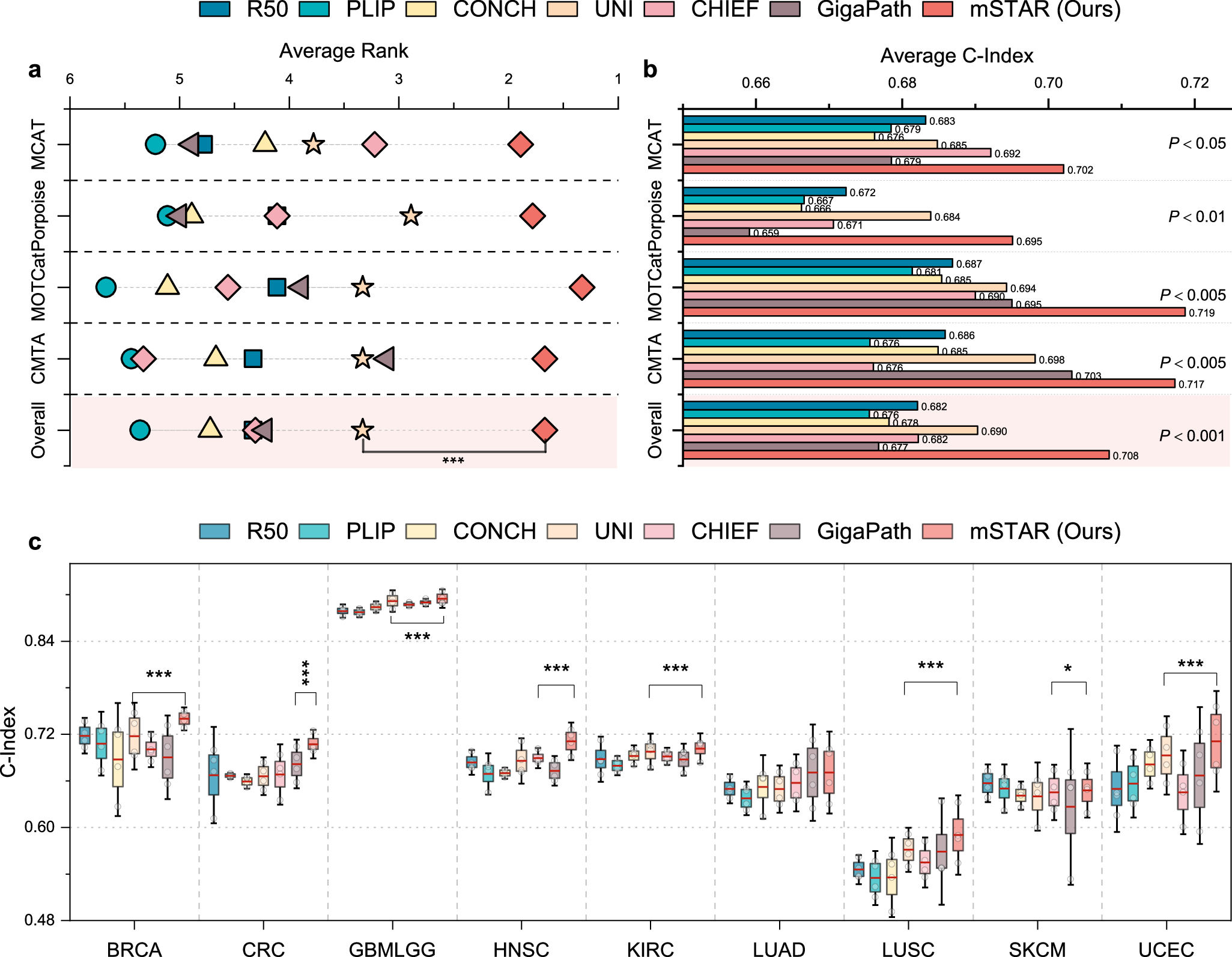

Fig. 7: Multimodal fusion performance of overall survival prediction on pathological slides and gene expression data.

The patch extractors of all foundation models are evaluated with different multimodal fusion models (MCAT, Porpoise, MOTCat and CMTA), trained from scratch across 9 TCGA held-out datasets. a Performance of Ranking on 9 datasets of each FM on every multimodal fusion models and “Overall” that refers to the average results among these multimodal fusion methods. b The average C-Index on 9 datasets. c Performance (C-Index and 95% CI) on each dataset. The minima and maxima represent the lower and upper bounds of 95%CI, respectively. The center and the bound of box represent the mean value, 25% and 75% percentiles, respectively. P-value is given through one-sided Wilcoxon signed-rank test between mSTAR and the second-best FM. The colors of legends are shared across all sub-figures. * represents P < 0.05, ** means P < 0.01 and *** indicates P < 0.001. Detailed performances of every dataset are presented in Supplementary Table 19–23. Source data are provided as a Source Data file.
