Introduction

The metal halide perovskite solar cells (PSCs) have achieved significant advances in photovoltaic performance with a certified power conversion efficiency (PCE) of >27% in single-junction devices and >30% in all-perovskite tandem devices1,2,3,4, thrusting them into the spotlight as a transformative technology under the global pursuit of sustainable energy solutions. However, a vital challenge limiting their industrialization and practical application is stability, especially under the harsh conditions that commonly emerge during practical operation, such as high temperature, ultraviolet (UV) irradiation, and reverse bias voltage5,6,7,8,9,10. Various efforts have been made regarding crystallization regulation, defect engineering, device encapsulation, and so on, to enhance the device stability under heat, humidity, and UV irradiation11,12,13,14,15,16. However, in practical applications, due to the inevitable partial blocking by clouds, leaves, bird droppings, etc., the PSCs undergo a normally overlooked issue of reverse bias, making the reverse-bias stability an urgent issue of PSCs during practical applications6,9.

As an ionic soft crystal, metal halide perovskite is susceptible to reverse-bias degradation, since the components are prone to migrate as ionic defects under electric bias. When the PSCs undergoing a reverse bias that can be superimposed on the PSC’s internal electric field, the relatively weak Pb–I bonds in perovskites are prone to break, generating massive mobile iodide ions (I-)17,18,19,20. The accumulation of migrating ions at the electron transport layer (ETL)/perovskite interface will induce the offset of interface energy level and the chemical reaction of perovskite self-accelerating degradation21,22,23,24. Besides, I- will further migrate across the interface into ETL, which not only causes irreversible perovskite decomposition but also causes damage to the ETL, resulting in irreversible efficiency decay and even complete failure of PSCs25,26,27,28,29. To enhance the reverse-bias stability, efforts such as using the grain boundary passivation strategy to reduce the fast channel of ion migration and leveraging the buffer layer to capture I- or inhibit I- migration have been made24,26,30,31,32,33,34,35. Recently, a systematic study on the degradation mechanisms of PSCs under reverse bias reported that the oxidation of iodide by injected holes at the cathode side initializes the reverse-bias-induced degradation, a corresponding strategy of reinforced barrier with multiple layers was proposed to physically and mechanically block the reaction between I- and metal electrodes, which effectively enhances the bias-voltage stability PSCs with an efficiency of 24.5%20,26. Although the strategy of interface barrier with the function of physical block is reported to be feasible to enhance device stability, including reverse-bias stability, the barrier layer is normally synthesized on a complicated manner and may sacrifice the high efficiency, which also brings a hindrance to the current mature fabrication process of the efficient device29,35,36,37. Hence, it is highly desirable to find a strategy to enhance the reverse-bias stability while maintaining the high efficiency and being well compatible with current mature technology.

In this work, we propose interfacial electrostatic repulsion distinct from electrostatic attraction or chemical binding to enhance the PSCs reverse-bias stability. We constructed an electrostatic repulsion with I- by incorporating 4,4’,4”,4”‘-methanetetrayltetrabenzenesulfonic acid (TFMS) at the perovskite interface to inhibit the I- cross-layer migration under reverse bias. The TFMS possesses four -SO3H groups with rich negative charges, which can passivate the interfacial defects and further form an electrostatic repulsion with I-. Both theoretical calculations and experimental results demonstrated that the interfacial electrostatic repulsion between TFMS and iodide ions can effectively inhibit the cross-layer migration of I-. Based on this strategy, we obtained champion PCEs of 25.80% on the TiO2-based planar PSCs and 26.21% (certification of 26.09%) on the SnO2-based planar PSCs. The modified device also shows enhanced stability by maintaining 91% and 88% of its initial efficiency after aging under ambient conditions for 1400 h and UV light for 1000 h, respectively. Furthermore, based on interfacial electrostatic repulsion, the device exhibited better reverse-bias stability, retaining >80% of initial efficiency after 25 bias aging cycles (0 V/-1 V/0 V, each stage lasting for 12 h) and yielding a breakdown voltage of -28.11 V.

Results and discussion

Construction of interface electrostatic repulsion

The PSCs in the practical application process inevitably suffer the reverse bias due to the partial blocking by clouds, leaves, bird droppings, etc. As an ionic soft crystal, perovskites are susceptible to reverse-bias degradation due to the ion migration under the electric bias, especially the I-, which possesses a low migration activation energy. Under the reverse bias, the I- will migrate directionally, and even migrate cross the buried interface, which can be validated by the in-depth X-ray Photoelectron Spectroscopy (XPS) (Fig. 1a and Supplementary Fig. 1). Hence, suppressing the I- migration, especially irreversible cross-layer migration is supposed to be a feasible strategy to enhance the reverse-bias stability. In addition to electrostatic attraction, electrostatic repulsion, as another fundamental physical force, was first constructed to modulate I-, which is supposed to suppress the I- migration at the interface in a nonbonding and releasable manner (Fig. 1a).

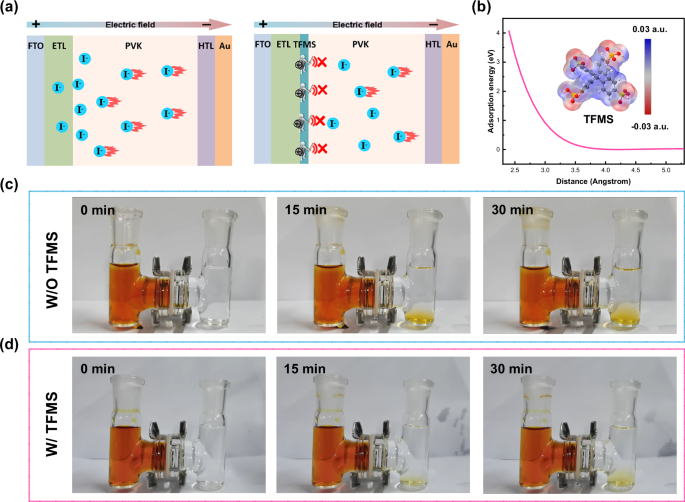

Fig. 1: Proposal of interface electrostatic repulsion strategy.
Fig. 1: Proposal of interface electrostatic repulsion strategy.
Full size image

a Schematic diagram of interfacial electrostatic repulsion inhibiting ion cross-layer migration. b Diagram of binding energy between TFMS and I- with distance, the illustration shows the electrostatic surface potential of TFMS. c, d The diffusion of polyiodide ions when the diaphragm is with TFMS and without TFMS.

The material 4,4’,4”,4”‘-methanetetrayltetrabenzenesulfonic acid (TFMS, the molecular structure shown in Supplementary Fig. 2 and Fig. 1b) was selected to construct the electrostatic repulsion with I- at the interface33,38,39,40. TFMS has four sulfonic acid groups (-SO3H) connected to four benzene rings respectively, and four benzene rings connected to one central carbon atom, delivering a three-dimensional structure. These sulfonic acid groups are highly electronegative due to the strong electron-withdrawing nature of the sulfur atom, which is bonded to three oxygen atoms. The oxygen atoms in the sulfonic acid groups have high electronegativity, pulling electron density away from the benzene rings and creating a partial positive charge on the carbon atoms to which they are attached. At the same time, the four benzene rings in the whole molecule of TFMS are connected by a carbon atom, forming a large conjugated system, which increases the degree of delocalization of electrons, leading to an overall high electronegativity for the compound41. This high electronegativity of the -SO3H group has been confirmed by the calculation of electrostatic potentials (Fig. 1b). To prove the repulsive effect between TFMS and I-, we simulated the evolution of adsorption energy between I- and TFMS as the I- approaches the -SO3H group. The results show that the adsorption energy becomes larger as the distance between the two gets closer, indicating that I- will be subject to electrostatic repulsion when it moves toward TFMS (Fig. 1b). An experiment of polyiodide ion diffusion was designed to intuitively display the repulsion effect of TFMS on polyiodide ions (Supplementary Fig. 3, Tables S1 and S2). It is noted that the incorporated TFMS shows negligible influence on the morphologies and structures of diaphragms. As shown in Fig. 1c and d, the diffusion of polyiodide ions can be effectively hindered by incorporating the TFMS into the diaphragm, which can be validated by the lighter color of the solution on the right side39,40,42. This repulsion between TFMS and polyiodide ions, and its effect on hindering the diffusion of polyiodide ions, is going to be further constructed and discussed in PSCs, with the aim of enhancing their reverse-bias stability.

Photovoltaic performances of PSCs

The TFMS was introduced into the interface of TiO2/perovskite (Fig. 2a). The appearance of the S 2p peak and the offset of the Ti 2p peak in the XPS results show that TFMS is successfully introduced and bonded on the surface of TiO2 (Supplementary Fig. 4). In addition, the TFMS has been confirmed to show negligible effect on TiO2 surface morphology (Supplementary Fig. 5 and 6). However, after introducing the TFMS, the surface wettability is improved (Supplementary Fig. 7), which is conducive to the subsequent deposition of perovskite films (Supplementary Fig. 8–10). Combined with the measurements of the Zeta potential, Kelvin probe force microscopy (KPFM), and ultraviolet photo-electron spectroscopy (UPS) (Figs. 2b, c and Supplementary Fig. 11–13), it can be observed that the TFMS effectively decreases the surface potential of TiO2 and optimize the interfacial energy level. Based on TRPL spectrum (Supplementary Fig. 14), we further calculated the differential lifetime (Fig. 2d)43,44. The early charge transfer process leads to a sharp increase in differential lifetime, reflecting the speed of charge transfer. In contrast, the greater slope of TiO2/TFMS sample indicates that the transfer speed of electrons to the fluorine-doped tin oxide (FTO) electrode is significantly faster. This promoted interfacial electron extraction can also be validated by the measurement of transient photocurrent, in which the TiO2/TFMS-based PSCs show a smaller photocurrent decay time (Supplementary Fig. 15). In addition, the reduced interface trap density can be demonstrated by the measurement of space charge limited current (SCLC) (Supplementary Fig. 10). The accelerated electron transfer and reduced interfacial defects after incorporating TFMS are expected to improve the PSCs efficiency. We prepared PSCs structured as FTO/TiO2 (TFMS)/perovskite/ 2,2’,7,7’-Tetrakis [N,N-di(4-methoxyphenyl)amino]-9,9’-spirobifluorene (Spiro-OMeTAD)/Au. Figure 2e shows the current density voltage (J-V) curve (reverse scan) and steady-state output power of the best-performing PSCs with an active area of 0.08 cm2. The TiO2/TFMS-based PSCs achieve a PCE of 25.80% with a stabilized power output (SPO) of 25.79% after tracking 600 s, while the TiO2-based PSCs have a PCE of 24.99% with a SPO of 24.71%. The improvement should be attributed to the promoted interfacial carrier transport and reduced interface carrier recombination. The corresponding external quantum efficiency (EQE) spectrum of TiO2/TFMS-based PSCs was shown in Supplementary Fig. 16, in which the integrated current density yields a small variation with the value obtained from J-V measurement. Meanwhile, we calculated the hysteresis factor of TiO2/TFMS-based PSC to be 0.78%, which is smaller than the 4.40% of TiO2-based PSC, suggesting the promoted interfacial electron transport and suppressed ion migration (Supplementary Fig. 17 and Table S3). A batch of PSCs was prepared to evaluate the reproducibility of high efficiency. As shown in Fig. 2f, both type of PSCs shows satisfying reproducibility. In detail, the TiO2/TFMS-based PSCs exhibit an average PCE of 25.44%, which is higher than that (24.60%) of TiO2-based PSCs (Supplementary Fig. 18).

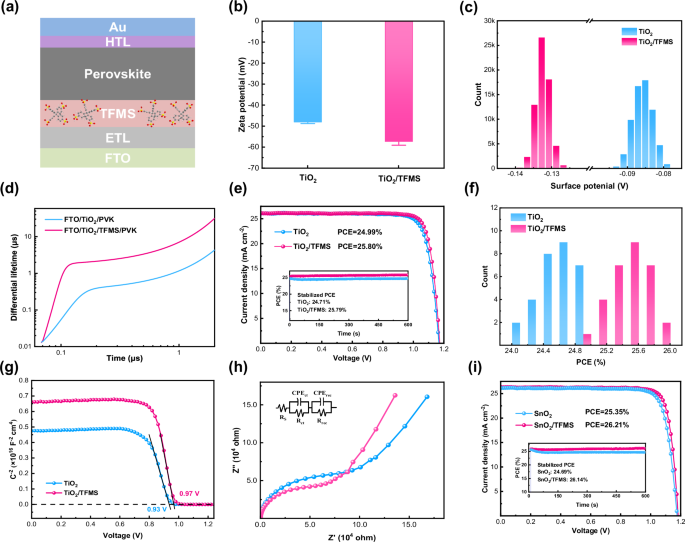

Fig. 2: Photovoltaic performances of PSCs.
Fig. 2: Photovoltaic performances of PSCs.
Full size image

a The schematic diagram of PSCs structure. b Zeta potential of TiO2 and TiO2/TFMS films surface. c Surface potential distribution of TiO2 and TiO2/TFMS films. d Computed differential lifetimes through fitting the TRPL spectra. e J-V curves (reverse scan) of the champion TiO2-based and TiO2/TFMS-based PSCs with an active area of 0.08 cm2. The illustration shows the stabilized power output of PSCs. f Distribution histograms of PCE of TiO2-based PSC and TiO2/TFMS-based PSCs, 30 in each group. g The Mott-Schottky curve of PSCs. h The EIS curve of PSCs. i J-V curves (reverse scan) of the champion SnO2-based and SnO2/TFMS-based PSCs with an active area of 0.08 cm2.

Additionally, the physical property of PSCs with and without TFMS was further investigated through various measurements. Mott-Schottky tests show that the TiO2/TFMS-based PSC exhibits a higher built-in field (Vbi) of 0.97 V, indicating the promoted separation of electron-hole pairs and transport of carriers (Fig. 2g). In addition, electrochemical impedance spectroscopy (EIS) tests in the dark state were carried out to characterize the carrier dynamics in PSCs (Fig. 2h). The TiO2/TFMS-based PSC exhibits a lower contact resistance and higher recombination resistance, indicating that the TFMS is conducive to reducing carrier recombination, which is further verified by the reduced dark current and the smaller ideal factor (nID) after introducing TFMS (Supplementary Figs. 19 and 20).

The effectiveness of TFMS in improving the photovoltaic performance of PSCs was also validated by using SnO2 as the ETL. Notable, the best-performing SnO2/TFMS-based PSCs achieved a PCE of 26.21% in reverse scan and 26.05% in forward scan (Fig. 2i, and Supplementary Fig. 21, and Table S4). In comparison, the SnO2-based PSCs achieved a PCE of 25.35% in the reverse scan and 24.70% in the forward scan. The SPO after tracking 600 s of SnO2/TFMS-based PSCs is 26.14%, higher than that (24.69%) of SnO2-based PSCs. Encouragingly, one of the best-performing SnO2/TFMS-based PSCs was sent to a third-party institute (National Institute of Metrology, China) for certification, obtaining a certified PCE of 26.09% (Supplementary Fig. 22). Statistical analyses on 25 individual devices with or without TFMS were summarized. The SnO2/TFMS-based PSCs achieved 25.44% on average compared with 24.78% for the SnO2-based PSCs (Supplementary Fig. 23). These results of TiO2-based PSCs and SnO2-based PSCs jointly demonstrate that the TFMS at ETL/perovskite interface can effectively improve the photovoltaic performance.

Interface electrostatic repulsion improves PSCs’ reverse bias stability

To investigate the influence of interfacial electrostatic repulsion on the I- migration under reverse bias, several experiments have been designed and carried out. Firstly, we performed an in-depth XPS measurement on the FTO substrate after the corresponding device aged under -1 V bias for 2 h. We peeled off the perovskite film using a reported method and then obtained XPS spectra of FTO every 100 s of etching (Supplementary Fig. 24). Both samples show obvious I 3d peaks before etching, indicating the presence of residual perovskite on the FTO surface after the peeling-off method (Fig. 3a and b). After etching for 100 s, the Sn 3d peak of both samples shows obvious enhancement and reaches a relatively stable intensity, indicating that the measuring position has entered the FTO substrate (Supplementary Fig. 25). In this depth, the FTO for the control sample still shows an I 3d peak, and the intensity of this peak gradually decreases as the prolongs of etching time, indicating that I- migrated across the interface into the FTO substrate. On the contrary, the substrate for the sample with TFMS shows no signal of I element even after etching for 100 s, demonstrating that the TFMS can effectively inhibit the I- cross-layer migration under reverse bias. The inhibited I- cross-layer migration has been further validated by the test of the time of flight secondary ion mass spectrometry (ToF-SIMS) on the PSCs after aging at -1 V bias for 2 h. As shown in Fig. 3c and Supplementary Fig. 26, compared to the I- in TiO2/TFMS-based PSC, the I- in TiO2-based PSC shows a migration forwarding to ETL side, accompanied by the more generation of I3-, demonstrating the reversed bias-induced I- migration can be inhibited by the TFMS. We further use DFT calculations to investigate the interaction between TFMS and perovskite45,46. The different mapped colors of the sign(λ2)ρ function indicators can be used to clearly show the form of interactions within the region, with the red indicating prominent repulsion interaction, the green indicating van der Waals interaction, and the blue indicating weak interaction. As shown in Fig. 3d and Supplementary Fig. 27, the sulfonic acid group in TFMS near the iodide ion shows a red color, which indicates an obvious prominent repulsion interaction. At the same time, a perovskite model was constructed to calculate the migration path and barrier of I- migration. The energy barrier of I- migrating away from the surface of perovskite without the TFMS was calculated to be 0.346 eV (Fig. 3e, f). When TFMS was introduced on the perovskite surface, the energy barrier of iodide migrating away from perovskite increased to 0.680 eV, indicating that the TFMS can effectively hinder the I- cross-layer migration. The above experimental and theoretical results reveal that the TFMS can form electrostatic repulsion with I-, which increases the energy barrier of I- migration in a nonbonding manner, effectively inhibiting I- cross-layer migration under reverse bias (Supplementary Fig. 28).

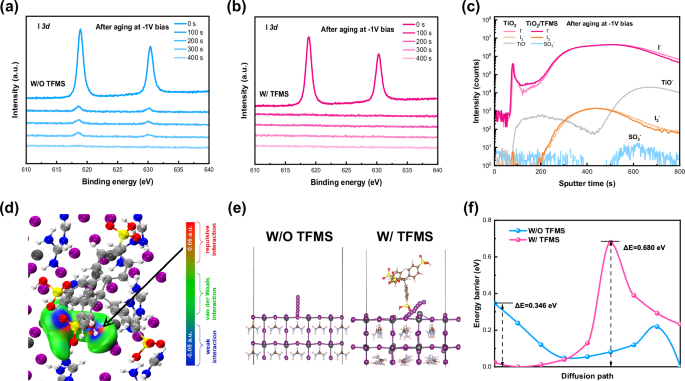

Fig. 3: Interfacial electrostatic repulsion inhibits ion cross-layer migration.
Fig. 3: Interfacial electrostatic repulsion inhibits ion cross-layer migration.
Full size image

a, b Depth-profiling XPS spectra of I 3d of without TFMS and with TFMS-based samples after −1 V bias aging 2 h. c ToF-SIMS depth profiles of PSCs after −1 V bias aging 2 h. d The interaction between TFMS and perovskite. e The migration path of I- away from the surface of perovskite with TFMS and without TFMS. f The migration energy barrier of I- away from the surface of perovskite with TFMS and without TFMS.

The device stability under reverse bias was also comprehensively researched. Under long-term reverse bias, the continuous I- migration induces the degradation of perovskite materials at the interface (Fig. 4a). In contrast, the reverse bias-induced perovskite decomposition has been suppressed in TiO2/TFMS-based PSC, indicating enhanced reverse-bias stability after incorporating the TFMS. We also tested the dark state current of the PSCs before and after aging under -1 V bias for 100 h. The dark state current of the TiO2-based PSCs significantly increased by about 10 times, while the dark current of the TiO2/TFMS-based PSCs only increased by about 2 times (Fig. 4b). The significant increase in dark current is due to the presence of massive shunt paths in the device, which should be related to the reverse bias-induced decomposition of perovskite. Notably, the ability to withstand reverse bias breakdown represents a critical parameter for PSCs in practical implementation30,47,48,49. Once initiated, the breakdown phenomenon induces a substantial current flow through the PSCs, generating localized high temperatures that lead to complete material decomposition and immediate device failure. The breakdown voltage of PSCs can be characterized through dark-state J-V measurements. Statistical analysis of breakdown voltages was performed on 15 devices. The results demonstrate that TiO2/TFMS-based PSCs exhibit an average breakdown voltage of -26.59 V, representing a significant enhancement of ~6 V compared to conventional TiO2-based PSCs (-20.62 V) (Fig. 4c). Notable, the TiO2/TFMS-based PSCs achieved a maximum breakdown voltage of -28.11 V, which is higher than the reported values for single-junction PSCs (Supplementary Fig. 29 and 30, Table S5). This obtained high breakdown voltage should stand on the structural advantage of n-i-p PSCs and the efficacy of TFMS on enhancing the reverse-bias stability (Supplementary Fig. 31, Note S1). In addition, during the experiment process, we reveal that the breakdown voltage is also related to the scan speed, which emphasizes that the detailed test information is necessary to assist the analysis of breakdown voltage (Supplementary Fig. 32, Note S2).

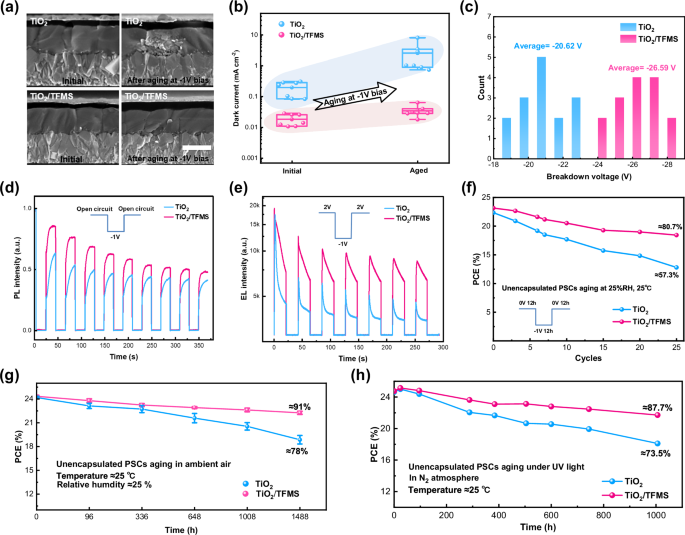

Fig. 4: Interface electrostatic repulsion improves PSCs’ reverse bias stability.
Fig. 4: Interface electrostatic repulsion improves PSCs’ reverse bias stability.
Full size image

a The cross-section SEM of PSCs before and after −1 V bias aging for 100 h. b The dark current of PSCs before and after −1 V bias aging for 100 h. c Distribution histograms of the breakdown voltage of PSCs, 15 in each group. d The PL evolution of PSCs under open circuit/−1 V/open circuit cycle. e The EL evolution of PSCs under the +2 V/−1 V/ + 2 V cycle. f Bias-stability of unencapsulated PSCs under 0 V/−1 V/0 V cyclic bias in the dark stored under ambient conditions. g Long-term stability of unencapsulated PSCs stored under ambient conditions. h UV stability of unencapsulated PSCs stored under N2 atmosphere.

We further studied the effect of a periodic reverse bias on the photoelectric performance of PSCs, including photoluminescence, electroluminescence, and efficiency evolution. In the open-circuit case, PSCs show a high PL intensity. Once the -1 V bias is added, the PL intensity will rapidly decay due to the carrier separation under the electric field (Fig. 4d). When the -1 V bias is withdrawn after 20 s, the PL intensity can be found to show an obvious recovery process. In the first cycle, TiO2-based PSC can only immediately recover to ~39% of the initial PL intensity, and then slowly recover to 69% of the initial PL intensity. In contrast, TiO2/TFMS-based PSC can immediately recover to ~70% of the initial PL intensity and rapidly stabilize at ~89% of the initial PL intensity. After 9 cycles of open circuit/-1 V/open circuit cycle, the TiO2/TFMS-based PSC can still maintain significantly higher PL intensity than that of the TiO2-based PSC. When +2 V bias is applied, both types of PSCs show strong EL intensity immediately, but the TiO2-based PSC shows more rapid attenuation over a period of 20 s of continuous pressure (Fig. 4e). When the -1 V bias is applied in the first cycle, the EL intensity of PSCs will completely disappear, and once the +2 V bias is added again, the EL strength will immediately increase again. But at this time, the TiO2-based PSC can only recover to 38% of the initial strength, which is far lower than the 65% of the TiO2/TFMS-based PSC. After 6 cycles of the +2 V/-1 V/ + 2 V cycle, the EL intensity that the TiO2/TFMS-based PSC can recover is much higher than that of the TiO2-based PSC. Both PL and EL results of TiO2/TFMS-based PSCs show better recoverability, which is probably due to the introduction of an electrostatic repulsion layer that inhibits the I- cross-layer migration. It also showed a similar improvement effect when applied to the SnO2 ETL (Supplementary Figs. 33 and 34). We also tracked the PCE evolution of PSCs under the continuous reverse bias of -1 V and -2 V, respectively. The PCE was obtained through interrupting the applied reverse voltage and performing the J-V curves immediately. As shown in Supplementary Fig. 35, the PCE of the TiO2-based PSCs decreased significantly after the first continuous reverse bias and this PCE shows no significant change after following multiple cycles of reverse bias. As a comparison, the PCE of TiO2/TFMS-based PSCs also shows an obvious decay; however, this decay shows slight recovery after the following treatment of reverse bias. This PCE recovery may be related to the reverse migration of iodide back to perovskite. After 10 cycles of testing, both devices were restored for 6 h in the dark condition. The TiO2-based PSCs recovered to 89.8% of their initial PCE, which was also lower than 98.5% of the TiO2/TFMS-based PSCs. We further increased the reverse bias from -1 V to -2 V, and the results shows that the PCE of device shows an intensified decay and the PCE evolution tendency is similar with that under bias of -1 V (Supplementary Fig. 36). The results show that TFMS exerts its effect through electrostatic repulsion in a non-bonding and releasable manner, which helps to inhibit the migration of iodide ions to the ETL, promotes the reverse migration of iodide ions to the perovskite. In addition, the TFMS also possesses the ability to block holes, which can also contribute to the enhanced reverse stability of PSCs (Supplementary Figs. 36, 37 and Note S3).

We further studied the reverse bias stability of unencapsulated PSCs under 0 V/-1 V/0 V cyclic bias (each stage lasts for 12 h) in dark. As shown in Fig. 4f, after 25 cycles, the efficiency of the TiO2-based PSC has dropped to less than 60% of the initial efficiency, while the TiO2/TFMS-based PSC still maintains more than 80% of the initial efficiency, demonstrating the enhanced reverse stability after constructing the interfacial electrostatic repulsion. Further, at a 0 V/-2 V/0 V bias cycle, we compared the reverse bias stability between the PSCs with/without TFMS. As shown in Supplementary Fig. 38, after 14 bias cycles, the PCE of the TiO2-based PSCs dropped below 50% of the initial PCE, while the TiO2/TFMS-based PSCs still maintained 72.1% of the initial PCE. The results validate the efficacy of TFMS on enhancing the device reverse-bias stability.

We also examined the PCE evolution of unencapsulated PSCs under different conditions. Firstly, as shown in Fig. 4g, after storage for 1400 h at ambient air (25 °C, 25% relative humidity), the average efficiency of TiO2-based PSCs (5 samples in each group) decreased to 78% of the initial average efficiency, while the TiO2/TFMS-based PSCs could maintain 91% of the initial average efficiency. Considering the TiO2 as the ETL, the UV stability also needs to be considered due to its photocatalytic property. After introducing TFMS on the surface of TiO2, the device shows enhanced UV stability by maintaining 87.7% of the initial efficiency after aging for 1000 h under UV light, higher than that (73.5%) of TiO2-based device. This enhanced UV stability may mainly result from the passivated interfacial defects16,50.

Discussion

In summary, we have developed a strategy based on interfacial electrostatic repulsion to suppress the I- cross-layer migration under reverse bias in a nonbonding manner, effectively improving the anti-reverse bias characteristics of PSCs while maintaining its high efficiency. Based on this strategy, we obtained highly efficient PSCs based on a TiO2 ETL of 25.80% and achieved a certified PCE of 26.09% when extending applications in SnO2 ETL. More importantly, this strategy effectively improves the reverse bias stability of the PSCs, which can maintain more than 80% of initial efficiency after 25 bias aging cycles (0 V/-1 V/0 V). In addition, the breakdown voltage of the PSCs has also been increased to a maximum of -28.11 V, which can help prevent complete failure caused by reverse breakdown in practical applications. This work sheds light on utilizing the interfacial electrostatic repulsion to enhance the PSCs’ reverse-bias stability, which is expected to accelerate the practical deployment of PSCs.

Methods

Materials

The patterned F-doped tin oxide glass (FTO, 7 Ω sq−1) was purchased from Shangyang Solar Energy Technology CO., Ltd. (Suzhou, China). Titanium tetrachloride (TiCl4, 99.99%) precursor was purchased from Aladdin (Shanghai, China). Lead iodide (PbI2, 99.999%) was purchased from Tokyo Chemical Industry (TCI). 4,4’,4”,4”‘-methanetetrayltetrabenzenesulfonic acid (TFMS), Rubidium chloride (RbCl) was purchased from Sigma Aldrich. Polyhexamethyleneguanidine hydrochloride (PHMG, 99%) was purchased from Macklin. Tin (II) chloride dihydrate (SnCl2•2H2O, >99.995%), urea (>99.5%), N, N- dimethylformamide (DMF), dimethyl sulfoxide (DMSO), acetonitrile (ACN), chlorobenzene (CB), guanabenz acetate salt (GBA), thioglycolic acid (TGA, 98%), and isopropanol (IPA) were purchased from Sigma-Aldrich. Formamidinium iodide (FAI), methylammonium chloride (MACl), CsI, 2,2’,7,7’-tetrakis (N, N-di-pmethoxyphenylamine)-9,9’spirobifluorene (Spiro-OMeTAD), tert-butylpyridine (tBP), 2-Fluorophenylethylammonium Iodide (o-F-PEAI), 4-methoxyphenylethylamine hydroiodide (Meo-PEAI, 99.8%), Li-bis(trifluoromethanesulfonyl)imid (Li-TFSI), and Iodobenzene diacetate (ID, 99.99%) were purchased from Xi’an Yuri Solar CO., Ltd.

Device fabrication

The FTO substrates were ultrasonically cleaned in the sequence of detergent solution, deionized water, ethanol, and deionized water for 15 min, respectively.

For TiO2 ETL: A mixture of TiCl4 (4 ml) and deionized water (200 ml) was stirred to obtain a TiO2 precursor. The FTO substrate was then immersed in the precursor and placed in a water bath at 70 °C for 40 min to form a compact TiO2 ETL. After the preparation is complete, the compact TiO2 ETL is removed from the chemical bath precursor, and the surface is washed with deionized water, ethanol, and deionized water successively to remove impurities and then dried with N2 for use.

For FTO/TiO2/TFMS substrate: the TFMS precursor (0.3 mg/ml in deionized water) were spin-coated on FTO/TiO2 substrate at 4000 rpm for 30 s, and followed by the annealing at 100 °C for 10 min.

Preparation of perovskite by one-step method: The 1.54 M FA0.85MA0.1Cs0.05PbI3 (DMF: DMSO, 4:1 volume/volume) precursor containing 0.06 mg/ml rubidium chloride and 1.2 mg/ml PHMG additives were spin-coated on FTO/TiO2 or FTO/TiO2/TFMS substrate at 4000 rpm for 18 s, 800 μl diethyl ether as anti-solvent was dripped at 12 s before the end of spin-coating. Then, the film was transferred to air (25 °C & 35% RH) for annealing at 110 °C for 10 min. The Meo-PEAI solution was prepared by mixing 4.5 mg Meo-PEAI in 1 ml CB: IPA mixed solvent (4:1 volume/volume). The Meo-PEAI layer was spin-coated at 4000 rpm for 30 s above the perovskite. The Spiro-OMeTAD solution was prepared by mixing 72.3 mg Spiro-OMeTAD in 1 ml chlorobenzene with 26.6 μl tBP, 18 μl Li-TFSI salt (520 mg ml-1 in ACN), and 1 mg ID. The Spiro-OMeTAD solution was spin-coated at 4000 rpm for 30 s above the perovskite layer. At last, Au electrode (60 nm) was deposited by thermal evaporation.

Preparation of the SnO2 ETL: 1.1 g SnCl2•2H2O ( ~ 12 mM) and 5 g urea were dissolved in 400 mL deionized water, and then 5 mL HCl (37 wt%) and 100 µL TGA were added into the solution. The as-cleaned FTO was placed vertically into the SnO2 CBD solution and heated in a drying oven at 90 °C for 4 h. Then, sequentially ultrasonicated with deionized water and isopropanol for five min, dried by gas gun blowing, and followed by annealing at 150 °C for 1 h.

For FTO/SnO2/TFMS substrate: the TFMS precursor (0.1 mg/ml in deionized water) was spin-coated on FTO/SnO2 substrate at 4000 rpm for 30 s, and followed by annealing at 100 °C for 10 min.

Preparation of perovskite via the two-step method in ambient air: a 1.5 M PbI2 (DMF: DMSO, 9:1 volume/volume) precursor with guanabenz acetate (the molar ratio of GBA/PbI2 was 3%) was spin coated on the FTO/SnO2 or FTO/SnO2/TFMS substrate at 1500 rpm for 30 s and then annealed at 70 °C for 60 s. After the PbI2 film cooled to room temperature, ammonium salt solution was spin-coated on the PbI2 film at 2000 rpm. for 30 s and then annealed at 150 °C for 15 min. Then, o-F-PEAI solution was spin-coated on the FTO/SnO2/perovskite surface at 4000 rpm for 30 s without further annealing. The Spiro-OMeTAD solution was prepared by mixing 72.3 mg Spiro-OMeTAD in 1 ml chlorobenzene with 26.6 μl tBP, 18 μl Li-TFSI salt (520 mg ml-1 in ACN), and 1 mg ID. The Spiro-OMeTAD solution was spin-coated at 4000 rpm for 30 s above the perovskite layer. At last, Au electrode (60 nm) was deposited by thermal evaporation.

Characterization

The surface and cross morphologies of perovskite films were measured using cold field-emission scanning electron microscopy (SEM, HITACHI Regulus 8100). The X-ray diffractometer (XRD, D8 Advance, Bruker) obtained crystalline perovskite films. Steady-state PL and time-resolved PL were performed by a FLS980 spectrometer (Edinburgh Instrument). The excitation wavelength is 470 nm. The J-V test was measured using a Keithley 2400 source meter under simulated AM 1.5 G illumination (100 mW cm-2) provided by a 150 W Class AAA solar simulator (XES-40S1, SAN-EI). The scanning range of the J-V test was -0.1 to 1.2 V, the scanning speed was 0.06 V s-1, and the number of scanning points was 100, with a step size is 0.013 V. When conducting the reverse bias scans to determine the breakdown voltage, the scanned voltage was from +1.2 V to -30 V at a scanning speed of -4 V/s. The external quantum efficiency and integrating current of perovskite solar cells were measured by QE-R systems (Enli Tech). The unpackaged devices were stored in ambient air at room temperature (25 °C, 25% RH) to measure the long-term aging stability. Bias-stability of unencapsulated PSCs under 0 V/-1 V/0 V cyclic bias in the dark, stored under ambient air (25 °C, 25% RH). The UV stability of unencapsulated PSCs was tested under 25 °C in an N2 glovebox. The electrochemical impedance spectroscopy (EIS) data were obtained by an electrochemical workstation (Zahner Zennium). Impedance spectra were measured using HIOKI impedance analyzer (IM 3570). Time-of-flight secondary ion mass spectrometry (TOF-SIMS 5-100, IONTOF GmbH) was performed to characterize the ionic migration. Transient ion-migration current was obtained by electrochemical workstation (CHI660E). X-ray photoelectron spectroscopy (XPS) and Ultraviolet photoelectron spectroscopy (UPS) were performed using an ESCALAB 250Xi system to analyze the surface composition and electronic structure of the samples. Atomic force microscopy (AFM) using an FMNanoview 1000 instrument was used to characterize the surface morphology of the samples. Kelvin probe force microscopy (KPFM) was utilized to measure the surface potential and contact current of the films. The Zeta potential on the surface of films were measured using SurPASS2. In-situ PL and EL tests were performed by a dynamic spectrometers come from Shaanxi Puguangweishi Technology Co.,Ltd.

The static diffusion experiment of polyiodide ions

The static diffusion experiment of polyiodide ions was designed by referring to the relevant literature on zinc-iodine batteries39,51. The static diffusion experiment of polyiodides ions was conducted using the H-type electrolytic cells, in which equal amounts of polyiodides solution and deionized water are added to the left and right chambers, and the two chambers are separated by Glass fiber (GF) diaphragm without TFMS and GF diaphragm with TFMS, respectively. The polyiodides solution was prepared by dissolving 5 mM I2 into 0.2 M KI aqueous solutions. GF diaphragm was purchased from Beijing Shenheweiye Technology Co., Ltd. For the GF diaphragm with TFMS, the TFMS powder was first dissolved in acetonitrile solvent with a concentration of 20 mg mL-1, and then the GF diaphragm was immersed into the TFMS-acetonitrile solution for 10 min. After that, the obtained GF diaphragm with TFMS was dried under 50 oC for 12 h. For the GF diaphragm without TFMS, the glass fiber diaphragm was immersed into the pure acetonitrile solution for 10 min. After that, the obtained GF diaphragm without TFMS was dried under 50 oC for 12 h. The processed and dried GF diaphragms were used in the aforementioned static diffusion test of polyiodides.

DFT Calculations

We used the DFT as implemented in the Vienna Ab initio simulation package (VASP) in all calculations. The exchange-correlation potential is described by using the generalized gradient approximation of Perdew-Burke-Ernzerhof (GGA-PBE). The projector augmented-wave (PAW) method is employed to treat interactions between ion cores and valence electrons. The plane-wave cutoff energy was fixed to 450 eV. Given structural models were relaxed until the Hellmann–Feynman forces smaller than -0.02 eV/Å and the change in energy smaller than 10–5 eV was attained. Grimme’s DFT-D3 methodology was used to describe the dispersion interactions among all the atoms in adsorption models. The Gamma-centered k-points samplings were set with a density of 0.04. The Climbing Image Nudged Elastic Band (CI-NEB) method was employed to compute the corresponding barrier heights of Li diffusion in the electrolyte. Gauss computation part: all calculations were performed using the Gaussian 16 program package. The M06-2X hybrid Functional combine with Def2-SVP was used to optimize the structures and M06-2X combined with Def2-TZVP was used for single-point calculations. All post-calculation analysis was carried out using the Multiwfn 3.8.4 Dev software package and the results were visualized using visual molecular dynamics (VMD) 1.8. 4.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
