Introduction

A heterogeneous catalytic reaction involves adsorption of reactants, surface reaction, and desorption of products. The lattice components of the catalysts could be involved in the product formation, which is widely acknowledged as Mars van Krevelen (MvK) mechanism1,2. The reductive reactant is oxidized by the lattice oxygen species and forms products, which are subsequently desorbed from the surface. The generated oxygen vacancy sites are replenished by the activation of gaseous O2 and lattice oxygen diffusion. This mechanism indicates that understanding oxygen transfer in metal oxide is crucial for accelerating the catalytic process.

Ceria (CeO2) has been evidenced to follow MvK mechanism, with its ability to undergo a swift and reversible reduction and oxidation process, coupled with its capacity to facilitate oxygen transfer. When ceria is subjected to a reducing atmosphere, it forms oxygen-deficient CeO2-x, maintaining its fluorite structure even after the loss of oxygen from its lattice and the generation of oxygen vacancies3. Subsequently, CeO2-x can be reoxidized to CeO2 upon exposure to an oxidizing environment. This circular transformation of Ce3+/Ce4+ redox couple allows ceria to store and release oxygen in a reversible manner4,5. This distinctive redox behavior renders ceria attractive as both a catalyst and a catalyst support for heterogeneous reactions.

The surface atomic arrangements and ceria domain sizes are closely linked with the reducibility of ceria6,7,8,9. The ability of ceria to form oxygen vacancies refers to its oxygen release and uptake ability during reactions. In particular, the oxygen transfer from ceria plays a decisive role in altering activity, as ceria is perceived to provide oxygen to drive the reaction10,11,12. The oxygen transfer ability of ceria can be classified into two categories: O2 activation and lattice oxygen transfer. We denote the uptake of gaseous oxygen and the replenishment of the oxygen vacancies at the surface as “O2 activation”, while the transfer of oxygen from surface to subsurface or vice versa is denoted as “lattice oxygen transfer”. It was reported that O2 activation depends on the partial pressure of gaseous oxygen and the number of oxygen vacancies on the ceria surface, and lattice oxygen transfer reflects the exchange of surface oxygen species and subsurface oxygen species in ceria13,14,15. However, these terms have often been used interchangeably in heterogeneous catalysis without clear classification.

In this study, we prepared Pt single atomic catalysts on ceria of various sizes deposited on alumina (Pt/CeO2-Al2O3). Since the ceria domain was isolated on non-reducible alumina support, the effect of ceria domain size could be evaluated on oxygen transfer. The single atomic structure of Pt allowed us to exclude O2 activation by Pt nanoparticles. Using CO oxidation as a probe reaction, we observed that activity varied significantly depending on ceria domain size and reactant compositions. By measuring O2 and CO uptakes, we were able to decouple O2 activation from lattice oxygen transfer, explaining the observed activity changes. Ambient-pressure X-ray photoelectron spectroscopy (AP-XPS) was performed to observe changes on the ceria surface during the reaction. The models for molecular dynamics simulations were suggested to further elucidate oxygen transfer on the ceria. Based on these findings, we could design a methane oxidation catalyst with enhanced activity by accelerating O2 activation.

Results

Formation of single atomic Pt on CeO2 domains with different sizes

Pt catalysts were deposited on CeO2-Al2O3 support (Pt 0.1 wt% and CeO2 10 wt%) by dispersing cerium and Pt precursors in an alumina suspension, drying, calcining, and reducing them at 300 °C. The Pt single atomic structure was obtained by re-dispersion under N2 purging at 600 °C. The size of ceria domains was controlled by changing the calcination temperature to 500, 600, and 700 °C. When the ceria domain size was estimated from X-ray diffraction pattern (XRD), it was 3.7 nm, 5.6 nm, and 7.3 nm, respectively (Supplementary Fig. 1). We denote the Pt/CeO2-Al2O3 catalysts as XCA with X representing the size of ceria domain. When the catalyst was synthesized without alumina, it is denoted as Pt/CeO2 and the ceria domain size was 27.6 nm. Pt nanoparticle catalyst was also prepared by depositing 0.1 wt% Pt on alumina and it is denoted as Pt NP/Al2O3. The detailed synthesis procedure is described in “Methods” section.

High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images confirmed that different sizes of ceria domains were isolated on alumina support in the CA catalysts, whereas ceria domains were overlapped in Pt/CeO2 (Fig. 1). X-ray photoelectron spectroscopy (XPS) Ce 3 d spectra showed that the fraction of Ce3+ was 34.9%, 29.3%, 26.5%, and 24.8% in 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2, respectively (Supplementary Fig. 2). As the ceria domain size became larger, the surface defect sites decreased.

Fig. 1: Morphology of single atomic Pt/CeO2-Al2O3 with different ceria sizes and Pt/CeO2.
Fig. 1: Morphology of single atomic Pt/CeO2-Al2O3 with different ceria sizes and Pt/CeO2.
Full size image

The Pt content was 0.1 wt% in all cases. a–d HAADF-STEM images of 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2, respectively. The number represents the ceria domain size in nm.

In order to analyze the effect of ceria domain size for surface reaction and exclude the effect of various Pt surface structures, the Pt structure was controlled to possess the single atomic configuration, since precious metal nanoparticles can easily activate gaseous oxygen16,17. Only 0.1 wt% of Pt was deposited and its content was confirmed through inductively coupled plasma (ICP) (Table 1). Pt L3-edge spectra of extended X-ray absorption fine structure (EXAFS) revealed no discernible Pt-Pt scattering peak while exhibiting a Pt-O scattering peak, implying that these catalysts have single atomic Pt structure (Supplementary Fig. 3a). The Pt-O coordination number was 4.38, 4.37, 4.37, and 5.16 for 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2, respectively (Supplementary Table 1). When Pt dispersion was estimated from H2 uptake, the Pt dispersion was nearly 100% in these four samples (Table 1). CO-diffuse reflectance infrared Fourier-transform spectra (CO-DRIFTS) exhibited a single peak at 2087 cm−1 for 3.7CA, 5.6CA, and 7.3CA, assigned to linear CO adsorbed on single atomic Pt18,19,20. Pt/CeO2 also presented the linear CO peak at 2090 cm−1, with much smaller peak intensity (Supplementary Fig. 3b). These CO-DRIFTS results confirmed that Pt single atomic structure was formed in 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2 catalysts. The number of Pt atoms per one ceria domain was estimated to be 2.7, 9.4, 20.8 for 3.7CA, 5.6CA, and 7.3CA, respectively (Table 1).

Table 1 Properties of single atomic Pt/CeO2-Al2O3 (CA) with various ceria domain sizes, Pt/CeO2, and Pt NP/Al2O3 catalysts
Full size table

Ceria domain size-dependent activity for CO oxidation

CO oxidation was conducted under various CO:O2 ratios to assess the effect of ceria domain size on oxidation. CO oxidation was selected as a probe reaction because it is a relatively simple reaction with well-established mechanisms21. When the reaction occurs in O2-deficient condition (CO:O2 = 10:1), larger ceria domains exhibited better activity, with the order of activity being 3.7CA < 5.6CA < 7.3CA (Fig. 2a, b). On the other hand, when the reaction occurs in O2-rich condition (CO:O2 = 1:1 or 1:10), the trend in activity reversed, with the order of 3.7CA > 5.6CA > 7.3CA (Fig. 2c–f). Pt/CeO2 and Pt NP/Al2O3 displayed at most comparable or much lower activity in all the conditions. Clearly, the activity of Pt/CeO2-Al2O3 catalysts depended on the size of the ceria domain and reactant composition. CO-DRIFTS was conducted for 3.7CA after the reaction under various CO:O2 ratios to exclude the possibility that a change in the Pt structure might contribute to the activity difference. The Pt structure remained as single atomic after the reaction, indicated by no discernible peak shift (Supplementary Fig. 4). When the shift of CO peak was also monitored by switching CO and O2 flow, the shift was hardly observed in all the catalysts (Supplementary Fig. 5). To understand the underlying reasons of the reversal in activity trend upon the change from O2-deficient to O2-rich condition and how the size of ceria domain exerts influence, further characterizations of the catalysts were conducted.

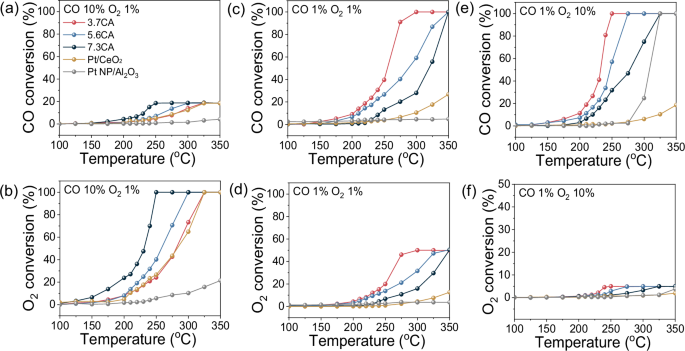

Fig. 2: CO oxidation performance on single atomic Pt/CeO2-Al2O3 with different ceria domain sizes, Pt/CeO2, and Pt NP/Al2O3.
Fig. 2: CO oxidation performance on single atomic Pt/CeO2-Al2O3 with different ceria domain sizes, Pt/CeO2, and Pt NP/Al2O3.
Full size image

a CO and b O2 conversion in CO 10%, O2 1% with He balance. c CO and d O2 conversion in CO 1%, O2 1% with He balance. e CO and f O2 conversion in CO 1%, O2 10% with He balance.

Oxygen transfer in the ceria domain with various sizes

First, reaction kinetics study was performed on CO oxidation. The reaction orders in CO were found to be 1.08, 1.08, 1.06, and 1.01 and the reaction orders in O2 were 0.01, 0.02, 0.01, and 0.03 for 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2, respectively, under O2-deficient condition (CO partial pressure of 1.5 kPa and O2 partial pressure of 0.3-0.7 kPa; Fig. 3a, b). This observation of positive order in CO and zero order in O2 points to Mars-van Krevelen (MvK) mechanism, generally reported for ceria-based catalysts22,23,24,25. In the MvK mechanism, CO adsorbed on Pt site reacts with a surface oxygen of nearby ceria, forming CO2. The CO2 desorbs, leaving oxygen vacancy. The oxygen vacancy can be replenished by lattice oxygen transfer, which provides zero order in O226. In the case of Pt NP/Al2O3, the reaction order in CO was −0.23 and the order in O2 was 0.93, referring to the Langmuir-Hinshelwood mechanism, in which both CO and O2 adsorb on the Pt surface to form CO2. We additionally measured the reaction order in O2 under O2-rich condition (CO partial pressure of 1.5 kPa and O2 partial pressure of 3–3.4 kPa; Fig. 3c). The reaction order in O2 became more positive with the values of 0.16, 0.24, 0.33, and 0.39 for 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2, respectively. The oxygen vacancy can be also replenished by gaseous O2 in this O2-rich condition. The larger ceria domain exhibited the larger reaction order in O2, implying more difficult O2 activation.

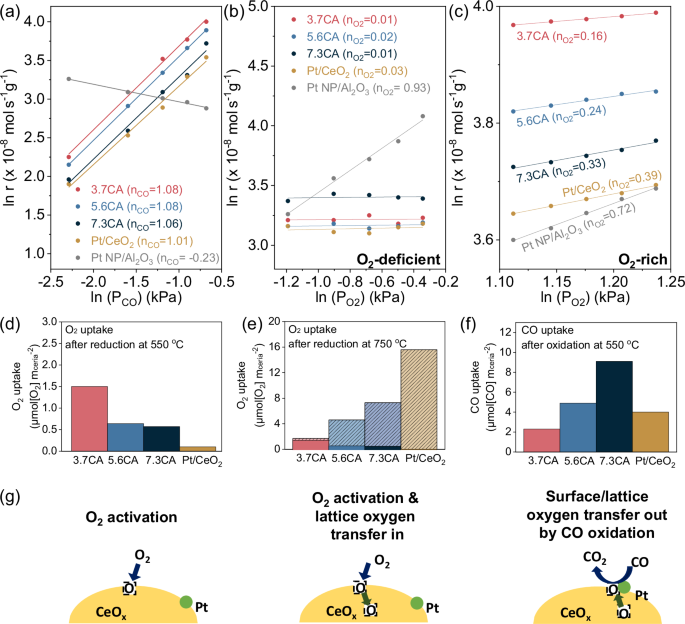

Fig. 3: Study of oxygen transfer by reaction kinetics and uptakes of O2 and CO.
Fig. 3: Study of oxygen transfer by reaction kinetics and uptakes of O2 and CO.
Full size image

Reaction rate as a function of (a) CO or (b, c) O2 partial pressure. The O2 partial pressure was 0.5 kPa in (a). CO partial pressure was 1.5 kPa in (b, c) while (b) was measured in O2-deficient condition (PO2 = 0.3-0.7 kPa) and (c) was measured in O2-rich condition (PO2 = 3–3.4 kPa). Reaction orders (nCO or nO2) are estimated from the slopes of linear fitting. O2 uptakes at 500 °C normalized by ceria surface area and illustration of O2 uptake process obtained after H2 pretreatment at (d) 550 °C and (e) 750 °C. Pt/CeO2 was reduced at 900 °C instead of 750 °C. The patterned color represents the difference in the O2 uptakes after H2 pretreatment at 550 °C and 750 °C. f CO uptake at 500°C normalized by ceria surface area. g Illustration of O2 and CO uptake processes of (d–f).

The observed difference in the activity for various ceria domain sizes (Fig. 2) could potentially be explained by the difference in their oxygen transfer capabilities. O2-temperature programmed desorption (O2-TPD) results show that 3.7CA had the largest amount of adsorbed surface oxygen species, which presents the peaks at the temperatures below 500 °C (Supplementary Fig. 6a). H2-temperature programmed reduction (H2-TPR) results of Pt/CeO2-Al2O3 catalysts show two reduction peaks at ~370 °C and ~630 °C, indicating the reduction of surface oxygen and subsurface oxygen species, respectively (Supplementary Fig. 6b). It was expected that surface oxygen vacancies would be formed after H2 pretreatment at 550 °C while subsurface oxygen vacancies would be formed after the treatment at 750 °C. In a case of Pt/CeO2, the subsurface oxygen was reduced at higher temperature, so the reduction was performed at 900 °C instead of 750 °C. Then O2 uptakes were estimated by measuring the changes in O2 pulses to observe how many O2 molecules were taken by the catalysts with oxygen vacancies. The O2 uptakes normalized by ceria surface area are shown in the main text, while the raw data and the value normalized by total catalyst mass are shown in the supplementary information (Supplementary Figs. 7–9).

Interestingly, the O2 uptakes for the catalysts reduced at two different temperatures presented the opposite trend. As the ceria domain size increased, the amount of O2 uptake decreased when the ceria was reduced at 550 °C (1.5, 0.64, 0.57, and 0.1 μmol mceria−2 for 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2), but it increased when the ceria was reduced at 750 °C (1.7, 4.6, 7.3, and 15.6 μmol mceria-2 for 3.7CA, 5.6CA, 7.3CA, and Pt/CeO2) (Fig. 3d and e). The difference in the O2 uptakes, which was denoted with patterned color in Fig. 3e, became larger for larger ceria. We think that the O2 uptakes measured after the reduction at 550 °C indicate O2 activation on the surface oxygen vacancies, which is proportional to the Ce3+ fraction (Fig. 3d scheme). On the other hand, the O2 uptakes measured after deeper reduction at 750 °C further included both O2 activation and lattice oxygen transfer into the sub-surface oxygen vacancies (Fig. 3g). Whereas O2 activation occurred more as the ceria domain size decreased, lattice oxygen transfer occurred more as the ceria domain size increased. XRD, HAADF-STEM, and CO-DRIFTS results obtained after the O2 uptake measurements confirmed that the ceria domain size or Pt atomic configuration were barely changed (Supplementary Figs. 10–12).

These differences in O2 uptakes explain the opposite activity trends under different gas environments. In O2-rich condition of CO oxidation (CO:O2 = 1:1 or 1:10; Fig. 2c-f), O2 activation occurs more effectively on smaller ceria domain, and the abundant gaseous O2 feed can facilitate the replenishment of surface oxygen vacancies. In O2-deficient condition (CO:O2 = 10:1; Fig. 2a and b), the replenishment of surface oxygen vacancies with gaseous O2 may be insufficient; instead the diffusion of lattice oxygen from the inner layers to the surface may exert more influence on the activity. Hence, larger ceria with more transferrable subsurface oxygen can demonstrate higher activity.

To further validate these results, we performed oxygen isotope experiments using CO and 18O2 at 200 °C under both O2-deficient (CO 7 kPa, 18O2 0.7 kPa) and O2-rich (CO 0.7 kPa, 18O2 0.7 kPa) conditions (Fig. 4a and b). Mass spectrometry detected C16O16O, C16O18O, and C18O18O, and the reaction pathways were schematically summarized. CO first adsorbs on Pt and reacts with neighboring lattice 16O in ceria, producing C16O16O and leaving behind an oxygen vacancy. The vacancy can be replenished by lattice 16O transfer and form C16O16O more (Fig. 4c). This vacancy can be also replenished by gaseous 18O2 activation or lattice 18O transfer, leading to the subsequent formation of C16O18O (Fig. 4d). CO adsorbed on Pt can exchange oxygen with 18O, and this C18O can react with neighboring 18O from ceria, forming C18O18O (Fig. 4e). Under O2-deficient condition, 3.7CA showed a gradual decrease in the production of C16O16O and increase in C16O18O, because surface 16O in ceria was consumed and the surface oxygen vacancy was replenished by 18O. In 7.3CA, however, C16O16O formation initially increased because the lattice 16O was provided to the surface more than 3.7CA. Under O2-rich condition, 3.7CA showed rapid decay of C16O16O and growth of C16O18O, consistent with fast O2 activation at abundant surface vacancies, whereas 7.3CA exhibited lower overall CO2 formation. These isotope results also support that larger ceria domains are more effective in supplying lattice oxygen under O2-deficient condition, while smaller domains favor surface O2 activation under O2-rich condition.

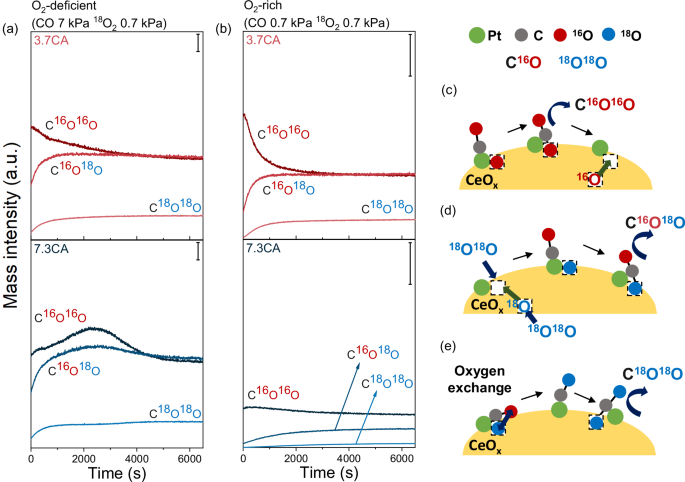

Fig. 4: Oxygen isotope experiment under different reaction conditions.
Fig. 4: Oxygen isotope experiment under different reaction conditions.
Full size image

The experiments were measured at 200 °C on 3.7CA and 7.3CA under a O2-deficient condition (CO 7 kPa, 18O2 0.7 kPa with He balance) and b O2-rich condition (CO 0.7 kPa, 18O2 0.7 kPa with He balance). Scheme of c C16O16O, d C16O18O, e C18O18O formation under oxygen isotope experiment.

The CeO2-Al2O3 supports were synthesized without Pt single atoms. When the supports were calcined without Pt precursor at 500, 600, and 700 °C, the ceria domain size was 7.1, 7.1, and 7.3 nm, respectively. The absence of Pt caused ceria sintering20. The effect of Pt single atom on O2 uptakes was evaluated for the 7.3 nm samples in the presence and absence of Pt single atoms (Supplementary Fig. 13). The O2 uptakes were the same regardless of Pt, indicating that O2 uptakes do not occur on the single atomic Pt sites.

CO uptakes are often used to estimate oxygen storage capacity4,27,28. After the catalysts were pre-treated with O2 at 550 °C, CO uptakes were estimated by measuring the changes in CO pulses (Fig. 3f and Supplementary Fig. 14). The CO would adsorb on Pt site, then react with neighboring oxygen, leaving oxygen vacancy behind after CO2 desorbs. Then, the oxygen vacancy would be replenished by lattice oxygen transfer (Fig. 3g; right scheme). As the ceria domain size increased, the CO uptake also increased except for Pt/CeO2. This is similar to the O2 uptake results obtained after the reduction at 750 °C, representing the outward transfer of surface and lattice oxygen by CO oxidation. The CO uptake of the Pt/CeO2 was lower than that of the 7.3CA. The Pt-O coordination number is 5.16 in the Pt/CeO2, while the number is lower as ~4.4 in the CA catalysts. The higher coordination of Pt with neighboring oxygen may retard oxygen transfer slightly. The O2 and CO uptake were also measured for the Pt NP/Al2O3, but the values were much smaller than those of the ceria-based catalysts (Supplementary Fig. 9).

Ambient-pressure XPS measurements

In order to understand the oxygen transfer behavior by controlling ceria domain size, it is imperative to monitor the catalytic surface under reaction conditions with surface-sensitive techniques. In this case, the nature of the alumina-based catalyst led to severe charging shift, which were especially pronounced under oxidizing conditions. Consequently, we chose a strategy focusing on the CO:O2 = 1:1 and 10:1, rather than 1:10 conditions. The measurements under the O2-rich condition (CO:O2 = 1:1) were conducted using lab-based AP-XPS with Al K-α X-ray source by increasing the temperature from room temperature to 100, 200, and 300 °C (Supplementary Fig. 15). The Ce3+ area ratio difference between three samples remains consistent with increasing temperature. The increase in the Ce3+ area ratio with the temperature under O2-rich conditions is attributed to the amount of oxygen consumed for CO oxidation exceeding the rate at which surface vacancies are healed. The 3.7CA presented the highest Ce3+ area ratio in all the temperatures, ensuring its high O2 activation ability.

We conducted synchrotron-based AP-XPS measurement under O2-deficient condition (CO:O2 = 10:1) to investigate oxygen transfer ability more precisely (Fig. 5a-c). A photon energy of 1050 eV was used to conduct surface-sensitive analysis, resulting in a probing depth of ~1.6 nm. The Ce3+ area ratio at room temperature was the highest at 41.6% for 3.7CA, 38.1% for 5.6CA, and 32.0% for 7.3CA. Interestingly, under O2-deficient condition, the Ce3+ area ratio for 7.3CA increased significantly as the temperature rose from 32.0% at room temperature to 49.4% at 300 °C. For 3.7CA, the Ce³⁺ area ratio showed a subtle increase from 41.6% at room temperature to 44.2% at 300 °C, leading to a reversal of Ce³⁺ area ratios at 300 °C (Fig. 5d). This reversal in Ce³⁺ area ratio at higher temperatures is attributed to the CO oxidation under conditions where O2 activation is constrained. These findings suggest that substantial subsurface oxygen was consumed via lattice oxygen transfer during CO oxidation, which aligns with the superior CO oxidation activity of 7.3CA under O2-deficient condition. This observation is also consistent with our uptake results: smaller ceria domains favor surface O2 activation, while larger ceria domains experience more lattice oxygen transfer.

Fig. 5: Synchrotron-based ambient-pressure XPS under O2-deficient condition.
Fig. 5: Synchrotron-based ambient-pressure XPS under O2-deficient condition.
Full size image

Ce 3 d spectra obtained under CO:O2 = 10:1 (CO 0.03 mbar, O2 0.003 mbar) at elevated temperatures for a 3.7CA, b 5.6CA, and c 7.3CA. d Ce3+ area ratios estimated from the peak deconvolution.

Molecular dynamics simulations of the ceria domains for O2 uptake

To further understand the effect of ceria domain size on oxygen activation and diffusion kinetics observed in O2 uptake experiment, we performed large scale molecular dynamics (MD) simulations using three Pt/CeO2-Al2O3 models with different ceria domain sizes. Classical force field-based molecular dynamics (MD) simulations are not suitable for our model system due to their limited accuracy, while electronic structure methods such as density functional theory (DFT), despite their accuracy, struggle with scalability to extended length and time scales. To overcome these limitations, we have employed a state-of-the-art neural network potential (NNP) model. This computational framework allows for a systematic exploration of large-scale ceria domains through extensive MD simulations under experimental conditions, without sacrificing precision.

The thermodynamically stable Pt/CeO2-Al2O3 models were constructed by performing annealing MD simulations of three hemisphere ceria models on Al2O3 slab, where each model represents ceria domain sizes of 3.7CA, 5.6CA, and 7.3CA. Followed by annealing MD simulations, Pt single atoms were anchored on ceria domains, and surface Ce3+ sites were generated by removing surface oxygen atoms to have the Ce3+ ratio of 40%, 30%, and 30% for 3.7CA, 5.6CA, and 7.3CA, respectively, reflecting XPS data (Supplementary Figs. 16–18). O2 uptake MD simulations were conducted using these three Pt/CeO2-Al2O3 models in O2 gas randomly distributed in the simulation boxes (Fig. 6a and Supplementary Fig. 19). To ensure a comprehensive exploration of the configuration space, five O2 gas configurations were used. All simulations reached thermodynamic equilibrium and exhibited exothermic changes (Supplementary Fig. 20).

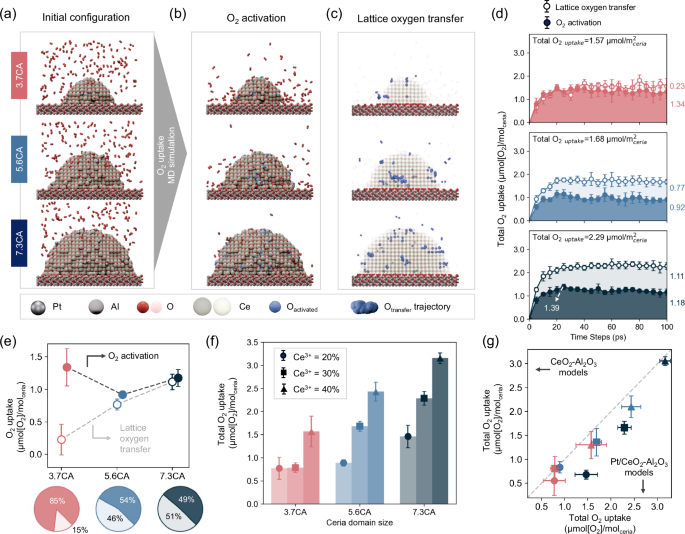

Fig. 6: Molecular dynamics simulations of three ceria domain sizes for O2 uptake.
Fig. 6: Molecular dynamics simulations of three ceria domain sizes for O2 uptake.
Full size image

a Snapshots of the initial configurations for Molecular dynamics (MD) simulations at 773 K. b Final configuration of O2 activation on the surface of ceria domain after MD. c Transfer trajectory of lattice oxygen, where the position of each transferred O atom is indicated in darker blue over the simulation time, plotted every 5 ps. The Ce atoms and other O atoms are displayed transparently. d Total O2 uptake of three ceria domains plotted against the simulation time, where the O2 uptake is classified into O2 activation and lattice oxygen transfer. e O2 uptake classified into O2 activation and lattice oxygen transfer for three ceria domains. The ratio of O2 activation (dark color) and lattice oxygen transfer (light color) is shown in the pie charts. f Total O2 uptake of three ceria domain sizes for three different Ce3+ ratio (20%, 30% and 40%). g Total O2 uptake comparison with and without Pt single atoms in the system. Error bars represent one standard deviation of five repeated simulations (d–g).

O2 uptake can be primarily divided into two sequential processes: O2 activation and lattice oxygen transfer. O2 activation involves the surface activation of gaseous oxygen, whereas lattice oxygen transfer involves the sequential transfer of activated oxygen species from the surface to the subsurface region of the ceria domain (Fig. 6b, c). In the case of O2 activation, different types of activated oxygen species were observed, including filling of surface Ce3+ sites, surface physisorption, coordination with Pt, and chemisorption on the lattice oxygen (Supplementary Fig. 21a and b). These configurations of activated oxygen species on the surface were observed regardless of the ceria domain sizes (Fig. 6b). Following O2 activation, we observed transfer of the activated surface oxygen species into the subsurface region and further transfer into the bulk region of the ceria domain (Supplementary Fig. 21c and Fig. 6c).

To quantify the O2 uptake within the ceria domains, the change in Ce-O coordination number of all Ce atoms in each model was monitored during the MD simulations. We classified all Ce atoms in the system as either surface Ce atoms or bulk Ce atoms based on their oxygen coordination (see Supplementary Information and Supplementary Fig. 22 for details). The changes in Ce-O coordination of surface Ce atoms were assigned to O2 activation, while those of bulk Ce atoms to lattice oxygen transfer. The statistical uncertainties shown as error bars are relatively small, indicating that O2 uptake MD simulations were independent of the initial O2 gas configurations. In the 7.3CA model, a notable decrease in O2 activation was observed from 1.39 µmol[O2]/mceria2 at 25 ps to 1.18 µmol[O2]/mceria2 at 100 ps, indicating that activated gaseous oxygen is diffused from the surface into the bulk region (Fig. 6d). In smaller ceria domains, O2 uptake predominantly occurs at the surface (85% O2 activation vs. 15% lattice oxygen transfer for 3.7CA) (Fig. 6e). As the size of the ceria domains increases, a greater proportion of lattice oxygen transfer is observed (46% and 51% for 5.6CA and 7.3CA, respectively), indicating a size-dependent trend in oxygen activation and lattice oxygen transfer dynamics. These trends are consistent with experimental observation of Fig. 3e.

The effect of undercoordinated surface Ce3+ sites density was further investigated on the various ceria domain sizes. Experimentally, the smaller ceria domain tends to have larger Ce3+ sites and it is very difficult to distinguish the Ce3+ sites density effect from the size effect. To systematically analyze the effect of the surface Ce3+ defect site density while isolating the effect of ceria domain size, we constructed additional six theoretical models by adjusting the number of surface oxygen atoms. This resulted in a total of nine models: 3.7CA, 5.6CA, and 7.3CA models, each with the stoichiometric Ce3+ ratio of 20%, 30%, and 40% (Fig. 6f). This approach allowed us to isolate the effects of Ce3+ sites density from ceria domain size (Supplementary Figs. 23 and 24). The total O2 uptake of 3.7CA model remained relatively constant regardless of the Ce3+ ratio, exhibiting minimal variation with increasing Ce3+ defect sites density (Fig. 6f). In contrast, larger ceria domains, the 5.6CA and 7.3CA models, demonstrated a progressive increase in O2 uptake with the presence of more Ce3+ defect sites. When O2 activation and lattice oxygen transfer were separately evaluated (Supplementary Fig. 24), the O2 activation occurs more at higher Ce3+ ratio regardless of the ceria domain size, while large ceria domains facilitate the incorporation of activated O2 into the ceria lattice, allowing more oxygen to be accommodated in the bulk and subsurface regions.

To explicitly evaluate the role of Pt single atoms in O2 uptake, the O2 uptake MD simulations were also performed using CeO2-Al2O3 models without Pt (Supplementary Figs. 25 and 26). Fig. 6g shows the theoretical total O2 uptakes of Pt/CeO2-Al2O3 models on the x-axis and those of CeO2-Al2O3 models on the y-axis. The total O2 uptake remains largely unchanged regardless of the presence of Pt single atoms in the system. Some of the data points are positioned slightly to the right side from the parity line, indicating a subtle increase in O2 uptake due to the presence of Pt single atom sites. However, the difference was negligibly small compared to the effect of Ce3+ site density and ceria domain size. This effectively rules out the role of Pt single atom sites in influencing the O2 uptake.

Industrially relevant oxidations

In order to explore the industrial potential of ceria structure modulation, the catalysts with different ceria domain sizes were tested for CH4 oxidation (Fig. 7a). Because methane oxidation typically occurs at O2-rich conditions, we can expect that smaller ceria would facilitate O2 activation based on our findings above. Truly, the activity of CH4 oxidation showed the order of 3.7CA > 5.6CA > 7.3CA > Pt/CeO2 > Pt NP/Al2O3 for 0.1 wt% Pt. PtPd bimetallic catalysts are generally known to exhibit high activity for methane oxidation, because Pd behaves as active sites via Pd-PdO redox cycles and Pt helps Pd to maintain its electronic state29,30. The catalysts with 0.1 wt% Pt and 0.1 wt% Pd were prepared using additional palladium (II) nitrate hydrate (Sigma-Aldrich) without N2 re-dispersion and tested for methane oxidation (Supplementary Fig. 27 and Fig. 7b). The CH4 conversion at 300 °C was 69.1%, 53.1%, 34.1%, 8.3%, and 0% in PtPd/3.7CA, PtPd/5.6CA, PtPd/7.3CA, PtPd/CeO2, and PtPd/Al2O3, respectively. Clearly, the smaller ceria domain accelerated CH4 conversion at low temperatures.

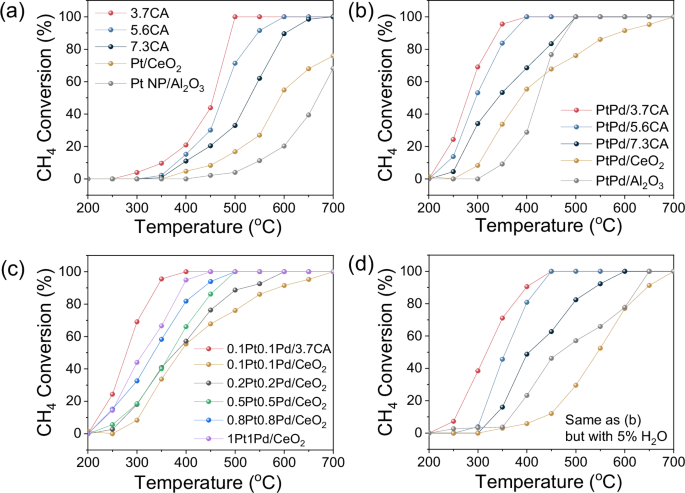

Fig. 7: Catalytic performance for CH4 oxidation.
Fig. 7: Catalytic performance for CH4 oxidation.
Full size image

CH4 oxidation on a 0.1 wt% Pt deposited on CeO2-Al2O3 with different sizes of ceria domain, CeO2, and Al2O3 with N2 re-dispersion, b 0.1 wt% Pt and 0.1 wt% Pd prepared without N2 re-dispersion, and c various loadings of Pt and Pd on CeO2 prepared without N2 re-dispersion. The loading of Pt and Pd was adjusted from 0.1 wt% Pt and 0.1 wt% Pd (0.1Pt0.1 Pd) to 1 wt% Pt and 1 wt% Pd (1Pt1Pd). CH4 0.1% and O2 15% (Ar balance) were flown at 10,909 mL g−1 h−1 and atmospheric pressure. d CH4 oxidation under additional 5% H2O on 0.1 wt% Pt and 0.1 wt% Pd catalysts.

The loading of Pt and Pd in PtPd/CeO2 catalysts was varied to enhance methane oxidation activity and compared with PtPd/3.7CA containing 0.1 wt% Pt and 0.1 wt% Pd. Although the metal content increased up to 1 wt%, the CeO2 support presented less activity than the 3.7CA with 0.1 wt% metals (Fig. 7c), demonstrating that controlling the ceria domain size anchored on alumina can be powerful to facilitate O2 activation in O2-rich condition. The activity for methane oxidation typically degrades in the presence of moisture. When the methane oxidation was repeated under additional 5% H2O at otherwise the same condition, the PtPd/3.7CA still presented the highest activity (Fig. 7d). The size of ceria domain was barely changed in the CA samples, while the PtPd/CeO2 suffered from significant ceria sintering (Supplementary Fig. 28). These findings illustrate that enhancing O2 activation by controlling the property of ceria support can be an efficient way to promote methane oxidation in O2-rich condition, while reducing the loading of precious metals.

Discussion

This work provides insights into oxygen transfer on ceria and its impact on surface reactions. We synthesized Pt/CeO2-Al2O3 catalysts with various ceria domain sizes of 3.7, 5.6, and 7.3 nm (denoted as 3.7CA, 5.6CA, and 7.3CA, respectively). Unlike Pt/CeO2, the ceria domains were isolated on alumina, preventing oxygen transfer between ceria domains and thus allowing an accurate assessment of the effect of ceria domain size. Pt single atomic structures were meticulously prepared to exclude O2 activation on Pt nanoparticles. When CO oxidation was performed on the Pt/CeO2-Al2O3 catalysts, the activity was highly dependent on ceria domain size and reactant composition. This variation was due to the distinct oxygen transfer properties of O2 activation and lattice oxygen transfer. We successfully decoupled O2 activation on ceria from lattice oxygen transfer. The smaller ceria facilitated surface O2 activation, resulting in high activity under O2-rich conditions. Conversely, under O2-deficient conditions, lattice oxygen transfer played a more important role, yielding higher activity in larger ceria domain. Ambient-pressure XPS results showed that under O2-rich conditions, 3.7CA exhibited the highest Ce³⁺ area ratio at all temperatures. In contrast, under O2-deficient conditions, larger ceria domains demonstrated a significant change in the Ce³⁺ area ratio as the temperature increased, which is attributed to lattice oxygen transfer capabilities. The size-dependent oxygen kinetics of ceria domains were systematically investigated using large-scale MD simulations of realistic models with a neural network potential trained on first-principles data. The activation of gaseous oxygen and oxygen transfer were monitored and quantified at the atomic level, confirming the effect of ceria domain size and defect site density. PtPd catalyst deposited on small ceria domain presented high activity for methane oxidation due to facilitated O2 activation in O2-rich condition. This work highlights the role of understanding oxygen transfer in metal oxide support to enhance catalytic performance.

Methods

Synthesis of single atomic Pt/CeO2-Al2O3 catalysts

γ-Al2O3 (99.97%, Alfa Aesar) was calcined at 700 °C. The appropriate amount of cerium nitrates (Kanto chemical, 99.99%) was dissolved in deionized water to prepare 10 wt% of CeO2 on alumina. The alumina was introduced into the cerium precursor solution and stirred for 1 h. Chloroplatinic acid (Sigma-Aldrich, ≤100%) was dissolved in deionized water to prepare 0.1 wt% Pt and the solution was dropped into a suspension of alumina and a cerium precursor solution. The resulting solution was heated until completely evaporated, ground, and calcined in air at 500, 600, or 700 °C for 5 h. Then the samples were reduced at 300 °C for 1 h under 10% H2 (N2 balance), and purged with N2 flow at 600 °C for 10 h for re-dispersion to prepare Pt single atomic structure31. Pt/CeO2 was prepared using CeO2 (Sigma Aldrich) by the same method without alumina and cerium precursor. Pt NP/Al2O3 was synthesized using polyol method. NaOH (Samchun) 6.12 mg and sodium acetate (Sigma Aldrich) 0.64 mg were dissolved per mL of ethylene glycol (EG). Then, chloroplatinic acid solution was added to the EG solution and reduced in an oil bath for 3 h at 150 °C while refluxing under N2. After cooling to room temperature, alumina was introduced into the flask and refluxed at 100 °C overnight. The solution was washed in deionized water and dried in vacuum oven. Further details about catalytic reactions and characterizations can be found in Supplementary Information.

Ambient-pressure (AP) XPS measurements

AP-XPS experiments were conducted at the Pohang Accelerator Laboratory (PAL) and KAIST. At the 8A2 beamline at PAL, AP-XPS measurements were performed using a PHOIBOS 150 hemispherical electron analyzer (SPECS). A photon energy of 1050 eV was used to analyze the Ce 3 d region (923-877 eV). The sample temperature was controlled with an IR laser and monitored via a thermocouple embedded in the sample holder. Details of the lab-based AP-XPS setup at KAIST can be found elsewhere32. The instrument at KAIST consisted of a monochromated Al Kα X-ray source (hν = 1486.74 eV) and a HiPP3 hemispherical electron analyzer (Scienta Omicron). Temperature was controlled using the resistive heating mode of HEAT3-PS equipment (Prevac). CO(g) and O₂(g) were introduced into the analysis chamber for the AP-XPS measurements. Peak analysis was carried out using CasaXPS software with an L Shirley background subtraction. All peaks were calibrated using the position of the Ce⁴⁺ 3 d₅/₂ component (917.4 eV) as an internal reference. The Ce³⁺ area ratio was estimated by dividing the area of the Ce³⁺ peaks by the total area of all peaks.

O2 uptake MD simulations

Molecular dynamics (MD) simulations were performed using the atomic simulation environment (ASE)33 with the NVT ensemble, using a Berendsen thermostat with a temperature damping constant of 1 fs34. The temperature was maintained at a constant temperature of 773 K. For each model, we performed five statistically independent simulations with five different initial configurations of the O2 environment for ensemble averaging to reduce statistical noise. All the results reported in this work are ensemble-averaged values from five MD simulations with uncertainties assessed by calculating the standard deviation from the ensemble average. The velocities of the system were initiated using the Maxwell-Boltzmann distribution and zeroed the total momentum to prevent drift. The simulations were conducted over 100,000 steps with a time step of 1 fs (100 ps in total). This duration was sufficient to achieve energy equilibrium, indicated by a rate of change of less than 0.0002 eV/ps. Additionally, the complete oxidation of the ceria domain was observed, confirming that the simulation time was adequate (Fig. 6d). All structure optimization relaxations were performed using the Broyden–Fletcher–Goldfarb–Shanno line search method35. All MD simulations were performed using the pretrained universal neural network potential (UNNP) software, preferred potential version 5.0.0 within the Matlantis distribution36. This UNNP was trained using an ab-initio database, achieving state-of-the-art accuracy in the Matbench benchmark37. Further details on the preparation of large-scale ceria domain models, the MD analysis method, and UNNP evaluation using density functional theory (DFT) calculations are presented in the supplementary information.
