Introduction

Sensor networks exploit multiple sensors distributed across the area of interest to obtain the comprehensive information of the targets, playing essential roles in a variety of applications ranging from internet of things1, smart cities2, oil and gas industry3, seafloor faults and ocean dynamics4, to earthquake and volcano dynamic detection5,6. Of particular importance is the key building block of the network, the sensor, which should fulfill the requirement of high-sensitivity, robustness, scalability, and multiplexing.

In recent years, cavity optomechanics has emerged as a platform for single-point ultrasensitive sensing7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48, enabling optical detection of diverse physical quantities including small forces15,16,17,18,19, displacements20,21,22,23, rotations24,25,26, vibrations27,28,29,30,31, ultrasounds32,33,34, radio waves35,36,37,38,39, magnetic fields40,41,42,43,44,45,46, and other quantities47,48. Recent work has demonstrated the operation of a sensing network on a sub-millimeter chip49, where three whispering gallery mode sensors were coupled via a bus waveguide. However, realizing a kilometer-scale optomechanical sensor network remains challenging, as it requires a cascadable integration of all sensors via standard single-mode fiber (SMF) while maintaining polarization immunity against random birefringence effects that accumulate over long distances50.

In this work, we demonstrate a kilometer-scale optomechanical sensor network by cascading multiple fiber-optic optomechanical sensors into a standard SMF. By incorporating fiber mechanical resonator (MR) and phase-shifted fiber Bragg grating (PFBG) into optomechanical systems, we achieve robust, low-loss, and polarization-insensitive coupling to light sources. Then, as proof-of-concept we apply this sensor network for the detection of magnetic fields. Both achieved peak DC magnetic-field sensitivity of 8.73 pm/Gs (the resonant wavelength shift of the PFBG per unit Gauss), and the peak AC magnetic-field sensitivity of 537 fTHz-1/2 are better than the best values reached with existing optomechanical magnetometers (7.57 pm/Gs in ref. 47 and 620 fTHz-1/2 in ref. 44). Furthermore, we demonstrate a kilometer-scale optomechanical magnetometer network capable of real-time monitoring of spatial magnetic field variations from moving targets. The network integrates both scalar and vector magnetometers to provide complete field characterization.

Results

Principle of operation

Figure 1a illustrates the schematic of an optomechanical sensor network, where multiple sensors are integrated into a standard SMF for quasi-distributed sensing. In this architecture, both DC and AC magnetic field can be detected. Concretely, we obtain the response to DC magnetic field by monitoring the reflective spectrum of the sensor network, wherein a broadband source (BBS) and an optical spectrum analyzer (OSA) are used. On the other hand, to probe the AC magnetic field, lights with different wavelengths are coupled into the sensor network by a wavelength division multiplexer (WDM) and a fiber circulator. The reflective light is demodulated using a WDM and photodetectors. We stress that this system works in a magnetically unshielded environment with ambient temperature and pressure.

Fig. 1: Optomechanical sensor network.
Fig. 1: Optomechanical sensor network.
Full size image

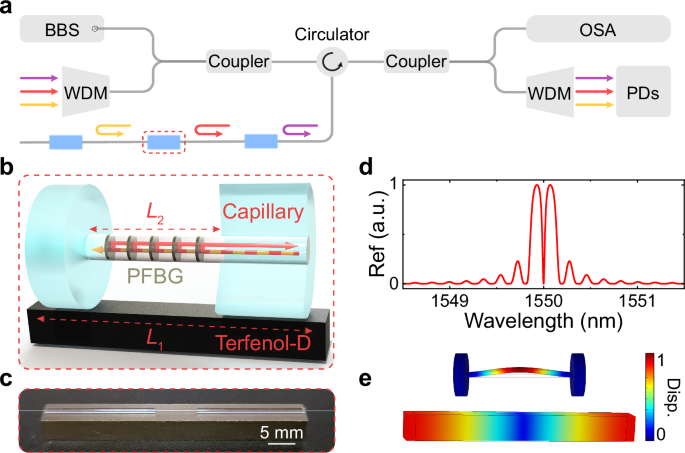

a Experimental apparatus of the sensor network. b Schematic diagram of the FOMM. The PFBG works as an optical cavity to readout the motion state of the fiber MR. When light with different wavelengths (colored arrow from right to left) is injected into the PFBG, the resonant light (red arrow) is reflected and the others pass through the PFBG. c Photograph of the FOMM. d Normalized reflective spectrum of a representative PFBG. e Finite-element simulations of mode shapes of the fiber MR and Terfenol-D MR. Disp. mechanical displacement, BBS broadband source, OSA optical spectrum analyzer, WDM wavelength division multiplexer, PDs photodetectors.

As the key element, the optomechanical sensor consists of a clamped-clamped fiber MR (blue) and a functional support (black) as shown in Fig. 1b. And Fig. 1c displays the typical photograph of the FOMM. Here, the fiber MR is fabricated by sequentially inserting a commercial standard PFBG (typical reflective spectrum is presented in Fig. 1d) into two silica capillaries and filling the gap with UV glue. The abrupt junction between the PFBG and silica capillaries induces an acoustical mismatched impedance, confining the phonons into the PFBG to form a high-Q mechanical resonator51.

As a demonstration of detecting the magnetic field, we further use a cuboid Terfenol-D rod as the functional support (in Fig. 1b, c) to respond to the ambient magnetic field. Figure 1e shows the mode shapes of the fiber MR and the Terfenol-D MR. Consequently, when an ambient magnetic field is applied to the FOMM, the Terfenol-D rod generates the associated deformation and thus changes the length and grating period of the fiber MR. By interrogating the reflection of the PFBG determined by the grating period, the ambient magnetic field could be measured in real time. Intriguingly, a large optomechanical coupling coefficient is promised by the coaxial coupling between motion of the Terfenol-D rod and the PFBG.

To improve the sensitivity, a mechanism of deformation transfer is used to amplify the strain of the fiber MR from the deformation of the Terfenol-D rod with a deformation transfer radio (DTR) of DTR = L1/L2. Here the deformation of the Terfenol-D rod with a length of L1 is transferred to fiber MR with a length of L2, as shown in Fig. 1b. Therefore, by increasing L1 and decreasing L2, one can achieve a larger value of DTR and thus improved the sensitivity.

Building upon such scalable and fiber-compatible magnetometers, a sensor network is constructed by simply injecting probe light into the sensor network through a fiber-optic circulator. This thus provides a simple, robust, low-noise and low-loss coupling approach. Meanwhile, the PFBG is isotropic for the polarizations of probe light as shown in Fig. S3 (in the Supplementary Information), suppressing the influence of optical polarization fluctuations from random birefringence in SMF, especially for long-distance networks. Furthermore, using commercially available fiber Bragg gratings and WDMs promises a practical pre-distributed optomechanical sensing network.

Response to DC magnetic fields

We first investigate the system response to the DC magnetic fields. A broadband light source and an optical spectrum analyzer are used to measure the reflective spectrum shifts of the FOMMs with different DTR as shown in Fig. 1a. The resonant wavelength shift Δλ resulted from the applied DC magnetic field B is given by ref. 52

$$\Delta \lambda ({\rm B})=0.74{\lambda }_{c}\alpha {\rm B}{D}_{TR}$$
(1)

where λc is the dip wavelength of the PFBG in absence of the magnetic fields and α is magnetostrictive coefficient of the Terfenol-D rod.

In our experiment, the DC magnetic field is generated using an 18-mm-diameter coil, which is calibrated with a commercial magnetic sensor. Figure 2a shows the reflective spectra of the FOMMs with different DTR under varying DC magnetic fields. We observe that the resonant dip of the PFBG shifts to the long wavelength region (redshift) as the DC magnetic fields increase. The wavelength shift is proportional to the DTR and ambient magnetic fields. The peak sensitivity is 8.73 pm/Gs (the resonant wavelength shift of the PFBG per unit Gauss) for the FOMM with an DTR of 13.5, which is in good agreement with the theoretical values (λc = 1550 nm and α = 0.564 ppm/Gs). The corresponding optomechanical coupling constant gOM is 2π × 38.7 MHz/nm, where gOM = ∂ωc/∂x is defined as the resonant frequency shift per unit displacement.

Fig. 2: Response of the FOMMs to DC and AC magnetic fields.
Fig. 2: Response of the FOMMs to DC and AC magnetic fields.
Full size image

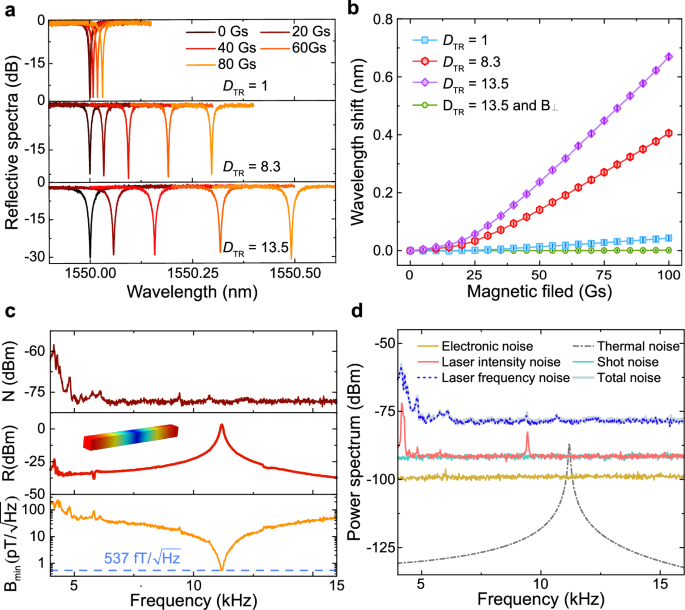

a Reflective spectrum shifts of the FOMMs with different DTR of 1, 8.3, and 13.5 as a function of DC magnetic fields. b Resonant wavelength shifts of the three FOMMs as a function of coaxial and orthogonal DC magnetic fields. c Noise power spectrum N(ω) of the FOMM without magnetic excitation (upper), response R(ω) to frequency scanning magnetic excitation (middle), and resolution Bmin as a function of frequency (bottom). Inset: Finite-element modeling of mechanical resonant eigenmode of the Terfenol-D rod. d Analysis of optical noise power spectrum. Resolution bandwidth (RBW) of the power spectra is 10 Hz.

In parallel, direction of magnetic field is another key parameter for measuring the ambient magnetic fields. In Fig. 2b, the greed curve represents the response of the FOMM (DTR = 13.5) to a magnetic field orthogonal to the axis of the Terfenol-D rod. The corresponding sensitivity is 0.01 pm/Gs, which is about one thousandth of that of the FOMM to a magnetic field coaxial with the Terfenol-D rod. Therefore, the FOMM realizes one-dimensional directional magnetic-field measurement, overcoming the restrict of direction-insensitivity in reported optomechanical magnetometers and providing a potential way for detecting three-dimensional vector magnetic fields.

Response to AC magnetic fields

To examine the response of the FOMM to AC magnetic fields, a probe light from a tunable laser is coupled into the FOMM to monitor the deformation of the fiber MR using the dispersive coupling mechanism, where the wavelength of the probe light is slightly detuned from the optical resonant dip. The reflective optical power with AC magnetic-field excitations is given by

$$P(\omega )=\eta {P}_{in}+\Delta \lambda k$$
(2)

where η and Pin are the reflectivity of the PFBG at the wavelength of the probe light and the input power of the probe light, and k is the slope of the reflective spectrum of the PFBG and is achieved from the derivation of Lorentzian function

$$k(\Delta )=\frac{8{\omega }_{PFBG}^{2}{P}_{0}({R}_{\max }-{R}_{\min })}{{(4{\Delta }^{2}+{\omega }_{PFBG}^{2})}^{2}}\Delta$$
(3)

where Δ = λp - λc is the laser-cavity detuning, ωPFBG is the FWHM of the PFBG, P0 is light power, Rmax is the maximum reflectivity of the PFBG, and Rmin is the reflectivity of the PFBG at optical resonant dip. When the frequency of the probe light is detuned by Δ = ±ωPFBG/121/2, the slope k is maximized

$$k(\Delta=\pm {\omega }_{PFBG}/2\sqrt{3})=\frac{3\sqrt{3}}{4}\frac{{P}_{0}({R}_{\max }-{R}_{\min })}{{\omega }_{PFBG}}$$
(4)

The Response R(ω) in unit of dBm under AC magnetic excitation could be expressed as28

$$R(\omega )=10\,\log \left(\frac{{(g\gamma \Delta \lambda k)}^{2}}{Z}1000\right)$$
(5)

where g and γ are the conversion gain and rate of the photodetector, and Z is 50 Ω. For AC magnetic-field measurement, the mechanical resonances need to be considered, and the resonant wavelength shift Δλ = 0.74λpαDTRω2TDχB(ω), where ωTD and χ(ω) are the resonant frequency and mechanical susceptibility of the Terfenol-D MR. Finally, the AC magnetic-field sensitivity could be obtained as41

$${{\rm B}}_{\min }(\omega )=\frac{{{\rm B}}_{ref}}{\sqrt{SNR(\omega )\times RBW}}$$
(6)

where the signal-to-noise ratio (SNR) is the ratio of the response R(ω) to the noise floor.

Figure 2c and d depicts a typical measurement at ambient temperature and pressure. Concretely, Fig. 2c shows the noise power spectrum N(ω) (upper panel) and the response R(ω) (middle panel) of the FOMM with a DTR of 5.1, where the amplitude of AC magnetic-field Bref keeps constant at 24 nT, and the resolution bandwidth (RBW) of the spectrum analyzer is 10 Hz. The response peak in Fig. 2c (middle panel) locates at the position of the fundamental stretching mode of the Terfenol-D rod with a mechanical quality factor of 180. Experimental results show that the peak AC sensitivity is 537 fTHz-1/2 at 11.188 kHz, as shown in Fig. 2c (bottom panel). The corresponding continuous 3-dB bandwidth43 is 62 Hz. We would like to emphasize that the sensitivity varies considerably at the resonance frequencies of different mechanical eigenmodes. In particular, the response is proportional to the mechanical susceptibility of the MR χ(ω) = (ω2m - ω2 - iГ)−1 with the (energy) damping rate of mechanical mode Гm7. By introducing the mechanical quality factor Qm = ωm / Гm, it is found that the resonant response of the FOMM (i.e., optimal sensitivity) is proportional to χ(ω) = i / (Гmωm) = iQm / ω2m, and the continuous 3-dB bandwidth as defined by ref. 40 is determined by Гm. Given the resonance frequency ωm, this naturally leads to a tradeoff between response and bandwidth. In addition, Terfenol-D mechanical resonator supports many mechanical modes ranging from 11 kHz to hundreds of kHz, during which our optomechanical sensor can detect magnetic fields. And in practice, most of the applications of magnetic field detection focus on the frequency range of DC to hundreds of kHz53.

To fully characterize the performance of the optomechanical sensor, we measure all the classical noise, such as detector electronic noise, laser intensity and frequency noise and shot noise, while calculating the thermal noise of mechanical oscillator with a RBW of 10 Hz. The results are plotted as Fig. 2d, and the derivation of the thermal noise is presented in the Supplementary Information S4. It is observed that the measured total noise is dominated by the laser frequency noise. The thermal noise of the stretching eigenmode of the Terfenol-D MR is beneath the noise floor, indicating that the precision of this sensor could be improved by decreasing the laser frequency noise.

Tunable resonant responses

In practice, broadband ultrasensitive measurement is challenging for the reported optomechanical magnetometers. However, our device addresses this issue by employing a bias magnetic field to adjust the resonant frequency of the Terfenol-D MR. For the FOMM with a DTR of 9.3, when the bias magnetic field increases from 0 Gs to 200 Gs, the resonant frequency of the Terfenol-D MR decreases about 1.3 kHz in Fig. 3a, b. The associated response and sensitivity under different bias magnetic fields are illustrated in Fig. 3a,c. In accordance with Eq. 5 and Eq. 6, the variation of the sensitivity results from the changes of the magnetostrictive coefficient α of the Terfenol-D MR and the Qm of the Terfenol-D MR. Specifically, as shown in Fig. 3d, when the bias magnetic field increases from 0 Gs to 50 Gs, α increases gradually and then reaches the saturation afterwards. However, the Qm decreases rapidly from 146 to 9 as the bias magnetic field increases from 0 Gs to 100 Gs and becomes constant when the bias magnetic field increases further. Similar performances of the Terfenol-D material have been observed in related works54,55. In fact, the resonant frequency of the fiber MR could be also changed by the bias magnetic field. Figure 3b shows that the resonant frequency of fundamental flexural mode of the fiber MR increases by 5.63 kHz as the bias magnetic field increases from 0 Gs to 200 Gs. However, as shown in Fig. 3a, the mechanical mode of the Terfenol-D MR presents higher response and better sensitivity with respect to the fiber MR. Therefore, the peak AC sensitivities in this work are obtained at the resonant frequency of the Terfenol-D MR.

Fig. 3: Tunable resonant responses.
Fig. 3: Tunable resonant responses.
Full size image

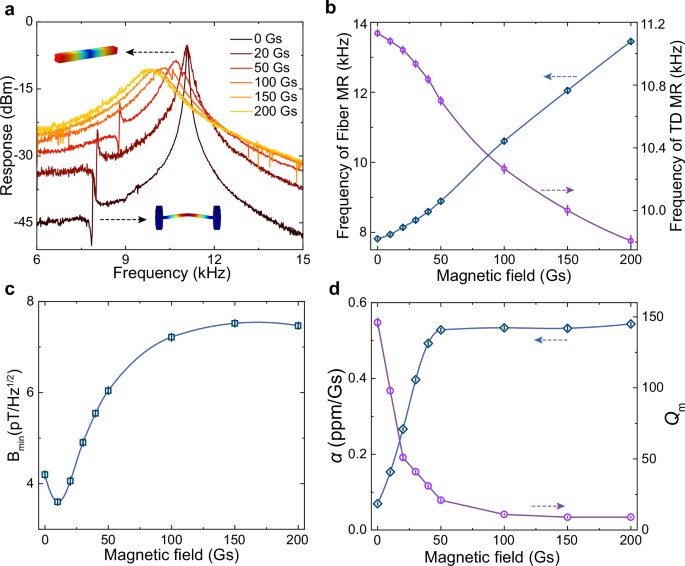

a Responses of the FOMM under different bias magnetic fields. Inset: Finite-element modeling of mechanical resonant eigenmodes of the Terfenol-D and fiber MRs. b Resonant frequency shifts of the Terfenol-D and fiber MRs as a function of bias magnetic fields. c AC sensitivity Bmin under different bias magnetic fields. d α and Qm as a function of bias magnetic fields.

Optomechanical sensor network

We demonstrate a kilometer-scale optomechanical sensor network, and the associated results are illustrated in Fig. 4. Specifically, we report the successful network operation by resolving the spatial variations in the magnetic field, where a moving coil generating a constant AC magnetic field passes through all the sensors subsequently.

Fig. 4: Responses of the optomechanical sensor network.
Fig. 4: Responses of the optomechanical sensor network.
Full size image

a Image of the optomechanical sensor network system. b Schematic diagram of the optomechanical sensor network system. c Responses of the sensor network with nine FOMMs for the 6.4 μT AC magnetic field at the resonance frequency of the Terfenol-D rod from the coil. LS light source, DS demodulated system, SMF1 and SMF2: 1-kilometer standard SMF.

As shown in Fig. 4a, b, in this network nine fiber-optic optomechanical sensors (labeled Sensor 1–9) are deployed. Sensors 1–3 are arranged in parallel with a 25 mm separation, forming a scalar magnetometer (FOMMA) aligned with the applied magnetic field. Sensor 4–6 oriented orthogonally to each other constitute a vector magnetometer (FOMMB), with Sensor 6 parallel to Sensors 1–3. Another vector magnetometer (FOMMC) consists of Sensors 7–9, also orthogonally arranged but inclined at 66°, 35°, and 66° relative to the magnetic field. All units (FOMMA–C) are interconnected via a one-kilometer single-mode optical fiber, as depicted in Fig. 4b.

When the coil with a 6.4 μT AC magnetic field at the resonance frequency of the Terfenol-D rod moves from right to left, the sensor network responds to the vector magnetic field in real time. Figure 4c shows the measured results. As the coil passes FOMMC, all three sensors (7, 8, and 9) exhibit clear responses, with amplitudes matching the theoretical predictions. When the coil moves close to FOMMB, only Sensor-6 responds significantly, while the others remain negligible due to their orthogonal alignment with the coil’s field. These results demonstrate the system’s capability for vector magnetic field measurement. When the coil approaches FOMMA, the three sensors show position-dependent responses, enabling coil localization through signal demodulation. By strategically deploying these optomechanical sensors, the sensing network can monitor magnetic-field variations at multiple positions and track the motion of magnetic objects. This technology holds promise for applications such as power transmission systems, antisubmarine operations, smart cities, and the Internet of Things.

Discussion

We report a unique cavity optomechanical sensor network, integrating the advantages of optomechanical ultrasensitive sensing mechanisms and advanced optical fiber sensing technologies. This system achieves robust, low-loss optical coupling, enabling practical deployment of cavity optomechanics in real-world applications. Moreover, FBGs are insensitive to polarization fluctuations and compatible with mature optical fiber multiplexing technologies, providing a promising candidate for long-distance sensing networks.

As a proof-of-concept, we demonstrate a kilometer-scale optomechanical magnetometer network, achieving unprecedented DC and AC sensitivities at a magnetically unshielded ambient temperature and pressure. This network holds great potential for geomagnetic anomalies, space exploration missions, and mineral exploration. This sensing scheme could also be employed to measure strains, vibrations, and acoustic waves by choosing appropriate support, making this platform particularly promising for the oil and gas industry, seafloor faults and ocean dynamics, and earthquake and volcano dynamic detection.

The DC magnetic-field sensitivity BDC is directly proportional to the DTR, and is unrelated to the FWHM. The best sensitivity is 8.73 pm/Gs for the FOMM with a DTR of 13.5, and is slightly better than the best value of reported microcavity magnetometers56,57 which is not applicable to AC magnetic-field measurement due to slow response of magnetic fluid. Notice that the measurable DC magnetic-field range of the FOMM based on Terfenol-D material is ten times larger than that of the microcavity magnetometers using magnetic fluid. This is attributed to the fact that the saturated magnetic intensities of the Terfenol-D material and magnetic fluid are about 2300 Gs and 220 Gs, respectively57. The best DC sensitivity of this device is also better than that of typical fiber-optic magnetometers58,59. On the other hand, the AC magnetic-field sensitivity is proportional to the DTR, and is inversely proportional to the FWHM of the PFBG. The best AC sensitivity of 537 fTHz-1/2 is achieved for the FOMM with FWHM of 1.4 pm and DTR of 5.1. This result is better than the reported values of previous optomechanical magnetometers40,41,42,43,44,45. The sensitivity of this magnetometer is mainly determined by the magnetostrictive mechanical resonator, PFBG, and deformation transfer radio. By using a mechanical resonator with larger magnetostrictive coefficient and increasing the deformation transfer radio, both DC and AC sensitivities can be improved. In addition, the AC sensitivity could be further enhanced by decreasing the FWHM of the PFBG and increasing the Qm of the magnetostrictive mechanical resonator.

Methods

Fabrication of the FOMM

The key component of the proposed optomechanical sensor network is the fiber MR. The fiber MR is fabricated by packaging a standard PFBG into two separate silica capillaries with high-hardness adhesive or arc-discharge splicing progress51. By adjusting the distance between the two silica capillaries and the diameter of the PFBG, the resonant frequency of the fiber MR could be controlled accurately. In our experiments, the diameter of the PFBG is 125 μm, and the inner and outer diameters of the two silica capillaries are 126 and 1000 μm.

Experimental setup for DC magnetic-field measurement

To sense DC magnetic field, an amplified spontaneous emission (ASE) light source with a wavelength range from 1520 nm to 1570 nm is directed to the sensing network through a fiber circulator. The reflective light from the sensing network, which contains the deformation signals from the DC magnetic field, is monitored by an optical spectrum analyzer. By measuring the wavelength shifts of the PFBG, the DC magnetic field can be demodulated in real time, as shown in Fig. 2. To exclude the unwanted effects of temperature fluctuations, an additional fiber-Bragg grating with different resonant wavelength is cascaded for real-time measurement of ambient temperature.

Experimental setup for AC magnetic-field measurement

The experimental setup for AC magnetic-field measurement is shown in Fig. 1. We use continuously tunable lasers (CTL) to monitor the deformation of the fiber MR, and demodulate the reflective light from the sensing network using balanced amplified photodetector, digital storage oscilloscopes, and electric spectrum analyzers. After obtaining the reflective spectrum of the PFBG, the wavelength of the probe light from the CTL is scanned around the resonant dip of the PFBG to choose a suitable value for the best slope k. The DC component from the photodetector is measured by the digital storage oscilloscope, and could be used to lock the laser to the PFBG. The corresponding AC component of the photodetector is monitored by the electric spectrum analyzer to achieve the power spectral densities of the noise and the response of the sensing network under AC magnetic-field excitation.
