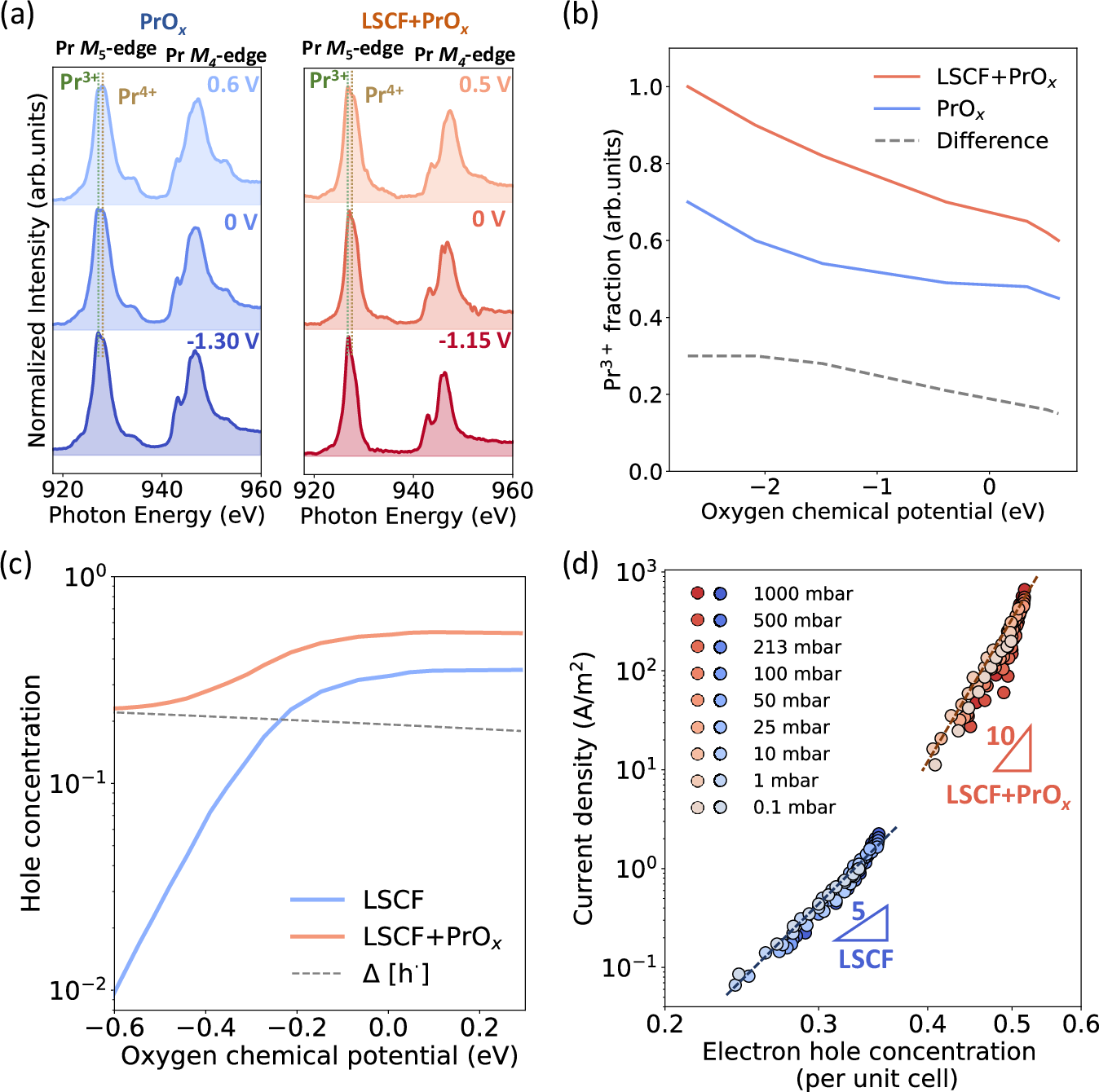

Fig. 3: Charge transfer between LSCF and PrOx.

a Operando Pr M4,5-edge XAS spectra of a single-phase PrOx (80 nm) and an LSCF (100 nm) modified with 5 nm PrOx thin film electrode measured under different applied biases at 700 °C and with an atmospheric oxygen pressure of 1 mbar. b Fraction of Pr3+ in LSCF modified with PrOx and single-phase PrOx electrodes calculated using the linear combination of reference spectra of Pr3+ and Pr4+29. c The hole concentration in LSCF and the first 5 nm from the LSCF/PrOx interface in PrOx modified LSCF at various oxygen chemical potentials is calculated under the assumption that charge transfer impacts only the first 5 nm from the interface and is uniformly distributed within this region. The gray dashed line represents the change in the hole concentration after modification which is calculated from (b). d Current density versus electron hole concentration. The hole concentration of LSCF was calculated based on the defect chemistry model of LSCF bulk (as shown in Fig. S14a in SI), while the hole concentration of LSCF modified with PrOx was calculated by equation (4).
