The AML cellular state space unveils NPM1 immune evasion subtypes with distinct clinical outcomes

Nature Communications volume 16, Article number: 10592 (2025) Cite this article

3721 Accesses
5 Altmetric
Metrics details

Subjects

Abstract

Acute myeloid leukemia is a genetically and cellularly heterogeneous disease. We characterize 120 AMLs using genomic and transcriptomic analyses, including single-cell RNA sequencing. Our results reveal an extensive cellular heterogeneity that distorts the bulk transcriptomic profiles. Selective examination of the transcriptional signatures of >90,000 immature AML cells identifies four main clusters, thereby extending current genomic classification of AML. Notably, NPM1-mutated AML can be stratified into two clinically relevant classes, with NPM1^{class I} associated with downregulation of MHC class II and excellent survival following hematopoietic stem cell transplantation. NPM1^{class II} is instead associated with resistance to allogeneic T cells in an ex vivo co-culture assay, and importantly, dismal survival following hematopoietic stem cell transplantation. These findings provide insights into the cellular state space of AML, define diagnostic entities, and highlight potential therapeutic intervention points.

Resolving inter- and intra-patient heterogeneity in NPM1-mutated AML at single-cell resolution

Article 15 September 2025

Mapping AML heterogeneity - multi-cohort transcriptomic analysis identifies novel clusters and divergent ex-vivo drug responses

Article 15 February 2024

Phenotypically-defined stages of leukemia arrest predict main driver mutations subgroups, and outcome in acute myeloid leukemia

Article Open access 16 August 2022

Introduction

Acute myeloid leukemia (AML) is a highly heterogeneous malignancy characterized by multiple disease-driving molecular alterations of diagnostic, prognostic, and therapeutic importance¹. The disease is driven by rare populations of leukemia stem cells (LSCs), typically contained within the most immature cell population, which generate the more differentiated and dysfunctional bulk of blast cells observed at diagnosis. The AML stem cells are, however, insensitive to most therapeutic strategies and frequently escape the treatment and cause relapse^2,3. Despite the fact that an increasing number of targeted therapies have become available during recent years, intensive chemotherapy still provides the backbone treatment strategy, which is associated with significant toxicities and a high risk of relapse^1,4,5. The 5-year overall survival (OS) of AML is 24%. However, the age at diagnosis is an important factor; younger patients (<65 years) have a 5-year OS of 50% while the corresponding survival for elderly patients (>65 years) is less than 10%^4,5.

Adjusting the treatment based on the presence of specific molecular alterations has significantly improved the outcome for specific subtypes of AML, such as acute promyelocytic leukemia (APL) and core-binding factor AML (CBF-AML), where the 5-year OS is over 70% with modern protocols^6,7. Thus, a precise knowledge of the underlying subtypes in AML and how molecular vulnerabilities are distributed across the subtypes and their stem cell populations can provide a guide for optimal implementation of new and coming AML treatment regimens.

AML was the first cancer type to become fully characterized by whole-genome sequencing (WGS), and pioneering studies by the Cancer Genome Atlas Project (TCGA) enabled the detection of multiple new disease-driving alterations^8,9. Subsequent systematic analyses of co-occurring and mutually exclusive alterations in large AML cohorts have been used to define distinct genomic subtypes^10,11. Several, but not all, of these molecular subtypes have been included in current diagnostic guidelines, available from the World Health Organization (WHO) and the International Consensus Classification (ICC)^12,13. The most common subtypes of AML are characterized by NPM1-mutations (30%), myelodysplasia-related mutations (AML-MR; defined by the presence of mutation in one of 8 or 9 genes; 20%), and TP53-mutation or complex karyotype (15%) ¹⁰.

Using bulk RNA-sequencing (RNA-seq), we and others have shown that the genetic subtypes of acute lymphoblastic leukemia (ALL) display characteristic transcriptional programs, driven by the underlying disease-causing molecular alterations, which result in distinct gene expression profiles of clinical and prognostic importance^14,15,16. Intriguingly, only a subset of the suggested molecular subtypes of AML have been described to be associated with distinct gene expression profiles; this includes several gene fusions, NPM1 mutations, and biallelic CEBPA mutations^{17,18,19,20,21,22,23,24}. A stronger correlation between molecular subtype and gene expression-based clusters was observed when more advanced clustering techniques were used²⁴. However, the feature with the strongest correlation to unsupervised gene expression-based clusters has been the apparent maturation stage of the leukemic cells^9,19,21. Thus, the underlying cause for the global gene expression differences between the majority of AML samples has yet to be elucidated.

Recent technological advancements have permitted studying AML using single-cell RNA-sequencing (scRNA-seq). This has revealed that AML samples have a variable cell composition, with differentiated AML cells expressing immunomodulatory factors that suppress T cells, and that cell fractions with distinct subclonal mutations have distinct gene expression profiles^25,26,27. In addition, in-depth analyses of small cohorts using low-throughput methods with single-cell mutation calling have revealed the molecular consequences of specific mutations in different cell types, as well as the gene expression differences in immature AML cells between diagnosis and relapse ^28,29,30.

In this work, we show that unbiased clustering of the bulk gene expression data is mainly driven by the presence of expression profiles matching normal cells. However, further delineation of the cellular composition with single-cell RNA sequencing unmasks this diversity within the AML cellular state space. Importantly, we show that NPM1-mutated AML can be divided into two separate classes based on the distinct expression profiles of the most immature AML cells: NPM1^{class I} and NPM1^{class II}, with significantly different responses to hematopoietic stem cell transplantation (HSCT). We propose that a difference in T cell sensitivity underlies the survival difference following HSCT, and that this is linked with different immune evasion strategies by the two subtypes, where NPM1^{class I} exhibits a downregulation of MHC class II components, and NPM1^{class II} is associated with increased resistance to allogeneic T cells.

Results

Integrative sequencing reveals that AML bulk gene expression profiles are highly affected by cell heterogeneity

To identify subtypes of AML, based both on mutational patterns and gene expression profiles, we performed integrative sequencing analysis on 120 matched tumor-normal AML cases, representing 112 unique patients. This analysis consisted of whole exome sequencing (WES, 120 cases), mate-pair whole genome sequencing (MP-WGS, 98 cases), RNA-seq (120 cases), and single cell multimodal sequencing (including scRNA-seq, single cell antibody-derived tag-sequencing – scADT-seq – and single cell mutation calling on scRNA-seq – scRNAmut-seq; 38 cases; Supplementary Data 1). Bulk sequencing (WES, MP-WGS, and RNA-seq) was performed on material extracted from unsorted white blood cells, and single-cell multimodal sequencing was performed on live-sorted mononuclear cells (MNCs), all from either peripheral blood (PB) or bone marrow (BM). The bulk data on somatic variants (SNVs, indels, copy number changes, and fusion genes) was used to categorize the cases into thirteen molecular subgroups¹⁰ (Fig. 1a). The mutational landscape was similar to what has previously been described in large scale studies of AML^9,10,31 (Supplementary Fig. 1), although our consecutive series of AML contained a relatively high proportion of AML with myelodysplasia-related gene mutations (AML-MR, 27%, compared to 13% in TCGA, 18% in the Papaemmanuil cohort, and 27% in Beat-AML).

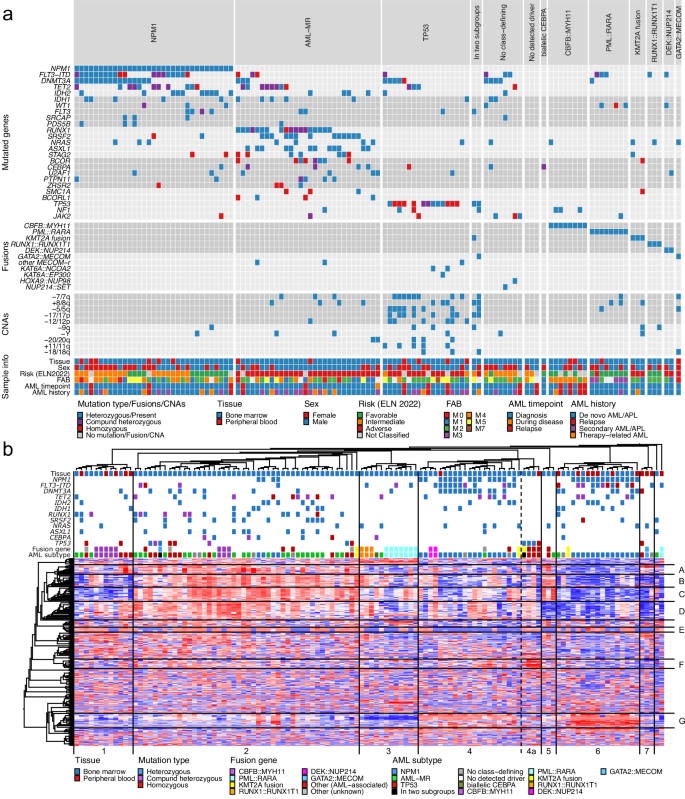

**Fig. 1: Integrative bulk sequencing and multimodal single cell sequencing of AML.**

Unsupervised hierarchical clustering of gene expression data from 120 AMLs revealed seven distinct clusters (clusters 1–7; Fig. 1b). Notably, four AMLs with gene fusions affecting KAT6A (KAT6A::EP300 and KAT6A::NCOA2) or KMT2A (KMT2A::MLLT3) in combination with TP53-mutations formed a small subcluster (cluster 4a) with a uniform gene expression pattern, potentially identifying a subtype. AMLs that have previously been described to display uniform bulk gene expression patterns, such as those with PML::RARA, RUNX1::RUNX1T1, and CBFB::MYH11 fusion genes, as well as AML with NPM1 mutations^{9,17,18,19,20,21}, mostly clustered together. However, neither cases with CBFB::MYH11 nor cases with NPM1 mutations formed single clusters encompassing all cases with the respective aberration. AMLs with CBFB::MYH11 were divided into two distinct expression clusters. AMLs with NPM1 mutations were also divided into two expression clusters, but with additional cases present outside the two main clusters. These divisions were the result of a difference in expression of four prominent gene clusters (clusters A-D; Fig. 1b). In fact, variable expression of gene clusters A-D was the major factor driving the unsupervised hierarchical clustering for all samples, since the expression level of these gene clusters were markedly different between the seven sample clusters (Fig. 1b). Interestingly, these four gene clusters were highly enriched for cell type markers from platelets, fibroblasts, erythroid precursor cells, and neutrophils, thus possibly representing specific cell types in the sequenced bulk samples, rather than intrinsic features of the AML blast populations (Supplementary Fig. 2). In support of this notion, the expression of genes from clusters A-D was markedly reduced in samples that were sorted to contain only myeloid (CD33+/CD19-/CD3-) mononuclear cells (Supplementary Fig. 3a). Notably, AML gene expression datasets from TCGA⁹ and Beat-AML³¹ exhibited the same type of co-regulation for genes in clusters A-D, with high variability between samples, as in our dataset (Supplementary Fig. 3b-c). Collectively, we conclude that the bulk gene expression profiles of AML samples are highly affected by their cellular contents, and that such strong deviations have the potential to conceal the presence of any subtype-associated expression profiles within the AML blast cells.

Given the limitation of bulk RNA gene expression analysis to classify and define the cellular and biological characteristics of AML, we next performed single-cell multimodal sequencing of a subset of 38 AML samples together with eight normal bone marrow (NBM) samples. The AML samples represented the subgroups NPM1-mutated, AML-MR, TP53-mutated, CBFB::MYH11, RUNX1::RUNX1T1, AML without class-defining mutations, and AML meeting criteria for two subgroups. To determine which cells constituted the leukemic clone in each sample, we developed a mutation calling assay (scRNAmut-seq), allowing us to define the status of 1-4 selected AML mutations per sample (Supplementary Fig. 4; Supplementary Data 2). In total, this approach successfully provided genotyping information for 91,727 of the 196,417 cells from AML samples (47%; Supplementary Fig. 5).

To decipher the cellular contents of the AML samples, all cells were projected onto a reference k nearest neighbor force-layout graph (knn force graph) constructed from NBM samples (Fig. 2a, Supplementary Figs. 6–8). This revealed that the two subtypes defined by gene fusions, RUNX1::RUNX1T1 and CBFB::MYH11, were associated with relatively uniform cellular patterns compared to the other genetic subtypes (Supplementary Figs. 6–8). Both these subtypes contained immature cells resembling LMPP that appeared to mature towards Granulocyte-monocyte progenitors (GMP). However, the three cases with CBFB::MYH11 also contained a fraction of monocytic cells whereas the three cases with RUNX1::RUNX1T1 instead contained a fraction of erythroid cells (Fig. 2a, Supplementary Figs. 6, 8). Interestingly, the remaining subtypes showed a substantial heterogeneity with regards to the maturation stages of the mutated cells, even within the same genomic subtype (Fig. 2a, Supplementary Figs. 6–8). For example, several AMLs from the TP53, NPM1, and AML-MR subtypes contained mainly cells resembling mature monocytes, whereas other cases of the same subtype contained mainly cells resembling immature or a mixture of immature and mature cells (Fig. 2a, Supplementary Figs. 6–8), suggesting the presence of significant biological differences beyond current genomic classification schemes.

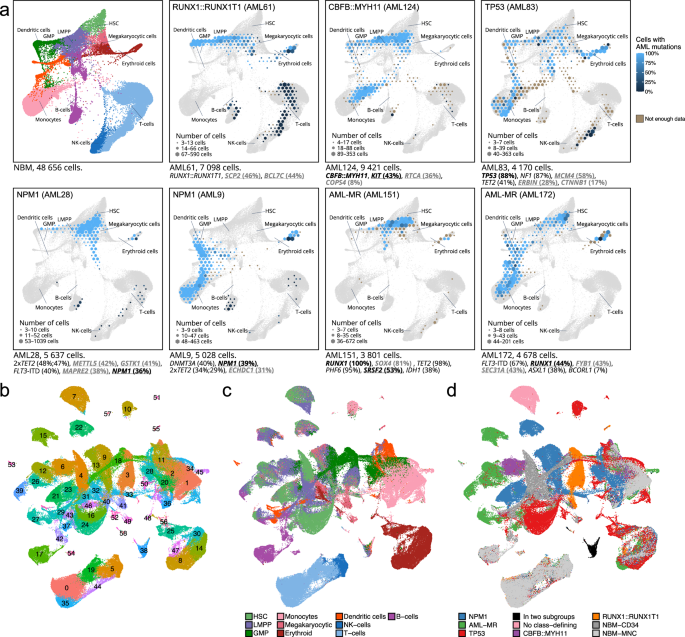

**Fig. 2: Visualization of AML single cells by UMAP and projection onto a reference NBM knn force graph.**

To study the cellular contents of the AML samples further, the cells were clustered using a graph-based algorithm (Fig. 2b), a technique that has previously been employed to identify distinct cell types, including the most primitive cells, in an AML context³². In addition, the cell type for each cell was classified using a NBM reference (Fig. 2c). Notably, all AML samples were found to contain a distinct cluster of cells substantially different from any cell type present in normal bone marrow, as indicated by spatial separation in the UMAP (Fig. 2d). Cell type classification indicated that the cells in these clusters were most similar to immature cells such as hematopoietic stem cells (HSC) and lymphoid-primed multipotent progenitors (LMPP). These cells were assumed to constitute immature AML blasts and were designated AML immature (Fig. 3a, Supplementary Fig. 9). The AML immature cells were projected onto the NBM reference knn force graph, which confirmed that their closest counterparts in normal BM were the most immature cells (Fig. 3b). In addition, immunophenotyping by scADT-seq showed marker expression compatible with LSCs, i.e. CD34⁺CD38^-/low for CD34-positive AMLs and distinct expression profiles of CD33, CD45RA, CD117, CD123, and IL1RAP, suggesting that this cell population harbors the LSCs (Supplementary Fig. 10).

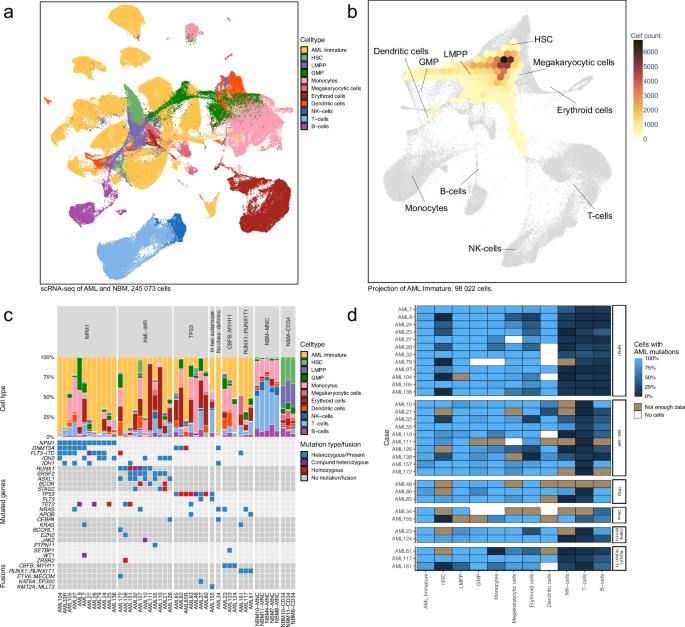

**Fig. 3: Single cell RNA-seq analyses of 38 AML and 8 NBM samples.**

The cell classifications indicated that the cellular contents of the AML samples were highly heterogeneous (Fig. 3c), in concordance with the previous bulk gene expression analysis and single-cell projections. The proportion of AML immature cells varied between 1-97% of each sample (Fig. 3c). This population was largest in NPM1-positive AMLs (median size 74%) and lowest in the TP53-mutated AMLs (median 16%).

By combining the AML mutation genotyping information and cell classifications, we could infer the proportion of cells with AML mutations within each cell type for 32 of the samples (Fig. 3d). This analysis highlighted that practically 100% of the cells classified as AML immature in each sample harbored AML mutations (Fig. 3d), as did most other cell types from the myeloid lineage. Thus, while the AML immature cells showed the most distinct change in gene expression, practically all cells in the myeloid lineage were part of the leukemic clone. AML mutations were also prevalent in B cells and NK cells (but not T cells) in a small subset of AMLs from the AML-MR or TP53 subtypes, indicating a less restrictive lineage block or the presence of mutated pre-leukemic cells with intact lymphoid potential, at least in individual cases (Fig. 3d).

In summary, we show that the bulk AML gene expression profiles are driven by clusters of specific mature cell type markers that are likely to represent the variable cell content between samples. This was confirmed by scRNA-seq, which also unveiled an unanticipated level of cellular heterogeneity even within distinct subtypes. Importantly, however, all AML samples were found to contain a subset of immature cells, harboring AML mutations, with an expression profile distinct from any cell type present in healthy BM. Thus, the gene expression information provided by single-cell gene expression analysis allows precise characterization of the molecular consequences of AML within the detected cell types.

Distinct gene expression profiles in immature AML cells identify subtypes and extend current genomic classifications

The cells classified as AML immature represented distinct cell clusters within the AML samples with no counterpart in normal mononuclear or CD34-enriched bone marrow samples. Notably, they exhibited the closest gene expression similarity to HSC and LMPP cells, and displayed immunophenotypic markers compatible with LSC, indicating their immatureness (Fig. 3b, Supplementary Fig. 10). Each sample was associated with a distinct cluster of such AML immature cells. We therefore hypothesized that subtype-specific gene expression profiles could be distinguished better within isolated AML immature cell populations, without interfering expression profiles from more mature cells. Thus, the average gene expression levels were calculated for the AML immature cell cluster from each sample. Hierarchical clustering analysis of the 361 most variable genes between samples from the averaged gene expression revealed four distinct sample clusters with several subclusters (Fig. 4a). The first cluster (C1) contained only samples from the AML-MR and TP53 subtypes. This cluster was further subdivided into three subclusters; one cluster (C1a) contained six samples from the AML-MR subtype, which were all samples in this analysis having mutations in IDH1 or IDH2 in combination with MDS-related mutations. Notably, clusters C1b and C1c contained samples from the AML-MR and TP53-mutated subtypes in equal proportions, indicating molecular similarities between these two subtypes.

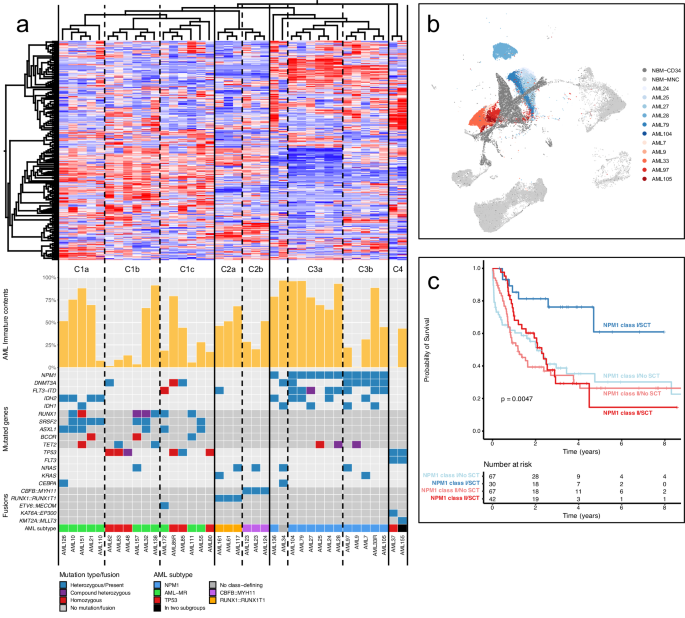

**Fig. 4: Gene expression and survival features of *NPM1* class I and II.**

Cluster C2 encompassed all cases with fusions affecting the core-binding factor (CBF) complex, i.e. three cases with CBFB::MYH11 and three cases with RUNX1::RUNX1T1. This cluster was further divided into subclusters in accordance with the fusion present (C2a and C2b). Cluster C3 contained all twelve NPM1-mutated samples and the single sample without class-defining lesions. Eleven of the NPM1-positive samples were subdivided into two distinct clusters of five and six samples each (C3a and C3b). Lastly, cluster C4 contained two samples with KAT6A::EP300 and KMT2A::MLLT3 fusion genes together with TP53 mutations, which also clustered together based on bulk gene expression data. Thus, compared to hierarchical clustering based on bulk RNA gene expression data, this analysis highlighted gene expression profiles that generally align with expected class-defining genetic features. For example, all samples harboring an aberration known to be associated with a distinct gene expression profile (i.e., NPM1, CBFB::MYH11, and RUNX1::RUNX1T1) clustered according to their genotype. In addition, samples harboring CBFB::MYH11 and RUNX1::RUNX1T1 clustered closely together. This aligns well with the known biology since both these fusions affect components of the heterodimeric CBF protein-complex and function as dominant repressors of the native CBF transcription factor ³³.

Interestingly, the NPM1-positive samples that formed the separate subclusters C3a and C3b were also associated with two different subclusters of AML immature cells in the UMAP visualization of single cells (Fig. 4b, Supplementary Fig. 11a). Thus, in addition to the distinct NPM1-associated expression profile, this sensitive analysis highlighted a subtle gene expression difference among the most immature AML cells in NPM1 positive AML. The two subclusters were also associated with different cell distributions. Cluster C3a contained cases with a very high proportion of cells classified as AML immature (median 86%, range 65-96%) whereas this proportion was much lower for the cases in cluster C3b (median 31%, range 1-89%; Fig. 4a). Instead, the cases in cluster C3b had a higher proportion of differentiated AML cells (classified as GMP and monocytes), but also a higher proportion of T cells (median 10%, range: 2-15% vs median 2%, range: 1-5% for cluster C3a; Supplementary Fig. 11b, c). We designated these two putative subtypes NPM1 class I (Cluster C3a; NPM1^{class I}) and NPM1 class II (Cluster C3b; NPM1^{class II}).

In order to study potential differences associated with the two gene expression profiles of NPM1-mutated AML in larger cohorts, we identified a robust set of genes (n = 180, false discovery rate <0.05) that were differentially expressed between the AML immature cells of NPM1^{class I} and NPM1^{class II} (Supplementary Data 3). To minimize the impact of the variable cell contents observed in bulk RNA samples, genes with notable expression in other cell types than AML immature were excluded. This list of 180 genes clearly distinguished between NPM1^{class I} and NPM1^{class II} also using bulk gene expression data from our local data set, classifying all 33 samples into either NPM1^{class I} (n = 19) or NPM1^{class II} (n = 14; Supplementary Fig. 12a, b, Supplementary Data 4). In addition, when applying this gene list on three external datasets of bulk RNA-seq data, from the TCGA⁹, Beat-AML³⁴, and Clinseq³⁵ studies, we validated these findings by identifying 107 additional samples exhibiting the NPM1^{class I} gene expression pattern (10 from TCGA, 46 from Beat-AML, and 51 from Clinseq) and 124 additional samples exhibiting the NPM1^{class II} gene expression pattern (18 from TCGA, 74 from Beat-AML, and 32 from Clinseq; Supplementary Fig. 12c–h; Supplementary Data 5). A total of 116 samples from the three external cohorts, however, could not be reliably assigned to one of the two NPM1 subtypes. These unclassifiable cases were found to contain a significantly smaller fraction of blasts in PB regardless of which sample tissue was used for RNA sequencing (Supplementary Fig. 12d, f, h), and were more likely to have a mature FAB subtype (M4 or M5; Supplementary Fig. 12d, f, h). We speculate that these cases (representing 33% of NPM1-mutated cases) may contain too few AML immature cells for classification into NPM1^{class I} or NPM1^{class II} based on bulk RNA-seq data and would require scRNA-seq to be accurately classified.

In total, the three external datasets expanded the total number of samples to 126 matching the NPM1^{class I} expression profile and 138 matching the NPM1^{class II} expression profile. In this expanded set, the two subtypes were found to be associated with different mutation profiles. Mutations in IDH2, TET2, and SRSF2 were significantly associated with NPM1^{class I}, whereas FLT3, DNMT3A, WT1, NRAS, and PTPN11 mutations were significantly more common in the NPM1^{class II} subtype (Supplementary Fig. 13a). Looking at the co-mutational patterns among the five most commonly mutated genes (FLT3, DNMT3A, TET2, IDH2, and IDH1), the most common patterns in NPM1^{class I} cases were FLT3 mutations together with either TET2 or IDH2 mutations, which were present in 35% of the cases in total (Supplementary Fig. 13b). The most common combination in NPM1^{class II} cases was a FLT3 and DNMT3A mutation occurring together. Mutations in FLT3 and DNMT3A occurred together in a total 42% of the cases, with or without additional mutations (Supplementary Fig. 13c).

To determine if this NPM1 classification was associated with clinical outcome, we performed survival analysis on the four datasets, divided into discovery and validation cohorts (Fig. 4c, Supplementary Fig. 14). Notably, classification into NPM1^{class I} and NPM1^{class II} dictated the response to HSCT. While NPM1^{class I} patients gained a substantial survival advantage from HSCT, NPM1^{class II} patients did not seem to gain any survival advantage in these cohorts (Fig. 4c, Supplementary Fig. 14). This finding was consistent in all datasets and could not be attributed to other factors beside the NPM1^{class I} and NPM1^{class II} classification.

Given the potential clinical application of this NPM1 classification, we examined if a shorter gene list for distinguishing the classes could be identified, as this could enable a custom gene expression assay for clinical implementation. Hierarchical clustering based on a list of 30 genes, encompassing the ten most overexpressed genes in each of NPM1^{class I}, NPM1^{class II} and the unclassified cases, produced three distinct clusters in all datasets (Supplementary Fig. 15; Supplementary Data 6). In total, this method identified the correct NPM1 class in 315/370 cases (85%). Most misclassifications occurred to or from the unclassified group (49/55 discordant cases), suspected to encompass cases with too few AML immature cells for classification based on bulk gene expression data. Thus, this indicates that it is possible to develop a custom assay for clinical identification of NPM1 class, but that this should ideally involve a dedicated effort, including scRNA-seq data from a larger cohort, to also be able to characterize the unclassified group.

Another subdivision within NPM1-mutated AML was recently suggested based on bulk gene expression data, with two subgroups termed primitive and committed³⁶. This gene expression classifier grouped the samples differently than the NPM1^{class I} and NPM1^{class II} subtypes (Supplementary Fig. 16a–f). In fact, the gene sets associated with the primitive and committed subgroups showed cell-specific gene expression patterns, indicating that this subdivision could reflect differences in cellular composition (Supplementary Fig. 17a, b). The NPM1^{class I} and NPM1^{class II} gene sets, however, displayed expression patterns consistent with intrinsic differences specifically within the AML immature cells (Supplementary Fig. 17c, d). In line with this, the two diagnose-relapse pairs in our cohort were noted to switch their committed/primitive classification between diagnosis and relapse, concordant with a classification that recognizes the cellular composition of the sample, which could differ between diagnosis and relapse. Similar switching was also noted for four of the thirteen patients with repeated samples in the Beat-AML cohort (Supplementary Fig. 16a, e). However, no instances of switching between NPM1^{class I} and NPM1^{class II} were observed in any of the cohorts, indicating that these subtypes are associated with intrinsic features within the immature AML cells that are stable over time.

In summary, we identified four gene expression clusters (C1-C4) based on gene expression differences in immature AML cells, as determined by scRNA-seq. A significant fraction (94%) of AML-MR and TP53-mutated AMLs clustered together, indicating that these subtypes may have similar molecular characteristics despite having distinct mutations. Notably, we identified two subtypes of NPM1-mutated AML, NPM1^{class I} and NPM1^{class II}. The first, NPM1^{class I}, had a homogenous cellular composition with mostly immature AML blast cells and improved survival in response to HSCT. In contrast, NPM1^{class II} had a heterogeneous cellular composition with a low proportion of immature AML blast cells and higher levels of monocytes and T cells, and showed no clinical benefit from HSCT.

NPM1 class I and NPM1 class II have distinct MHC class II expression and sensitivity to allogeneic T cells

Analyzing the difference between the scRNA-seq expression profiles from NPM1^{class I} and NPM1^{class II} using gene set enrichment analysis (GSEA) revealed that AML immature cells from NPM1^{class I} had lower expression of genes involved in interferon signaling, interactions between lymphoid and non-lymphoid cells, and neutrophil degranulation, but higher expression of genes related to the DNA unwinding process that initiates DNA replication (Supplementary Fig. 18). A comparison with the other AML subtypes and HSCs from NBM showed that this difference, for the majority of gene sets, were due to downregulation in NPM1^{class I} samples since the expression level in NPM1^{class II} was similar to other AML subtypes and NBM HSCs (Supplementary Fig. 19). Notably, several of the significantly downregulated gene sets in NPM1^{class I} included genes encoding major histocompatibility complex class II (MHC-II) molecules (i.e. HLA-DM, -DO, -DP, -DQ, and -DR genes). To further characterize this difference, we specifically studied the expression of the human leukocyte antigen (HLA) genes encoding MHC-II components, together with genes encoding MHC-I components, non-classical HLA genes, and the MHC-II master regulator CIITA³⁷ in AML immature cells from the scRNA-seq data (Fig. 5a,b and Supplementary Fig. 20). This confirmed a downregulation of all these genes in NPM1^{class I} samples when compared with NPM1^{class II} samples, other AML subtypes, and HSCs from NBM samples (Fig. 5a,b and Supplementary Fig. 20). The strongest downregulation was, however, observed for genes encoding MHC-II components and the regulator CIITA (Fig. 5a,b and Supplementary Fig. 20). Flow cytometry confirmed that MHC-II protein expression on the AML immature cells of the NPM1^{class I} subtype was significantly lower than that of both NPM1^{class II} AML immature cells and NBM HSCs (Fig. 5c, Supplementary Figs. 21, 22).

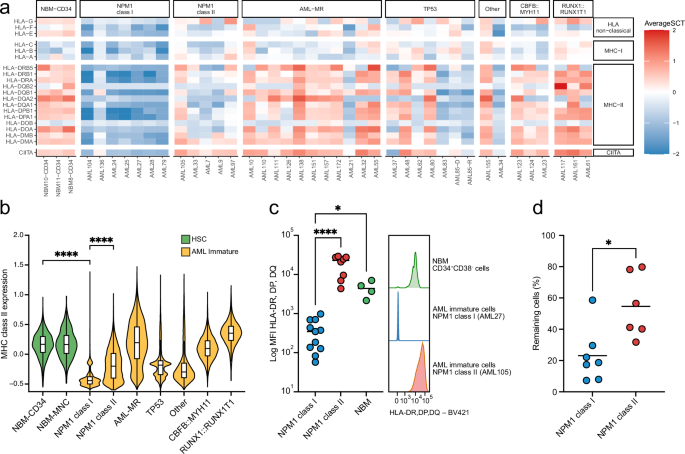

**Fig. 5: Immune evasion in *NPM1* class I and II.**

Since the most notable genetic difference between NPM1^{class I} and NPM1^{class II} was the presence or absence of a mutation in DNMT3A, we examined if higher expression of HLA genes encoding MHC-II components was a general feature associated with DNMT3A-mutated AML in the scRNA-seq data. Among TP53-mutated AML, AML immature cells from cases with concurrent DNMT3A mutations instead had lower MHC-II expression compared to those without DNMT3A mutation (Supplementary Fig. 23a, b). In addition, AML immature cells from the single NPM1^{class I} case harboring a DNMT3A mutation did not exhibit higher expression of HLA genes encoding MHC-II compared to other NPM1^{class I} cases (Supplementary Fig. 23c, d). Thus, the available evidence does not indicate a direct causal relationship between DNMT3A mutations and the higher MHC-II expression in NPM1^{class II} samples.

Based on the difference in survival following HSCT between NPM1^{class I} and NPM1^{class II}, we investigated the ex vivo sensitivity to allogeneic T cells using a coculture of AML cells and donor T cells. In this system, the NPM1^{class II} AML cells were significantly less sensitive to allogeneic T cells (mean 55% remaining cells after treatment vs 23% for NPM1^{class I}; P = 0.014; Fig. 5d), indicating that the difference in survival between NPM1^{class I} and NPM1^{class II} following allogeneic HSCT could be related to different capabilities of the AML cells to suppress allogeneic T cells.

MHC-II molecule expression can be induced by interferon-gamma (IFNg) through the intermediate regulator CIITA³⁷. We therefore examined the effect of IFNg treatment on AML cells from NPM1^{class I} (with low MHC-II expression) and NPM1^{class II} (with high MHC-II expression; Supplementary Fig. 24). This showed that IFNg induced MHC-II upregulation in both NPM1 subtypes, and was associated with an increase in T cell sensitivity in the majority of samples from both subtypes (Supplementary Fig. 24), highlighting that T cell sensitivity in NPM1^{class I} can be further increased by upregulating MHC-II, but also that the suppression of allogeneic T cells by NPM1^{class II} AML cells occurs independently of MHC-II expression.

To examine if the difference in T cell response between NPM1^{class I} and NPM1^{class II} instead could be mediated through checkpoint receptor signaling³⁸, we analyzed the expression of checkpoint molecules on the surface of AML cells (PD-L1, PD-L2, VISTA, CD80, CD86, CD155, Galectin-9, CD47, and CD200) and T cells (CTLA4, LAG3, PD1, TIGIT, and TIM3) in diagnostic NPM1^{class I} and NPM1^{class II} BM samples using flow cytometry (Supplementary Fig. 25 and Supplementary Fig. 26). The expression of immune checkpoint ligands was found to be similar between the two subtypes in both immature and mature cell compartments, but with potentially higher expression of CD86 and VISTA in NPM1^{class II} (Supplementary Fig. 25). NPM1^{class II} samples also exhibited higher expression of inhibitory receptors such as TIM3 and TIGIT in certain T cell populations (Supplementary Fig. 26). These differences could potentially contribute to the resistance of NPM1^{class II} AML cells to T cell mediated killing observed both ex vivo and clinically in the HSCT setting. In keeping with these findings, a low but significant increase in myeloid cells with surface expression of Galectin-9 was also observed in the NPM1^{class II} subtype (Supplementary Fig. 25), suggesting a potential T cell suppression mechanism through interaction between Galectin-9 and TIM3 on T cells³⁹. Two of four NPM1^{class II} samples also harbored T cells expressing both PD1 and TIM3 (Supplementary Fig. 27), indicating that the TIM3 expression may be coupled to T cell exhaustion⁴⁰. This was not observed in any of the four NPM1^{class I} samples. In addition, we compared the distribution of T cell subsets within the CD4⁺ and CD8⁺ compartments, based on scRNA-seq cell classifications and flow cytometry of diagnostic AML samples (Supplementary Fig. 28). This showed a trend towards a higher proportion of CD8 naive cells in both scRNA-seq and flow cytometry data (P = 0.051 and P = 0.065), suggesting microenvironmental differences between the two NPM1 classes affecting the T cell composition already at diagnosis.

We conclude that NPM1^{class I} and NPM1^{class II} AML employ different strategies for immune evasion. NPM1^{class I} AML is associated with MHC-II downregulation, while NPM1^{class II} AML displays a distinct resistance to T cell killing. The difference in immune evasion strategies and the resistance of NPM1^{class II} AML cells to allogeneic T cells could explain the difference in survival between the two NPM1 subtypes following HSCT, where NPM1^{class I} responds well whereas NPM1^{class II} AML lacks clinical benefit.

Discussion

Despite improvements in the genomic classification of AML, this disease is associated with substantial heterogeneity in treatment response and clinical outcome. Here, we used single-cell transcriptomic data to dissect the transcriptional profiles of bulk samples, defining the transcriptional and cellular state space of AML. This unveiled a marked cellular heterogeneity of genetic AML subtypes and revealed two distinct transcriptomic subtypes of NPM1-mutated AML with different immune evasion properties and response to hematopoietic stem cell transplantation; results with direct clinical implications for the treatment of patients with AML.

Bulk RNA-seq revealed striking gene signatures enriched for cell type markers, indicating that the bulk expression profiles of AML samples were severely affected by the cellular composition of the samples. The concept of utilizing cell signatures for deconvolution of bulk gene expression data for AML classification has been explored in several recent studies^34,41,42, for example, showing the impact of cellular composition in AML on treatment response⁴². While this approach can provide a view of the cellular constitution of an AML sample, the gene expression profiles within the different cell types cannot be defined. Thus, comparing the gene expression between samples for a defined cell type or studying the effect of mutations in different cell types is not feasible using bulk RNA-seq. In addition, more complete AML single cell data sets might be needed for reliable deconvolution of bulk data since the single cell AML data sets published to date have been generated from mononuclear cells^{25,27,28,29,30}, while several of the mature cell types with the strongest impact on the bulk gene expression profile, as identified here, were enucleated (erythroid precursors and platelets) or multinucleated (neutrophils).

To determine the gene expression profiles of the constituent cell types in AML, we performed single-cell multimodal sequencing. This confirmed that there is a substantial heterogeneity with regard to cellular composition and maturation of mutated AML cells, in concordance with previous single-cell RNA-seq studies of AML cell composition^25,26,27. In this larger and genetically characterized data set, however, we observed a high degree of cellular heterogeneity even among AMLs of the same genetic subtype. In addition, the distinct gene expression profiles of immature AML cells as determined by scRNA-seq were found to align better with the underlying genetic subtype than the bulk expression profiles for AMLs with NPM1 mutations and the fusion genes CBFB::MYH11 and RUNX1::RUNX1T1. However, AMLs from the AML-MR and the TP53-mutated subtype together formed the largest gene expression class, which was subdivided into smaller classes that did not follow the genetic subdivision. Thus, these two genetic subtypes, which are both associated with myelodysplastic syndrome and secondary AML developing from this disease^43,44, display shared gene expression profiles despite having minimal overlap in somatic mutations.

Notably, NPM1-mutated AMLs were subdivided into two gene expression classes, distinct from previously described subtypes among NPM1-mutated AMLs identified using bulk gene expression data³⁶. The NPM1^{class II} subtype was associated with a diverse cellular content with a high fraction of monocytes and T cells. However, the subtype-specific gene expression pattern was also present in at least one relapse sample with a low proportion of monocytes and T cells, indicating that the distinct gene expression profile is not a response to extrinsic pressures but an intrinsic feature of the immature AML cells of this subtype. In contrast with NPM1^{class II}, the NPM1^{class I} subtype was associated with a high proportion of immature AML cells that displayed downregulation of MHC class II components as a likely immune evasion strategy. Interestingly, it has previously been noted in flow cytometry-based studies of NPM1 positive AML that a subset of cases has downregulated MHC class II cell surface expression^45,46, but that this is a distinct subtype with a specific global gene expression profile has not previously been described. Importantly, when comparing the overall survival between NPM1^{class I} and NPM1^{class II} following HSCT, we also observed a vastly superior outcome for NPM1^{class I}, whereas NPM1^{class II} cases did not seem to have any survival advantage following HSCT. In line with these observations, NPM1^{class II} AML cells exhibited reduced sensitivity to allogeneic T cell-mediated cytotoxicity ex vivo, suggesting an intrinsic mechanism by which this NPM1 subtype evades elimination by the immune system following HSCT. Comprehensive characterization of checkpoint molecule expression on both AML cells and T cells revealed no general differences between NPM1^{class I} and NPM1^{class II}. However, checkpoint expression was notably more heterogeneous in the NPM1^{class II} subgroup. Several NPM1^{class II} cases displayed upregulation of individual receptors and ligands — a pattern not observed in NPM1^{class I}. In addition, both scRNA-seq and flow cytometry analyses revealed a trend toward a higher proportion of CD8 naive cells in NPM1^{class II}, suggesting differences in T cell functionality between the subtypes. Furthermore, co-expression of TIM3 and PD1 in two out of four NPM1^{class II} cases indicated the presence of exhausted T cells. The most striking divergence between these subtypes is their post-HSCT survival. Our findings indicate that this disparity may be explained by differences in the intrinsic susceptibility of the immature AML cells to allogeneic T cell killing.

The two NPM1 subtypes were associated with different mutational patterns, with co-occurring DNMT3A and FLT3-ITD mutations being the most common composition in NPM1^{class II}. AML harboring co-occurring NPM1, DNMT3A, and FLT3-ITD mutations have previously been described to be associated with an adverse prognosis^10,47,48. Notably, however, this genetic setup occurred in less than half of the NPM1^{class II} cases and was also present in a small number of NPM1^{class I} cases. Thus, while the inferior prognosis of AML with NPM1, DNMT3A, and FLT3-ITD is likely to be related to its over-representation in NPM1^{class II}, this genotype in itself is not a suitable surrogate marker for NPM1^{class II}.

In conclusion, we here describe how single-cell sequencing can be used to analyze the transcriptional complexity in AML, and to unravel the cellular heterogeneity that clouds bulk RNA sequencing. This methodology enabled the detection of two expression-based NPM1 subtypes, NPM1^{class I} and NPM1^{class II}. The two classes display distinct modes of interaction with the immune system, with NPM1^{class I} showing a downregulation of MHC-II as an immune evasion strategy, whereas NPM1^{class II} exhibits enhanced resistance to the anti-leukemia T cell response. Our data further suggests that NPM1^{class I} has a significant survival benefit from HSCT, whereas NPM1^{class II} does not. This transcriptional subtype information is expected to have direct clinical implications for the treatment of patients with AML.

Methods

Patient samples and integrative sequencing

This research complies with all relevant ethical regulations. Primary samples were collected at Skåne University Hospital after written informed consent in accordance with the Declaration of Helsinki. The study was approved by the Ethics Committee of Lund University with reference numbers dnr 2011/289 and dnr 2023-01550-01. Bone marrow aspirates (BM), peripheral blood (PB), and skin biopsies were collected from AML participants. BM was also collected from healthy controls. AML samples were included following diagnosis of de novo AML, secondary AML, therapy-related AML, or relapse of previously diagnosed AML. In total, 120 AML samples were included, representing 112 individuals. Of these, 97 cases were represented by a single sample at diagnosis, eight cases were represented by paired diagnosis and relapse samples, one case was represented by a sample taken during the disease, and six cases were represented by a single sample taken at relapse. Donors of normal bone marrow received modest financial compensation. There was no other compensation for study participation. Primary leukemia samples were collected from both male and female patients to allow for equitable implementation of clinically relevant findings. Skin biopsies were collected from all 112 individuals; these were cultured to eliminate infiltrating AML cells and then used as normal reference material.

The following techniques were used to characterize the AML samples at the genomic level (Supplementary Data 1): whole exome sequencing (WES; paired tumor-normal analysis for all 120 samples), mate pair whole genome sequencing (MP-WGS; tumor only analysis for 98 samples), targeted PCR for CEBPA and FLT3-ITD with sequencing readout (paired tumor-normal analysis, 120 samples). WES libraries were prepared from 50 ng DNA using the Nextera rapid exome kit (Illumina) according to the manufacturer’s instructions (Nextera rapid capture enrichment guide). MP-WGS libraries were prepared from 1 µg of DNA using the Nextera mate pair library preparation kit (Illumina) according to the manufacturer’s instructions (Nextera mate pair library prep reference guide). The targeted PCR for CEBPA and FLT3-ITD was performed in a multiplex reaction using the primers: AGGCACCGGAATCTCCTAGT (CEBPA forward), CCTGCCGGGTATAAAAGCTG (CEBPA reverse), AACTGTGCCTCCCATTTTTG (FLT3-ITD forward), CCTGATTGTCTGTGGGGAGT (FLT3-ITD reverse). PCR amplification was performed using the Q5 hot start high-fidelity DNA polymerase (New England Biolabs) with Q5 high GC enhancer included in the amplification mix. The annealing temperature was set to 64 °C. Sequencing libraries were then prepared from 1 ng of amplified material using the Nextera XT library preparation kit (Illumina) according to the manufacturer’s instructions.

RNA-sequencing libraries were prepared from poly-A selected RNA using the TruSeq RNA library preparation kit v2 (Illumina) according to the manufacturer’s instructions, but with a modified RNA fragmentation step lowering the incubation time at 94 °C from 8 minutes to 10 seconds to allow for longer RNA fragments, as previously described¹⁴. All libraries were sequenced using a NextSeq 500 (Illumina).

The 120 AML cases (representing 112 individuals) were, based on somatic variants (SNVs, indels, copy number changes, and fusion genes), classified into thirteen molecular AML subtypes as described by Papaemmaniul et al.¹⁰: NPM1 (n = 33), myelodysplasia-related gene mutations (AML-MR; one or more driver mutations in RUNX1, ASXL1, BCOR, STAG2, EZH2, SRSF2, SF3B1, U2AF1, ZRSR2, or MLL^PTD, or, in the presence of other class-defining lesions, two or more mutations were required) (n = 30), TP53 (and/or chromosomal aneuploidy; n = 18), CBFB::MYH11 (n = 8), double mutated CEBPA (bialleleic CEBPA; n = 1), PML::RARA (n = 8), RUNX1::RUNX1T1 (n = 3), x::KMT2A (KMT2A fusion; n = 3), inv(3)(q21q26.2) or t(3;3)(q21;q26.2) (GATA2::MECOM; = 1), IDH2^R172 (and no other class-defining lesions) (n = 0), DEK::NUP214 (n = 2), no class-defining lesions (no class-defining; n = 8), no detected driver (n = 3), and finally, meeting criteria for ≥2 genomic subgroups (In two subgroups; n = 2). The subtypes previously referred to as chromatin-spliceosome and MLL fusion¹⁰ are here referred to as AML-MR and KMT2A fusion to align with updated nomenclature.

Bulk sequencing data analysis

The sequencing reads from WES, MP-WGS, and targeted PCR were aligned against the human genome (hg19) using bwa⁴⁹ v0.7.15 (https://github.com/lh3/bwa).

Somatic (tumor-normal) single nucleotide variant and small indel calling in the WES and targeted PCR data was performed using Strelka v0.4.7⁵⁰, Strelka v2.9.4⁵¹ (https://github.com/Illumina/strelka), Mutect2⁵² (from gatk 4.0.8.1; https://github.com/broadinstitute/gatk), and freebayes⁵³ 1.1.0 (https://github.com/freebayes/freebayes). For freeabyes, a somatic score (SSC) was calculated from the provided genotype likelihoods (GL) for tumor (T) and normal (N), using the formula SSC = T.GL(T) - T.GL(N) + N.GL(N) - N.GL(T).

Larger structural variants in the WES and targeted PCR data were called using pindel⁵⁴ v0.2.5b8 (https://github.com/genome/pindel), and manta⁵⁵ v1.4.0 (https://github.com/Illumina/manta). All variants detected in WES were filtered using the reported quality score for each variant caller, (strelka v0.4.7 and v2.9.4 SNVs, QSS > = 100; strelka v0.4.7 indels, QSI > = 30; strelka v2.9.4 indels, QSI > = 100; Mutect2, TLOD > = 30; freebayes, SSC > = 60; manta, SOMATICSCORE > = 30; pindel, AD > = 10, VAF > 10%). More strict filtering criteria were used for variants in targeted PCR data for the following variant callers (strelka v0.4.7 and v2.9.4 SNVs, QSS > = 300; strelka v0.4.7 indels, QSI > = 60; strelka v2.9.4 indels, QSI > = 100; freebayes, SSC > = 300; same filter settings as before for Mutect2, manta, and pindel). Variants detected in any of the cultured skin biopsies (not only the corresponding skin biopsy) were removed as suspected germline variants. Somatic variants were annotated using SnpEff v0.4.3r (https://pcingola.github.io/SnpEff/). Plots illustrating somatic data were produced using R v4.1.2 (https://www.R-project.org).

Copy number detection was performed on WES data using cnvkit⁵⁶ v0.9.2 (https://github.com/etal/cnvkit). Structural variants in the MP-WGS data were called using delly⁵⁷ v0.7.7 (https://github.com/dellytools/delly).

Gene expression values (fragments per kilobase of transcript per million reads; fpkm) were calculated from RNA-seq reads using RSEM v1.2.30⁵⁸ (https://github.com/deweylab/RSEM) and fusion genes were called using chimerascan⁵⁹ v0.4.5a (https://code.google.com/archive/p/chimerascan/). Only fusion genes detected both in MP-WGS data and RNA-seq data, or those that were previously described in AML, were included.

Hierarchical clustering was performed using Qlucore Omics Explorer v3.7 (Qlucore). Gene sets for identifying the NPM1 subtypes described by Mer et al.³⁶ were retrieved from the supplementary data from their publication.

External datasets

Somatic SNV and indel variants described in the TCGA AML data set⁹ were retrieved from the plain text (tsv) version of their supplemental table 6, available at https://gdc.cancer.gov/about-data/publications/laml_2012. Gene expression data from the TCGA AML data set were downloaded as RSEM normalized counts from cbioportal (https://www.cbioportal.org/datasets). Somatic SNV and indel variant data from the Beat-AML 1.0 data set³¹ were exported from http://www.vizome.org/aml/geneset/. Gene expression data from the Beat-AML 1.0 data set were downloaded as RSEM normalized counts from cbioportal (https://www.cbioportal.org/datasets). Gene expression data from the Beat-AML 2.0 data set³⁴ were downloaded as normalized expression data from https://biodev.github.io/BeatAML2/. Somatic SNV and indel variant data from the data set published by Papaemmanuil et al.¹⁰ were downloaded from https://github.com/gerstung-lab/AML-multistage/tree/master/data. Cell type markers from the panglaoDB single cell database were downloaded from https://panglaodb.se/markers/PanglaoDB_markers_27_Mar_2020.tsv.gz. Gene expression data and somatic SNV and indel variant data from 95 AMLs with NPM1 mutations from the Clinseq³⁵ dataset were provided directly by the authors, together with data from 32 additional AMLs.

Single-cell RNA sequencing

Single-cell RNA sequencing (scRNA-seq) was performed on 38 AML samples from the subtypes NPM1 (n = 12), AML-MR (n = 11), TP53 (n = 7), CBFB::MYH11 (n = 3), RUNX1::RUNX1T1 (n = 3), AML without class-defining mutations (n = 1), and AML meeting the criteria for two subtypes (n = 1). In addition, NBM samples with mononuclear cells (n = 5), and CD34 + -enriched cells (n = 3) were included. Of these, 34 AML samples and six NBM samples were also subjected to antibody derived tag sequencing using a panel of 10-14 AML stem cell markers. Cryopreserved mononuclear cells were gently thawed and stained with TotalseqA antibodies (BioLegend) and draq7 (Biostatus), according to each manufacturer’s protocol. The cell suspensions were sorted to contain viable single cells, based on DRAQ7 staining, using an Aria Fusion (BD Biosciences). The scRNA-seq and ADT-seq libraries were prepared using Chromium Single Cell 3ʹ Reagent Kits v3 according to the manufacturer’s instructions (10X Genomics) and sequenced on a Novaseq 6000 System (Illumina).

Single-cell RNA sequencing data analysis

Raw sequencing data were converted to fastq format using bcl2fastq (Illumina). The reads were aligned to the human reference genome (hg19/GRCh37) and converted to single-cell transcript and ADT count matrices using cellranger count (10x Genomics, v.3.1.0). Further analysis of scRNA-seq and scADT data was performed using Seurat (v.4.0.0)⁶⁰. Low-quality cells, with less than 200 informative genes or more than 15% of the detected transcripts derived from mitochondrial genes, were excluded. Data from all samples (in total 245,073 cells) were merged into a single object using Seurat’s merge function. Normalization was performed using sctransform (v.0.3.2)⁶¹ for transcript data and using centered log ratio for scADT data. For visualization and clustering, the dimensionality of the normalized scRNA data was further reduced using principal component analysis (PCA) with 80 principal components. The data was visualized using uniform manifold approximation and projection (UMAP)⁶². Cell type prediction was performed first on cells only from NBM samples using a well-defined external reference dataset of NBM cells⁶³ using Seurat’s TransferData function. The predicted cell types for the local NBM samples were then used as a reference for cell type prediction for the remaining cells using Seurat’s TransferData function. The cells were clustered using shared nearest neighbor modularity optimization-based clustering⁶⁴ with resolution 0.5. Cells in clusters that consisted of more than 80% cells from AML samples and where a majority of the cells were predicted to be HSC or LMPP according to the NBM reference were denoted AML immature cells instead of their initial predicted cell type. Visualization of NBM reference knn force graphs⁶⁵ and projection of AML single cell data onto these graphs were performed using SingleCellProjections.jl (https://github.com/BioJulia/SingleCellProjections.jl). For hierarchical clustering of AML immature gene expression data, the average expression based on cell type and AML sample was first calculated using Seurat’s AverageExpression function. Log2 transformation (with a threshold at 0.01) and hierarchical clustering of this data was performed using Qlucore Omics Explorer v3.7 (Qlucore).

NPM1 class I and II expression profiles

The NPM1 class I and II specific expression profiles were identified using Qlucore Omics Explorer v3.7 (Qlucore) by first selecting the most significantly upregulated genes in immature cells compared to other cell types in the NPM1 class I and II samples. For NPM1 class I, the 548 most highly expressed genes in immature cells were identified by performing a t-test between the average expression in immature cell types (AML immature, GMP, and LMPP) compared to mature cell types (Monocytes, Erythroid cells, Dendritic cells, NK cells, T cells, and B cells) in NPM1 class I samples, and then filtered based on q-values calculated using the Benjamini-Hochberg method (q < 0.0000225). For NPM1 class II, the 389 most highly expressed genes in immature cells were identified by the same procedure for NPM1 class II samples (q < 0.00003). Once these two gene sets (i.e., genes upregulated in immature AML cells compared to mature cell types) had been identified (containing a total of 908 genes), a t-test was performed to identify the most significantly differentially expressed genes from these two gene sets between AML immature cells in NPM1 class I and class II samples. After filtering at q < 0.05, this resulted in a list of 180 genes (Supplementary Data 3). Hierarchical clustering based on this gene list was applied to bulk RNA-seq data from the local and external cohorts to identify samples with NPM1 class I and class II expression profiles.

NPM1 class I/NPM1 class II gene set enrichment analysis

Gene set enrichment analysis for the difference between the average gene expression in NPM1 class I compared to class II was performed using a gene list ranked by fold change in average expression between NPM1 class I AML immature cells and NPM1 class II AML immature cells, produced using Qlucore Omics Explorer 3.7 (Qlucore). Gene set enrichment analysis⁶⁶ was performed using clusterprofiler⁶⁷ based on the Reactome pathway database⁶⁸ curated gene set from msigdb⁶⁹ (v7.5.1).

Single cell RNA-seq mutation calling

Single-cell RNA mutation sequencing (scRNAmut-seq) was performed by targeted PCR amplification of known somatic mutations from leftover full-length amplified cDNA from the 10X genomics library preparations (Supplementary Fig. 4). PCR primers were designed against all variants found in WES data for each patient using primer3⁷⁰ v2.5.0 (https://github.com/primer3-org/primer3). Primers were then evaluated based on transcript coverage in scRNA and bulk RNA-seq data and the distance between the mutation and the 3’ end of the gene. Primers for detecting 1-4 somatic mutations were selected for each sample with scRNA-seq data. All primers were produced as custom ultramer DNA oligos (Integrated DNA technologies). Prior to scRNAmut-seq the full-length amplified cDNA material was repaired using PreCR repair mix (New England Biolabs) according to the manufacturer’s instructions. The preparation of scRNAmut-seq libraries involved two PCR reactions (Supplementary Fig. 4). The first PCR was a targeted PCR using a mutation-specific primer (primer sequences listed in Supplementary Data 2) with an overhang of a partial read 2 (right primer) and read 1 sequencing primer (left primer). The reaction was performed using KAPA HiFi HotStart ReadyMix (Roche) in 50 µl reaction volume with the following protocol: initial denaturation at 95 °C, 180 s; 10 cycles of denaturation at 98 °C, 20 s; annealing at 60 °C, 15 s; extension at 72 °C, 60 s; and lastly final extension at 72 °C, 300 s. The second PCR was a sample index PCR with primers adding the P5 sequence (left primer) as well as i7 index and P7 sequences (right primer) needed for Illumina bridge amplification (Supplementary Fig. 4). The primers used in the second PCR were: left primer: 5’-AATGATACGGCGACCACCGAGATCTACACTCTTTCCCTACACGACGCTC-3’, and right primer: 5’-CAAGCAGAAGACGGCATACGAGATNNNNNNNNGTCTCGTGGGCTCGG-3’. The following i7 index sequences were used (in place of the 8 N stretch in the reverse primer): TCGCCTTA, CTAGTACG, TTCTGCCT, GCTCAGGA, AGGAGTCC, CATGCCTA. A 25 ul reaction was prepared with PCR-grade water, KAPA HiFi HotStart ReadyMix (Roche), primers, and DNA template from the targeted PCR reaction. The following PCR protocol was used for the second PCR: initial denaturation at 95 °C, 180 s; 10 cycles of denaturation at 98 °C, 20 s; annealing at 54 °C, 30 s; extension at 72 °C, 60 s; and lastly final extension at 72 °C, 300 s. The scRNAmut-seq libraries were purified using AMPure XP beads (Thermo Fisher Scientific) prior to sequencing on a Novaseq 6000 System (Illumina).

Single-cell RNA-seq mutation calling data analysis

Raw sequencing data were demultiplexed and converted to fastq format using bcl2fastq (Illumina). For variant calling of individual reads, a diploid reference genome based on hg19 but including the known targeted somatic variants of each case was constructed using STAR⁷¹ v2.7.8a (https://github.com/alexdobin/STAR). The reads were then aligned to this reference genome using STAR, with command line options to include haplotype information (i.e., if the read matches reference or somatic variant) together with the 10X UMI and cellular barcode information. Reads covering the targeted mutations matching either the reference or the somatic variant were counted for each combination of cell barcode and UMI. The genotype for each cell barcode-UMI combination was classified as mutated or reference based on the most common genotype among the reads. To infer the proportion of mutated cells in a group of cells (of the same cell type or projected within the same hexagon), the genotype classification of UMI:s covering somatic heterozygous mutations only, within any of the cells in the group, was considered. The proportion of mutated cells ($P$) was estimated by dividing the number of UMI:s classified as mutated (${n}_{m}$) by the total number of UMI:s (with mutated or reference genotype) from that site (${n}_{m}+{n}_{r}$), which was then divided by 0.5 (i.e., the expected allele fraction if all cells were mutated):

$$P=\frac{{n}_{m}}{{n}_{m}+{n}_{r}}/0.5$$

(1)

Flow cytometry analysis of MHC class II expression

AML and NBM samples were thawed in complete medium with DNase and then washed in PBS 2% FBS. A total amount of 0.2–1 × 10⁶ cells was used for flow cytometry, while the remaining cells were put in culture. Staining was performed for 20 minutes at 4 °C in a 100 μl mix of appropriate antibodies in PBS 2% FBS, including CD33–PE (1:100), CD117–AF488 (1:100), C3AR–PE/Cy7 (5:100), GPR56–APC (1:100), CD123–BV711 (1:100) and HLA-DR, DP, DQ–BV421 (1:100) for AML sample analysis; and CD3–PE/Cy7 (1:100), CD19–APC/Cy7 (3:100), CD34–AF488 (3:100), CD38–APC/Cy7 (3:100) and HLA-DR, DP, DQ–BV421 (1:100) for NBM analysis. After staining, cells were washed with PBS 2% FBS and resuspended in 200 μl PBS 2% FBS with 1:100 7–AAD for viability staining. Samples were analyzed using an LSR Fortessa flow cytometer (BD Biosciences), and the data were analyzed using FlowJo 10 (BD Biosciences). Identification of the AML immature populations in AML samples was made with the help of the scADT-seq data, when possible (Supplementary Figs. 21, 22). If no scADT-seq data were available, AML immature was defined as CD33⁺CD117⁺.

AML sample culture

AML cells remaining after flow cytometry analysis were put in culture to evaluate the response to Interferon gamma (IFNg). The AML cells were cultured in Iscove’s modified Dulbecco’s medium (IMDM) supplemented with 1% penicillin/streptomycin (P/S), 1% L-glutamine, 0.1 mM b-mercaptoethanol, 15% bovine serum albumin, insulin, transferrin (BIT 9500; StemCell Technologies), SCF (100 ng/mL; all cytokines from Peprotech), FLT3-L (50 ng/mL), IL3 (IL3; 20 ng/mL), gCSF (20 ng/mL), StemRegenin-1 (500 nM; StemCell Technologies) and UM729 (500 nM; StemCell Technologies). IFNg was added to appropriate wells at a final concentration of 50 ng/mL. The cells were cultured for 3 days at 37 °C, 5% CO₂, and MHC class II expression was reassessed by flow cytometry after IFNg treatment as before. The cells were then washed in PBS 2% FCS, counted, and replated accordingly for the T cell assay.

T cell co-culture

For the T cell assay, CD3⁺ T cells were isolated from PB-MNCs using MACS cell separation columns with the CD3 microbeads isolation kit, according to the manufacturer’s instructions (Miltenyi Biotec). The AML cells were cultured in Iscove’s modified Dulbecco’s medium (IMDM) supplemented with 1% penicillin/streptomycin (P/S), 1% L-glutamine, 0.1 mM b-mercaptoethanol, 15% bovine serum albumin, insulin, transferrin (BIT 9500; StemCell Technologies), SCF (100 ng/mL; all cytokines from PeproTech), FLT3-L (50 ng/mL), IL3 (20 ng/mL), gCSF (20 ng/mL), StemRegenin-1 (500 nM; StemCell Technologies), and UM729 (500 nM; StemCell Technologies). After culturing for 3 days, AML cells were washed and counted, and an equal number of cells were plated in 100 μl RPMI medium (supplemented with 1% P/S and 10% FBS) per well in triplicate or quadruplicate (5–10 × 10³ cells/well). Then, equal numbers of T cells were added in an additional volume of 100 μl RPMI per well, to a final volume of 200 μl and a ratio of 1:1 target to effector cell. IL2 was added to a final concentration of 10 ng/mL, and the mixed culture was cultured for an additional 3 days at 37 °C, 5% CO₂. After 3 days, cell numbers were determined by flow cytometry using CountBright beads (Life Technologies) and staining with CD3–PE/Cy7 and CD33–BV421.

Flow cytometry analysis of immune-related markers on AML samples

AML samples were thawed in complete medium with DNase and then washed in PBS 2% FBS. Each sample was divided for analysis with corresponding panels for AML and T cells, and staining was performed for 20 minutes at 4 °C in a 100 μl mix of appropriate antibodies in PBS 2% FBS. The panels included combinations of the following antibodies:

–AML cell analysis: CD33–APC/Cy7 (1.5:100), CD3–BV510 (1.5:100), CD19–BV510 (1.5:100), CD14–APC (1:100), CD123–BV711 (1:100), PDL2–BV421 (5:100), PDL1–FITC (5:100), CD200–PE/Cy7 (5:100), CD155–BV421 (5:100), VISTA–PE (5:100), GAL9–PE/Cy7 (5:100), CD47–BV421 (5:100), CD80–FITC (5:100), CD86–PE (1:100).

–T cell analysis: CD3–PE (1.5:100), CD4–BV711 (1:100), CD8–APC/Cy7 (1:100), CD45RA–BV510 (3:100), CCR7–PE/Cy7 (5:100), PD1–BV421 (3:100), TIM3–FITC (3:100), LAG3–APC (3:100), CTLA4–BV421 (3:100), TIGIT–APC (3:100).

After staining, cells were washed with PBS 2% FBS and resuspended in 200 μl PBS 2% FBS with 1:100 7–AAD for viability staining. Samples were analyzed using an LSR Fortessa flow cytometer (BD Biosciences), and the data were analyzed using FlowJo 10 (BD Biosciences). Within the CD4⁺ and CD8⁺ T cell populations, naïve cells were defined as CCR7⁺CD45RA⁺, effector cells as CCR7^-CD45RA⁺, effector memory cells as CCR7^-CD45RA^-, and central memory cells as CCR7⁺CD45RA^-. Within the CD33⁺ AML population, immature AML cells were defined as CD123⁺ and monocytic AML cells as CD14⁺.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The publicly available data used in this study are available from Genomic Data Commons as study laml_2012 [https://gdc.cancer.gov/about-data/publications/laml_2012] (TCGA⁹ SNV and indel data), from the cBioPortal for Cancer Genomics (https://www.cbioportal.org/datasets) as studies TCGA, NEJM 2013 [https://cbioportal-datahub.s3.amazonaws.com/laml_tcga_pub.tar.gz] and OHSU, Nature 2018 [https://cbioportal-datahub.s3.amazonaws.com/aml_ohsu_2018.tar.gz] TCGA⁹ and Beat-AML1³¹ gene expression data), from Vizome as study BeatAML [http://www.vizome.org/aml/geneset/] (Beat-AML1³¹ SNV and indel data), from Github repositories BeatAML2 [https://biodev.github.io/BeatAML2/] (Beat-AML2³⁴ gene expression data) and AML-multistage [https://github.com/gerstung-lab/AML-multistage/tree/master/data] (Papaemmanuil et al.¹⁰, SNV and indel data), and from Zenodo as study Clinseq_AML [https://zenodo.org/records/292986] (Clinseq³⁵ gene expression data). The raw sequencing data generated in this study have been deposited in the European Genome-Phenome Archive (EGA; https://ega-archive.org/) under the accession codes: EGAD50000001574 (https://ega-archive.org/datasets/EGAD50000001574; MP-WGS data), EGAD50000001575 (https://ega-archive.org/datasets/EGAD50000001575; WES data), EGAD50000001576 (https://ega-archive.org/datasets/EGAD50000001576; RNA-seq data), and EGAD50000001577 (https://ega-archive.org/datasets/EGAD50000001577; scRNA-seq data). The raw sequencing data deposited at EGA are available under restricted access due to the General Data Protection Regulation (GDPR), the Swedish data protection legislation, and the Swedish Public Access to Information and Secrecy Act. Access can be obtained by contacting request@researchdata.lu.se. Access will be granted for projects ensuring data protection in compliance with the aforementioned legislation, which can be further specified in a data access agreement provided upon request. The first response after requests for access is expected to occur within five business days. Once access has been granted, data will be available for the duration of the specified project. The processed gene expression data are available as gene expression matrices from the ScilifeLab Data Repository (https://figshare.scilifelab.se/) through the following DOIs: https://doi.org/10.17044/scilifelab.21557163⁷² (RNA-seq data), https://doi.org/10.17044/scilifelab.23715648⁷³ (scRNA-seq data). The remaining data are available within the Article, Supplementary Information, or Source Data file. Source data are provided with this paper.

Code availability

Software and documentation for making KNN force plots and projecting single-cell data are available in the SingleCellProjections.jl package, at https://github.com/BioJulia/SingleCellProjections.jl. All custom code to reproduce the analyses supporting this paper is available at https://github.com/rasmushenningsson/AMLStateSpace, and also available through Zenodo (https://doi.org/10.5281/zenodo.17337903)⁷⁴ and as a Code Ocean capsule (https://doi.org/10.24433/CO.6447700.v1) ⁷⁵.
