Introduction

Water plays an important role in many fields, ranging from geology, environment, biology, to astronomy1,2,3. Water molecules undergo continuous vibration/rotation and hydrogen-bond (HB) rearrangement, forming various complex yet dynamic hydrogen-bonding networks. Structural characterization of liquid water has been proven to be a grand challenge because of its multifaceted, ever-changing patterns of HBs4. Inasmuch as the nature of the intermolecular forces between water molecules in water clusters bears resemblance to that in the bulk5,6, it is crucial to understand the growth patterns of water clusters. As illustrated recently, the studies on hydrated clusters can provide multifaced values to help understanding the bulk properties, e.g., the water coordination structure around hydroxide in the cluster and aqueous solution is similar7; kosmotropic and chaotropic anions change local water structures distinctively different, amplifying the ion-specific effect at the cluster scale8,9. Water clusters can be studied by adding one water molecule at a time, which helps to determine the size-dependent development of the structural motifs that are difficult to extract from the condensed-phase experiments10,11,12,13,14,15,16,17. Spectroscopic studies of archetypal water clusters thus provided central benchmarks for developing accurate potential functions and universal models of water18,19.

The structures of small neutral water clusters have been studied experimentally and theoretically. The first transition from two-dimensional (2D) to three-dimensional (3D) structure was experimentally verified at the (H2O)5-6 region20,21,22,23,24,25,26, the next transition from all-surface to one-water-centered structure was theoretically predicted to occur at (H2O)1727, and the third transition from one-water-centered to two-water-centered structure was expected at (H2O)3028. The largest neutral water cluster for which the precise structure has been experimentally determined without environmental perturbation (i.e., interference-free) is (H2O)10 thus far29,30,31. An undecamer water cluster, (H2O)11, has hence become the long-standing goal of structural characterization for unraveling the cooperative interactions driven by subtle changes in the hydrogen-bonding topology.

Theoretical studies of (H2O)11 predicted 15 different isomer families based on their oxygen framework and hydrogen-bonding topology32,33,34,35,36,37,38,39,40,41,42,43,44. Quantum-chemical calculations with different methods and basis sets may give different relative energy sequences, which makes it difficult to accurately determine the structures. Structural characterization of (H2O)11 without interference from, e.g., an ultraviolet-chromophore label, a messenger tag, or a host matrix is a cumbersome experimental target, because of difficult size-selection. Infrared-ultraviolet (IR-UV) double resonance spectra of phenol-tagged (H2O)11 suggested the presence of “fused-cube” structures45. However, it was unclear whether these structures resulted from the strong attachment of the phenol16,46.

So far, the structures of interference-free neutral (H2O)11 have not been characterized experimentally. Here, we report a size-specific infrared (IR) spectroscopic study of interference-free neutral (H2O)11 using a scheme based on threshold photoionization with a tunable vacuum ultraviolet free electron laser (VUV-FEL). The agreement between experiment and theory leads us to identify three lowest-energy isomer families that are denoted as 515, 43′4, and 55′1 structures, which feature “5 + 1 + 5”, “4 + 3 + 4”, and “5 + 5 + 1” assembling of water molecule/cluster pairs, respectively (vide infra). These results provide important insights into the formation and growth mechanism of diverse HB network structures that are responsible for the complex properties of water.

Results

Assignment of IR spectra of the water undecamer

The experimental IR spectrum of (H2O)11 is shown in Fig. 1a. The corresponding band positions are listed in Table 1.

Fig. 1: Comparison of the experimental and calculated IR spectra of the water undecamer.
Fig. 1: Comparison of the experimental and calculated IR spectra of the water undecamer.
Full size image

a Experimental IR spectrum of (H2O)11, where the OH stretching fundamentals assigned to donor-free OH (F), double-donor OH stretch (D), and single-donor OH stretch (S) are indicated. b The simulated total IR spectrum of a 1 (11A): 0.8 (11B): 0.5 (11C) mixture of isomers and (c−e) simulated IR spectrum of each individual isomer, where the calculations were performed at the ab initio MP2/AVDZ level of theory, with the calculated harmonic vibrational frequencies scaled by 0.956.

Table 1 Experimental vibrational frequencies and band assignments for (H2O)11
Full size table

To assign the experimental spectrum and to identify the structures of existing isomers, theoretical studies were carried out to locate the global-minimum structure on the potential energy surfaces and the harmonic vibrational spectra for (H2O)11. The TGMin code with constrained basin-hopping Monte Carlo algorithm47,48,49 was used for the global-minimum isomer search, and ab initio MP2/aug-cc-pVDZ (AVDZ) and DLPNO-CCSD(T)/aug-cc-pVTZ (AVTZ) methods were used to calculate the energies and spectra. Our global-minimum structural search found 4521 independent structures for (H2O)11, which identified various low-lying isomers and also cover the previously-calculated isomers32,33,34,35,36,37,38,39,40,41,42,43,44. As shown in Fig. 2, the structures of the three lowest-energy isomer families for (H2O)11 (labeled 11A (515A-1), 11B (43′4A-1), and 11C (55′1A-1)) are predicted to be nearly isoenergetic within 0.3 kcal/mol at the MP2/AVDZ level, which are consistent with the previous calculations at the MP2/aug-cc-pVTZ and RI-MP2/complete basis set (CBS) levels40,43. The nomenclature for the structures of (H2O)11 follows the literature40,43, in which the individual digits signify the number of water monomers on a given horizontal plane, and the prime indicates that those monomers do not form a closed hydrogen-bond ring. The simulated IR spectra of the 11A, 11B, and 11C isomers are compared with the experimental spectrum in Fig. 1, and the corresponding harmonic vibrational frequencies in the OH stretching region are listed in Supplementary Tables 3−5, respectively. The three lowest-energy isomers of each family and their corresponding IR spectra are representatively illustrated in Supplementary Figs. 10 and 11, respectively.

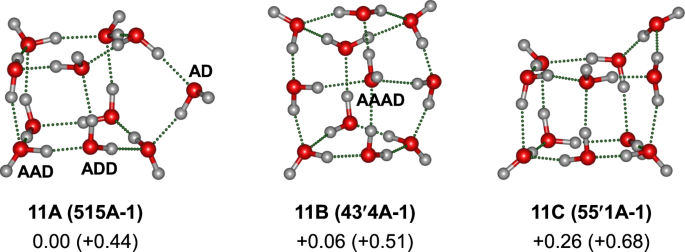

Fig. 2: Identified structures of (H2O)11 (O, red; H, light gray).
Fig. 2: Identified structures of (H2O)11 (O, red; H, light gray).
Full size image

Relative energies from MP2/AVDZ and DLPNO-CCSD(T)/AVTZ (in parenthesis) are listed in kcal/mol. The hydrogen-bonding sites are classified as AD, AAD, ADD, and AAAD configurations according to the number of proton-acceptor (A) and proton-donor (D) hydrogen bonds, respectively.

In the simulated IR spectrum of isomer 11A (Fig. 1c), the four intense bands of single H-donor OH stretching modes (2960, 3116, 3305, and 3352 cm−1, Supplementary Table 3) are consistent with the experimental values (2965, 3117, 3289, and 3343 cm−1, Table 1); the calculated double H-donor OH stretching modes (3394−3583 cm−1) agree with the experimental bands in the spectra range of 3390−3600 cm−1; the predicted bands of H-donor-free OH stretching modes (3699, 3708, and 3716 cm−1) are in excellent agreement with the experimental bands (3701 and 3715 cm−1). Analogously, the simulated IR spectra of isomers 11B and 11 C (Fig. 1d, e and Supplementary Tables 4 and 5) agree with the experimental one (Fig. 1a and Table 1). The best agreement between the experimental and simulated IR spectra is obtained when assuming a ratio of a 1 (11A): 0.8 (11B): 0.5 (11C) mixture of isomers (Fig. 1b), which is consistent with the calculated relative energies. Note that the estimated relative populations of isomers are slightly different from the Boltzmann distribution of an ideal gas (Supplementary Table 6). The simulated IR spectra of the structures of energetically higher isomer families (44′3′A-X) (Supplementary Fig. 11) exhibit some distinct bands that are not observed experimentally, indicative of trivial contribution to the experimental spectrum. Since the low-lying structures of the same isomer family have similar IR spectra due to similar geometries, unambiguous identification of all the other isomers of the 515A, 43′4A, and 55′1A families is cumbrous unless even higher experimental spectroscopic resolution becomes feasible. Thus, it is more rational to analyze the trend of structural motifs for large water clusters.

It can be concluded that the overall agreement of the calculated spectra of the 515A, 43′4A, and 55′1A isomer families with the experimental one is reasonable to confirm the assignment of these three structural motifs responsible for (H2O)11. Note that the simulated intensities of the 2960 cm−1 bands (single H-donor OH stretching modes) in the 11A and 11B isomers are much stronger than those in the experimental spectrum. It could be rationalized that the coupling between hydrogen-bond fluctuation and OH stretch broadens the OH stretching band. Furthermore, the fluctuation of single H-donor OH stretching mode is larger than that of double H-donor OH stretching mode. This makes it more difficult to directly compare the simulated and experimental intensities of vibrational bands of hydrogen-bonded molecular clusters, owing to the challenge of theory (anharmonicity, intermolecular zero-point motions, etc.) and the complexity of experiment (IR absorption combined with dissociation, intramolecular vibrational-energy redistribution (IVR), etc.), as reported previously29,50,51.

The 11A, 11B, and 11C isomers lie within 0.3 kcal/mol of each other, indicating that they can possibly coexist at the finite temperature of experimental conditions. As shown in Fig. 3, our MP2/AVDZ calculation shows that the 11B → 11A isomerization needs going through several transition states and intermediates, with the largest barrier of elementary process of 3.22 kcal/mol. The largest barrier of elementary process for the 11C → 11A isomerization is calculated to be 2.67 kcal/mol at the same theoretical level (Fig. 3). Such barriers might be sufficiently large so that the 11B and 11C isomers could be kinetically trapped by quenching the nonequilibrium species in the soft expansion of cold molecular beam52, which is reminiscent of the observation of low-lying structures of (H2O)n (n = 5−10) at finite temperature5,25,26,30,53,54,55.

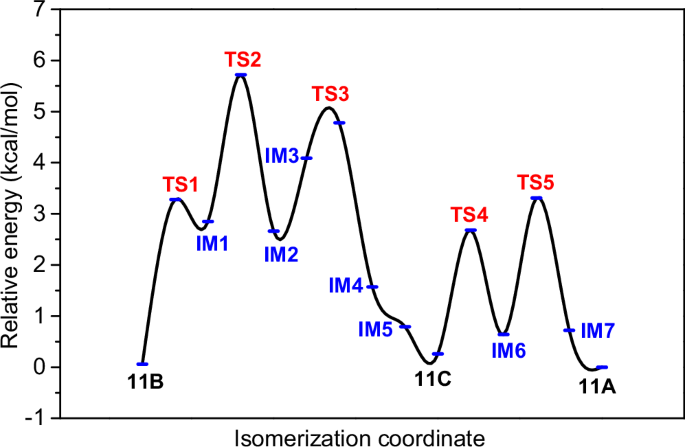

Fig. 3: Potential energy profiles for the isomerization between 11A, 11B, and 11 C for (H2O)11.
Fig. 3: Potential energy profiles for the isomerization between 11A, 11B, and 11 C for (H2O)11.
Full size image

Calculations were carried out at the MP2/AVDZ level of theory. The abbreviation “TS” stands for transition state and “IM” for intermediate. The corresponding structures are shown in Supplementary Fig. 12.

To assess the temperature effect on the isomer distribution, Gibbs free energies (ΔG) of isomers 11A, 11B, and 11C were calculated in the temperature range of 0–300 K and the results are shown in Supplementary Fig. 13. It turns out that the calculated free energy difference ΔG11B-11A and ΔG11C-11A does not vary noticeably below room temperature, indicating that the population of the 11A, 11B, and 11C isomers changes little at low temperature. Furthermore, the 11C isomer becomes the free-energy minimum above 500 K, which is consistent with the previous predictions43.

Analysis of the electronic structure

To elucidate the nature of the hydrogen-bonding interactions in the water undecamer, the electronic structures of the 11 A, 11B, and 11 C isomers were analyzed with adaptive natural density partitioning (AdNDP)56, principal interacting orbital (PIO)57, energy decomposition analysis-natural orbitals for chemical valence (EDA-NOCV)58, and natural bond orbital (NBO)59 methods, respectively. The AdNDP and PIO analyses of 11A, 11B and 11C are shown in Supplementary Figs. 14–16 and 17–19, respectively. As pointed out previously26,60, the HB bonding in the water clusters may be described by a three-center two-electron (3c2e) interaction featuring the delocalization of an adjacent oxygen lone pair (LP(O)) donor to the antibonding σ*(OH) region. Indeed, for 11A, five 3c-2e HB LP(O) → σ*(OH) on the top face, six 3c-2e HB LP(O) → σ*(OH) on the side face, and five 3c-2e HB LP(O) → σ*(OH) on the bottom face are located, as shown in Supplementary Fig. 14.

The contribution of HB to the total bonding in the 11A, 11B, and 11C isomers is predicted to be 96.0%, 95.1%, and 95.1% (Supplementary Table 7), respectively. As shown in Supplementary Figs. 14–16, the AdNDP results reveal extensive delocalized HB interactions in (H2O)11. The total second-order perturbation interaction energy of the 11A, 11B, and 11C isomers is calculated to be 315.25, 312.13, and 304.21kcal/mol (Supplementary Tables 8–10), respectively, which supports the trend of structural stability. The calculated Wiberg bond order (WBO) and natural hybrid orbitals (NHO) of these three isomers (Supplementary Tables 11–13) provide detailed bonding information that agrees well with the atomic distances listed in Supplementary Tables 8–10.

Discussion

The possible presence of the 11A (515A-1), 11B (43′4A-1), and 11C (55′1A-1) isomers in the measured spectra is intriguing, because no experimental evidence for the isomers of interference-free water undecamer has ever been observed. The two nearly-isoenergetic pentagonal prism isomers (10PPD1 and 10PPS1) were identified to be the dominated structures of (H2O)10, which were proposed to be the building blocks for larger hydrogen-bonding networks30,31. With this context, structural evolution from (H2O)10 to (H2O)11 is proposed as shown in Fig. 4.

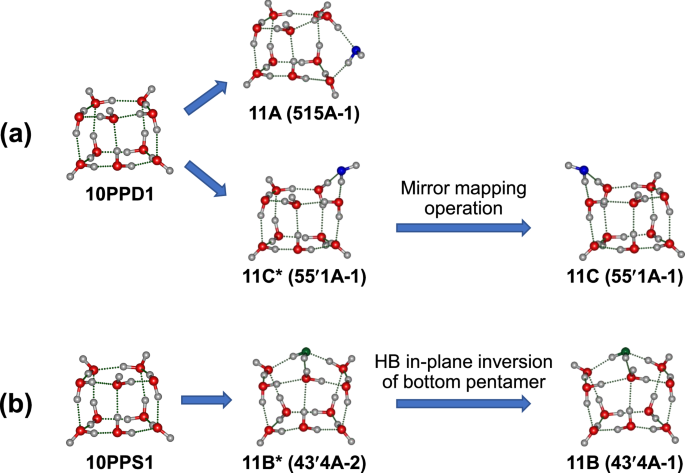

Fig. 4: A schematic representation of main pathways for the development of hydrogen-bond network structures from (H2O)10 to (H2O)11.
Fig. 4: A schematic representation of main pathways for the development of hydrogen-bond network structures from (H2O)10 to (H2O)11.
Full size image

a Pathway derived from the 10PPD1 structure of (H2O)10, in which the oxygen atom of the eleventh water molecule is indicated in blue. b Pathway derived from the 10PPS1 structure of (H2O)10, in which the oxygen atom of the eleventh water molecule is indicated in green.

As shown in Fig. 4a, the insertion of the 11th water molecule into a side HB edge of the global-minimum 10PPD1 of (H2O)10 forms the 11A (515A-1) isomer, which features a “5 + 1 + 5” assembling of two stacked 5-membered rings with an additional H2O on the side. The 11th molecule can also be inserted into a top HB edge of the 10PPD1 isomer of (H2O)10 (Fig. 4a), forming a 11C* structure (55′1-type). The mirror mapping operation of the 11C* isomer yields the 11C (55′1A-1) isomer, which exhibits a “5 + 5 + 1” assembling of water cluster pairs. As shown in Fig. 4b, the 11th water molecule is inserted into a side HB edge of the 10PPS1 isomer of (H2O)10, forming a 11B* structure (43′4A-2), which lies above the global-minimum isomer by 0.12 kcal/mol at the MP2/AVDZ level (Supplementary Fig. 10). The 11B* isomer undergoes the HB in-plane inversion of bottom pentamer to form the 11B isomer, which exhibits a “4 + 3 + 4” assembling of two 4-membered rings connected by a water trimer chain. As the 515A-1 isomer is predicted to be the global-minimum structure at low temperature, the “5 + 1 + 5” assembling of water cluster pairs appears to be the dominated motif in the development of hydrogen-bonding network structures. These results provide an essential picture of water-pair stacking and a prelude to the diverse structure of liquid water. In contrast, the highly-strained 4-membered ring motif (fused-cube) was assigned for the phenol-tagged (H2O)11 cluster45, indicative of a pronounced effect of phenol molecule on the influence of the water hydrogen-bonding network. The hydroxy group of phenol forms strong hydrogen bonds with the water molecules, which remarkably tune the internal energy and thereby affect the isomer distribution of water clusters16,61.

In summary, the VUV-FEL–based size-specific IR spectra of interference-free neutral (H2O)11 are observed for the OH stretches that are very sensitive to hydrogen-bonding environments. We have hereby identified the 515, 43′4, and 55′1 structural motifs of the three lowest-energy isomer families for (H2O)11, which feature “5 + 1 + 5”, “4 + 3 + 4”, and “5 + 5 + 1” assembling of water cluster pairs, respectively. Along with the previously-observed assembly pattern of “3 + 3” for (H2O)6, “4 + 4” for (H2O)8, and “5 + 5” for (H2O)10, the stacking pattern of small-sized water rings exhibits a vital role in the formation of hydrogen-bonding network structures. The present method, which integrates IR spectroscopy with a tunable vacuum ultraviolet free-electron laser and quantum-chemical studies, holds a promise for generalization to size-dependence study of various neutral hydrated clusters for exploring the stepwise mechanisms of solvation processes such as salt dissolution and acid dissociation.

Methods

Experimental methods

The experimental IR spectra of (H2O)11 were measured using a VUV-FEL-based IR spectroscopy apparatus62. The water-argon-helium mixture was prepared by using the ultrapure water with resistivity > 18 megohm-centimeters (MΩ-cm). In order to avoid condensation, the operating temperature of the entire gas inlet and the pulsed valve was kept at 353 K. Neutral water clusters were generated by supersonic expansions of a water-argon-helium mixture using a high-pressure pulsed valve (Even-Lavie valve, EL-7-2011-HT-HRR) that is capable of producing very cold molecular beam conditions63. The stagnation pressure was approximately 50 bar. The molecular beam passed through a 4 mm diameter skimmer (Beam Dynamics, Model 50.8) and an aperture with 3 mm opening. The extraction plates of reflectron time-of-flight mass spectrometer (TOF-MS) were powered by a high-voltage direct current (DC) of 2950 V. Ionic water clusters were deflected out of the molecular beam by the DC electric field of the extraction plates.

For the vibrational excitation of (H2O)11, we used a tunable IR laser. Subsequent photoionization of (H2O)11 was carried out with ~50 ns delay with a VUV-FEL light at 115.00 nm, forming (H2O)11+. When the resonant vibrational transition was evoked by the IR laser light and caused vibrational predissociation, a depletion of the selected neutral cluster mass signal can be detected. The IR spectrum of size-selected neutral water cluster (H2O)11 was obtained as a depletion spectrum of the ion signal intensity of (H2O)11+ as a function of IR wavelength. The VUV-FEL in the present experiment was operated at 20 Hz and IR laser was operated at 10 Hz. IR spectra were recorded in the difference mode of operation (IR laser on−IR laser off). IR and VUV power dependence of the signal was measured to avoid the saturation of vibrational excitation and photoionization. IR spectra were normalized with IR power.

As shown in Supplementary Figs. 1–2 and Supplementary Table 1, the rearrangement of (H2O)11+ (labeled 11A+) into [(H3O)(OH)(H2O)9]+ (iso 2) need go through several transition states and intermediates, with the largest barrier of elementary process of 4.03 kcal/mol at the MP2/aug-cc-pVDZ (MP2/AVDZ) level of theory. The largest barrier of elementary process for the [(H3O)(OH)(H2O)9]+ (iso 2) → [(H3O)(H2O)9(OH)]+ (iso 1) isomerization is calculated to be 7.37 kcal/mol at the same theoretical level. The calculated rate constant of unimolecular conversion and half-life time of reactant by using reaction path-variational transition state theory (RP-VTST) (Supplementary Table 2) indicate that when the temperature is lower than 80 K, there is a pretty large window of temperature for which the half-life time of the (H2O)11+ (11 A+) → [(H3O)(OH)(H2O)9]+ (iso 2) and [(H3O)(OH)(H2O)9]+ (iso 2) → [(H3O)(H2O)9(OH)]+ (iso 1) isomerization is longer than the millisecond time scale. The conditions with such temperature are available in the supersonic expansions, because the rotational temperature of clusters should be less than 10 K and the vibrational temperature could be higher (i.e., a finite temperature)26,63. Accordingly, it is reasonable to conclude that the (H2O)11+ (11 A+) cluster can reach the time-of-flight mass spectrometer (TOF-MS) detector. These results are consistent with previous observation of the (H2O)n+ clusters via the VUV near-threshold photoionization64,65,66.

Mass spectra obtained with different VUV wavelengths and beam conditions for neutral water clusters (H2O)n (n = 2−11) are shown in Supplementary Fig. 3. The assignment of chemical formula of clusters are discussed in Supplementary Information (Supplementary Figs. 4–7). It can be seen from Supplementary Fig. 8 that the intensity of the (H2O)11+ peak remarkably depletes with IR laser ON (e.g., at 3557 cm−1), whereas that of the H+(H2O)11 peak does not significantly change. As shown in Supplementary Fig. 9, the IR spectra of each individual cluster (H2O)n (n = 2−11) are all different from each other, indicating that these IR spectra are free from spectral contamination of larger water clusters, as demonstrated in our previous structural characterization of (H2O)n (n = 2−10)26,31,53,54,55,62.

The tunable VUV-FEL light was generated by the Dalian Coherent Light Source (DCLS) facility. With proper optimization of the LINAC (linear accelerator), a high-quality beam with the emittance down to ~1.5 mm milli-radians, a projected energy spread of ~1%, and a pulse duration of ~1.5 ps can be obtained. An online VUV spectrometer was used to record the spectral characteristics (wavelength, energy, time profile) of every VUV-FEL pulse. The tunable IR laser beam was generated by a Potassium Titanyl Phosphate (KTP)/Potassium Titanyle Arsenate (KTA) optical parametric oscillator/amplifier system (OPO/OPA, LaserVision) pumped by an injection-seeded Nd:YAG laser (Continuum Surelite EX). This system is tunable from 700 to 7000 cm−1 with a line width of 1 cm−1. The wavelength of the OPO laser output was calibrated using a commercial wavelength meter (HighFinesse GmbH, WS6-200 VIS IR).

Theoretical methods

Global-minimum structural search based on constrained basin-hopping Monte Carlo algorithm together with quantum-mechanical energies calculated with density functional theory (DFT) was performed for (H2O)11 using TGMin code47,48,49. Quantum chemical calculations with wavefunction theory (WFT) were carried out to refine the energies of the low-lying isomers (within 5 kcal/mol) at the ab initio MP2/ aug-cc-pVDZ (abbreviated as MP2/AVDZ throughout) level using the Gaussian 16 package67. Harmonic vibrational frequencies were calculated with analytical second derivatives of the total energy. A scaled factor of 0.956 was used for harmonic vibrational frequencies to account for the systematic errors in the calculations68. The resulting stick spectra were convoluted by a Gaussian line shape function with a 6 cm−1 full width at half-maximum (FWHM). The MP2/AVDZ relative energies were calculated at 0 K with corrections of zero-point vibrational energies. The single-point ab initio DLPNO-CCSD(T)/aug-cc-pVTZ (AVTZ) relative energies were calculated on the MP2/AVDZ optimized geometries with the ORCA program69,70,71, which included the MP2/AVDZ zero-point vibrational energy corrections. Gibbs free energies G(T) = U(T) + PV–TS were calculated with statistical mechanics approach, where U, S, P, V, and T stand for the internal energy, entropy, pressure, volume, and temperature, respectively. Rate constant of unimolecular conversion and half-life time of reactant were calculated by using reaction path-variational transition state theory (RP-VTST) at the MP2/AVDZ level of theory with the GAUSSRATE and POLYRATE programs72,73.

The nature of the hydrogen bonding interaction in (H2O)11 was analyzed with the natural bond orbital (NBO)59, adaptive natural density partitioning (AdNDP)56 and principal interacting orbital (PIO)57 methods at the MP2/AVDZ level, and the energy decomposition analysis–natural orbitals for chemical valence (EDA-NOCV)58 method at the DFT level with GGA PBE-D4/TZ2P approach, respectively. The EDA-NOCV scheme provides both qualitative density (Δρorb) and quantitative energy (ΔEorb) information about the strength and contribution of orbital interactions in chemical bonding, as demonstrated in the study of water clusters (H2O)n (n = 2−10)26,31,53,54,55. We used the unrelaxed water fragments from the optimized structures to derive the intrinsic binding energies of water clusters.
