Introduction

Topological magnetic solitons, embodied by skyrmions and antiskyrmions, are localized particle-like magnetic structures that boast small size, fascinating electromagnetic properties, and tunability through external electrical stimuli1,2,3,4,5. These magnetic solitons have the potential to serve as versatile information carriers for various functions, including memory, storage, and logic operations6,7,8,9.

The electrical manipulation of skyrmions and antiskyrmions has been a long-standing area of interest for practical device applications. Recent research has demonstrated diverse electrical control over skyrmions, encompassing their creation10,11,12,13,14,15,16,17, deletion10,11,12,13,14, and movement14,15,16,17,18,19,20,21,22, which align with the fundamental device functions of writing, deleting, and addressing, respectively. Vortex-like magnetic solitons are typically described by the polarity P, vorticity v, and topological charge Q, and Q = Pv. Magnetic skyrmions and antiskyrmions are distinguished by their vorticity, which is consistent across other condensed matter systems23,24,25. Magnetic skyrmions are fundamentally categorized by their helicity into two types: Bloch and Néel. In contrast, magnetic antiskyrmions possessing an opposite sign of vorticity, observed in noncentrosymmetric magnets with anisotropic D2d interactions, possess opposite topological charges Q for the same polarity P26,27,28. We note that the classification of skyrmions and antiskyrmions in FeGe magnets, as defined in prior work29, is based on topological charge—a scheme that differs fundamentally from the one employed in our present study.

Antiskyrmions have been observed in a handful of non-centrosymmetric magnets, like Mn-Pt-Sn and Fe-Ni-Pd-P alloys30,31,32. Due to intricate competing magnetic interactions, it has been established that multiple magnetic solitons, including dipolar skyrmions and bubbles, can coexist with antiskyrmions33,34,35,36,37. It is important to note that skyrmion stabilization in antiskyrmion-hosting material systems arises not from the Dzyaloshinskii-Moriya interaction (DMI), but instead shares the same origin as traditional bubbles in centrosymmetric uniaxial magnets. Magnetic bubbles are typically observed in centrosymmetric uniaxial magnets38,39. They fall into two categories: type-I bubbles and type-II bubbles. Because type-I bubbles share identical polarity, vorticity, and integer topological charge (Q = 1 or −1) with chiral-Bloch-twisted skyrmions, they are typically classified as ‘skyrmions’ in antiskyrmion-hosting material systems. Conversely, topologically trivial type-II bubbles (Q = 0) retain the conventional ‘bubble’ designation33,34,35,36,37,40,41. Moreover, the additional anisotropic DMI in D2d/S4-symmetric systems distorts type-I and II bubbles from circular to elliptical shapes. Different from the dipolar skyrmions and bubbles, magnetic antiskyrmions with square shapes are mainly supported by DMI.

A pioneering work has demonstrated that coexisting magnetic solitons enable information encoding via distinct topological charges Q42. Consequently, manipulating these solitons topologically represents a promising approach, previously explored using external magnetic fields or thermal gradients33,34,35,36,43, these methods lack direct compatibility with high-speed electronic devices. Theoretical studies have revealed intriguing current-induced dynamics of antiskyrmions, such as the antiskyrmion Hall effect and the creation of skyrmion-antiskyrmion pairs42,43,44,45,46,47. Beyond electrical creation and deletion of antiskyrmions, these systems also enable electrically driven skyrmion-antiskyrmion and antiskyrmion-bubble transformations, a capability not previously achieved in conventional skyrmion-hosting materials. The experimental electrical manipulation of antiskyrmions remains challenging, with only recent studies exploring the current-induced motion of antiskyrmions confined within a helix48,49. The controlled electrical creation, deletion, and topological transformations of individual magnetic antiskyrmions have yet to be achieved.

In this study, we demonstrate the dynamics of a single antiskyrmion confined within an elemental (Fe0.67Ni0.3Pd0.07)3P (FeNiPdP) lamella nanostructure during the application of nanosecond current pulses. Under a fixed magnetic field, we achieve the creation and deletion of a single antiskyrmion by alternating the density of single current pulses. Additionally, we realize a variety of current-controlled topological magnetic transformations among individual antiskyrmions, skyrmions, bubbles, and ferromagnets (FMs). Our findings showcase the versatility of current-controlled antiskyrmion dynamics, which could pave the way for antiskyrmion-based topological spintronic devices.

Results

Magnetic hysteresis in the nanostructured cuboid

We grew FeNiPdP bulk single crystals using the self-flux method. Magnetization measurements at 100 mT reveal a Curie temperature of approximately 390 K (Supplementary Fig. 1). Magnetic field-dependent magnetization curves along the c-axis and in the ab-plane demonstrate perpendicular magnetic anisotropy across the measured temperature range (2–400 K). The uniaxial magnetic anisotropy constant (Ku) was calculated from the difference in the areas under the magnetization curves \({\int }_{0}^{{B}_{{{\rm{Sat}}}}}M(B){{\rm{d}}}B\) along the c-axis and perpendicular to it, up to saturation \({B}_{{{\rm{Sat}}}}\) (Supplementary Fig. 1).

We fabricated highly confined FeNiPdP nanostructured cuboids with [001] out-of-plane orientation. Electron diffraction and high-resolution transmission electron microscopy (TEM) confirm cuboid edges closely aligned with [110] and [\(1\bar{1}0\)] crystallographic directions (Supplementary Fig. 2). Lattice parameters a and b were both determined as 0.92 nm, matching established values37. The period (λ) of zero-field stripe domains in a large FeNiPdP lamella is about 200 nm in the measured temperature range from 95-350 K (Supplementary Fig. 3). Within the rectangle dimension of about 2λ−3λ, the confined FeNiPdP cuboid stabilizes a single magnetic soliton. Around and below the critical size (length/width ~1λ ≈ 200 nm), edge-confined fractional half-antiskyrmion emerges (Supplementary Fig. 4)50. Conversely, dimensions > 3λ permit multiple solitons, including skyrmion-antiskyrmion pairs under field variation (Supplementary Fig. 5).

Initially, we investigated how magnetic fields influence the evolution of magnetism within a 450 nm FeNiPdP nanostructured cuboid at a small tilted field angle 1.5°, defined as the angle between the external magnetic field and the normal [001] axis of the thin cuboid plane, as shown in Fig. 1. At zero magnetic field, we observe a distorted U-shaped spin texture (Fig. 1b). Because the U-shaped spin texture originates from the deformation of the rectangular antiskyrmion during the field-decreasing process and is topologically equivalent to the antiskyrmion, we call it U-antiskyrmion. As we gradually increase the field, the U-shaped antiskyrmion first contracts and morphs into a rectangular antiskyrmion (Fig. 1a). With further increments in the magnetic field, we obtain multiple topological transformations: the antiskyrmion transforms into a bubble, then a skyrmion, and ultimately into FM. Conversely, during the field-decreasing process, we observe notable hysteresis. Specifically, FM remains stable in fields above 380 mT, transitioning back to an antiskyrmion once the field decreases below 380 mT (Fig. 1b). As the field approaches zero, the rectangular antiskyrmion expands and reverts to a U-shaped antiskyrmion. This field-induced magnetic hysteresis (Fig. 1c) hints at the coexistence of four distinct states—antiskyrmion, skyrmion, bubble, and ferromagnet—at a fixed field. Our simulations accurately reproduce the transition from the U-shaped antiskyrmion at low magnetic fields to the rectangular-shaped antiskyrmion at high magnetic fields (Fig. 1e, f). A detailed analysis of the energy terms indicates that the U-shaped antiskyrmion is predominantly stabilized by demagnetization and DMI energies (Supplementary Fig. 6). Moreover, at low magnetic fields, uniaxial anisotropy also contributes to the greater stabilization of the U-shaped antiskyrmion compared to the rectangular-shaped antiskyrmion. The total free energy of the U-shaped antiskyrmion is lower than that of the rectangular-shaped antiskyrmion in the low-magnetic-field regime, explaining the formation of U-shaped antiskyrmions at low magnetic fields.

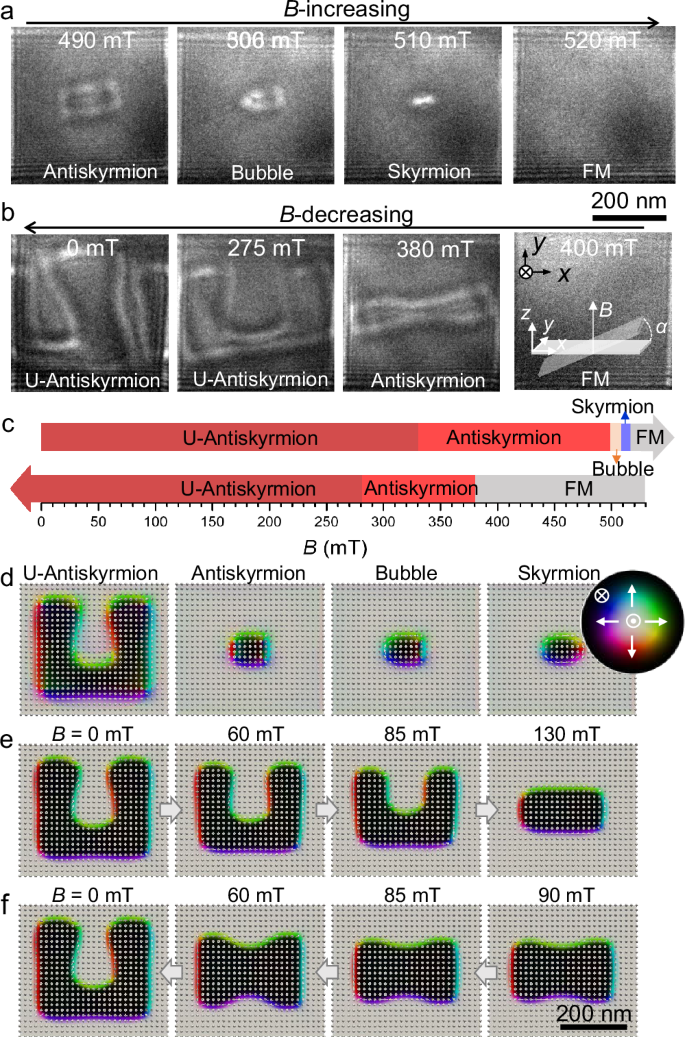

Fig. 1: Magnetic hysteresis in the FeNiPdP nanostructured cuboid.
Fig. 1: Magnetic hysteresis in the FeNiPdP nanostructured cuboid.
Full size image

a Magnetic evolution in the field-increasing process. b Magnetic evolution in the field-decreasing process. Field tilt angle, 1.5°. The Lorentz Fresnel images in (a) and (b) were taken at a defocus distance of −500 μm. The inset shows a schematic of the experimental field tilt angle, α. The in-plane magnetic field component is along the in-plane x-axis. c Summary of the stable diagram in the field-increasing and field-decreasing processes. Temperature in (a)–(c), 95 K. d Corresponding middle-layer magnetizations of simulated magnetic U-antiskyrmion at 0 mT, antiskyrmion at 290 mT, bubble at 295 mT, and skyrmion at 300 mT. e Field-induced morphological evolution starting from a U-shaped antiskyrmion during increasing field. f Morphological evolution starting from a rectangular antiskyrmion during decreasing field. The color in (d)–(f) represents magnetization orientation according to the colorwheel.

Typically, such magnetic field-induced topological transformations and magnetic hysteresis are observed across a wide temperature range, from 95 to 340 K (Supplementary Fig. 7). The threshold magnetic fields for topological transformations decrease as the temperature rises (Supplementary Fig. 7). We first show the field-induced magnetic hysteresis. As the field increases from 385 to 510 mT, the initial antiskyrmion transforms into a skyrmion. Moreover, the skyrmion remains stable when the field is decreased back to 385 mT (Supplementary Fig. 8). By utilizing this field-swapping method, we can obtain all four states—antiskyrmion, skyrmion, bubble, and FM—at the same field value (Supplementary Fig. 8). We also explore thermal hysteresis at a fixed field (Supplementary Figs. 9 and 10). We first set antiskyrmion as the initial state at 95 K. In the temperature-increasing process under the application of a fixed field of 417 mT, the antiskyrmion can transform into a bubble at 245 K, and the bubble state remains stable in the temperature-decreasing process. Similarly, the skyrmion and FM states at 95 K and 417 mT can be achieved in a temperature-decreasing process from 250 K and 261 K, respectively. The field- and thermal-induced magnetic hysteresis proves the coexistence of four distinct states at the same field and temperature, enabling the potential controlled transformations between the four states.

We further characterize field- and temperature-dependent antiskyrmion/skyrmion dimensions, defined as lengths Lx and Ly along the [110] and [\(1\bar{1}0\)] crystallographic axes (Supplementary Figs. 11 and 12). At low fields, antiskyrmions and skyrmions manifest distinct anisotropies (Lx ≠ Ly) arising from dipolar interactions and geometrically tunable via nanostructuring. This anisotropy persists for field tilt angles α ≈ 0°–2.5°, with antiskyrmion long axes consistently aligned to the nanostructure’s long axis. Increasing α at a fixed field first transforms antiskyrmions to bubbles while preserving shape anisotropy (Supplementary Fig. 13); further tilt reorients the bubble’s long axis toward the in-plane field component to minimize Zeeman energy. Field elevation reduces both Lx and Ly, driving convergence toward cubic symmetry at high fields (Supplementary Figs. 11 and 12). Upon increasing the temperature, the transformation field decreases, but the skyrmion/antiskyrmion size follows a similar variation rule in all the measured temperature range. Simulations confirm that nanostructure geometry governs antiskyrmion shape anisotropy (Supplementary Fig. 14).

We then delve into the stability of different magnetic solitons in a strongly confined nanostructure through simulations, at a slight field tilt angle of 2°. By examining magnetic field-dependent evolution and calculating the total free energy, we identify the most stable phases across various field regions (Supplementary Fig. 15). At lower fields, antiskyrmions tend to adopt a distorted U-shaped geometry (Fig. 1d). As the field strengthens, the most stable phase sequentially transitions to a rectangular antiskyrmion, then a bubble, another antiskyrmion, and ultimately the FM state. These field-dependent magnetic profiles (Supplementary Fig. 16) align well with our experimental Fresnel images and retrieve magnetizations of field-driven magnetic evolution (Fig. 1). At low magnetic fields, antiskyrmions are energetically favored over skyrmions due to competing energy contributions (Supplementary Fig. 17). The DMI stabilizes spin twists with anti-vorticity within the domain walls, while exchange energy favors skyrmions because antiskyrmions incur higher exchange costs from Bloch lines. Detailed energy analysis confirms demagnetization and uniaxial anisotropy energies further stabilize antiskyrmions at low fields. Conversely, Zeeman energy preferentially stabilizes skyrmions at low fields. The net energy balance ultimately determines antiskyrmion predominance.

Notably, the field-driven energy evolution can be adjusted by varying the angle of the applied field (Supplementary Fig. 15). A slight tilt is necessary for the four-state transformation. The four-state transformation occurs for field tilt angles of up to approximately 3°. In the absence of a field tilt, the bubble state cannot serve as an intermediate phase during the transformation from antiskyrmion to skyrmion (Supplementary Fig. 15b). Consequently, the field increase yields a direct three-state sequence: antiskyrmion to skyrmion to FM state. Conversely, under a large tilt magnetic field, the skyrmion phase cannot remain the most stable phase across all field regions (Supplementary Fig. 15f), producing a distinct transformation pathway: antiskyrmion to bubble to FM state. The coexistence of different metastable phases within the same field regions accounts for magnetic hysteresis (Fig. 1c). Our experiments confirm the theoretically predicted dependence of magnetic field-driven topological transformations on tilt angle (Supplementary Fig. 18).

Current-controlled dynamics of single antiskyrmions

We delve deeper into the behavior of antiskyrmions in response to external pulsed electrical stimuli. Starting with the FM state as our initial condition at a constant field of 385 mT with a tilted angle of 1.5°, we then subject the FeNiPdP microdevice to pulsed currents with a duration of 40 ns (Fig. 2a and Supplementary Movie 1). The FM state exhibits no dynamic response until the current density j exceeds jc1 (~5.8 × 1010 A/m2). The creation of an antiskyrmion is observed when the current density j surpasses jc1. As we further elevate the current density, the antiskyrmion transforms into a bubble at j > jc2 (~23.8 × 1010 A/m2), then into a skyrmion at j > jc3 (~24.4 × 1010 A/m2), and ultimately reverts to the FM state at j > jc4 (~25.5 × 1010 A/m2). We thus designate the symbols jc1, jc2, jc3, and jc4 to represent the minimum current densities required for the transformations: FM to antiskyrmion, antiskyrmion to bubble, bubble to skyrmion, and skyrmion back to FM, respectively. Such four-state transformations can also be realized when the current orientation is reversed (Supplementary Fig. 19). The current density dependence of topological transformations and magnetic hysteresis suggests the electrical control of deterministic topological states by altering the current density.

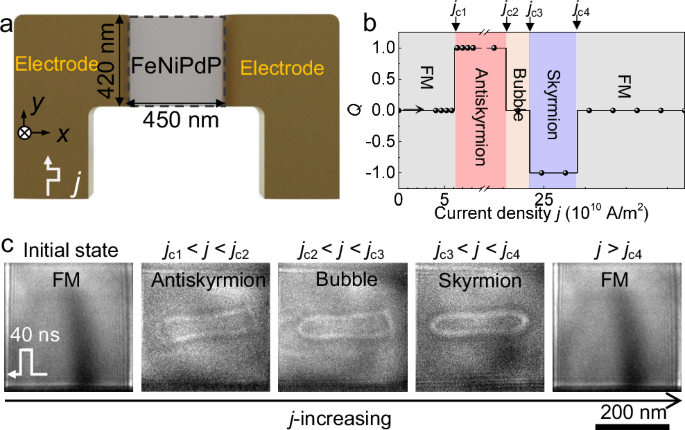

Fig. 2: Current density j dependence of topological transformations.
Fig. 2: Current density j dependence of topological transformations.
Full size image

a Schematic profile for the FeNiPdP device. b Dependence of topological states on current density starting from Q = 0 FM state in the j-increasing process. c Representative Fresnel imaging of FM, antiskyrmion, bubble, skyrmion, and FM in the j-increasing process. Pulse duration 40 ns. Magnetic field, 385 mT. Defocus distance, −500 μm. Field tilt angle, 1.5°. Temperature, 95 K.

We have demonstrated that transitions from FM states to antiskyrmions can be achieved by applying a pulsed current with a density within the range of \(j\in \left[{j}_{{{\rm{c}}}1},{j}_{{{\rm{c}}}2}\right]\) (Fig. 2). Starting with an antiskyrmion as the initial state, we can achieve an antiskyrmion-to-FM transformation by applying a single current pulse with \(j > {j}_{{{\rm{c}}}4}\). By alternating pulsed currents with densities in the ranges \(j\in \left[{j}_{{{\rm{c}}}1},{j}_{{{\rm{c}}}2}\right]\) and \(j > {j}_{{{\rm{c}}}4}\), we can reversibly create and delete individual magnetic antiskyrmions (Fig. 3, Supplementary Fig. 20a, and Supplementary Movie 2).

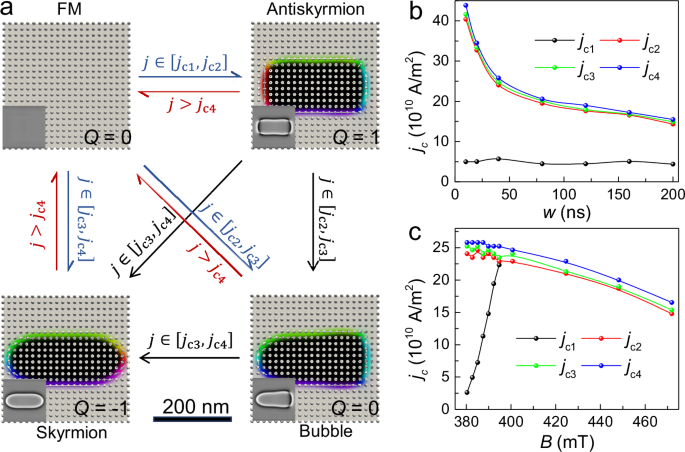

Fig. 3: Current-controlled reversible topological transformations occur between four unique phases within the FeNiPdP cuboid.
Fig. 3: Current-controlled reversible topological transformations occur between four unique phases within the FeNiPdP cuboid.
Full size image

a Summary for current-controlled topological transformations among single antiskyrmion, skyrmion, bubble, and FM. Insets show the corresponding defocused Fresnel images. A single current pulse with j > jc4 deletes antiskyrmions, skyrmions, or bubbles. Writing requires single pulses: antiskyrmions with j ∈ [jc1, jc2], bubbles with j ∈ [jc2, jc3], and skyrmions with j ∈ [jc3, jc4]. Single-pulse transformations include: antiskyrmion to skyrmion (j ∈ [jc3, jc4]), antiskyrmion to bubble (j ∈ [jc2, jc3]), and bubble to skyrmion (j ∈ [jc3, jc4]). Two-step transformations require sequential pulses: skyrmion to antiskyrmion (first j > jc4 then j ∈ [jc1, jc2]), bubble to antiskyrmion (first j > jc4 then j ∈ [jc1, jc2]), and skyrmion to bubble (first j > jc4 then j ∈ [jc2, jc3]). b Pulse duration w dependence of threshold transformation current density jc. Magnetic field B, 385 mT. c Magnetic field B dependence of the threshold transformation current density jc. Pulse duration w, 40 ns. Field tilt angle, 1.5°. Temperature, 95 K.

We have shown that during an increase in current density (j-increasing process), an antiskyrmion can transform into a skyrmion through an intermediate bubble state. With an antiskyrmion as the starting point, applying a single current pulse with \(j\in \left[{j}_{{{\rm{c}}}3},{j}_{{{\rm{c}}}4}\right]\) results in an antiskyrmion-to-skyrmion transformation (Fig. 3). However, directly transitioning from a skyrmion to an antiskyrmion through a single electrical pulse is not feasible. Instead, we achieve the skyrmion-to-antiskyrmion transformation through a two-step process: first, we apply a single current pulse with \(j > {j}_{{{\rm{c}}}4}\) to convert the skyrmion to an FM state, and then we apply another single current pulse with \(j\in \left[{j}_{{{\rm{c}}}1},{j}_{{{\rm{c}}}2}\right]\) to transform the FM state into an antiskyrmion. In summary, using a double-pulsed current with varying density, we can realize the skyrmion-to-FM-to-antiskyrmion transformation (Supplementary Fig. 20b and Supplementary Movie 3).

To achieve skyrmion states, we can consistently apply a single current pulse with \(j\in \left[{j}_{{{\rm{c}}}3},{j}_{{{\rm{c}}}4}\right]\), regardless of whether the initial state is FM, antiskyrmion, or bubble. Similarly, to attain the FM state, we can always use a single current pulse with \(j > {j}_{{{\rm{c}}}4}\), regardless of whether the starting state is antiskyrmion, bubble, or skyrmion. In contrast, achieving the antiskyrmion state necessitates starting from an FM state and applying a single current pulse with \(j\in \left[{j}_{{{\rm{c}}}1},{j}_{{{\rm{c}}}2}\right]\). The bubble state can only be achieved from an initial FM or antiskyrmion state using a single current pulse with \(j\in \left[{j}_{{{\rm{c}}}2},{j}_{{{\rm{c}}}3}\right]\). By varying the pulsed current density, we can realize all reversible transformations between four distinct states, including bubble-FM (Supplementary Fig. 20c and Movie 4), skyrmion-FM (Supplementary Fig. 20d and Movie 5), antiskyrmion-bubble (Supplementary Fig. 20e and Movie 6), and skyrmion-bubble (Supplementary Fig. 20f and Movie 7).

Our voltage source specifications (2-200 ns pulse duration range) permit current-controlled ultrafast topological transformations across this full temporal window (Fig. 3b and Supplementary Fig. 21). As w increases, \({j}_{c1}\) remains stable around 5.0 × 1010 A/m2, while \({j}_{c2}\), \({j}_{c3}\), and \({j}_{c4}\) all decrease (Fig. 3b). We also investigate the dependence of threshold current density (\({j}_{c}\)) on magnetic field (B), as shown in Fig. 3c. As B increases, \({j}_{c1}\) rises, while \({j}_{c2}\), \({j}_{c3}\), and \({j}_{c4}\) all decline. These differing trends in \({j}_{c}\) concerning w and B suggest distinct physical mechanisms underlying the electrically controlled topological transformations. Across a temperature range of 100 to 300 K, the dependence of threshold current densities (\({j}_{c1},\) \({j}_{c2}\), \({j}_{c3}\), and \({j}_{c4}\)) on pulse duration w and magnetic field B follow similar patterns (Supplementary Fig. 22). Notably, current-controlled topological transformations among individual antiskyrmions, skyrmions, bubbles, and FM states can be reliably reproduced at room temperature (Supplementary Movie 8).

Furthermore, these current-controlled transformations are highly reproducible in similar devices (Supplementary Figs. 22 and 23). For a large nanostructure with a length × width of 730 nm × 730 nm, a current pulse with a high current density (37.9 × 1010 A/m2) reliably erases all magnetic solitons (Supplementary Fig. 24). However, these larger nanostructures host diverse magnetic states with varying soliton counts and topologies. Consequently, small current pulses applied to high-energy metastable FM states yield stochastic outcomes, generating 2–4 coexisting solitons (antiskyrmions, skyrmions, and bubbles) with unpredictable configurations.

In accordance with field tilt angle dependence on static field-driven transformations, the current-controlled multi-state transformations are also affected by the tilted field. Our results show distinct operational regimes for a fixed field of 417 mT (Supplementary Fig. 25): below 1.5° enables 3-state transformations (Antiskyrmion ⇄ Skyrmion ⇄ FM); between 1.5° and 3.0° enables 4-state transformations (Antiskyrmion ⇄ Skyrmion ⇄ Bubble ⇄ FM); and above 3.0° enables 3-state transformations (Antiskyrmion ⇄ Bubble ⇄ FM). Therefore, antiskyrmion-skyrmion conversion requires a small field tilt angle, antiskyrmion-bubble conversion requires a large field tilt angle, while antiskyrmion-FM conversion is robust across at all measured angular range. The four-state transformations necessitate a small field tilt, achievable with components like rotatable stages, though this adds complexity to device design. In contrast, three-state transformations (skyrmion–antiskyrmion–FM) do not require field tilting, enabling a more streamlined device architecture.

Physical origin of the topological magnetic transformations

We finally explore microscopic mechanisms governing current-induced topological transformations among individual antiskyrmions, skyrmions, bubbles, and FM states. In low-field regions, the rectangular antiskyrmion exhibits the lowest energy, while the FM state has the highest. Starting with the FM state, we investigate its dynamic response to Zhang-Li spin-transfer torque (STT) by applying an in-plane current51, as shown in Fig. 4a, c, and Supplementary Movie 9. Our findings indicate that a nucleation seed forms during the excitation of a spin-polarized current. This seed rapidly expands to create a closed domain with intricate domain walls featuring multiple Bloch points. These complex domain walls do not represent the lowest energy state and eventually transform into an antiskyrmion with Q = 1. The oscillation of topological charge observed between 1.4 and 2.4 ns (Fig. 4c) results from annihilation of additional high-energy Bloch points within the initially complex domain walls. Our simulations reveal that the FM-to-antiskyrmion transformation occurs on a very short timescale. For current pulses >2 ns, simulations show pulse-duration-independent threshold current densities for FM-to-antiskyrmion transformation (Supplementary Fig. 26), consistent with our experimental data (Fig. 3b). While prior studies demonstrated ultrafast skyrmion generation using sub-ns pulses11, we find that sub-ns antiskyrmion creation via STT demands higher current densities (Supplementary Fig. 26). Furthermore, as the magnetic field increases, our simulations show an increase in jc1 (Supplementary Fig. 27), which is in line with experimental results (Fig. 3c).

Fig. 4: Simulated STT-induced FM-antiskyrmion transformations.
Fig. 4: Simulated STT-induced FM-antiskyrmion transformations.
Full size image

a,b Time t dependence of total free energy and topological charge Q during the FM-antiskyrmion transformation by applying an in-plane current with j = 5.0 × 1011 A/m2. (a) FM-to-antiskyrmion. Magnetic field B, 85 mT. (b) Antiskyrmion-to-FM. Magnetic field B, 85 mT. c,d Representative middle-layer magnetic configurations during the FM-antiskyrmion transformation. (c) FM-to-antiskyrmion. (d) Antiskyrmion-to-FM. Field tilt angle, 2°.

In contrast, we attribute the transformation from antiskyrmion to bubble to skyrmion to FM state to the combined effects of Joule heating and STT. Our experiment has shown magnetic hysteresis during the temperature-varying process at a constant magnetic field (Supplementary Figs. 8 and 9). Applying current pulses also results in a temperature increase due to Joule heating. The larger the current density, the greater the temperature rise52. Once the nanosecond current pulse is turned off, the temperature returns to normal. This process aligns well with the static magnetic evolution observed during temperature changes. Consequently, during ns-duration current pulses, Joule heating contributes significantly to the observed reduction in magnetic soliton size. Upon current termination, both the temperature and soliton size recover. The critical current densities jc2, jc3, and jc4 all decrease as pulse duration w increases (Fig. 3b), which is in line with the typical Joule heating effect. Furthermore, the thermally induced transformation must follow the sequence of antiskyrmion, bubble, skyrmion, and finally FM. States later in the sequence are more stable in high-field regions at a fixed temperature or in high-temperature regions at a fixed field. Here, we establish a current-induced temperature increase based on the experimental temperature dependence of magnetic domain evolution (Supplementary Fig. 9). When the temperature rises from 95 to 245 K at a fixed magnetic field, the antiskyrmion transforms into a bubble. Applying a 40-ns current pulse with a critical current density of about 2.4 × 1011 A/m2 also induces the antiskyrmion-to-bubble transformation. This equivalence implies that such a current pulse induces a temperature rise of approximately 150 K. Furthermore, using the experimental device geometry and material parameters, we simulated the transient temperature variation during pulsed current injection via multiphysics field simulations (Supplementary Fig. 28)53. Our simulations confirm that a 40-ns pulse at this critical current density generates an average temperature rise of about 200 K, comparable with our experimental estimate (~150 K). Critically, STT efficiency scales with current density, enabling sequential antiskyrmion→bubble→skyrmion→FM transformations through synergistic Joule heating and STT effects. During current pulses, Joule heating dynamically reshapes the magnetic energy landscape, shifting the energy minimum from antiskyrmion to bubble to skyrmion to FM during thermal warming at fixed field (Supplementary Fig. 29). STT subsequently drives transitions from metastable states to the new ground state. Micromagnetic simulations confirm reversibility upon energy landscape modification (Fig. 4d), with field-increase behavior at fixed temperature (Supplementary Fig. 15) mirroring thermal evolution at a fixed field (Supplementary Fig. 29): fields of 310 mT stabilize the FM state, permitting STT-driven antiskyrmion-to-FM transformation. Thus, antiskyrmion→bubble→skyrmion→FM transformations could arise from the two-step mechanism comprising: (1) Joule-heating-induced energy landscape modification and (2) STT-mediated transitions toward equilibrium states.

A low-energy state at high temperatures can persist as a metastable high-energy state even after temperature recovery due to magnetic hysteresis. However, thermal heating effects do not support the reverse transformation from FM to skyrmion, bubble, and then antiskyrmion. Thanks to another mechanism-dominated transformation from FM to antiskyrmion (Fig. 4), we can achieve the reverse transformation from FM to skyrmion or bubble, with the antiskyrmion state serving as an intermediate. The Joule thermal heating is determined only by the density and is not dependent on current orientation. Besides, STT acts as an external stimulus to drive the transformation from the metastable phase to the most stable phase, which is shown not to be dependent on current orientation (Supplementary Fig. 26). Thus, the four-state mutual transformations are not strongly dependent on the current orientation (Supplementary Fig. 19).

Importantly, the definitions of antiskyrmion, skyrmion, and bubble apply exclusively to the middle layers of the FeNiPdP structure. To minimize magnetic dipole-dipole interactions, surface layers consistently adopt Néel-twisted skyrmion configurations with Q = −1 (Supplementary Fig. 30)35,41. Consequently, mutual transformations between antiskyrmion, skyrmion, and bubble states alter the topological charges only in the middle layers, while the surface layers retain their skyrmionic topology. We therefore present the representative 2D magnetization of the middle layer (Figs. 1, 3 and 4), which captures the essential topological transformations. The simulated and observed dynamics of these 3D inhomogeneous states under in-plane current are governed by the interplay of Zhang-Li STT and the system’s free energy landscape, reflecting an ensemble-averaged response. For instance, a hybrid antiskyrmion tube with surface Néel-type skyrmions can exhibit a Hall balance, as previously identified35.

Discussion

In summary, for the first time, we fulfill the fundamental electrical operations on individual antiskyrmions, including reversible creation, deletion, and topological transformations with skyrmions and bubbles in a nanostructured element. We have established the stabilization mechanisms and mutual topological transformations of individual magnetic solitons in the strongly confined elemental nanostructure as a function of temperature and magnetic field. These current-controlled topological transformations exhibit great versatility and can be achieved over a broad temperature range, including room temperature. The deterministic electrical control of magnetic solitons is explained by current-induced STT, Joule thermal heating, and magnetic hysteresis. Our findings shed light on the potential applications of antiskyrmion-hosting materials, such as in multi-state information processing and memory34,40.

Methods

Bulk sample preparations

Single FeNiPdP crystals with S4 symmetry were grown by the self-flux method with stoichiometric iron (Alfa Aesar, >99.9%) and Nickel (Alfa Aesar, >99.9%), palladium (Alfa Aesar, >99.9%), and red phosphorus (Alfa Aesar, >99.9%). The sintered bulk FeNiPdP was obtained by heating the mixture at 1100 °C for 4 days. The crystal orientations were further identified using electron diffraction and high-resolution transmission electron microscopy (Supplementary Fig. 2).

Fabrication of FeNiPdP microdevices

We fabricated thin FeNiPdP microdevices from bulk single crystals using a standard lift-off method in a focused ion beam and scanning electron microscopy (FIB-SEM) dual-beam system (Helios Nanolab 600i, FEI). The system was equipped with a gas injection system and a micromanipulator (Omniprobe 200+). We first carved FeNiPdP nanostructure on the surface of the single crystal after milling two trenches. The FeNiPdP nanostructure was then lifted off and transferred close to an electrical chip using the micromanipulator. Each microdevice features two electrical contacts and consists of an FeNiPdP cuboid encased in ion-deposited carbon layers on its top surfaces. The left and right ends of the cuboid were connected to Au electrodes on the chip by fabricating Pt nanosticks. The length and width of the FeNiPdP cuboid are designed to be about 300–700 nm. The FeNiPdP cuboids were all finally thinned to a thickness of approximately 140–150 nm. All main-text data derive from a single 450 × 420 nm microdevice. Supplementary Figs. include full-dimensional documentation for other devices.

TEM measurements

We used in-situ Lorentz-TEM (Talos F200X, FEI) to investigate the current-induced magnetic domain dynamics in the FeNiPdP nanostructure39,54. The current pulses with pulse durations varying from 2 to 200 ns were provided by a voltage source (AVR-E3-B-PN-AC22, Avtech Electrosystems). The temperature can be adjusted in the range from 95 to 350 K.

Micromagnetic simulations

The zero-temperature micromagnetic simulations were performed using MuMax355. We consider the Hamiltonian exchange interaction energy (\({\varepsilon }_{{\mbox{ex}}}\)), 2D chiral DMI energy (\({\varepsilon }_{{\mbox{D}}2{\mbox{d}}}\)), uniaxial magnetic anisotropy energy (\({\varepsilon }_{{{\rm{u}}}}\)), Zeeman energy (\({\varepsilon }_{{\mbox{zeeman}}}\)), and magnetic dipole-dipole interaction energy (\({\varepsilon }_{{\mbox{dem}}}\))55. The total energy terms are given by:

$$\varepsilon={\int }_{{V}_{s}}\left\{{\varepsilon }_{{\mbox{ex}}}+{\varepsilon }_{{{\rm{u}}}}+{\varepsilon }_{{\mbox{zeeman}}}+{\varepsilon }_{{\mbox{dem}}}+{\varepsilon }_{{\mbox{D}}2{\mbox{d}}}\right\}{{\rm{d}}}{{\boldsymbol{r}}}$$
(1)

Here, exchange energy \({\varepsilon }_{{\mbox{ex}}}=A({\partial }_{x}{{{\bf{m}}}}^{2}+{\partial }_{y}{{{\bf{m}}}}^{2}+{\partial }_{z}{{{\bf{m}}}}^{2})\), \({\varepsilon }_{{\mbox{D}}2{\mbox{d}}}={D}_{2{{\rm{d}}}}{{\bf{m}}}\cdot ({y\partial }_{y}{{\bf{m}}}-{x\partial }_{x}{{\bf{m}}})\), uniaxial magnetic anisotropy energy \({\varepsilon }_{{\mbox{u}}}=-{K}_{{{\rm{u}}}}{({{\bf{m}}}\cdot {{{\bf{n}}}}_{{{\rm{u}}}})}^{{{\boldsymbol{2}}}}\), Zeeman energy \({\varepsilon }_{{\mbox{zeeman}}}=-{M}_{{{\rm{s}}}}{{{\bf{B}}}}_{{{\bf{ext}}}}\cdot {{\bf{m}}}\), and demagnetization energy \({\varepsilon }_{{\mbox{dem}}}=-\frac{1}{2}{M}_{{{\rm{s}}}}{{{\bf{B}}}}_{{{\rm{d}}}}\cdot {{\bf{m}}}\). Here, \({{\bf{m}}}\equiv {{\bf{m}}}(x,y,z)\) is the normalized units continuous vector field that represents the magnetization \({{\bf{M}}}\equiv {M}_{{{\rm{s}}}}{{\bf{m}}}(x,y,z)\). The parameters A, D2d, Ku, and Ms are the exchange interaction, DMI, uniaxial anisotropy constant, and saturation magnetization, respectively. nu is the unit vector field of the uniaxial easy magnetization axis and is set along the (001) z-axis. Bd is the demagnetization field. In the absence of the \({\varepsilon }_{{\mbox{D}}2{\mbox{d}}}\) energy term, the system’s total energy landscape mirrors that of conventional bubble materials in uniaxial magnets and can stabilize both type-I and type-II bubbles.

We set the exchange stiffness as A = 8.0 pJ/m and chiral interaction as D2d = 0.25 mJ/m3. We set Ku = 110 kJ/m3 and Ms = 617 kA/m based on measured parameters extracted from macroscopic magnetization measurements (Supplementary Fig. 1). Our previous study reveals that the experimental spin textures in FeNiPdP can be well reproduced by simulation based on these magnetic parameters35. These magnetic parameters are close to those widely used in previous studies on similar FeNiPdP materials31,37. Simulation considering thermal fluctuation field indicated a Curie temperature of 420 K (Supplementary Fig. 31), which is close to that of experiments. The cell size was set at 2 × 2 × 2 nm3. A Zhang-Li STT is considered for simulating current-driven dynamics. We set the Gilbert damping of 0.05 and the non-adiabatic parameter of 0.
