Fig. 1: Schematic illustrations and images of the sensing array.

From: Large-area and soft magnetoelastic sensing for normal and shear stress distribution toward pressure injury prevention

Fig. 1

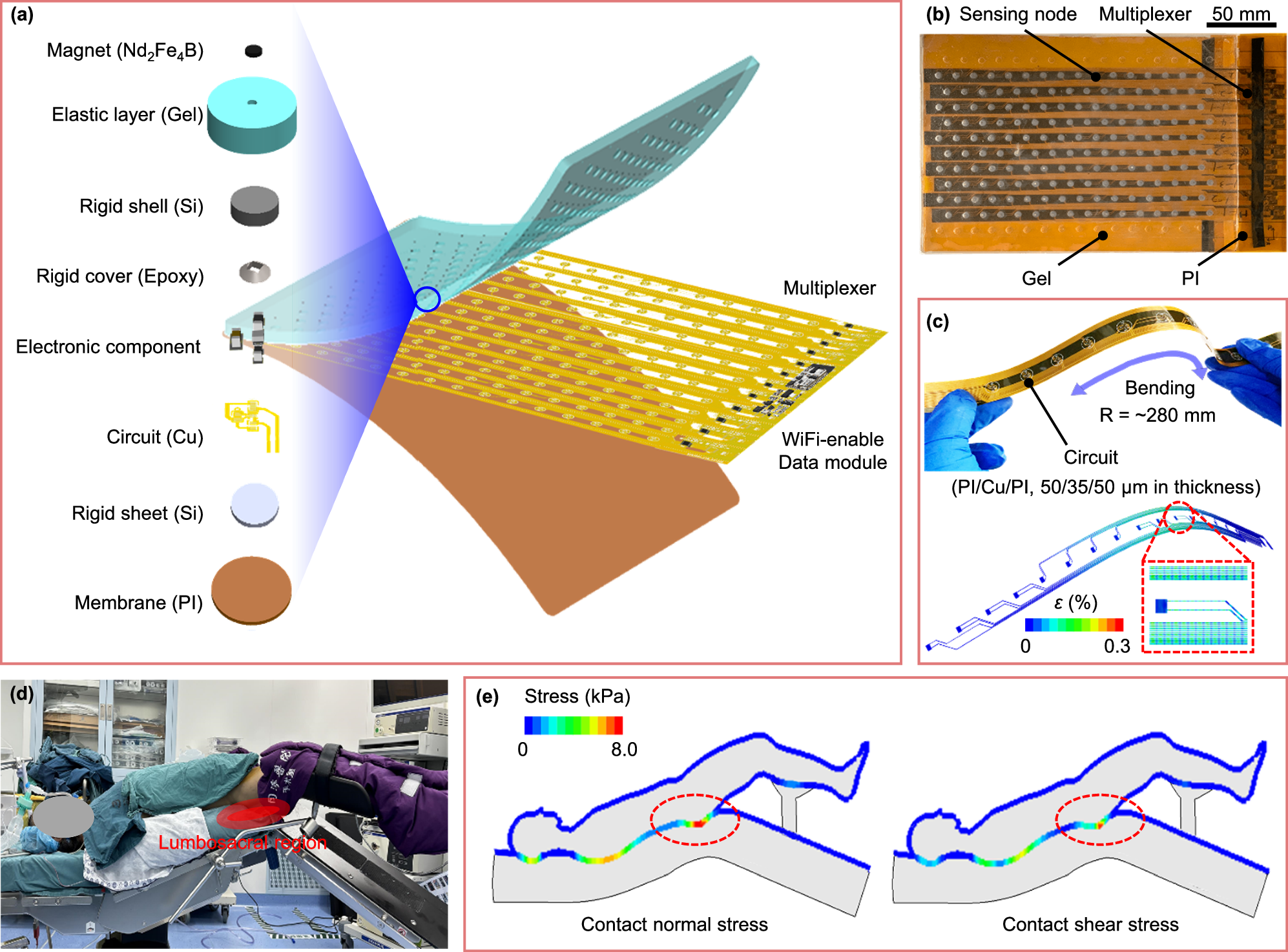

a Exploded-view schematic illustrating the layered structure of the array. b Photograph of the device. c Photograph and FEA of FPC in a bending configuration. d Photograph of the lithotomy position used in laparoscopic surgery. e FEA of the normal and shear skin-interface stress distributions in the lithotomy position.
