Introduction

In addition to palaeomagnetic support for glacial deposits at low latitudes, snowball Earth is supported by geological evidence including glaciomarine sedimentary features, characteristic “cap carbonates”, and the reprisal of widespread iron formation (IF) deposition since its disappearance in the Palaeoproterozoic Era1,2,3,4 (Fig. 1). These Cryogenian iron formations (CIF) are mineralogically simple (predominantly composed of laminated hematite) and interbedded with glaciomarine deposits5,6. The occurrence of CIF during the Sturtian glaciation (ca. 717–660 Ma), the first of the two Neoproterozoic snowball Earth events, is attributed to the buildup of hydrothermally-derived ferrous iron (Fe2+) while the sink for oxidation by oxygenic photosynthesis was cut off by the ice-covered ocean1,7. A combination of reduced dissolved sulfate in river water due to a weakened hydrological cycle8 and mid-ocean ridges under less pressure due to sea-level fall (favoring a hydrothermal Fe>S ratio9) would have also tipped the relative balance in favor of Fe over S in the snowball ocean. Cyclostratigraphy constrains the duration of CIF deposition (for at least one well-studied unit, the Holowilena IF) to have lasted ~4 million years6.

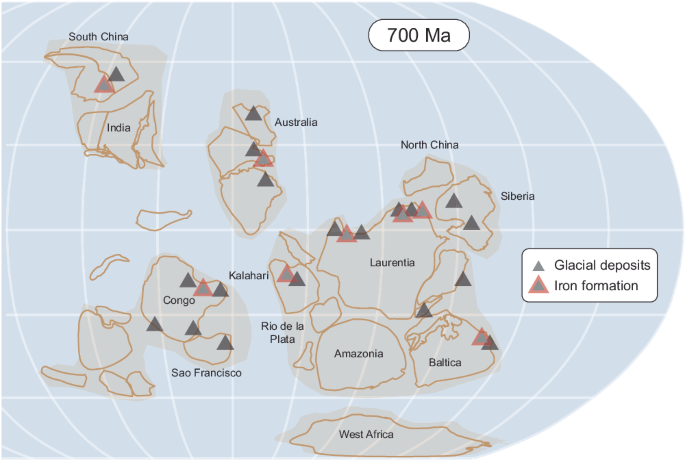

Fig. 1: Palaeogeographic distribution of Cryogenian iron formation during the Sturtian glaciation.
figure 1

Palaeogeographic reconstruction and global CIF distribution modified from refs. 68,69.

Full size image

Iron isotope values (δ56Fe) of CIF have previously been exclusively interpreted in terms of redox variability5,10. According to this framework, the oxidation of Fe2+ can result in the precipitation of Fe(III) (hydr)oxides that are enriched in isotopically heavy iron, and smaller degrees of partial oxidation (due to lower O2 availability) along a distillation pathway produce more strongly positive δ56Fe values in sedimentary rocks11,12. Importantly, CIF δ56Fe values exhibit a wide range of variability only observed in IF deposited prior to the transition to an oxidizing atmosphere during the Great Oxidation Event (GOE) (Fig. 2), suggesting an important environmental perturbation. However, the fact that CIF δ56Fe values are anomalously positive even in comparison to IF preceding the GOE challenges the interpretation that the extreme fractionation can be attributed to redox conditions alone.

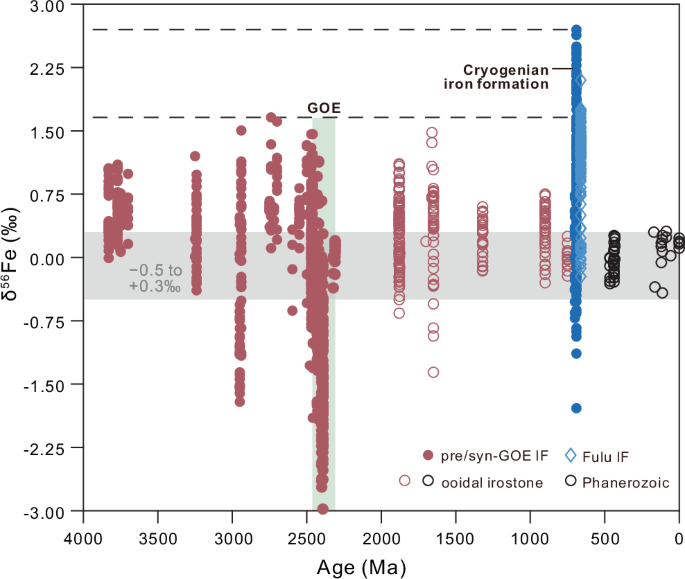

Fig. 2: Iron isotopes (δ56Fe) of iron formation (IF) and ooidal ironstone throughout Earth history.
figure 2

Dashed lines indicate the anomalously positive δ56Fe values of CIF. The Fulu Formation of South China (light blue) may occur later in the Cryogenian than most CIF (dark blue; see text for details). Gray fields present the δ56Fe range of igneous and hydrothermal Fe(II) sources (–0.5 <δ56Fe < +0.3‰; ref. 11). GOE, Great Oxidation Event. Data provided in Supplementary Data 1. CIF, Cryogenian iron formation.

Full size image

Results

Alternatives to redox fractionation

We consider several possible alternative explanations for redox. Given the large amount of time elapsed between the pre-GOE and Cryogenian intervals being compared, it is possible that a secular shift in the sources of Fe to the oceans between these two times could account for some or all of the 0.94‰ shift from pre-GOE IF to the values in CIF. Nonetheless, a secular trend analysis yields a line with essentially zero slope (Supplementary Fig. 1), allowing us to reject a change in Fe source in the oceans to explain the Cryogenian anomaly. It is also worth considering if the unique circumstances of the Cryogenian led to an unusual input of isotopically heavy Fe to the oceans at that time. Glacial erosion13,14,15 presumably led to the mechanical breakdown and chemical dissolution of a continental crust that could have been covered by isotopically heavy Fe oxides produced by a billion years or more of chemical weathering under an at least mildly oxidizing atmosphere. Such a hypothesized biased detrital input, perhaps, could have led to an unusually heavy source of Fe to the oceans at this time. However, detailed geochemistry, rock magnetism, and petrology all consistently demonstrate that while there is a small detrital contribution from magnetite, the main source of Fe in CIF was mostly a hydrothermal-derived chemical precipitate preserved as authigenic hematite laths6,16,17.

Temperature-dependent iron isotope fractionation

In light of the uniquely positive CIF δ56Fe values that cannot be explained by redox nor other alternatives, we consider the temperature-dependent fractionation of δ56Fe associated with Fe (oxyhydr)oxide precipitation in cold, sub-ice shelf seawater. Arriving at a reliable fractionation factor is complicated by the possibility of kinetic isotope effects during Fe (oxyhydr)oxide precipitation, which will depend on a number of variables that control the rate and extent of Fe2+ oxidation, and are difficult to disentangle from equilibrium isotope fractionation in natural systems18. Thus, for the purposes of our study, we assume that any kinetic effects are either negligible or can be assumed to be constant across the record. Figure 3a shows theoretical calculated results of the isotopic Rayleigh fractionation relevant to the precipitation of IF (Methods). Based on the observed anomaly in excess of pre-GOE values (Fig. 2), an increase in δ56Fe value of +0.94‰ extrapolates to a temperature of –15.1 ± 7°C (Fig. 3b; Methods for uncertainty estimate).

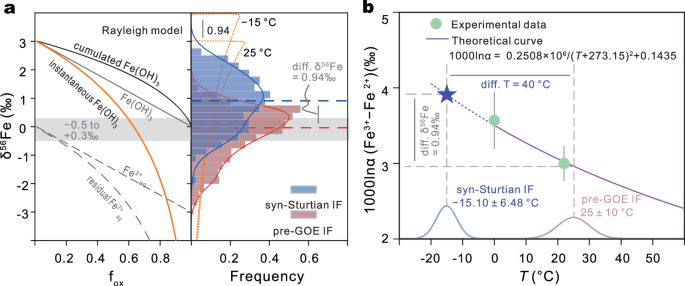

Fig. 3: Temperature estimate of the snowball ocean according to the CIF δ56Fe anomaly.
figure 3

a Rayleigh distillation model of Fe isotope evolution during the genesis of IF and relative frequency distribution of δ56Fe values for pre-GOE IF and CIF (excluding data from the Fulu Fm). Orange dashed lines are theoretical δ56Fe distribution curves of instantaneous Fe (oxyhydr)oxide precipitation by progressive oxidation (distillation) at two different temperatures, assuming an initial source of δ56Fe = 0 (Methods). Median δ56Fe values for pre-GOE IF (–0.03, n = 783) and CIF (0.91, n = 148) are the red and blue dashed lines, respectively. A Mood test for equal medians yields a p value of 8.5 × 10–9, which is «<0.05, indicating that the null hypothesis can be rejected and that the two medians are strongly statistically distinct. b The temperature-dependent equilibrium fractionation between aqueous Fe3+ and aqueous Fe2+ (Methods). Dashed portion of the line is extrapolated to predict the snowball temperature based on the observed +0.94‰ δ56Fe anomaly (a). Experimental data70 are consistent with the theoretical curve59 used for extrapolation, and both are provided in Table 1. Bell curves indicate the 25 ± 10˚C Archaean seawater temperature used for the Gaussian-distributed Monte Carlo simulations spanning that range used to estimate uncertainty of the calculated snowball temperature (Methods). GOE, Great Oxidation Event. IF, iron formation. CIF, Cryogenian iron formation.

Full size image

We first consider for comparison any other additional empirical constraints on snowball seawater temperature potentially available. Future work on CIF oxygen isotopes (δ18O) may provide an independent test, although the δ18O of hematite may be largely temperature-insensitive19 and subglacial meltwaters could have had very large δ18O heterogeneity. Cryogenian constraints from temperature-sensitive oxygen “clumped” isotopes are already available; although this method has typically only been used on relatively much younger, much better preserved carbonates, every effort has been made in the Cryogenian to carefully analyze only the most pristinely preserved carbonate successions. Although the absolute temperatures are uncertain in this case, the relative temperature difference between glacial and preglacial temperatures is determinable and is 26 ± 10°C (ref. 20). Thus, if the temperature of the seawater during the Sturtian snowball was exactly –15°C as we have calculated, after adding the relative temperature difference 26°C to this, then the extrapolated pre-glacial temperature would have been 11°C. This estimate is actually quite close to the pre-glacial temperature of 9°C inferred from geological evidence in the form of the presence of temperature-sensitive ikaite21,22, where a cold climate before snowball is also corroborated by independent constraints23,24. Also, even if the ± 10°C uncertainty of the aforementioned clumped isotopes constraint is considered20, along with the formation temperature of ikaite being ≤6°C, our reconstructed glacial seawater temperature would still range from –10°C to –30°C. This is consistent with our estimate of glacial seawater temperature derived from iron isotopes, which falls between –8°C and –22°C.

Discussion

The physical plausibility and implications of such a cold isotopically-inferred temperature estimate of –15°C for the seawater conditions associated with CIF sedimentation during snowball Earth should be considered. A major question to address is whether such cold seawater associated with CIF deposition is representative of the ambient snowball ocean or not. Our temperature estimate of –15°C clearly would require CIF seawater to be characterized by high salinity, arguably as high as >170 psu, considering the effect of salinity on freezing point25. We thus independently assess the salinity of CIF seawater using their Sr/Ba ratios (Methods), which most accurately reflects Holocene records compared to other salinity proxies26. Compared to the salinity of the modern ocean, CIF seawater salinity would have been more than 4 times higher at approximately 150 psu (Fig. 4), which is broadly consistent with the high estimate implied by the δ56Fe -based temperature estimate. Stated conversely, under such extreme salinity conditions25, the CIF seawater freezing point could have been as low as at least –11°C, which is, again, and as expected, broadly consistent with our δ56Fe-based temperature estimate. Thus, the elevated of salinity of CIF seawater provides independent support for the δ56Fe-based thermometry on CIF presented here.

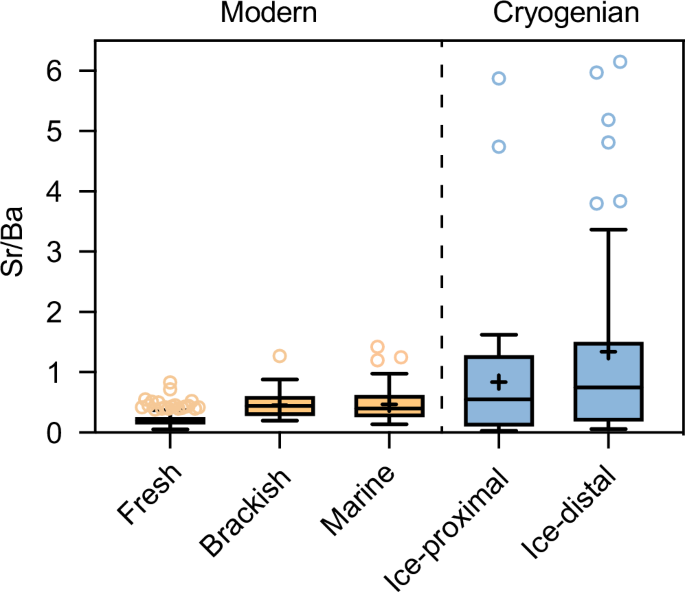

Fig. 4: CIF salinity compared to modern waters.
figure 4

Tukey boxplot of Sr/Ba ratios for the modern sediments and CIF (Methods). Data for modern sediments are from ref. 67. Data for CIF are from ref. 5. Note that samples with high Ca content in modern sediments were excluded because of the substitution of Sr ions present in the water column for Ca ions in CaCO3 (ref. 67). In addition, one Sr/Ba ratio (25.9) of one ice-distal CIF sample with an unusually high value was regarded as an outlier and removed. Horizontal lines within box plots represent median values. Crosses in the box plots represent mean values. CIF, Cryogenian iron formation.

Full size image

Despite this consistency for CIF seawater temperature and salinity, it still does not address the question of whether such extremely cold and saline conditions were representative of ambient snowball seawater. First, it is worth considering that if the global snowball ocean had salinity levels of ~150 psu, it would require a > 75% reduction in volume compared to the modern ocean. Such a state, if realistic, would predict large-scale erosion of continental margins. However, while evidence of Cryogenian glacial erosion has been documented, it is highly spatially variable13,15, and its scale is debated14,27,28. Furthermore, previous estimates of salinity levels during this period are thought to be only up to 70 psu (ref. 29), or even only ~50 psu by extrapolating the Phanerozoic salinity trend back to Cryogenian time (Supplementary Fig. 2). The Sr/Ba-based CIF seawater salinity estimate is thus more than two times higher, and therefore unlikely to represent ambient seawater.

It critical to note that, despite their widespread distribution globally (Fig. 1), CIF are generally thought to have been deposited in semi-restricted basins17,30,31,32 (e.g., rift basins, glacial fjords, and overdeeps), so a substantial connection to the open snowball ocean may have been somewhat limited. As such, some modern ice shelves in Antarctica (e.g., Ross Ice Shelf) have a zone of basal freeze-on that is well seaward of the grounding zone, where there is strong basal melting33,34. In this sub-ice shelf circulation referred to as an ice pump35,36,37, the freeze-on zone rejects salt that would sink, forming a bottom-water brine tongue (Fig. 5). Strong support for such a salinity-controlled freezing point depression comes from extreme temperatures as cold as –13°C recorded in analogous Antarctic brines38,39,40,41,42 (Fig. 5a). Notably, such sub-ice shelf brine pools, if an appropriate analog for CIF, do not preclude thriving microbial life in such cold and salty conditions39,43, as the specific CIF depositional setting has been proposed as a refugium for life during the severe snowball conditions owing to its delivery of oxidized subglacial meltwater potentially supporting marine aerobic environments at the ice ground line5.

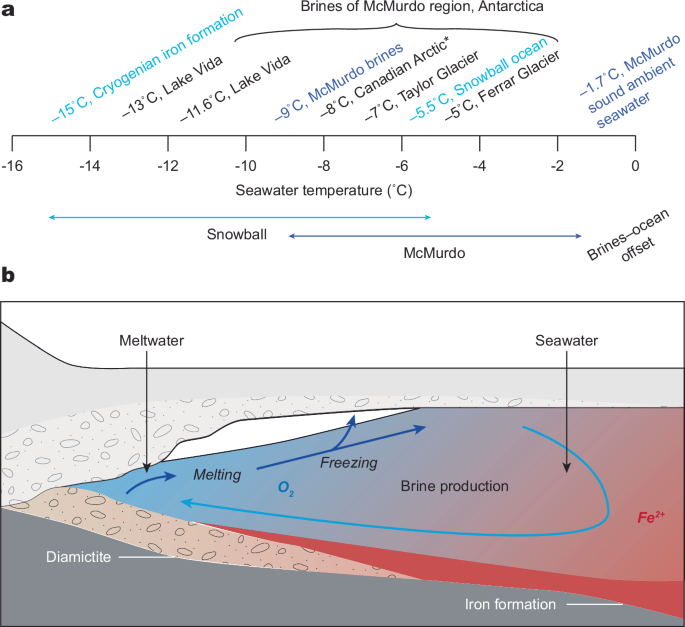

Fig. 5: Cryogenian iron formation brine pools of snowball Earth.
figure 5

a Comparison of Cryogenian seawater estimates with those of modern Antarctica. The –15˚C estimate for iron formation brines of snowball Earth (this study) displays a similar offset with the ambient snowball ocean44 than brines and ambient seawater in modern Antarctica38,39,40,41,42, albeit with temperatures shifted ~5˚C colder during snowball Earth than today. Estimate in blue for Antarctica is the mean of McMurdo brines. Note also one cold brine estimate included from the modern Canadian arctic71. Estimate for global snowball ocean is based on slight pressure-based freezing-point depression from the overlying sea glacier, under a range of salinities and water depths (or equivalent ice thicknesses)44,72. b Model for CIF deposition and brine production. Oxidation of the anoxic snowball ocean by oxidized meltwater pulses5. Brine production by salt expulsion during meltwater refreezing30,35. CIF, Cryogenian iron formation.

Full size image

If such an ice shelf basal melting and refreezing salt expulsion zone was also characteristic of CIF sedimentation, the locally enhanced salinity could help account for both the very high salinity and cold seawater temperature recorded by the very positive δ56Fe values in CIF (Fig. 5b). Such a sub-shelf brine pool model has in fact been used to explain the apparent tendency of CIF to occupy depressions on the palaeo-seafloor30. Notably, comparison of our δ56Fe-based estimate of –15°C for cold CIF seawater appears to be offset from the ambient snowball ocean of –5.5°C, recently estimated according to freezing point depression due to the pressure imposed on the snowball ocean by the sea glacier44. The Cryogenian brine–ocean offset is similar to that of modern Antarctica (Fig. 5a), implying control by the similar basic ice physics mechanism of salt expulsion, only shifted to colder temperatures for the Cryogenian.

Such a model for the cold and saline CIF seawater, requiring basal melting, has also been used to explain the oxidation mechanism for CIF formation itself (Fig. 5b). A close association exists between CIF δ56Fe values and glaciomarine setting, where sedimentation environment is controlled by the distance from the grounding line where the ice shelf begins to float5. The characteristically positive CIF δ56Fe values are associated with ice-distal facies, whereas negative δ56Fe values occur in ice-proximal facies, where such a δ56Fe gradient have been interpreted to reflect oxidized meltwater mixing with the anoxic and ferruginous snowball ocean during glacial advance5. Interestingly, the δ56Fe gradient observed in different glaciomarine facies with distance from the ice ground line is also in the right direction (i.e., more negative toward the grounding line) as that predicted by the temperature gradient. Seawater in the ice-proximal glaciomarine environment would have been warmer due to the supply of basal meltwater at the grounding line, and because of the lower salinity and concomitant freezing point increase in this setting. Thus, both redox-sensitive and temperature-dependent fractionations are consistent with each other, and it is likely that both contributed to the CIF δ56Fe gradient. Comparison to analogous pre-GOE anoxic oceans (Fig. 2) argues, nevertheless, that the extreme snowball temperatures determined here are required to explain the full magnitude of the CIF δ56Fe gradient.

Generally, most CIF sections have been shown to exhibit upsection increases in δ56Fe (refs. 10,45). According to our results which predict temperature gradient-driven trends in Fe isotope signatures, CIF deposition therefore occurred during an interval of glacial advance—which had previously been ambiguous based on the unknown phasing of Milankovitch cycles identified in CIF modulating the snowball ice sheet6. The oxidizing agent for CIF deposition was heretofore enigmatic, with two hypotheses of opposite glacial phasing, either oxidation from (i) oxidized glacial meltwater reaching tidewater during glacial advance5 or (ii) the oxidized atmosphere exchanging with seawater in polynyas during glacial retreat1. Increasing magnetic susceptibility associated with an increasing abundance of hematite that corresponds closely with increasing δ56Fe values upsection6 can therefore be attributed with colder temperatures of glacial advance. This collective observation provides support for a “hard” snowball Earth, where oxidation for CIF deposition only occurred from surges of oxidized continental-derived meltwater5, but is unable to address the presence (or absence) of a “soft” snowball or ‘waterbelt’46,47.

Methods

Data compilation

Iron isotope (δ56Fe) data from iron formation (IF) and ooidal ironstones were compiled from various data sources. Pre-1700 Ma δ56Fe data come from refs. 48,49. Those authors include anomalously positive δ56Fe from the ca. 3.46 Ga Marble Bar Chert of the Pilbara craton, originally interpreted as a primary signature indicative of a strongly anoxic Archaean ocean50. However, detailed petrography of the hematite-bearing chert has since revealed the presence of secondary hematite replacement, questioning the reliability of those data as a primary oceanographic signature51. Because of this complication, and because we only include bulk-rock δ56Fe data from iron-rich chemical sedimentary rocks (i.e., IF and ooidal ironstones) so as to compare similar datasets, the Marble Bar Chert data are excluded here. For comparison, δ56Fe data for ooidal ironstones at various ages between ca. 2 and 0.7 Ga from ref. 52 are also shown. Cryogenian iron formation (CIF) δ56Fe data were compiled for the Chuos Formation of Namibia5, the Fulu Formation45,53,54,55,56 and Xiafang Formation45 of South China, the Holowilena Ironstone of South Australia5,10, and the Kingston Peak Formation (Death Valley)57, the Rapitan Group (Northwest Territories, Canada)58, and the Tantonduk Iron Formation (Yukon–Alaska)10 of Laurentia.

Temperature and uncertainty estimation

δ56Fe isotope data are used to infer temperature ranges of the snowball ocean. Of the CIF δ56Fe data, those from the Fulu Fm are excluded due to the lack of direct evidence of glaciation and the suggestion that it occurs later in the Cryogenian than most CIF53. The 0.94‰ δ56Fe difference between the median δ56Fe values of pre-GOE IF and the CIF (excluding Fulu Fm) (Fig. 3; Supplementary Data 1) is taken as the magnitude of the temperature-dependent fractionation (assuming that positive anomalies below this Cryogenian-only threshold can be attributed to redox-sensitive fractionation related to anoxia). Median values are used given that both datasets being compared have heavy tailed distributions. As the δ56Fe difference between the two groups would be larger if means were used, this approach is also conservative. Including the Fulu Fm would only increase the δ56Fe difference (Supplementary Fig. 2), so its exclusion is the more conservative approach, in addition to the ambiguities surrounding its age and syn-glacial or interglacial association53.

The petrogenesis of IF follows a two-step pathway, i.e., the oxidation of aqueous Fe2+ to aqueous Fe3+ and precipitation of aqueous Fe3+ to Fe3+-(hydr)oxide45. Accordingly, the δ56Fe signature of IF involves a temperature-dependent equilibrium fractionation between aqueous Fe2+ and aqueous Fe3+ (refs. 59,60) and a subsequent kinetic fractionation during precipitation of aqueous Fe3+ to Fe (hydr)oxide11. The oxidation of aqueous Fe2+ to aqueous Fe3+ can reach isotopic equilibrium rapidly, resulting in enrichment of heavy iron isotope in aqueous Fe3+ (ref. 60). In the case of fast precipitation, the light iron isotope tend to be enriched in Fe3+-(hydr)oxides11. Collectively, the observed δ56Fe values of Fe(oxyhydr)oxides could be approximately considered to be controlled by the temperature-dependent equilibrium fractionation between aqueous Fe2+ and aqueous Fe3+, and the fraction of Fe(II) oxidation and precipitation rate. Currently, nothing is known about possible Fe(II)/Fe(III) mass balance differences between the pre-GOE and Cryogenian conditions, and is thus possibly worthy of investigative testing.

The equally large spread in δ56Fe values of both the pre-GOE IF (4.64‰) and CIF (4.49‰) can be well explained by the Rayleigh distillation model5,61 (Fig. 3a). The δ56Fe datasets with different aged intervals show distinct distributions (Supplementary Fig. 4). The dataset for the 3830–2310 Ma interval and CIF have the most similar frequency distributions and nearly identical δ56Fe ranges between minima and maxima (Fig. 3a; Supplementary Fig. 3). Although the petrogenesis of BIF is a two-stage process, assuming the precipitation rates at the time of IF in the two intervals (pre-GOE and Cryogenian) did not systematically differ, the systematic variation in Fe isotopes between these two intervals can be taken as to be derived mostly from temperature-dependent equilibrium fractionation. That is, the systematic increased δ56Fe values of the pre-GOE IF and CIF could mainly reflect the difference of temperature-dependent equilibrium between aqueous Fe2+ and aqueous Fe3+. Assuming that the ambient temperature at the time of the formation of the pre-GOE IF is 25°C ( ± 10°C; ref. 52), the estimated temperature of the formation stage of the CIF is –15.1 ± 7°C.

The largest source of uncertainty in our estimation is arguably the range of possible pre-GOE (largely Archaean) seawater temperatures that must be assumed for the relative temperature calculation. Recently, 18O/16O isotopes of marine carbonates and cherts have suggested a very hot Archaean ocean ranging from 50–85°C (ref. 62), or even hotter63. However, combined O and H isotopes suggest surface temperatures <40°C (ref. 64) and O isotopes of marine phosphates produce upper limits of only 26–35°C (ref. 65). Also, the repeated occurrence of glacial deposits at 3.5, 2.9, and 2.7 Ga are at odds with claims of a hot Archaean ocean and are more in line with the more temperature estimates66, leading to the range of 25°C (±10°C; ref. 52) we employ for our calculation.

If one were to include not only the uncertainty of the mean ocean temperature of the pre-GOE IF but also the uncertainties of both the large spread in δ56Fe values of the pre-GOE IF and CIF, then the resulting uncertainty is exceedingly large (>± 60°C), much of which is impossible parameter space for snowball exceeding freezing. However, based on both the similarity in their distributions (Supplementary Fig. 3) and the systematic increase in δ56Fe values of the pre-GOE IF and CIF (Fig. 2), we regard it reasonable to consider the error of the mean ocean temperature of the pre-GOE IF as the main source of uncertainty. Based on the theoretical equation of Fe isotopic fractionation in Fig. 3b, the uncertainty of the mean ocean temperature of the pre-GOE IF (± 10°C) alone is thus propagated to derive the error of the estimated temperature of the formation stage of the CIF (± 6.48°C).

Estimation of salinity

To estimate Sturtian salinity in this study, we utilized the Sr/Ba ratio of sediments, a newly developed geochemical indicator for evaluating palaeoceanographic salinity67. We find that the Sr/Ba ratios of syn-glacial CIF have spatially similar distribution characteristics to the modern ocean (Fig. 4), i.e., the Sr/Ba ratios are significantly lower in areas with strong nearshore freshwater influence (Fig. 4). This feature is clearly consistent with the glacial meltwater model of the CIF5, i.e., the median value of the Sr/Ba ratio is significantly lower at sites with low salinity where glacial meltwater input is high (ice-proximal) than at sites with low glacial meltwater input (ice-distal). Thus, the highest Sr/Ba value (6.2) in the CIF (Fig. 4) represents a Sr/Ba ratio that more closely represents marine sediments of this period. In contrast, modern marine sediments, which are less influenced by freshwater, have Sr/Ba ratios up to 1.4 (ref. 67) (Fig. 4).

It is unlikely that such a high Sr/Ba ratio in the CIF can be interpreted as a rapid expansion in the Sr reservoir due to weathering or hydrothermal sources of Sr, but is more likely to result from the thickening of sea ice during this period that led to the concentration of seawater. This also brought about a consequent increase in seawater salinity. Therefore, using the linear relationship that exists between Sr/Ba ratio and modern seawater salinity, we can estimate the degree of seawater concentration during the snowball Earth period, which gives us the approximate salinity (152 psu) of the seawater at that time.

Table 1 Fe isotope fractionation dataa
Full size table
