Fig. 7: Overview of the pQTL-Atlas database.

From: Genetic profiling of the circulating proteome in common diseases suggests causal proteins and improves risk prediction

Fig. 7

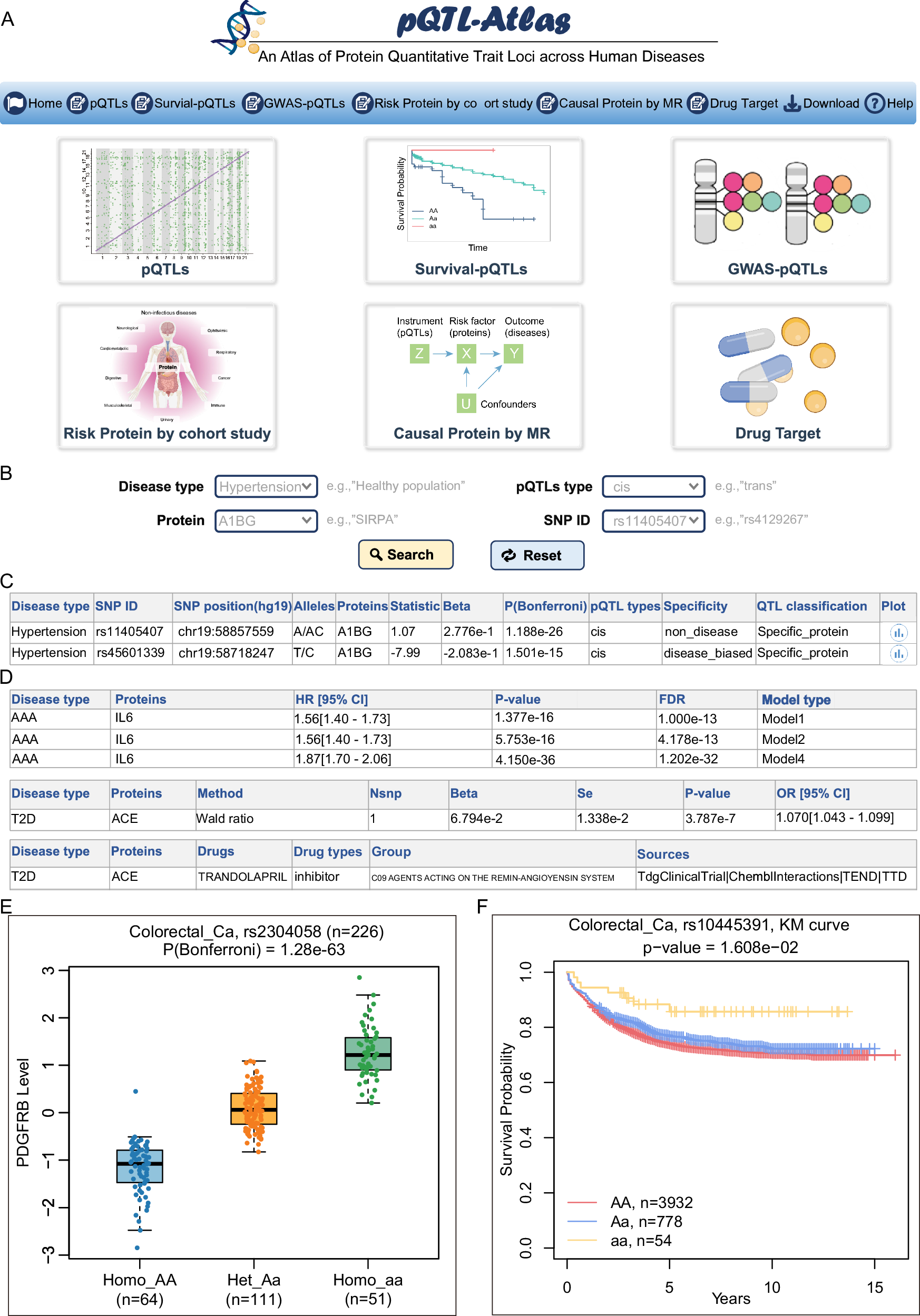

A Six functional modules are provided in pQTL-Atlas. B Query web interface in the ‘pQTLs’ module. C An example of query return table of the ‘pQTLs’ module. D Examples of query return tables from the ‘Risk Protein by cohort study’ module (upper panel), ‘Causal Protein by MR’ module (middle panel), and ‘Drug Target’ module (lower panel). E An example of box plot visualizing one pQTLs. The center line of the box presents as the median, the box limits indicate upper and lower quartiles and whiskers indicate the maximum and minimum. F An example of Kaplan–Meier plot (Cox’s proportional hazards regression) visualizing one survival associated pQTLs.
