Abstract
Since their discovery, CRISPR systems have been repurposed for programmable targeted genomic editing, leading to applications for gene disruption, single base editing, insertion, deletion, and manipulation of short genomic sequences. Pairing Cas9 nickase with reverse transcriptase allows applications for insertion, substitution, and deletion of short genomic sequences from an RNA template without generating double stranded breaks however this technology typically shows reduced efficacy in post mitotic cells, limiting its translatability in vivo. Here we present a novel, ligase-based method that addresses these limiations. We introduce edits through delivery and ligation of a synthetic DNA donor to genomic nicks created with Cas9 nickase and report editing activity in cell lines, primary cell cultures, and adult mice via nonviral delivery. With favorable on target outcomes compared to transcription-based editing in key cell types, good tolerability, and deliverability, ligation-mediated gene editing has the potential to further advance genomic medicine.
Similar content being viewed by others
Introduction
CRISPR/Cas9 revolutionized genome engineering due to its ease of retargeting, requiring only modifying a portion of the RNA sequence of CRISPR/Cas9 to match the genomic target1,2. Cas9 was suited to gene disruption as DNA cleavage resulted in double-strand breaks (DSBs). However, deleterious side effects including heterogenous on-target edit outcomes containing insertions or deletions (indels), potential off-targets, chromosomal rearrangements, and even chromosomal loss, discouraged its use for many genetic diseases3. Engineering of the CRISPR/Cas9 system led to tools with greater finesse, such as single-strand nicking (nCas9) or complete catalytic inactivation (dCas9)2. dCas9 coupled with deaminases enabled specific single base changes4,5 and combination of nCas9 with writing enzymes such as a Moloney murine lentiviral reverse transcriptase (MMLV-RT, RT) and PhiC29 DNA polymerase allowed writing of any small corrections6,7. However, transcription-based editing is limited by decreased efficiencies of long edits ( > 10 nucleotides (nt)) and poor performance in primary cells, likely due to decreased intracellular dNTP pools8,9. To circumvent these observations, we sought out an editing method independent of exogenous writing enzymes.
When nCas9 nicks the genome, it leaves behind a 3’ hydroxyl group6. This moiety can be extended by RT but is also a suitable substrate for DNA ligase, which in the presence of a heterologous DNA donor, can result in DNA insertion. Pre-synthesizing the donor removes the uncertainty of endogenous dNTP availability and simplifies writing to a single step. To bring together guide and donor, we devised a splinting DNA (splint) containing three hybridization domains that bind to the donor, the ligase-mediated guide RNA (lmgRNA), and the genomic target site. These three interactions serve two key functions: efficient delivery of the donor via nCas9 ribonucleoprotein (RNP) nuclear localization and alignment of the donor to the nicked genomic flap for ligation. The inclusion of a nicking guide (ngRNA) targeting the opposite strand approximately 50 – 100 base pairs (bp) away from the edit site improves efficiency and is employed for all method comparisons.
Through chemical and sequence optimization of each oligonucleotide component to improve affinity, stability, and activity, we report efficiencies of small corrections (1–3 nt) in therapeutically relevant loci up to 52.4% in HEK293T cells and 66.0% in primary human hepatocytes (PHH) with up to 100.0% fidelity (percentage of edits lacking any indels of total edits). Pairing two complexes together (paired L-PGI, pL-PGI), we observe up to 82.4% total efficiency and 62.7% fidelity for placement of a 38 bp Bxb1 integrase recognition site (attB) in PHH. Using pL-PGI to place attB leads to 14.4% on-target integration of a 30 kilobase (kb) transgene cargo when co-delivering integrase and helper-dependent adenovirus template (HDAd), representing 59.6% usage of available attBs. pL-PGI demonstrates good translatability across important model species in vitro, resulting in similar or significantly superior efficiency and fidelity compared to prime editing (PE). Lastly, we present mouse data showing 7.9% attB placement using pL-PGI compared to 2.5% by dual PE, demonstrating that the advantages of L-PGI seen in vitro translate in vivo. In summary, due to its good tolerability, high potency, favorable fidelity and compatibility with therapeutically relevant delivery modalities such as lipid nanoparticles (LNP), we believe L-PGI has the potential to expand the gene editing toolbox and enable the development of treatments for previously inaccessible genetically-driven diseases.
Results
L-PGI mechanism and optimization
Ligase-mediated programmable genomic integration (L-PGI) capitalizes on nicking of the non-target strand of the genome by nCas9, leaving a free hydroxyl group on the 3’ DNA flap6. DNA ligase recognizes the free 3’ DNA end and can directly modify the genome using a donor DNA sequence containing a free 5’ phosphate. After ligation, incorporation of the free 3’ end of the donor into the genome is aided by a microhomology arm (10–20 nt) downstream of the edit. Using a complementary DNA splint that contains a donor binding site (DBS), genomic flap binding site (FBS) and guide binding site (GBS) to link the donor, genome and 3’ end of a single guide RNA, all the editing components can be colocalized to enable efficient gene editing (Fig. 1a). The newly ligated donor DNA then competes with the endogenous strand, with successful incorporation resulting in editing (Fig. 1b)6. Using a Cy5-labeled dsDNA substrate in a biochemical assay, we confirmed that all reaction components were necessary for editing (Lane 3, Fig. 1c).

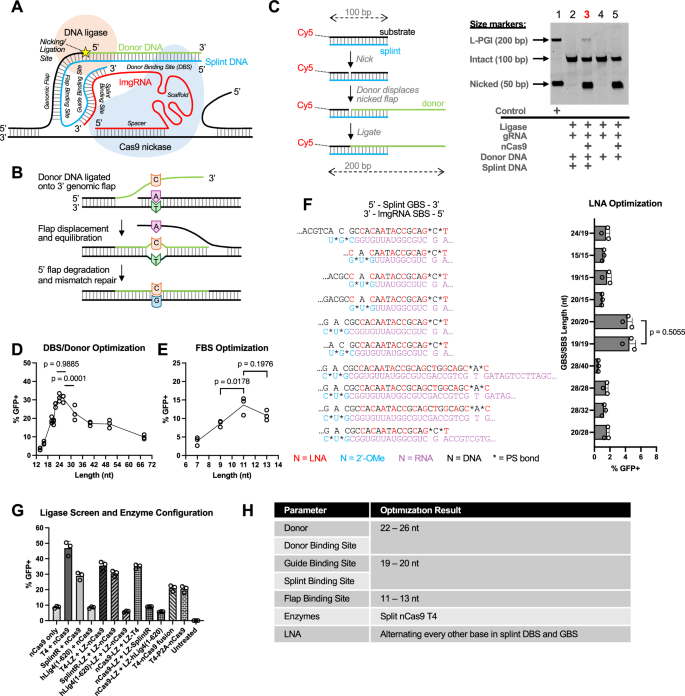

A Schematic diagram illustrating the L-PGI editing complex and binding of all hybridization domains in oligonucleotides with star indicating ligation site. B Diagram of edit incorporation for an A to C transversion. The donor DNA (green) contains the desired edit with homologous sequence arms to the left and the right of the base edit. After ligation, the donor competes with the endogenous strand for genome incorporation via the mismatch repair (MMR) pathway. C Validation of edit strategy using recombinant protein and synthetic oligonucleotides in vitro visualized by SDS-PAGE. Lane 1: 50 nt and 200 nt DNA fragment positive controls representing the expected edit products. Lanes 2–5: L-PGI reactions containing (+) or excluding components (-) as labeled. Lane 3 (red) shows expected edit product only when all components are included. D Optimization of DBS/SBS length with statistical comparison between 24 vs 26 nt and 26 vs 32 nt. E Optimization of FBS length with statistical comparison of 9 vs 11 nt and 11 vs 13 nt. F Effect of splint GBS and lmgRNA SBS lengths. Red = locked nucleic acid (LNA), blue = 2’ O-methylation, purple = ribonucleic acid (RNA), black = DNA base, and * = phosphorothioate bond. Nucleotide sequences are shown as they are bound to each other and in some cases a part of the GBS or SBS functions as a single stranded linker. All splints include the same DBS and FBS (not shown) and lmgRNAs include identical scaffolds and spacers (not shown). G Testing linked and split mRNA architecture with varying placements of leucine zippers (LZ), P2A, or XTEN linkers on nCas9 and either T4, SplintR, or human ligase IV (hLig4) truncations. Untreated control represents untransfected cells. D–G utilize the HEK293T GFP reporter cell line assayed by flow cytometry and show results of biological replicates n = 3. Ordinary one-way ANOVA without matching for Gaussian distributions used to calculate all p values. H Summary of optimization results. All error bars represent standard deviation. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-3, 6.
We leveraged a HEK293T reporter cell line containing a blue fluorescent protein (BFP) that converts to green fluorescent protein (GFP) upon successful editing of 3 nt at positions +2, +4, and +5 from the nick for further development (Supplementary Fig. 1a)10. Initial experiments using an unmodified DNA splint did not yield detectable GFP. However, substituting locked nucleic acids (LNAs) in the GBS and DBS regions of the splint led to signal, likely due to increased stability of the splint and its affinity for the donor and lmgRNA (Supplementary Fig. 1b)11. We then systematically varied the lengths of the DBS, FBS, and GBS and found that 22–26 nt, 11–13 nt and 19–20 nt resulted in the highest GFP conversion for the three sequence components, respectively (Fig. 1d-f). Optimization of LNA position and number led to a splint design with LNAs alternating throughout the DBS and in the 3’ end of the GBS (Supplementary Fig. 1c). Addition of LNAs in the FBS did not improve efficiency, perhaps due to undesirable spacer-FBS binding (Supplementary Fig. 1d). Moving forward, we selected a 19 nt GBS, 13 nt FBS, and 24 nt DBS, although locus-specific sequence optimization is expected to further improve the system for individual targets.
We next explored other avenues for improving the L-PGI system, including enzyme selection, mRNA architecture and in vitro transcription (IVT) optimization. Initial work employed the well-characterized, highly efficient T4 ligase12. Compared with other ligases, including human DNA ligase IV (hLig4) and PBCV-1 DNA ligase (SplintR), T4 ligase consistently led to the highest GFP signal (Fig. 1g)13. We then investigated colocalization and fusion of nCas9 and ligase, as these strategies had been successfully for other genome editing technologies6. However, linking nCas9 and T4 ligase through either a flexible peptide linker, self-cleaving peptide, or leucine zippers (LZ) had either no effect or a detrimental effect on editing efficiencies (Fig. 1g)14. When LZ-based linking was used for SplintR, we found that LZ placement strongly impacted efficiency in an orientation-dependent manner (Supplementary Fig. 1e). We therefore included LZ on the C-terminus of ligase and N-terminus of nCas9 for all designs, hypothesizing that the gains for the lower efficiency ligase revealed efficiency improvements obscured by the high activity of T4 ligase. Finally, we found that including N1-methylpseudouridine during mRNAs production led to an almost 2-fold increase in GFP compared to uridine (Supplementary Fig. 1f)15. Based on these findings, we used split LZ co-localized nCas9 and T4 ligase translated from N1-methylpseudouridine mRNAs for subsequent L-PGI target efficiency analysis.
In the absence of cellular machinery, editing by L-PGI is dependent on all the components of the system. In cells, some editing was achieved when T4 ligase or phosphorylation of the 5’ end of donor DNA were omitted, implying that endogenous DNA repair can aid in L-PGI (Supplementary Fig. 1g). We determined that these events were not due to the splint acting as a template for homology-directed repair (HDR) by comparing L-PGI oligonucleotides with a BFP to GFP HDR donor. Lastly, Cas9 co-delivered with splint and donor produced no significant editing, suggesting that L-PGI edit is independent of HDR (Supplementary Fig. 1h).
L-PGI for therapeutic targets

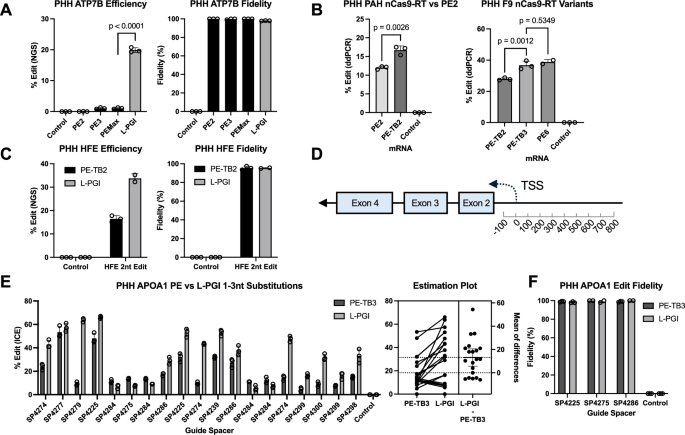

L-PGI can correct point mutations in disease-associated loci and introduce longer edits. We explored a set of disease-relevant mutations in HEK293T16,17,18, and after extensive optimization of chemical modifications, enzyme architecture, and transfection conditions, were able to reach precise editing efficiencies of 25.8% to 52.4% for three different loci with <1.5% indel generation for each edit (Supplementary Fig. 2a-d). To enhance translatability into in vivo models and therapeutic applications, we focused subsequent work on liver-associated genomic targets in non-dividing primary human hepatocytes (PHH) and devised an edit quality metric, fidelity, defined as the proportion of sequencing reads aligned to the edit outcome with no insertions or deletions. L-PGI oligonucleotide components were designed based on high efficiency nCas9 spacers to install disease-relevant mutations in wild-type cells, including H1069Q in ATP7B for Wilson’s disease and C282Y in HFE for hemochromatosis17,19. In PHH, L-PGI demonstrated a 10-fold advantage in editing efficiency over PEMax at ATP7B, reaching 19.9% efficiency with 97.9% fidelity (Fig. 2a)20. Finding low efficiencies with initial PE controls, we moved to comparisons with internally engineered nCas9-RT variants with higher editing efficiencies, PE-TB1-3 (Fig. 2b)21. Against PE-TB2, L-PGI maintained a significant lead performing the 2nt mutation at HFE (Fig. 2c).
Results shown for n = 3 biological replicates for all experiments unless otherwise indicated. A Efficiency and fidelity of 2 nt substitution of +5 G to T and +8 G to T to install H1069Q with silent mutation in ATP7B assayed by next generation sequencing (NGS). L-PGI was compared to PE2, PE3, and PEMax. Ordinary one-way ANOVA without matching with Gaussian distribution used to calculate p value for efficiency comparison between PEMax and L-PGI. B Comparison of engineered nCas9-RT variant controls with published mRNA sequences for placement of 38 bp Bxb1 attachment site (attB) in F9 intron 1 via twin PE mechanism using paired guides with 20 overlap in PHH assayed by digital droplet PCR (ddPCR). Unpaired T test and ordinary one-way ANOVA with Gaussian distribution performed, respectively. n = 2 for PE6 test condition only. C Efficiency and fidelity of 2 nt substitution of UGC to UAU to install C282Y with silent mutation in HFE assayed by NGS. L-PGI is compared to PE-TB2 (nCas9 fused to engineered RT). Ordinary one-way ANOVA performed for efficiency to calculate p values, ns indicates not significant. n = 2 for L-PGI test condition only. D Schematic map showing location of guide target window in a 900 bp range spanning the transcription start site (TSS) preceding exon 2 of APOA1. E Efficiency of 1–3 nt substitutions performed by either PE or L-PGI shown side by side using the same spacer sequences for either pegRNA or lmgRNA and identical ngRNA by Sanger Sequencing and inference of CRISPR edits (ICE) analysis against untreated control. Paired T test performed with estimation plot showing up to 54.3 percentage gain in efficiency with average gain of 13.1 across all tested spacers. F Edit quality comparison for subset of APOA1 spacers showing comparable fidelity across loci and methods. SP4275 PE-TB3, SP4286, and SP4275 L-PGI test conditions contain n = 2 biological replicates. All error bars represent standard deviation. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-4.

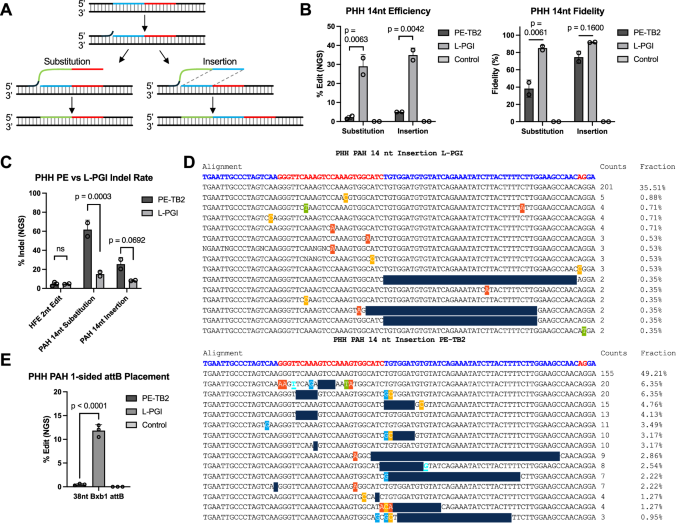

We then explored the application of precision gene editing for modification of target gene expression as a potential therapeutic strategy for non-monogenic disorders. We selected APOA1 as proof of concept to treat cardiovascular disease22 and screened spacers within the promoter region to induce 1 – 3 nt edits with either L-PGI or PE. These edits would result in sequences resembling transcription factor (TF) binding motifs, which might upregulate APOA1 expression, leading to therapeutic benefit (Fig. 2d). We found up to 66.0% efficiency with L-PGI compared to 48.0% with PE-TB3 at the same cut site and an average of 13.1-point gain across all sites with comparable edit quality (Fig. 2e, f).
Further, we explored the possibility of placing entire TF binding sites. By shifting the placement of the homology arm in the donor or RT template, we attempted 14 bp edits as either a complete insertion, shifting endogenous sequence downstream, or as a substitution by simultaneously excising endogenous sequence of the same length (Fig. 3a). We found up to 34.9% total editing and superior fidelity using L-PGI compared to 5.0% using RT-based (pegRNA) editing (Fig. 3b, Supplementary Fig. 3a-d). Insertion generally outperformed sequence substitution both by ligation and RT-based methods likely due to the favorability of strand displacement closer to the nick site. We found that L-PGI maintained a lower indel rate across all small insertion types tested (Fig. 3c). The additional errors from PE appear as a combination of substitutions and indels and are likely due to RT errors (Fig. 3d). Although substitution errors also occur in L-PGI, they are likely the result of errors during chemical synthesis, which could be minimized with higher purity donors. We then tested longer insertions, including a 38 bp Bxb1 integrase attachment site (attB), and found up to 11.8% correct editing with L-PGI compared to 0.5% with RT (Fig. 3e). Though the edit outcomes for attB insertion via L-PGI were still favorable compared to RT, we observed a reduction in efficiency consistent with results in the GFP reporter HEK293T line using longer donor lengths.
A Illustration showing the 14 nt edit with and without excision of endogenous sequence representing end cases preserving either endogenous sequence or reading frame. The endogenous sequence downstream of the nick is shown in blue and red. The donor contains the 14 nt insertion followed by sequence homologous to the red for sequence replacement or to the blue for sequence insertion. B Highest total efficiencies and maximum fidelities observed using either sequence replacement or insertion observed using either PE-TB2 or L-PGI in PAH intron 1 obtained through component ratio optimization. Ordinary one-way ANOVA with Gaussian distribution performed for biological replicates n = 2 with p values shown. Efficiencies and fidelity vary depending on component ratio, for complete data set refer to Supplementary Fig. 3. C Comparison of lowest indel generation rates observed between PE-TB2 and L-PGI. Indel rate is calculated as the rate of total erroneous deletions and insertions occurring within the nick to nick edit window normalized to total edited reads. P values determined with Ordinary one-way ANOVA with Gaussian distribution for multiple comparisons. n = 3 for HFE 2nt edit PE-TB2 condition and 2 for all other test conditions. D Representative NGS paired-end alignment showing top 15 reads each of 14 nt insertions in PAH intron 1 of PHH using L-PGI (top) and PE-TB2 (bottom). Black bars indicate deletions, highlighted bases show substitutions, and underlined bases contain insertions. In L-PGI the dominant errors are point substitutions in the donor region (24 nt in red in reference alignment) and excisions between the end of the donor and the nicking site on the opposite strand (2 nt in red). PE results in additional insertions and deletions in the edit window. E Comparison of 38 nt Bxb1 attB placement efficiency in PAH intron 1 using L-PGI or PE-TB2 by NGS showing correct editing rate only. Ordinary one-way ANOVA with Gaussian distribution performed with n = 3. All error bars represent standard deviation. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-4.
Paired L-PGI
To combat the efficiency drop with longer edits, we paired two L-PGI complexes (paired L-PGI, pL-PGI) to simultaneously introduce edits on opposite strands of the genome (Fig. 4a). Donors can be designed either containing exogenous sequence for gene replacement, or complementary to the genome beyond the opposing nick for precise deletion (Fig. 4b). In both scenarios, the genomic region between the two nicks is excised by 5’ exonuclease degradation23, resulting in a size change detectable by gel electrophoresis following target amplification24,25. We used pL-PGI to either delete the C9ORF72 hexanucleotide repeat expansion in HEK293T cells (Supplementary Fig. 4a) or replace the 131 bp region with a 38 bp Bxb1 attB site (Supplementary Fig. 4b). We quantified the frequency of these and additional edits using NGS amplicon sequencing and found that pL-PGI could install a 33 bp Pa01 attB site at NOLC1 locus in HEK293T cells with ~1.5–2-fold efficiency improvement over RT-based editing and ~60% reduction in indels (Fig. 4c)26.

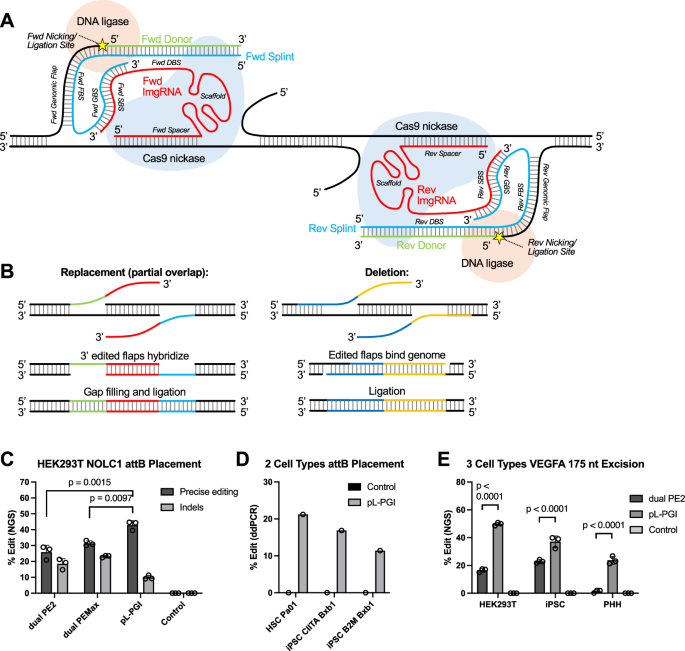

A Schematic diagram of paired L-PGI complexes targeting opposite strands to install paired reverse complementary donors. B Design strategies demonstrating replacement type edit (left) by encoding the desired edit in reverse complementary partial overlap donors or deletion type edit (right) by having donors homologous to the genome flanking the sequence to be excised. C Pa01 33 bp attB placement efficiencies using paired complexes PE2, PEMax, or pL-PGI in NOLC1 of HEK293T measured by NGS for biological replicates n = 3. Control defined as untransfected cells. Ordinary one-way ANOVA for multiple comparisons with Gaussian distribution performed for precise edit efficiencies by edit method with p values shown. D Efficiencies of Pa01 33 bp attB placement in NOLC1 of hematopoietic stem cells (HSCs), Bxb1 38 bp attB placement in B2M of induced pluripotent stem cells (iPSCs), and 42 bp edit containing Bxb1 38 bp attB with TAAT stop codon in CIITA of iPSCs, all results assayed by ddPCR. Control conditions received electroporation only with no transfection reagents. Each condition performed once n = 1. E Efficiencies of 175 bp excision at VEGFA of HEK293T, iPSC, and PHH by either dual PE2 or pL-PGI by NGS for biological replicates n = 3. All error bars represent standard deviation. Source data are provided in Source Data file. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-4.
Evaluation in additional cell types showed that pL-PGI is also active in hematopoietic stem cells (HSCs) and induced pluripotent stem cells (iPSCs), achieving up to 21.2% and 16.9% attB placement, respectively without selection (Fig. 4d). pL-PGI was also used to delete 175 bp at the VEGFA locus, leading to 3-fold higher editing in HEK293T, 1.6-fold higher editing in iPSCs, and 16-fold higher editing in PHH compared to RT editors (Fig. 4e). To test the limit of edit size, we attempted a 345 bp miniGFP insertion in HFE using pL-PGI with 55 nt overlap in PHH and detected up to 0.5% editing by ddPCR, likely the result of limited delivery of long donors (Supplementary Fig. 4c)27.
The use of DNA donors and splint molecules has the potential to activate innate immune responses in treated cells. To investigate this, we examined pL-PGI cytotoxicity in PHH using an ATP-based cell viability assay and found no significant decrease in cell health using optimized transfection conditions (Supplementary Fig. 5a, b). Assessment of potential innate immune response using an IFN-beta enzyme-linked immunoassay also yielded no significant response in PHH (Supplementary Fig. 5c).
pL-PGI for integrase mediated genomic insertion

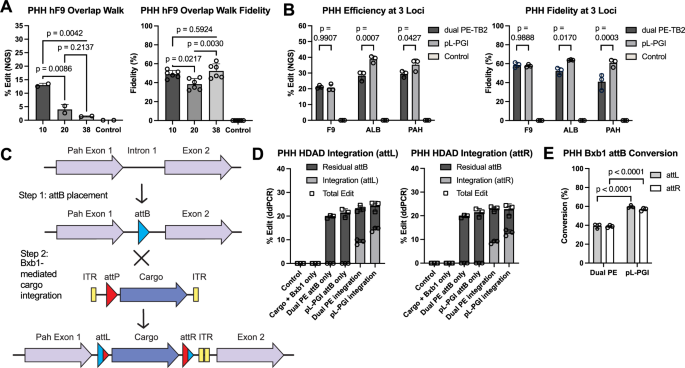

To optimize pL-PGI for integration in PHH, we symmetrically walked the overlap around the central dinucleotide while maintaining full complementarity between the splint and donor and found that 10 bp showed both best efficiency and fidelity (Fig. 5a). We found that 20 bp overlap efficiencies could improve by decreasing just the splint DBS length, thereby minimizing unwanted LNA exacerbation of splint secondary structure (Supplementary Fig. 5d). We also explored placement of the Bxb1 attP attachment site due to a potentially favorable off-target cryptic site profile in the human genome compared to attB28. We varied the donor overlaps for the 52 bp attP sequence in a similar manner and saw that fidelity was correlated with donor length while efficiency was inversely related (Supplementary Fig. 5e). From our attB and attP insertion studies, we concluded that optimal editing can be achieved with 10 bp overlap attB.
All results show biological replicates of n = 3 unless otherwise stated. A Efficiency and fidelity of attB placement with symmetrically varying overlap for forward and reverse donors in F9. Donor and splint DBS were kept locked to maintain full donor splint hybridization (24, 29, 38 nt for 10, 20, and 38 overlap, respectively). Control is untreated cells. Each condition for efficiency testing performed n = 2 and for fidelity, n = 6. % edit quantified as precise editing only and % fidelity quantified as precise editing out of total editing for all groups. Ordinary one-way ANOVA for multiple comparisons with Gaussian distribution used to calculate p values. B Application of 10 overlap pL-PGI for attB placement in F9, Albumin (ALB), and PAH in PHH versus dual 20 overlap PE-TB2 showing frequency of precise editing only by NGS. C Schematic illustration of 2-step attB placement followed by Bxb1-mediated integration of viral cargo showing expected genomic products. ITR = inverted terminal repeats, attP = attachment site P, attL = post recombination left junction, attR = post recombination right junction. D Residual unconverted attB and total gene integration efficiency of helper-dependent adenovirus (HDAd) comparing attB placed by either dual PE or pL-PGI. Sum of both bars represents total edit efficiency for each attB placement method. Control is untreated cells. E Comparison of attB conversion rate (calculated as ratio of integration to integration + residual attB) between dual PE and pL-PGI across both left and right junctions. Ordinary one-way ANOVA for multiple comparisons used for calculation of p values. All error bars indicate standard deviation. Source data are provided in Source Data file. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-4, 7.
We next compared optimized configurations of both pL-PGI and dual PE-TB2 at therapeutic loci F9, Albumin, and PAH29,30,31. We found 20.7–38.8% total editing efficiencies with pL-PGI, matching or outperforming RT-based editing at all loci tested (Fig. 5b). The fidelity of RT-based editing appears to be more locus-dependent than pL-PGI, while both methods see reduced fidelity compared to single complex editing due to the possibility of NHEJ repair prior to either edit installation or overlap hybridization.
Initial efforts using fully methylated donors for integrase-mediated gene insertion found low attB conversion after 2-step PGI (Fig. 5c)32,33. Hypothesizing that chemical modifications were recruiting methyl-CpG-binding proteins thereby blocking integrase access, we then screened additional chemical modifications for attB placement in PHH and found that removal of all methylation while retaining two phosphorothioate bonds resulted in preservation of donor stability, edit efficiency, and improved Bxb1 activity in cells (Supplementary Fig. 5f, g). Using this donor modification pattern, we were able to install 38 bp attB into intron 1 of PAH and in the presence of Bxb1 mRNA and helper-dependent adenoviral (HDAd) DNA cargo (Supplementary Fig. 5h), measured 14.4% whole gene insertion and 59.6% attB conversion by ddPCR (Fig. 5d, e, Supplementary Fig. 5i). We found higher attB conversion with pL-PGI than RT-based editing, consistent with the improvements in fidelity seen with pL-PGI.
Translating pL-PGI across species in vitro
Using appropriately designed lmgRNAs, donors and splints, we were able to efficiently install 38 bp attBs into intron 1 of the PAH gene in primary mouse hepatocytes (PMH) and primary cynomolgus hepatocytes (PCH), both important surrogate cell types for animal models (Fig. 6a). Comparing pL-PGI to optimized dual PE-TB2 attB insertion, we observed similar correct and total edit efficiency in both PCH and PHH. However, in PMH we observed almost no correct insertion using dual PE-TB2, while pL-PGI was able to achieve 10.0% placement of functional attBs. pL-PGI and dual PE-TB2 showed comparable fidelity in PCH but differed in PHH and PMH, with 1.5-fold and 10-100-fold higher fidelity, respectively (Fig. 6b). Additionally, pL-PGI and dual PE-TB2 lead to different imperfect editing outcomes (Supplementary Fig. 6a,b). RT-based insertion showed partially written sequence or incorrect sequence that is likely from incorrect reverse transcription or partial strand degradation. pL-PGI generally results in insertions containing the entire forward or reverse donor with blunt end joining to the second nick site, reflecting the benefit of pre-synthesized donors against de novo transcription in cells.
A Perfect edit and indel efficiencies at PAH intron 1 in PHH, primary cynomolgus hepatocytes (PCH), and primary mouse hepatocytes (PMH), respectively using guides targeting the identical nicking sites for both edit methods in each comparison. PHH and PMH show results of biological replicates n = 3 and PCH results of biological replicates n = 2. Ordinary one-way ANOVA with Gaussian distribution performed for all analyses. B Fidelity comparison between pL-PGI and dual PE-TB2 for the same edits in PHH, PCH, and PMH, respectively, calculated by taking the percent of perfect beacons out of total edits. PHH and PMH show results of biological replicates n = 3 and PCH results of biological replicates n = 2. C pL-PGI LNP formulation payload schematic depicting all in one (AIO) delivery and split delivery. AIO: single particle with all 8 components: nCas9 mRNA (1), ligase mRNA (2), forward lmgRNA (3), reverse lmgRNA (4), forward splint (5), reverse splint (6), forward donor (7), and reverse donor (8). Split: two particles each containing half of both mRNAs and either forward guide, forward splint, forward donor or reverse guide, reverse splint, and reverse donor. D Potency of dual PE-TB2 AIO versus AIO and split pL-PGI LNP targeting F9 in PHH assayed by ddPCR showing biological replicates n = 3 for each treatment dose. 4-parameter nonlinear curve calculated showing EC50 (ng/well) and R squared goodness of fit for each group. E Dual PE-TB3 vs pL-PGI for attB placement in mouse PAH assayed by ddPCR. Ordinary one-way ANOVA performed on biological replicates n = 5 for all groups. Control group treated with saline vehicle. F PE-TB3 vs L-PGI for insertion of a 14 nt edit in mouse PAH assayed by ddPCR showing 2-fold gain in efficiency. Ordinary one-way ANOVA performed on biological replicates n = 5. G Alanine transaminase (ALT) and aspartate transaminase (AST) levels in units/L (U/L) in mouse serum collected 24 h and 7 days after LNP injection. Sampled from individual animals n = 3. Ordinary one-way ANOVA performed for p values. All error bars indicate standard deviation. All one-way ANOVA tests assume Gaussian distribution with no matching. Source data are provided in Source Data file. Source data are provided in Source Data file. Nucleotide reagents provided in Supplementary Data 1-4, 7.
Using pL-PGI for therapeutic indications also involves moving to higher purity reagents and formulation of the components in a relevant delivery modality such as lipid nanoparticles (LNP). We tested HPLC-purified synthetic F9 lmgRNAs and found a 1.5-fold improvement over crude lmgRNAs which translated to an overall ~3-fold improvement in attB placement efficiency compared to RT-based attB placement with purified synthetic atgRNAs in PHH (Supplementary Fig. 6c). We also tested the effect of purification on donors and found improvement to 82.4% total editing with 62.7% fidelity at PAH in PHH (Supplementary Fig. 6d). Next, we compared all in one (AIO) LNP and split LNP packaging designs for attB placement in F9, theorizing that separate formulations may minimize unwanted cross-hybridization between oligonucleotide components (Fig. 6c). We found AIO and split pL-PGI performed similarly, and both were more potent than the PE LNP (Fig. 6d). AIO was selected for in vivo for simplicity. Lastly, we formulated mouse F9 reagents into LNPs and found 10-fold higher attB placement in PMH with pL-PGI than dual PE-TB2, consistent with earlier MessengerMAX results (Supplementary Fig. 6e).
L-PGI and pL-PGI in vivo
We selected the lead L-PGI 14 nt insertion and pL-PGI attB placement architecture and compared their efficiency in vivo against PE-TB3 and dual PE-TB3, respectively. High purity guide RNAs were synthesized in-house for pL-PGI and dual PE-TB3 and other synthetic oligonucleotide components were provided by an external vendor (IDT) without purification. mRNAs and oligonucleotide components were co-formulated and dosed to adult mice. Using ddPCR as a preliminary readout, we found up to 12.1% attB placement in one animal with an average of 7.9% by pL-PGI and an average of 2.5% by dual PE-TB3, representing a 3-fold advantage (Fig. 6e). For 14 nt insertion, we found an average of 3.8% editing by L-PGI and 1.9% by PE-TB3, a 2-fold advantage (Fig. 6f). Comparison with PMH in vitro suggests that these efficiency differences are primary fidelity driven, though future deep sequencing would be essential to further interpretation.
While earlier experiments detected no toxicity in PHH, in mice pL-PGI resulted in elevated alanine transaminase (ALT) and aspartate transaminase (AST) levels compared to control groups at 24 h that subsided by 7 days (Fig. 6g). While this did not translate to any adverse reaction in animals or prevent editing, toxicity remains a potential risk that may be mitigated by further optimization of the system (allowing for decreased doses) or addition of immune suppression cotreatments.
Discussion
Large precise insertions using CRISPR/Cas9 based systems have been challenging using the available gene editing systems1,32,33,34,35,36. Here, we describe L-PGI and pL-PGI, two technologies that capitalize on the biochemistry of CRISPR/Cas9 nicking to ligate edits using synthetic DNA donors without requiring exogenous writing enzymes.
We first showed that L-PGI and pL-PGI are capable of a broad range of edits from point mutations to insertion of hundreds of bases in cycling cells and primary hepatocytes. L-PGI has significantly higher efficiency and fidelity vs RT systems for medium sized ( ~ 14 bp) edits, a class essential for applications such as endogenous gene augmentation via installation of transcription factor binding sites. The potential for long insertions can also be applied to circumvent the PAM availability restriction in Cas9 targeting. While we have not fully explored the maximum size limit of the L-PGI system, the ability to simultaneously delete and insert sequences potentially opens the door to exon replacements, which could treat a multitude of genetic diseases caused by repeat expansions37.
We then demonstrated through a series of optimizations in primary mouse, human, and cynomolgus monkey hepatocytes that L-PGI and pL-PGI are efficient methods for enabling multi-kilobase gene insertion via writing of integrase landing sites. pL-PGI leads to more accurate editing outcomes than RT-based editing, resulting in significantly higher Bxb1 integration efficiency. Due to its superior capacity for longer insertions without compromising efficiency, pL-PGI can alternatively place 52 bp attP for Bxb1 integration. As integrases are not cargo size limited, this technology can enable precise and directed whole gene replacement that restores function under endogenous gene regulation32.
Lastly, we evaluated the impact of reagent purity on potency, the feasibility of formulating 8 separate RNA and DNA components in a single LNP, and the efficiencies of L-PGI and pL-PGI in adult mice. Compared to RT-based editing, L-PGI resulted in 2-fold higher 14 nt insertion and pL-PGI resulted in 3-fold higher attB placement in the mouse PAH gene, successfully reproducing the gains seen in PMH. Though elevated liver toxicity markers were observed post injection, these effects were transient and may be reduced through further reagent optimization and component engineering. The use of DNA donors and splint molecules has the potential to activate the innate immune response, which could lead to toxicity. At the doses used in this work, we did not observe decreased cell health or IFN-beta activation from L-PGI reagents in PHH cells. It is possible that the DNA response will be cell type dependent and a further investigation into this issue is warranted.
While we did not explore off-target editing, we consider it to be critical for further development of L-PGI for therapeutic use. Due to the dependence on nicks (vs DSBs), we expect minimal off-targets, similar to what has been seen in the prime editing field38. Any off-target edits are likely to be driven by spacer specificity and specificity can be benchmarked using guides with known off-target sites such as HEK46. Given the lack of on-target editing when splint or donor is omitted and previous reports showing un-detectable off-targets using ssDNA donor editing (HDR)39, we anticipate L-PGI to have very low off-target risk. Nonetheless, this hypothesis will require experimental verification using orthogonal approaches to provide sufficient sequencing depth and quantifying power.
In summary, the presented body of work demonstrates that L-PGI is an effective and versatile gene editing system for in vivo liver therapeutics with key advantages in the described use cases. Future directions include off-target profiling, toxicity reduction, expansion of editing capabilities, and further application for novel therapeutic strategies. While its synthetic format is suitable for transient delivery systems such as lipid, peptide, or polymer-based delivery, viral delivery systems such as AAV present challenges. To leverage the favorable characteristics of AAV, re-configuring the system for viral compatibility may be desirable for some applications. Due to its efficacy even in challenging species for RT-based editing such as mouse, L-PGI may have greater universal efficacy and could be coupled with delivery advancements for future therapies targeting important cell types implicated in CNS disorders. By offering solutions to fundamental shortcomings of RT-based editing, L-PGI may play an important role in the next generation of gene editing therapies.
