NiFe₂O₄ spinel engineering for transcending the dilemma of activity–selectivity in CO₂ hydrogenation to ethanol

Abstract

CO₂ hydrogenation to ethanol serves as a potential route for carbon neutrality and renewable energy utilization, while its practical application is severely limited by the activity-selectivity trade-off. This challenge primarily arises from the difficulty of C–C coupling and the occurrence of multiple side reactions. Herein, we design a NiFe₂O₄ spinel-modified Fe₂O₃ catalyst via a solid-state co-precipitation method, achieving a high CO₂ conversion rate of 49.3% with an ethanol space–time yield of 883.7  mg·g_cat.⁻¹· h⁻¹. Further mechanism investigation reveals that the incorporation of NiFe₂O₄ spinel benefits the formation of active Fe₅C₂ phase. Meanwhile, the interfacial sites between NiFe₂O₄ and Fe₂O₃ endow the catalyst with superior hydrogenation ability, which effectively inhibits excessive carbon chain growth and promotes the orientated synthesis of ethanol. This work proposes an inspiring NiFe₂O₄ spinel engineering method for the efficient production of multi-carbon oxygenates from CO₂ hydrogenation.

Introduction

Under the global initiative toward carbon neutrality, the efficient conversion of carbon dioxide (CO₂) into high-value chemicals has become an essential component in building sustainable low-carbon energy systems^1,2,3. Among the various possible hydrogenation products, ethanol has attracted particular attention due to its high energy density, excellent fuel properties, and broad industrial applicability^4,5,6. Iron-based catalysts are widely employed in CO₂ hydrogenation to ethanol, where CO₂ is first reduced to CO via the reverse water-gas shift (RWGS) reaction and subsequently converted to ethanol over an active Fe₅C₂ phase through Fischer-Tropsch synthesis (FTS)^2,7,8,9. Despite extensive research efforts devoted to improving Fe-based catalysts, simultaneously achieving a superior CO₂ conversion rate and remarkable ethanol selectivity remains a formidable challenge. The inherent high thermal stability of CO₂ and the substantial energy barrier to C-C coupling impose significant obstacles to enhancing CO₂ activation and conversion. Furthermore, the stringent conditions for the formation of reactive iron carbide phases limit effective enrichment of FeC_x in FTS^10,11. Meanwhile, multiple concurrent side reactions are prone to occur owing to the difficulty in precisely modulating C–C extension process, and the selectivity of target ethanol is generally restricted by the Anderson–Schulz–Flory (ASF) distribution over Fe-based catalysts^12,13,14. The development of catalysts for the hydrogenation of CO₂ to ethanol with industrialization potential is urgently required.

In recent years, spinel ferrite materials have emerged prominently in CO₂ hydrogenation due to their tunable compositions, defect-rich sites, and high thermal stability¹⁵. Generally, spinel ferrites are Fe-based oxides in which part of the trivalent Fe³⁺ ions in the lattice are substituted by divalent transition metal ions¹⁵. The unique structural compositions endow spinel ferrites with sufficient oxygen localization to form abundant oxygen vacancies (OVs) for the adsorption and interaction of CO₂^16,17. Besides, the inclusion of various divalent metal additives leads to charge redistribution, which promotes the reducibility and carburization of Fe species for the formation of active iron carbides¹⁸. Moreover, the spinel structure with tetrahedral and octahedral sites provides multiple sites for different metals, favoring the construction of potentially reactive centers, including the interfacial domain and the dual-metal sites¹⁹. The integration of appropriate secondary metals can modulate the microenvironment of Fe species and regulate the C–C coupling process for the selective synthesis of target products. Nickel-based species are a promising candidate as the secondary metal in spinel ferrites for the oriented production of ethanol. Firstly, Ni-based species display high activity in C-O cleavage and rapid hydrogenation, which boosts the formation of alkyls (CH_x*) intermediates and further facilitates the C–C coupling process³. Additionally, the efficient H₂ activation and dissociation capability of Ni-based species can tune the hydrogenation kinetics and suppress the random carbon chain growth, benefiting for the preferential formation of ethanol.

Herein, drawing inspiration from the advantageous spinel structures and the potent hydrogenation activity of Ni-based species, we innovatively introduced the NiFe₂O₄ spinel into Fe₂O₃ (NiFe₂O₄/Fe₂O₃) by a solid-state co-precipitation method. The modification of NiFe₂O₄ spinel broke the selectivity limitation caused by ASF distribution and further facilitated the space-time yield (STY) of ethanol. The selectivity of ethanol was boosted to 33.0% at a high CO₂ conversion rate of 49.3% under a weight hourly space velocity (WHSV) of 24000 mL·g_cat.⁻¹·h⁻¹. More impressively, NiFe₂O₄/Fe₂O₃ achieved a high ethanol STY of 883.7 mg·g_cat.⁻¹· h⁻¹. Further mechanism investigations revealed that the interfacial sites between NiFe₂O₄ and Fe₂O₃ of NiFe₂O₄/Fe₂O₃ favored the activation and dissociation of H₂ with the generation of sufficient active hydrogen species, which assisted to achieve the dynamic transformation of the adsorbed CO₂ and the high CO₂ conversion. Moreover, the modification of NiFe₂O₄ promoted the reducibility of Fe₂O₃, contributing to the rapid carburization process and the formation of Fe₅C₂ phase for carbon chain extension. Theoretical calculations further confirmed that NiFe₂O₄ spinel reduced the energy barrier of C–C coupling between CH₂* and CHO*. Meanwhile, the efficient hydrogenation capability of NiFe₂O₄/Fe₂O₃ endowed by the interfaces also suppressed the excessive carbon chain growth, which facilitated the precise C–C coupling process and the oriented production of ethanol. The NiFe₂O₄ spinel engineering successfully breaks the trade-off between activity and selectivity in CO₂ hydrogenation to ethanol.

Results

Catalytic properties of spinel-modified Fe₂O₃ catalysts in CO₂ hydrogenation

To begin with, a series of spinel-modified Fe₂O₃ catalysts was fabricated via the solid-state co-precipitation method²⁰. Pure NiFe₂O₄ and Fe₂O₃ were also prepared for further comparison. Besides, traditional liquid-state co-precipitation method was applied to synthesize Fe₂O₃ catalyst decorated with NiO_x species (NiO_x/Fe₂O₃). All the catalysts were further loaded with 2.0 wt% of alkali metal potassium (K). The catalytic properties of the as-obtained catalysts were evaluated toward CO₂ hydrogenation over a fixed-bed reactor at 330 °C and 5 MPa for 6 h on stream. The main products over pure NiFe₂O₄ were CO and CH₄ with negligible generation of ethanol, while sole Fe₂O₃ primarily produced C₅₊ hydrocarbons during CO₂ hydrogenation (Fig. 1a). Impressively, the incorporation of NiFe₂O₄ into Fe₂O₃ significantly boosted the CO₂ conversion rate to the 49.3% and ethanol selectivity to 33.0% under a high WHSV of 24,000 mL·g_cat.⁻¹·h⁻¹, while reducing the selectivity of C₅₊ hydrocarbons to 5.8% (Fig. 1a and Table S1). NiFe₂O₄/Fe₂O₃ achieved an unprecedented STY of 883.7 mg·g_cat.⁻¹· h⁻¹ towards ethanol, which was 64.5 and 8.0 times higher than that for NiFe₂O₄ and Fe₂O₃, respectively (Fig. 1b and Table S1). The prominent improvement in the catalytic property of NiFe₂O₄/Fe₂O₃ relative to sole NiFe₂O₄ and Fe₂O₃ suggested the potential synergistic effect between these two components for the oriented production of ethanol. As for NiO_x/Fe₂O₃, despite suppressing the production of C₅₊ hydrocarbons to some extent, NiO_x species impaired the conversion of CO₂ while accelerating the production of CO, leading to a lower STY of ethanol (Fig. 1a and Table S1). Besides, the modification of Fe₂O₃ with other spinel species was also conducted, including CoFe₂O₄, CuFe₂O₄, and ZnFe₂O₄, among which NiFe₂O₄ presented the most pronounced enhancement in the selectivity and STY of ethanol, as well as the most intense inhibition of C₅₊ hydrocarbons production during CO₂ hydrogenation (Figs. 1a, 1b). The above results demonstrated that the NiFe₂O₄ spinel exhibited strong hydrogenation capability and could modulate the C–C coupling process to restrain the excessive carbon chain growth, which was further verified by the hydrocarbon distribution analysis. As shown in Fig. S1, all catalysts except NiFe₂O₄/Fe₂O₃ exhibited typical random chain growth behavior of conventional FTS and followed the ASF distribution of hydrocarbon products. NiFe₂O₄/Fe₂O₃ broke the traditional ASF distribution with the lowest probability of chain growth (α) of 0.46 among the obtained catalysts, revealing that the modification of NiFe₂O₄ potentially controlled the excessive formation of long-chain hydrocarbons and further facilitated the preferential generation of ethanol (Figure S1).

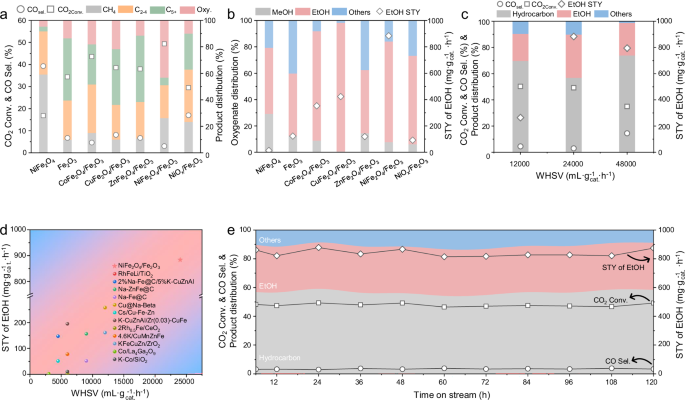

Fig. 1: Catalytic performance and stability of NiFe₂O₄/Fe₂O₃ in CO₂ hydrogenation to ethanol.

a Catalytic performance and b oxygenated product distribution and STY of EtOH over the prepared catalysts. c Catalytic performance, product distribution, and STY of EtOH over NiFe₂O₄/Fe₂O₃ with different WHSV. d Comparison of WHSV and STY of EtOH over NiFe₂O₄/Fe₂O₃ with the results reported in other literature. e Stability of NiFe₂O₄/Fe₂O₃ in CO₂ hydrogenation to EtOH. Reaction conditions: 330 °C, 5.0 MPa, WHSV = 24000 mL·g_cat.⁻¹·h⁻¹, H₂/CO₂/Ar = 72/24/4.

The effect of alkali metal K on CO₂ hydrogenation to ethanol was assessed for NiFe₂O₄/Fe₂O₃. As displayed in Fig. S2 and Table S2, variation of K loading from 0 to 4 wt% had a negligible impact on CO₂ conversion rate (48.6–49.3%) and selectivity of CO (1.9-3.0%), while the product distributions were fine-tuned via K component. With the increase of K content to 2 wt%, the selectivity of CH₄ significantly decreased with the concomitant enhancement in the production of ethanol. The selectivity and STY of ethanol slightly declined when further increasing K content to 4 wt%, likely due to over-saturation of basic sites or blockage of active sites at surfaces. Thus, an optimal K loading of 2 wt% effectively suppressed the methanation process and further contributed to the formation of ethanol. The catalytic performance of NiFe₂O₄/Fe₂O₃ was further investigated under various reaction temperatures, pressures, and WHSV. As illustrated in Fig. S3 and Table S3, increasing the temperature from 300 to 360 °C only slightly elevated the CO₂ conversion as well as the selectivity and STY of ethanol, indicating that NiFe₂O₄/Fe₂O₃ operated efficiently even at relatively moderate temperatures. The effect of pressure on catalytic performance over NiFe₂O₄/Fe₂O₃ was displayed in Fig. S4 and Table S4. With the increase of pressure, both CO₂ conversion and selectivity of ethanol greatly enhanced, while the production of CO and CH₄ was suppressed. Higher pressure was thermodynamically favorable for the formation of ethanol, and the STY of ethanol significantly promoted from 22.5 to 883.7 mg·g_cat.⁻¹·h⁻¹ when elevating the pressure from 1 to 5 MPa. The enhancement could be attributed to the increased the partial pressure of CO₂ and H₂ at higher pressure, which facilitated the adsorption and activation of CO₂ and the C–C coupling process. WHSV affected CO₂ conversion and the detailed distribution of products, where the STY of ethanol displayed a volcano-type trend against the WHSV over NiFe₂O₄/Fe₂O₃ (Fig. 1c).

NiFe₂O₄/Fe₂O₃ exhibited the supreme catalytic performance for CO₂ hydrogenation to ethanol in this work, which also displayed a significant performance leap across all key metrics compared to the vast majority of catalysts reported previously, especially for the STY of ethanol (Fig. 1d, S5 and Table S5). Additionally, five independent catalytic tests under the same reaction conditions were also conducted for NiFe₂O₄/Fe₂O₃, verifying the repeatability and reliability of its pioneering catalytic performance towards CO₂ hydrogenation to ethanol (Fig. S6 and Table S6). Furthermore, the stability of NiFe₂O₄/Fe₂O₃ towards CO₂ hydrogenation was evaluated by prolonging the reaction time. Long-term durability test over 120 h revealed that NiFe₂O₄/Fe₂O₃ maintained sa table CO₂ conversion rate and STY of ethanol with minor fluctuations, demonstrating the remarkable structural robustness and resistance to deactivation (Fig. 1c and Table S7). Overall, the outstanding catalytic performance and the facile fabrication process of NiFe₂O₄/Fe₂O₃ highlighted its substantial promise for efficient and durable ethanol production via CO₂ resourcization.

Morphological and electronic properties of NiFe₂O₄/Fe₂O₃

To elucidate the origin of the superior catalytic performance of NiFe₂O₄/Fe₂O₃, multiple structural characterizations were first conducted for the fresh catalysts. Fig. S7a, b shows the X-ray diffraction (XRD) profiles of the as-obtained catalysts. Pure NiFe₂O₄ showed diffraction peaks at 30.3°, 35.7°, 43.4°, and 63.0°, well assigned to (220), (311), (400), and (440) planes of NiFe₂O₄ spinel phase (JCPDS No. 74-2081), respectively (Fig. S7a). The XRD patterns for NiO_x/Fe₂O₃ and Fe₂O₃ were mainly ascribed to hematite Fe₂O₃ phase (JCPDS No. 84-0308), while both Fe₂O₃ and NiFe₂O₄ phase were clearly observed for NiFe₂O₄/Fe₂O₃. The successful incorporation of the NiFe₂O₄ spinel was further confirmed by Raman spectroscopy. As shown in Fig. S7c, NiFe₂O₄/Fe₂O₃ displayed additional characteristic features attributed to the typical T_2g and A_1g vibrational modes of NiFe₂O₄ spinel²¹. XRD patterns for other spinel-modified Fe₂O₃ catalysts were illustrated in Fig. S7b. Similar to NiFe₂O₄/Fe₂O₃, additional peaks for corresponding spinels also appeared for CoFe₂O₄/Fe₂O₃, CuFe₂O₄/Fe₂O₃, and ZnFe₂O₄/Fe₂O₃ (Fig. S7b). Inductively coupled plasma-optical emission spectrometry (ICP-OES) tests were also carried out for the as-obtained catalysts. As listed in Table S8, the K content and the molar ratio between Fe and M (M = Ni, Co, Cu, and Zn) were consistent with the experimental design. Besides, the Brunauer–Emmett–Teller (BET) surface areas and crystallite size of the catalysts of the obtained catalysts were shown in Fig. S8 and Table S9. Figure 2b and S9 depict the high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) image of NiFe₂O₄/Fe₂O₃, which was composed of numerous irregular nanoparticles. Further observations in the high-resolution transmission electron microscopy (HRTEM) showed two sets of fringes with interplanar spacings of 0.251 and 0.250 nm, related to the (311) plane of NiFe₂O₄ and (110) plane of Fe₂O₃, respectively (Fig. 2a). Interfacial sites between NiFe₂O₄ and Fe₂O₃ formed in NiFe₂O₄/Fe₂O₃, which served as potential reactive center during CO₂ hydrogenation. The STEM energy dispersive X-ray (EDX) elemental mapping images were also collected, indicating a uniform distribution of K, Fe, Ni, and O elements in NiFe₂O₄/Fe₂O₃ (Fig. 2c). Morphology characterizations for NiO_x/Fe₂O₃ were performed as well, which showed similar nanoparticle stacking structure and homogeneous element distribution (Fig. S10). (012) plane for Fe₂O₃ phase was also observed in the HRTEM image of NiO_x/Fe₂O₃, while the lack of visible NiO_x nanoparticles could be attributed to the high dispersion or amorphous nature of Ni species (Fig. S10b).

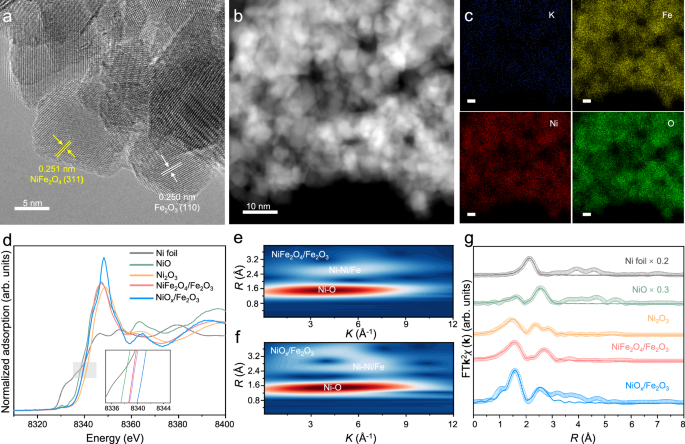

Fig. 2: Structural and electronic properties of NiFe₂O₄/Fe₂O₃.

a HRTEM image, b HAADF-STEM image, and c EDS mapping of NiFe₂O₄/Fe₂O₃. d Normalized Ni K-edge XANES spectra of the NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ in reference to the Ni foil, NiO, and Ni₂O₃. Wavelet transform analyses of the EXAFS spectra on Ni K-edge of e NiFe₂O₄/Fe₂O₃ and f NiO_x/Fe₂O₃. g EXAFS spectra of NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ in reference to the Ni foil, NiO, and Ni₂O₃. The dotted line and solid line were the experimental data and the corresponding fitting curve, respectively.

The X-ray absorption near-edge spectroscopy (XANES) and extended X-ray fine structure (EXAFS) were further employed to differentiate the electronic and local structures of the samples. Ni K-edge XANES profiles showed that the adsorption edge positions for both NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ were between NiO and Ni₂O₃, implying the mixed oxidation state of Ni species ranged from +2 to +3 (Fig. 2d). Additionally, the Ni species in NiFe₂O₄/Fe₂O₃ was in a lower oxidation state than that in NiO_x/Fe₂O₃ due to the formation of NiFe₂O₄ spinel, as evidenced by its lower adsorption edge energy (Fig. 2d)²². The local coordination configurations of Ni species for the samples were further identified by EXAFS. As displayed in the Ni K-edge wavelet transformed EXAFS (WT-EXAFS) spectra, the prominent peak at k ≈ 5.3 Å⁻¹ and k ≈ 6.7 Å⁻¹ were associated with Ni–O scattering path of the first shell and Ni–Ni/Fe scattering path of the second shell for both NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃, respectively (Fig. 2e, 2f). The precise Ni-Ni and Ni-Fe coordination numbers (CNs) were hard to determine, while the lower k of the second shell in NiFe₂O₄/Fe₂O₃ indicated the higher degree of Ni-Fe interaction originating from the spinel-type NiFe₂O₄ structure^23,24. Figure 2g displays the Fourier-transformed EXAFS spectra in R space. The CNs of Ni-Ni/Fe for NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ were calculated to be 11.0 and 5.1, respectively (Table S10). The substantial increase of Ni–Ni/Fe CNs in NiFe₂O₄/Fe₂O₃ stemmed from the well-ordered Ni–Fe coordination network in NiFe₂O₄ spinel. This spinel structure was also able to establish efficient electron transfer and buffering pathways, thus improving the redox flexibility of catalysts^15,25.

Structural evolution of NiFe₂O₄/Fe₂O₃ during CO₂ hydrogenation

The structural evolution of the catalysts was probed via in situ XRD measurements. Pure H₂ was firstly introduced, and the temperature was gradually increased to 400 °C, during which NiFe₂O₄/Fe₂O₃ showed the transformation of Fe₂O₃ into Fe₃O₄ (JCPDS No. 88-0315) (Fig. 3a). The diffraction peak at 44.7° appeared at around 80 min corresponding to the formation of metallic Fe (JCPDS No. 89-4186). After further treatment of CO₂/H₂ mixed gas at 330 °C, the peak for metallic Fe gradually disappeared with the concomitant generation of Fe₅C₂ phase (JCPDS No. 89-2544) even under atmospheric pressure. By contrast, no obvious peak for Fe phase or Fe₅C₂ phase was detected for NiO_x/Fe₂O₃ under reduction and reaction conditions (Fig. S11a). As for Fe₂O₃, weak metallic Fe peaks appeared after H₂ reduction, while the signals for Fe₅C₂ remained feeble after exposure to the reaction gas (Fig. S11b). The above in situ XRD results suggested that the NiFe₂O₄ spinel held the potential to promote the reduction of Fe₂O₃ to Fe and further the formation of active Fe₅C₂ phase. Moreover, the evolution of Ni species was explored by quasi in situ XPS measurement. As indicated by the Ni 2p_3/2 spectra, partial reduction of Ni^3+/2+ to Ni⁰ was observed after H₂ pretreatment (Fig. S12). Upon exposure to the CO₂/H₂ atmosphere, the peak for metallic Ni disappeared with the generation a large portion of Ni^3+/2+ species, indicating that Ni⁰ species underwent oxidation under reaction atmosphere. The reduced Ni species was speculated to reform the NiFe₂O₄ spinel under reaction conditions due to the redox flexibility nature of the spinel structure, which was further proved via Raman spectroscopy (Figs. S12 and 3b). For the spent NiO_x/Fe₂O₃, A_1g, T_2g, and E_g were attributed to the vibrational modes of Fe₃O₄, consistent with the XRD results. In addition to the Fe₃O₄ phase, A_1g, T_2g, and E_g vibrational modes for NiFe₂O₄ spinel still retained for the spent NiFe₂O₄/Fe₂O₃, manifesting that NiFe₂O₄ phase was still preserved after the CO₂ hydrogenation process.

Fig. 3: Structural evolution, redox behavior, and surface adsorption properties of catalysts.

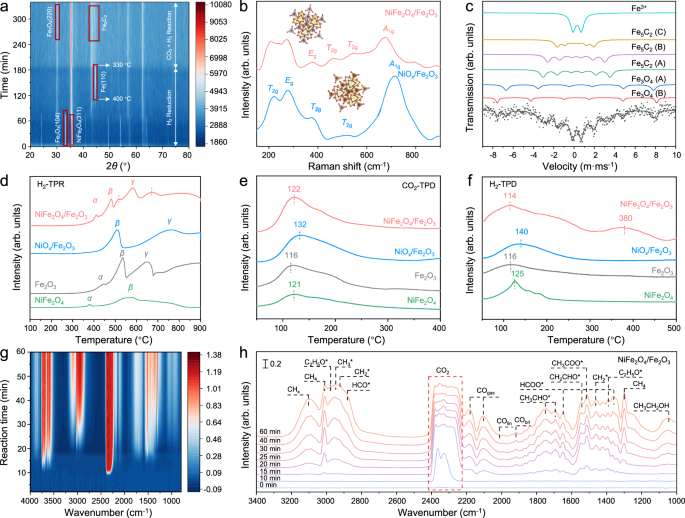

a In situ XRD patterns of NiFe₂O₄/Fe₂O₃. b Raman spectra of spent NiFe₂O₄/Fe₂O₃ and spent NiO_x/Fe₂O₃. c Mössbauer spectra of spent NiFe₂O₄/Fe₂O₃ catalyst. (d) H₂-TPR, e CO₂-TPD, and f H₂-TPD profiles of NiFe₂O₄/Fe₂O₃, NiO_x/Fe₂O₃, NiFe₂O₄, and Fe₂O₃. (g and h) In situ DRIFTS of NiFe₂O₄/Fe₂O₃.

Furthermore, the formation process of the pivotal Fe₅C₂ phase during CO₂ hydrogenation was elucidated in detail. Figure S13a displays the HRTEM images of NiFe₂O₄/Fe₂O₃ after 6-h catalytic test. The lattice parameters of 0.251 and 0.210 nm corresponded to the (311) facet of NiFe₂O₄ and the (021) facet of Fe₅C₂, respectively. The interface between NiFe₂O₄ and Fe₅C₂ was clearly identified. Besides, (021) facets of the Fe₅C₂ phase were also observed for the spent NiO_x/Fe₂O₃ and Fe₂O₃. The evolution of the iron phase during the reaction at different time on stream (TOS) for NiFe₂O₄/Fe₂O₃ was also monitored. The CO₂ conversion and CO selectivity trends over TOS were shown in Fig. S14a, which was divided into two stages, including the induction period and the stabilization period. The CO₂ conversion rapidly increased from 3.5% to 49.8% with the gradual decrease of the CO selectivity from 0 to 1.5 h. The reaction then reached a steady state with stable CO₂ conversion and CO selectivity after 1.5 h. Figure S14b presents the corresponding XRD patterns of the spent NiFe₂O₄/Fe₂O₃ at different TOS. The Fe₅C₂ content sharply increased to 65.35% at 1.5 h and remained almost unchanged up to 120 h, which revealed that NiFe₂O₄/Fe₂O₃ underwent a fast carburization process in the initial stage and then maintained a stable ratio of Fe₅C₂ to Fe₃O₄ (Table S10). The K content and different reaction conditions also influenced the formation of Fe₅C₂ over NiFe₂O₄/Fe₂O₃. The addition of K facilitated the generation of Fe₅C₂ to some extent, but excess K possessed a limited impact on the Fe₃O₄–Fe₅C₂ phase distribution (Fig. S15a and Table S12). NiFe₂O₄/Fe₂O₃ maintained a relatively stable phase composition across the tested temperature range of 300-360 °C (Fig. S15b and Table S13). By contrast, high reaction pressure markedly promoted the formation of Fe₅C₂ phase (Fig. S15c and Table S13).

Mössbauer spectroscopy and XRD characterizations were further carried out to quantify the contents of different phases for the spent catalysts after a 6-hour standard catalytic test. As listed in Table S14, the proportions of reactive Fe₅C₂ phase of the total iron phase were determined to be 69.41%, 37.27%, and 59.83% for the spent NiFe₂O₄/Fe₂O₃, NiO_x/Fe₂O₃, and Fe₂O₃, indicating the introduction of NiFe₂O₄ spinel promoted the formation of active Fe₅C₂ phase relative to sole Fe₂O₃ (Fig. 3c and S16). Besides, NiFe₂O₄/Fe₂O₃ exhibited the most prominent Fe₅C₂ features among these three catalysts in terms of the XRD patterns (Fig. S17a). The quantitative analysis of XRD revealed that Fe₅C₂ phase in spent NiFe₂O₄/Fe₂O₃ occupied 65.35% of all crystalline components, approaching that (69.41%) obtained from the Mössbauer spectra (Table S15). The formation of Fe₅C₂ phase over other spinel-modified Fe₂O₃ catalysts was also investigated via XRD and Mössbauer spectra (Figs. S17b and S18). The incorporation of CoFe₂O₄ and ZnFe₂O₄ also promoted the carburization of Fe phases, while CuFe₂O₄ spinel suppressed the generation of Fe₅C₂, possibly due to the weaker ability of Cu species to facilitate CO activation and carbon diffusion (Table S16)^26,27. Furthermore, the electronic structures of the spent catalysts were investigated via X-ray photoelectron spectroscopy (XPS) measurements. Based on the Fe 2p XPS spectra, all the obtained catalysts contained a mixture of Fe³⁺ and Fe²⁺ species before and after CO₂ hydrogenation process (Figs. S19b, S20b, S21a, and S22b). Additional peaks for Fe-C at around 706.4 eV were clearly observed for NiFe₂O₄/Fe₂O₃, Fe₂O₃, and NiFe₂O₄⁷. The Ni 2p_3/2 XPS spectra indicated the existence of Ni²⁺ and Ni³⁺ species for the fresh NiFe₂O₄, NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ (Figs S19a, S20a, and S22a). The position of Ni^3+/2+ peaks shifted towards the higher binding energy direction after reaction, which probably resulted from the electronic changes during the reaction process, such as NiFe₂O₄ or NiO_x donating electrons to the Fe₂O₃ phase or the adsorbed reactants²⁸. The O 1 s spectra of the as-obtained catalysts were shown in Figs. S19c, S20c, S21b, and S22c. The peaks located below 531.0 eV corresponded to the different lattice oxygens (OL)²⁹. The binding energies at approximately 531.3 and 533.1 eV were ascribed to the OVs and surface hydroxyl group (–OH), respectively³⁰. The concentration of OVs in Fe₂O₃ skyrocketed to 78.9% after CO₂ hydrogenation, reflecting its excessive reduction and structural instability, while the decline of OVs in the spent NiO_x/Fe₂O₃ indicated an attenuation of activity^31,32. In contrast, OVs in NiFe₂O₄/Fe₂O₃ and NiFe₂O₄ steadily increased to a moderate concentration of 60.1% and 69.7%, respectively, showing the ability to regulate OVs generation (Table S17). This was attributed to the inherent reversible electron transfer mechanism of Ni²⁺/Ni³⁺ versus Fe³⁺/Fe²⁺ in the spinel structure, which effectively inhibited the overreduction and enhanced the electronic structure regulation.

Identification of the active sites in NiFe₂O₄/Fe₂O₃ for CO₂ hydrogenation to ethanol

The role of NiFe₂O₄ spinel and the active sites in NiFe₂O₄/Fe₂O₃ for CO₂ hydrogenation to ethanol were further investigated in detail. Temperature-programmed reduction of H₂ (H₂-TPR) was conducted to probe the reduction behavior and the interactions at the interfacial sites of the samples at first (Fig. 3d). Peaks at 378 and 560 °C corresponded to the reduction of Ni²⁺ and Fe³⁺ species in pure NiFe₂O₄, respectively³³. As for Fe₂O₃, bands at 400–700 °C were assigned to the three-step reduction process of the Fe₂O₃ phase, where peaks α, β, and γ corresponded to the transformation of Fe₂O₃ to Fe₃O₄, Fe₃O₄ to FeO, and FeO to metallic Fe, respectively. The reduction peaks for NiFe₂O₄ shifted to higher temperatures over NiFe₂O₄/Fe₂O₃ due to the interactions between NiFe₂O₄ and Fe₂O₃³⁴. Conversely, Fe₂O₃ was more easily reduced in NiFe₂O₄/Fe₂O₃ with the reduction peaks moving to lower temperatures, ascribing to the donation of electrons from NiFe₂O₄ to Fe₂O₃ based on the XPS results (Fig. S19). The adsorption and activation of reactants were also investigated by temperature-programmed desorption of CO₂ (CO₂-TPD) and H₂ (H₂-TPD). As displayed in the CO₂-TPD profiles, NiFe₂O₄/Fe₂O₃ exhibited the strongest adsorption peak of CO₂ at 50–200 °C compared with that for Fe₂O₃ and NiFe₂O₄, proving that both NiFe₂O₄ and Fe₂O₃ components in NiFe₂O₄/Fe₂O₃ contributed to the adsorption of CO₂ (Fig. 3e). Besides, although no obvious chemisorption of CO₂ was observed in CO₂-TPD profiles, both physisorbed and chemisorbed CO₂ species existed on NiFe₂O₄/Fe₂O₃ under reaction conditions in terms of the in situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS) results (Fig. S23). Figure 3f shows the H₂-TPD profiles for the obtained catalysts. Peaks at around 100-200 °C were observed for all the catalysts, which were assigned to the weakly chemisorbed H₂³⁵. Impressively, bands on the higher temperature range of 310-460 °C only arose for NiFe₂O₄/Fe₂O₃, associated with the active hydrogen species adsorbed on the interfaces between NiFe₂O₄ and Fe₂O₃. As a result, the modification of NiFe₂O₄ created reactive NiFe₂O₄-Fe₂O₃ interfaces that greatly promoted the adsorption and dissociation of H₂ at reaction temperature. Temperature-programmed desorption of CO (CO-TPD) was also performed to account for the adsorption properties of CO. As illustrated in Fig. S24, the peaks ranging from 100–200 °C and 200–400 °C corresponded to the physisorption and chemisorption of CO, respectively. In addition to physisorbed CO, NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃ exhibited two predominant chemisorption peaks at around 230 and 394 °C, while NiFe₂O₄ and Fe₂O₃ only showed weak chemically adsorbed CO at approximately 313 °C. This result indicated that the interactions of NiFe₂O₄ and Fe₂O₃ enhanced the adsorption and activation of CO, which favored the cleavage of C–O bond and further provided a carbon source for the generation of Fe₅C₂.

Based on the above characterizations, the interfacial sites in NiFe₂O₄/Fe₂O₃ served as the main reactive centers for CO₂ hydrogenation to ethanol. Both NiFe₂O₄ and Fe₂O₃ components contributed to the adsorption of CO₂. More importantly, the interfacial sites were in favor of the activation and dissociation of H₂, contributing to the generation of active hydrogen species at reaction temperature. Sufficient active hydrogen species of NiFe₂O₄/Fe₂O₃ assisted to achieve the dynamic adsorption–activation–transformation of CO₂ and further the high CO₂ conversion rate. What’s more, the interactions promoted the reducibility of Fe₂O₃ and the activation of CO, contributing to the rapid carburization process and the formation of Fe₅C₂ phase for carbon chain growth. Meanwhile, the efficient hydrogenation capability endowed by the interfaces suppressed the excessive carbon chain extension, which facilitated the precise C–C coupling process and the oriented production of ethanol. As for NiO_x/Fe₂O₃, the NiO_x species diminished the formation of Fe₅C₂ due to weak reducibility and hydrogenation ability, leading to a decreased CO₂ conversion rate and low selectivity of ethanol. The inferior catalytic properties of CoFe₂O₄-, CuFe₂O₄-, and ZnFe₂O₄-modified Fe₂O₃ catalysts were probably ascribed to the poor carbonization of Fe species or the inadequate activation of CO₂ or H₂ (Figs. S18 and S25).

Reaction pathways of ethanol synthesis over NiFe₂O₄/Fe₂O₃

We further implemented in situ DRIFTS measurements to investigate the evolution of key intermediate and reaction pathways for the synthesis of ethanol. To simulate the CO₂ hydrogenation process, the catalysts were treated with CO₂/H₂ mixed gas at 330 °C under 5 MPa. As depicted in in situ DRIFT spectra over NiFe₂O₄/Fe₂O₃, the band at 2210–2400 cm⁻¹ was associated with the gas-phase CO₂, accompanied by the peak at 2180 and 2104 cm⁻¹ assigned to the stretching vibrations of gaseous CO^36,37 (Figs. 3g and 3h). Peaks at 1645 and 1360 cm⁻¹ were attributed to the asymmetric and symmetric stretching vibrations of surface formate species (HCOO*), respectively^37,38. Moreover, linearly adsorbed CO* and bridge-adsorbed CO* simultaneously appeared at respective 2012 and 1915 cm⁻¹, further implying the rapid transformation of CO₂ to CO at the initial stage of reaction though the RWGS process^39,40 (Figs. 3g and 3h). Besides, the higher intensity of bridge-adsorbed CO* relative to that of linearly adsorbed CO* declared that the CO* species tended to dissociate to form CH_x* species, which served as key intermediates for C–C coupling to hydrocarbons or ethanol. With the increase of treatment time, a series of intense peaks were then clearly observed for CH_x* (3100 cm⁻¹) intermediates and CH₄ (1301 and 3011 cm⁻¹)^41,42,43. Notably, bending vibration and stretching vibration of C–H for CH₂* species was clearly observed at 1455 and 2920 cm⁻¹, respectively, and stretching vibration for CH₃* species was also observed at 2948 cm^{−1[ 44,45}. Meanwhile, pronounced bands for surface CHO* species with C=O stretching vibration were also detected at 2881 cm⁻¹, which coupled with CH_x* species to form the key intermediate CH_xCHO* towards the production of ethanol⁴⁵. The C–C coupling between CH_x* and CHO* was further confirmed by the C = O stretching vibration of CH₂CHO* (1550 cm⁻¹) and CH₃CHO* (1692 and 1750 cm⁻¹)^40,46. CH_xCHO* species underwent subsequent hydrogenation and finally converted to ethanol featured at 1045 cm^−1 47. In situ DRIFT spectra for NiO_x/Fe₂O₃ and Fe₂O₃ exhibited similar characteristic bands but vastly different intensity of peaks (Fig. S26). Thus, the evolution of the characteristic peak intensity as a function of reaction time was plotted in Fig. S27 for further clarification. Compared with NiFe₂O₄/Fe₂O₃ and NiO_x/Fe₂O₃, Fe₂O₃ possessed a much slower response and conversion of CO₂. The intensity of the key intermediates over NiFe₂O₄/Fe₂O₃ was much higher than that over NiO_x/Fe₂O₃. Notably, the introduction of NiFe₂O₄ induced a distinctive decay of linearly adsorbed and bridge-adsorbed CO* species at around 16 min, ascribed to the fast carburization behavior at the initial stage of the reaction. More importantly, NiFe₂O₄/Fe₂O₃ showed continuous CH₂* build-up along with sustained high intensities of CHO* species, which accelerated the C–C coupling between CH_x* and CHO* for the formation of ethanol rather than the C–C coupling of CH_x* for hydrocarbons. In contrast, NiO_x/Fe₂O₃ exhibited a plateauing trend in CH₂* species accumulation and low-intensity signals for bridge-adsorbed CO* and CHO* species over time.

To further substantiate the proposed reaction pathways and clarify the intrinsic catalytic differences among the samples, density functional theory (DFT) calculations were carried out to evaluate the energetics of key elementary steps during CO₂ hydrogenation. Based on the characterizations of the spent catalysts, three models were constructed, including Fe₅C₂(021) with the Fe₅C₂ exposing (021) facet, NiFe₂O₄/Fe₅C₂(021) with the modification of NiFe₂O₄ on Fe₅C₂, and NiO/Fe₅C₂(021) with the modification of NiO on Fe₅C₂ (Fig. 4a–4c). The formation of ethanol occurred via the formate pathway with C–C coupling between CHO* and CH₂* in terms of the in-situ DRIFTS results. Figure 4 illustrates the reaction pathways for CO₂ hydrogenation to ethanol over NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021) models, including the activation of CO₂, C–C coupling process, and the subsequent hydrogenation process. Among the elementary steps considered, the initial hydrogenation of CO₂* to HCOO* was difficult for all three models. For this step, NiFe₂O₄/Fe₅C₂(021) exhibited the lowest energy barrier of 1.01 eV relative to NiO/Fe₅C₂(021) (1.24 eV) and Fe₅C₂(021) (1.28 eV), which was ascribed to the efficient H₂ activation and dissociation ability induced by NiFe₂O₄ to provide sufficient active hydrogen species. As for the critical C–C coupling step between CH₂* and CHO*, the values of energy barriers were calculated to be 0.80, 0.72, and 0.98 eV for NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021), respectively (Fig. 4d–f). Figure S28 displays the differential charge density diagrams of CH₂CHO* over the three models, and the Bader charge of CH₂CHO* was calculated to determine the number of electrons (Q_TM) of CH₂CHO* gained from the surfaces. The number of accepting electrons for CH₂CHO* were 0.70, 0.53, and 0.38 e over NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021), respectively. Thus, the modification of Ni-based species favored the electron transfer for the formation of key intermediate CH₂CHO* and further reduced the energy barrier for C–C coupling. Moreover, NiFe₂O₄ spinel significantly promoted the following hydrogenation process after C–C coupling and accelerated the final formation of ethanol. The energy barrier for the hydrogenation of CH₂CHO* to CH₃CHO* over NiFe₂O₄/Fe₅C₂(021) was only 0.45 eV, which was much lower than that over Fe₅C₂(021) of 1.12 eV. The enhanced efficiency of the subsequent hydrogenation process trended to shift the reaction pathway toward ethanol formation rather than further carbon-chain growth to long-chain hydrocarbons over NiFe₂O₄/Fe₅C₂(021). As a result, the modification of NiFe₂O₄ spinel endowed the catalyst with strong H₂ activation and dissociation ability, facilitating the transformation of adsorbed CO₂ and hydrogenation of pivotal intermediates. Additionally, NiFe₂O₄ spinel also lowered the energy barrier of C–C coupling and further contributed to the high catalytic activity towards CO₂ hydrogenation to ethanol. The evolution of various intermediate species during the reaction was visually depicted through the structural model on NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021) (Figs. S29–S34). The distances between the C atom and the H/C atom in carbon-containing species became closer from the initial state (IS) to the transition state (TS) and further decreased at the final state (FS) (Table S18). Moreover, the reaction pathways considering dispersion correction (vdW), GGA + U, and dipole correction were also calculated, and the overall trend remained consistent with the original calculations (Figs. S35–S38).

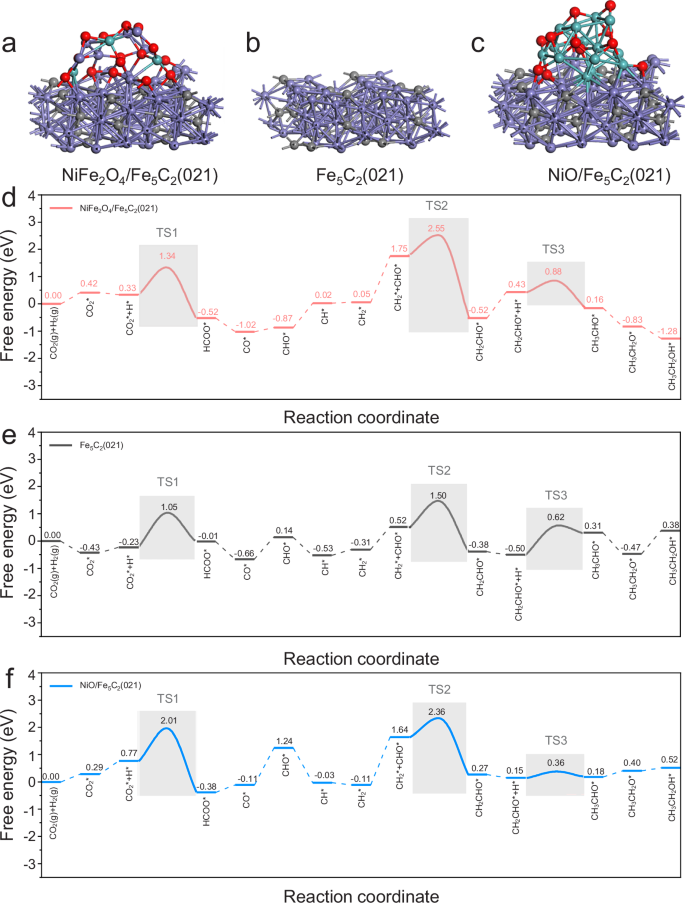

Fig. 4: Theoretical models and reaction pathways for CO₂ hydrogenation to ethanol.

Optimized models of a NiFe₂O₄/Fe₅C₂(021) for NiFe₂O₄/Fe₂O₃, b Fe₅C₂(021) for Fe₂O₃, and c NiO/Fe₅C₂(021) for NiO/Fe₂O₃. Illustrations of the reaction pathways for CO₂ hydrogenation to ethanol over d NiFe₂O₄/Fe₅C₂(021), e Fe₅C₂(021), and f NiO/Fe₅C₂(021). Violet, green, gray, and red balls represented Fe, Ni, C, and O atoms, respectively. TS represented the transition state.

Discussion

In summary, we developed a NiFe₂O₄-modified Fe₂O₃ catalyst via the solid-state co-precipitation method towards CO₂ hydrogenation. The interfaces between NiFe₂O₄ spinel and Fe₂O₃ served as the reactive sites for the activation and dissociation of H₂, which contributed to the generation of sufficient active hydrogen species and further the rapid activation and transformation of the adsorbed CO₂ even under a high WHSV. Besides, the incorporation of NiFe₂O₄ spinel enhanced the reducibility of Fe₂O₃ and facilitated the in-situ formation of active Fe₅C₂ phase. Furthermore, the NiFe₂O₄ spinel substantially suppressed multiple side reactions via regulating the excessive carbon chain growth, steering the reaction route for ethanol production. NiFe₂O₄/Fe₂O₃ exhibited an extraordinary catalytic performance, achieving a high CO₂ conversion rate (49.3%) and exceptional ethanol STY (883.7 mg·g_cat.⁻¹· h⁻¹) under an identical WHSV (24000 mL·g_cat.⁻¹·h⁻¹). This work provides creative insights into the structure–activity relationships of NiFe₂O₄/Fe₂O₃ and proposes an effective strategy for concurrently achieving high CO₂ conversion rate and ethanol selectivity in the industrial catalytic conversion of CO₂ to multi-carbon oxygenates.

Methods

Catalyst preparation

Synthesis of MFe₂O₄/Fe₂O₃ (M = Ni, Co, Cu, and Zn)

MFe₂O₄/Fe₂O₃ catalysts were obtained via a solid-state co-precipitation method²⁰. Compared with the traditional liquid-phase co-precipitation method, the solid-state co-precipitation method creates a unique solvent-deficient environment, which exhibits abundant advantages in the aspects of the products, such as increased crystallinity, formation of porous structure, and stronger interactions between different components^48,49. The presence of a small quantity of crystallization water favors the formation of a liquid layer around the precursors and causes the typically solid reagents to liquefy and bubble vigorously. This significantly accelerates the component diffusion and simultaneous nucleation of precursors, promoting the formation of heterometallic spinels. Take the synthesis of NiFe₂O₄/Fe₂O₃ as an example. To begin with, 0.06 mol of Fe(NO₃)₃·9H₂O and 0.01 mol of Ni(NO₃)₂·6H₂O were first mixed and ground in a mortar for 30 min. 0.6 mol of NaOH was then added, followed by grinding for another 60 min. Subsequently, the resulting mixture was washed with deionized water via the vacuum suction filter system until the filtrate reached a neutral pH. The filtered product was then dried overnight at 60 °C in an oven, which was further calcined in a muffle furnace at 600 °C for 4 h with a rate of 2 °C·min⁻¹. 2 g of the product obtained from the above preparation was loaded with 2.0 wt% of K by ultrasonic impregnation. The final NiFe₂O₄/Fe₂O₃ catalyst was obtained by calcination in a muffle furnace at 550 °C for 4 h with a ramp rate of 2 °C·min⁻¹. Pure NiFe₂O₄, Fe₂O₃, and other MFe₂O₄/Fe₂O₃ catalysts were synthesized via similar procedures, except adjusting the metallic precursors. NiFe₂O₄/Fe₂O₃ catalysts with different K content (0, 1 wt%, and 4 wt%) were also prepared via the above process, except adjusting the usage of KNO₃ precursor. In this work, all the Fe₂O₃-based catalysts were impregnated with 2 wt% of K unless otherwise specified.

Synthesis of NiO_x/Fe₂O₃

NiO_x/Fe₂O₃ was synthesized via the traditional liquid-state co-precipitation method for further comparison. Initially, 0.06 mol of Fe(NO₃)₃·9H₂O and 0.01 mol of Ni(NO₃)₂·6H₂O were dissolved in deionized water and heated at 80 °C for 3 h. After stirring, the solution was allowed to cool to room temperature, and the pH was adjusted to 11 using NaOH. The solution was further stirred for 3 h, followed by filtration, washing with deionized water to neutrality, and drying at 60 °C overnight. The catalyst was then calcined at 600 °C in a muffle furnace for 4 h with a heating rate of 2 °C·min⁻¹. 2.0 wt% of K was further loaded onto the product via ultrasonic impregnation, resulting in the final NiO_x/Fe₂O₃.

Catalytic tests

Hydrogenation of CO₂ over the obtained catalysts was conducted in a fixed-bed reactor with an inner diameter of 8 mm. In a typical catalytic test, 0.25 g of catalyst (20–40 meshes) diluted with 1 g of quartz sand (20–40 meshes) was packed in the reactor tube, with 1 g of glass beads placed above as a preheating layer of the gas. During the packing process, a thermocouple was inserted into the void space of the reactor tube to monitor the actual reaction temperature in real time. Prior to each reaction, the catalyst was reduced in H₂ gas flow (40 mL·min⁻¹) at 400 °C for 8 h under atmospheric pressure. After pre-reduction, the reactor was cooled to 160 °C to replace the reductive gas with reaction gas (H₂/CO₂/Ar = 72/24/4). The standard catalytic measurement was conducted at 330 °C under 5.0 MPa with a WHSV of 24000 mL·g_cat.⁻¹·h⁻¹ for a total duration of 6 h. The reaction officially started after the reaction system reached the target temperature and pressure, which was defined as the “0 h” for the reaction. During the reaction, the effluent gas was detected by two online gas chromatographs. One was equipped with a thermal conductivity detector (TCD, Shimadzu, GC-2014) using an active charcoal column to analyze Ar, CO₂, CO, and CH₄. The other was equipped with a flame ionization detector (FID, Shimadzu, GC-2014) using a Porapak Q column to analyze C₁-C₆ hydrocarbons. An ice trap was installed between the reactor and the back pressure valve to collect the liquid-phase products, which were further analyzed via two offline gas chromatographs (GC-2014) equipped with FID. The DB-624 column and InerCap 5 column were used to analyze oxygenated compounds and C₄₊ hydrocarbons, respectively.

The CO₂ conversion, CO selectivity, selectivity of product i (exclude CO), and STY were calculated through the following equations:

$${{{{\rm{CO}}}}}_{2}{{{\rm{conversion}}}}(\%)=({{{{\rm{CO}}}}}_{2-{{{\rm{in}}}}}-{{{{\rm{CO}}}}}_{2-{{{\rm{out}}}}})/{{{{\rm{CO}}}}}_{2-{{{\rm{in}}}}}\times 100\%$$

(1)

where CO_2-in and CO_2-out represented the mole fractions of CO₂ in the intake and exit, respectively.

$${{{\rm{CO\; selectivity}}}}(\%)={{{{\rm{CO}}}}}_{-{{{\rm{out}}}}}/({{{{\rm{CO}}}}}_{2-{{{\rm{in}}}}}-{{{{\rm{CO}}}}}_{2-{{{\rm{out}}}}})\times 100\%$$

(2)

where CO_-out symbolized the mole fraction of CO in the outlet.

$${{{{\rm{Selectivity}}}}}_{i}=\,\frac{{N}_{i}\times {n}_{i}}{{\sum }_{1}^{i}\left({N}_{i}\times {n}_{i}\right)}\times 100\%$$

(3)

where N_i and n_i represented the mole percentage and carbon number of product i, respectively.

$${{{\rm{EtOH\; STY}}}}={{{\rm{M}}}}({{{{\rm{C}}}}}_{2}{{{{\rm{H}}}}}_{6}{{{\rm{O}}}})\times 1000\times (n{{{{\rm{CO}}}}}_{2}-n{{{\rm{CO}}}})\times {{{{\rm{C}}}}}_{{{{\rm{EtOHSel}}}}.}\times 100\%$$

(4)

where M(C₂H₆O) represented the relative molecular mass of ethanol; nCO₂ and nCO represented the amount of converted CO₂ and produced CO in mol·g⁻¹·h⁻¹, respectively⁵⁰.

The carbon balance data of all catalysts were calculated between 93.7% and 105.7% based on the following formula:

$${{{\rm{carbon\; balance}}}}=(({n}_{{{{\rm{Prod}}}}.}+{n}_{{{{\rm{CO}}}}})/{n}_{{{{\rm{CO}}}}2})*100\%$$

(5)

where n_Prod., n_CO2, and n_CO represented the amounts of hydrocarbons and oxygenates, converted CO₂, and produced CO in mol·g⁻¹·h⁻¹, respectively.

DFT calculations

All the spin-polarized DFT calculations were performed by the Vienna Ab initio Simulation Package (VASP 5.4.4)⁵¹ with the projector augmented wave (PAW) method⁵². The exchange functional was treated using the generalized gradient approximation (GGA) with Perdew-Burke-Ernzerhof (PBE)⁵³ functional. The energy cutoff for the plane wave basis expansion was set to 450 eV. Partial occupancies of the Kohn−Sham orbitals were allowed using the Gaussian smearing method and a width of 0.2 eV. The bulk structure of Fe₅C₂ was calculated first towards the optimization of the lattice parameter, where the k-point of 5×5×4 was used. The Fe₅C₂ (021) surface was then built with three Fe layers and five C layers (60 Fe atoms and 20 C atoms in the slab) with parameters of a = 10.95, b = 12.42 and c = 20.71 Å. Cluster structures of NiFe₂O₄ with 32 atoms and NiO with 26 atoms loaded on the (021) surface of Fe₅C₂ were established, named as NiFe₂O₄/Fe₅C₂(021) and NiO/Fe₅C₂(021), respectively. A vacuum of 15 Å was adopted to prevent the interaction between two adjacent layers. The Monkhorst k-point of 2 × 3 × 1 was used during the calculations. The self-consistent calculations apply a convergence energy threshold of 10⁻⁵eV, and the force convergence was set to 0.02 eV/Å for either structure optimizations or transition state calculations. The transition state calculations were performed using the climbing image nudged elastic band (CI-NEB) method⁵⁴. The adsorption Gibbs free energy (ΔG) was considered at the temperature of 603 K, following:

$$\Delta G=\Delta E+\Delta {ZPE}+\Delta {G}_{{{{\rm{U}}}}}-T\Delta S$$

(6)

where ΔE was the DFT calculated energy change, ZPE was zero-point energy and was calculated by ZPE = Σ_i$\frac{1}{2}$hv_i, i was the frequency number, and v_i was the frequency with unit cm⁻¹. ΔZPE represented the difference of zero-point energy between the adsorbed and un-adsorbed states. Besides, ΔG_U was the correction from inner energy, which was calculated based on the following equation⁵⁵:

$${U}^{\circ }_{{{\rm{vib}}}}={RT} {\sum }_{i}\frac{h{v}_{i}/{k}_{{{{\rm{B}}}}}}{{{{{\rm{e}}}}}^{h{v}_{i}/{k}_{{{{\rm{B}}}}}T}-1}$$

(7)

where R = 8.314 J·mol⁻¹·K⁻¹, T = 603 K, h = 6.63 ×10⁻³⁴ J·s, and k_B = 1.38 × 10⁻²³ J·K⁻¹.

For T∆S, T was 603 K and ∆S was the correction from entropy. For the entropy of gas-phase, it was obtained from the NIST database (T = 603 K, P_CO2: P_H2 = 1.25: 3.75 MPa)^55,56. For the entropy of adsorbed species, the standard molar entropy (S_v) was calculated as follows:

$${S}_{v}=\mathop{\sum }_{i}R\left\{\frac{h{v}_{i}}{{k}_{{{{\rm{B}}}}}T}{\left[\exp \left(\frac{h{v}_{i}}{{k}_{{{{\rm{B}}}}}T}\right)-1\right]}^{-1}-{{{\rm{In}}}}\left[1-\exp \left(-\frac{h{v}_{i}}{{k}_{{{{\rm{B}}}}}T}\right)\right]\right\}$$

(8)

where R = 8.314 J·mol⁻¹·K⁻¹, T = 603 K, h = 6.63 ×10⁻³⁴ J·s, and k_B = 1.38 × 10⁻²³ J· K^{−1 55}.

The adsorption Gibbs free energies of adsorbed species were calculated as follows:

$$\Delta {G}_{{{{\rm{CO}}}}2*}={G}_{{{{\rm{CO}}}}2*}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}$$

(9)

$$\Delta {G}_{{{{\rm{CO}}}}2 \ast+{{{\rm{H}}}}*}={G}_{{{{\rm{CO}}}}2 \ast+{{{\rm{H}}}}*}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-1/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(10)

$$\Delta {G}_{{{{\rm{HCOO}}}}*}={G}_{{{{\rm{HCOO}}}}*}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-1/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(11)

$$\Delta {G}_{{{{\rm{CO}}}}*}={G}_{{{{\rm{CO}}}}*}+{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(12)

$$\Delta {G}_{{{{\rm{CHO}}}}*}={G}_{{{{\rm{CHO}}}}*}+{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-3/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(13)

$$\Delta {G}_{{{{\rm{CH}}}}*}={G}_{{{{\rm{CH}}}}*}+2{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-5/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(14)

$$\Delta {G}_{{{{\rm{CH}}}}2*}={G}_{{{{\rm{CH}}}}2*}+2{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-3{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(15)

$$\Delta {G}_{{{{\rm{CH}}}}2 \ast+{{{\rm{CHO}}}}*}={G}_{{{{\rm{CH}}}}2 \ast+{{{\rm{CHO}}}}*}+3{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-9/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(16)

$$\Delta {G}_{{{{\rm{CH}}}}2{{{\rm{CHO}}}}*}={G}_{{{{\rm{CH}}}}2{{{\rm{CHO}}}}*}+3{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-9/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(17)

$$\Delta {G}_{{{{\rm{CH}}}}2{{{\rm{CHO}}}} \ast+{{{\rm{H}}}}*}={G}_{{{{\rm{CH}}}}2{{{\rm{CHO}}}} \ast+{{{\rm{H}}}}*}+{3G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-5{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(18)

$$\Delta {G}_{{{{\rm{CH}}}}3{{{\rm{CHO}}}}*}={G}_{{{{\rm{CH}}}}3{{{\rm{CHO}}}}*}+3{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})-{{{\rm{G}}}}*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-5{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(19)

$$\Delta {G}_{{{{\rm{CH}}}}3{{{\rm{CH}}}}2{{{\rm{O}}}}*}={G}_{{{{\rm{CH}}}}3{{{\rm{CH}}}}2{{{\rm{O}}}}*}+3{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-11/2{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(20)

$$\Delta {G}_{{{{\rm{CH}}}}3{{{\rm{CH}}}}2{{{\rm{OH}}}}*}={G}_{{{{\rm{CH}}}}3{{{\rm{CH}}}}2{{{\rm{OH}}}}*}+3{G}_{{{{\rm{H}}}}2{{{\rm{O}}}}({{{\rm{g}}}})}-{G}_{*}-2{G}_{{{{\rm{CO}}}}2({{{\rm{g}}}})}-6{G}_{{{{\rm{H}}}}2({{{\rm{g}}}})}$$

(21)

where G_* and G_{adsorbed-species} are the free energies without and with adsorbed species on the slab, respectively. G_H2O(g), G_CO2(g), and G_H2(g) are the free energy of gas-phase H₂O, CO₂, and H₂, respectively. All values of Gibbs free energy (G) intermediates were summarized in Table S21.

The values of detailed ΔZPE, ΔG_U, and TΔS for different intermediates over NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021) were listed in Table S19. Besides, vibrational frequencies of corresponding carbon species over NiFe₂O₄/Fe₅C₂(021), NiO/Fe₅C₂(021), and Fe₅C₂(021) were provided as Table S20.

To ensure transparency and reproducibility, the atomic coordinates for all calculated structures were provided in the Source Data file. The total energies (E) for all calculated structures were also listed in Table S22. The above DFT calculations only considered dispersion correction (vdW)⁵⁷. We also calculated the reaction pathways considering dispersion correction (vdW), GGA+U (U-J = 3 eV), and dipole correction, and all the relevant diagrams were shown in Figures S35-S38⁵⁸.
