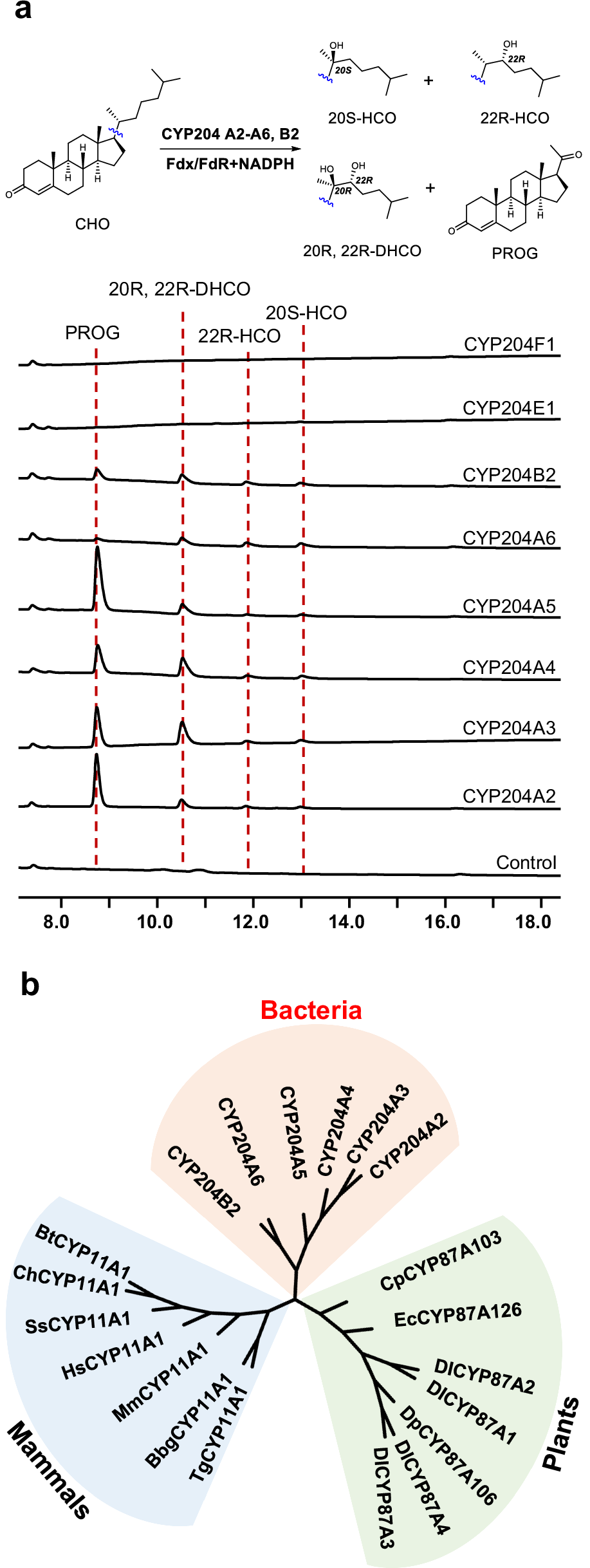

Fig. 3: Functional analysis of bacterial P450scc.
From: Unveiling cytochrome P450 enzymes that catalyze steroid side-chain cleavage in bacteria
a UPLC analysis of in vitro assays of CYP204-like proteins with CHO in the presence of SeFdx1499/FdR0978 and NADPH at 254 nm. Control, boiled enzyme was used under the same reaction conditions as the assay groups. b The phylogenetic tree of P450scc proteins from mammals, plants, and bacteria.
