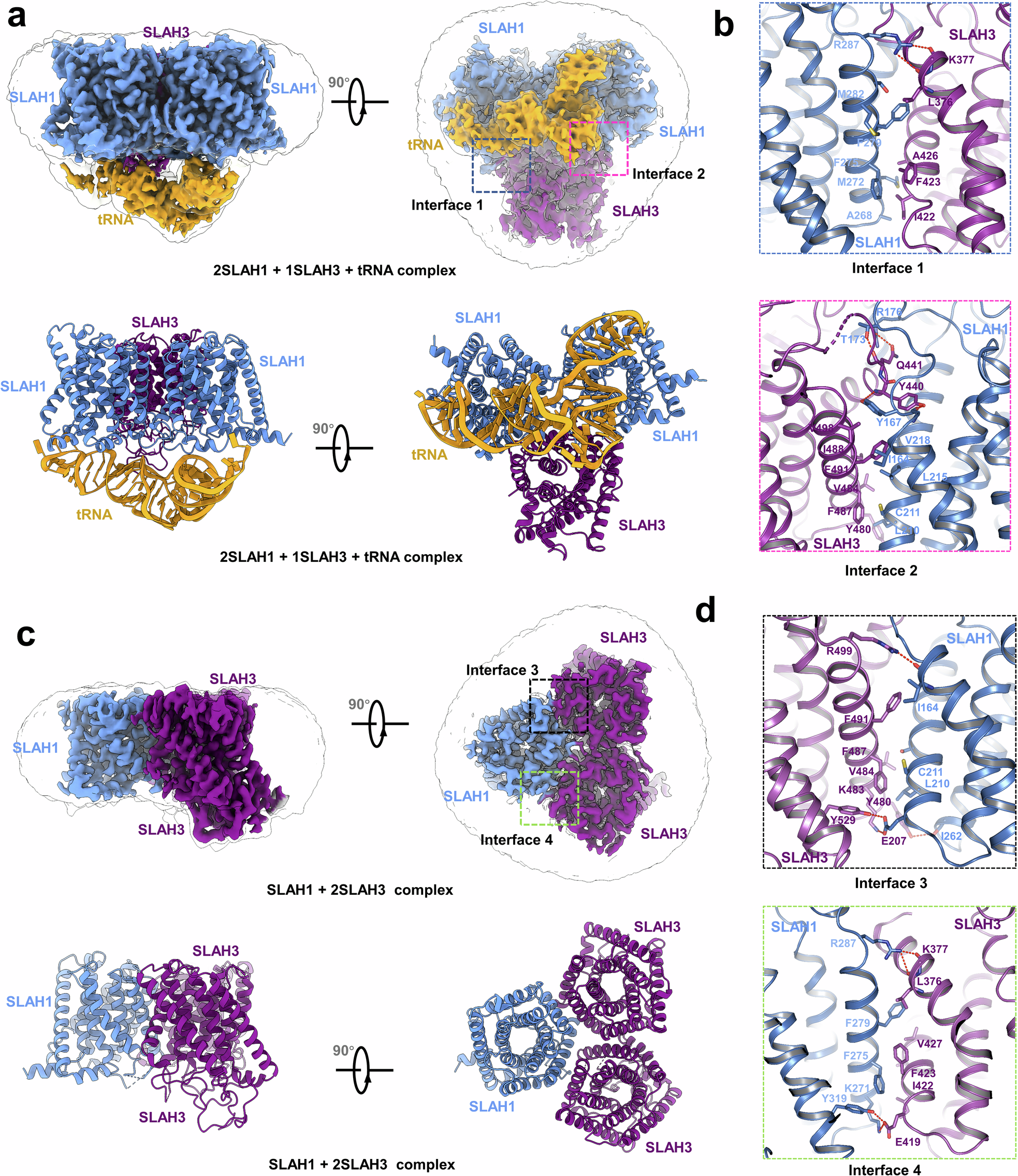

Fig. 3: Structural analysis of AtSLAH1-SLAH3 heterocomplex.
From: Structural insights into the coordinated regulation of the SLAH family in Arabidopsis thaliana
a Cryo-EM map and ribbon model of the 2SLAH1 + 1SLAH3+tRNA complex, with SLAH1 in blue, SLAH3 in purple, and tRNA in yellow. b Hydrophobic and polar interactions within the 2SLAH1 + 1SLAH3 + tRNA complex, highlighting the regions near the 5′ and 3′ ends of the tRNA with interface 1 and interface 2 noted. c Cryo-EM map and stick model of the 1SLAH1 + 2SLAH3 complex, showing transmembrane and intracellular views. d Hydrophobic and polar interactions within the 1SLAH1 + 2SLAH3 complex, similarly depicted with interface 3 and interface 4 noted.
