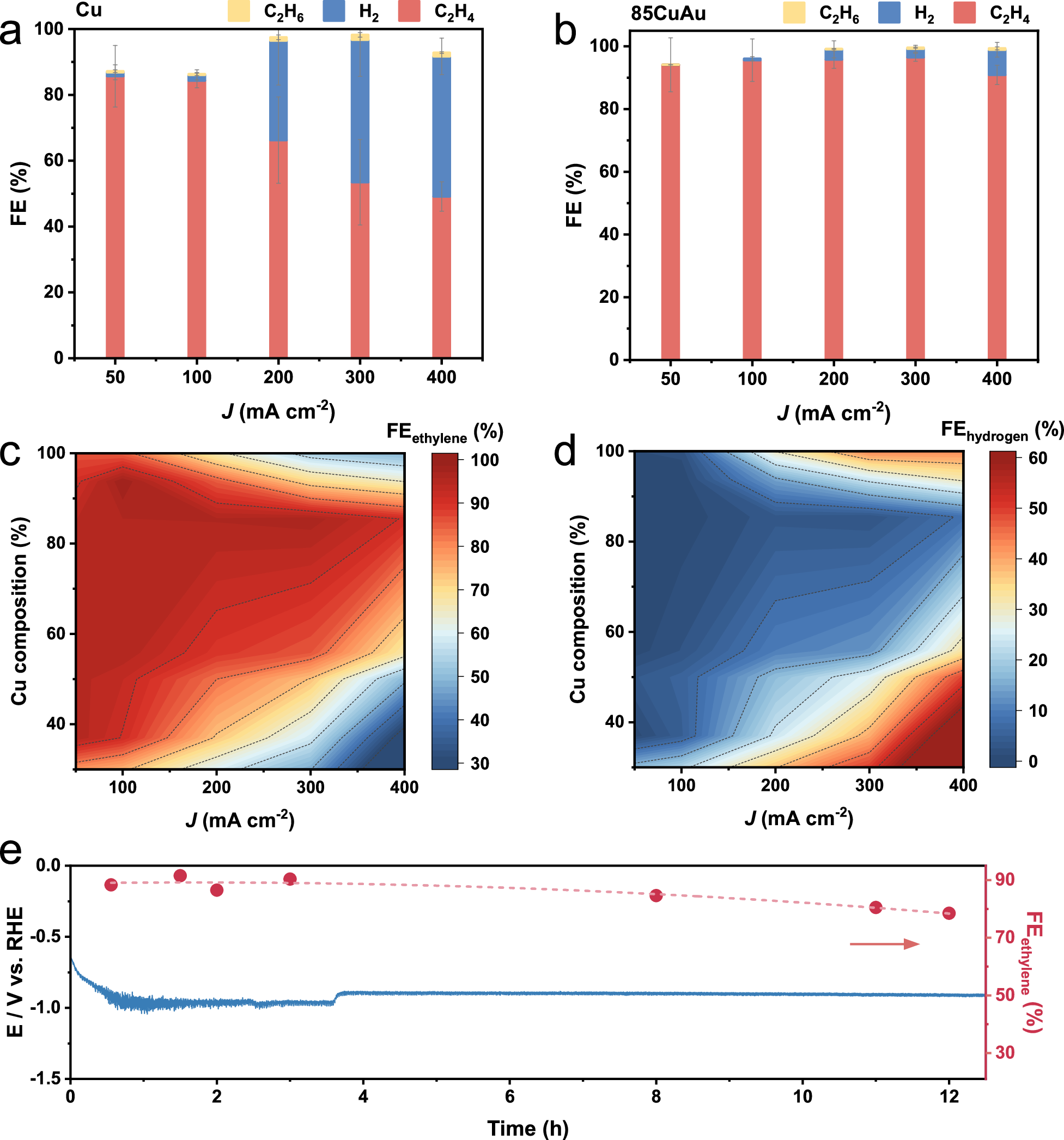

Fig. 3: The acetylene reduction performance on a series of CuAu catalysts.
From: Catalyst alloying enables control over the electrochemical hydrogen transfer route
The FE of acetylene reduction on a Cu and b 85CuAu. c The ethylene FE as a function of current density and Cu composition. d The hydrogen FE as a function of current density and Cu composition. e The stability test on 85CuAu at 100 mA cm−2. All the error bars represent standard deviation based on three independent samples.
