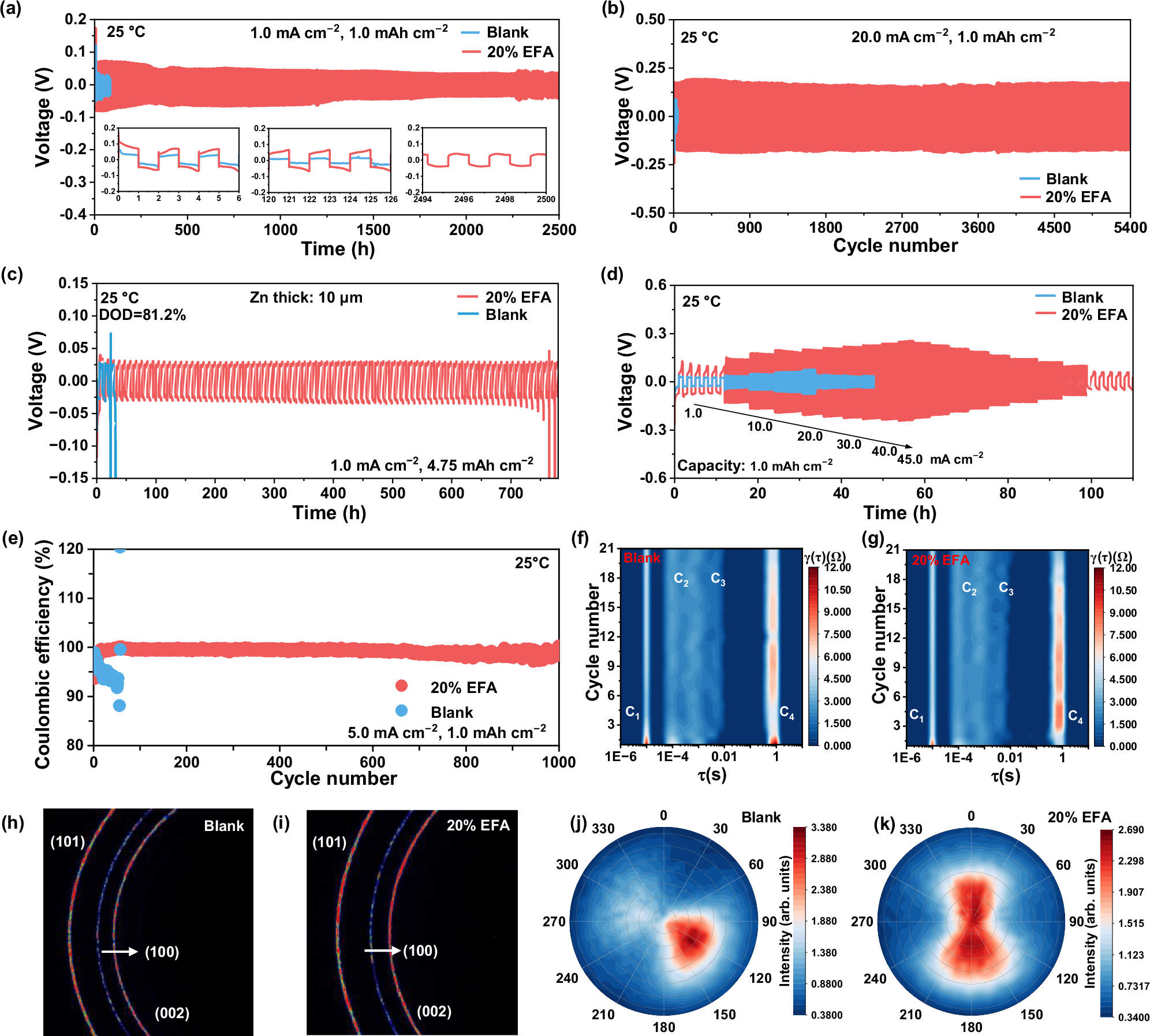

Fig. 2: Assessment of interfacial compatibility with zinc metal.
From: Gradient chaotropic regulation of Zn2+ solvation chemistry for low-temperature zinc metal batteries
Zinc plating/stripping life of Zn||Zn cell at 25 °C: a 1.0 mA cm−2, 1.0 mAh cm−2, b 20.0 mA cm−2, 1.0 mAh cm−2. c Depth of discharge (DOD) test. d Rate ability. e CE of Zn||Cu cell at 5.0 mA cm−2, 1.0 mAh cm−2. EIS and corresponding DRT of f blank electrolyte and g 20% EFA electrolyte. h, i 2D GIWAXS and j, k (002) pole figures of zinc negative electrode in different electrolytes after 50 cycles at 1.0 mA cm−2, 1.0 mAh cm−2 (the testing temperature is 25 °C).
