Introduction

Fault healing is a well-documented phenomenon that describes the time-dependent recovery of fault strength between earthquakes1,2,3,4,5,6. Fault healing is due to the contribution of several physical and chemical processes that lead to (1) fault sealing (mineral dissolution and precipitation, vein deposition, etc., and in extreme cases, fault welding by solidification of seismic friction melts)7,8,9,10, (2) fault frictional healing (contact area growth plus formation of new chemical bonds between asperity contacts at the sub-microscale)5,11,12,13,14,15,16 and, (3) a combination of the two17. The underlying mechanism of fault frictional healing is generally attributed to an increase in the real contact area of the microscopic asperities (contact “quantity”)18,19 or an increase in contact strength of chemical bonds (contact “quality”)15,20. Although specific mechanisms differ, laboratory studies on centimeter-size rock specimens, mostly conducted at room temperature, and micro-scale single asperity friction tests have shown that 1) frictional healing (static friction minus dynamic steady-state friction, Fig. 1) usually increases linearly with the logarithm of the hold time th, and 2) the rate of healing (change of frictional healing with log(th)) is positive for a broad range of rock types, including Westerly granite, and a variety of minerals11,14,15,16,17,21,22,23,24,25. However, the results of recent experiments also conducted on Westerly granite, but under hydrothermal conditions, cast doubt on the occurrence of this log-linear frictional behavior: at T = 200 °C, frictional healing decreases, rather than increases, with log(th) (i.e., negative healing rate), although the healing is still positive within the investigated hold times. But, at T = 250 °C, the frictional healing becomes negative when hold time is longer than a threshold26.

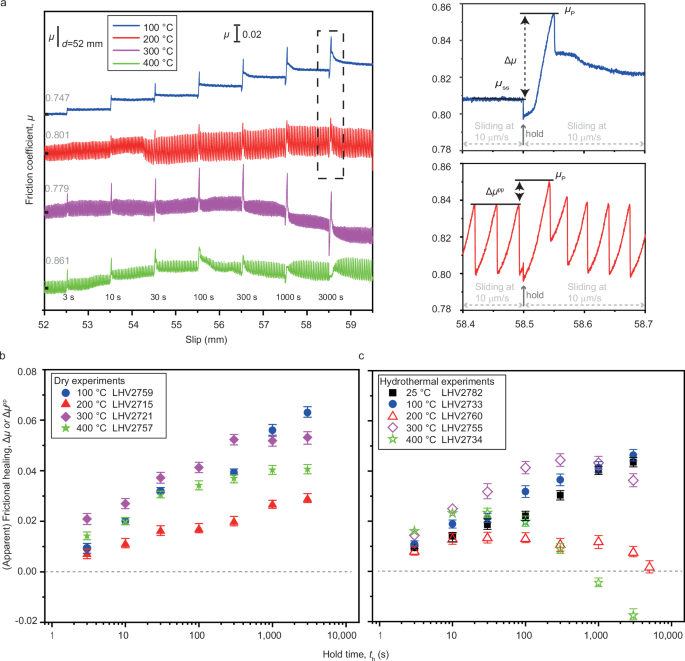

Fig. 1: Experimental protocol for slide-hold-slide (SHS) tests and results of gabbro under hydrothermal conditions.
Fig. 1: Experimental protocol for slide-hold-slide (SHS) tests and results of gabbro under hydrothermal conditions.
Full size image

a Friction coefficient μ versus displacement in the second SHS sequence (SHS-seq 2; slip rate = 10 μm/s) for four representative experiments (LHV2733, LHV2760, LHV2755 and LHV2734) performed at temperatures of 100 °C (top curve) to 400 °C (bottom curve) and pore fluid pressure of 30 MPa. Hold times (th) are indicated below each corresponding hold. Frictional healing Δμ and apparent healing Δμpp (see insets in the right panel of a) are determined by the difference between peak friction (μp) after the hold and steady-state friction (μss) before the hold (Δμ = μp – μss) for stable slip and by the difference between peak friction before and after the hold for stick slip, respectively. The numbers on the left edge of the left panel of a indicate μ at a slip displacement of 52 mm. Insets in the right panel show the details of the 3000 s hold at T = 100 °C (top) and 200 °C (bottom). b Frictional healing data (Δμ or Δμpp) of SHS-seq 2 under dry conditions. c Frictional healing data (Δμ or Δμpp) of SHS-seq 2 under hydrothermal conditions, see main text for description. Solid symbols denote Δμ and open symbols denote Δμpp. Error bar in b and c represent the standard deviation of the data (see Methods).

Consequently, faults in granitoids in the presence of hot and pressurized fluids, a common situation at hypocentral depths4,27, may have negative healing rates, which will alter the seismic cycle. But do other common crustal rocks have similar frictional healing behavior under hydrothermal conditions? And what is the mechanism for the negative healing rate?

In this work, we measure the frictional healing behavior of a wide range of common crustal rocks at temperatures typical of hypocentral depths. We show that the negative healing rate behavior is closely related to the presence of feldspar and water. The key role played by feldspar in the process of decreasing fault frictional healing rate is confirmed by nanometer-scale friction experiments with a single feldspar micro-grain translating along a feldspar substrate using an atomic force microscope. We conclude that thermally-activated and water-assisted chemical processes operating along feldspar interfaces limit the rate of contact strengthening, thereby reducing fault frictional healing.

Results

Frictional healing Δμ is normally investigated by laboratory slide-hold-slide (SHS) experiments11,19,22. Here we present results of 30 SHS experiments performed in the presence of hot and pressurized water using a rotary shear machine (LHV-Beijing) equipped with a dedicated hydrothermal pressure vessel28,29,30 (Supplementary Fig. 1 and Supplementary Table 1).

We first report frictional healing data for powders of gabbro, a common oceanic crust rock. Experiments are performed under an effective normal stress (σeff = σn-Pp) of 50 MPa, a loading velocity of 10 μm/s, temperature (T) ranging from 25 to 400 °C and pore fluid pressure (Pp) of 0 (nominally dry, relative humidity < 2% at T ≥ 100 °C) or 30 MPa. Each experiment includes two identical SHS sequences (SHS-seq 1 and SHS-seq 2) with a slip interval of 40 mm in between (see the representative experiment LHV2760 in Supplementary Fig. 2). The SHS procedure involves: (1) sliding at V = 10 μm/s for 1 mm of slip displacement, (2) holding at zero load-point velocity for hold times (th) ranging from 3 s to 10,000 s, and (3) resuming the sliding at the original velocity (V = 10 μm/s). Figure 1a shows the evolution of the friction coefficient (μ = τ/σeff, with τ the shear stress) with slip displacement (d ~ 52-59.5 mm) in the SHS-seq 2 for experiments performed at temperatures of 100 °C to 400 °C. At these loading and temperature conditions the rheology of gabbro and its forming minerals is elasto-frictional31. Typically, frictional healing Δμ is measured as the difference between peak μ value (μp) upon re-sliding and steady state friction (μss) before the hold. However, in the cases of stick-slip, a well-defined μss cannot be obtained. We adopt the peak friction during the stick phase before the hold as a reference point. The apparent Δμ is then measured as the difference between the peak μ value of the stick-slip events after and before the holds (see Methods; referred to as Δμpp, Fig. 1a inset). The rate of healing (β) is conventionally determined as the slope of Δμ versus Δlog10(th) over the entire dataset, expressed as β = Δμ/Δlog10th19. Since some of the datasets in our study cannot be adequately described by a single log-linear relation, we determine individual healing rates (βloc) within intervals of monotonic change to explicitly capture the time-dependent evolution of β. Typically, two βloc values are sufficient to describe the change of Δμ with hold time. A positive βloc indicates that frictional healing increases with hold time, whereas a negative βloc indicates that frictional healing decreases with hold time.

Gabbro shows different healing behaviors in the presence or absence of pressurized water. Here we focus on the frictional healing behavior of SHS-seq 2 (results of SHS-seq 1 can be found in Supplementary Fig. 3). Under dry conditions, β is positive and Δμ generally increases monotonically with log10th except for a slight deviation from the log-linear trend at T = 300 °C and 400 °C at longer hold times ( ≥ 1000 s) (Fig. 1b). For the experiments in the presence of water (Pp = 30 MPa), at T = 25 °C and 100 °C, Δμ increases linearly with log10th, as observed under dry conditions. However, at T ≥ 200 °C, the linear relation between apparent Δμ and log10th does not hold. Specifically, at 200 °C apparent Δμ starts to decrease with increasing th when th > 300 s, indicating that frictional healing rate has switched from positive (βloc > 0) to negative (βloc < 0) values. For the test at T = 400 °C, the negative transition of frictional healing rate (βloc < 0) occurs at th = 100 s. Most strikingly, the peak μ value after the 3000 s hold is lower than the sliding μ before the hold, suggesting a negative value of apparent Δμ (Fig. 1c).

The transition in healing rates from positive to negative with increasing hold time apparently results from a reduction in (apparent) Δμ at longer hold times. In order to check whether or not the decrease in frictional healing at long hold times depends on the order in which the hold time is applied, we performed experiment LHV3047 at T = 200 °C by applying an increasing (3–3000 s) and decreasing (3000–3 s) order of hold time sequence. We find that both sequences produce a very similar pattern of healing behavior, as shown in Supplementary Fig. 4. This observation demonstrates that the decrease in Δμ at longer th is independent of hold sequence, and depends solely on the absolute duration of individual hold prior to the re-sliding.

X-ray diffraction (XRD) analysis of gabbro indicate that its mineralogical composition consists mainly of 47 wt% andesine and 28 wt% diopside (Supplementary Table 2, see Methods). To investigate whether the unusual frictional healing behavior of gabbro is sensitive to its mineral composition, we performed similar SHS experiments but on pure andesine and diopside gouges. These gouges are prepared by selecting the two minerals from gabbro gouges under the optical microscope. We find that pure diopside gouges have a linear relationship between Δμ and log10th under all investigated conditions (positive β, Fig. 2a). In contrast, pure andesine and a mixture of andesine and diopside with a ratio of 1.68:1 (or 47/28, same as in gabbro) show the same pattern of healing at 200 °C, including the occurrence of negative β after long th, as that of gabbro (Fig. 2b, c). These experiments indicate that the presence of andesine is responsible for the decreased Δμ and the negative β at long holds in the presence of pressurized water. To further demonstrate the role of temperature in the negative frictional healing rate, we conducted an additional SHS experiment LHV3240 on pure andesine gouge. The experiment includes three temperature sequences: two room temperature stages separated by a T = 200 °C stage. We observe the behavior of negative healing rate only in the T = 200 °C stage, not in the initial and final room temperature stages (Supplementary Fig. 5).

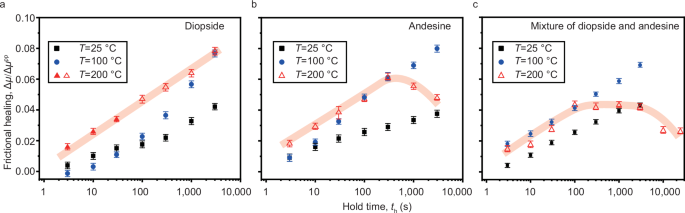

Fig. 2: Frictional healing data for the primary rock-forming minerals of gabbro.
Fig. 2: Frictional healing data for the primary rock-forming minerals of gabbro.
Full size image

Experiments are performed under an effective normal stress (σeff) of 50 MPa, temperature (T) ranging from 25 °C to 200 °C and pore fluid pressure (Pp) of 30 MPa. Error bar represents the standard deviation of (apparent) Δμ. a Diopside data from experiment LHV3099. Frictional healing (Δμ) increases linearly with logarithm of hold time (log10th) at all temperatures investigated (T = 25 to 200 °C). b Andesine data from experiment LHV3100. At T = 25 and 100 °C, Δμ increases monotonically with log10(th), whereas at T = 200 °C, Δμ decreases with increasing hold time at th > 300 s. c Analog of gabbro gouge, i.e., mixture of diopside and andesine with a ratio of 1:1.68 from experiment LHV3103. Frictional healing behavior of the mixture is similar to that of pure andesine. These experiments suggest that the presence of andesine is responsible for the decreased frictional healing and negative healing rate observed for long-duration holds. The trend of Δμ with log10th at T = 200 °C are highlighted in shaded lines. Solid symbols denote friction healing Δμ and open symbols denote apparent healing Δμpp.

If andesine indeed accounts for the reduction in healing rate at elevated temperature conditions, we would expect this effect to occur in other types of feldspar and feldspar-rich rocks. To test this hypothesis, we present the fault frictional healing data for various feldspars, i.e., albite (Na-rich), orthoclase (K-rich) and andesine (Na-Ca rich) and feldspar-rich rocks (Etna basalt: 34% andesine + 11.3% sanidine, diorite: 49% albite, and Westerly granite: 35% albite + 19% microcline). As shown in Fig. 3, all types of feldspar and feldspar-rich rocks investigated exhibit the same time-dependent, negative frictional healing rate (i.e., frictional healing rate transiting from positive to negative) after long holds at temperature above 200 °C to 300 °C, in contrast to constant, positive healing rate at lower temperatures (Supplementary Fig. 6). Mechanical data from these common (non-altered) crustal rocks further support the critical role of feldspar in producing negative frictional healing rates at long holds.

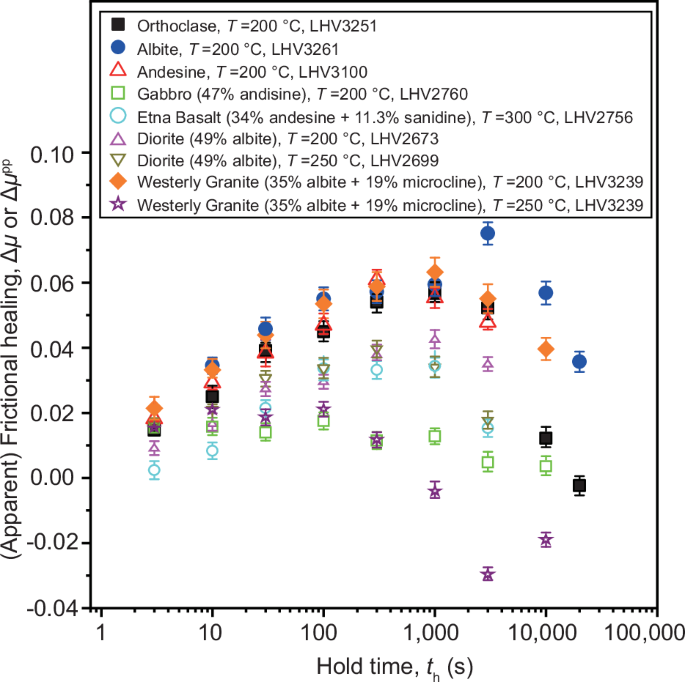

Fig. 3: Frictional healing data for feldspars and common crustal feldspar-rich rocks.
Fig. 3: Frictional healing data for feldspars and common crustal feldspar-rich rocks.
Full size image

Experiments are performed at constant effective normal stress of 50 MPa and pore fluid pressure of 30 MPa. This plot shows that all investigated types of feldspars and feldspar-rich rock powders exhibit a similar pattern in frictional healing versus hold time at elevated temperatures (T ≥ 200 °C). A positive healing rate switches to negative with increasing hold time. Error bar represents the standard deviation of Δμ. Solid symbols denote friction healing Δμ and open symbols denote apparent healing Δμpp.

Discussion

Mechanism for negative frictional healing rate

Our experiments reveal an unexpected frictional healing behavior, where the log-linear relation between frictional healing (apparent) Δμ and stationary contact time th does not hold within the investigated hold durations at hydrothermal conditions with temperatures above 200 °C–300 °C or ambient conditions typical for the nucleation of crustal earthquakes4,27. Importantly we show that the negative frictional healing rate βloc occurs in several and very common feldspar-rich rocks and demonstrate that this behavior is related to the presence of feldspars and pressurized hot water (Figs. 1–3). Thus, the negative frictional healing rate could be common in the seismogenic upper crust and impact the seismic cycle. This frictional healing behavior is in sharp contrast to the well-known linear dependence of Δμ with log10th (positive β) in most cases5,11 and negligible Δμ for clay-rich samples32. In our experiments at T = 200 °C, β switches from positive to negative when th exceeds a threshold ( ~ 300 s). This suggests an unidentified mechanism involving water-assisted and time- and temperature- dependent microscale weakening processes along the contact interfaces of feldspar grains during the hold period.

A similar negative β value (βloc < 0) has been reported recently for granite (46% feldspar) at T ≥ 200 °C (reproduced experimental results can be found in Supplementary Fig. 7) and the mechanism was attributed to the formation of weak secondary minerals (clays)26. However, XRD and FESEM investigations conducted on gouge samples from experiments conducted at T = 200 °C that exhibit negative β do not show evidence of formation of new clays (Supplementary Fig. 8). This could be due to the low reaction rate of feldspar breakdown to form measurable (XRD) and visible (FESEM) amounts of clays at T = 200 °C within the duration of the experiments. But we cannot rule out the possibility that trace amounts of weak minerals may form locally in highly stressed contact asperities and are subsequently destroyed or displaced upon re-sliding. Previous experiments performed on gabbro33 have reported that clay may form at T = 300 °C and 400 °C, and it is therefore likely that formed clay at original silicate mineral surface may contribute to the reduction in healing rate observed at T ≥ 300 °C.

Time-dependent fault frictional healing has been attributed to an increase in real area of contacts with time (ΔAr, contact “quantity”) by asperity creep18. Friction experiments under atomic force microscope (AFM) suggest that an increase in contact strength of asperities (Δτa, contact “quality”) by the formation of stronger chemical bonds could be another potential mechanism for frictional healing15. The real area of contact in gouge sample can be described as a collection of discrete contact asperities and increases over time when two surfaces are in quasi-stationary contact18,34,35. Although direct observation of the real contact area in our experiments is unachievable, we measure the compaction of gouge layers during all holds and independently of temperatures and the presence of water (Supplementary Fig. 9), suggesting that the contact area increases even for samples with decreased frictional healing at long holds. Since the increase in ΔAr cannot account for the decrease in Δμ during the long holds for feldspar-rich rocks, we must conclude that the growth rate of contact quality Δτa decreases during long holds36.

Because the gouge friction experiment typically involves myriads of asperities of minerals (also with different composition) that come into contact, rotate and break during sliding, it is technically difficult to determine the shear strength of individual nano- to micro-contacts from the overall system responses. To better explore and illustrate the evolution of frictional strength during the healing experiments, we perform nano-scale contact37 SHS experiments using an atomic force microscope (AFM). For the SHS experiments, an individual mineral grain, either feldspar or pyroxene, is mounted to the AFM cantilever and the lateral force is measured by sliding the individual mineral on a substrate of the same type of mineral at room temperature under relatively high humidity (RH ~ 80%, Fig. 4a). We vary the hold time from 3 s to 700 s and repeatedly measure frictional healing for 10 times under each hold time. As shown in Fig. 4 and Supplementary Fig. 10, the frictional healing behavior of the pyroxene-pyroxene contact pair and the feldspar-feldspar contact pair appears to be different. For the pyroxene-pyroxene contacts, the relative friction healing ΔF/Fss (Fss: steady state friction after hold; ΔF: peak friction after hold minus Fss) increases log-linearly with th (Fig. 4b). In contrast, at the same RH ~ 80%, the variation of ΔF/Fss with log (th) for feldspar-feldspar contacts has a much more pronounced scattering, particularly for th > 30 s. To better quantify the healing behaviors of the feldspar-feldspar contacts, we categorize the frictional healing data into two regimes, i.e., the “expected” healing and the “suppressed” healing. To do that, we first estimate the scattering of the frictional healing data of the pyroxene–pyroxene contacts as a reference scattering, as indicated by the width of the blue-shaded area in Fig. 4b. Then we find the trendline of the “expected” healing behavior for the feldspar-feldspar contacts by fitting the maximum frictional healing values under different hold times using a log-linear fit. Finally, we obtain the expected healing regime (denoted by the blue-shaded area) by considering the “expected” trendline with a same scattering as the pyroxene–pyroxene contacts. Essentially, this “expected” healing regime for the feldspar-feldspar contacts is defined as the projection of the normal log-linear healing behavior while considering a scattering due to uncertainty of the measurement system. Clearly, for the frictional healing measured in RH ~ 80%, many of the data points do not fall into the “expected” healing regime. For those data points that lie below the “expected” healing regime, we classify as the “suppressed” healing regime (denoted by the pink-shaded area, Fig. 4b). Taking the data set of 100 s hold time as an example (10 points in total), only one of the data points lie in the expected healing regime while the nine data points are in the suppressed healing regime. Similar behavior is more evident for the data sets of 300 and 700 s long holds, where 9 out of 10 data points and 10 out of 10 data points are in the suppressed healing regime, respectively. Most strikingly, in the 700 s long hold, some of the frictional healing values are even smaller than those collected in the 3 s long holds. We also perform SHS experiments for feldspar-feldspar contacts under relatively low humidity conditions (RH ~ 5%) and find that conventional frictional healing is more apparent than in high humidity SHS tests (Fig. 4b). The suppressed frictional healing for the feldspar-feldspar contacts after long hold times at high relative humidity (but not for the pyroxene-pyroxene contacts or the feldspar-feldspar contacts at low humidity) is consistent with our results for macro-scale gouge experiments in the presence of pressurized water38 (Figs. 1–3).

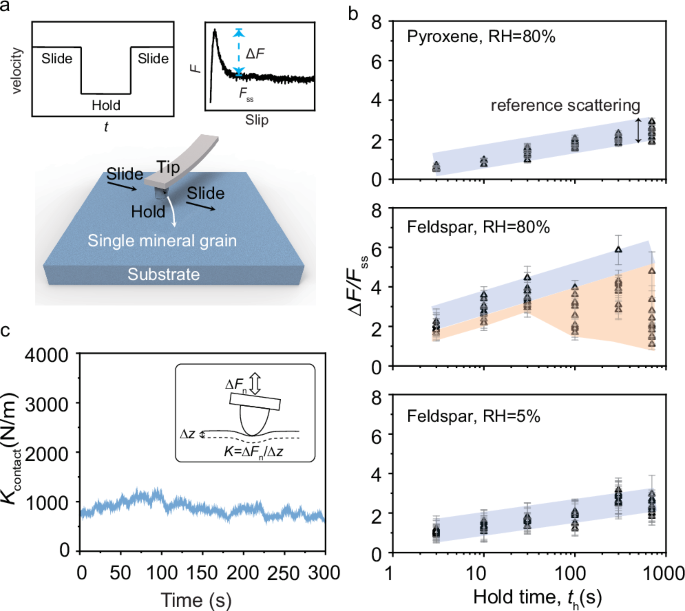

Fig. 4: Single-component particle slide-hold-slide tests performed in Atomic Force Microscrope (AFM).
Fig. 4: Single-component particle slide-hold-slide tests performed in Atomic Force Microscrope (AFM).
Full size image

a A schematic diagram showing that a feldspar/pyroxene particle attached to a tip slides against feldspar/pyroxene surface. SHS tests are conducted with the same protocol as rotary shear SHS experiments (left inset). Upon resliding after the hold, the lateral force increases abruptly to a peak value and then evolves to a steady-state value (Fss). ΔF is determined by the difference between peak value and steady state value (right inset). b Normalized frictional healing data for the pyroxene-pyroxene contact at RH ~ 80% (upper panel), feldspar-feldspar contact at RH ~ 80% (middle panel) and at RH ~ 5% (lower panel). The blue shaded domain outlines the expected linear trend for ΔF/Fss versus hold time. The pink shaded domain marks the “suppressed” frictional healing effect. Error bar presents the standard deviation of ΔF/Fss (see Methods). c Evolution of the contact stiffness of the system (K) during a 300 s hold for the feldspar-feldspar contact. Inset shows a schematic diagram of the stiffness measurement. The K is the ratio of the normal force variation ΔFn to the vertical displacement change Δz.

Due to the instrumentational limitations of the AFM, it was not possible to conduct nano-scale SHS experiment at 200 °C or with pressurized water. However, we are still able to observe the suppressed frictional healing at room temperature in the feldspar-feldspar contacts, e.g. in 9 out of 10 data points for th = 300 s (Fig. 4b). Such observations are not surprising. As evident in the previous AFM experiments15,37, the frictional healing effect and other interfacial phenomena are commonly more pronounced than those observed at the macroscale. For instance, individual contact healing (i.e., ΔF/Fss up to ~6, Fig. 4b) is more pronounced than the equivalent quantity, Δμ/μss, of ~ 0.1 for multiple-contact macroscale rotary shear experiments (Fig. 1). This high sensitivity is possibly due to the high local stress and good chemical uniformity for the nanoscale asperity contact. Nevertheless, probably because the ambient temperature in our AFM experiments was significantly lower than that in the rotary shear experiments, the suppressed frictional healing could not always occur at the nanoscale, despite the high interfacial sensitivity.

Since SHS experiments with AFM employ a single feldspar micro-grain, this experimental approach offers a unique and simpler platform to examine the evolution of the contact interface during the hold period. We repeat the SHS experiments of the feldspar-feldspar contact for a long hold time (th = 300 s) under RH ~ 80% while in-situ monitoring the contact stiffness K of the system (Fig. 4c). The K is the ratio of the normal force variation ΔFn to the vertical displacement change Δz39. During the 300 s long hold, there is no significant change in K, which means that the contact area does not change appreciably. Therefore, the suppressed friction healing effect during the longer hold times must be caused by a reduced growth rate in contact quality, relative to short holds, of the micro-grain contacts. Considering the statistical nature of the suppressed frictional healing effect and its close relation with humidity (a water bridge between the AFM tip and the substrate was likely to form under relatively high humidity40,41), we speculate that the process may be thermally activated, water-assisted and chemical in origin.

Implications for the seismic cycle

Our study reveals that feldspar and feldspar-rich rocks exhibit time-dependent reduction of frictional healing at temperatures ≥ 200°C, typical of depths greater than ~ 8 km assuming a geothermal gradient of 25 °C/km. These depths align well with hypocentral depths where earthquakes nucleate4,42. Therefore, this healing behavior may potentially influence the seismic cycle in feldspar-bearing faults. Our results suggest that extrapolating laboratory-derived healing parameters to predict the recurrence interval of earthquakes in feldspar-rich fault zones under hydrothermal conditions should be treated with caution, unlike the direct applications made in previous studies11. For instance, the decrease in frictional healing and healing rate will, if the stress loading rate remains constant, 1) reduce the rate of the elastic strain energy stored by wall rocks and, 2) the recurrence interval of earthquakes along this fault may become shorter, and subsequent earthquakes may occur at a lower shear stress level43. The distribution of feldspar-rich patches along faults may influence the frequency of earthquakes and their stress drops.

Although the experiments discussed here highlight the role of the presence of feldspar in activating the negative frictional healing rate behavior in common crustal rocks, the extrapolation of laboratory frictional healing results to natural faults remains challenging. By comparison with conditions of natural fault systems, (1) the experiments presented here are of short duration and reaction kinetics are too slow to observe chemically-controlled contact weakening for minerals other than feldspar, (2) frictional healing properties of faults vary significantly with ambient temperature13,23,26, fluid composition44,45, and lithology46,32, and (3) other relevant co- to post-seismic processes (e.g., vein precipitation, fault welding) contribute to fault healing8,14. In any case, our findings highlight the need to revisit fault frictional healing mechanisms under hydrothermal conditions, a very common situation at hypocentral depths. In particular, the presence of feldspar may lead to a decrease in fault strength recovery under ambient conditions discussed in this study. The changes in strength of the interfacial contacts during quasi-stationary state control frictional healing in feldspars. Our study suggests that the mechanism of frictional healing is governed by a combination of real area of contact and interfacial contact strength15,18.

Methods

Hydrothermal friction experiments and slide-hold-slide tests

The sample powders used in the experiments include “Jinan dark green” gabbro, Westerly granite, Etna basalt, diorite, and orthoclase and albite. The mineralogical make up are presented in Supplementary Table 2, based on XRD data. The samples are crushed and sieved using a 180-mesh sieve to produce gouges with grain size <88 μm for the friction experiments.

Friction experiments are performed with a Low to High Velocity Rotary shear apparatus (LHVR-Beijing) equipped with a hydrothermal pressure vessel at the Institute of Geology, China Earthquake Administration in Beijing, China (Supplementary Fig. 1)28,29,30. All experiments are conducted at a constant effective normal stress (σeff) of 50 MPa and temperature (T) ranging from 25 to 400 °C, under nominally “dry” or with a pore fluid pressure (Pp) of 30 MPa. In the dry experiments, the vessel is open to the atmosphere. The Pp = 30 MPa experiments are conducted under drained conditions (distilled water as pore fluid) and constant pore pressure is maintained by a syringe ISCO pump. A list of all the experiments can be found in Supplementary Table 1.

In each experiment, a 1.5 mm thick gouge layer is sandwiched between two ring-shaped and surface-grooved holders and flanked by inner and outer metal rings (for 22/28 mm and 14/20 mm internal/external diameter, ~0.8 g and 0.56 g gouges are used, respectively). The sample assembly is subsequently mounted inside the hydrothermal vessel and to the machine. Then, the sample assembly and the vessel are evacuated to 2000 Pa with a vacuum pump. Afterward, the normal stress σn is slowly increased to the desired value, while the pore fluid pressure (Pp) is increased in a stepped manner and kept at a constant target value before heating. Once the desired pore pressure and normal stress are achieved, the vessel is heated to target temperature. Heating normally takes 30 min for T = 100 °C and ~1.5 h for T = 400 °C.

After achieving the desired experimental conditions, the gouge layer is sheared (run-in) at V = 10 μm/s for 7 mm slip displacement (d), allowing friction to evolve to a steady state value. After this “run-in” stage, slide-hold-slide tests are imposed. The SHS test consists of three steps: (1) sliding the gouge layer at V = 10 μm/s for 1 mm of slip displacement, (2) holding the gouge for hold times (th) ranging from 3 s to 30,000 s by setting the load point velocity as null and, (3) resuming the sliding velocity at the original rate (V = 10 μm/s). Upon reloading, the friction coefficient typically reaches a peak value and then decays to a steady state value. Frictional healing Δμ is defined as the difference between μ peak value (μp) upon re-sliding and steady state friction (μss) before the hold. For stable sliding, μss is calculated as the average values of μ (with standard error) measured over the last 0.2 mm of displacement before the hold. In the cases of stick-slip, a μss counterpart is determined by averaging peak μ values (with standard error) during the stick phases within the last 0.2 mm of displacement (normally 6–8 cycles). It is worth noting that the measurement of Δμ in the case of stick slip is not affected by where the hold happens to start in the loading curve (Supplementary Fig. 11). Normal stress is kept constant during the holds and frictional strength relaxes non-linearly due to the creep of the machine and gouge samples. To ensure that no rotation is applied by the machine to the gouge layer during holds, the servo motor control system is set to stop once the imposed revolution rate is less than 1 rpm (corresponding to a slip velocity ~ 1.3 μm/s for the sample assembly used). By doing so, the servo motor remains stopped even if zero-voltage input signal is disturbed by electric noise, and no angular rotation is detected during the holds. In each experiment, two SHS sequences separated by a slip displacement of 40 mm are imposed. At the end of the experiment, the deformed samples are collected for micro-analytical (XRPD and FESEM) investigations. Note that the samples required a cooling period of approximately 1 h for T = 200 °C before being removed, this process might have potentially modified the microstructures.

During the experiments, axial load, shear torque, fluid pressure and temperature, velocity, revolution, and axial displacement are acquired at a frequency of 100 Hz. Evolution of axial displacement, i.e., dilatation or shortening (Δw) of the gouge layer, is recorded using a LVDT (1 μm resolution and 10 mm stroke) placed on the axial column of the machine. No correction for system stiffness is applied for the calculation of the shear displacement. The measured shear torque is converted to shear stress (MPa) without correcting for the additional shear resistance from O-rings and confining rings.

Atomic force microscopy and slide-hold slide tests

Sample preparation. Feldspar/Pyroxene tips are fabricated from tipless atomic force microscopy (AFM) probes and mineral particles. The feldspar/pyroxene particles, separated from the samples used in rotary shear experiments, are attached to tipless AFM probes (HQ-NSC35 Mikromasch) using UV (ultraviolet) glue. The selected feldspar and pyroxene particles have a diameter of several tens of micrometers. The solid gabbro substrate is polished by Argon Ion Polishing, producing a smooth surface with a root-mean-square roughness of 3.0 nm, measured within an area of 4 × 4 μm2. The gabbro substrate is cleaned with air plasma beam before each experiment.

AFM experiments. Friction force microscopy is conducted using an AFM (Ntegra, NT-MDT Inc.) installed at the Tsinghua University, China. The experiments are conducted in an AFM chamber at approximately 80% humidity. The humidity is kept constant (uncertainty ±2% RH) controlled by bubbling pure dry nitrogen vapor from a liquid nitrogen dewar through water. The experimental system is equilibrated for at least 1 h after the initial humidity change.

The friction experiments are performed after initially making contact between the feldspar/pyroxene tip and the substrate, then sliding for a run-in distance (256 cycles of 1 μm back-and-forth lateral displacements). The slide-hold-slide procedure is then conducted at a constant normal load of 150 nN. The tip is first slid 1 μm, then held stationary for a set time, followed by sliding another 1 μm at the original velocity. After this, the tip is slid backward to the original position. The friction was determined by calculating the difference between the forward and backward lateral forces. The hold time is predetermined ranging from 3 s to 700 s. Each hold time sequence is repeated 10 times. To exclude the potential effect caused by different interfacial chemical states, the tip is slid for a pre-run distance before each different hold time.

The healing of friction is described as normalized friction force increment, called the relative friction drop ΔF/Fss, which is the ratio of the increment of friction force during the hold stage (ΔF) and the steady-state friction (Fss) after the hold. To estimate the uncertainty of ΔF/Fss for each hold event, we first determined the peak force value (Fp) and subtracted from it the individual force values (Fi) during post-hold steady-state sliding, thereby obtaining a dataset of ΔFi = Fp - Fi. Based on the ΔFi and Fi datasets, we then calculated the mean value (\(\bar{\Delta F}\) and \(\bar{{F}_{{ss}}}\)) and standard deviation (\({\sigma }_{\Delta F}\) and \({\sigma }_{{F}_{{ss}}}\)) of ΔF and Fss, respectively. Finally, the standard deviation of ΔF/Fss was estimated using the error propagation formula:

$${\sigma }_{R}=\frac{\bar{\Delta F}}{\bar{{F}_{{ss}}}}\sqrt{\left({\frac{{\sigma }_{\Delta F}}{\bar{\Delta F}}}\right)^{2}+\left({\frac{{\sigma }_{{F}_{{ss}}}}{\bar{{F}_{{ss}}}}}\right)^{2}}$$
(1)

X-ray powder diffraction (XRPD)

Measurements are performed using a Philips X’Pert Pro MPD diffractometer installed at the Department of Geosciences at the University of Padova, Italy. The instrument is equipped with a long-fine-focus cobalt anode tube working at 40 kV – 40 mA and a 240 mm goniometer radius that operates in the θ/θ geometry. Samples are prepared using the front-loading procedure onto a Si-crystal sample holder that lacks any diffraction lines (zero-background). Measurements for phase identification are carried out between 3° and 85° 2θ angle, using a 0.017° step size, counting 100 s per virtual step on a spinning sample (1 revolution per second).

Field Emission Scanning Electron Microscope (FESEM)

Measurements are conducted using a Tescan 468 Solaris Field-Emission SEM of the Department of Geosciences at the University of Padova. Backscattered electron images have been acquired with an in-beam mid-angle backscattered detector using an accelerating voltage of 5 KeV, current of 300 pA and a working distance of 3 or 4 mm.
