Introduction

Organic electrochemical transistors (OECTs) transport ions and electrons through organic mixed ionic electronic conductors (OMIECs) that are mechanically flexible1,2,3 and can be processed from solution, over large areas using low-cost printing techniques4,5,6. While the 2007 Bernards and Malliaras model has enabled OECTs to be used as the primary tool for measuring figures of merit (FOM) that benchmark and compare OMIEC materials, recent reports highlight significant differences between measured and predicted data7,8,9,10,11,12 that arise from, for example, laterally flowing ions8, counterions9, and exponential carrier concentration/conductance10,11,12, all of which are unaccounted for in the model. A key consequence of the discrepancies between measured and predicted data are overestimated FOM13,14. Specifically, mobility (µ) and the µC* product (where C* is the volumetric capacitance) were recently shown to be overestimated by the Bernards and Malliaras model7, when an unpredicted, non-linear feature or “kink” is present in the square root of the OECT saturation drain current (√ID). The latter is important because the kink in √ID is a general problem throughout the diverse catalog of OECT systems, including electron- and hole-transporting OECTs, and OECTs operating with different electrolytes (Fig. S1). For organic thin-film transistors (OTFTs), the kink is caused by a sharp change in contact resistance when the transistor switches on15. For OECTs, while channel resistance has been found to play a key role in discrepancies between measured and predicted data7,16, the exact mechanism underpinning the kink in √ID remains unknown. Identifying the physical origin of the kink—the feature that acts as a clear indication or signature that µ and the µC* product are overestimated—is essential for establishing models and measurements that reliably report OMIEC FOM, for applications spanning thermoelectrics, photocatalysts, energy storage, neuromorphic computing, and bioelectronics17.

Here, elucidating the origin of the signature kink uncovers further important charge transport phenomena. First, we find that the kink originates from a change in the rate with which ions diffuse into the channel, and explain this phenomenon using Fick’s second law of diffusion, along with the formation of a hard gap in the density of states (DOS) from increased Coulombic interactions causing carrier localization. Second, we discover that OECT channel geometry plays a significant yet unexpected role in determining the location of the conductive channel: If the channel length is small, the conductive channel forms closer to the OMIEC/electrolyte interphase, whereas the conductive channel is better distributed through the bulk when the channel length is large. The latter parasitic channel effects are further confirmed by finding that the material property, diffusion coefficient, is a function of channel length. Third, the system investigated herein suggests electronic carrier injection and drift happen before ionic drift, thereby offering an important contribution to a persistent OECT question: Do electronic, or ionic, charges enter the OECT channel first? Overall, identifying the mechanisms underpinning differences in predicted and measured data is anticipated to enable the development of new measurements and models that reliably report benchmark FOM, to guide OMIEC material and device development, for technologies spanning thermoelectrics, photocatalysis, energy storage, neuromorphic computing, and low-cost biosensors.

Results

A peak in the ionic conductivity correlates with an unexpected increase in activation energy

We measured the activation energy (EA) of the OECT drain current (ID) by thermally activating trapped charges into delocalized states, to better understand the transport mechanisms underpinning ID and therefore the kink in ID. Temperature (T)–dependent measurements were used to measure EA as a function of gate voltage (VG), from the slope of the Arrhenius plot, for three systems with fixed electrolyte counterions and anion of varying sizes, following the relationship

$${I}_{{{{\rm{D}}}}}\propto \exp \left(-\frac{{E}_{{{{\rm{A}}}}}}{{k}_{{{{\rm{B}}}}}T}\right)$$
(1)

where kB is the Boltzmann constant. Figure 1 shows EA for accumulation mode, p–type poly[(3,6-bis(triethyleneglycolmonomethylether)thieno[3,2] thiophene–co–thiophene] (pT2gTT)18 OECTs (Fig. S2a, b). Room temperature ionic liquid electrolytes 1–butyl–3–methylimidazolium tetrafluoroborate (BMIMBF4–), 1–butyl–3–methylimidazolium trifluoromethanesulfonate (BMIMOTf–) and 1–butyl–3–methylimidazolium hexafluorophosphate (BMIMPF6–) were selected because their anions increase in volumetric size, from BF4– (100 Å3) to PF6– (125 Å3) and OTf– (154 Å3) (Figs. 1a–c and S3), they are stable liquids in the vacuum required for the temperature-dependent measurements, and because interest in ionic liquids for OMIECs and OECTs is growing19,20,21. Figures 1d and S2d, e show that, for the smallest anion, BF4–, EA decreases continually from 270 meV at VG = 0 V, to 17 meV at VG = –1.0 V. In contrast, Fig. 1g, j shows an abrupt increase in EA at VG = –0.45 V and VG = –0.3 V for the two larger anions, PF6– and OTf–, respectively. The abrupt increase in EA for OTf– and PF6– is unexpected. Specifically, EA is expected to continually decrease as VG increases, because as more charges are put into the system the doping level increases to fill high energy hole sites and shift the Fermi level so that lower energy sites in the DOS can be accessed, and a more energetically and spatially uniform pathway for hole transport is created in the OMIEC22. Interestingly, Fig. 1h, k shows that the unexpected increase in EA directly correlates with the kink in √ID.

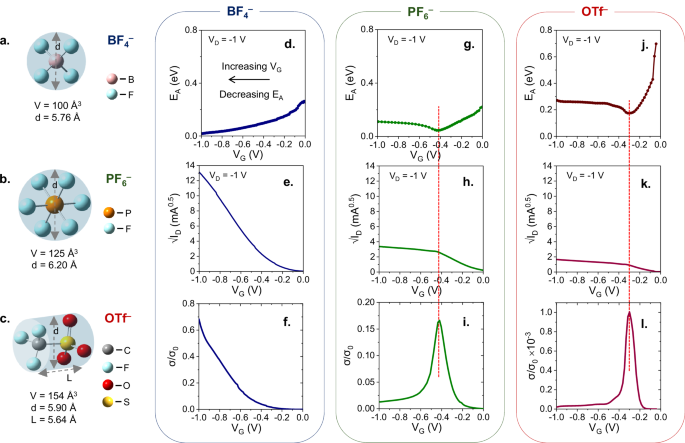

Fig. 1: Temperature–dependent organic electrochemical transistor measurements.
Fig. 1: Temperature–dependent organic electrochemical transistor measurements.
Full size image

Density functional theory (DFT)–derived volumes for anions in room temperature ionic liquids: a BF4– in BMIMBF4–, b PF6– in BMIMPF6–, and c OTf– in BMIMOTf–. d Activation energy (EA), e square root of the drain current (√ID) and f normalized ionic conductivity (σ/σ0) when the ionic liquid BMIMBF4– is used as the organic electrochemical transistor (OECT) electrolyte. g EA, h √ID and i σ/σ0 when the ionic liquid BMIMPF6– is the OECT electrolyte. j EA, k √ID and l σ/σ0 when the ionic liquid BMIMOTf– is the OECT electrolyte. The dashed lines in (g–i) and (j–l) show the direct relationship between an unexpected, abrupt increase in EA, the peak in σ/σ0, and kink in √ID. Comparatively, (d–f) shows that when there is no increase in EA, and no peak in σ/σ0, there is no kink in √ID. All measurements are all carried out under vacuum with pT2gTT as the active channel material. All OECTs have 200 μm and 500 μm channel lengths and widths, respectively, and EA is calculated when the drain voltage (VD) = –1.0 V.

The origin of the kink may therefore be explained by identifying the origin of the increase in EA. Here, EA is the energy needed for the thermally activated transport mechanisms underpinning ID23,24: (i) Injection across the barrier at the OMIEC/contact interface; (ii) ion transport; (iii) hole mobility10,25,26,27,28. (i) can be excluded as the cause of the abrupt change in EA, because contact resistance in electrochemical organic transistors is weakly dependent on the metal/semiconductor pair29, and here the metal/semiconductor pair is identical for each OECT in Fig. 1. Therefore, the difference in contact resistance (or the energy required to inject charges across the barrier at the OMIEC/contact interface) is negligable between the three systems. Interestingly, for (ii), the Bernards and Malliaras model only considers the drift of ions in the electrolyte30. However, factors including electrolyte ion concentration31,32, ion mobility33,34, and ion injection efficiency35 impact OECT ID and response time36,37,38,39,40. Indeed, while the model does not consider ion diffusion, ion diffusion counteracts ions drifting within the channel as the ion concentration increases, reaching a steady state when equilibrium is established (Fig. S6)27,41,42. We therefore explored whether ion diffusion impacts the increase in EA—and the kink √ID—by calculating ion conductivity (σion), which is related to the diffusion coefficient (D) by

$$D=\frac{{\sigma }_{{{{\rm{ion}}}}}\,{k}_{{{{\rm{B}}}}}\,T}{\left({nz}\right){e}^{2}}$$
(2)

where n is the number density, z represents the ion charge and e is the elementary charge. (See Supplementary Equations and Discussion for further details on evaluating σion from EA). Figures 1g–l and  S4 show a peak in σion calculated from EA extracted from ID, that directly correlates with the kink √ID. Furthermore, Fig. S5 shows a peak in σion calculated from EA extracted from the gate current (IG), which reflects the ionic transport/current only, also correlates with the kink √ID. Because a peak in σion corresponds to a maximum in the diffusivity (see Supplementary Equations and Discussion), the data therefore suggest that ion diffusion or ion mobility (where diffusivity and mobility have a linear relationship2,43, and therefore a change or peak occurs at the same point) could be a possible origin of the kink.

The kink is caused by a change in the rate with which ions diffuse into the channel

To explore whether a change in ion diffusion corresponds with the kink in √ID, we used Fick’s second law of diffusion (Fig. S6), which states that the ion diffusion rate changes because of changes in the ion concentration gradient inside a material44,45

$$\frac{{{{\rm{d}}}}c}{{{{\rm{d}}}}t}=D\frac{{{{{\rm{d}}}}}^{2}c}{{{{\rm{d}}}}{x}^{2}}$$
(3)

where c is the concentration, t is time, D is the diffusion coefficient, x is the position, \(\frac{{{{\rm{d}}}}c}{{{{\rm{d}}}}t}\) is the rate of change in concentration, and \(\frac{{{{\rm{dc}}}}}{{{{\rm{dx}}}}}\) is the concentration gradient which is directly proportional to the diffusion flux. In OECTs, because both drift and diffusion happen (and also happen in more than one dimension)8,10,12, the Nernst–Planck drift-diffusion equation is more relevant. The Nernst-Planck equation applies an electric field to Fick’s second law and accounts for ion drift, by combining drift and diffusion dynamics through25

$$\frac{\partial c}{\partial t}=\nabla .D\left(\nabla c+\frac{{zF}}{{RT}}c\nabla \upvarphi \right)$$
(4)

where z is the ion valance, ∇c is the concentration gradient, F is the Faraday constant, R is the universal gas constant, and φ is the electric potential. Equation 4 is the conservation of mass for charged species, where ion drift (charge transport; the second term on the right–hand side) is intrinsically coupled to ion diffusion (mass transport; Fick’s second law, the first term on the right–hand side) through c. As an electric field is applied in an OECT, the drift component moves ions into the channel, which accumulate and change the concentration of ions inside the channel. A new steady-state (\(\frac{{{{\rm{d}}}}c}{{{{\rm{d}}}}t}\) tending towards zero) is then established by changing the diffusion term by changing the rate in which ions are diffusing into the channel. The Nernst–Planck equation therefore suggests that the electric potential gradient ∇φ can be used to indirectly modulate the ion concentration gradient, and subsequently modulate ion diffusion rate, based on Fick’s second law. In an OECT channel, assuming no interactions between charges, ∇φ is equal to the total combination of vertical VG combined with the lateral drain voltage (VD).

One way to change ∇φ, and therefore ion diffusion rate, is to purposefully reduce VD by introducing short channel effects. Briefly, when channel length (L) is small, the channel resistance is on par with the contact resistance and the voltage dropped across the channel—which is directly proportional to the ratio of RC over the cumulative resistance of RCH and RC—is amplified46. OECTs with short L therefore experience lower VD, and subsequently lower effective voltage and ∇φ in the channel46. We therefore purposefully enhanced the lateral voltage drop between the source and the drain in pT2gTT OECTs by fixing OECT channel width (W) at 500 µm and varying L from 30 µm, 50 µm, 80 µm, 150 µm, 200 µm and 250 µm (Fig. 2a), and measured the corresponding ionic charges injected (Qinjected) into the channels as a function of VG (Fig. 2b, c), using the displacement current method (DCM) (Fig. S7a–c)47,48. We selected PF6– to carry out the lateral field experiments and investigate the effects of ion diffusion on the kink, because PF6– is a larger anion that shows the kink in ID, has a lower freezing point and therefore broader range over which the IL remains a liquid for the temperature-dependent measurements, and has produced reliable and reproducible OECT data. Remarkably, Fig. 2d-g shows that a change in Qinjected—and therefore a change in the rate with which ions are injected into the channel—directly correlates with a kink in √ID, but only in the largest channel (L = 250 µm). On the other hand, within the same voltage range, there is no change in Qinjected and therefore a constant charge injection rate for the smallest channel (L = 30 µm); furthermore, there is no kink in √ID. The output curves in Fig. S8 further confirm the impact of the change in Qinjected in L = 250 µm, compared to L = 30 µm, with an abrupt flattening and plateau in ID at high VG. Finally, we confirmed the relationship between the rate of injected ionic charges and the kink in √ID by increasing ∇φ in the small channel (L = 30 µm); Fig. 2f, g and S9 show that increasing ∇φ even further, by using a high VG (VG = –2.0 V), indeed causes a change in Qinjected in the small channel, by modulating the concentration gradient and diffusion rate using Fick’s second law. Overall, while the kink in √ID is present for both the large and small channel lengths, it occurs at much higher voltages in the small channel. In each case, the change in the rate of injected ionic charges is shown to directly correspond with the kink in √ID.

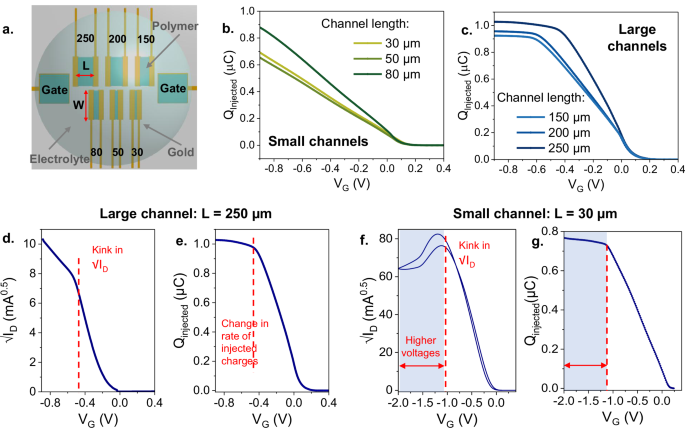

Fig. 2: A change in ion diffusion rate causes the kink.
Fig. 2: A change in ion diffusion rate causes the kink.
Full size image

a Schematic showing organic electrochemical transistors (OECTs) used in this article. Channel width (W) is fixed at 500 µm, and length (L) is varied from L = 30 µm, 50 µm, 80 µm, 150 µm, 200 µm, and 250 µm. OECTs are in bottom-contact bottom-gate configuration, with a polymer coated gold electrode as the gate electrode. b Ionic charge injection (Qinjected) as a function of gate voltage (VG) for the smaller channels: L = 30 µm, 50 µm, and 80 µm. c Qinjected as a function of VG for the larger channels: L = 150 µm, 200 µm, and 250 µm. The sweep rate is 11 mV/s for all data. d Square root of the drain current (√ID) measured at drain voltage (VD) = –0.9 V for L = 250 µm. e Qinjected for L = 250 µm measured at sweep rate 11 mV/s, with a dashed line to indicate that the kink in √ID directly corresponds with the change in rate of injected ionic charges. f √ID measured at VD = – 0.9 V for L = 30 µm. g Qinjected for L = 30 µm measured at sweep rate 20 mV/s, where the difference in scan rate does not impact overall conclusion and funding (see Fig. S11). Again, the dashed line indicates that the kink in √ID directly corresponds with the change in rate of injected ionic charges. All measurements are all carried out under vacuum with pT2gTT as the active channel material and BMIMPF6– as the electrolyte.

Ions dominate charge transport in the saturation regime

The data so far suggests that a change in the rate with which ions diffuse into the channel is the mechanism causing the non-linearity in √ID, a feature which is unpredicted by the Bernards and Malliaras model, and symbolizes unreliable and overestimated µ and µC* product values. However, it is possible that ion transport is not solely responsible for the kink. Specifically, a drop off in μ can occur in highly doped organic semiconductors when, for example, morphology becomes disrupted, or charged species such as bipolarons form49,50,51. Additionally, a change in µ or the mobility edge could be equally responsible for the abrupt increase in EA, because EA is the difference in energy between the mobility edge—which separates localized and delocalized charges—and the electronic charge carrier with the greatest energy. Furthermore, our argument began with EA extracted from ID, which includes energy needed for the thermally activated hole μ (i.e. (iii) hole mobility). To explore the role of the voltage–dependent µ, in the context of the kink in √ID we used the DCM to measure µ as a function of VG and compared the smallest (L = 30 µm) and largest (L = 250 µm) channels (Figs. 3a, b and S12). While the very clear drop off in µ at VG = –0.6 V in the smallest channel does not correlate with either a change in saturation ID or kink in √ID (Figs. 3a and S12a), the large channel shows a change in µ corresponds with a change in saturation ID (Fig. 3b) and kink in √ID (Fig. S12b). In the small channel, the only change corresponding to the drop off in µ is observed in the linear regime (VD= –0.1 V, Fig. 3a), suggesting that the change in Qinjected dominates charge transport and ID in the saturation regime. The latter observation may also explain why accounting for the non–linear relationship between µ and charge density, by introducing a power–law term (\({\mu={\mu }_{0}\left(\frac{p}{{p}_{0}}\right)}^{{{{\rm{a}}}}}\)) into the Bernards and Malliaras model, was previously unable to predict the current measured across the whole voltage range in OECTs52. Overall, it is the change in the rate of injected ionic charges - not the drop off in electronic charge carrier µ - that dominates the saturation regime and leads to the kink in √ID.

While the data elucidates the origin of the kink, there is an additional observation about the order of charge transport mechanisms as an OECT is switched on. Specifically, the lateral electric field in a transistor directly controls the lateral injection and drift of charge carriers, and not the vertical drift and accumulation of the charges; for OECTs, the ions are the charges that drift in the vertical field to accumulate in the channel. It is therefore surprising that reducing the lateral field (by decreasing the channel length) has such a dramatic impact on both ion drift and diffusion, i.e., Qinjected, when the vertical field (VG) is the same (Fig. 2b, c). While ion diffusion is indirectly impacted by the lateral voltage, through ∇φ, the fact that ions drifting vertically are influenced by lateral charge injection and drift, suggests that electron/hole injection and drift are a prerequisite for anions/cations to drift into the channel. We note that here we are discussing stage two out of the three stages of OECT operation, where the first stage is the off state. In the off state, while ions diffuse into the channel from the electrolyte into swollen polymers, this is not a prerequisite for electronic charge carriers to be injected into the transistor; if ion diffusion occurs before the OECT is switched on, the effects would be similar to other doped transistors, and with ion diffusion alone, the channel would behave as an Ohmic resistor (no modulation). The second operational stage is as the OECT switches on; in this article, we are describing the sequence of mechanisms for this particular polymer/electrolyte system to switch on: Electronic charge carrier injection and drift happen before ions can drift into the channel. The third stage is after the system is switched on;recent work, for example, has shown that once the device is on, hole transport dominates the doping front propagation in accumulation polymeric electrochemical devices22. Overall, the finding here is a valuable contribution towards the debate as to whether electronic or ionic charges enter the OECT channel first, or whether both mechanisms happen simultaneously.

Channel geometry leads to either volumetric or interphase channels

A further observation from the data so far is that channel geometry appears to be another factor causing unexpected, and significant, differences and inconsistencies between the current measured in OECTs, and the current predicted by the Bernards and Malliaras model. To further investigate this discrepancy between measured and predicted current as a result of channel geometry, we measured D using electrochemical impedance spectroscopy (EIS). Although D is a material property and should therefore be the same value regardless of channel size, Fig. S13 indicates that D is a function of both L and V, for pT2gTT OECTs with BMIMPF6–. Indeed, Fig. 3c clearly indicates “parasitic” channel effects, by showing that D changes by over an order of magnitude depending on L, with D decreasing from 1.4 × 10−8 cm2 s−1 for the larger channel lengths (L = 250, 200 µm, and 150 µm), to 4.6 × 10−10 cm2 s−1 for the smaller channel lengths (L = 50 μm and 80 µm). Additionally, a change in diffusion and impedance is observed in the largest channels (≈95% change in D with VG for L = 250 μm), but not in the smallest channels (≈0.12% change in D with VG for L = 50 μm). Namely, for the largest channels, Supplementary Video S1 shows how the diffusion–related part in EIS data (identified as Region 2 in Fig. S14 in the Supplementary Data, and discussed in Supplementary Equations and Discussion) initially decreases in impedance as V increases. The impedance then starts to increase again, and this change happens at the same voltage that we observe the kink and the change in Qinjected (Fig. 2d, e). For the small channels, however, Supplementary Video S2 shows an initial, minor decrease in impedance as V increases, and at V = 0.3 V, the impedance is fixed. The observation that OECT channel dimensions significantly impact ID is important because it is a violation of the Bernards and Malliaras model that has not been identified before.

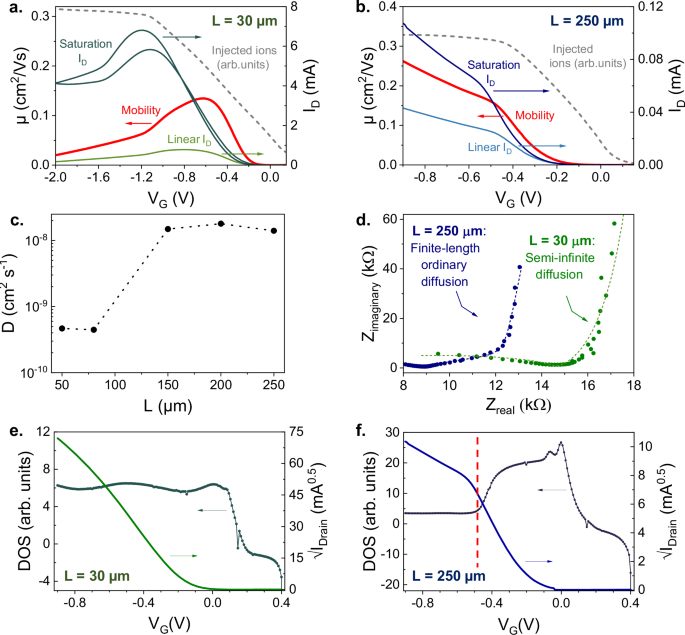

Fig. 3: Channel geometry determines whether an organic electrochemical transistor channel is volumetric or at the interphase.
Fig. 3: Channel geometry determines whether an organic electrochemical transistor channel is volumetric or at the interphase.
Full size image

Charge carrier mobility (μ), injected ions (Qinjected), linear drain current (ID), and saturation ID as a function of gate voltage (VG) for channel lengths (L) L = 30 µm and L = 250 µm. Here, a shows that, for the small channel, L = 30 μm, a soft Coulomb gap is formed at VG ≈ –0.6 V, whereas b shows that, for the large channel, a hard Coulomb gap is formed at VG ≈ –0.5 V. In both (a, b), μ and linear ID were measured at drain voltage (VD) = –0.1 V, and saturation ID was measured at VD = –0.9 V. c Diffusion coefficient (D) as a function of L at fixed potential (V), equivalent to the gate voltage (–VG), where VG = –0.75 V. D was obtained from EIS for channels with L = 50, 80, 150, 200, and 250 μm, and the channel width fixed at 500 μm. d EIS data Nyquist plots for L = 30 µm and L = 250 µm. The measured data is represented by symbols, and the solid lines show the circuit model fits, which use different Warburg elements as shown in Fig. S14, and indicate different ion distribution within the channels depending on the length. e Density of states (DOS) and √ID, both as a function of VG, for L = 30 μm. f DOS and √ID, both as a function of VG, for L = 250 μm. The dashed line shows the direct relationship between the kink in √ID and change in the DOS, and indicates the formation of the hard Coulomb gap at VG ≈ –0.5 V. All OECTs are made from pT2gTT and use BMIMPF6– as an electrolyte. √ID was measured at VD = –0.9 V.

Yet, the most remarkable observation from the EIS data is from the Warburg element fittings, which suggest stark differences in how the ions are distributed in the channel depending on the channel length. Specifically, it is not possible to fit the smallest channel 30 µm channel size with a circuit model incorporating a finite length ordinary diffusion (FLOD) Warburg element53,54 at constant V. Indeed, Figs. 3d and S15b show the smallest channel, L = 30 μm, can only be fitted using a semi–infinite diffusion Warburg element, which indicates that the ions in the channel are closer to the electrolyte/OMIEC interphase. The latter is because semi–infinite diffusion fits are used when the range over which the ion concentration gradient changes is significantly smaller than the thickness of the bulk material (see Supplementary Equations and Discussion)55,56. In stark contrast, Fig. S15a shows that the EIS data for L = 250 μm is accurately fitted with a FLOD Warburg element, indicating that the large channel has formed, comparatively, further within the bulk or volumetrically. These findings are also supported by literature discussing OECTs that operate with either dominant volumetric effects or electrostatic double layer effects28,57,58. While microstructure57, ionic species58, low ionic mobility, and OMIEC/electrolyte injection barriers28 can determine how the conductive channel forms, no reports to date have examined the role of channel dimension on whether an OECT channel forms volumetrically or at the OMIEC/electrolyte interphase.

For a physical explanation as to why ID and µ are markedly different in OECTs with large and small channel lengths, we used DCM to measure the DOS (Fig. 3e, f), as the Fermi level moves toward the highest occupied molecular orbital (HOMO) with increasing VG48. First, it is surprising that the drop off in µ at VG ≈ –0.6 V (Fig. S12c) for the small channel (L = 30 μm) is not reflected in the saturation current, ID. Namely, a drop off in µ is associated with the formation of a soft Coulomb gap in the DOS, from partial localization of electronic charge carriers causing the HOMO to split into two bands; it has been shown previously that this phenomenon corresponds with decreasing current59,60. One possibility is that the effective voltage is greater in the saturation regime (VD = –0.9 V), and the soft gap is small enough for carriers to cross with the additional energy. This hypothesis is supported by the drop off in µ corresponding with a change in ID in the linear regime (VD = –0.1 V) (Fig. 3a), where the channel effective voltage is low, and the carriers cannot pass the soft bandgap. Then, once the hole–hole and ion–hole interactions are significant enough to form a hard gap at VG ≈ –1.1 V, there is a drop off in saturation ID, as well as a further change in µ and linear ID (Fig. 3a); that is to say, a large Coulomb gap has formed in the DOS that shuts down conductance, and stops sub-band filling59,60. In further support of the formation of a soft gap at VG ≈ –0.6 V and a hard gap at VG ≈ –1.1 V is the fact that the small channel forms closer to the OMIEC/electrolyte interphase, where hole–hole Coulombic interactions are more significant because of the relatively higher areal charge density61, and ion–hole Coulombic interactions are less. Specifically, a soft gap forms first because hole–hole interactions begin to localize charge carriers, but ion–hole interactions are not yet great enough to form the hard gap. Moreover, the formation of a hard gap at VG ≈ –1.1 V is consistent with the abrupt change in Qinjected (Fig. 3a)—and therefore the kink in √ID—occurring at the same voltage: When Coulombic force is incorporated and the Nernst–Planck equation, the interactions will increase enough to suppress diffusion and cause a change in the rate with which the ions diffuse.

Finally, Fig. 3f shows that a sharp change in the DOS occurs at the same voltage as the change in Qinjected, and kink in √ID (Fig. 3b), in the large channel (L = 250 μm). Similarly, Fig. S16 shows a sharp change in the DOS occurs for the small channel (L = 30 μm) when measured at the extended VG-range (see Fig. 2f, g), at the point in which there is a change in Qinjected and the kink in √ID appears. For the larger channel in Fig. 3b, f, in contrast to the small channel, it is surprising that µ and ID continue to increase—albeit at a lesser rate—despite the abrupt change in the DOS. The distribution of ions within the channel may again explain this unexpected behavior. Namely, for L = 250 μm, ions are distributed throughout the volume of the channel, where there is a higher probability of hole–hole and ion–hole Coulombic interactions to cause localization and, subsequently, a hard gap leading to the sharp change in the DOS59,61. While the Coulomb gap makes it more difficult for the carriers to get into available states, there is a much higher effective voltage in the large channel. Multiple trap and release and band filling models therefore make the increase in µ and ID as a function of VG (shown in Fig. 3b), feasible after the Coulomb gap and change in DOS (Fig. 3f): A greater effective voltage reduces EA of the localized states, pre-fills low-lying localized states to move the Fermi level across the gap, and gives additional energy that enables localized charge carriers to move into the empty, lower HOMO. Overall, both small and large channels indicate the signature kink in √ID in OECTs is caused by a change in the rate with which ions diffuse into the channel, which we have also found to coincide with the formation of a hard Colomb gap in the DOS.

Discussion

While OECTs are used to measure and compare organic mixed ionic-electronic conductor FOM, the µ and the µC* product are being overestimated by significant differences between experimental OECT data and OECT data predicted by the Bernards and Malliaras model. The signature of an overestimated µC* product measured from OECTs is a non-linearity or “kink” in the square root of the saturation drain current. Here, by using Fick’s second law of diffusion, we identify the origin of the kink as a change in the rate with which ions diffuse into the channel, and a concurrent formation of a hard gap in the DOS, from increased Coulombic interactions that cause carrier localization. We also find that the lateral electric field has a surprising impact on the vertical drift and accumulation of the ionic charges. The latter observation suggests a sequence of mechanisms must occur for this particular polymer/electrolyte OECT system to switch on: First, holes are injected from the source and drift into the polymer and second, anions drift into the channel. Finally, we identify parasitic channel effects in OECTs as a previously unreported violation of the Bernards and Malliaras model. Specifically, when the channel length is large, the ions are found to be better distributed throughout the volume of the polymer. Comparatively, when the length is small, the conductive channel is formed closer towards the interphase between the polymer and electrolyte. Overall, we have identified diverse, fundamental charge transport phenomena that will be crucial for enabling the realization of the remarkably broad organic mixed conductor application space.

Methods

Organic mixed ionic-electronic conductor solution and thin-film preparation

Poly[(3,6-bis(triethyleneglycolmonomethylether)thieno[2,3]thiophene–co–thiophene] (pT2gTT) was synthesized according to a previously reported procedure and was used as received; the characterization of the received material matched that reported in ref. 18. The polymer solution was prepared at a concentration of 10 mg/mL in degassed chloroform, and spin-coated onto patterned OECT substrates in two steps: (1) 500 rpm for 5 s, and (2) 700 rpm for 45 s. The chloroform was purchased from VWR and degassed using the freeze-pump-thaw method.

Organic electrochemical transistors

Borofloat glass substrates were cleaned in an ultrasonic bath for 10 min each in the following solutions: Decon-90 soap; deionized water; acetone, and isopropanol. Substrates were dried with nitrogen gun and treated with UV Ozone for 15 min. A 10 nm chromium adhesion layer was then evaporated onto the substrates, followed by 100 nm of gold, using an Angstrom evaporator, to form the source and drain electrodes. UV Ozone and oxygen plasma treatments were then used to enhance adhesion between the substrate for a subsequent 2 μm layer of Parylene C, that was deposited using an SCS Labcoater 2010 system. Two layers of a 4% microsoap solution were spin-coated at 6000 rpm on top of the Parylene C to facilitate the removal of a second layer of Parylene C, that was deposited at a thickness of 4 μm, to act as a sacrificial layer to pattern the OECT channels. Photolithography was then used to pattern the OECT channels by exposing the SPR 220–7 photoresist to UV light with a Suss MA6 Contact Aligner, before developing with MF–26. The channels—which varied in length from 30 to 250 μm, with a fixed width of 500 μm—were then etched with oxygen, using March reactive ion etching (RIE) apparatus. The polymer solution was deposited as described above, and the upper, sacrificial layer of Parylene C layer was then peeled off to pattern with polymer with the given channel dimensions. OECT current-voltage characteristics were measured in ambient conditions, as well as under a vacuum, using a Keysight B2912B Precision Source/Measure Unit. A 500 × 500 μm gold electrode coated with pT2gTT was used as the gate electrode (Fig. 2a). The OECT electrolytes used in this study were ionic liquids purchased from Sigma Aldrich, where BMIMBF4 and BMIMPF6 were purchased at >97% purity, whereas the BMIMOTf was >95% purity.

Density functional theory

Density functional theory (DFT) calculations were performed with the wB97XD functional and the 6-31 g(d) basis set using Gaussian 16 Rev. A.03 software suite62. The geometries of BF4–, PF6–, and OTf– were optimized with a charge of –1 and spin multiplicity of 1. The optimized geometries were then used to estimate the ion dimensions from the bond lengths and the van der Waals radii of the terminal nuclei F (1.47 Å) and O (1.52 Å). The ionic volume was calculated from the ion dimensions and ion shape as shown in Fig. 1a–c.

Activation energy measurements

OECT activation energy (EA) was measured using temperature-dependent measurements, with a Lakeshore CPX cryostation, under vacuum, and in the saturation regime with the drain voltage set to VD = –1 V. The temperature ranges for the different ionic liquids were: 300–350 K for BMIMOTf; 286–320 K for BMIMPF6; 227– 321 K for BMIMBF4. Here, the lowest temperatures were selected to prevent the various ionic liquids from freezing. The gate voltage was swept from 0.2 to –1 V, at a scan rate of 39 mV/s. The logarithm of the drain current was plotted against 1000/T and fit with a straight line for each gate voltage. From these linear fits, EA was found for each gate voltage using the slope of the fitted line, and following Eq. 1.

Electrochemical impedance spectroscopy

Diffusion coefficients were measured on OECTs with different channel lengths using EIS in ambient conditions, with BMIMPF6 as the electrolyte. A platinum wire as the counter electrode, a 500 × 500 μm gold electrode coated with pT2gTT as the reference electrode, and the source and drain electrodes were shorted and both connected to the working terminal of an Autolab potentiostat, to act as the working electrode. The data was acquired by superimposing a 10 mV sinusoidal potential onto the DC potential (V = –VG) at the working electrode (i.e., the source/drain), and across frequencies ranging from 50 kHz to 2 Hz. The DC potential was increased in 0.1 V steps from 0.1 to 0.9 V, with additional measurements made at 0.85 V and 0.75 V. Each DC potential was maintained for 20 seconds before the frequency scan was initiated. Finally, Metrohm Autolab NOVA software was used for the EIS data fitting.

Displacement current method

The displacement current, i.e., the current between the gate and source electrodes, or IGate, was measured using a Keysight B2912B Precision Source/Measure Unit. Both the source and drain electrodes were grounded, and the gate electrode was a 500 × 500 μm gold electrode coated with pT2gTT. The gate voltage was scanned at a constant rate (ν) of ν = 11 mV/s, from 0.4 to –0.9 V, while IGate was measured. BMIMPF6 was used as the electrolyte and the measurements were carried out under vacuum. Following each displacement current measurement, the transfer characteristics for each channel were recorded using the same voltage range and sweep rate; the drain voltage was –0.1 V for linear regime, and –0.9 V for the saturation regime. For the displacement current method experiments where the gate voltage range has extended in the small channel (length = 30 μm, Fig. 2f, g), the saturation drain voltage was kept at –0.9 V, the gate voltage was extended to –2 V, and ν = 20 mV/s.
