Introduction

Upon rapid cooling, liquids will solidify into non-equilibrium glassy or amorphous states1,2,3. As such, dynamic relaxation is a universal and intrinsic feature of glass and enables fluctuation and dissipation to occur4,5. Dynamic relaxation covers a broad range of time, length, and temperature scales, which in turn determines the properties and applications of glassy systems. As a result, there has been growing interest in the physics of glass6,7,8,9,10,11,12,13. Theoretically, the dynamical modes of glass can be clarified into two categories4. The first category pertains to transitions between adjacent basins or configurations within the potential energy landscape14 encompassing the so-called α and β relaxation processes. The second category involves the vibrational modes within a singular basin. The investigation of vibrational modes holds significant importance due to its connection with the heat capacity and transport properties, such as thermal conductivity, which plays a crucial role in determining the performance of thermoelectric materials, as well as serving as a criterion for determining structural phase transitions in condensed matter15. In ordered crystals with long-range order, the vibrational modes manifest as plane-wave phonons, resulting in a vibrational density of states (VDOS) g(ω) that adheres to Debye-like behavior at low frequencies16. In contrast, the VDOS of amorphous materials generally departs from the Debye form, exhibiting an excess of states known as the BP17,18. Following decades of intensive investigation, a consensus has formed that the BP is linked to specific sorts of disorder13,19,20,21,22; however, the underlying structural mechanism of the BP has remained enigmatic and a subject of intense debate because the lack of translational periodicity precludes the use of well-established concepts in crystals.

Experimentally, the BP can be identified not only in the form of a broad peak in the specific heat data18,23 but also in the VDOS, which can be measured by Raman scattering18,24,25, inelastic neutron scattering (INS)19,26, and inelastic x-ray scattering (IXS)27,28. Indeed, the early evidence for the BP was reported in the Raman spectra of vitreous SiO2 (v-SiO2) by Krishnan29, who noted an extra broad-band (10–120 cm−1, or 1-15 meV) in comparison with its crystalline counterpart. It was (later) termed BP because the temperature dependence of the Raman intensity was thought to follow that of a harmonic oscillator characterized by the Bose factor17,18. The BP and BP-related phenomena were brought under the spotlight when Zeller and Pohl30 pointed out the similarity in the anomalous behaviors of thermal conductivity and specific heat for several different families of glass17,18. Today, BP has been widely observed in various amorphous materials, ranging from metallic glasses (MGs)31,32, polymer and molecular glasses19,24,27,33,34, oxide and chalcogenide glasses17,21,35,36,37,38, ionic salt and bio-matter glasses39,40, colloidal and granular glasses22,41, model glasses13,20,42,43,44, confined water45,46, molecular crystal and strain glass47,48, van der Waals liquids49, and spin glass50, in spite of the very different interactions and structures in these materials.

Considerable studies have been carried out to explore the physical origin of the BP13,20,22,36,42,43,51,52,53,54. In general, there are two schools of thought regarding the origin of the BP. In the first view, the BP is considered a fingerprint of glass, i.e., an excess mode arising from the disordered atomic packing in amorphous materials13,42,52. In the second view, the DOS of the amorphous system is regarded as a modification of the crystalline DOS due to a random fluctuation of the force constants22,36,53. The controversy surrounding BP has lasted for decades, constituting one of the most fascinating and difficult puzzles in condensed matter physics and materials science.

In our view, this controversy is mainly caused by the incomplete definition of BP. In condensed matter, an elementary excitation is generally defined with two parameters, i.e., energy and momentum – their dynamic response functions describe the temporal and spatial correlation, respectively16. For the BP, past efforts have focused on the energy scale, while few studies were devoted to understanding the momentum dependence or spatial correlation at the BP energy. In 1984, Buchenau et al. studied the dynamic structure factor S(Q, E) around the BP energy in v-SiO2 using INS and attributed the BP to the localized rotation motion of SiO4 tetrahedra55,56,57. About 15 years later, Nakamura and Arai et al. extended S(Q, E) measurements in v-SiO2 to a larger Q range using then state-of-the-art time-of-flight spectrometer MARI at the ISIS spallation neutron source facility58,59, and reported a non-dispersive behavior of the BP58. Recently, using MD simulations, Tanaka et al. also found the non-dispersive nature of the BP in a 2D model glass in a small range of Q, within the first sharp diffraction peak of the static structure factor S(Q), and attributed it to localized transverse motion of chains13,42. The BP and phonon modes in glasses at small Q were also investigated by IXS17,38,60. There are, however, some discrepancies between the INS measured non-dispersive BP and the IXS data, which were attributed to the overlap between acoustic phonon modes and BP at small Q17,60. Therefore, the characterization and elucidation of the momentum dependence of the BP in amorphous materials is far from complete, impeding fundamental understanding of the physical origin of the BP. Here, we report a concerted investigation combining the powerful INS and MD simulations. We systematically characterize the momentum dependence of the BP over a large range of Q values in Zr46Cu46Al8 and Zr56Cu36Al8, two typical MGs with very different glass-forming abilities. The dispersionless feature of the BP energy, independent of the momentum transfer Q, is observed in both INS and MD simulations. Moreover, the momentum dependence of the BP intensity is found to quantitively scale with the S(Q) - this is not observed for excitations at other energies. MD simulations further suggest that the fluctuation of the local atomic shear strain is responsible for the BP, because it exclusively reproduces both distinct BP features mentioned above.

Results

The INS measurements were performed at room temperature (RT) using ARCS61 at the Spallation Neutron Source (SNS) to measure the VDOS in Zr46Cu46Al8 and Zr56Cu36Al8 MGs62,63. The high flux brought forth by the source power, coupled with advances in neutron instrumentation, has enabled high-precision measurements to large momentum transfer, with fine energy resolution64. To facilitate the analysis of the INS data, the static structure factor S(Q) was measured separately using the NOMAD65 diffractometer at the SNS. The results are similar for both alloys and will be illustrated mainly with the data from Zr46Cu46Al8. Meanwhile, MD simulations were performed for the Zr46Cu46Al8 MG with a realistic embedded atom method potential using the LAMMPS software package. The MD simulation results were benchmarked with the experimental S(Q)63. The vibration dynamics calculated by the MD simulations were analyzed in terms of the standard van Hove correlation function, which offered a direct comparison with INS measurements63. More details about the INS experiments and MD simulations can be found in Methods.

To investigate the momentum dependence of the BP, we first calculated the generalized Q-dependent density of states (GDOS), G(Q, E), from the S(Q, E) using the following equation59,63,66:

$$G\left({\bf{Q}},E\right)={e}^{{Q}^{2}{u}^{2}}\frac{E}{{Q}^{2}}\left\langle n\right\rangle S\left({\bf{Q}},E\right)$$
(1)

where\(\,\left\langle n\right\rangle=[1-{e}^{-\,\frac{E}{{k}_{B}T}\,}]\) describes the Bose-Einstein statistics, \(u\)2 is the average vibrational mean-square displacement, \({e}^{-{Q}^{2}{u}^{2}}\) describes the Debye-Waller factor, \({k}_{B}\) is the Boltzmann constant, and T the absolute temperature, respectively. In this paper, we defined a new quantity to further analyze the INS data. We divided G(Q, E) by E2 to obtain B(Q, E) = G(Q, E)/E2. Note that B(Q, E) can be compared directly to g(E)/E2, which is commonly used for the analysis of the BP17,18. In the Debye model20, the VDOS g(E) ∝ E2 and thus g(E)/E2 becomes a constant at small E values. As shown in Fig. 1a, the spectra of B(Q, E) from INS measurements exhibit a high concentration of INS intensities at E ~ 5.5 meV around Q ~ 2.8 Å−1. In MD simulations, Fig. 1b, the BP appears at E ~ 3.5 meV, but the Q-dependence largely reproduces the experimental observations. Furthermore, in the vicinity of E ~ 5.5 meV, the INS B(Q, E) intensity exhibits a characteristic Q-dependence, which agrees well with the S(Q) measured separately with neutron diffraction, see Fig. 1c. This agreement is echoed by MD simulation results, Fig. 1d, which shows a nearly perfect correlation between B(Q, E) and S(Q) at the BP energy.

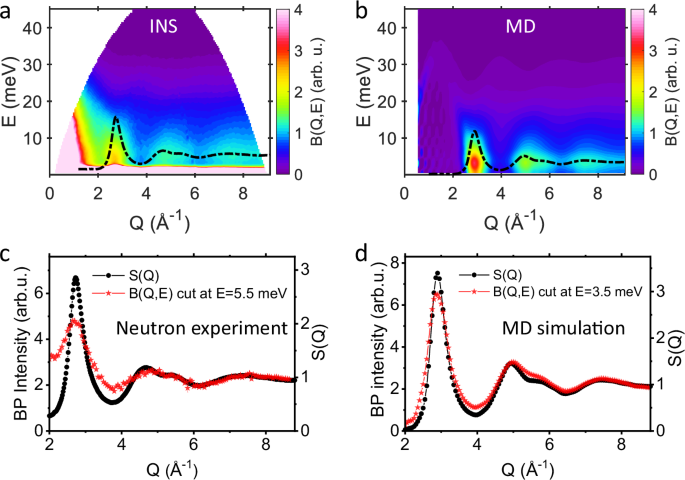

Fig. 1: Momentum dependence of the Boson peak (BP) in Zr46Cu46Al8 metallic glass (MG).
Fig. 1: Momentum dependence of the Boson peak (BP) in Zr46Cu46Al8 metallic glass (MG).
Full size image

a Generalized Q-dependent density of states normalized by E2, B(Q, E), measured by inelastic neutron scattering (INS) (see text). The strong INS intensity close to E = 0 was due to the finite instrument resolution and the elastic scattering. b Molecular dynamics (MD) simulation results for B(Q, E). The INS data show a well-defined BP around 5.5 meV, which is largely dispersionless as a function of Q. The static structure factor S(Q) is superimposed (the black dashed lines in a and b). c, d The constant E cut plots at the BP energy (over ΔE = 0.5 meV) were superimposed with the experimental S(Q). The INS intensity at the BP energy exhibits an excellent correlation with S(Q). The error bars in (c) are estimated from the uncertainties of the measurement produced by the instrument software and propagated using the appropriate equation. Source data are provided in the Source Data file.

Next, we demonstrate that the excitation around 5.5 meV corresponds to the energy of the BP. As shown in Fig. 2a, the INS measured total GDOS, obtained by integrating over a Q range of 2.1-8.5 Å−1, was normalized by E2. An excess B(E) can be readily identified, centering around 5.5 meV for the Zr46Cu46Al8 MG under study. To solidify the evidence, two other experimental techniques were employed to confirm the BP energy in Zr46Cu46Al8 MG, i.e., Raman scattering and specific heat (\({C}_{p}\)) measurements. As shown in Fig. 2b, a clear BP around 6.0 meV in the reduced Raman spectra can be identified. This is consistent with the INS measured BP at ~ 5.5 meV. Figure 2c plots the temperature dependence of \({C}_{p}\), in the form of \(({C}_{p}-\gamma T)/{T}^{3}\) vs T, where \(\gamma\) is the Sommerfeld coefficient measuring the electronic contribution to \({C}_{p}\). As can be seen, \(({C}_{p}-\gamma T)/{T}^{3}\) does not stay constant as predicted by the Debye model for crystalline materials67. However, adding an Einstein oscillator term (see Methods) leads to a good fit to the \({C}_{p}\) data67. The fitted Einstein oscillator yields an average energy of ∼ 6.2 meV, which is also consistent with the BP energies obtained above. Note that the BPs in all three sets of data are broad, so there are uncertainties associated with fitting of the experimental data by each method, which is estimated to be 0.3-0.5 meV. Nonetheless, the largest discrepancy between the BP values determined by different methods is (6.2 meV–5.5 meV)/6.2 meV ≈ 11%. With these three different measurements (i.e., INS, Raman scattering, and \({C}_{p}\)), we can thus confirm that the excitation at ~ 5.5 meV in the INS spectra is indeed the BP.

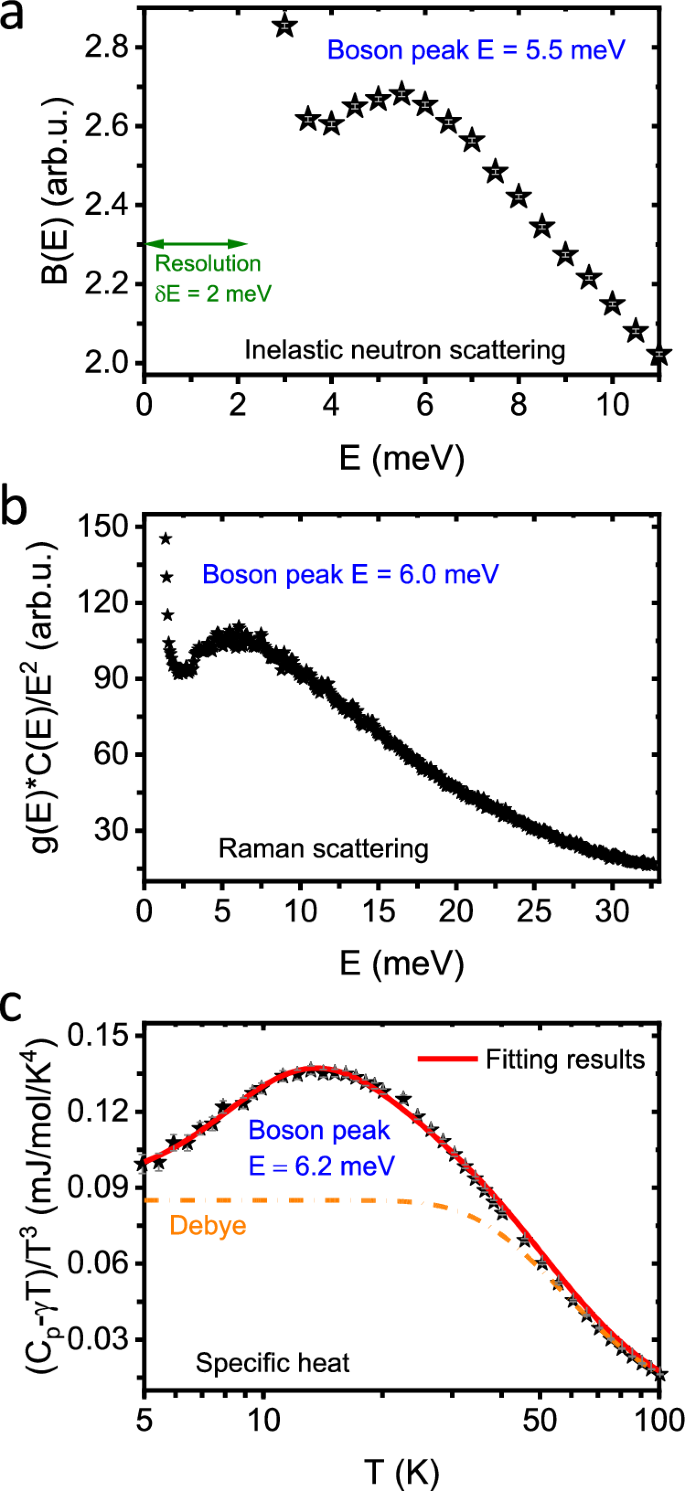

Fig. 2: BP in Zr46Cu46Al8 MG.
Fig. 2: BP in Zr46Cu46Al8 MG.
Full size image

a The INS measured vibrational density of states normalized by E2, B(E), showing a BP at ~ 5.5 meV. Within the Debye model, B(E) would appear as a straight line at small E values. b The vibrational density of states normalized by E2\(,\,g(E)*C(E)/{E}^{2}\), where C(E) is a constant, obtained from the Raman scattering data, showing a BP around 6.0 meV. c The specific heat data presented as \(\left({C}_{p}-\gamma T\right)/{T}^{3}\) vs T, which was fitted by the Einstein oscillator model (see “Methods”). The Debye level (the orange dash dot line) is plotted for reference. The fitted energy value using the Einstein oscillator mode was ~ 6.2 meV. The error bars are estimated from the uncertainties of the measurement produced by the respective instrument software and propagated using the appropriate equation, and most of them are smaller than the size of the symbols. Source data are provided in the Source Data file.

Having established the BP, we performed a detailed analysis of the BP as a function of Q. For a given Q value between 2.1 and 8.5 Å−1, the constant Q cut plots of B(Q, E) all show a BP anomaly (see Supplementary Fig. S1). Specifically, the BP peak position and peak height were extracted and examined to explore the momentum dependence of the energy and intensity of the BP, respectively. Interestingly, the BP energy for different Q values is quite similar, close to E ~ 5.5 meV, which indicates that the BP is dispersionless, at least within the resolution of the ARCS instrument61. The lack of dispersion of the BP energy can also be seen in MD simulations at 3.5 meV, as shown in Fig. 1b. The BP energy of 3.5 meV in MD simulations is lower than the 5.5 meV determined by the INS experiment. We have conducted additional studies and confirmed that the lower BP energy value by MD simulations is not due to the simulation box size (see Supplementary Fig. S2). On the other hand, recent research by Su et al. has highlighted a significant increase in the BP energy with decreasing cooling rates68, indicating that the lower BP energy observed here could indeed be attributed to the high cooling rate employed in MD simulations. In spite of the difference in the BP energy values, the main features of the B(Q, E) calculated by the MD simulations and INS experiment are largely the same, so a direct comparison can be made, and the results are discussed together.

Although the BP energy at different Q values is nearly constant at ~ 5.5 meV, the INS intensity at the BP energy varies strongly with Q. As shown in Fig. 1c, the momentum-dependent BP intensity shows a close one-to-one correspondence with S(Q). This experimental observation was reproduced by MD simulations, as shown in Fig. 1d, demonstrating that the observed momentum dependence of the BP intensity is intrinsic. Apart from the results in Figs. 1c, d for Zr46Cu46Al8 MG, which is an excellent glass former, similar results were also obtained for Zr56Cu36Al8 MG with a marginal glass forming ability, in both INS measurements and MD simulations (see Supplementary Fig. S3). Taken together, the data from INS measurements and MD simulations for two different alloys of different glass-forming abilities would indicate that the BP excitation is closely connected with the underlying amorphous structures.

To further investigate the nature of the BP excitation, constant E cut plots of the BP spectra at selected E values were extracted and examined. Figure 3a shows the constant E cut plots of B(Q, E) at E = 15, 20, 25, and 40 meV (over ΔE = 0.5 meV), respectively. The corresponding MD simulation results are shown in Fig. 3b. No distinct correlations can be seen between S(Q) and constant E cut of B(Q, E) at those energy values. For example, at E = 25 meV, the maxima for the constant E cut of B(Q, E) and S(Q) appear at different Q positions. The consistency between the INS experiments and MD simulations (Fig. 1) further confirms that the BP is a distinct excitation in the phonon spectra, different from phonons at other energies63. At the BP energy, the B(Q, E) scales with the static structure factor, S(Q).

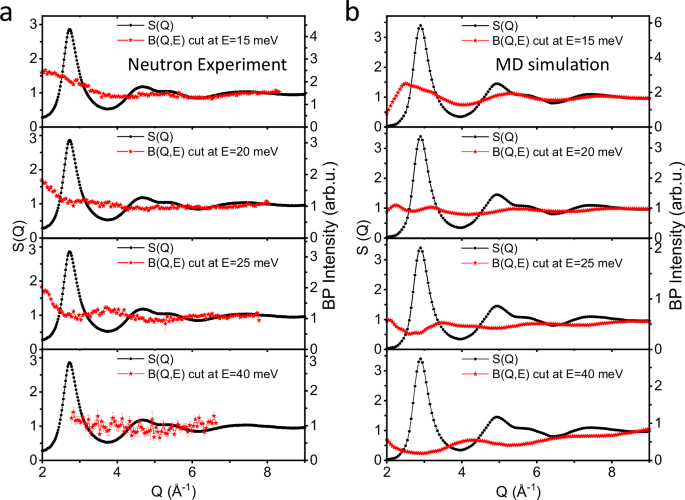

Fig. 3: Constant E cut plots of B(Q, E) along with the static structure factor S(Q) in Zr46Cu46Al8 MG.
Fig. 3: Constant E cut plots of B(Q, E) along with the static structure factor S(Q) in Zr46Cu46Al8 MG.
Full size image

a INS measurements. b MD simulations. Unlike at the BP excitation energy, the B(Q, E) intensity at the indicated E values is not correlated with S(Q). The error bars in (a) are estimated from the uncertainties of the measurement produced by the instrument software and propagated using the appropriate equation. Source data are provided in the Source Data file.

A similar correlation of B(Q, E) with S(Q) at the BP energy was also observed in MD simulation for a 3-dimensional Lennard-Jones (3DLJ) and a 3-dimensional power law (3DPL) binary glasses. The simulation results are shown in Supplementary Fig. S4, which confirms two main features of the BP: (1) the BP energy is largely dispersionless, and (2) the B(Q, E) intensity scales with S(Q). These findings, based on the simulation with a generic 3DLJ potential and 3DPL potential, suggest that the BP features reported here are not limited to specific cases but might represent a universal feature in glasses.

Based on INS and MD simulation results, an analytical form for the BP in amorphous materials can be formulated:

$${B}_{{BP}}\left({\bf{Q}},E\right)=A * f\left(E-{E}_{{BP}}\right)S\left(Q\right)$$
(2)

where A is a scaling factor, and the function \(f\left(E-{E}_{{BP}}\right)\) is momentum-independent which has a peak at E = EBP that describes the dispersionless feature of the BP energy. It follows that the corresponding dynamic structure factor of the BP can be written as:

$${S}_{{BP}}\left({\bf{Q}},E\right)=A * {{EQ}}^{2}{e}^{{-Q}^{2}{u}^{2}}{\left\langle n\right\rangle }^{-1}f\left(E-{E}_{{BP}}\right)S\left(Q\right)$$
(3)

A step-by-step derivation can be found in Supplementary Materials.

Previous studies of the BP have primarily focused on the energy-dependent DOS, which is the Fourier transform of the time-dependent velocity autocorrelation function, e.g., \({\rm{g}}(\omega )=\frac{1}{2\pi }\int \frac{{\psi }_{v}(t)}{{\psi }_{v}(0)} exp (-i\omega t){\rm{d}}t\), where \({\psi }_{v}\left(t\right)={N}^{-1}{\sum }_{j}\langle {{\bf{v}}}_{j,t}\cdot {{\bf{v}}}_{j,0}\rangle\). Guerdane and Teichler generalized the definition of the autocorrelation function by replacing the atomic velocity with fluctuations of atomic coordination number (CN), i.e., \({\psi }_{{CN}}(t)={N}^{-1}{\sum }_{j}\langle ({Z}_{j,t}-{\bar{Z}}_{j})({Z}_{j,0}-{\bar{Z}}_{j})\rangle\)54. The Fourier transform \({\chi }_{{CN}}\left(\omega \right)=\frac{1}{2\pi }\int \frac{{\psi }_{{CN}}\left(t\right)}{{\psi }_{{CN}}\left(0\right)}\exp \left(-i\omega t\right){dt}\) can be treated as a DOS, describing the oscillation frequency of atomic CN. They found that \({\chi }_{{CN}}\left(E\right),\) where E = ℏω with ℏ being the reduced Planck constant, shows a clear peak at E around EBP, and thus concluded that the BP is related to time-dependent fluctuations of local environments of atoms.

To describe the Q-dependence, we consider the double Fourier transform of the spatial correlation of CN fluctuations between different atoms. The correlation function can be extended as:

$${\varphi }_{{CN}}\left({\bf{Q}},t\right)={N}^{-1}\sum _{j}\sum _{k}\left\langle \left({Z}_{j,t}-{\bar{Z}}_{j}\right)\left({Z}_{k,0}-{\bar{Z}}_{k}\right){e}^{i{\bf{Q}}\cdot \left({{\bf{r}}}_{j,t}-{{\bf{r}}}_{k,0}\right)}\right\rangle$$
(4)

Then, the generalized Q-dependent DOS for CN fluctuation follows:

$${\varOmega }_{{CN}}\left({\bf{Q}},\omega \right)=\frac{1}{2\pi }\int \frac{{\varphi }_{{CN}}\left({\bf{Q}},t\right)}{{\varphi }_{{CN}}\left({\bf{Q}},0\right)}{e}^{-i\omega t}{dt}$$
(5)

As shown in Fig. 4a, \({\chi }_{{CN}}\left(E\right)\) exhibits a clear peak around the BP energy in Zr46Cu46Al8 MG, which is consistent with a previous study54. However, as Fig. 4b shows, the Q-dependent \({\varOmega }_{{CN}}\left({\bf{Q}},E\right)\) did not produce the S(Q)-like feature observed in the INS experiment and MD simulations (Fig. 1).

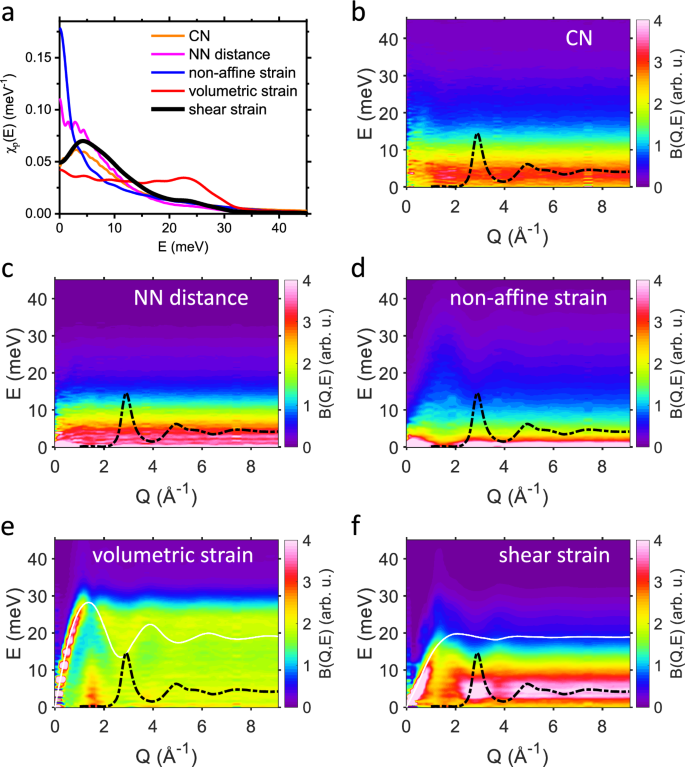

Fig. 4: The Q-dependent frequency spectrum resulting from various structure fluctuations in Zr46Cu46Al8 MG.
Fig. 4: The Q-dependent frequency spectrum resulting from various structure fluctuations in Zr46Cu46Al8 MG.
Full size image

a The Q-integrated frequency spectrum, which reflects the density of states. b The local coordination number (CN) fluctuation model, which shows a dispersionless BP but not S(Q)-like BP intensity. c The nearest-neighbor (NN) distance fluctuation model, which shows neither a dispersionless BP nor S(Q)-like BP intensity. d The non-affine strain model, which shows S(Q)-like BP intensity but not the gapped dispersionless BP energy. e The volumetric strain model, which shows none of the observed BP features. (f) The shear strain model, which shows a dispersionless BP and S(Q)-like BP intensity at E ~ 4.3 meV, capturing the main features observed in the INS experiment and MD simulations as shown in Fig. 1. Note that the volumetric strain and shear strain model respectively produced the longitudinal and transverse phonon dispersions (white curves in (e) and (f)) which we reported in ref. 63. The S(Q) was superimposed as black dashed lines. Source data are provided in the Source Data file.

To further explore the underlying physics of the BP, we went on to study the spatial and temporal fluctuations of several other parameters, such as the nearest-neighbor (NN) distance and local atomic strain, by using Eq. (4, 5) (see “Methods”). Previous studies have shown that the fluctuation of the NN distance is closely linked to the variation of force constants, which has been assumed to be the origin of BP22. However, as Fig. 4c, a demonstrate, it captures neither the BP energy nor the S(Q)-like feature of BP intensity. The local atomic strain can be decomposed into three terms: the non-affine strain, the volumetric strain, and the shear strain69. Their double Fourier transforms are shown in Fig. 4(d–f). Interestingly, only the shear strain fluctuation produces both the E and Q dependence of the BP as observed by our INS experiment and MD simulations (Fig. 1). Fluctuations of the non-affine strain and volumetric strain did not show such correlations. These simulation results strongly suggest that BP is intimately associated with the fluctuation of the local shear strain around each atom due to topological disorder. In the future, fluctuations of other order parameters could also be checked in a similar way. The above analysis also serves as a reminder that an apparent peak in the energy-dependent DOS does not necessarily correspond to the BP.

Discussion

In a previous MD simulation study42, Shintani and Tanaka posit that the BP is related to the Ioffe-Regel limit of transverse phonons and is solely characterized by an energy scale, unrelated to any real-space length scale. Hu and Tanaka13 recently further explored this idea with MD simulations of a 2D model glass by demonstrating the dispersionless feature of the BP, emphasizing its localized nature (no characteristic Q or length scale). On the other hand, Lerner et al. studied the same 2D glass system but suggested that the BP is a hybridized mode of phononic and four-leaf quasilocalized excitations70. Our study, which is based on INS experimental observation and accompanying MD simulations, suggests that the BP in MG is due to the fluctuation of the local shear deformation. The one-to-one correspondence between B(Q, E) and S(Q) indicates that the BP is intimately related to the underlying amorphous structure of the material. Our study also demonstrates that the momentum dependence of the BP intensity is essential to establishing the nature of the BP, and needs to be systematically characterized in future studies.

There has been a long debate as to whether the BP in amorphous materials is related to the van Hove singularity in its crystalline counterpart36,71. Chumakov et al. reported that as the applied pressure increases, the BP energy spectrum tends to approach the van Hove singularity of the transverse acoustic phonon of the crystalline counterpart, leading to the conclusion of their equivalence36. On the other hand, a recent light experiment and a comprehensive MD simulation study of a real 2D model glass by Wang et al. suggests that the BP and van Hove singularity are two separate physical phenomena71. Therefore, whether and how the BP is related to van Hove singularity remains an open question18 and a fertile ground of future research.

We noticed that earlier published works adopted different expressions of S(Q, E), namely S(Q, E)*E/Q, or S(Q, E)*< n > /(E*Q) for BP17,39,59, to examine the Q-dependence of the INS data. We also calculated these quantities and compared the results with B(Q, E), as shown in Supplementary Fig. S5. While the explicit values differ, a Q-dependent feature can be seen for S(Q, E) and S(Q, E)*< n > /(E*Q) around the BP energy.

In summary, by interrogating the momentum dependence of INS and MD simulation results, we have established important characteristics of the BP in amorphous alloys. We found that the BP excitation is essentially dispersionless, i.e., with a fixed energy. In addition, a one-to-one correspondence was found between the INS intensity (represented in the form of B(Q, E)) at the BP excitation energy and the static structure factor S(Q), and this was reproduced by MD simulations with calibrated empirical potentials. These features could be fingerprints to distinguish the origin of the BP in amorphous materials from those observed in other systems. A simple analytical expression describing the dynamic structure factor of the BP excitation has been formulated for the MG under study. Inspired by the experimental observations, we found, through MD simulations, that fluctuations of the local atomic shear strain reproduce both the dispersionless feature of the BP energy and the momentum-dependent BP intensity. We also ruled out four other models involving fluctuations by the local CN, the NN distance, the non-affine strain, and the volumetric strain. Although the present study was demonstrated for MGs, the same methodology could be applied to other types of glasses. The powerful combination of INS and MD not only shed light on the nature of the BP but also pointed out the importance of considering shear strain fluctuations for understanding the dynamic properties of amorphous materials.

Methods

Sample synthesis

Amorphous alloy ingots with compositions of Zr46Cu46Al8 and Zr56Cu36Al8 MGs were prepared by arc melting a mixture of Zr (99.99%), Cu (99.99%), and Al (99.99%) in appropriate amounts under a Ti-gettered Ar atmosphere. Each ingot was re-melted six times to ensure compositional homogeneity and quenched into copper-mold by suction casting under a high-purity Ar atmosphere. The cooling rate was estimated to be ~ 20 K/min.

Neutron Total Scattering Measurements

Neutron total scattering measurements were carried out to determine the static structure factor, S(Q), in Zr46Cu46Al8 and Zr56Cu36Al8 MGs at room temperature (RT) using the Nanoscale-Ordered Materials Diffractometer (NOMAD65) at the Spallation Neutron Source (SNS), Oak Ridge National Laboratory (ORNL), USA.

Inelastic neutron scattering

The INS experiment was carried out to measure the atomic dynamics in Zr46Cu46Al8 and Zr56Cu36Al8 MGs, using the time-of-flight wide Angular-Range Chopper Spectrometer (ARCS61) at the SNS, ORNL, USA. The measurements were performed with an incident neutron energy of Ei = 50 meV at RT. The dynamic structure factor, S(Q, E), where Q and E are the neutron momentum and energy transfer, respectively, was generated using the standard software MantidPlot72.

Raman scattering

Raman spectra were measured at RT with a Horiba micro Raman system in Zr46Cu46Al8 MG. A 532 nm laser was used for excitation with a power of 1 mW to avoid sample damage. An 1800 lines/mm grating was used in the Raman measurements, which enables each CCD pixel to cover 0.52 cm−1 at 2.33 eV. The laser line was removed by using three BragGrate notch filters with a spectral bandwidth of 5−10 cm−1. From the Raman scattering intensity \(I\left(E\right)\), the DOS was reduced following \(I\left(E\right)/E/\left[n\left(E\right)+1\right]=C(E)*g(E)/{E}^{2}\), where \(C(E)\) is the coupling coefficient of the vibrational mode to the light, and \(n\left(E\right)=1/\left[{e}^{E/{k}_{B}T}-1\right]\) is the Bosons occupation number25. In this study, \(C(E)\)=constant was used for the following reason. Shuker and Gammon73 predicted \(C(E)\)=constant by assuming that vibrations are localized on a distance much shorter than the light wavelength in amorphous materials. The results shown in Fig. 4 suggest that the local shear strain fluctuations are in the 0.1−1 nm scale. The Raman scattering experiment used 532 nm laser which is much longer than the length scale of local shear strain fluctuations. Thus, a constant coupling factor was deemed appropriate for the Raman scattering data analysis. The Raman scattering measured BP is ~ 6 meV (Fig. 2b), slightly higher than that determined by the INS (Fig. 2a). It is noted that the Raman BP energy will shift to a lower value if a linear relationship is assumed between C(E) and E18,74,75.

Specific heat

Specific heat \({C}_{p}\) measurements were performed on Zr46Cu46Al8 MG with a sample mass of 3.6 mg using a Quantum Design Physical Property Measurement System (PPMS) for temperatures ranging from 5 to 100 K. \({C}_{p}\) was fitted as \({C}_{p}=\gamma T+{n}_{D}{C}_{D}+{\int }_{0}^{\infty }{n}_{E}{C}_{E}\cdot {\chi }_{E}({\theta }_{E},{\bar{\theta }}_{E},{\sigma }_{E})d{\theta }_{E}\), where \(\gamma T\) is mainly contributed by free electrons, \({n}_{D}\) and \({n}_{E}\) represent the fractions of the conventional phonon mode (Debye mode) and Einstein mode, respectively, \({C}_{D}=9R{(T/{\theta }_{D})}^{3}{\int }_{0}^{{\theta }_{D}/T}\frac{{\zeta }^{4}{e}^{\zeta }}{{({e}^{\zeta }-1)}^{2}}d\zeta\) and \({C}_{E}=3R{({\theta }_{E}/T)}^{2}\frac{{e}^{{\theta }_{E}/T}}{{({e}^{{\theta }_{E}/T}-1)}^{2}}\) are their heat capacities of the phonon and Einstein modes, respectively, where \({\theta }_{D}\) is Debye temperature. \({\chi }_{E}({\theta }_{E},{\bar{\theta }}_{E},{\sigma }_{E})=\frac{1}{\sqrt{2\pi }{\sigma }_{E}} exp [-\frac{{({\theta }_{E}-{\bar{\theta }}_{E})}^{2}}{2{\sigma }_{E}^{2}}]\) is energy distribution of the Einstein oscillator, where \({\bar{\theta }}_{E}\) and \({\sigma }_{E}\) are the mean and standard deviation of the distribution, respectively67. The total VDOS for the phonon and Einstein modes can be expressed as \(g(E)=3N({n}_{D}\cdot \frac{3{E}^{2}}{{({k}_{B}{\theta }_{D})}^{3}}+{n}_{E}\cdot {\chi }_{E}({\theta }_{E},{\bar{\theta }}_{E},{\sigma }_{E})/{k}_{B})\), where N is Avogadro’s number76. The BP can be extracted from the \(g(E)/{E}^{2}\) data, which gives the BP energy from \({C}_{p}\). The fact that Einstein mode is needed to model the specific heat data is suggestive of a localized harmonic vibration mode. The Gaussian distribution of Einstein mode suggests the topologically diverse form of vibration modes, which randomly occur without interactions67,76. The Debye level of the Debye mode contribution is also plotted in Fig. 2c.

Molecular dynamics (MD) simulations

In this work, classical MD simulations were performed to investigate the atomic structures and vibrational dynamics of ternary Zr46Cu46Al8 and Zr56Cu36Al8 MGs within the LAMMPS package (lammps-3Mar2020). The interatomic interactions were described by a realistic embedded-atom method (EAM) potential developed by Sheng et al.77. In brief, the potential energy of atom i is divided into two contributions: a pairwise part and a local density part:

$${E}_{i}={F}_{\alpha }\left(\sum _{j\ne i}{\rho }_{\beta }\left({r}_{{ij}}\right)\right)+\frac{1}{2} \sum _{j\ne i}{\phi }_{\alpha \beta }\left({r}_{{ij}}\right)$$

where α and β are the element types of the center (embedded) atom i and the neighboring atom j. ρβ is the charge density function of β, Fα is the embedding function of α, ϕαβ is the pair potential function between α and β. The total potential energy of the system is the summation of the potential energy of each atom. We simulated the system containing 10000 atoms in a cubic box with periodic boundary conditions applied in three directions. In the process of sample preparation, the sample was first melted and equilibrated at 2000 K for 2.0 ns (MD time step is 2.0 fs), followed by hyper-quenching to 300 K with a cooling rate of 1012 K/s, then relaxed for 2.0 ns at 300 K. In this process, the isobaric and isothermal (NPT) ensemble was used with the sample size being adjusted to give zero pressure. After that, the canonical (NVT) ensemble MD was conducted at 300 K for data collection and analysis (Supplementary Data 1). The simulated static structure factor of Zr46Cu46Al8 MG was benchmarked with experimental measurements63. A good agreement is demonstrated.
