Introduction

CRISPR-Cas systems provide adaptive immunity against invading mobile genetic elements (MGE) in prokaryotes1. Type III CRISPR-Cas systems comprise a ribonucleoprotein effector complex programmed with CRISPR RNA (crRNA) to detect invading RNA from viruses and other MGE2. Target RNA binding activates the catalytic Cas10 subunit, which in approximately 90% of cases harbours a specialised polymerase domain for the synthesis of cyclic oligoadenylate (cOA) molecules3,4,5,6. cOA acts as a second messenger, signalling viral infection in the cell by binding and activating a wide range of ancillary defence proteins (reviewed in ref. 7). Cleavage of bound target RNA deactivates the Cas10 cyclase activity8 and extant cOA molecules are degraded by enzymes known as ring nucleases9.

The Csm6/Csx1 family of type III CRISPR ancillary effectors use a dimeric CARF domain for cOA binding, resulting in allosteric activation of their HEPN-family ribonuclease domains5,6. Some of these effectors also degrade cA4 or cA6 in their CARF domains, providing a mechanism for auto-deactivation of the CRISPR immune response10,11,12,13,14. The effectors Cami1 and CalpL, which detect cA4 via CARF and SAVED domains, respectively, also possess intrinsic ring nuclease activity15,16,17.

The first extrinsic ring nuclease to be described, Crn1, was purified from Saccharolobus solfataricus, revealing a small protein with a dimeric CARF domain for cOA recognition. Crn1 slowly degrades cyclic tetra-adenylate (cA4) to linear di-adenylate products18. A second family of extrinsic ring nucleases, Crn2, use a dimeric domain unrelated to CARF proteins to bind and degrade cA4. Crn2 is found both in CRISPR defence operons19,20,21 and in viral genomes, where it functions as an anti-CRISPR (Acr) by rapidly degrading cA4 to neutralise cellular defences21. A third ring nuclease family, Crn3, uses a fold related to CARF domains to sandwich cA4 in protein tetramers, degrading the signalling molecule in a metal-dependent reaction to linear di-adenylates22,23. Finally, a group of related proteins (Csx15, Csx16 and Csx20) were predicted to act as ring nucleases24. Recently, we demonstrated that Csx16 and Csx20 are cA4-specific ring nucleases, and showed that the majority of cA4- and cA6-signalling type III CRISPR systems include a means to degrade their activator25. This has important implications for cellular outcomes on viral infection, as it provides a means to avoid programmed cell death or growth arrest25,26.

We previously reported a systematic bioinformatic analysis of type III CRISPR systems, which resulted in the identification of a new effector protein, Csm6-2, which is activated by cyclic hexa-adenylate (cA6) and cleaves RNA non-specifically3. Csm6-2 is typically found associated with a CorA-family trans-membrane effector, and in some instances, the two proteins are fused. The CRISPR-associated CorA effector from Bacteroides fragilis was previously shown to be activated by SAM-AMP—a signalling molecule derived from conjugation of ATP and S-adenosyl methionine27, but systems encoding both Csm6-2 and CorA may signal via cA63.

Here, we show that these CRISPR loci include a small open reading frame encoding a hypothetical protein, hereafter named Crn4 (CRISPR ring nuclease 4), which degrades cA3, cA4 and cA6 to a range of linear products. The crystal structure of Crn4 reveals a novel, dimeric fold with conserved histidine and arginine residues that are essential for catalysis. Crn4 can partially relieve CRISPR-mediated immunity in a plasmid challenge assay, consistent with a function as a cellular ring nuclease, and is encoded in some phage and plasmid genomes where it likely functions as an Acr.

Results

Identification of the CRISPR associated protein Crn4

Csm6-2, a fused Csm6 orthologue that is activated by cA6 and cleaves RNA, was recently identified from a bioinformatic analysis of type III CRISPR loci3. A systematic scan of the regions neighbouring Csm6-2 revealed a small open reading frame (ORF) encoding a hypothetical protein of unknown function in 12 CRISPR type III-D loci. In 5 of the 12 instances, a CorA membrane effector was also present (Fig. 1a). In two cases, the ORF was fused with Csm6-2, and in one instance it was fused with the effector TIR-SAVED (Fig. 1b)3,28. A recent bioinformatic study identified this ORF, named Unk01, as a potential ring nuclease24.

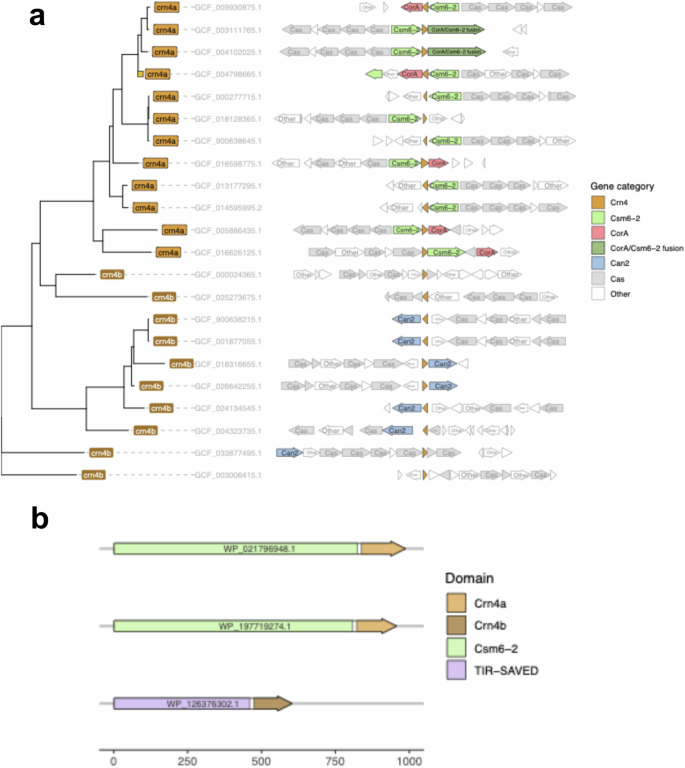

Fig. 1: Bioinformatic analysis of Crn4.
figure 1

a A phylogenetic tree of Crn4 homologues found in type III CRISPR-Cas loci of complete prokaryotic genomes in NCBI. The subfamily of each Crn4, (a or b) is labelled on the end nodes followed by NCBI genomic accession numbers. The closest homologue (94% similarity) of the Crn4a tested experimentally in this study is marked by a small square. The genomic neighbourhoods of each Crn4, defined by CRISPR-Cas locus boundaries, is shown on the right, with key effectors highlighted as shown in the legend. b Three examples of Crn4 fused to the C-terminus of type III CRISPR-Cas effector proteins Csm6-2 and TIR-SAVED. Protein accession numbers are shown on the annotations.

Full size image

Using hidden Markov model (HMM) profiles based on these 12 homologues, we identified 10 additional homologues in our dataset, which were associated with the cA4-activated effector Can2, and two homologues with no recognisable effector in the CRISPR locus. Phylogenetic analysis divided the 22 homologues into two distinct groups: group “a” associated with Csm6-2/CorA, and group “b” associated with Can229,30 or lacking a recognizable effector (Fig. 1a). The small size of the predicted proteins, combined with their consistent association with cA4 and cA6 activated effectors (either through adjacency or fusion) and prevalence on MGEs supported the prediction that Unk01 was a ring nuclease. Following established nomenclature, we provisionally designated this family of proteins CRISPR ring nuclease 4 (Crn4). The family was sub-divided into Crn4a and Crn4b, distinguishable as Crn4b members are smaller, lacking a ~ 10 amino acid region present in Crn4a (Supplementary Fig. 1). Crn4b is also observed in the genomes of phages and plasmids. Of the 28,137 phage genomes in the Millard database31, 11 contained a Crn4 homologue, while this was true for 10 out of 59,895 plasmid sequences in the database PLSDB32. Some of the phage and plasmid orthologues have an 60–80 amino acid N-terminal extension of unknown function (Supplementary Fig. 2). All members of the family have conserved residues including T13, H15 and R112 (A. procaprae Crn4a numbering), which are implicated in cOA binding and catalysis (further details below).

Crn4a is a ring nuclease with broad specificity

We chose candidate Crn4a protein WP_136192672, found in the Actinomyces procaprae type III CRISPR locus adjacent to the previously characterised Csm6-2 protein3, for further study. To explore its function, we constructed a synthetic gene encoding the protein for expression in Escherichia coli and purified it by immobilised metal affinity and size exclusion chromatography (Supplementary Fig. 3). Crn4a was tested for ring nuclease activity by incubating the purified protein with synthetic cOA species under multiple turnover (substrate excess) conditions in EDTA, followed by HPLC analysis (Fig. 2a). Crn4a cleaved all three cOA species tested, cA6, cA4 and cA3, generating linear products. cA6 was degraded with a rate constant of 0.024 ± 0.007 min−1 (Fig. 2b and Supplementary Fig. 4), cA3 slightly faster (0.083 ± 0.02 min−1) and cA4 was degraded much more rapidly (0.98 ± 0.1 min−1). cA4 and cA6 were cleaved on both sides of the ring, yielding linear 2′,3′-cyclic phosphate cA2 > P and cA3 > P products, respectively (Fig. 2a and Supplementary Fig. 4). This suggests concerted or sequential cleavage of cOA on opposite sides of the molecules, reminiscent of the viral ring nuclease AcrIII-121. cA3, which unlike cA4 and cA6 lacks an axis of twofold symmetry, was degraded to A2 > P and A1 > P, consistent with asymmetric cleavage (Fig. 2a and Supplementary Fig. 4). The ability to cleave multiple cOA species was not observed for Crn1-318,21,22. Thus, in contrast to all other CRISPR associated ring nucleases tested to date, Crn4a has broad specificity for cOA species and is the first confirmed CRISPR-associated cA3 ring nuclease.

Fig. 2: Cleavage of cOA species by Crn4a.
figure 2

a HPLC analysis of cleavage products of cA3, cA4 and cA6 incubated with A. procaprae Crn4a. 2′,3′-cAMP and a control reaction cleaving cA4 with AcrIII-1 to generate A2 > P are shown as standards. b Kinetic analysis of ring nuclease activity of Crn4a against cA3, cA4 and cA6. Following HPLC, substrate and product peaks were quantified and data plotted as fraction cleaved against time. Data points represent the means of triplicate experiments and standard deviation is shown. Source data are provided as a Source Data file.

Full size image

We also cloned and expressed the gene encoding a representative of the Crn4b family (MBK8772583 from Hyphomicrobiales bacterium) (Supplementary Figs. 1 and 2). Crn4b degraded cA4 and cA3 but was inactive against cA6 (Fig. 3a). This appears consistent with the association of Crn4b with the Can2 effector, which is activated by cA429,30,33. Although Crn4b produces the same final cA4 cleavage products as Crn4a, intermediate linear products (A3 > P and A4 > P) were observed at early reaction time points with cA3 and cA4, respectively (Fig. 3a and Supplementary Fig. 5), consistent with a sequential cleavage mechanism.

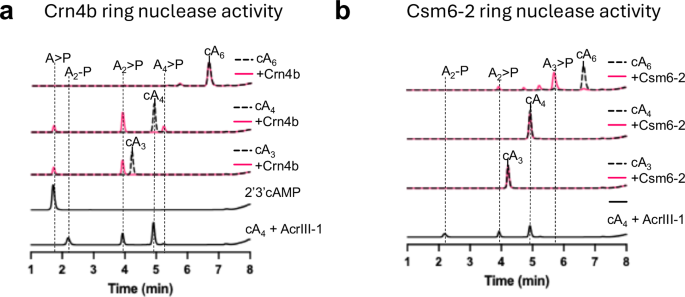

Fig. 3: Ring nuclease activity of Crn4b and Csm6-2.
figure 3

a HPLC analysis of cleavage products of cA3, cA4 and cA6 incubated with Crn4b. Controls are as for Fig. 2a. b A. procaprae Csm6-2 possesses ring nuclease activity against cA6, but not cA3 or cA4. Source data are provided as a Source Data file.

Full size image

The close association of Crn4a with the Csm6-2 effector prompted us to test the ring nuclease activity of Csm6-2, as all Csm6 proteins studied to date possess intrinsic cA6 ring nuclease activities in the CARF domain of the protein10,11,13. Assays revealed cA6 degradation activity for Csm6-2 (Fig. 3b). The rate of cleavage of cA6, 0.026 ± 0.01 min−1 (Supplementary Fig. 6), was equivalent to that observed for Crn4a. However, neither cA3 nor cA4 were degraded by Csm6-2. This activity could reside in the CARF domain, HEPN domain or a combination of the two.

Given the broad specificity of Crn4a, we also tested its ability to degrade noncanonical substrates (Supplementary Fig. 7). Perhaps unsurprisingly, cA5, which is not known to be an activator of any CRISPR effector, was degraded efficiently by Crn4a. The CBASS signalling molecule cAAG was not a substrate, suggesting a strict specificity for adenine bases, and a high concentration of Crn4 cleaved a 12 nt polyA RNA substrate three nucleotides from the 3′ end. This suggests RNA can fold into the active site and be cleaved by the enzyme. Previously, it was demonstrated that the CARF domain of the Csx1 ribonuclease can bind linear tetra-adenylate RNA tails, which activated the HEPN domain34. The physiological relevance of such observations is questionable, given the slow reaction kinetics.

Structure and mechanism of Crn4

To characterise the structure of Crn4, we crystallised the wild-type Crn4a and Crn4b proteins in apo-form, along with the Crn4a H15A variant in the presence of cA6. We collected X-ray diffraction data to 2.34, 1.09 and 1.44 Å resolution, respectively. The structures were solved using molecular replacement with the AlphaFold predicted structure as the model. The structures reveal a new protein fold, with no hits identified by the DALI server35 with Z-scores higher than 2.6. The core structure comprises four (Crn4b; Fig. 4a) or five (Crn4a; Fig. 4b) pairs of beta strands, one parallel and the others anti-parallel, and one short alpha helix. Both proteins are dimeric, and strikingly, an extended β-hairpin, comprising one (Crn4b) or two (Crn4a) two-stranded anti-parallel beta sheets, from one monomer wraps around the neighbouring subunit, which is largely facilitated by hydrophobic interactions between the two molecules (Fig. 4a, b). The structures of apo Crn4a and Crn4b superimpose with an RSMD of 2.7 Å over 128 Cα residues. The only significant difference is the length of the hairpin loop, which is around 10 residues longer (at the N-terminus of loop) in Crn4a. The loop is unstructured in both proteins, and Crn4a and Crn4b have low sequence conservation in this region (Fig. 4c and Supplementary Fig. 8).

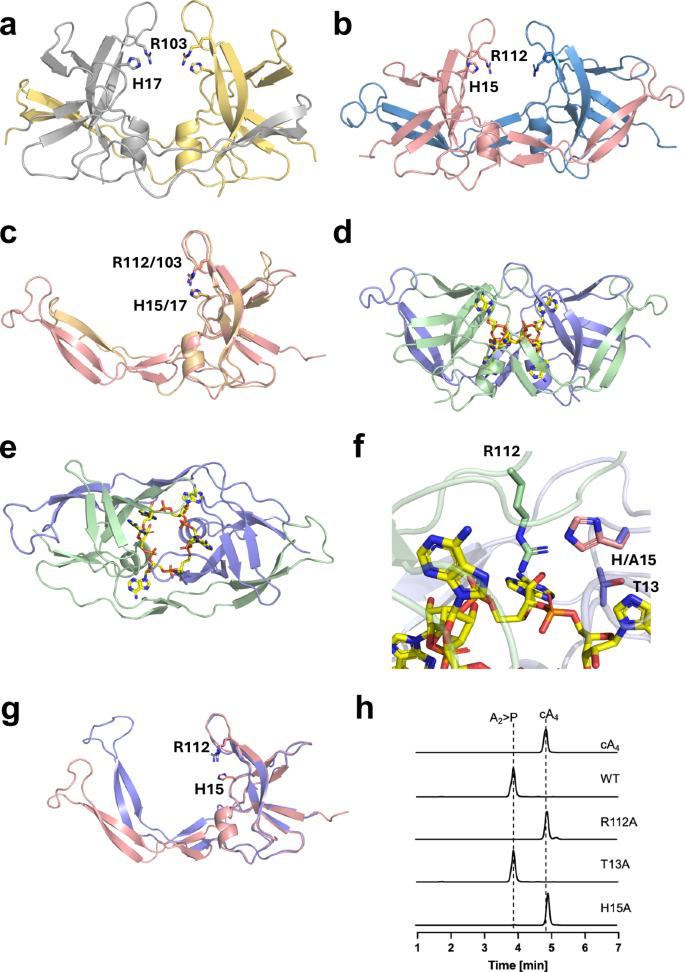

Fig. 4: Structure and mechanism of Crn4.
figure 4

a Dimeric structure of Crn4b, with individual monomers coloured grey and gold. Each monomer has an extended β-hairpin arm wrapping around the other. The conserved residues H17 and R103 are positioned on loops above a central cavity. b Dimeric structure of Crn4a, with individual monomers coloured pink and blue. The conserved residues H15 and R1023 are positioned on loops above a central cavity. c Superimposition of a monomer of apo Crn4b (gold) and apo Crn4a (pink). Crn4a has a longer β-hairpin compared to Crn4b. The conserved residues H17 and R103 (Crnb4b) and H15 and R112 (Crn4a) are shown. d Dimeric structure of Crn4a in complex with cA6, with monomers coloured mauve and green. cA6 bound to Crn4a is shown in stick representation, with carbons coloured yellow. e Top-down view of the Crn4a dimer in complex with cA6 (same colouring as d), highlighting how the extended β-hairpin wraps around the neighbouring monomer. f Active site of Crn4a in complex with cA6, with monomers coloured green and mauve. R112 is suitably positioned to participate in cA6 binding and catalysis. A15 (Crn4a mutant in ligand-bound structure) is shown in mauve and H15 from the apo Crn4a structure is shown in pink; there is space for the histidine to swing into place to play a role in catalysis. T13 sits behind H15. g Superimposition of a monomer of apo Crn4a (pink) and Crn4a bound to cA6 (mauve), illustrating the movement of the β-hairpin upon binding of the ligand. Residues H15 and R112 are shown. h HPLC analysis of cleavage products of cA4 incubated with wild type Crn4a and T13A, H15A and R112A variants. Mutagenesis of H15 and R112 abolished ring nuclease activity, while the T13A variant was still active.

Full size image

Upon structure solution, there was clear electron density visible in the maximum likelihood/σA weighted Fobs-Fcalc electron density map at 3σ corresponding to a molecule of cA6 bound to Crn4a that originated from the crystals co-crystallised with the ligand (Supplementary Fig. 9A). The structure of Crn4a in complex with cA6 shows the ligand binds at the dimer interface (ie. one molecule of cA6 to two protein molecules) in a symmetrical compact arrangement, with two adenine bases oriented upwards, two downwards and two roughly axial to the plane of the cA6 ring (Fig. 4d, e and Supplementary Fig. 9B). This differs from the conformation of cA6 bound to Streptococcus thermophilus Csm6, where four of the six adenine bases were in the plane of the ring (Supplementary Fig. 9C)36.

In Crn4a, cA6 hydrogen bonds with the main chain atoms of R92, E16, P77, A70, and side chain hydroxyl of S91, and a phosphate moiety forms an electrostatic interaction with R112 (Supplementary Fig. 9D). In addition, there is pi–pi stacking between an adenine of cA6 and the guanidium group of R92. R92, E16, S91 and R112 are all structurally conserved in Crn4b, as are the main chain atoms of P77 and A70, but with alternative side chains. It is noteworthy that, given the size of cA6, there are relatively few interactions formed with Crn4a, and the majority are with main chain atoms, suggesting the side chain functionality is not particularly important. Interestingly, R92 and R112 (or equivalent) side chains are found in a similar conformation in the two apo structures, but in a different orientation in the cA6 complex with Crn4a, suggesting the residues are flexible and move upon ligand binding. Stabilisation of the negative charge of cA6 is performed by two magnesium ions located in the centre of the cA6. One of these interacts with two adjacent phosphate groups and two water molecules and the other with one phosphate group and three water molecules (Supplementary Fig. 9E).

The orientation of R112 in Crn4a, and its interaction with a phosphate group in cA6, points to this being an important residue in phosphodiester bond cleavage (Fig. 4f). Alignment of the Crn4a H15A mutant (in complex with cA6) and apo Crn4a suggests that His15 would swing into a key position to participate in catalysis. A conserved threonine, T13, is positioned just behind the histidine. It is noteworthy that R112 and H15/T13 are located on different monomers in the dimer.

The inline angles formed by O2′-P-O5′ are between 100 and 110° around the ring, far from the angle of ~160° that is optimal for in-line attack by the 2′-OH nucleophile21. This may reflect the fact that cA6 is not the optimal substrate for this enzyme; additionally, the H15A variant crystallised here may differ from the wild-type enzyme in this respect.

Comparison of the apo and cA6-bound structures of a Crn4a monomer reveals that the globular part overlaps perfectly, but the extended β-hairpin bends upwards at an “elbow” when cA6 is bound (Fig. 4g). In dimeric Crn4a, this movement translates to the protein encasing the cOA upon binding (Supplementary Movies 1 and 2). This conformational change means the loops of the β-hairpin come together to sit above the central cavity where cA6 binds (Supplementary Fig. 9F). H15 and R112 are located on these loops, and move by 6 Å and 7 Å, respectively (Supplementary Fig. 9G), thus placing them in key positions to participate in cOA binding and/or cleavage. As H15 and R112 originate from different monomers in the Crn4a dimer, the precise loop movements from both are critical to form the active site, allowing catalysis to occur. Given the observation of relatively few interactions between cA6 and Crn4a (Supplementary Fig. 4D), it is possible that the protein residues displayed in the “open” form of the dimer are more important for recognition and binding of cOA. Once the cOA is enclosed in the central cavity of the “closed” dimer there is less need for interactions to guide binding or specificity, and only those important for catalysis, or for correct positioning of catalytic residues, are important.

Despite our best efforts, we were unable to crystallise a ligand-bound complex with Crn4b, or indeed Crn4a in complex with cA3 or cA4. Given the considerable movement observed for Crn4a upon binding of cA6 and our suggestion that specificity may largely be driven by interactions with the ‘open’ form of Crn4, direct comparison of the factors influencing specificity for substrate for each protein was not possible. Given the broad substrate specificity of the enzyme, this remains an important topic for future study.

We constructed and purified variants T13A, H15A and R112A of Crn4a to test their role in catalysis. Mutation of H15 or R112 to alanine abolished cleavage of the preferred substrate, cA4, after incubation at 37 °C for 60 min, while the T13A variant retained some activity (Fig. 4). Qualitatively similar data were obtained for cA3 and cA6 cleavage (Supplementary Fig. 10). These data are consistent with a role for H15 as a general acid, protonating the oxyanion leaving group during phosphodiester bond cleavage, reminiscent of H47 in AcrIII-121. R112 from the neighbouring monomer likely provides a key electrostatic interaction for the cOA species during binding and catalysis.

Crn4 is functional in vivo

To explore a functional role of Crn4 in vivo, we reconstituted A. procaprae Crn4a into a well-developed recombinant type IIIA CRISPR system from Mycobacterium tuberculosis (MtbCsm), which produces a range of cOA species for effective activation of cOA-dependent effectors to provide plasmid immunity37. E. coli C43 cells expressing MtbCsm were transformed with a pRATDuet plasmid expressing an effector protein alone or along with Crn4a and carrying a tetracycline resistance gene (tetR). Fewer transformants were expected when the effector was activated by cOA generated by the MtbCsm system, which was programmed with a crRNA targeting a portion of tetR gene. As a control, we also tested MtbCsm programmed with a crRNA targeting the pUC plasmid, which is not activated to generate cOA in this experimental setup. Effectors tested in this programmed MtbCsm system were cA4-activated Csx1 from Thioalkalivibrio sulfidiphilus (TsuCsx1)27,38 and cA6-activated effectors Csm6 from M. tuberculosis (MtbCsm6)37 and A. procaprae Csm6-23.

In the absence of Crn4a, all three effectors were activated on transformation of the pRATDuet plasmid, providing effective resistance to plasmid transformation, reflected in reduced colony forming units (cfu) (Fig. 5 and Supplementary Fig. 11). The presence of Crn4a effectively alleviated plasmid immunity conferred by cOA-activated TsuCsx1 and MtbCsm6 (Fig. 5), suggesting that Crn4a reduces the concentration of both cA4 and cA6 when expressed in cells. In contrast, no significant difference in colony counts was observed for the Csm6-2 effector in the presence or absence of Crn4a. This may be because Csm6-2 is itself a very active ring nuclease; alternatively, this could reflect the relative affinities of cA6 binding by Crn4a and Csm6-2.

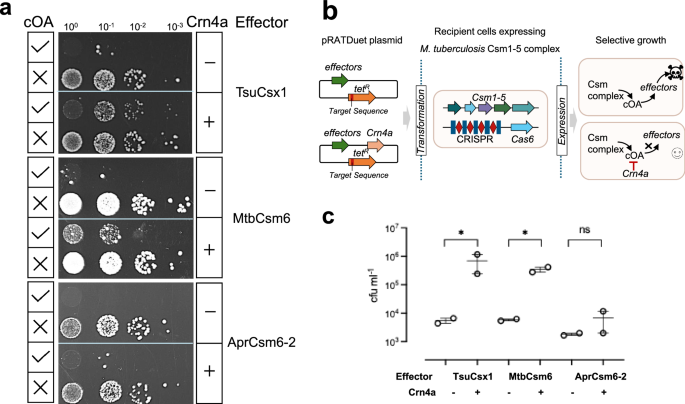

Fig. 5: Crn4a neutralizes CRISPR immunity in a plasmid challenge assay.
figure 5

a Plasmid challenge assay. The expression of Crn4a increased cfu in cells with cA4-activated TsuCsx1 and cA6-activated MtbCsm6, consistent with degradation of those cOA species. For the Csm6-2 effector, however, no increase in cfu was observed when Crn4a was co-expressed. cOA was synthesised in the MtbCsm system programmed with crRNA targeting the tetR gene, while no cOA production in the MtbCsm non-target (pUC) system was set as a negative control (represented by ticks and crosses, respectively). Representative plates of two biological replicates with two technical replicates each are shown. b Schematic of the experimental design. c Colony counts for transformants in the presence or absence of Crn4a in the context of activated MtbCsm target system. Data are two biological replicates with two technical replicates each and are presented as mean ± s.d. Statistical analysis was performed using ratio paired t test (one-tailed P values listed from left to right on the graph: *P = 0.0399, *P = 0.0217 and nsP = 0.25). Source data are provided as a Source Data file.

Full size image

Discussion

Ring nucleases, first described in 201818, are now understood to be an intrinsic aspect of type III CRISPR defence, where it seems that an ability to degrade the cOA second messengers generated by these systems is generally beneficial to the host25. Of the six types of specialised or stand-alone ring nucleases characterised to date, all are based on Rossmannoid domain architecture (e.g., CARF and SAVED domains)25. Furthermore, all of them are specific for degradation of cA4, the most common cOA signalling species3. Meanwhile, the self-limiting effectors with intrinsic ring nuclease activity also use CARF or SAVED domains to degrade either cA6 or cA410,11,12,13,14,15,16,17, although the CalpL protein also has some activity against cA3 in vitro16. Here, we have described a new family of ring nucleases, Crn4, with several notable characteristics. Firstly, Crn4 displays a novel (non-Rossmann) protein fold for cOA binding. Secondly, Crn4 has ring nuclease activity against all the cOA species known to signal in type III CRISPR defence.

The structure of Crn4 appears to be unique when compared to others in the Protein DataBank, expanding our understanding of the protein folds that can bind cyclic nucleotides. The chemistry of cOA cleavage, on the other hand, is highly reminiscent of previously characterised ring nucleases, such as AcrIII-1, with both enzymes positioning an essential histidine as a likely general acid to facilitate catalysis21. The observation that cA3 is degraded efficiently by Crn4 is particularly intriguing, given that the enzyme has a dimeric organisation with two identical active sites and twofold symmetry. While this is ideal for binding of twofold symmetric substrates such as cA4 and cA6, it poses a challenge for binding and cleavage of cA3, which has threefold symmetry. An understanding of cA3 binding and cleavage at the molecular level requires a ligand-bound structure, but unfortunately, we were unsuccessful in obtaining this. In its absence, we can speculate that cA3 engages part of the binding site and one of the two catalytic sites, leading to asymmetric cleavage. This is probably reflected in the cleavage of polyA RNA, which is cleaved 3 nucleotides in from the 3′-terminus, suggesting partial occupancy of the binding site and considerable substrate plasticity.

The detection of Crn4b homologues in phage and plasmid genomes implies a role for these enzymes as anti-CRISPR proteins, analogous to the cA4-specific AcrIII-121. The activity of Crn4b against both cA3 and cA4 suggests that both signalling molecules could be intercepted by these Acrs, although that remains to be confirmed. Viral nucleases targeting cA3 could potentially function as anti-defence enzymes against both type III CRISPR and CBASS (cyclic nucleotide based anti-phage signalling systems), each of which utilise this signalling molecule39,40,41,42. To date, only the broad specificity anti-defence phosphodiesterase Acb1 has been shown capable of degrading cA343.

We first identified Crn4 as a focus for investigation based on its close association with the cA6-activated CRISPR effector Csm6-23. As we have shown, Csm6-2 has intrinsic ring nuclease activity in its CARF domains and reaction rates in vitro are comparable to those for Crn4a, raising the question of why the latter protein is required? In fact, effectors with intrinsic ring nuclease activity are commonly found in type III CRISPR loci alongside dedicated ring nucleases25, suggesting there is an advantage to the host organism to have such an arrangement. One possibility is that the relatively high levels of cOA species generated by an activated type III CRISPR system8 necessitate a mechanism to remove these molecules when their function is no longer needed—one that does not rely on the activation, however transient, of a toxic effector protein.

In summary, these findings revealed a new class of cyclic nucleotide binding proteins, highlighting the wide distribution and diversity of ring nucleases in type III CRISPR defence.
