The Arctic Ocean is a net sink for anthropogenic lead deposited into the Atlantic Ocean

Krisch, Stephan; Olivelli, Arianna; Gerringa, Loes J. A.; Middag, Rob; Rogalla, Birgit; Achterberg, Eric P.

doi:10.1038/s41467-025-67620-9

Download PDF

Article
Open access
Published: 17 December 2025

The Arctic Ocean is a net sink for anthropogenic lead deposited into the Atlantic Ocean

Nature Communications volume 16, Article number: 11238 (2025) Cite this article

3452 Accesses
214 Altmetric
Metrics details

Subjects

Abstract

Humans emitted millions of tons of the toxic element lead (Pb) into the atmosphere. The North Atlantic Ocean has been strongly affected by atmospheric Pb deposition, however the role of ocean currents in dispersing the Atlantic dissolved Pb (dPb) burden remains unclear. Here, we show that the Arctic Ocean received a dPb flux of 611 ± 74 Mg·a^-1 from the North Atlantic Ocean in 2015/2016, making the Arctic Ocean a previously unrecognized net sink of Atlantic dPb (378 ± 85 Mg·a^-1). This input is comparable to Arctic riverine dPb discharge (344 ± 222 Mg·a^-1). Lead isotope measurements trace the origin of dPb in the Arctic Ocean back to anthropogenic emissions from North America and Eurasia. Elevated dPb concentrations in the North Atlantic Ocean prior to the global-phase out of leaded gasoline (1986-2021) suggests ~5-fold higher fluxes from the North Atlantic in the late 1980s relative to 2015/2016, explaining the widespread contamination of Arctic abyssal sediments with Pb.

Radioisotope constraints of Arctic deep water export to the North Atlantic

Article Open access 16 June 2021

Arctic deep-water anoxia and its potential role for ocean carbon sink during glacial periods

Article Open access 21 February 2023

Exchange of Pb from Indian to Atlantic Ocean is driven by Agulhas current and atmospheric Pb input from South Africa

Article Open access 04 April 2023

Introduction

Lead (Pb) is a toxic element, and uptake by marine biota and incorporation into the food chain^1,2 form a pathway of exposure to humans^3,4. The natural geochemical cycles of Pb in the ocean have been markedly perturbed by anthropogenic emissions^5,6. Hundred-thousands of tons of Pb have been emitted into the atmosphere since the Phoenician and Roman times, particularly as a result of industrialisation, by melting of ores, combustion of coal, and the use of leaded gasoline^7,8, and resulted in large-scale deposition of Pb into the surface ocean⁶. The North Atlantic is among the regions most affected by atmospheric Pb deposition due to extensive use of Pb in North America and Europe^6,9. With the emerging awareness of adverse health effects associated with exposure to Pb^10,11, the global phase-out of leaded gasoline between 1986 and 2021, and reductions in industrial emissions of Pb^12,13 resulted in a decrease in dissolved Pb (dPb) concentrations in surface waters of the North Atlantic Ocean^9,14. However, current surface dPb concentrations in the Atlantic Ocean of ~20–40 pmol L⁻¹ (pM)^15,16 remain above pre-industrial levels ( ~ 15 pM for surface waters in the North Atlantic Ocean before the 1850s as per ref. ¹⁴), indicating that the Pb emissions are yet to return to pre-industrial levels.

The marine biogeochemical cycle of Pb in the Arctic and Atlantic Oceans is governed by its high particle reactivity^16,17. The tendency for Pb to absorb onto particle surfaces^18,19, particularly organic debris^20,21, results in short residence times of <1 year in particle-rich surface waters^22,23 and swift export to depth^17,24. Residence times of dPb in intermediate and deep Atlantic waters are considerably longer ( ~ 20 years in the Eastern Arctic Ocean²⁵), suggesting the possibility for long-range transport of North Atlantic Pb to the adjacent Arctic Ocean as part of the thermohaline circulation. Abyssal sediments in the Central Arctic show contamination with concentrations exceeding 30 mg kg⁻¹ as a result of atmospheric deposition and advection of Atlantic Water through the Fram Strait and across the Barents Sea^26,27. This represents a ~3-fold enrichment compared to Pb concentrations of more pristine sediments, for example, near Novaya Zemlya ( ~ 10 mg kg⁻¹²⁷). More explicitly, surface sediments underlying Atlantic Water in the Eastern and Central Arctic Ocean are ~2–3-fold enriched above pre-industrial levels²⁸. This indicates that atmospheric Pb deposition into the North Atlantic Ocean and subsequent advection of Atlantic Water across the Arctic-Atlantic gateways have been a prominent supply of dPb to the Arctic Ocean in the past. The first observations of dPb in surface (<15 m) waters of the Fram Strait and the Barents Sea Opening in 2012 indicated ongoing Pb transport from anthropogenic sources with Atlantic Water into the Arctic Ocean²⁹. The lack of sub-surface data has so far precluded the assessment of subsurface contributions to Arctic-Atlantic dPb exchange and how water mass transport influences dPb concentrations in the Central Arctic Ocean.

In this study, we investigate the processes controlling the dPb distribution in the Arctic-Atlantic gateways based on full water column surveys in the Fram Strait (GN05, 21 July–1 September 2016), Barents Sea Opening (GN04, 6–9 October 2015) and Canadian Arctic Archipelago (GN02/GN03, 10 August–24 September 2015). We present flux calculations concerning the import and export of dPb at the Arctic-Atlantic gateways. Combined, our results show that the Arctic Ocean is a net sink for anthropogenic Pb derived from the Atlantic. Our research establishes a baseline for future investigations concerning changes in Arctic-Atlantic dPb fluxes.

Results and discussion

Dissolved Pb distributions

The study region was sampled over the full water column for dPb at 44 stations (Fig. 1), targeting Arctic-Atlantic exchange of water masses: 27 stations across the Fram Strait (Supplementary Fig. 1), 7 stations across the Barents Sea Opening (Supplementary Fig. 1), and 10 stations along the Parry Channel in the Canadian Arctic Archipelago (Supplementary Fig. 2). Sampling and analyses for dPb were conducted using trace element clean methods and followed GEOTRACES protocols³⁰ (see “Method” section for details on sampling and analyses). Water mass definitions follow Rudels et al.³¹.

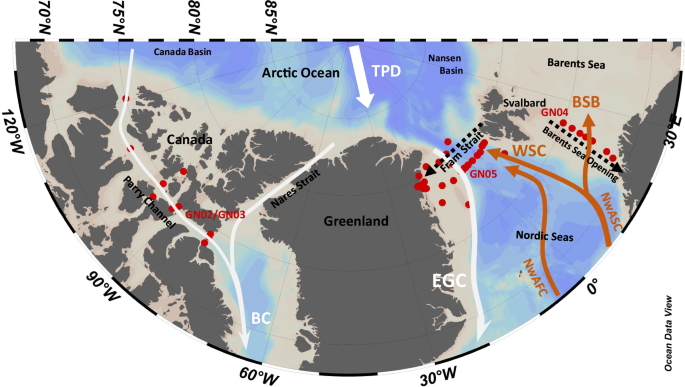

**Fig. 1: Overview of the study region and sample locations.**

Dissolved Pb concentrations in surface water of the Fram Strait showed an west-to-east gradient with increasing concentrations from the Greenlandic coast (4.5 ± 2.0 pM for <50 m depth at stations 20–23, n = 31) towards Svalbard (17.9 ± 2.1 pM for <50 m depth at stations 1–2, n = 6) (Fig. 2 and Supplementary Fig. 3) indicating increasing anthropogenic impacts towards the eastern Fram Strait, in agreement with observations in 2012²⁹. A subsurface maximum in the Atlantic Water of the northward-directed West Spitsbergen Current (16.7 ± 2.0 pM for depths between 50 and 176 m at stations 1–4, n = 20) indicates the strongest signal from historic Pb emissions through advection of sub-surface waters from the North Atlantic Ocean. A gradient in dPb concentrations was also observed in the Barents Sea Opening (Supplementary Fig. 4), yet with considerably lower dPb concentrations near Svalbard (4.0 ± 1.6 pM at station 147, n = 11, excl. 4 datapoints below limit of detection, and one outlier of 48 pM at bottom depth presumably derived from local sediment resuspension), suggesting a local influence from Arctic Ocean outflow with the Sørkapp Current (also termed ‘East Spitsbergen Current’ as per ref.³²). Concentrations of dPb in the water column beyond the Svalbard shelf (16.0 ± 3.1 pM at station 153–173, n = 84) are in agreement with observations of dPb in Atlantic Water of the West Spitsbergen Current, and indicate the presence of Atlantic Water from the Norwegian Atlantic Slope Current³³ and influence from anthropogenic sources. Local recirculation of Atlantic Water in the Fram Strait^34,35, with potential temperatures of >2 °C west of 0°E³¹, results in sub-surface dPb maxima between 50–400 m depth in the southbound East Greenland Current (12.0 ± 2.1 at stations 6, 14–16 and 26, n = 27). East Greenland Current Surface Waters (<50 m) and intermediate and deep waters are generally depleted in dPb to concentrations of ~6 pM (Fig. 2) due to advection of low dPb waters from the Central Arctic Ocean^36,37, with comparatively weak influence of atmospheric Pb deposition^38,39 reflecting the remoteness of the Arctic to major Pb emission sources in North America and Eurasia^40,41.

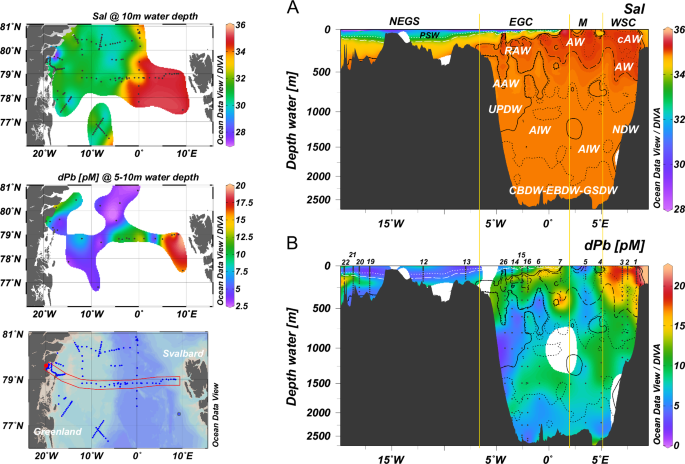

**Fig. 2: Distributions of salinity and dissolved Pb in Fram Strait.**

Waters in the Canadian Arctic are generally depleted in dPb, suggesting a limited influence from anthropogenic sources or high scavenging intensities upstream^42,43 compared to the Fram Strait and the Barents Sea Opening. Surface waters in the upper 40 m of the Parry Channel are the strongest dPb depleted waters in the Arctic-Atlantic gateways with concentrations as low as 1.8 pM in the Viscount Melville Sound (CAA8 as per ref. ⁴³), indicating advection of low dPb (‘pristine’) Canada Basin waters, including sea ice meltwater and Siberian riverine discharge^42,43. Upper halocline waters holding contributions of Pacific origin (10.0 ± 3.7 pM between 40–90 m, n = 6) that entered the Arctic Ocean through the Bering Strait, and lower halocline waters (3.9 ± 1.5 pM between 120 and 300 m, n = 7) including contributions from Atlantic water are the main sources of dPb in the north-western parts of the Parry Channel (Stations CAA8 and CB1 as per refs. ^42,43). The Barrow Strait sill (125 m depth)⁴⁴ acts as a natural barrier between the Arctic-influenced north-western parts of the Parry Channel and the Atlantic-influenced south-eastern part of the channel (stations CAA1-CAA3), and prevents the transport of dPb-enriched Atlantic waters with enhanced anthropogenic Pb concentrations from the Labrador Sea ( ~ 17–35 pM) into the Arctic Ocean⁴³.

Observations of dPb in Atlantic Water of the West Spitsbergen Current and the Barents Sea Opening indicate a general trend of decreasing concentrations from the North Atlantic Ocean towards the Central Arctic Ocean. Strong signals of anthropogenic Pb deposition are observed in Atlantic Water of the Irminger and Iceland Basins (29.4 ± 6.5 pM, n = 123, 2010 data from GEOTRACES expedition D354)⁴⁵, decreasing across the Greenland and Norwegian Sea²⁹ towards the SE Arctic Ocean Nansen Basin (9.6 ± 4.8 pM at stations 32–58, n = 30, Supplementary Table 4). This decrease of dPb is driven by scavenging removal by elevated particle abundance from primary production in surface waters²⁹ as Atlantic Water is transported across the high-latitude North Atlantic and towards the Arctic Ocean. Arctic Atlantic Water, formed by cooling and freshening of Atlantic Water in the Arctic Ocean⁴⁶, is found below East Greenland Current Surface Water at depths between 175–800 m and constitutes the most dPb-depleted water mass in Fram Strait (5.3 ± 2.3 pM, n = 35) (Fig. 2). Scavenging processes in the Arctic Ocean inflow regions, particularly on the productive Barents Sea shelf^27,47, and boundary scavenging as Arctic Atlantic Water traverses the Arctic Ocean²⁵, facilitate efficient removal of dPb. The accumulated impact of scavenging is evident by the correlation between dPb concentration and mode age of Arctic Atlantic Water in the Arctic Ocean (Supplementary Fig. 5). Mode ages refer to the most probable mean age of a water mass⁴⁸. The decreasing correlation of dPb concentrations and mode ages (0.80 R²) suggests first-order removal kinetics (i.e., concentration-depending scavenging intensity) as Arctic Atlantic Water is advected across the Central Arctic. This suggests the transit time of Arctic Atlantic Water to play a crucial role in the efficiency of dPb removal from Atlantic-derived waters in the Arctic Ocean before eventually returning back into the North Atlantic Ocean.

Sources of lead

Measurements of dPb isotope ratios, ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb, show the influence of American and Eurasian Pb emissions in the Arctic-Atlantic gateways of the Fram Strait and the Canadian Archipelago (Fig. 3). The values of ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb in pooled water samples of the West Spitsbergen Current are, despite the concentration differences, almost identical to the East Greenland Current, suggesting the dominance of one source or one mixture of sources of dPb to Arctic and Atlantic waters in the Fram Strait (Supplementary Table 6). West Spitsbergen Current Atlantic Water (²⁰⁶Pb/²⁰⁷Pb ratio of 1.1782 ± 0.0007 and ²⁰⁸Pb/²⁰⁷Pb ratio of 2.4483 ± 0.0015, n = 3; dPb concentration of 15.4 ± 2.3 pM at stations S1–S4, n = 41), East Greenland Current Arctic Atlantic Water (1.1776 and 2.4480, n = 1; 5.3 ± 2.3 pM, n = 35) and Recirculating Atlantic Water (1.1789 and 2.4503, n = 1; 12.0 ± 2.1 pM, n = 27) fall within the range of Pb isotope compositions of aerosols from the United States. North American sources mainly emitted Pb into the atmosphere with ²⁰⁶Pb/²⁰⁷Pb ratios varying between 1.16 and 1.22 and ²⁰⁸Pb/²⁰⁷Pb between 2.43 and 2.46⁴⁹ owing partly to the use of ores from the Mississippi Valley with ²⁰⁶Pb/²⁰⁷Pb ~ 1.33 and ²⁰⁸Pb/²⁰⁷Pb ~ 2.51⁵⁰ for the production of leaded gasoline. Westerly winds transported US aerosols and resulted in Pb enrichment of the North Atlantic Ocean⁶ with US isotope signature ( ~ 1.16 to 1.21 for ²⁰⁶Pb/²⁰⁷Pb and ~2.44 to 2.46 for ²⁰⁸Pb/²⁰⁷Pb for the entire water column¹⁵). The similarity between the Fram Strait and North Atlantic Pb isotope signatures suggests that the main source of dPb in the Fram Strait is from historic emissions in the US and advected into the region from the North Atlantic Ocean, although likely with some local contribution from a low ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb source as indicated by the Pb isotope composition in Fram Strait being near the lower end of observations (≤10th percentile) from Atlantic Water in the North Atlantic and Arctic Oceans (Supplementary Fig. 6).

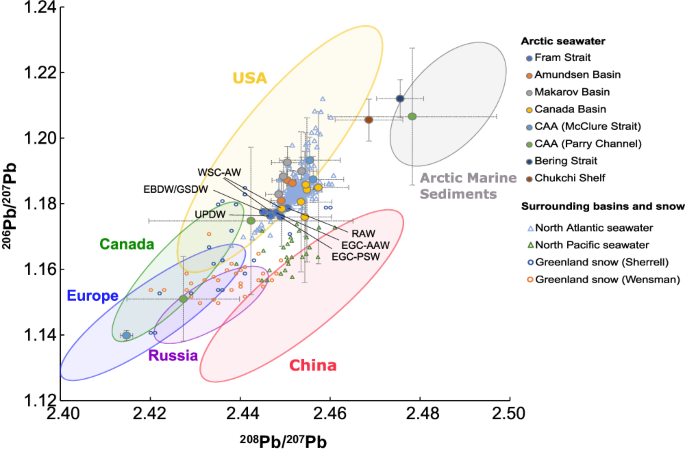

**Fig. 3: Isotope composition of dissolved Pb in Arctic seawater and Pb isotope composition of potential source regions.**

Dissolved Pb in the Canadian Arctic (Parry Channel & McClure Strait) spans a much wider range in Pb isotope compositions compared to the Fram Strait and the North Atlantic (Fig. 3), with ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb as low as 1.1402 ± 0.0015 and 2.4146 ± 0.0014 (n = 2). These low ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb values can be explained by a much stronger influence of Eurasian Pb emissions⁴². Indeed, Europe emitted Pb with ²⁰⁶Pb/²⁰⁷Pb ratios between 1.10 and 1.16 and ²⁰⁸Pb/²⁰⁷Pb between 2.37 and 2.43⁴⁹ through the consumption of leaded gasoline produced by Pb ore from Broken Hill in Australia (²⁰⁶Pb/²⁰⁷Pb ~ 1.04, ref. ⁵¹). A similar ²⁰⁶Pb/²⁰⁷Pb signature emerged from Pb emissions into the atmosphere from Russia (∼1.03 to 1.15, ref. ⁵²) and Canada which included smelting (∼0.99 to 1.07, refs. ^53,54). Canadian sources are, however, likely less important compared to Eurasian Pb supply. This is because Eurasian air masses are the dominant Pb supply to the region during winter and early spring, where aerosol Pb concentrations in the Canadian Arctic are up to 10-fold higher^38,55, and the rather localised nature of Pb emissions in the Canadian Arctic^53,56. Interestingly, although Fram Strait values fall within the range of North Atlantic dPb composition, mean values of dissolved ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb were significantly lower compared to the North Atlantic Ocean (p < 0.05) and suggests some influence from Eurasian besides North American sources⁵⁷ in the Fram Strait. Dissolved ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb signatures in Fram Strait Upper Polar Deep Water (²⁰⁶Pb/²⁰⁷Pb of 1.1765 and ²⁰⁸Pb/²⁰⁷Pb of 2.4466, n = 1; dPb concentration of 5.1 ± 2.3 pM, n = 27), and Eurasian Basin and Greenland Sea Deep Water (1.1777 and 2.4451, n = 1; 6.2 ± 2.0 pM, n = 25) confirm the prevalence of US sources with contributions of Eurasian-sourced dPb in intermediate and deep waters of the Fram Strait. While the overall homogeneity of the dPb isotope composition may be related to the pooling process, where variations in Pb isotope composition at discrete water depths might be ‘diluted’ or ‘masked’, evidence from the North Pacific and South Atlantic suggest reversible scavenging and vertical transport of particles may lead to migration of anthropogenic Pb signatures, characterised by relatively low ²⁰⁶Pb/²⁰⁷Pb and ²⁰⁸Pb/²⁰⁷Pb values, into deep waters^58,59. This process may also play a role in the Fram Strait, given high particle fluxes in the region^60,61 and suggests anthropogenic Pb has penetrated into deep waters as observed in the Arctic Ocean Canada Basin⁴², thus explaining anthropogenic Pb signatures of abyssal sediments in the Fram Strait region²⁶.

Dissolved Pb flux calculations

We performed detailed flux calculations of dPb across the Arctic-Atlantic gateways of the Fram Strait, Barents Sea Opening, and Canadian Arctic to assess whether the Arctic Ocean is a sink of North Atlantic dPb between September 2015 and August 2016. The uncertainty is calculated as one standard deviation (1σ) of monthly variations in dPb fluxes following ref. ⁶². For details on the calculations see Supplementary Notes. By our definition, negative values indicate an Arctic flux toward the North Atlantic Ocean (‘Arctic export’), while positive values indicate a flux from the North Atlantic to the Arctic Ocean (‘Arctic import’).

Our calculations show that the Fram Strait is the most important gateway for Arctic-Atlantic exchange of dPb, owing to enhanced intermediate and deep-water volume transport across the Fram Strait (Fig. 4), which is restricted by bathymetry in the Barents Sea Opening and the Canadian Arctic. The northbound West Spitsbergen Current is the dominant source of dPb from the North Atlantic to the Arctic Ocean with a net northward flux of 611 ± 74 Mg a⁻¹ or ~60% of all Arctic import. Advection across the Barents Sea Opening further contributes 239 ± 116 Mg a⁻¹, or ~40%, to the net flux of Atlantic dPb into the Arctic Ocean. Combined, the Arctic Ocean receives a flux of 849 ± 130 Mg a⁻¹ from the North Atlantic Ocean. The southbound East Greenland Current is the major southerly current and transports −259 ± 44 Mg a⁻¹ of dPb from the Arctic Ocean towards the North Atlantic Ocean across the Fram Strait. Transport across the central parts of the Fram Strait (2–5°E, termed Middle section) adds a further ~30% (−116 ± 97 Mg a⁻¹) to the total Arctic dPb export of −387 ± 83 Mg a⁻¹ across the Fram Strait. Dissolved Pb transport on the Northeast Greenland Shelf, strongly influenced by ‘near-pristine’ Central Arctic Ocean surface waters³⁶, is only a minor contributor to Arctic dPb export across the Fram Strait (−12 ± 20 Mg a⁻¹). The Canadian Arctic is a minor gateway for Arctic dPb export and contributes a further −84 ± 18 Mg a⁻¹ to Arctic dPb export through the gateways of Nares Strait (−53 ± 8 Mg a⁻¹), Lancaster Strait (−31 ± 16 Mg a⁻¹), and Jones Sound (−0.5 ± 1.3 Mg a⁻¹) (Fig. 4 and Supplementary Table 10). Transport of Arctic dPb across the Canadian Arctic comprises only ~18% to the combined Arctic dPb export flux of -471 ± 81 Mg a⁻¹ across the Arctic-Atlantic gateways. Combined, our results suggest that the Arctic Ocean is a net sink of 378 ± 85 Mg a⁻¹ of North Atlantic dPb in 2015/2016. This makes the North Atlantic Ocean a similarly important source as riverine discharge of dPb onto the Arctic Ocean shelves (344 ± 222 Mg a⁻¹), yet small in comparison to atmospheric Pb deposition into the surface Arctic Ocean in the early 2010s (1729 ± 1296 Mg a⁻¹) (Supplementary Information for details on the calculation).

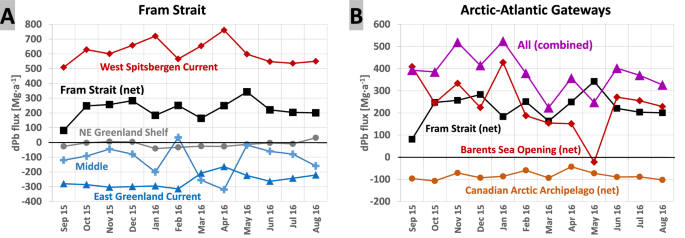

Fig. 4: Monthly mean estimates of dissolved Pb fluxes (in Mg a−1) between September 2015 and August 2016. — **Fig. 4: Monthly mean estimates of dissolved Pb fluxes (in Mg a⁻¹) between September 2015 and August 2016.**

Seasonal variations

Seasonal variations in volume transport rates across the Arctic-Atlantic gateways may affect the flux of dPb from the North Atlantic Ocean into the Arctic Ocean on a seasonal basis. To determine seasonal changes in net Arctic import of Atlantic dPb, we investigate monthly variations in dPb fluxes across the Arctic-Atlantic gateways. Owing to the lack of seasonal dPb data in the Arctic-Atlantic gateways, we assume dPb concentrations to remain constant in water masses over the course of the year. Monthly variations in dPb fluxes across the Fram Strait suggests a net flux of Atlantic dPb into the Arctic Ocean throughout the year (range: 81–342 Mg a⁻¹) (Fig. 4). Monthly dPb fluxes show a seasonal cycle with a sharp minimum in late summer ( ~ 81 Mg a⁻¹ for September), elevated fluxes in between October and December ( ~ 260 Mg a⁻¹) and a strong increase in Atlantic dPb transport across the Fram Strait towards May (342 Mg a⁻¹). The main driver in the seasonal variation of net Arctic dPb import across the Fram Strait is the northbound dPb transport with the West Spitsbergen Current and alterations between northward and southward transport across the central parts of the Fram Strait (between 2 and 5 °E, ‘middle section’), likely a consequence of seasonal variations in local recirculation of Atlantic Water in the Fram Strait^34,35. The advection of Atlantic dPb across the Fram Strait and the Barents Sea Opening seems to be coupled. Months of strong transport of Atlantic dPb across the Barents Sea Opening and into the Arctic Ocean coincide with decreased dPb transport across the Fram Strait, and vice versa (Supplementary Table 9). This suggests intra-annual variations also in Pb scavenging and export to depth in the Arctic-Atlantic gateways of the Fram Strait and the Barents Sea, driven by an alternating current regime, on top of seasonal change in the efficiency of primary production-induced scavenging of dPb from surface waters^29,47. Combined, our calculations suggest a continuous net flux of Atlantic dPb into the Arctic Ocean across the Arctic-Atlantic gateways of Fram Strait, Barents Sea Opening and Canadian Arctic throughout the year (range: 224–524 Mg a⁻¹) with a maximum in winter (486 ± 51 Mg a⁻¹ for November–January) and a minimum in spring (276 ± 58 Mg a⁻¹ for March–May) and modest dPb fluxes through summer and autumn (375 ± 27 Mg a⁻¹ between June and October).

Due to the lack of seasonal dPb data in the Fram Strait and Barents Sea Opening, the exact change in monthly dPb fluxes cannot be investigated. For example, the influence of winter upwelling and sea ice meltwater on dPb concentrations in near-surface waters remains to be investigated, for the study region or anywhere else in the Arctic. Further, our dPb flux calculation across the Fram Strait and the Barents Sea Opening utilised volume flux data from 2005–2006. Quantification of the influence of changes in volume fluxes on Arctic-Atlantic dPb exchange lacks recent volume flux data in individual components for the Fram Strait and Barents Sea Opening post-2005/2006, which is currently not available. However, as >80% of dPb transport across the Fram Strait and Barents Sea Opening occurs in subsurface waters (i.e., Atlantic, Intermediate and Deep Waters), given long-residence times of dPb in these waters of ~20 years^25,63 we expect subsurface dPb transport to be relatively independent from seasonal change in surface dPb concentrations. Concerning inter-annual change in volume fluxes, annual-mean Atlantic Water advection across the Greenland-Scotland-Ridge and towards the Arctic Ocean has remained stable between 1993 and 2016⁶⁴ and suggests that the connectivity between North Atlantic-sources and the Fram Strait and Barents Sea Opening dPb fluxes has not substantially changed.

Atlantic dPb fluxes in the past

The Arctic Ocean has likely been a much more prominent sink for Pb in the past century, given considerably higher Pb concentrations in the North Atlantic Ocean following elevated deposition fluxes into the surface ocean after the introduction of leaded gasoline in the 1930s⁶. Time series of seawater dPb near Bermuda inferred from coral Pb/Ca content suggest surface concentrations in the western North Atlantic Ocean as high as 210 pM in response to anthropogenic Pb emissions in the 1970s¹⁴. High Pb concentrations were also observed in surface waters of the Eastern North Atlantic Ocean, for example in the Gulf of Biscay off the coast of France and Spain in 1990 ( ~ 180 pM at 46.2–47.3°N, 6.5–7.5°W, ref. ⁶⁵). Concentrations decreased in the decades thereafter following international measures to reduce Pb emissions into the atmosphere^6,9, and in the 2010s dPb concentrations in the North Atlantic Ocean ( ~ 20–30 pM^15,45) approached natural background levels of ~10–15 pM¹⁴. It is thus likely that the advection of Atlantic waters across the Arctic-Atlantic gateways resulted in considerably higher fluxes of Atlantic dPb into the Arctic Ocean between the 1970s and 2000s compared to our estimate of net 378 ± 85 Mg a⁻¹ for 2015/2016.

Assuming that the volume fluxes across the Arctic-Atlantic gateways were comparable between the past, and 2005–2006 and 2015–2016, the ~4.5-fold enrichment of dPb in Atlantic Water of the high latitude North Atlantic Ocean in 1989 ( ~ 110 pM at <500 m depth, 60°N/20°W) relative to 2014 ( ~ 25 pM at <500 m depth, 57°N/28°W)¹⁵ would result in a net dPb flux of 1.8 ± 0.4 Gg a⁻¹ from the Atlantic into the Arctic Ocean. If we instead assume that inferred dPb concentrations of ~200 pM in the North Atlantic near Bermuda of the 1970s (Kelly et al.¹⁴) were representative of the high-latitude North Atlantic Ocean, then this flux estimate increases to 3.4 ± 0.7 Gg a⁻¹ for the 1970s. Integrated over the time span (Supplementary Fig. 7), these flux estimates suggest a total Atlantic dPb flux of ~75 Gg into the Arctic Ocean between 1970 and 2015/2016. This flux estimate likely represents an over-estimation for the Atlantic dPb flux into the Arctic Ocean, given the proximity of the Bermuda region and the high latitude North Atlantic Ocean to major Pb emissions such as from the US and Europe^6,66 and scavenging of dPb during Atlantic Water advection towards the Fram Strait and the Barents Sea Opening²⁹. Yet, our estimate is helpful to understand the scale of Atlantic dPb transport into the Arctic Ocean.

Fate of Arctic dPb import

The high Atlantic Pb flux into the Arctic Ocean is underlined by Pb contamination found in abyssal sediments underlying Arctic Atlantic Water^26,28. Scavenging by intense primary production on the Barents Sea Shelf⁴⁷ and subduction of Atlantic Water with high particle load beneath the Arctic halocline⁶⁷ are likely key processes governing the fate of Atlantic dPb fluxes in the Arctic Ocean. Surface sediments of the Fram Strait and the adjacent Southeast Nansen Basin show the highest Pb concentrations among the Arctic Ocean sediments^26,27,28 with concentrations of ~35 mg kg⁻¹ in the Arctic Ocean inflow region northeast of Svalbard²⁷. This represents a ~ 2–3-fold enrichment above near-pristine ( ~ 10 mg kg⁻¹, e.g., near Novaya Zemlya²⁷) and pre-industrial values (~15 mg kg⁻¹ ²⁸) and the average Pb content of Earth’s upper continental crust ( ~ 17 mg kg⁻¹ ⁶⁸). Fram Strait and South East Nansen Basin Pb concentrations are thus close to the consensus-based threshold effect concentration of ~36 mg kg⁻¹ ⁶⁹ above which adverse health effects to benthic organisms may occur⁷⁰.

Using the Fram Strait-Southeast Nansen Basin region, we estimate the accumulated Pb content. We assume a Pb enrichment of abyssal sediments between 2 mg kg⁻¹ ²⁸ and 10 mg kg⁻¹ ²⁶, an average benthic surface mixed layer depth of between 2 and 5 cm^26,28, and an average marine sediment density of 1.70 g cm⁻³⁷¹. Scaled to the surface area of the region ( ~ 10% of the Arctic Ocean basin, 0.5 Mio km²⁷²), our calculations suggest that the Fram Strait-Southeast Nansen Basin sector of the Arctic Ocean has accumulated between 34 and 425 Gg of Pb from anthropogenic emissions. This Pb sedimentation flux is comparable to the anthropogenic Pb input into rivers, lakes, and oceans in the early 1980s (97–277 Gg a⁻¹)⁷³, but only a fraction of the tens of thousands of gigagrams of anthropogenic Pb emissions into the atmosphere^40,74. Yet, the suggested Pb sedimentation flux in the Fram Strait-Southeast Nansen Basin region may considerably exceed the Arctic-Atlantic dPb flux estimate of ~75 Gg between 1970 and 2015/2016. Elevated dPb concentrations >5-fold above the natural background in the North Atlantic Ocean since at least 1900¹⁴ suggest that there also has been a net flux of Atlantic dPb into the Arctic Ocean prior to the 1970s, possibility in the same range as ~75 Gg post-1970. Additionally, other sources such as atmospheric Pb deposition^75,76, advection of sea ice enriched in atmospheric and lithogenic Pb^77,78 and meltwater release near the Arctic-Atlantic gateways⁷⁹ likely also contributed to sediment Pb enrichment in the Fram Strait-Southeast Nansen Basin region.

With dPb concentrations in the North Atlantic Ocean declining^14,15, we expect the Atlantic dPb flux into the Arctic Ocean to decline in the future as well. Lead thus serves as a prime example for the effectiveness of environmental regulations to reduce anthropogenic perturbations in the Arctic-Atlantic marine environment. However, climate change-driven alterations to the current regime in the region^80,81, may in future affect dPb transport across the Arctic-Atlantic gateways. For example, an increase in Atlantic Water volume transport across the Fram Strait, as projected in response to sea ice decline⁸⁰, may increasingly counteract anticipated declines in Atlantic dPb transport into the Arctic Ocean. This would lead to a larger fraction of Atlantic dPb that is scavenged and transferred to depth in the Arctic Ocean or incorporated into the Arctic food chain rather than being scavenged and transferred to sediments or taken up by biology in the Atlantic Ocean. Even if the volume flux of Atlantic Water into the Arctic Ocean does not increase, the observed shoaling of the Atlantic Water layer in the Central Arctic Ocean⁸² means that a higher fraction of the Atlantic dPb may be taken up by primary producers further north compared to scavenging from subsurface Atlantic Water through interaction with the continental slope in Fram Strait and the Southeast Nansen Basin^25,27.

While abyssal sediments are the ultimate sink of anthropogenic Pb emissions into the ocean, the fate of anthropogenic Pb deposited in Arctic shelf sediments is less clear. Productive shelf regions such as the Barents Sea play a crucial role in the fate of Atlantic dPb in the Arctic Ocean, and are more relevant than abyssal sediments in terms of their bioaccumulation potential due to the stronger benthic-pelagic coupling. In shelf regions, Pb is largely delivered to the seafloor through sinking biogenic material, which is remineralised and potentially released back into the water column⁸³. In this respect, increased re-working of Arctic shelf sediments⁸⁴ from increasing storm activity driving water column mixing on the shelf and upwelling of near-shelf waters under climate change⁸⁵, may support the mobilisation of the sedimentary Pb pool¹⁶. The result would likely be an increase in the dPb fluxes across the Arctic Ocean shelf breaks and towards the Central Arctic Ocean, with unknown consequences for Arctic Pb levels in seawater and marine biota.

Methods

Sampling

A detailed description of the sampling process during PS100/GN05 and PS94/GN04 was published in refs. ^86,87, respectively. In brief, the Fram Strait and the Barents Sea Opening were sampled on-board the research vessel Polarstern during GEOTRACES expeditions GN05 (PS100, 21 July–6 September 2016) and GN04 (PS94, 17 August–15 October 2015), respectively. Both expeditions followed GEOTRACES standards for sampling and sample handling³⁰.

Sampling in the Fram Strait utilised a powder-coated aluminium GEOTRACES frame (Seabird, equipped with a SBE 911 CTD) equipped with 24 × 12 L GoFlo bottles. Sampling in the Barents Sea Opening was conducted with the NIOZ titanium frame (equipped with a Seabird SBE 911) and 24 × 24 L ultra-trace metal clean polypropylene samplers. Both expeditions sampled the water column to full depth. Vertical, full-depth profiles of salinity, temperature and pressure were conducted at high resolution on both expeditions. Sub-sampling was conducted in an over-pressured class 100 ultraclean laboratory container immediately after CTD recovery. Samples were filtered into pre-cleaned LDPE (low-density polyethylene) bottles using Acropak™ 500/1000 capsules (0.8/0.2 μm pore size; Pall Corp.) on GN05 and Sartobran® 300 capsules ( < 0.2 μm pore size; Sartorius) on GN04. Samples were acidified to pH 1.9 (GN05) or pH 1.8 (GN04) using ultrapure hydrochloric acid from ROMIL (GN05) or Seastar Chemicals Inc. (GN04).

Details on GN02/GN03 sampling in the Canadian Arctic Archipelago on board the CCGS Amundsen (10 July-1 October 2015) have been published with refs. ^42,43.

Dissolved Pb analyses

Dissolved Pb samples from expedition GN05 were analysed via high-resolution inductively coupled plasma-mass spectrometry (HR-ICP-MS) after solid-phase extraction exactly as per Rapp et al.⁸⁸. In brief, 10 mL of sample aliquots were UV-digested and preconcentrated using an automated SeaFAST system (SC4 DX SeaFAST pico; ESI). All reagents were prepared in deionized water ( > 18.2 MΩ cm; Milli-Q, Millipore) from high-purity chemicals. Sub-boiled nitric acid (SpA grade, ROMIL) was used to prepare a 1 M nitric acid for sample elution. Ammonium acetate buffer was prepared from glacial acetic acid and ammonium hydroxide (Optima grade, Fisher Scientific). The 10-fold preconcentrated samples were then analysed by HR-ICP-MS (Thermo Fisher Element XR) via external calibration (standard addition) with Pb standard (Inorganic Ventures Inc.). Dissolved Pb samples from expedition GN04 were analysed via HR-ICP-MS (Thermo Finnigan Element 2) after solid-phase extraction following Gerringa et al.⁸⁹. Briefly, 30 mL of sample aliquots were UV-digested and preconcentrated using an automated SeaFAST system (SeaFAST pico; ESI). The preconcentration was conducted with ammonium hydroxide and sub-boiled glacial acetic acid solution (Suprapur grade, Merck) prepared in deionized water ( > 18.2 MΩ cm; Milli-Q, Millipore). The 40-fold preconcentrated samples were eluted in 1.5 M Teflon-distilled sub-boiled nitric acid (Suprapur grade, Merck). Calibration was via standard addition (external calibration) from a Pb standard (TraceCERT, Sigma-Aldrich).

The analysis of GN02/GN03 samples of the Canadian Arctic Archipelago has been described in detail by ref. ⁴³.

Dissolved Pb isotope composition analysis

Samples for the analysis of dissolved Pb isotope composition from GEOTRACES expedition GN05 were pooled according to water mass definitions of Atlantic Water, Arctic Atlantic Water and Recirculation Atlantic Water in the Fram Strait as per Rudels et al.³¹ (Supplementary Table 6). Samples were analysed in the ISO class 6 clean rooms and the mass spectrometry facilities of the MAGIC Laboratories at Imperial College London via Multi-Collector Inductively Coupled Plasma Mass Spectrometry (MC-ICP-MS) following the methodology exactly of Griffiths et al.⁹⁰. Briefly, 0.7–2.3 L of seawater, depending on its Pb concentration, were used to pre-concentrate and separate Pb for isotopic analysis using the Nobias Chelate PA-1 resin and anion exchange chromatography. The Pb eluted in the final step of chromatography was split in two aliquots: 1/3 of it was spiked with a ²⁰⁴Pb–²⁰⁷Pb double spike, and the remaining 2/3 was left unspiked. Both aliquots were doped with a solution of NIST Standard Reference Material (SRM) 997 Tl to obtain an elemental ratio of Pb:Tl of 1:3 to enable correction of the measured Pb isotope ratios for instrumental mass bias using the double spike technique⁹¹. The analysis of GN02/GN03 dissolved Pb isotope samples of the Canadian Arctic Archipelago has been described in detail by ref. ⁴².

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data used throughout this publication are accessible online. Physical oceanography data can be obtained from: https://doi.pangaea.de/10.1594/PANGAEA.871025 (PS100/GN05 large CTD⁹³), https://doi.pangaea.de/10.1594/PANGAEA.871030 (PS100/GN05 clean CTD⁹⁴), https://doi.pangaea.de/10.1594/PANGAEA.859558 (PS94/GN04 large and clean CTD⁹⁵). Canadian Arctic Archipelago volume fluxes are calculated from a simulation with the ANHA12 configuration of the NEMO ocean model, which can be obtained from: https://canadian-nemo-ocean-modelling-forum-commuity-of-practice.readthedocs.io/en/latest/Institutions/UofA/Configurations/ANHA12/index.html. Pb data can be obtained from: https://doi.org/10.1594/PANGAEA.933431 (dissolved Pb from GN05⁹⁶), https://doi.org/10.1594/PANGAEA.968782 (Pb isotope composition from GN05⁹⁷), https://doi.org/10.25850/nioz/7b.b.jc (dissolved Pb from GN04⁸⁹). Source data for Figs. 2 and 3 can be found in Source Data. The map of the study region (Fig. 1), and the section profiles and surface distributions (Fig. 2) were made by SK with Ocean Data View software and DIVA gridding calculations⁹⁸ and RTopo-2.0.1 bedrock topography (30-arc seconds resolution)⁹⁹. The three-isotope plot of dissolved Pb (dPb) isotopic composition (Fig. 3) was made by AO using Microsoft Excel and Inkscape. The plots of monthly dPb fluxes (Fig. 4) were made by SK with Microsoft Excel (version 2019, https://office.microsoft.com/excel). Source data are provided with this paper.
