Defect Engineering for Stabilizing Magnetic and Topological Properties in Mn(Bi_1-xSb_x)₂Te₄

Abstract

MnBi₂Te₄ is a versatile platform for exploring diverse topological quantum states, yet its potential is hampered by intrinsic antisite defects. While Sb substitution has been employed to tune the Fermi level towards the charge neutral point, it exacerbates the formation of Mn-Sb antisite defects. Here, we address this challenge by combining first-principles calculations with strategic synthesis to systematically investigate and control antisite defects in Mn(Bi_1-xSb_x)₂Te₄. Our calculations reveal that increasing antisite defect density progressively destroys the field-forced magnetic Weyl state, eventually driving the system into a trivial magnetic insulator. Motivated by these findings, we develop an optimized chemical vapor transport method, yielding high-quality Mn(Bi_1-xSb_x)₂Te₄ crystals with significantly reduced antisite defect density. The emergence of strong Shubnikov-de Haas oscillations in the forced ferromagnetic state and a pronounced anomalous Hall effect near charge neutrality, with opposite signs for n- and p-type samples, confirms the type-Ⅱ Weyl semimetal nature. These findings underscore the critical role of antisite defects in determining the magnetic and topological properties of Mn(Bi_1-xSb_x)₂Te₄ and establish defect engineering via optimized synthesis as a crucial strategy for realizing its exotic magnetic topological states.

Introduction

MnBi₂Te₄ represents a unique material platform that facilitates comprehensive investigation of diverse topological quantum states and emergent quantum phenomena^1,2,3, spanning from antiferromagnetic (AFM) topological insulators^4,5,6 to ferromagnetic (FM) Weyl semimetals^7,8,9,10, and even theoretically predicted Möbius insulators within the canted antiferromagnetic (cAFM) phase¹¹. In reduced dimensions, exfoliated MnBi₂Te₄ layers can host quantum anomalous Hall states^12,13, axion insulator states^14,15, as well as cAFM Chern insulator states¹⁶, contingent on layer thickness and magnetic configuration¹⁷. Its inherent tunability, coupled with readily accessible magnetic transitions, positions it as an ideal system for probing the interplay between magnetism and topology. Indeed, the relatively low critical field of MnBi₂Te₄ enables facile transitions into field-forced FM Weyl semimetal states with a minimal set of Weyl points, approaching the long-sought paradigm of ideal Weyl semimetals^4,6.

Despite this promise, experimental progress has been limited by the presence of antisite defects, particularly Mn atoms occupying Bi sites and the reverse scenario^{18,19,20,21,22}. These defects introduce additional intralayer AFM coupling, suppressing the saturation magnetization and disrupting the ideal Mn moment distribution within the lattice^{22,23,24,25,26}. In the AFM topological insulator ground state, the misplaced Mn moments profoundly affect surface magnetic coupling, leading to a substantial and often debated reduction in the Dirac point gap size^20,21,27,28. This has led to conflicting angle-resolved photoemission spectroscopy (ARPES) observations with both gapped and gapless surface states with significant sample-dependent variations^{5,21,27,29,30,31,32,33}. Furthermore, antisite defects contribute to electron over-doping and reduced carrier mobility, shifting the Fermi level away from the desired topological regime and complicating the detection of Weyl points and Fermi arc states in transport measurements.

To mitigate these issues, Sb substitution has been widely adopted to form Mn(Bi_1-xSb_x)₂Te₄, with the goal of lowering the Fermi level towards the energy window of the Weyl nodes^{7,8,10,18,29,34}. However, this approach introduces a critical challenge: the chemical similarity between Sb and Mn unfortunately exacerbates the formation of Mn-Sb antisite defects¹⁸. Consequently, while Sb doping can optimize carrier density, the resulting increase in antisite concentration may simultaneously degrade both magnetic and topological properties. This trade-off obscures the intrinsic characteristics of Mn(Bi_1-xSb_x)₂Te₄, hindering unambiguous interpretation of its fundamental properties. A central question thus remains: can the benefits of Fermi level tuning be retained while suppressing the detrimental effects of defect-induced disorder? Addressing this requires a clear understanding of how antisite defects influence magnetic and topological behavior, along with effective methods to control their formation during synthesis.

In this work, we systematically investigate the role of antisite defects in Mn(Bi_1-xSb_x)₂Te₄ through first-principles calculations and targeted materials synthesis. Our calculations reveal that increasing defect concentrations progressively degrade the Weyl cone, ultimately leading to a trivial magnetic insulating phase. Given the intimate interplay between band topology and magnetism in this system, we attribute the topological degradation to the antisite-induced suppression of the field-forced FM state (Weyl semimetal), also the AFM ground state (topological insulator). This finding emphatically underscores the imperative to minimize antisite defects to access the intrinsic topological properties of this material. Motivated by these findings, we develop an optimized chemical vapor transport (OCVT) growth method that enables precise control of growth conditions, including temperature profiles adapted to Sb content and an excess of Mn and Te precursors. This approach yields high-quality, stoichiometric Mn(Bi_1-xSb_x)₂Te₄ crystals with markedly improved quality, representing a significant advancement over conventional self-flux and solid-state reaction approaches.

Experimental characterizations of OCVT-grown samples confirm the success of this strategy. Magnetization measurements show enhanced AFM order in the ground state, characterized by elevated Néel temperature and enhanced saturation magnetization, indicative of a significant reduction in antisite defect density. ARPES and transport studies reveal a systematic tuning of the Fermi level from n- to p-type with increasing Sb content. Notably, at an optimized doping level of x = 0.20, we achieve a minimum carrier density (7 × 10¹⁷cm⁻³) and a record-high carrier mobility (2519 cm²/V·s). In the field-forced FM state, strong Shubnikov-de Haas oscillations appear, with oscillation frequencies tracking carrier density. A pronounced anomalous Hall effect (AHE) emerges as the Fermi level nears charge neutrality, with opposite anomalous Hall conductivity signs for n- and p-type samples, further corroborating the type-Ⅱ Weyl semimetal character. Together, these results emphasize the critical and previously underappreciated role of antisite defects in determining the magnetic and topological properties of Mn(Bi_1-xSb_x)₂Te₄. By combining theoretical insights with advanced synthesis, this work establishes defect engineering as an essential strategy for realizing and stabilizing exotic magnetic topological phases in this material family.

Results

Antisite defects driven degradation of magnetism and band topology

MnBi₂Te₄ crystallizes in the space group R-3m (No. 166)³⁵, consisting of stacked septuple layers (SLs) that are weakly bonded through van der Waals interaction along the c axis. Within each SL, atoms are arranged in a Te-Bi-Te-Mn-Te-Bi-Te sequence (Fig. 1a), forming a triangular lattice in the ab plane with C₃ rotation symmetry.

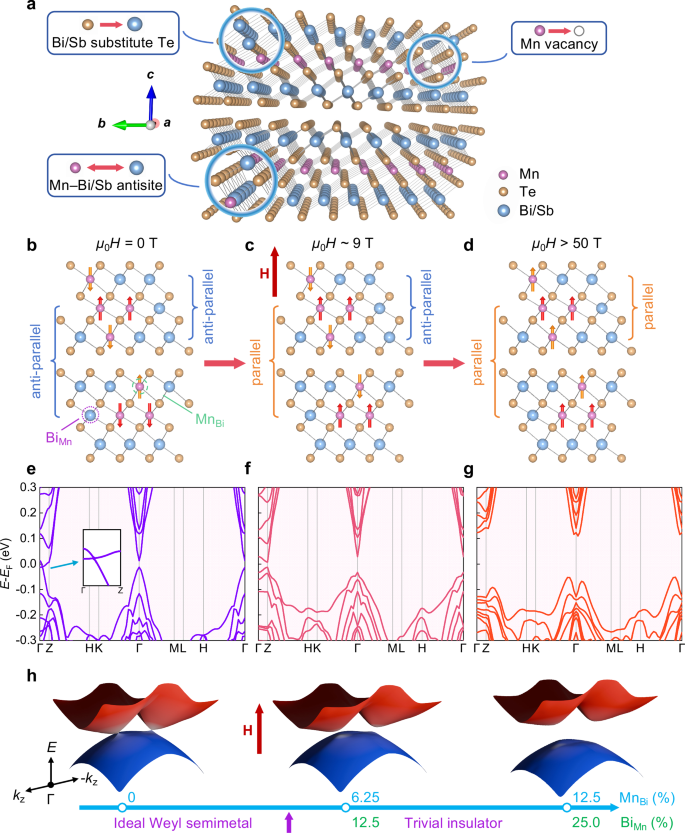

Fig. 1: Schematics of defect-included Mn(Bi_1-xSb_x)₂Te₄ crystal structure, magnetic order and band topology in its ferromagnetic state.

a Schematic of Mn(Bi_1-xSb_x)₂Te₄ crystal structure with several typical types of defects, including Mn-Bi/Sb antisites, Bi/Sb atoms occupying Te sites, and vacancies at Mn sites. Two septuple layers are shown for clarity. Magnetic structures in Mn(Bi_1-xSb_x)₂Te₄ with the coexisted Mn_Bi/Sb and Bi/Sb_Mn defects under varying magnetic fields. Without magnetic field in (b), interlayer Mn_Mn moments form an antiferromagnetic order, while within a SL, Mn_Bi/Sb antisites exhibit an antiparallel arrangement with Mn_Mn moments. With a moderate field of 9 T along the c axis as (c), the sublattices of Mn_Mn are forced into a ferromagnetic state, while the sublattices of Mn_Mn and Mn_Bi/Sb remain antiferromagnetically coupled. At higher fields exceeding 50 T in (d), Mn moments in all layers align parallel to the applied field, achieving a fully saturated ferromagnetic state. e Band structure of FM MnBi₂Te₄ with idealized Mn moments alignment, assuming no antisites. Inset is the enlarged view of the Weyl point located along the Γ–Z line. Band structure of MnBi₂Te₄ under interlayer FM and intralayer AFM orders. The calculation model contains 6.25% Mn_Bi and 12.5% Bi_Mn defects in (f), and 12.5% Mn_Bi and 25% Bi_Mn defects in (g). h A schematic diagram of the defect-induced Weyl cone degeneration. The blue arrow represents the increasing density of Mn-Bi antisites, transitioning the ideal Weyl semimetal into a trivial insulator. The topological phase transition may occur at a certain level of antisite density, illustrated by the purple arrow.

During crystal growth, MnBi₂Te₄ inevitably forms point defects, including vacancies (denoted as V_A), interstitials (A_i), and crucially, antisites (A_B, denoting A occupying B site), where A and B represent different atomic species^18,20. These defects act as electron acceptors or donors, significantly modulating the Fermi level. While ideal MnBi₂Te₄ is predicted to be a topological insulator with a Fermi level within the bandgap, as-grown crystals consistently exhibit pronounced n-type doping, as confirmed by Hall effect and ARPES^{5,8,14,24,27,29}. First-principles calculations suggest that the antisites Bi_Mn and Mn_Bi, arising from lattice mismatch between Bi₂Te₃ and MnTe building blocks, possess the lowest formation energies, making them the most prevalent defects^18,20. The predominant presence of Mn_Bi and Bi_Mn antisites in MnBi₂Te₄ has been further verified experimentally^{24,36,37,38,39}. Vacancies, interstitials and Bi_Te antisites, having higher formation energies, are comparatively less abundant. Schematics of these defect types are illustrated in Fig. 1a. Notably, Mn_Bi antisites act as electron-acceptors, introducing holes, while the Bi_Mn antisites are electron donors¹⁸. Quantitative analysis (see Supplementary Table 1) indicates that non-stoichiometric crystals typically contain more Bi_Mn than Mn_Bi, resulting in the observed heavy n-doped conduction in MnBi₂Te₄, with the electron density of approximately 10²⁰cm^{−38,14,24,29}.

Furthermore, these prevalent antisite defects (Bi_Mn and Mn_Bi) exert a substantial influence on the magnetic configuration of MnBi₂Te₄ across varying magnetic fields. Below the Néel temperature (T_N), Mn spins are expected to adopt an A-type AFM ground state⁵. In the idealized scenario, Mn atoms are localized exclusively within the central Mn layer of each SL, denoted as Mn_Mn, with their moments exhibiting intralayer ferromagnetic order. These ferromagnetic SLs couple antiferromagnetically with one another along the c axis (denoted by the red arrows in Fig. 1b). However, excessive Mn_Bi antisites result in a redistribution of spin moments into the nominally non-magnetic Bi layers (the orange arrows in Fig. 1b), where Mn_Bi antisites develop an antiparallel ordering relative to the Mn_Mn moments. This induces a partially compensated net magnetization and establishes a ferrimagnetic (FiM) order for the whole SL, attributable to the strong AFM coupling between the non-equivalent Mn moments^24,26. Meanwhile, Bi_Mn antisites introduce magnetic dilution within the Mn layers. Upon application of an external magnetic field exceeding the saturation field, the Mn_Mn moments are forced to align with the field, establishing a FM order. The Mn_Bi antisites, however, continue to compensate the magnetic moments due to the strong AFM intralayer coupling²⁶. Consequently, the saturation magnetization M_sat at moderate fields (~ 9 T) is suppressed owing to both compensation by Mn_Bi antisites and dilution from Bi_Mn antisites (Fig. 1c), causing the value inconsistencies in experimentally obtained M_sat^8,26,29,34. Overcoming intralayer AFM coupling, thereby achieving full alignment of all Mn moments across all layers, necessitates much higher magnetic fields, experimentally demonstrated to be around 50 T (Fig. 1d)²⁶.

Beyond their impact on magnetic ordering, Mn_Bi and Bi_Mn antisites fundamentally alter the band topology. While prior theoretical calculations primarily focused on idealized ferromagnetic order, assuming perfect Mn moment alignment in defect-free crystals, these investigations predicted a single pair of type-Ⅱ Weyl points in field-forced FM MnBi₂Te₄^{4,6,7,10,40,41}. They also suggested potential topological phase transitions to type-I Weyl semimetal or trivial magnetic insulator states with minor strain or lattice parameter variations (~ 1%)⁶. The susceptibility of the Weyl structure in MnBi₂Te₄ indicates the necessity of investigating the defect-induced topological transitions. Standard magnetotransport measurements, typically conducted below 12 T, operate in a regime where antisite defects induce a FiM order and introduce additional magnetic sites (Fig. 1c), rendering the idealized FM state assumption questionable. We calculated the band structure as a function of antisite density (Fig. 1e–g), considering the coexistence of Mn_Bi and Bi_Mn antisites. At an antisite density of 6.25% Mn_Bi and 12.5% Bi_Mn (Fig. 1f), band crossing is lifted, opening a gap that further enlarges with the increase of defect concentration (Fig. 1g). Calculation details and defective crystal structures are summarized in Supplementary Figs. 1 and 2. A schematic of defect-induced band topology evolution is shown in Fig. 1h, demonstrating a topological phase degeneration from ideal Weyl semimetals to trivial insulators.

The strategic substitution of Bi with Sb atoms provides an effective mechanism for Fermi level engineering towards charge neutrality^29,34, a critical prerequisite for accessing the emergent phenomena dominated by Weyl fermions^7,8,9,10. Specifically, Sb-doping augments both Mn_Bi/Sb and Bi/Sb_Mn defect concentrations, while Mn_Bi/Sb defects show a more pronounced increase¹⁸, leading to a complex interplay but generally contributing to a reduction in Fermi energy. However, inadvertently introduced deleterious Mn_Bi/Sb and Bi/Sb_Mn antisites further disrupt the inherent magnetism^22,23,25 by inducing chaotic Mn moment distribution. Energy calculations across various magnetic configurations and defect densities (Supplementary Note 3) reveal that both antisite types cooperatively suppress interlayer AFM coupling and promote undesired intralayer antiparallel alignment. Further calculations emphasize the significance of complete FM alignment in band crossing and Weyl cone formation, which is strongly hindered by the strengthened AFM intralayer coupling at higher antisite densities (Supplementary Fig. 4). These excessive antisites, altering the magnetic order to a large extent, profoundly degrade the band topology in the FM Mn(Bi_1-xSb_x)₂Te₄ family (Fig. 1e–h), hindering access to Weyl-point-driven phenomena. Therefore, it’s necessary to tune the Fermi level towards the Weyl points, and to concurrently minimize antisite defect density for recovering the intrinsic magnetism and band topology.

OCVT synthesis

As these defects are inherent to the crystal growth process and their concentration is intimately linked to growth dynamics, optimizing synthesis methods is critical for defect reduction, thereby unlocking the intrinsic magnetic and topological properties of Mn(Bi_1-xSb_x)₂Te₄. While the conventional chemical vapor transport approach has shown promise for improving chemical stoichiometry in MnBi₂Te₄ growth^39,42, its application to Mn(Bi_1-xSb_x)₂Te₄ may paradoxically result in higher defect densities compared to self-flux grown crystals⁴². Here, we introduce an optimized chemical vapor transport (OCVT) methodology (Fig. 2a) meticulously engineered to synthesize stoichiometric Mn(Bi_1-xSb_x)₂Te₄ with substantially suppressed antisite defects, directly addressing the limitations of conventional methods. This approach achieves precise control of Fermi level and carrier density through systematic compositional tuning of Sb content; in the meantime, the remarkable reduction in antisite density effectively stabilizes both the intrinsic magnetic structure and nontrivial band topology in Mn(Bi_1-xSb_x)₂Te₄.

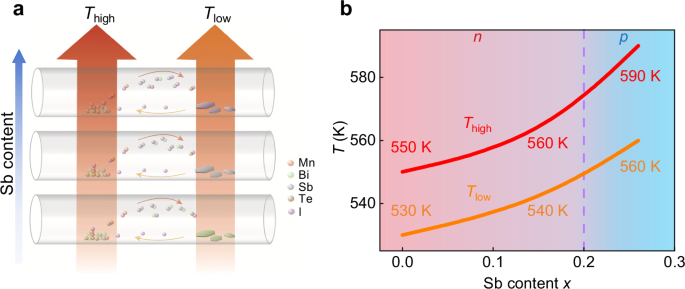

Fig. 2: Schematic images of the OCVT method.

a An illustration of the OCVT method. As the Sb content increases, higher temperatures are applied at both the hot and cold zones (T_high and T_low) of the quartz ampules. All the raw materials utilized in synthesis are denoted by balls with different colors. b Optimized temperatures at the hot and cold zones for growing high-quality Mn(Bi_1-xSb_x)₂Te₄ crystals, tailored to different Sb contents.

In detail, recognizing the inherent non-stoichiometry of Mn observed in self-flux samples and the slow transportation efficiency of Mn, our OCVT strategy hinges on maintaining a precise excess of Mn in the starting materials, coupled with rigorous pre-heating protocols to ensure stoichiometric Mn incorporation. Critically, introducing additional Mn necessitates a corresponding increase in Te to create a Te-rich growth environment. This Te-rich condition is instrumental in minimizing the formation of Bi/Sb_Mn and Bi/Sb_Te defects¹⁸, while the merely controlled Mn excess preferentially leads to the benign precipitation of MnTe. Based on this strategy, we mixed Mn, Bi, Sb and Te elements in a ratio of MnTe: (Bi, Sb)₂Te₃ = y: 1 (y ranging from 2 to 3). The raw material mixture was then flame-sealed in vacuum quartz ampules with I₂ as the transport agent and placed in a two-zone tube furnace. Considering the elevated melting point and crystallization temperature of Mn(Bi_1-xSb_x)₂Te₄ with higher Sb content, it is crucial to use higher temperatures at both the hot and cold ends of the quartz ampule (Fig. 2b). With a small temperature gradient of approximately 1 °C/cm, I₂ agent transport the material towards the cold ends. Detailed growth conditions are listed in Supplementary Table 6. After a 14-day reaction, we obtained shiny hexagonal or rectangular plate-shaped crystals at the cold ends (the optical images are shown in Supplementary Fig. 5).

To assess the structural impact of Sb doping, X-ray diffraction (XRD) measurements were performed on the (001)-oriented crystal across a range of Sb concentrations (x = 0 to 0.26), as shown in Supplementary Fig. 6a. Analysis of the XRD peak positions reveals a largely invariant c-lattice parameter across the doping range (see Supplementary Fig. 6b), consistent with prior reports on lightly Sb-doped MnBi₂Te₄^29,34 and indicating that modest Sb substitution effectively preserves the parent crystal structure. Energy-dispersive X-ray (EDX) spectroscopy confirmed the near-stoichiometric elemental composition of these OCVT-grown crystals (see Table 1 and Supplementary Figs. 7, 8), demonstrating the efficacy of our optimized synthesis. All the x values in this work are the actual Sb content, determined through EDX by ${x={{\rm{Sb}}}}_{{{\rm{E}}}{{\rm{DX}}}} \% /({{{\rm{Bi}}}}_{{{\rm{E}}}{{\rm{DX}}}} \%+{{{\rm{Sb}}}}_{{{\rm{E}}}{{\rm{DX}}}} \% )$. Scanning transmission electron microscopy (STEM) and scanning tunneling microscopy (STM) measurements were also performed on the OCVT-grown crystals (see Supplementary Figs. 10, 11), confirming a high-quality crystallinity.

Table 1 A comprehensive comparison of saturation magnetization, element ratio and defects concentration for Mn(Bi_1-xSb_x)₂Te₄ samples with varying Sb content x

Enhanced magnetism properties due to reduced defect density

To rigorously assess the impact of our OCVT synthesis on mitigating defect-induced magnetic degradation (shown in Fig. 1b–d), we performed comprehensive magnetization measurements to both qualitatively and quantitatively evaluate defect concentrations in OCVT-grown Mn(Bi_1-xSb_x)₂Te₄ crystals. Figure 3a presents temperature-dependent magnetic susceptibility curves, χ(T), of Mn(Bi_1-xSb_x)₂Te₄ across the doping range x = 0 to 0.26, acquired under field-cooled (FC) conditions with H // c. The near-perfect overlap between zero-field-cooled (ZFC) and FC curves (see Supplementary Fig. 12a) signifies the homogeneity and high quality of our OCVT-grown crystals. All χ(T) curves exhibit consistent AFM behavior, characterized by a distinct peak corresponding to T_N. Below T_N, the magnetization sharply decreases towards zero upon further cooling, unequivocally evidencing robust long-range AFM ordering. The absence of any signature indicative of FiM behavior in all χ(T) curves underscores the successful suppression of magnetic defects or phase impurity such as Mn-doped (Bi, Sb)₂Te₃^24,43. As anticipated, T_N systematically decreases with increasing Sb content x, reflecting the weakening of interlayer AFM coupling due to the increasing, albeit minimized, density of Mn_Bi/Sb and Bi/Sb_Mn antisites even in optimized growth.

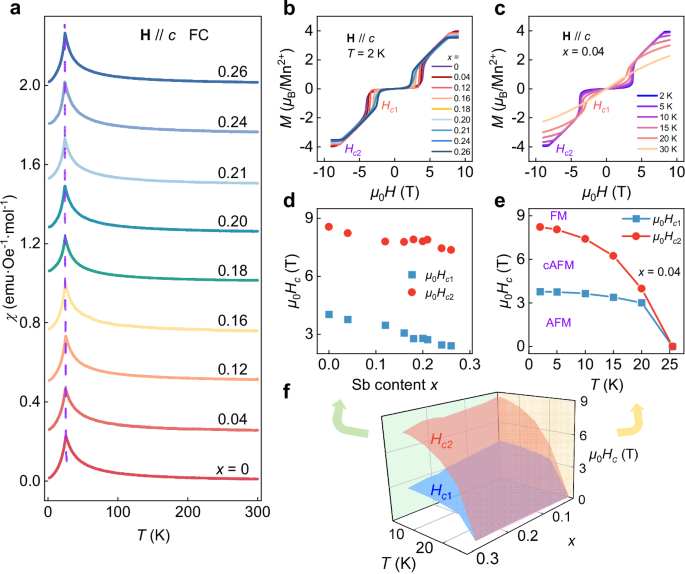

Fig. 3: Magnetism characterization of Mn(Bi_1-xSb_x)₂Te₄.

a Temperature dependence of magnetic susceptibility for various Sb content x. The curves are measured in FC condition with a field of 500 Oe applied along the c axis. The values of T_N are marked with a purple dashed line. b Magnetic field dependence of magnetization for Sb content ranging from x = 0 to 0.26 at 2 K. c Magnetic field dependence of magnetization for Sb content x = 0.04 at different temperatures. d–f Critical fields for the spin-flop transition and saturation (H_c1 and H_c2) extracted from M(H) curves by identifying the dM/dH peaks and d²M/dH² valleys, respectively. The variations of H_c1 and H_c2 with temperature and Sb content x are illustrated in a three-dimensional diagram (f). The X-Z cut (d) and Y-Z cut (e) of the 3D figure show the dependence of H_c1 and H_c2 on Sb content x and the magnetic transitions at different temperatures.

Figure 3c illustrates representative magnetization versus magnetic field M(H) for x = 0.04. As the magnetic field increases, the AFM order transitions to cAFM state via spin-flopping at μ₀H_c1~3.8 T. Upon further field increase, the cAFM phase transitions to a FM state at the saturation field μ₀H_c2~8.2 T. The magnetization saturates to M_sat within 9 T (M_sat refers to the magnetization value in the configuration of Fig. 1c). Critical fields H_c1 and H_c2, identified by peak and valley positions in the first and second derivatives of magnetization (dM/dH and d²M/dH², detailed in Supplementary Fig. 13) respectively, are shown to decrease at elevated temperatures, with M(H) behavior approaches the paramagnetic limit (Fig. 3c). A comprehensive magnetic phase diagram summarizing these transitions is presented in Fig. 3e. M(H) curves at 2 K for each composition are presented in Fig. 3b, revealing a consistent magnetization trend (AFM→cAFM→FM). Both spin-flop and saturation critical fields exhibit a systematic decrease with increasing Sb content (Fig. 3d). Detailed analysis of M(H) across different temperatures and Sb concentrations allows us to construct a three-dimensional magnetic phase diagram (Fig. 3f), mapping distinct magnetic phases across the entire doping range and temperature domains. Additional magnetization curves at various temperatures and torque magnetometry for samples from OCVT are shown in Supplementary Figs. 14 and 15, respectively.

Figure 4a compares T_N as a function of Sb content x from this study and previously reported values. T_N values, extracted from kinks of χ(T) and longitudinal resistivity ρ_xx(T) curves (see Supplementary Fig. 13), reflect the strength of interlayer AFM coupling among SLs against thermal fluctuations as a fundamental indicator. Higher T_N suggests a more robust AFM ground state with fewer antisite defects. However, with increasing Sb content and consequently, a higher density of Mn_Bi/Sb and Bi/Sb_Mn antisites (even in optimized growth), the interlayer AFM interaction weakens, lowering the energy barrier towards FiM ground states. In the Sb-rich limit of MnSb₂Te₄, both FiM and AFM ground states have been observed depending on the Mn_Sb concentration, resulting from different growth conditions, with Curie temperatures (T_C) ranging from 24 K to 58 K or a lower T_N of around 19 K^{19,22,23,34,44,45,46}.

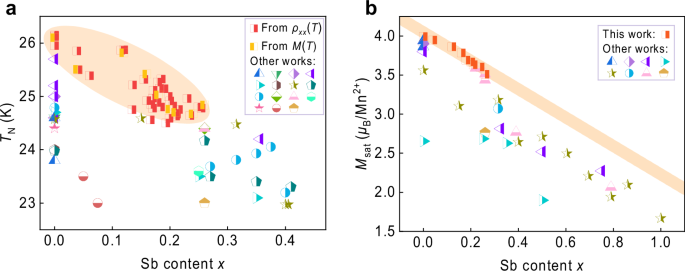

Fig. 4: Comparison of magnetic properties with previous studies.

a Comparison of Néel temperatures T_N across various studies, with data collected from this work emphasized within the orange ellipse. The yellow and red squares represent T_N extracted from M(T) and ρ_xx(T) curves, respectively. The corresponding references to the data extracted from other works are refs. ^{8,9,10,24,26,27,29,34,36,39,42,43,49,52,53}. b Comparison of saturation magnetization M_sat as a function of Sb content x. The M_sat values are extracted from the saturation magnetization from the M(H) curves at a moderate field (~ 9 T). The orange line represents a linear fitting of saturation magnetization in this work. The significantly higher saturation magnetization and Néel temperature observed in our Mn(Bi_1-xSb_x)₂Te₄ crystals indicate a more intrinsic magnetism with high quality and fewer magnetic defects. The corresponding references to the data extracted from other works are refs. ^{8,10,26,29,34,39,42,53}.

As shown in Fig. 4b, M_sat decreases nearly linearly with a rising Sb content due to the compensation between nonequivalent Mn moments caused by increasing Mn_Bi/Sb antisites, while the Bi/Sb_Mn antisites act as effective magnetic vacancies within Mn layers, diluting magnetic ion concentration and thereby reducing overall magnetization. In Mn(Bi_1-xSb_x)₂Te₄, Mn exists in a high-spin Mn²⁺ state (S = 5/2), yielding an expected saturation magnetization of 5.0 μ_B/Mn²⁺ according to the Hund’s rule (μ_B being the Bohr magneton). Previous neutron diffraction, high-field magnetization, and theoretical calculations for MnBi₂Te₄ consistently report a local magnetic moment of 4.04 ~ 4.7 μ_B/Mn^{2+5,24,25,26,34,47}, with minor deviations potentially arising from orbital hybridization²⁶. Importantly, within a 9 T field, the sublattices of Mn_Mn and Mn_Bi/Sb form FM configuration respectively yet remain antiparallel to each other (see Fig. 1c). Consequently, the M_sat observed at 9 T is reduced by the Mn_Bi/Sb moments and can be effectively used to estimate the concentration of Mn-Bi/Sb mixing^26,39.

To quantify defect concentrations, we set the amount percentage of Mn_Mn and Mn_Bi/Sb in corresponding atom layers as a and b, respectively. Considering the different FM configurations shown in Figs. 1c and 1d, we write:

$$a+2b={{\rm{M}}}{{{\rm{n}}}}_{{{\rm{EDX}}}}$$

(1)

$$\frac{a-2b}{a+2b}=\frac{{M}_{{sat}}}{{M}_{0}}$$

(2)

where Mn_EDX is the normalized Mn proportion obtained from experiments with Te_EDX as a reference value of 4. M₀ denotes the local magnetic moment of Mn²⁺, which can be approximated to be 4.6 μ_B/Mn²⁺, the fully saturated magnetization in experiments at 50 T²⁶. Neglecting high-energy vacancies V_Mn, the concentration of Bi/Sb_Mn can be approximated as $(1-a)\times 100 \%$. Calculations based on Eqs. (1) and (2) yield Sb-dependent defect concentrations summarized in Table 1. Compared to Mn(Bi_1-xSb_x)₂Te₄ synthesized via other methods, our OCVT-grown crystals show fewer Mn_Bi/Sb and Bi/Sb_Mn defects, directly correlating with the observed enhancement in magnetic properties and the potential for realizing intrinsic topological states. The clear negative correlation between b and M_sat further underscores the low defect density achieved in our samples, corroborated by the M_sat data from other works shown in Fig. 4b.

Tuning the Fermi level by Sb doping

Beyond magnetic property refinement, substituting Bi with Sb in MnBi₂Te₄ provides a potent means to precisely tune the Fermi level, promoting a transition from n- to p-type conduction. Controlled doping in topological insulators is a crucial strategy for positioning the Fermi level within the bulk band gap while preserving topologically protected surface states, as exemplified by Sn-Bi_1.1Sb_0.9Te₂S⁴⁸. This Fermi level tunability arises from the dopant role in compensating intrinsic defects by introducing counter-doping carriers.

To experimentally visualize this carrier-type transition, we performed ARPES measurements on OCVT-grown Mn(Bi_1-xSb_x)₂Te₄ with x ranging from 0.14 to 0.26. Figure 5a, b present the ARPES spectra and their second derivative images, respectively. Sample cleavage and signal detection were both performed at 10 K below T_N. Higher than typically used for detecting topological surface states, the utilized photon energy of 13 eV reveals primarily the dispersion of bulk bands, to access optimal signal clarity²⁹. Subtle indications of Dirac-like surface states appear only in the second derivative spectra. This limited surface signal is likely due to a Sb-induced gap opening at the Dirac point^49,50, as well as the surface inhomogeneity-induced scattering⁵¹. Unlike the minimal surface gap in MnBi₂Te₄, a recent work showed that the surface gap continuously grows with increasing Sb content, reaching 104 meV at 10 K for x = 0.1, comparable to the non-trivial bulk gap⁴⁹. It may cause bulk and fully gapped surface states to overlap in the spectra. In our result, a clear downward shift of the Fermi level E_F occurs as x rises. At x = 0.14, E_F is well above the bulk band gap (E-E_F~-160 meV), indicating n-type carriers. At x = 0.20, E_F approaches the conduction band minimum (CBM), while at x = 0.22, it enters the valence band and locates near the valence band maximum (VBM), signaling a shift to p-type conduction. At x = 0.26, a second valence band becomes visible. Notably, to confirm the band edge proximity of the Fermi level, two samples with x = 0.20 were measured, exhibiting few differences in the E_F. Indeed, the almost insulating bulk state at x~0.20 makes the E_F more sensitive to even minor carrier variations.

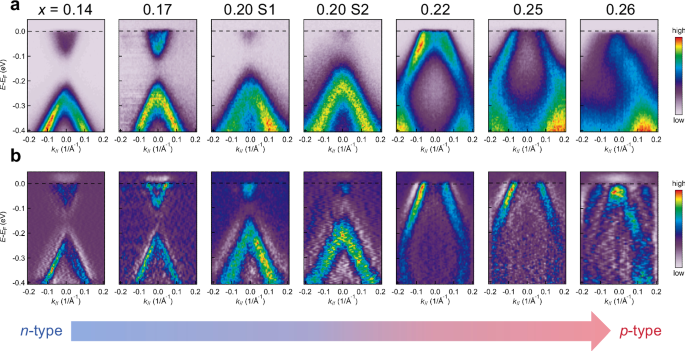

Fig. 5: ARPES results for Mn(Bi_1-xSb_x)₂Te₄ samples.

a, b Raw and second derivative spectra of ARPES measurements for Mn(Bi_1-xSb_x)₂Te₄ samples with x values of 0.14, 0.17, 0.20, 0.22, 0.25, and 0.26. Two samples with x = 0.20 were measured to confirm the band-edge conduction feature. The Fermi level, indicated by the black dashed line, shifts downwards from the conduction band to the valence band, residing within the gap at x~0.20, suggesting the carrier transition from n-type to p-type as Sb doping content x increases.

Collectively, ARPES data demonstrate a monotonic downward shifting of E_F from the conduction band to the valence band with increasing Sb doping, indicating the n-to-p carrier transition, with a charge neutral point (CNP) at x ~ 0.20.

Transport properties of Mn(Bi_1-xSb_x)₂Te₄

To further investigate the n-p carrier evolution, we performed electrical transport measurements of OCVT-grown Mn(Bi_1-xSb_x)₂Te₄ crystals. Temperature-dependent longitudinal resistivity ρ_xx(T) curves, measured from 300 K down to 2 K, exhibit semimetallic behavior across all doping (Fig. 6a). Notably, samples with x = 0.19 to 0.21, corresponding to Fermi level proximity to the band edge, show elevated resistivity values across the entire temperature range, consistent with reduced carrier density near the charge neutrality point. The x = 0.20 sample, closest to the CNP, displays a nonmonotonic ρ_xx(T) behavior with a distinct upturn around 165 K. A kink in ρ_xx(T) near 24.5~26 K marks the Néel temperature, indicative of a sharp change in spin scattering as magnetic moments order below T_N³⁴.

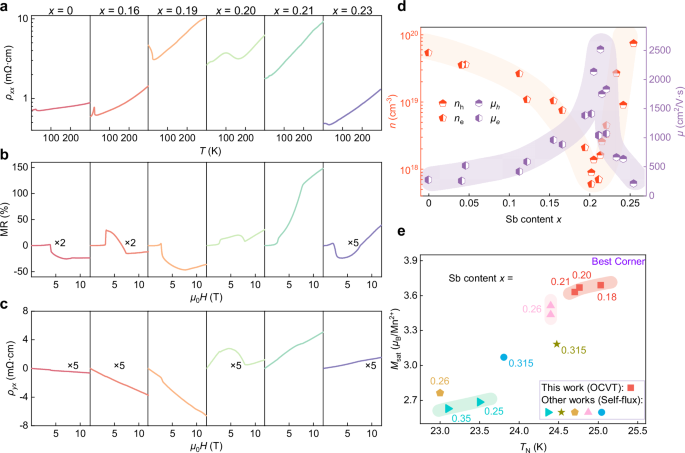

Fig. 6: Electrical transport properties of Mn(Bi_1-xSb_x)₂Te₄.

a Temperature-dependent longitudinal resistivity ρ_xx(T) with varying Sb content x. All curves are measured with the current flowing in the ab plane. b Field dependence of magnetoresistance MR for different Sb contents at 2 K. c Field dependence of Hall resistivity ρ_yx(H) for different Sb contents at 2 K. In field-dependent measurements, the field is applied along the c axis while the current flows in the ab plane. For clarity, part of the curves in (b) and (c) are scaled by factors, as marked in the figure. d Evolution of carrier density and mobility as a function of x for selected samples with high mobility. The carrier mobility approaches its maximum as carrier density nears a minimum, indicating enhanced electrical performance around the charge neutral point. The carrier density of electrons and holes, n and p, are plotted in log scale. e A comparative comparison of saturation magnetization M_sat and Néel temperature T_N for samples near the CNP in both our work and previous studies. The referenced magnetic properties from the literature correspond to refs. ^{8,10,29,34,53}. In this work, samples from OCVT exhibit a charge neutral point at x ~ 0.20. Notably, since the magnetization data for samples with CNP compositions are not included in ref. ²⁹. (x_CNP = 0.30) and ref. ¹⁰. (x_CNP = 0.35), we selected magnetic properties of samples with the closest doping content near the CNP from these references to enable meaningful comparison.

Field-dependent magnetoresistance (MR) and Hall resistivity (ρ_yx) measurements at 2 K (Fig. 6b–c) reveal further transport characteristics (magnetic field applied along the c axis). MR, defined as [ρ_xx(H)-ρ_xx(0)]/ρ_xx(0)×100%, exhibits distinct slope changes at critical fields H_c1 and H_c2, corresponding to magnetic phase transitions. Here, ρ_xx(0) refers to the zero-field resistivity. Hall resistivity variations across magnetic phases demonstrate an AHE contribution, suggesting the coupling between band structure and magnetism. Beyond H_c2, where magnetization saturates, the anomalous Hall term stabilizes. To quantitatively determine carrier density, we analyzed Hall data exclusively in FM states by extracting the linear slope of ρ_yx versus magnetic field, defined as R_H = dρ_yx/dμ₀H, where n = 1/(e·R_H) (negative values for electrons, positive for holes). As x increases from 0 to 0.23, R_H shifts from negative to positive, directly confirming the n-to-p carrier type transition. Pronounced nonlinearity in the ρ_yx curve for x = 0.20, contrasting sharply with the near-linear behavior for slightly n-doped (x = 0.19) and p-doped (x = 0.21) samples, suggests two-band conduction with significant contributions from both electrons and holes near CNP. To extract reliable carrier densities, we employed a two-band model to fit the nonlinear Hall data. Due to the limit of ±12 T field range in our experiments, fitting FM state Hall signals may be error-prone, as only a limited range (~ 4 T) is suitable for fitting. To minimize errors, we used nonlinear Hall data above T_N for more reliable fits, where the magnetization-related anomalous Hall contributions are negligible in the paramagnetic state. This approach yields a carrier density down to around 7×10¹⁷cm⁻³ through fitting (details in Supplementary Fig. 16).

Carrier mobility μ, another important transport metric, calculated as μ = R_H/ρ_xx(0), exhibits a clear correlation with carrier density (Fig. 6d). Samples with lower carrier densities exhibit higher mobilities, with mobility peak and density valley coinciding around x = 0.20, further corroborating the n-p transition near the CNP observed in ARPES. Remarkably, the maximum mobility reaches 2519 cm²/V·s, significantly exceeding previously reported values for both pristine MnBi₂Te₄ and Mn(Bi_1-xSb_x)₂Te₄ (comparison shown in Table 2), underscoring the efficacy of our OCVT synthesis for high-quality Mn(Bi_1-xSb_x)₂Te₄. Carrier densities and mobilities of all measured samples via OCVT are summarized in Supplementary Fig. 17, indicating an overall enhancement of carrier mobilities.

Table 2 Comparison of the maximum carrier mobility of MnBi₂Te₄ and Mn(Bi_1-xSb_x)₂Te₄ samples

Crucially, the Sb doping level corresponding to the charge neutrality point is not a fixed material parameter but rather synthesis-dependent, varying significantly across growth methods. Prior studies report CNP compositions mostly ranging from x = 0.25 to 0.35^{7,8,9,10,29,34,43,52,53}, whereas OCVT-grown crystals exhibit a pronounced leftward shift of the CNP to a lower Sb content, around x = 0.20 (see Supplementary Fig. 18). This CNP shift is a compelling consequence of the reduced defect density achieved via OCVT synthesis. As evidenced by magnetization data in Table 1, the lower Mn_Bi/Sb concentration in OCVT-grown crystals effectively stabilizes the intrinsic AFM order and, simultaneously, shifts the Fermi level upward. Compared to samples grown via other methods, OCVT-grown ones exhibit fewer electron-donating Bi/Sb_Mn, whose quantity reduces even more than Mn_Bi/Sb (see Table 1 and Supplementary Table 1), thereby generally enhancing p-doping efficiency for a given Sb concentration and resulting in a CNP at lower Sb doping levels. This capability to reach the CNP at a reduced Sb concentration directly translates to a significant suppression of antisite defects as the Fermi level approaches towards Weyl points. As directly visualized in Fig. 6e, at the optimal doping contents close to the CNP, samples from OCVT exhibit superior stability of the intrinsic magnetic order against antisite-induced disturbance, characterized by concurrent maxima in both M_sat and T_N. The optimized magnetism profoundly suppresses the defect-induced degradation on the intrinsic band topology, thereby preserving the pristine topological characteristics while facilitating reliable access to key emergent phenomena governed by Weyl points or nontrivial surface states inherent to stoichiometric Mn(Bi_1-xSb_x)₂Te₄.

Quantum oscillations and anomalous Hall effect in Sb-doping driven electronic structure evolution

Pronounced Shubnikov-de Haas (SdH) oscillations emerge in both ρ_xx and ρ_yx when Mn(Bi_1-xSb_x)₂Te₄ bulks are driven into forced FM states by a magnetic field along the c axis. After subtracting the background with polynomial fitting, the oscillation term Δρ as a function of 1/μ₀H is shown in Fig. 7a. For visual clarity, oscillations are separated by 0.2 mΩ·cm increments across samples with the carrier density ranging from n- to p-type. The frequency of oscillations F_S, derived through fast Fourier transform (FFT) analysis, is shown in Fig. 7b. The F_S values, linearly related to the Fermi pocket size A_F perpendicular to the field direction via Onsager’s relation, ${F}_{{{\rm{S}}}}=\hslash /2\pi e{A}_{{{\rm{F}}}}$, reflect the Fermi level position and align with the observed carrier density values. Figure 7c shows the relationship between F_S and carrier density n, where F_S decreases as carrier density declines on both electron and hole-doped sides. Notably, these SdH oscillations originate from bulk FM-state bands rather than topological surface states. Previous high-field SdH oscillations up to 60 T confirmed that the ferromagnetic Mn(Bi_1-xSb_x)₂Te₄ realizes an ideal type-Ⅱ Weyl semimetal, with a pronounced difference in the three-dimensional Fermi pocket shape between highly n-doped and p-doped samples^7,10. To analyze the Fermi surface shape and anisotropy in n- and p-doped Mn(Bi_1-xSb_x)₂Te₄, we approximate the Fermi pocket as an ellipsoid with axes k_a = k_b = γk_c and apply Onsager’s relation to estimate the carrier density across three-dimensional ellipsoidal Fermi surfaces using the following formula:

$${F}_{{{\rm{S}}}}=\frac{\hslash }{2\pi e}{A}_{{{\rm{F}}}}=\frac{\hslash }{2e}{\gamma }^{2}{{k}_{c}}^{2}$$

(3)

$${n}_{3D}=\frac{2}{{\left(2\pi \right)}^{3}}\frac{4\pi }{3}{k}_{a}{k}_{b}{k}_{c}=\frac{1}{3{\pi }^{2}}{\gamma }^{2}{{k}_{c}}^{3}$$

(4)

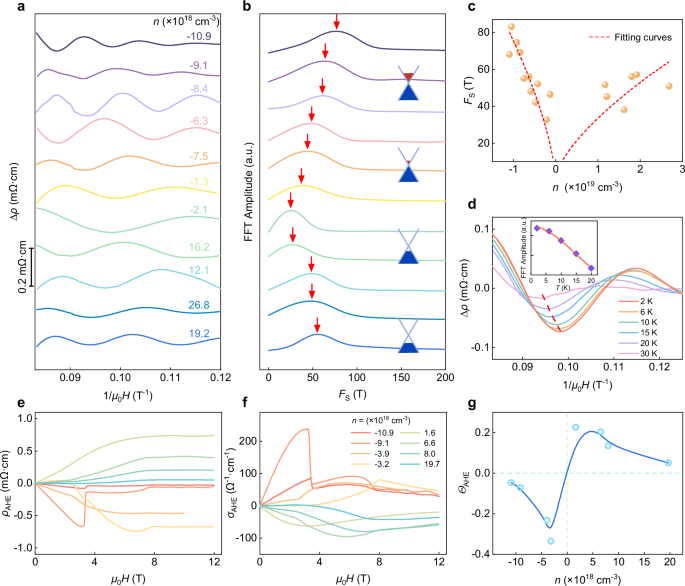

Fig. 7: Shubnikov-de Haas (SdH) oscillations and anomalous Hall effect (AHE) in Mn(Bi_1-xSb_x)₂Te₄.

a SdH oscillations for samples with varying carrier densities (marked beside the corresponding curves, from n-type to p-type) at 2 K with magnetic field along the c axis. The scale factors for each curve are ×2, ×20, ×10, ×5, ×20, ×5, ×1, ×20, ×50, ×50, and ×20, respectively, from top to bottom. b Fast Fourier transform (FFT) spectra of the SdH oscillations in (a). The oscillation frequencies (red arrows) are almost consistent with the Fermi surface evolution from n-type to p-type, as illustrated on the side. Curves of the same color in (b) and (a) correspond to identical carrier densities. c SdH oscillation frequencies as a function of carrier density. The red dashed lines represent Fermi surface shape fitting curves for the electron and hole regions. d Temperature dependence of SdH oscillations amplitude from 2 K to 30 K of a sample with an electron density of −2.1×10¹⁸cm^-3. The red dashed line indicates the shift of the valley positions with increasing temperature. The inset shows the fitting of the effective mass using the Lifshitz-Kosevich (LK) formula, based on the temperature-dependent FFT amplitude. e Field-dependent anomalous Hall resistivity ρ_AHE in samples with various carrier densities, where ρ_AHE = ρ_yx - R_Hμ₀H (R_H is the linear slope of ρ_yx versus magnetic field in the FM state). f Field-dependent anomalous Hall conductivity σ_AHE among the same batch of samples in (e). σ_AHE is defined as σ_AHE = ρ_AHE/(ρ_xx² + ρ_yx²). g Anomalous Hall angle Θ_AHE = σ_AHE/σ_xx as a function of carrier density. All data points are obtained at 2 K and 10 T.

Thus, the relationship between F_S and carrier density n can be expressed as:

$${F}_{{{\rm{S}}}}=\frac{\hslash }{2e}{\left(3{\pi }^{2}n\gamma \right)}^{\frac{2}{3}}$$

(5)

The factor γ can be extracted from the fitting procedure, which reflects the Fermi surface anisotropy. We can get k_a = k_b = 0.37 k_c for the electron-doped regions and k_a = k_b = 0.107 k_c for the hole-doped regions. This pronounced difference in Fermi surface anisotropy between conduction and valence bands is fully consistent with the characteristic tilted Weyl cone dispersion of a type-Ⅱ Weyl semimetal.

Temperature-dependent SdH oscillations (Fig. 7d) persist up to temperatures exceeding T_N, with their amplitude diminishing upon warming, attributable to spin fluctuations that allow the magnetic field to induce a moderate alignment of Mn²⁺ moments even within the paramagnetic phase, consistent with the previous SdH oscillations and electron spin resonance (ESR) characterizations^5,8,9,10,54. From the thermal damping of SdH oscillations, we estimate the effective mass value m^* = 0.06 m₀ (where m₀ is the electron mass) by fitting the temperature dependence of FFT amplitude with Lifshitz-Kosevich (LK) formula (Inset in Fig. 7d):

$${R}_{T}=\frac{\alpha T{m}^{*}}{B\sinh(\alpha T{m}^{*}/B)}$$

(6)

where R_T refers to the amplitude of oscillations at particular 1/B or the amplitude of FFT analysis, and α = 2π²k_Bm₀/eħ. The magnetic field value in Eq. (6) is taken as 1/B = (1/B₁ + 1/B₂)/2, where B₁ and B₂ are the starting and ending fields of FFT analysis. Additionally, as temperature increases, shifts in SdH peak and valley positions reflect the strong coupling between the band structure and magnetic states (Fig. 7d and Supplementary Fig. 20).

The AHE, characterized by corresponding conductivity σ_AHE, provides further compelling transport evidence for the Weyl cone topology. The presence of a single Weyl point pair in ferromagnetic Mn(Bi_1-xSb_x)₂Te₄ simplifies AHE analysis, avoiding complexities arising from multiple Weyl pairs or trivial bands. Theory predicts that type-Ⅰ Weyl semimetals with broken time-reversal-symmetry exhibit Fermi level-independent σ_AHE due to the complete compensation of Berry curvature from free carriers, only determined by the Weyl point separation Δk in momentum space⁵⁵. In contrast, type-Ⅱ Weyl semimetals, characterized by tilted Weyl cones, generate a non-zero Berry curvature integral, yielding significant free-carrier contributions to AHE along with the Δk-related contributions⁵⁶. The sign reversal of the Berry-curvature-induced term in σ_AHE, occurring as the Fermi level traverses Weyl points accompanied by shrinkage or emergence of electron/hole pockets, serves as the key criterion distinguishing type-Ⅱ from type-Ⅰ Weyl semimetals^7,8.

Figure 7e presents field-dependent anomalous Hall resistivity ρ_AHE for samples with varied carrier densities, extracted via subtracting the ordinary Hall background from total ρ_yx. Across all samples, the ρ_AHE values exhibit distinct evolution among different magnetic phases and gradually saturate in the FM state. Notably, ρ_AHE changes its sign from negative to positive with Fermi level downshifting due to Sb doping. Furthermore, in both electron and hole doping regions, |ρ_AHE| increases as Fermi level moving towards CNP. Converted into conductivity form, σ_AHE values are strongly related to the carrier types and densities (see Fig. 7f). Figure 7g summarizes the anomalous Hall angle Θ_AHE = σ_AHE/σ_xx versus carrier density, further highlighting the Fermi level dependence. Similarly, the absolute value of Θ_AHE increases with decreasing carrier density for both electrons and holes within a moderate doping range, and abruptly reverses its sign as the Fermi level crosses the CNP. This characteristic evolution of Θ_AHE aligns closely with the expectations for an ideal type-Ⅱ Weyl semimetal^7,8,56. Moreover, the remarkably large Θ_AHE (~33.6%) observed near the CNP, along with the enhanced carrier mobility, underscores the dominant role of Weyl fermions in bulk transport. This enhanced anomalous Hall angle, arising from the intrinsic tilted Weyl cone and minimized contributions from irrelevant electronic states due to Fermi level tuning near charge neutrality, further solidifies the type-Ⅱ Weyl semimetal nature in Mn(Bi_1-xSb_x)₂Te₄ and the superior quality of OCVT-grown crystals in revealing these exotic quantum phenomena.

Discussion

Through strategic Sb-doping engineering, we systematically navigated the electronic landscape of Mn(Bi_1-xSb_x)₂Te₄ as the Fermi level was progressively tuned across the CNP toward Weyl point proximity. However, this delicate Fermi level manipulation is inextricably linked to the unintended introduction of Mn_Bi/Sb and Bi/Sb_Mn antisite defects, which, as we have decisively demonstrated, exert a profound influence on the intrinsic magnetism and band topology. Moreover, Sb substitution itself introduces complexities, impacting the band structure through (i) continuous contraction of lattice parameters a (= b) and c with increasing Sb concentration^25,34, and (ii) reduced SOC strength of Sb atoms compared to Bi. The latter results in a diminished topological bulk bandgap within AFM ground states, which induces a topological transition to a trivial insulator at heavy doping levels (x > 0.55)²⁹. These intertwined effects of Sb doping – Fermi level tuning and structural/electronic modulations – gain paramount importance considering the documented exquisite sensitivity of the type-Ⅱ Weyl semimetal phase in FM MnBi₂Te₄ to both SOC strength and lattice parameters.

To dissect the isolated impact of Sb substitution itself on the Weyl cone topology, we further carried out first-principles calculations of the evolution of electronic structure for defect-free FM configurations upon Sb doping (calculation models in Supplementary Fig. 3). As shown in Fig. 8a–d, with the increase of Sb content, the Weyl points shift towards the Γ point with the separation Δk reducing. The comprehensive doping-dependent evolution of Weyl cone characteristics is summarized in Fig. 8e, a similar trend has been reported⁵⁷. As mentioned above, higher Sb content naturally introduces more Mn_Bi/Sb defects, further degrading the Weyl cone. However, the OCVT synthesis we developed effectively minimizes defect density for a given doping level, enabling Fermi level tuning near the CNP with minimal Sb doping (x = 0.20). This methodological advancement enables reliable exploration of Weyl point-governed quantum transport phenomena.

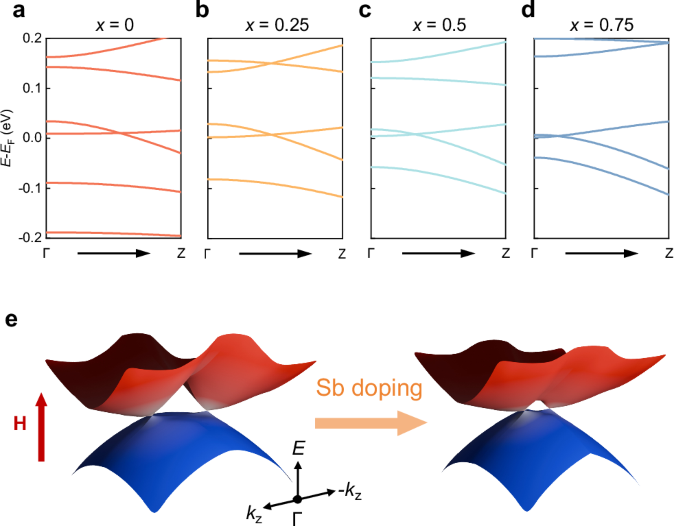

Fig. 8: Theoretical calculations of band structure degradation from Sb-doping.

The band structure along the Γ–Z line for FM Mn(Bi_1-xSb_x)₂Te₄ with Sb content x = 0, 0.25, 0.5, 0.75 for (a), (b), (c) and (d), respectively. As Sb content increases, the Weyl point shifts towards the Γ point with a reduced Weyl point separation Δk in momentum space. e A schematic diagram of the Weyl cone evolution caused by Sb-doping, with the Weyl points shrinking.

These findings offer compelling new insights into the experimental realization and investigation of the ideal Weyl semimetal with minimum Weyl points in Mn(Bi_1-xSb_x)₂Te₄. Such systems, achieved or predicted in only a select few magnetic materials like (Cr, Bi)₂Te₃⁵⁸, FM-Eu₃In₂As₄^59,60,61,62, and K₂Mn₃(AsO₄)₃⁶³ are highly sought after for their potential to reveal pristine Weyl fermionic physics. Other typical magnetic Weyl semimetals usually suffer from complex band structures with other trivial pockets or multiple Weyl cones coexisting, such as Co₃Sn₂S₂^64,65,66 and PrAlGe⁶⁷. Among these candidate ideal Weyl systems, Mn(Bi_1-xSb_x)₂Te₄ family stands out due to its highly tunable electronic structure and Fermi level. More importantly, the inherent layered structure with weak van der Waals interactions in Mn(Bi_1-xSb_x)₂Te₄ renders it ideally suited for nanofabrication and the creation of thin-film devices through mechanical exfoliation, circumventing the complexities of molecular beam epitaxy synthesis often required for nano devices of other topological materials^58,62. The combination of intrinsic topological properties, facile synthesis, and device compatibility positions OCVT-grown Mn(Bi_1-xSb_x)₂Te₄ as a highly promising platform for advancing topological physics and realizing next-generation electronic and spintronic devices.

In conclusion, through a synergistic approach combining first-principles calculations and experimental investigations, we have definitively demonstrated the critical role of antisite defects in dictating the magnetic and topological properties of FM Mn(Bi_1-xSb_x)₂Te₄. Our theoretical calculations reveal that both excessive antisite defects and overmuch Sb doping lead to significant degradation of the Weyl cone in the field-forced FM phase. To overcome this challenge, we successfully developed an OCVT method, enabling the synthesis of stoichiometric Mn(Bi_1-xSb_x)₂Te₄ crystals with minimized antisite density. Magnetization measurements corroborate the enhanced crystal quality, evidenced by more intrinsic magnetic ordering and a p-type Fermi level shift at a given Sb doping level. The CNP occurs at a minimized Sb-doping level (x ~ 0.20), as confirmed by both ARPES and Hall effect measurements. Our optimized crystals exhibit a record carrier mobility of 2519 cm²/V·s, the highest reported to date. Furthermore, the observation of robust SdH oscillations and pronounced AHE conductivity in the forced FM state, exhibiting strong dependence on carrier type and density, provides compelling evidence for the realization of the type-Ⅱ Weyl semimetal state. These high-quality Mn(Bi_1-xSb_x)₂Te₄ crystals, characterized by low carrier density, enhanced mobility, and robust magnetism, offer an unprecedented experimental platform for exploring emergent quantum phenomena arising from the intricate interplay between band topology and magnetic order. Moreover, the inherent exfoliability of these layered materials unlocks significant potential for future investigations of rich topological phenomena in nanoflake devices, including the quantum anomalous Hall effect, axion insulator state, and Fermi-arc-mediated surface transport, paving the way for novel topological electronic and spintronic applications.

Methods

Single crystal growth

High-quality single crystals were synthesized by the OCVT method. Starting materials, including Mn (piece, 99.98%), Bi (grain, 99.999%), Sb (lump, 99.99%), and Te (lump, 99.99%), were mixed in the molar ratio of MnTe: (Bi, Sb)₂Te₃ = y: 1, with y selected between 2 and 3. For enhanced reactivity, Mn pieces were ground into fine powders. For Sb-doped crystals, a slightly higher Sb content than the target substitution level x was used, where x = Sb%/(Sb%+Bi%). The raw materials (1 ~ 2 g) were sealed in a quartz ampule under vacuum. The ampule was first heated at 600 ~ 630 °C as a pre-reaction for a uniform mixture. Subsequently, I₂ granule of around 20 mg was added with the precursors as the transport agent. The re-sealed ampule was then placed into a two-zone tube furnace (OTF-1200X-Ⅱ, Kejing) with a slight elevation at the cold end, and exposed to a temperature difference of 20 °C between the hot and cold zones. For higher Sb-doping levels, the temperature difference was increased to 30 °C. The reaction temperature was adjusted depending on the doping level (details in Supplementary Note 4). After a two-week reaction and natural cooling, shiny crystals measuring several millimeters were obtained at the cold end.

Component and structural characterization

Elemental composition and atomic percentages of the single crystals were determined by energy dispersive spectroscopy (EDX, Oxford X-Max), utilizing an electron beam energy of 10 keV and an integral spectrum energy range of 20 keV. X-ray diffraction (XRD) measurements were carried out using a diffractometer (Bruker, D8 Discover) equipped with Cu K_α radiation (λ = 1.5418 Å). A 2-bounce crystal monochromator was installed in the beam path to remove the K_α2 component and get a monochromatic K_α1 X-ray (λ = 1.54056 Å) irradiating on the (001) surface of the crystals. The scanning transmission electron microscopy (STEM) imaging was performed on a double aberration corrected field emission transmission electron microscope (Themis Z, Thermo Fisher Scientific) operated at 300 kV. The probe forming semi-convergent angle is 21.4 mrad, and the semi-collection angle of High-angle annular dark field (HAADF) detector is 79–200 mrad. Scanning tunneling microscopy (STM) was performed on an OCVT-grown Mn(Bi_0.8Sb_0.2)₂Te₄ single crystal. The (001) surface, prepared by in situ cleavage under a pressure of 1.9×10⁻¹⁰ mbar, was imaged in atomic resolution with a bias voltage of −0.75 V and tunneling current of 230 pA at 77 K.

Magnetic measurements

Temperature- and field-dependent magnetization measurements were conducted using a vibrating sample magnetometer (VSM) equipped in a physical property measurement system (PPMS, EverCool Ⅱ, Quantum Design, ±9T) and VSM mode in SQUID (MPMS3, Quantum Design, ±7T). Standard quartz sample holders were used. For temperature-dependent magnetization, an external field of 500 Oe was applied under both zero-field-cooled (ZFC) and field-cooled (FC) conditions.

ARPES measurements

The ARPES measurements were performed at beamline BL13U of the National Synchrotron Radiation Laboratory (NSRL) in Hefei, China. The samples were cleaved and measured in situ under ultra-high vacuum conditions with a base pressure better than 6 × 10^-11Torr, at a temperature of 10 K. The photon energy was set to hv = 13 eV, which allowed for clear detection of the band dispersions, and the energy resolution was better than 20 meV.

Electrical transport measurements

Electrical transport measurements were performed in a commercial variable temperature insert with a Cryogenic superconducting magnet (1.6 ~ 300 K, ±12T). Clean, flat surfaces were cleaved from the as-grown bulk crystals, and aluminum wires were bonded to the surface using silver paste (DuPont, 4929 N) to form a standard six-wire Hall configuration. A voltage-controlled current source (Stanford Research System, CS580) was used to provide an alternating current at 17.777 Hz, and the voltage signals were recorded by several lock-in amplifiers (Stanford Research System, SR865).

Theoretical calculations

The first-principles calculations were performed using the projector augmented-wave (PAW)⁶⁸ pseudopotential method as implemented in the VASP code⁶⁹. The Perdew-Burke-Ernzerhof generalized gradient approximation (GGA-PBE)⁷⁰ is employed to describe the exchange and correlation functional. The plane-wave energy cutoff was set to 550 eV, with a total energy convergence criterion of 10⁻⁶ eV. All atoms in the unit cell were allowed to relax until the Hellmann-Feynman force on each atom was less than 0.001 eV/Å. The GGA + U method⁷¹ with an effective Hubbard U value of 3.0 eV was used to address the correction effects of d electrons of Mn atoms⁶. The Brillouin zone integral is implemented on a Γ-centered grid mesh of 9 × 9 × 5. Supercells that correspond to 2 × 2 × 1 of the original unit cells of MnBi₂Te₄ and Mn(Bi_1-xSb_x)₂Te₄ were used to simulate the influence of magnetic antisites or Sb substitutions at various densities.
