Computational and neural mechanisms underlying the influence of action affordances on value learning

Nature Communications volume 17, Article number: 1096 (2026) Cite this article

2966 Accesses
3 Altmetric
Metrics details

Subjects

Abstract

When encountering a novel situation, an intelligent agent must identify which actions are most beneficial for interacting with that environment. One purported mechanism for narrowing down the scope of possible actions is action affordance. Here, we examine the neuro-computational mechanisms accounting for how action affordance shapes value-based learning in a novel environment by combining a novel behavioral task with computational modeling of human behavioral and fMRI data. Our findings indicate that action affordance operates as an independent system that concurrently guides action-selection alongside value-based decision-making rather than simply exerting an initial or persistent bias on value-driven choices. These two systems engage in a competitive process to determine final action selection, governed by a dynamic meta controller. We find that the pre-supplementary motor area and anterior cingulate cortex play a central role in exerting meta-control over the two systems. Meanwhile, the posterior parietal cortex integrates the predictions from these two controllers to determine which action to select. As a result, the action-selection process dynamically takes into account both the expected value and the appropriateness of particular actions for a given scenario.

Neuro-computational mechanisms and individual biases in action-outcome learning under moral conflict

Article Open access 06 March 2023

Arithmetic value representation for hierarchical behavior composition

Article Open access 22 December 2022

Neurocomputational mechanisms of affected beliefs

Article Open access 14 November 2022

Introduction

In order to interact successfully with situations as they occur in the world, humans and other animals need to select particular actions from a very large set of possible actions based on which actions are most appropriate to the situation. One fundamental guiding principle for action selection is that actions should be selected based on their expected value, that is by how much a particular action might increase an individual’s access to rewards, or decrease potential exposure to aversive outcomes^1,2,3. A large literature has shed light on the neural and computational underpinnings of value-based action selection, including reinforcement-based mechanisms for learning which actions to select based on the future expected rewards they engender^4,5,6. However, when encountering a stimulus for the first time in a particular context, the value of that stimulus is largely unknown and the brain needs to have a strategy to reduce the extremely large set of possible actions that could be selected to a tractable set of possible actions that could form the basis of subsequent trial and error learning. One putative mechanism for this is visual affordance^7,8,9. Action affordances are features of stimuli in the world that suggest the appropriateness of particular actions, which can make the action selection problem more tractable. For example, a computer keyboard might suggest pressing or poking actions, a watering can might suggest a grabbing or clenching action, a pair of chopsticks might suggest a pinching action.

It has previously been found that affordance automatically potentiates particular actions that are compatible with properties an object or scene presented^8,10,11,12. Particularly, it has been suggested that the selection of visually guided actions is supported directly by affordance and that this affordance mechanism is in turn biased by other decision variables such as the value of choice options^13,14. However, the role that affordances might play in actually guiding learning during value-based decision-making is essentially unknown. A natural hypothesis is that affordance acts as an initial prior on value learning by, for example, subtly inflating the value of the afforded action during initial choice behavior so as to guide exploration, or alternatively, affordance might act as a constant yet moderate tug on action selection, persistently increasing the likelihood that an affordance-based action is selected in spite of the effects of value learning. Yet another possibility is that affordance-based choice and value-based choice operate as independent systems, competing for access to behavior. As we will see, our findings rather surprisingly support this latter possibility and suggest a role for a dynamic arbitration between independent expert systems implementing affordance and value-based choice.

To investigate how affordance influences decision-making, we designed a novel behavioral task that examines conditions in which the most rewarding action aligns with an affordance-compatible action and those in which they are incongruent. The incongruent conditions, in particular, capture a fundamental aspect of real-world action learning: the need to override intuitive action affordances when adapting to novel tools, interfaces, or environments. Many everyday tasks-such as learning to use chopsticks or mastering a musical instrument-require individuals to suppress immediate, affordance-driven responses in favor of newly learned actions that lead to the desired outcome.

To systematically explore the mechanisms underlying this process, we employed a computational model-driven approach. We specified a series of computational models to capture different ways in which affordance might influence value learning and tested these models against human behavior. Additionally, we used functional MRI (fMRI) to measure brain activity and identify the neural correlates of these computational processes.

By examining how participants adjust their motor responses in response to probabilistic rewards, our study provides valuable insights into the cognitive mechanisms supporting this type of behavioral adaptation. Just as real-world learning involves trial and error, feedback processing, and reinforcement learning, our task allows us to isolate and analyze these processes in a controlled setting. Thus, the overarching goal of this study is to investigate how action affordances interact with value-based action learning across behavioral, computational, and neural levels.

In the behavioral task, participants were presented with pictures of an array of different visual objects. These objects were pre-selected to have specific action affordances based on the actions a separate group of participants rated to be most appropriate for a given object, out of three possible actions: pinch, poke or clench. In the task, when participants saw an object they could make one of those three actions in response, using a naturalistic (right) hand gesture (Fig. 1; Methods). We implemented a computer vision-based approach for the behavioral experiment, which classified a live video stream of the participant’s hand movements into one of the three gesture classes in real time (Fig. 1d; Methods). For a given object, one of these actions was associated with a higher probability of reward (winning money), while the other actions were associated with a lower probability of winning money. So for example, upon seeing a picture of a watering can, if the participant makes a poking gesture they would be most likely to win money, whereas if they make a pinching gesture they are less likely to win. Four objects (out of a set of 24 or 48 depending on the study), were encountered in a particular block of trials of 80 duration on average. Participants are instructed that their goal is for each object to select the action associated with the greatest amount of reward in order to obtain as many rewards as possible. Thus for each object, participants had to learn which action to select in order to maximize rewards. Crucially, for some objects, the most rewarded action was also the action that had the greatest affordance (congruent), while for other objects, the most rewarded action was not the action that had the greatest affordance (incongruent) (Fig. 1c). Furthermore, we included an orthogonal manipulation that controlled the reward probability such that half of the stimuli were associated with a high reward probability condition and the other half with a low reward probability condition, with the latter offering half the reward probability of the former (though in both conditions one of the actions available still had a higher reward probability than the other two). Through these manipulations, we could therefore assess the role that action affordance plays in guiding action selection alongside expected value, as well as characterizing how these two processes might interact. We ran two studies using this paradigm. An initial behavioral study (n = 19) was followed by an fMRI study (n = 30).

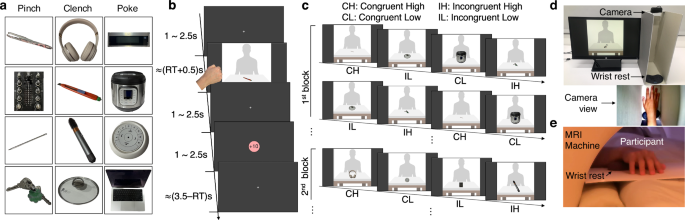

**Fig. 1: Decision-making task using naturalistic hand gestures and affordance-conferring stimuli.**

In this work, using a novel behavioral task combined with computational modeling and fMRI, we show that action affordance operates as an independent decision-making system that interacts dynamically with value-based learning. Behavioral, computational, and neural evidence reveal that affordance and value signals jointly guide action selection through a meta-controlled process. The pre-supplementary motor area and anterior cingulate cortex regulate this competition, while the posterior parietal cortex integrates their outputs to determine final actions. Together, these findings demonstrate that human action selection flexibly integrates expected value and action appropriateness to support adaptive behavior in novel environments.

Results

Effects of affordance on reaction times and action selection

We first ascertained to what extent did the affordance properties of a stimulus influence response reaction times (RTs). We expected that choice of an action compatible with the dominant action affordance for an object would be associated with shorter RTs than choice of an affordance incompatible action regardless of the presence of ongoing value learning^10,11,12. RTs were defined as the interval between the stimulus onset and initiation of movement, and were indeed found to be significantly shorter when making affordance-compatible actions compared to affordance-incompatible actions in both the behavioral and fMRI data even when participants were freely exploring the environment for finding the most rewarding hand gesture (Fig. 2a,f; for details on the reaction time measurement, see Methods). Moreover, the difference in RT remained consistent throughout. The average RT difference between the first 5 trials and the last 5 trials was not significantly different in either dataset (t(18) = -1.329, p = 0.20 in the behavioral and t(29) = 0.7592, p = 0.45 in the fMRI data). We also found that the RTs were influenced by value-learning, in that participants were faster to respond to stimuli with higher expected value than stimuli with lower expected value (Supplementary Fig. 1). Thus, to disambiguate the effects of affordance on RTs from other possible confounding variables such as experimental condition, action type, choosing the most-rewarding action, and the progress of learning across trials, all of which are associated with value learning, we conducted mixed-effect linear regression which included each of these effects as potential confounding covariates. Even after accounting for these confounds, the effect of affordance on RT remained significant (Supplementary Table 1; β = − 0.026, z = − 2.66, p≤0.01 for selecting affordance-compatible actions in the behavioral experiment, and β = − 0.029, z = − 3.02, p≤0.01 in the fMRI experiment, which indicates that RTs for affordance-compatible actions were about 2.7% shorter). These results not only confirm that our experimental paradigm and stimulus set reliably induce affordance-related response preparation effects, but also reveal that the reaction time effect due to stimulus-response compatibility persists regardless of the effects of value-learning.

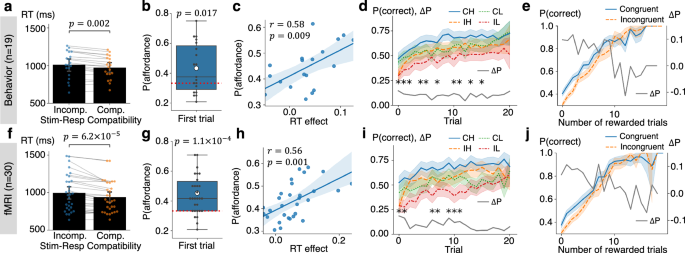

**Fig. 2: Behavioral effects of affordance during value learning and decision making.**

Next, we aimed to examine the effect of affordance on which action was chosen on a given trial. Specifically, we hypothesized that the affordance associated with a particular object would bias choices in favor of the afforded action, independently of the expected value of that action. To test for this, we analyzed the initial responses participants made to each object, as those are the actions not affected by value learning. The probability of selecting affordance-compatible actions as the initial response was significantly higher than chance (1/3) in both datasets (Fig. 2b,g). Furthermore, those initial actions were biased toward the afforded action that each object was selected to confer based on the initial affordance ratings we previously obtained in a separate sample (Supplementary Table 2; χ² test; null hypothesis was the probability distribution of choosing each action type independent of the affordance of objects calculated using the choice data; χ²(2, N = 304) = 9.33, p≤0.01 for pinch, χ²(2, N = 304) = 16.02, p≤0.001 for clench, χ²(2, N = 304) = 21.12, p≤10⁻⁴ for poke in the behavioral experiment; χ²(2, N = 240) = 17.91, p≤0.001 for pinch, χ²(2, N = 240) = 16.18, p≤0.001 for clench, χ²(2, N = 240) = 16.54, p≤0.001 for poke in the fMRI experiment). Moreover, the initial selection bias remained constant throughout the task for all new objects introduced over the course of the experiment (Supplementary Figs. 2a and 2c for details). This observation rules out an alternative explanation regarding the initial selection bias which posits that participants might have gradually inferred that the structure of the task is such that affordance-compatible actions are the most-rewarding action in half of the trials, and thus, the baseline probability for selecting affordance-compatible action would be 1/2 rather than 1/3. According to this hypothesis, the initial selection bias toward affordance-actions would be expected to increase as the task progresses as participants become more aware of the task structure with increasing experience. However, the actual data contradict this notion by showing that the initial selection bias remained stable and did not increase as the task progressed in both the behavioral and fMRI studies.

To further ensure that the observed initial bias toward affordance-compatible actions was not merely driven by prior familiarity or semantic associations with the presented objects, we examined participants’ familiarity ratings for all stimuli used in the behavioral and fMRI experiments. This analysis was designed to rule out the possibility that the effect reflected only conceptual knowledge about objects, rather than the physical properties inferred from their visual features. The familiarity scores varied substantially across items (66.45 ± 24.62 on a 0−100 scale, Supplementary Fig. 3). However, the difference in the probability of selecting affordance-compatible actions on the initial trial between unfamiliar objects (familiarity score < 66.45) and familiar objects (familiarity score ≥ 66.45) was not significant (t(18) = 1.529, p = 0.144 in the behavioral, t(29) = 0.001, p = 0.996 in the fMRI). These results indicate that the initial bias toward affordance-compatible actions cannot be explained by familiarity or semantic factors alone and instead arises from the physical affordances implied by the objects’ visual characteristics.

On top of that, we observed significant positive correlations across participants between these two distinct affordance-related bias effects on choice. We computed the degree of RT bias as the additional reaction time for executing affordance-incompatible actions relative to affordance-compatible actions (RT effect $=\frac{{{{{\rm{RT}}}}}_{{{{\rm{incomp}}}}}-{{{{\rm{RT}}}}}_{{{{\rm{comp}}}}}}{{{{{\rm{RT}}}}}_{{{{\rm{comp}}}}}}$) for each participant and compared it to the frequency of choosing affordance-compatible actions throughout the task. Significant correlations were observed between the two metrics in both datasets (Fig. 2c,h), and moreover, the RT effect positively correlated with the frequency of selecting the affordance-compatible action as the initial response to each object (Supplementary Figs. 2b,d; Pearson r = 0.41, p = 0.08, df = 17 in the behavioral, Pearson r = 0.58, p≤0.001, df = 28 in the fMRI experiment). These findings suggest that both forms of affordance-related biases on choice behavior are related and have a shared substrate.

Affordance influences value learning

The pronounced action selection bias toward the afforded action also influenced value-learning and contributed to the choice accuracy difference between congruent and incongruent conditions. To be specific, selection of the most rewarding action for each object was significantly greater in the congruent than in the incongruent conditions (t(18) = 2.50, p≤0.05 in the behavioral, t(29) = 3.25, p≤0.01 in the fMRI experiment). However, the bias toward selecting actions based on affordance was most evident in the early phase of the interaction with each specific object and diminished across subsequent trials involving that specific object. As demonstrated in Fig. 2d,i, statistical tests on the difference in choice accuracy between congruent and incongruent conditions in each trial revealed that the affordance effect was significant on early trials within a block but became less pronounced as learning progressed in both experiments.

Because the exploration of choice options is biased by action affordance, participants are likely to need more trials to experience positive outcomes in incongruent than in congruent conditions. Therefore, the choice accuracy difference between congruent and incongruent conditions might be due to an affordance bias operating on the choice process rather than reflecting the effects of impaired value learning.

To analyze the influence of affordance on learning further, we examined the choice accuracy difference between congruent and incongruent conditions as a function of the number of rewarded trials previously encountered. The analysis indicates that learning slopes were actually steeper in the incongruent conditions, as evidenced by a decreasing pattern in the difference between the two learning slopes from each condition (Fig. 2e,j). Mixed-effect GLM analyses confirmed that the choice accuracy difference between the conditions is decreasing and that the incongruent condition has a steeper slope than the congruent condition (Fixed-effect coefficients for the gradient of the choice accuracy difference ΔP : β = − 0.010, z = − 3.16, p≤0.01 in the behavioral, β = − 0.009, z = − 2.97, p≤0.01 in the fMRI experiment; Supplementary Table 3).

As previously mentioned, two possible explanations might account for this effect: first, it is possible that participants go through a longer exploration phase between receiving rewards in the incongruent conditions, which might support counterfactual learning during exploration, leading to steeper learning^15,16. In such scenarios, using a reinforcement learning (RL) model that incorporates negative learning signals to update the values of unchosen actions in the trials without rewards would be sufficient to account for the learning effect, as such a model could capture counterfactual learning. Alternatively, it is plausible that behavioral adaptation based on reward history is more sensitive in the incongruent conditions. This could result from having a higher learning rate in incongruent conditions, or it could be due to the exertion of a higher level of cognitive control on incongruent conditions resulting in decisions that are more heavily reliant on learned values^17,18,19.

As we will see, the computational modeling we implement supports the notion that cognitive control is allocated to balance the influence of affordance and value-learning in order to govern task performance (see below).

We also plotted the learning slope in high and low conditions as the function of the number of rewarded trials previously encountered. However mixed-effect GLM analyses revealed there is no statistically significant decrease in the difference between high and low conditions (Fixed-effect coefficients for the gradient of the choice accuracy difference ΔP: β = − 0.006, z = − 1.30, p = 0.20 in the behavioral, β = − 0.010, z = − 0.66, p = 0.51 in the fMRI experiment; Supplementary Fig. 4).

Dynamic meta-level control merging affordance-based and value-based decision-making best explains behavior

To investigate the underlying computational mechanism responsible for these behavioral effects, we implemented various computational models, fit those to participant’s behavioral data and then performed a formal model comparison (see Methods for details; Fig. 3a). We applied an RL model to capture value learning. We then modeled the degree of affordance assigned to each action for each object using the affordance-compatibility scores for the hand gestures for each object provided by the participants themselves after the completion of the value-based choice task.

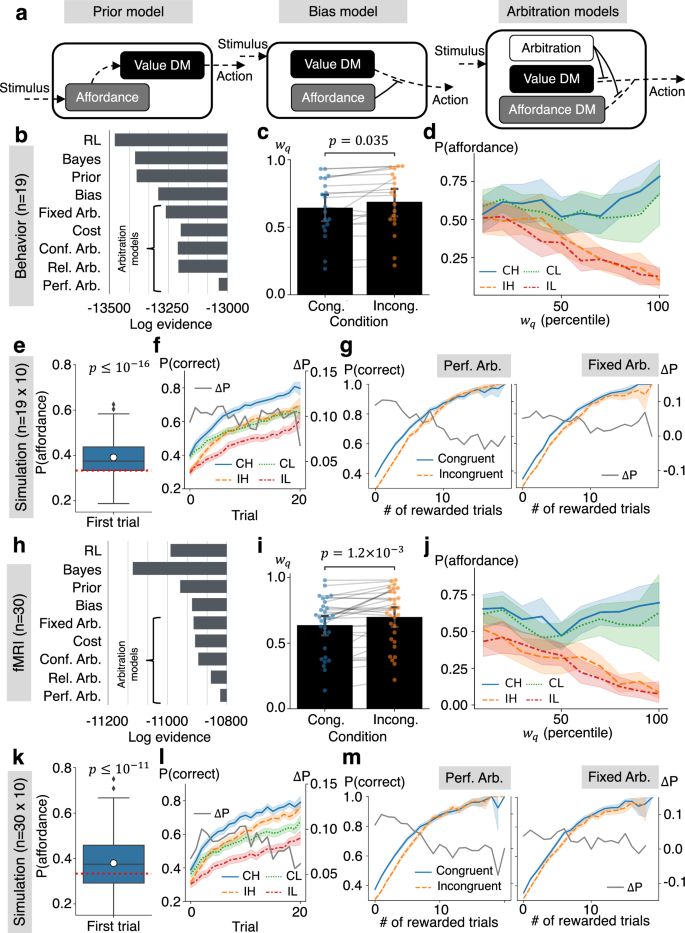

**Fig. 3: Computational model comparison, and the simulation results from the best model.**

We also tested the possibility that value learning could be supported by Bayesian inference rather than RL (Bayes model)²⁰. Although Bayesian learning offers a normative framework for optimal belief updating, we found it less well-suited for capturing the flexible and sometimes suboptimal behavioral patterns observed in our task. We implemented several Bayesian variants, including models where affordance was incorporated either as a prior or as a bias influencing belief updates. However, these Bayesian models consistently showed poorer fits to the data compared to RL models (See Fig. 3), which allowed for more expressive adaptation to feedback. Given the greater flexibility of RL and its empirical success in modeling value-based choice behavior, we focused our subsequent modeling efforts on RL-based models.

One simple way in which affordance might influence choice is via a constant action-selection bias – essentially providing a constant push toward choosing the afforded action on each trial over and above other considerations such as value. Another possibility is that affordance acts as an initial prior operating on the initial value of the afforded action. If the afforded action is presumed to have a higher initial value than the other actions, this could produce a bias toward choosing that action more often at the beginning of a block. We implement both of these possible biases in separate RL models, either as a bias in the decision variable (bias model), or as a bias in the initial values assigned to an action before the onset of reinforcement-learning (prior model).

In addition, based on the observation that the steeper learning slope in incongruent conditions (Fig. 2e,j) could be captured by cognitive control resulting in a greater focus on value in the incongruent conditions, we explored models inspired by the concept of a mixture of experts²¹. In this class of models, we assumed that two different decision-making systems are concurrently making predictions about the appropriate action for a given object. The first system is an affordance-based decision-making system, which simply makes choices in a manner proportional to the degree of affordance attached to particular actions, while the second system is a value-based decision-making system, by which actions get selected based on their learned expected values. Additionally, we assumed a meta-level controlling mechanism that arbitrates between the two systems and mediates the influence of the two systems in selecting actions. Four candidate arbitration mechanisms were tested.

The first model assumes that the outputs from the two systems are mixed with a fixed weight, which is conceptually similar to the bias model (Fixed arbitration model). We also tested a model that assumed affordance acts as a cost that makes the outcome from selecting affordance-incompatible actions less rewarding, thereby hindering selection of affordance-incompatible actions. This component was added on top of the fixed arbitration model (Cost model)²². The second type of arbitration model gave a boost in control to the value-based decision-making system, when the two systems made conflicting predictions, which mainly happened in incongruent conditions (Conflict-based arbitration model)^23,24,25. The third model type assigned a greater degree of control to the system that had the lower level of prediction errors, or a higher level of reliability in its predictions, so that participants could minimize the uncertainty in predicting the values of each action. The reliabilities of each system were estimated using the absolute value of reward prediction errors (RPE) or affordance prediction errors (APE), which is the difference between the outcome and the affordance compatibility of the chosen action (Reliability-based arbitration model)^21,26,27.

The last type of model allowed for a larger influence from a system that had higher expected outcomes when the decision maker followed that particular system in making a decision^18,22. By doing so, the decision maker can maximize the outcome they can collect (see Methods for details). The performance of each system, or the expected outcome by following the specific decision-making system to a given object, was estimated using a method called inverse propensity scoring^28,29, which was implemented in a form of delta rule supported by performance prediction errors (PPE) within each system. (Performance-based arbitration model; see Methods for details).

As illustrated in Fig. 3b,h, the performance-based arbitration model was found to best explain the actual choice data in terms of group-level log model evidence. Additionally, the Bayesian model selection results showed that the posterior model frequency and protected exceedance probabilities were in agreement with the above model comparison results (Supplementary Fig. 5). It is noteworthy that the task design used in this study had sufficient power to differentiate between the various decision-making models tested. For example, the performance-based arbitration model could be well recovered when the actual data generative process was based on itself. When the performance-based model provided the best fit for a given individual’s data, the probability of the performance-based model being the true generative model of the data was found to be 0.89 (Supplementary Table 4; Methods).

In addition, the variables extracted from the best performing model suggest that the congruency between affordance and value determines how the meta-level controller weighs each system. Specifically, the arbitration weight on value-based decision-making was found to be higher in incongruent conditions (Fig. 3c,i; t(18) = 2.28, p≤0.05 in the behavioral; t(29) = 3.59, p≤0.01 in the fMRI data). We also observed that how often rewards were given on recent trials increased the arbitration weight toward value-based decision-making²². In the high conditions where rewards were given more frequently, the weight on the value-based decision-making system was higher (Supplementary Figs. 6a,f; t(18) = 2.53, p≤0.05 in the behavioral study; t(29) = 3.77, p≤0.01 in the fMRI study). Moreover, those trials with less weight on value-based decision-making were also trials in which the actual choice was compatible with the afforded action more often (Fig. 3d,j). We also observed that those participants who exhibited higher accuracy in selecting the most rewarding hand gestures were the individuals who also had a higher average arbitration weight assigned to the value-based decision-making system (Supplementary Figs. 6b,g; Pearson r = 0.62, p≤0.01, df = 17 in the behavioral, Pearson r = 0.65, p≤0.001, df = 28 in the fMRI experiment).

Furthermore, through model simulations utilizing the estimated parameters, we observed that the performance-based arbitration model could very closely replicate behavioral patterns found in the real choice data. In the simulated data, initial action selection was biased toward affordance-compatible actions and this bias was consistent across the blocks (Fig. 3e,k; Supplementary Fig. 8) as found in the real data described earlier. The simulated learning curves also exhibited a close correspondence with the actual learning curves in each condition, and the choice accuracy gap between congruent and incongruent conditions showed a tendency to be larger in the earlier trials of each object, which was consistent with the actual data (Fig. 3f,l; Fixed-effect coefficients for the gradient of the choice accuracy difference ΔP : β = − 0.001, z = − 2.26, p≤0.05 in the behavioral, β = − 0.001, z = − 1.50, p = 0.13 in the fMRI data simulation; Supplementary Table 5).

It is notable that, apart from the performance-based arbitration model, simulations using other types of arbitration model did not show an initial action selection bias or a gradual decrease in the choice accuracy gap between congruent and incongruent conditions (Fig. 3e,f,k,l; Supplementary Fig. 9). Although the cost and the conflict-based arbitration models could exhibit several properties of the actual choice data with specific ranges of free parameters, simulations using the fitted parameters could not reproduce the patterns from actual choices (Supplementary Fig. 9). For example, the choice accuracy gap was increasing in the cost model, which is the opposite pattern from the real data. The conflict-based arbitration model did not show a statistically significant bias toward affordance compatible actions in the initial trial. Moreover, in this model, the simulated choice accuracy in incongruent condition was even better than, or not statistically significantly worse than, that in congruent condition, which contradicts the actual data (P(correct∣incongruent) − P(correct∣congruent) of the conflict-based arbitration model; t(189) = − 3.12, p≤0.01 in the behavioral data simulation, t(299) = − 0.69, p = 0.49 in the fMRI data simulation). The fixed and the reliability-based arbitration models could reproduce the initial action selection bias, but the gradient of the choice accuracy gap between congruent and incongruent conditions was marginal compared to that from the performance-based arbitration model (Supplementary Table 5).

Additionally, when model-simulated learning curves were plotted as a function of the number of rewarded trials similar to Fig. 2e,j, the performance-based and reliability-based arbitration models could reproduce the real behavioral patterns, but not the fixed arbitration model (See Fig. 3g,m; Supplementary Fig. 10 and Supplementary Table 6). For example, the difference between the congruent and incongruent conditions in terms of frequency of choosing correct actions as a function of the number of rewarded trials was only decreasing in the simulated data using the performance-based and the reliability-based arbitration models, but not statistically significant in the fixed arbitration model’s simulated choices (Fixed-effect coefficients for the gradient of the choice accuracy difference ΔP: performance-based arbitration model’s β = − 0.007, z = − 6.64, p≤0.001 in the behavioral, β = − 0.008, z = − 8.81, p≤0.001 in the fMRI data simulation; reliability-based arbitration model’s β = − 0.003, z =− 3.08, p≤0.01 in the behavioral, β = − 0.004, z =− 4.28, p≤0.001 in the fMRI data simulation; fixed arbitration model’s β = − 0.001, z = − 0.91, p = 0.36 in the behavioral, β = 0.001, z = 0.62, p = 0.54 in the fMRI data simulation).

Nonetheless, the steeper learning slope we observed might be due to a potentially higher learning rate in the incongruent conditions. To explore this possibility, we fit the data with a fixed-arbitration model that incorporates two distinct learning rate parameters, one for incongruent conditions and another for congruent conditions. However, our analysis revealed no significant difference in learning rates between congruent and incongruent conditions (t(18) = − 1.16, p = 0.26 in the behavioral, t(29) = 0.73, p = 0.47 in the fMRI data). Additionally, the model with two distinct learning rates exhibited lower log evidence compared to the single learning rate model and was unable to replicate the decreasing performance gap observed between congruent and incongruent conditions (see Supplementary Fig. 11). Moreover, we could eliminate the possibility that the presence of counterfactual learning alone is sufficient to demonstrate the steeper learning slope. With the implementation of counterfactual learning through the updating of values for unchosen actions in unrewarded trials, it is clear that counterfactual learning on its own falls short of replicating the actual behavioral data (see Methods and Supplementary Fig. 12). These results collectively indicate that the observed steeper learning slope in incongruent conditions is due to a dynamic arbitration mechanism that boosts the better working system for a given situation, rather than being a result of counterfactual learning in unrewarded trials or the effects of a larger learning rate in the incongruent conditions.

In addition, the non-decreasing difference between high and low conditions in terms of the frequency of choosing correct actions as a function of the number of rewarded trials could be captured by all tested arbitration models (Supplementary Fig. 13, Supplementary Table 7 and Supplementary Note 2)

Consequently, through rigorous model comparisons and simulations, we identified performance-based arbitration as the best candidate model for explaining the behavioral data, both quantitatively and qualitatively.

To further rule out alternative explanations, we additionally implemented and tested a series of simpler models. These included two passive-decay models in which the affordance bias decreased over time according to either an exponential or hyperbolic decay function, as well as a restricted arbitration model in which the arbitration weight was determined solely by the reliability of the value-based decision system. All of these models were significantly outperformed by the full arbitration models that incorporate dynamic performance or reliability tracking across both systems (see Supplementary Fig.14). Moreover, simulations from these simplified models failed to capture a key behavioral feature: the decreasing gap between congruent and incongruent conditions in the frequency of correct action selection as a function of the number of rewarded trials. In both the decay-based and the value-reliability-only models, this gap failed to decrease significantly (see Supplementary Fig. 15). These findings suggest that neither a passive transition away from affordance-driven behavior nor an arbitration process based only on value reliability is sufficient to explain the observed data. Rather, a dynamic, bidirectional arbitration mechanism-tracking the performance or reliability of both systems-is necessary to reproduce the behavioral effects.

Another question that arises from our findings is the temporal dynamics between affordance-based and value-based processes. We considered behavioral approaches to explore this question. A speeded decision-making paradigm, for instance, could reveal whether one system dominates earlier in the decision process. If value information emerges later than affordance-based processes, then performance in incongruent conditions should be poorer during speeded decisions compared to slower ones, even post-learning. Conversely, if affordance-based processes come online later, participants should perform better in speeded decisions and worse in slower ones in incongruent conditions. Alternatively, if a central arbitration mechanism governs the integration of these processes, no significant performance differences would be expected across speeded and non-speeded decisions in incongruent conditions.

Since our study did not employ a speeded decision-making paradigm, we instead conducted supplementary analyses to compare trials with quick versus slow reaction times. GLM analyses on incongruent trials revealed that both choosing correct actions and affordance-compatible actions were associated with shorter RTs. Notably, the coefficient for choosing affordance-compatible actions was significant only in the behavior-only study, but not in the fMRI study (Supplementary Table 8; β = − 0.034, z = − 2.47, p≤0.05 for selecting affordance-compatible actions in the behavioral experiment, and β = − 0.026, z = − 1.57, p = 0.116 in the fMRI experiment). While performance was better in fast RT trials, slow RT trials were not consistently biased toward affordance-based decisions across studies. Therefore, we cannot definitively conclude that affordance acts as a consistent bias for value-based decisions or vice versa.

Next, we explored the neural implementation of affordance-based action-selection and its influence on value-based action-selection by utilizing computational variables from this model in the analysis of the fMRI data.

Neural correlates of affordance, value-learning, and action selection

We conducted a GLM analysis that included the chosen action’s affordance-compatibility score, action value and action selection probability from the performance-based model as parametric regressors to identify the regions associated with affordance and value-based decision-making respectively, as well as to uncover an action selection region responsible for integrating the predictions from these two systems to guide action-selection (GLM1; See Methods for details).

First of all, we found that the affordance-compatibility of the chosen action on each trial was encoded in the higher-level ventral visual stream such as V3 and V4 in the left occipital lobe which is the region that has been suggested to be responsible for affordance-perception or object recognition and processing physical properties such as shape and size that are necessary for hand gesture control (Fig. 4a)^30,31,32,33 The chosen action value from the performance-based arbitration model was found in medial prefrontal cortex (mPFC) which is the region that has been implicated in the encoding of learned value (Fig. 4b)^34,35,36.

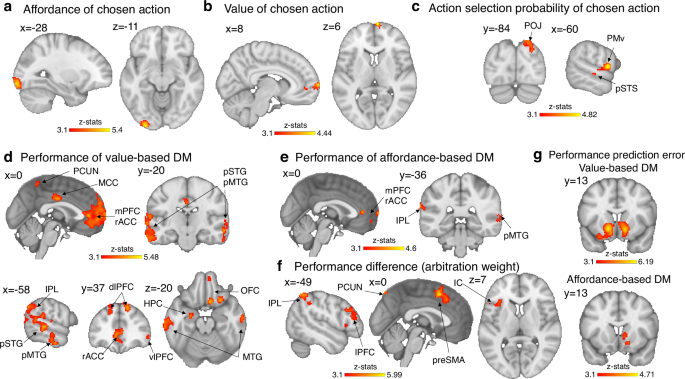

**Fig. 4: Neural implementation of performance-based arbitration.**

Regions correlating with the action selection probability of the chosen action, which is the integration of the predictions from value-based and affordance-based decision-making systems were located in the posterior parietal cortex (PPC) near the parieto-occipital junction (POJ), ventral premotor cortex (PMv), and the posterior superior temporal sulcus (pSTS) all of which are parts of the cortical grasping circuit (Fig. 4c)^33,37,38,39. Notably, these identified regions are responsible for not only performing the hand gesture itself but also integrating different sensory modalities related to manual actions⁴⁰.

To ensure that regions correlating with the probability of the chosen action were not merely reflecting the effects of action execution vigor, we conducted an identical GLM analysis but incorporated RT as an additional parametric regressor⁴¹. These regions remained significant (at an uncorrected threshold of p < 0.001) suggesting that the regions are associated with the weighted sum of affordance-based and value-based decision-making systems rather than merely reflecting movement vigor (Supplementary Fig. 16).

Moreover, we extracted coordinates of the right-hand joints from the recorded hand videos and included them in the GLM as a parametric regressor in order to control for any potential confounding effects arising from the effects of hand movements per se (See Methods for details). While we found action selection related signals in various regions of the cortical grasping circuit, the actual motor implementation of the hand gesture was correlated with activity in the left primary motor cortex, left premotor cortex, left primary somatosensory cortex, and bilateral inferior parietal lobule (IPL) (Supplementary Figs. 17c-f).

Another GLM analysis using the second best fitting reliability-based arbitration model was conducted as well, which identified mostly overlapping regions for each of the cognitive variables (GLM2; See Supplementary Figs. 18a-c, and 16).

Neural implementation of the meta-level controller

Next, we probed for brain regions responsible for the meta-level computations involved in arbitrating between value and affordance-based decision-making systems. To achieve this, we utilized arbitration-related variables extracted from the performance model as parametric regressors in a GLM (GLM3; See Methods for details).

As illustrated in Fig. 4d,e, we found that the mPFC, rostral anterior cingulate cortex (rACC), posterior division of middle temporal gyrus (pMTG), and IPL to be associated with the performances of both systems. The posterior division of superior temporal gyrus (pSTG), dorso and ventro lateral prefrontal cortex (dlPFC, vlPFC), mid-cingulate cortex (MCC), orbitofrontal cortex (OFC), precuneous cortex (PCUN), and hippocampus (HPC) were correlated with the performance of value-based decision-making but not with the performance of affordance-based decision-making.

In addition, we observed that the signal corresponding to the difference in performance between the two decision-making systems (Perf_aff − Perf_q), which determines the arbitration weight, was present in the pre-supplementary motor area (preSMA), lateral prefrontal cortex (lPFC), and insular cortex (IC) (Fig. 4f). We also found that the IPL and PCUN were regions correlated with the difference in performance between the affordance and value-based decision-making systems. These regions have been shown to be associated with the implementation of cognitive control^{18,42,43,44,45}. Interestingly, our findings indicate that the regions identified were less activated when the value-based decision-making system was allocated more weight.

Similar to the RPE signals (Supplementary Fig. 17a), the variables responsible for updating arbitration weights, which are also outcome-dependent prediction error signals, were found in the striatum (Fig. 4g). Specifically, the PPE of the value-based decision-making system was prominently encoded in the ventral striatum, while the PPE of the affordance-based decision-making system was found in the dorsal striatum.

Additionally, we attempted to identify changes in functional connectivity between the action selection region and other identified regions (chosen value, chosen affordance, performance of value, or performance of affordance) when there is a competition between actions, and presumably weighing more on the value-based choice for the final decision. However, we did not find a statistically significant change in functional connectivity. (For additional details, see Note 4 in the Supplementary Materials.)

In addition to investigating neural correlates for the performance-based arbitration model, we also tested for regions correlating with reliability-based arbitration which was the second best fitting model in our model comparison (GLM4). We also found clear neural correlates of reliability-based arbitration signals (Supplementary Fig. 17b and Supplementary Figs. 18d-g). In particular, we found the regions that correlate with the difference between the reliabilities of the two systems largely coincide with those identified using the performance-based arbitration model, particularly the preSMA. It is noteworthy that the average correlation between the arbitration variables of the two models were small(r = 0.196 in the fMRI data and r = 0.159 in the behavioral data). Therefore, the most plausible explanation is that each model captures distinct variance in activity in the preSMA. These findings indicate that the brain keeps track not only of the performance of the different systems but also of their reliability, suggesting that both variables might ultimately be taken into account during the arbitration process.

Better task performance is linked to a more robust representation of arbitration variables in meta-level controller regions

Next we explored the relationship between individual differences in task performance and representation of the arbitration variables. We found that individuals with higher task performance demonstrated more robust representations of the arbitration variables such as the performances of the two systems and the difference in performance between the two systems in brain regions involved in encoding arbitration-related variables. To be specific, we found positive correlations between each participant’s propensity to choose the most rewarding actions and the extent to which BOLD activity in the identified arbitration regions can be explained by our model-derived arbitration variables.

For instance, in those participants who tend to be more accurate in choosing the correct actions, the computational variable corresponding to the difference in performance between the two decision-making systems provided a better account of BOLD activity in the arbitration regions shown in Fig. 4f (r = 0.47, p≤0.01; Fig. 5a, See Methods for details). Moreover, in those participants who achieved higher accuracy in choosing the most rewarding actions, brain regions involved in representing the computational variables corresponding to the performance of each individual system were more correlated with the model-estimated performance variables (r = 0.38, p≤0.05 for the performance of the affordance-based system; r = 0.43, p≤0.05 for the performance of the value-based system; Fig. 5a). However, the strength of the neural representation of the within system computational variables produced by each system relevant for decision-making did not show statistically significant correlations with the participants’ accuracy (r = 0.23, p = 0.22 for the affordance; r = 0.08, p = 0.68 for the value; Fig. 5a). These findings, suggest that more robust neural representations of performance-based arbitration are associated with better behavioral performance on the task, providing additional evidence in support of the role for an arbitration process in mediating effective interactions between value-based and affordance-based action selection (Analogous results were also found for the reliability-based arbitration model; see Supplementary Fig. 19).

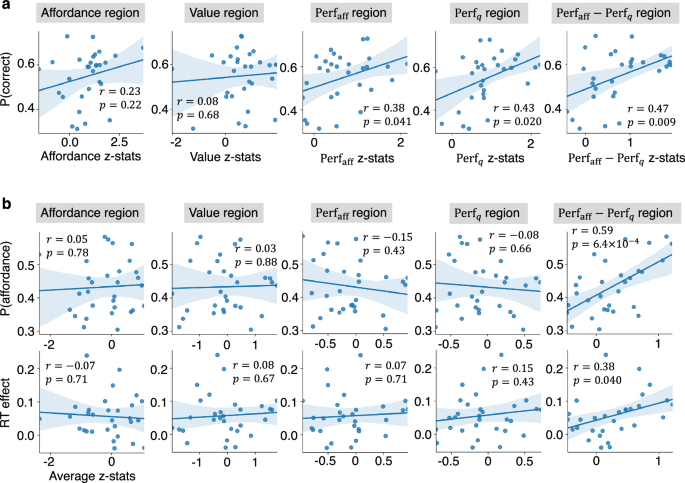

**Fig. 5: Correlations between behavioral effects and neural representations.**

We also found that those individuals with a stronger behavioral affordance effect exhibited increased activation of performance-based arbitration regions when executing affordance-incompatible actions. Such individuals likely have to exert stronger behavioral control to suppress the prepotent affordance compatible action compared to individuals with a lower overall affordance effect in their behavior. To test for this, we looked at the relationship between the overall proportion of affordance compatible actions chosen by each individual and activation on trials where the affordance incompatible action was chosen compared to when it was not chosen (GLM5; See Methods for details). A significant correlation was observed in performance-based arbitration regions (Perf_aff − Perf_q regions in Fig. 4f; r = 0.59, p≤0.001; Fig. 5b). A similar effect was found when examining the relationship between the reaction time increase when executing affordance-incompatible actions compared to affordance compatible reaction times, and activity in those areas (r = 0.38, p≤0.05; Fig. 5b; See Methods for details). These findings suggest that regions involved in arbitration including the preSMA, have an important role in suppressing the prepotent affordance response, especially in those individuals who have a stronger overall bias toward affordance effects⁴².

Discussion

We provide evidence that action affordance plays a key role in shaping value-based action-selection and learning in humans. Action affordance and value-based decision-making were found to interact to guide behavior. Affordances were found to both influence reaction times, such that actions compatible with the affordance are selected more rapidly regardless of the effects of ongoing value learning, as well as biasing choice toward the afforded action, an effect that was most prominent in the early trials.

In order to understand the mechanism by which action affordance influences instrumental value learning, we implemented and tested a series of computational models. We found that the effects of affordance on choice behavior are not well described by either a simple bias in action-selection or an initial prior boosting the value of afforded actions. Instead, a form of dynamic arbitration was found to best explain behavior on the task. According to this framework, two separate systems operate in parallel, a value-based system and an affordance-based system, and the determination of which system contributes most to behavior at any one time is based on estimates of the relative performance of the two systems. This neuro-computational mechanism provides a potential explanation for the problem of how humans learn appropriate actions in the absence of clear information about their value. Given that a very large family of actions could be implemented in any given situation, it is highly beneficial for the set of actions available for selection to be constrained by properties of the visual environment such as object affordance. This can help make the action-selection problem more tractable, and provide a scaffold for selecting actions so as to explore and learn about value during initial exploration.

In the brain, consistent with our computational model-based findings, we found evidence for the existence of distinct affordance-based and value-based decision-making systems. While the value of the chosen action was found in medial prefrontal cortex, the affordance of the action chosen on a given trial showed a positive correlation with activity in the visual pathways of the occipital cortex, including regions V3 and V4^30,34,35,36. This finding suggests that the occipital visual areas, crucial for recognizing an object’s physical properties and identity, are more engaged when an action compatible with the object’s affordance is chosen^31,32,33. Conversely, when an action irrelevant to the object is selected, these characteristics are less involved in the final action selection and motor execution process.

Moreover, our study revealed that the overall integrated choice probability, which is the integration of value and the compatibility of certain actions to the shown object, is associated with activity in the PPC. The PPC is known for representing object-associated hand movements and has been identified as a key area in reward-based decision making, especially concerning action values^{35,46,47,48,49,50,51}. Thus, our finding aligns with previous findings and supports the perspective that the PPC plays a critical role in integrating multimodal information necessary for movement execution⁵². It also unifies two different literatures on visually guided motor control and economic decision making, emphasizing the PPC’s comprehensive function in these processes.

In addition to identifying regions correlating with each strategy and their integration, we also looked for evidence of brain regions involved in meta-control over the two underlying action-selection systems. Specifically, we identified a network of brain regions tracking and comparing the performance of both strategies, including the anterior cingulate, pre-SMA, lateral prefrontal cortex, and inferior parietal lobule, regions that have been found to be involved in cognitive control in a number of previous studies^{18,42,43,44,45}. Moreover, activity within the arbitration regions served as an indicator of the likelihood that participants would choose affordance-compatible actions, as well as the extent of the stimulus-response compatibility effect on reaction times. Additionally, we found that the more activity in regions representing arbitration-related variables correlated with the relevant arbitration variables across participants, the more optimal a participant’s behavior was in terms of selection of the most rewarding actions. This finding therefore suggest a crucial role for the arbitration process between affordance and value-based decision-making in guiding optimal behavioral outcomes.

The finding of a role for an arbitration scheme governing the contribution of value-based and affordance-based choices to behavior is consistent with a mixture of experts framework²¹. In the present study, we found evidence for a role of performance-based arbitration over and above reliability-based arbitration, which we have previously investigated in relation to its role in allocating control between other strategies such as model-based and model-free RL and different forms of observational learning^26,27. While these two arbitration concepts are closely related as they are both concerned with how well a particular expert system is doing in making predictions, the precise computational variables underpinning the arbitration process is an important research question. In the present study, reliability-based arbitration was the second best performing model, outperformed only by the performance-based arbitration model. Moreover, we found evidence for reliability-based arbitration signals in the brain alongside performance-based arbitration signals and those two arbitration signals capture distinct variance in the activity of the identified arbitration regions which includes the preSMA. It is possible that both performance and reliability are playing a role in guiding arbitration between these different expert systems.

It is important to note that the arbitration process described here can be seen as a form of cognitive control. Central to our model is the concept of directing control towards the system that promises a higher expected return. This idea aligns with the Expected Value of Control (EVC) model which allocates cognitive control based on the control’s effectiveness such as expected value and cost²². According to the model, the demand for control and deciding the control intensity can be evaluated by tracking the conflict between task relevant and irrelevant information as well²⁴. However, our findings suggest that a conflict-based arbitration model, rooted in conflict monitoring theory, does not most effectively explain choice behavior in value learning contexts, despite the proposed significance of conflict signals in control allocation. In contrast, our model emphasizes allocating control towards the system with a higher expected return, a concept resonating with the EVC model’s focus on control effectiveness.

Furthermore, the well-established link between perception and action extends beyond the concept of affordance. The automatic potentiation of likely actions has also been explored from an information processing viewpoint, indicating that motor and visual representations share a common representational space^53,54, and from attention theory, which suggests that attention to a spatial location primes corresponding action plans toward that location^55,56. While efforts have been made to differentiate the affordance effect from the Simon effect^57,58,59 the necessity of affordance in explaining stimulus-response compatibility is still debated⁶⁰. Notably, the affordance effect is significant primarily when motor representation, aligned with an object’s affordance, is triggered by movement intention rather than solely by the visual stimulus^61,62. Our experiment which required movement intention for completing each trial, is particularly relevant in this context. Recent studies also suggest that affordance, or plausible actions triggered by a stimulus, impact attention allocation and other cognitive processes such as working memory and visual perception. This indicates that explaining affordance through spatial attention alone is insufficient, and that a bidirectional process must be considered^63,64,65. Our computational approach was not focused on the mechanisms behind affordance-induced stimulus-response compatibility but instead on how automatically activated actions influence learning.

Another pertinent question concerns how affordance-based action-selection relates to other forms of action-selection that are thought to exist alongside value-based decision-making. The most obvious comparison is with habits. Habits are suggested to be formed via repeated reinforcement of stimulus-response associations⁶⁶. Here, the affordances associated with particular objects were not acquired in the experiment through trial and error reinforcement, because they were manifested on the very first trial that each object was encountered and were by design kept orthogonal to the reward contingencies. Thus, they are not “habits" in the traditional sense as typically studied in the lab. However, it is possible that affordances do correspond to a type of stimulus-response association that has been historically acquired over the course of development as individuals interact with objects in their environment and learn to implement specific physical actions in response to them. In that sense, these affordances could be thought of as very well-learned habits. However, our fMRI study revealed evidence for the neural implementation of affordances and their influence on action-selection in occipital and parietal cortices, and not in areas traditionally associated with habitual action-selection such as the posterior putamen^67,68. It is possible that such extremely well learned habits come to eventually depend on the cortex and not the basal ganglia. However, within the dorsal striatum, we did find learning update signals related to meta-control that steers individuals to favor affordance-based decisions – suggesting that the basal ganglia may play a role in updating control signals related to the arbitration process between strategies, over and above its contributions to implementing individual strategies.

Alternatively, affordance-based influences on action-selection could be implemented via a much more dynamic visuomotor computation, in which specific visual features of an object guide on-line action-selection computations in which the most relevant actions for interacting with a particular object are decided upon and implemented⁶⁹. Further investigation of the specific neural computations unfolding during affordance-based action selection could help discriminate the underlying mechanisms.

Our findings contribute to the understanding of decision-making by highlighting the dynamic interplay between affordance-based and value-based systems during learning-driven action selection. Previous research has established the PPC as a critical hub for integrating decision-related variables such as reward, effort, and biomechanical costs^70,71,72,73. However, the present study furthers this understanding by demonstrating that the PPC’s role goes beyond simply aggregating desirability factors. Instead, we propose a dynamic performance-based arbitration mechanism, where the PFC functions as a meta-controller, continuously adjusting the influence of affordance and value-based systems based on their predictive accuracy. The PPC then integrates these dynamically weighted inputs to guide action selection, suggesting a more complex and adaptive decision-making process.

This performance-based arbitration model helps address limitations observed in traditional cost-based frameworks in explaining our data. Previous models that conceptualized affordances as cost-like constraints, similar to biomechanical effort, appeared less effective when modeling learning-driven decisions. Specifically, simulations based on such models predicted an increasing accuracy gap inconsistent with our empirical data To reconcile these discrepancies, we developed a model where affordance- and value-based systems operate as parallel processes moderated by performance-based meta-control from the PFC. This framework not only aligns with but also expands Glimcher and Kable’s multi-stage decision-making theory⁷⁴, emphasizing that the PPC is not merely a passive integrator but an active decision-making arena modulated by adaptive, learning-sensitive signals from the PFC. This context-sensitive mechanism highlights how the brain dynamically balances multiple decision systems to optimize behavior.

We acknowledge a potential limitation in our study arising from the use of object images instead of real objects. Images might primarily convey the object’s semantics or ’stable affordance’, constructed from people’s familiarity with the object, and not fully represent the physical properties like the object’s orientation and proximity to participants, which are also important factors in affordance perception⁷⁵. Additionally, there is a possibility that different brain regions would have been found in the present study had we used real objects. For example, it has been shown that interacting with real objects and images involve distinct visuo-motor circuitry and that object pictures are rather processed conceptually or as the object words^76,77,78. Furthermore, fMRI studies have identified parieto-occipital cortex regions sensitive to the physical properties of real objects^{79,80,81,82,83}.

Nevertheless, our data suggest that the effects we found about hand gestures associated with objects was influenced not just by participants’ familiarity and the semantics of objects, but also by their physical properties inferred from visual features of the displayed objects. In an analysis of participants’ familiarity ratings, we confirmed that the initial bias toward affordance-compatible actions could not be explained by familiarity or semantic factors alone. This indicates that choices were influenced by physical properties discernible in the images, beyond just familiarity or object identity. Furthermore, the stimuli were not arbitrarily selected but annotated by online participants viewing the same images as the on-site participants. From approximately 1000 stimuli, 48 objects significantly associated with specific hand gestures were chosen for our experiments. Thus, the affordance labels used in our study can be considered stable, taking into account the object’s orientation and virtual proximity as displayed in the stimuli.

Additionally, the automatic potentiation of action and its behavioral and neural effects have been observed even with photographic representations of objects^11,84. While planar presentation may affect visuo-motor processing, stable affordance aspects such as mechanical and functional knowledge about an object are likely unaffected⁸⁵. Consequently, our findings remain valid within the context of studying the effect of stable affordance, predominantly derived from object semantics, in value learning. However, future research utilizing real objects will be helpful for studying affordance in more ecologically valid and realistic settings.

It is noteworthy that action affordances operate across multiple levels of abstraction, extending beyond the visuomotor focus of our current study⁸⁶. Consider how we interact with a keyboard: while it affords simple physical actions like key pressing, it also enables complex goal-directed behaviors like composing emails, coding software, or creating documents. Such higher-order affordances often guide our decision-making in daily life, as they connect directly to intended outcomes rather than to specific motor patterns. Although the present study focused on basic visuomotor affordances, the relationship between affordance and value-based decision-making investigated here may shed light on how abstract affordances influence choice behavior more broadly. Promising directions for future research include examining how abstract affordances might engage additional neural pathways beyond those revealed here.”

While our study primarily examined basic motor affordances that were consistent across participants, we recognize that object familiarity may shape affordance perception in important ways. For individuals with specific expertise, objects such as car parts or electronic instruments might suggest sophisticated affordances (e.g., repair capabilities, music production) beyond the simple motor actions (pinch, clench, poke) we studied. Although we controlled for variability by selecting objects with strong statistical preferences for specific actions, the underlying neural mechanisms may differ based on familiarity. The current study was not designed to enable us to study how varying familiarity levels influence affordance perception. However, future research could address this by examining cross-cultural differences in affordance and/or by recruiting participants with diverse object-use experience. Such studies could help determine whether affordances stem primarily from learned habits or innate processes.

The findings of this study on action-affordance-based and value-based decision-making can be extended to the domain of affective affordances, offering valuable insights into substance use and addiction treatment. Relevant questions include how action affordances guide behavior by potentiating specific responses, affective affordances, such as cravings triggered by substances, elicit automatic emotional responses through learned associations. The meta-control mechanism described in the study, involving brain regions like the ACC and pre-SMA, aligns with cognitive control processes essential for regulating cravings and resisting substance-related cues in addiction^87,88. This suggests that therapies targeting cognitive control, such as cognitive-behavioral therapy or mindfulness-based interventions, could strengthen meta-control over affective affordances. Incorporating this dual-system arbitration framework into addiction treatment models may support adaptive and personalized intervention strategies⁸⁹.

Our findings also offer an important qualification to decision-making frameworks that assume a tight coupling between RT and choice, such as drift diffusion models. While these models predict that longer RTs reflect slower or more uncertain decisions along a unified evidence accumulation process, our results reveal a partial dissociation: the RT difference between affordance-compatible and incompatible actions remained robust across learning, whereas the choice bias diminished over time. This suggests that RTs in our paradigm are shaped by stable sensorimotor facilitation effects (e.g., stimulus-response compatibility), while choices reflect the dynamic arbitration between value-based and affordance-based systems. In this way, affordance exerts both automatic and adaptive influences on behavior, operating at distinct levels of the decision hierarchy.

Building on this, our findings highlight the importance of separating automatic motor influences from deliberative decision processes when interpreting RT patterns in value-based tasks. While RT is often used as a proxy for decision difficulty or uncertainty, our data suggest that this assumption may not hold in settings where stimulus-response compatibility introduces a persistent, low-level facilitation effect. To more clearly dissociate these processes, future work will benefit from paradigms that are explicitly designed to capture decision dynamics, such as those using time-pressure manipulations, sequential sampling models, or temporally resolved neural recordings. These approaches could help clarify how affordance-related signals interact with value-based evidence accumulation over time, and whether they modulate the decision process directly or operate through parallel, independent channels.

In conclusion, the present study provides evidence that human value learning is guided not only by the value of particular actions, but also by the visual affordance of objects. Rather than affordance acting as a simple bias in decision-making or prior in value learning, instead we find that affordance and value-based decision-making are best viewed as distinct expert systems that interact by means of a determination about which system is performing best in obtaining rewards.

Methods

Participants

We recruited 21 and 32 healthy participants for the behavioral-only experiment and the fMRI experiment respectively. No statistical method was used to predetermine sample size. 2 participants were excluded from the behavioral and another 2 from the fMRI experiment because they didn’t complete the study. Therefore, data from the remaining 19 (8 females, 18 right-handed; 1 ambidextrous, 18 ~ 24 years: 6; 25 ~ 34 years: 10; 35 ~ 44 years: 1; 45 years or above: 2) and 30 (13 females, 28 right-handed; 2 ambidextrous, 18 ~ 24 years: 12; 25 ~ 34 years: 12; 35 ~ 44 years: 4; 45 years or above: 2) were used for the analyses. Before taking part in the experiment, all participants were assessed to ensure that those with the history of neurological or psychiatric illness were excluded. All participants provided their informed consent. The study was approved by the Institutional Review Board of the California Institute of Technology (IR20-1033), which covered both the behavioral and fMRI experiments. Participants were compensated on an hourly basis ($20 per hour for behavioral experiments and $30 per hour for fMRI experiments), with an additional performance-based bonus of up to $5.

Stimuli

To implement the paradigm, we began by creating a set of stimuli. The stimulus set consisted of various object images, each of which was designed to engender a specific hand configuration among four hand movement classes known to be employed during object interaction: pinch, clench, poke, and palm (e.g., a button-shaped object that affords poking)⁹⁰. We first obtained 1000 images of around 900 unique objects and built a set of visual stimuli by superimposing those object images onto a human silhouette image. We designed the stimuli in this way to ensure that the visual stimuli retain information about the object’s size.

Then we used those edited photographs in an online task on Amazon Mechanical Turk (M-Turk). Each image was displayed 4 times during the task to collect annotations on the suitability, or affordance-compatibility score, of 4 hand movements to the object displayed. Within a trial, the image with the human silhouette was displayed for 2 s and the object’s zoomed-in image was shown for 1 s along with a text of one of the 4 hand gestures. Then while the zoomed-in image was on the screen for additional 8 s, M-Turk participants responded how suitable it is to pinch, clench, poke or palm the object shown by sliding a bar ranging from “Very unsuitable” to “Very suitable”. Additionally, we asked about their familiarity with the object 4 times. The affordance-compatibility and familiarity scores were both converted to 0 to 100 scale later. Throughout the task, 4 catch questions were used to check the participants’ attention.

We recruited 227 participants online, but only 160 of them were included in the data analysis as we excluded those that didn’t pass at least 2 catch trials. Each of the participants was asked to annotate 50 objects. On average, each object was annotated by 7.2 individuals.

Then we chose objects based on their 0−100 affordance-compatibility scores. For example, if an objects’ average affordance-compatibility score of pinch was >50, and the mean score of pinch was significantly larger than the mean scores of other actions (independent t-tests, p < 0.05 uncorrected), the object was chosen as a pinch-affording object. By doing so we obtained 21 pinch-, 102 clench- and 16 poke-compatible objects. Then we randomly selected 16 items from each set, yielding 48 stimuli for the main task (Fig. 1a).

Task

We designed a variant of a 3-armed bandit task in which the available actions are natural pinch, clench, or poke gestures made by the right hand, which yields binary outcomes. We used 48 visual object stimuli for the behavioral experiment and 24 object stimuli (a subset of the 48 stimuli) for the fMRI experiment. On each trial, one of the stimuli showing an object with a human silhouette was displayed, and a participant mimed one of the three hand gestures while maintaining their wrist position on the provided wrist pad (Fig. 1a,e). The images used here (including the human silhouettes) were identical in form to the selected sub-set of images initially presented in the online survey. Participants were provided with instructional videos showcasing example hand movements corresponding to each gesture type to ensure that they had a clear understanding of the hand gestures under consideration. Participants were instructed that the reward probability of each hand motion is different for each object, and that they need to figure out the most rewarding hand gesture for each object by trying different hand motions (See Supplementary Figs. 20,21 and 22 for the details). Each category of hand postures corresponded to actions with different reward probabilities, and an object was shown in a trial to evoke one of the three hand gesture affordances. There were 4 experimental conditions in this paradigm: congruent high, congruent low, incongruent high, and incongruent low conditions. In a congruent trial, an action that was consistent with the presented stimulus’ affordance had a high reward probability, whereas in an incongruent trial, the opposite applied. Each hand position had a reward probability of 0.8, 0.2, or 0.2 in the high condition and 0.4, 0.1, or 0.1 in the low condition.

The task consisted of a 2 day experiment for the behavioral-only study and a 1 day experiment for the fMRI study, with 76 ~ 84 trials (on average 80 trials) per block, and 6 blocks per day, totaling 960 trials for the behavioral study and 480 trials for the fMRI study. In each block, 4 distinct objects were displayed using the event-related design. Each object corresponded to one of the 4 conditions and was shown for an average of 20 trials (ranging from 19 to 21 trials). All objects were displayed once in every 4 trials in random order. Everyone in the behavioral-only and fMRI experiment was shown the same set of 48 or 24 objects respectively, but the associations between experimental conditions and stimuli was randomized across participants. For the counterbalancing, at most two objects within a block had the same affordance and at most two objects within a block had the same most-rewarding response. Also, the two congruent condition objects within a block had different affordances and the two incongruent condition objects had different affordances and different correct responses from each other.

Each trial lasted between 7 and 11.5 s (9.25 s on average). The trial timing is detailed in Fig. 1b. Each trial started with a jittered fixation cross (1-2.5 s), followed by the stimulus display. The stimulus was shown at most for 4 s. After a hand gesture was recognized, there was another jittered fixation cross (1-2.5 s) and a jittered reward feedback (1-2.5s). Following the reward feedback, another fixation cross was displayed for the duration of the difference between 4s and the reaction time plus the processing time for response registration. Eye-tracking data were also collected during both the behavioral and fMRI experiments but is not analyzed herein.

Following the main task, the behavioral and fMRI participants did the same online survey that the M-Turk participants completed to annotate affordance-compatibility scores and familiarity for each object. However, in this phase, the participants annotated only the 48 (or 24 in the fMRI case) stimuli that were used for the main experiment.

Response decoding

In the behavioral experiment, participants’ hand gestures were tracked by a consumer web camera (30 FPS) and decoded in real-time using a computer vision algorithm, Openpose^91,92,93,94, and a fully connected neural network (FCNN) that classifies such movement, frame by frame. For the real-time processing of the video stream, frames were first resized to 192 × 108 pixels and then inputted into BODY_25 model of Openpose with a net resolution setting -1 × 112 and an output resolution -1 × 80. The FCNN classified a participant’s hand position in a frame using an 81-dimensional vector that was created based on Openpose estimations of the 2-dimensional coordinates of 21 key points on the right hand (4 from each finger and 1 from the wrist), as well as the confidence scores of the estimations for each key point.

Specifically, the x and y coordinates of each key point were centered using the wrist location, and then scaled based on the x-directional distance between the left-most and right-most key points, as well as the y-directional distance between the bottom-most and the top-most key points in the current frame. The 81-dimensional input to the FCNN was then built using those centered and scaled x, y coordinates of each key point except for the wrist (20 × 2 dimensions), their sum of squares representing the distances between each key point and the wrist (20 dimensions), and confidence scores of the 21 key point estimations (21 dimensions).

The neural network classifier comprised of 3 hidden layers (128, 64, and 32-dimensions, respectively, from low to high layers) and a 4-dimensional softmax output layer in which each unit was associated with one of four hand gestures: pinch, clench, poke, or palm. The deep network classifier was trained using videos of hand motions that were labeled frame-by-frame. The training videos featured hand gestures of 2 males and 2 females, and the total duration of the videos were 40240 frames. We used MLPClassifier function from Sklearn 0.23.1 with lbfgs optimizer and learning rate 10⁻⁵.

A response in a trial was registered as a valid action only when all frames for 500ms were classified with a probability >95% into one specific hand gesture. To ensure consistency in the starting hand position across trials, it was required that each trial begins with a hand position classified as the palm position by the deep network. The classifier classified responses with 93.2% accuracy and misclassified responses were manually corrected after the experiment (and we then used the correctly decoded action in the subsequent analyses—those ~ 7% errors trials would have produced outcomes with differing probabilities to that intended according to the experimental design, but this variation would not have been noticeable to the participants and was fully accounted for in subsequent data analysis involving the computational models). Reaction times were measured by calculating the time difference between the stimulus onset and the frame where the hand gesture was initiated from the resting palm position using the recorded videos of hand gestures.

In the fMRI experiment, decoding of participant’s actions was found to be much less reliable with the machine-learning algorithm we used successfully in the behavioral study, because participant’s hand position was occluded by the MRI bore. Consequently, we resorted instead to manually decoding each gesture in real-time. Participants’ hand gestures were monitored by the experimenter using a low light USB camera (See3CAM_CU30, 40 FPS), and the footage was displayed in the control room in real-time. The experimenter manually but rapidly categorized the movements into one of 3 hand gesture categories (pinch, clench, or poke) thereby enabling participants to interact with the task in real-time. The registered responses were double-checked after each experiment by replaying the recorded video stream, revealing that <0.1% of the responses were mistakenly classified during the task performance phase. These error trials were corrected prior to the subsequent data analysis to reflect participant’s intended responses. RTs were calculated using the identical method used for analyzing RTs in the behavioral data.

Computational modeling of behavior

We tested 9 different models to identify the computational mechanism that best explains the behavioral data. The models were fit to each subject data separately using the Computational Behavioral Modeling (CBM) toolkit cbm_lap function which calculates model evidence and likelihood of the data using Laplace approximation and estimates parameters using maximum-a-posteriori (MAP) estimation⁹⁵. We used mean 0 and variance 6.25 Gaussian priors for calculating the parameter estimates. Because CBM assumes the parameters to be normally distributed, we applied transformation functions to the parameters: a sigmoid function to model parameters which ranges are between 0 and 1, or an exponential function to model positive parameters. We did not utilize hierarchical parameter estimation in this study and relied instead on estimating individuals subject-level parameters. This was done because while hierarchical Bayesian inference for parameter estimation is especially useful in situations where participant-level data are sparse, its utility diminishes when there are sufficient data points for reliable individual parameter estimation^95,96. In our case, each subject completed 480 or 960 trials, allowing for reliable estimation of individual subject-level parameters. In additional analyses we found that the hierarchical approach introduced additional noise from other participants into the individual subject-level estimates resulting in less accurate rather than more accurate parameter estimates. For example, in parameter recovery analysis using 100 times simulated data, the average correlation between recovered parameters of Performance-based arbitration model using the hierarchical Bayesian inference was 0.73 but without the hierarchical inference 0.76. This resulted in failures to reproduce the actual behavioral patterns in the posterior predictive checks (See Supplementary Fig. 26). Instead, we performed Bayesian model selection⁹⁷ using the log evidence from the CBM outputs to do the Bayesian model comparison. The models were developed solely based on the behavioral data and later tested on the fMRI data.

In order to model affordance perception, we employed the affordance-compatibility score derived from the post-task survey of each participant, which was scaled from 0 to 1. We used individually derived affordance-compatibility scores to fit the model to the behavioral experiment data. However, in the case of fitting the model to each fMRI participant, we used the average scores of annotations from all participants as such a strategy showed a better fit to the data. Notably, the choice of using either individual scores or average scores did not affect the results of the model comparison for either dataset.

Reinforcement learning model

The reinforcement learning (RL) model is the simplest model we tested that doesn’t consider the effect of affordance, but only models value learning. Action values Q for each object are initialized at 0.

$${Q}_{0}(s,a)=0$$

(1)

And the probability of choosing an action a given a stimulus s is a softmax function of action value

$${P}_{t}(a|s)=\,{{{\rm{softmax}}}}(\beta {Q}_{t}(s,a)+{b}_{a})=\frac{\exp (\beta {Q}_{t}(s,a)+{b}_{a})}{{\sum }_{{a}^{{\prime} }}\exp (\beta {Q}_{t}(s,{a}^{{\prime} })+{b}_{{a}^{{\prime} }})}$$

(2)

[where β > 0 is an inverse temperature parameter and ${b}_{a}\in {\mathbb{R}}$ models action selection bias toward the action independent to the stimulus shown. The action value Q_t(s, a) for the chosen action a_t to the stimulus s_t at trial t is updated based on the delta rule

$${{{{\rm{RPE}}}}}_{t}={r}_{t}-{Q}_{t}({s}_{t},{a}_{t})$$

(3)

$${Q}_{t+1}({s}_{t},{a}_{t})\leftarrow {Q}_{t}({s}_{t},{a}_{t})+\alpha \times {{{{\rm{RPE}}}}}_{t}$$

(4)

where the reward prediction error (RPE) is the difference between the reward r_t (0 or 1 depending on the realized outcome) at the trial t and the action value. 0 ≤ α ≤ 1 is a learning rate parameter. There were 5 free parameters (β, α, b_pinch, b_clench and b_poke) in this model.

Bayesian learning model

In this model, instead of using the reinforcement learning rule, value learning is modeled as Bayesian inference²⁰. The model tracks the probability of reward of each action given an object using a beta prior and a binomial likelihood. Specifically, the prior on the reward probability of an action a to an object s is

$${P}_{0}(R=1| s,a) \sim \,{{{\rm{Beta}}}}\,({\alpha }_{a},{\beta }_{a}),\,{\beta }_{a}=\frac{{\alpha }_{a}(1-\gamma )}{\gamma }$$

(5)

where α_a > 0 and 0 < γ < 1 are free parameters and the prior mean is γ. Given a scenario where an object s shown n times, with an action a being chosen n_a times, resulting in r_a positive outcomes, the posterior reward probability of the action a to the object s is

$${P}_{n}(R=1| s,a) \sim \,{{{\rm{Beta}}}}\,({\alpha }_{a}+{r}_{a},{\beta }_{a}+{n}_{a}-{r}_{a}),\,n={\sum }_{a}{n}_{a}$$

(6)

which posterior mean is $\frac{{\alpha }_{a}+{r}_{a}}{{\alpha }_{a}+{\beta }_{a}+{n}_{a}}$.

We then assumed affordance elicits its effect as a bias in the action selection. We used 0-to-1 scaled affordance-compatibility score of action a to object s from the post-task survey as affordance-compatibility score Aff(s, a) and used the softmax function,

$${P}_{t}(a| s)=\,{{{\rm{softmax}}}}\,(\beta ({Q}_{t}(s,a)+\,k\times \,{{{\rm{Aff}}}}\,(s,a))+{b}_{a})$$

(7)

as the action selection policy where Q_t(s, a) is the posterior mean of P(R = 1∣s, a) at trial t and β > 0, k > 0 and ${b}_{a}\in {\mathbb{R}}$ are free parameters that model inverse temperatures, weight on affordance and action selection bias respectively. In total, this model has 9 free parameters (α_a and b_a for each action type, γ, β and k)

We also tested models incorporating the affordance into the prior mean instead of including the affordance-based selection bias term in the softmax policy. However, these models exhibited an even poorer fit to the data compared to the model described above.

Affordance as a prior model

The prior model uses the affordance-compatibility score Aff(s, a) as the initial action value of an action a to an object s.

$${Q}_{0}(s,a)=k\times \,{{{\rm{Aff}}}}\,(s,a),k > 0$$

(8)

The decision probability and learning rules are identical to the RL model, which results in having one additional free parameter than the RL model (β, α, b_pinch, b_clench, b_poke and k). This model can also be interpreted as implementing a single decision-making system based on affordance and in which the affordance is being relearned based on task experience.

Affordance as a bias model

The bias model is identical to the RL model except for the calculation of the action selection probability. In the affordance as a bias model, action selection is a softmax function of the linear summation of the action values and the affordance-compatibility scores.

$${P}_{t}(a| s)=\,{{{\rm{softmax}}}}(\beta ({Q}_{t}(s,a)+k\times {{{\rm{Aff}}}}\,(s,a))+{b}_{a}),\,k > 0$$

(9)

This model has 6 free parameters (β, α, b_pinch, b_clench, b_poke and k).

Fixed arbitration model

In this model, we assumed there are two different decision-making strategies, value-based decision-making and affordance-based decision-making. Value-based decision-making and value learning is modeled using the RL model previously described.

$${P}_{q,t}(a| s)=\,{{{\rm{softmax}}}}\,(\beta {Q}_{t}(s,a)+{b}_{a})$$

(10)

Action selection by the affordance-based decision-making system is modeled as a softmax function of the affordance-compatibility score.

$${P}_{aff}(a| s)=\,{{{\rm{softmax}}}}(\beta (k\times {{{\rm{Aff}}}}\,(s,a))+{b}_{a})$$

(11)

The action selection policy is calculated as a weighted sum of these two policies

$${P}_{t}(a| s)={w}_{q}{P}_{q,t}(a| s)+(1-{w}_{q}){P}_{{{{\rm{aff}}}}}(a| s)$$

(12)

where 0≤w_q≤1 is the fixed arbitration weight between the two decision-making strategies. This model has 7 free parameters in total (β, α, b_pinch, b_clench, b_poke, k and w_q).

Affordance as a cost model

The cost model is an extension of the fixed arbitration model where we assumed that the response-affordance-incompatibility acts as a cost that is contrasted against the reward signal⁹⁸. Specifically, we modified the delta learning rule to include a cost term which results in a larger reward when an affordance-compatible action is selected so that,

$${{{{\rm{RPE}}}}}_{t}=({r}_{t}+c\times k\times {{{\rm{Aff}}}}\,({s}_{t},{a}_{t}))-{Q}_{t}({s}_{t},{a}_{t})$$

(13)

$${Q}_{t+1}({s}_{t},{a}_{t})\leftarrow {Q}_{t}({s}_{t},{a}_{t})+\alpha \times {{{{\rm{RPE}}}}}_{t}$$

(14)

where c > 0 is an additional free parameter that models the effect of affordance in learning as a cost. For example, the additional reward will be smaller when the chosen action has a low affordance-compatibility score compared to when it has a high affordance-compatibility which can be interpreted as there was a cost in selecting affordance-incompatible action.

The other components of the model remain identical to the fixed arbitration model, resulting in a cost model with 8 free parameters (β, α, b_pinch, b_clench, b_poke, k, w_q and c).

Conflict-based arbitration model

Like the fixed arbitration model, we assumed that the value-based policy and the affordance-based policy are mixed for the action selection but in this model the arbitration weight dynamically changes trial by trial for each stimulus. The arbitration weight w_q,t(s) at trial t is a logistic function of a conflict variable c_t(s) which tracks the conflict between the value-based and affordance-based policies given the stimulus s. Thus,

$${w}_{q,t}(s)=\frac{1}{1+\,\exp (-{\eta }_{1}{c}_{t}(s)+{\eta }_{0})}$$

(15)

where η₁ > 0 and ${\eta }_{0}\in {\mathbb{R}}$ are free parameters. We assume that the conflict signal between the two policies causes an increase in cognitive control which pushes behavior toward value-based decision-making in this paradigm^23,24. The conflict variable c_t(s) is calculated as the square root of the Jensen-Shannon Divergence (JSD) between the value-based and affordance-based policies.

$${c}_{t}(s)=\sqrt{\,{{{\rm{JSD}}}}({P}_{q,t}(s,\cdot ),{P}_{{{{\rm{aff}}}}}(s,\cdot ))}$$

(16)

The calculation of value-based and affordance-based polices of the model are identical to the fixed arbitration model which makes this model have 8 free parameters (β, α, b_pinch, b_clench, b_poke, k, η₀ and η₁).

We also tested other design choices such as the energy from a Hopfield network²⁵ as the proxy of conflict or using a conflict tracking variable that is updated gradually using trial-by-trial JSD. However, the model described above explained the data better than the other tested options.

Reliability-based arbitration model

This model uses reliabilities^21,26,27 of the two strategies as the driving force of arbitration between the value-based and affordance-based decision-making. The reliabilities are calculated using an RL-like updating rule based on unsigned prediction errors²⁶. For example, the reliability of value-based decision-making given a stimulus s_t is updated using the following delta rule.

$${\chi }_{q,t+1}({s}_{t})\leftarrow {\chi }_{q,t}({s}_{t})+{\alpha }_{\chi }((1-| {{{{\rm{RPE}}}}}_{t}| )-{\chi }_{q,t}({s}_{t})),\,0\le {\alpha }_{\chi }\le 1$$

(17)

$${{{{\rm{RPE}}}}}_{t}={r}_{t}-{Q}_{t}({s}_{t},{a}_{t})$$

(18)

Therefore, the reliability of value-based decision-making will increase when the unsigned RPE is small. Similarly, we defined the reliability of affordance-based decision-making given a stimulus s_t is updated based on

$${\chi }_{{{{\rm{aff}}}},t+1}({s}_{t})\leftarrow {\chi }_{{{{\rm{aff}}}},t}({s}_{t})+{\alpha }_{\chi }((1-| {{{{\rm{APE}}}}}_{t}| )-{\chi }_{{{{\rm{aff}}}},t}({s}_{t}))$$

(19)

$${{{{\rm{APE}}}}}_{t}={r}_{t}-k\times {{{\rm{Aff}}}}\,({s}_{t},{a}_{t})$$

(20)

where APE is the affordance prediction error and k is between 0 to 1 to ensure the APE is between 0 and 1. The reliabilities were initialized to 0. Then the arbitration weight given a stimulus s is the logistic function of these two reliabilities. Therefore,

$${w}_{q,t}(s)=\frac{1}{1+\,\exp (-{\eta }_{q}{\chi }_{q,t}(s)+{\eta }_{{{{\rm{aff}}}}}{\chi }_{{{{\rm{aff}}}},t}(s)+{\eta }_{0})}$$

(21)

where η_q, η_aff > 0 and ${\eta }_{0}\in {\mathbb{R}}$. Identical to the fixed and conflict-based arbitration model, the value-based and affordance-based policies are softmax functions of action values, or affordance-compatibility scores and the final action selection probability is the reliability-based arbitration-weighted sum of the two policies. As a consequence, this model has 10 free parameters (β, α, b_pinch, b_clench, b_poke, k, α_χ, η₀, η_q and η_aff).

As a simpler alternative, we also tested a value-reliability arbitration model that relies solely on the reliability of the value-based decision-making system. This reduced model is identical to the full reliability-based model, except in the computation of the arbitration weight:

$${w}_{q,t}(s)=\frac{1}{1+\,\exp (-{\eta }_{q}{\chi }_{q,t}(s)+{\eta }_{0})}$$

(22)

This model thus has 9 free parameters.

Performance-based arbitration model

Here, we are proposing a novel arbitration framework that aims to optimize the arbitration weight in terms of maximizing the return. The mathematical derivation of the proposed model is detailed in the Supplementary Methods. Specifically, we defined value, or performance, of a strategy given a stimulus as the expected returns that can be collected by following that particular strategy in response to the stimulus^18,22. Then, the arbitration weight on value-based decision-making given a stimulus s is a logistic function of the performances of affordance-based and value-based policies. Thus,

$${w}_{q,t}(s)=\frac{1}{1+\,\exp (-{\eta }_{1}({{{{\rm{Perf}}}}}_{q,t}(s)-{{{{\rm{Perf}}}}}_{{{{\rm{aff}}}},t}(s))+{\eta }_{0})},{\eta }_{1} > 0,{\eta }_{0}\in {\mathbb{R}}$$

(23)

The value-based policy’s performance Perf_q,t(s) and affordance-based policy’s performance Perf_aff,t(s) given the stimulus s are updated trial by trial by the following delta rules which estimate the performances using inverse propensity scoring from the off-policy policy evaluation literature^28,29.

$${{{{\rm{Perf}}}}}_{q,t+1}({s}_{t})\leftarrow {{{{\rm{Perf}}}}}_{q,t}({s}_{t})+{\alpha }_{p}\left(\frac{{P}_{q,t}({a}_{t}| {s}_{t})}{{P}_{t}({a}_{t}| {s}_{t})}{r}_{t}-{{{{\rm{Perf}}}}}_{q,t}({s}_{t})\right)$$

(24)

$${{{{\rm{Perf}}}}}_{{{{\rm{aff}}}},t+1}({s}_{t})\leftarrow {{{{\rm{Perf}}}}}_{{{{\rm{aff}}}},t}({s}_{t})+{\alpha }_{p}\left(\frac{{P}_{{{{\rm{aff}}}}}({a}_{t}| {s}_{t})}{{P}_{t}({a}_{t}| {s}_{t})}{r}_{t}-{{{{\rm{Perf}}}}}_{{{{\rm{aff}}}},t}({s}_{t})\right)$$

(25)

$${{{{\rm{Perf}}}}}_{q,0}(s)={{{{\rm{Perf}}}}}_{{{{\rm{aff}}}},0}(s)=0$$

(26)

$${P}_{t}(a| s)={w}_{q,t}(s){P}_{q,t}(a| s)+(1-{w}_{q,t}(s)){P}_{{{{\rm{aff}}}}}(a| s)$$

(27)

where r_t denotes the realized outcome at the trial t, P_q,t(a_t∣s_t) is the probability of selecting the chosen action under the value-based policy at the trial t. Similarly, P_aff(a_t∣s_t) represents the probability of selecting the chosen action under the affordance-based policy at the trial t, and P_t(a_t∣s_t) denotes the probability of selecting the chosen action. 0≤α_p≤1 is a free parameter that denotes the performance updating rate. We called $\frac{{P}_{q,t}({a}_{t}| {s}_{t})}{{P}_{t}({a}_{t}| {s}_{t})}{r}_{t}-{{{{\rm{Perf}}}}}_{q,t}({s}_{t})$, and $\frac{{P}_{{{{\rm{aff}}}}}({a}_{t}| {s}_{t})}{{P}_{t}({a}_{t}| {s}_{t})}{r}_{t}-{{{{\rm{Perf}}}}}_{{{{\rm{aff}}}}}({s}_{t})$ as the performance prediction error of value-based and affordance-based decision-making respectively. Analogous to the other arbitration models, value-based and affordance-based policies are calculated in the same manner as the fixed arbitration model. The final action selection probability is determined by a performance-based arbitration-weighted sum of the two policies. Notably, we set the performance updating rate α_p to be identical to the value learning rate α. As a result, the performance-based arbitration model has a total of 8 free parameters (β, α, b_pinch, b_clench, b_poke, k, η₀ and η₁).

Models with counterfactual value update

We also tested models that update values of unchosen actions when there was no reward. These were implemented using the following learning rule, while keeping the other components the same.

$${{{{\rm{RPE}}}}}_{t}={r}_{t}-{Q}_{t}({s}_{t},{a}_{t})$$

(28)

$${Q}_{t+1}({s}_{t},{a}_{t})\leftarrow {Q}_{t}({s}_{t},{a}_{t})+\alpha \times {{{{\rm{RPE}}}}}_{t}$$

(29)

$${Q}_{t+1}({s}_{t},{a}_{t}^{{\prime} })\leftarrow {Q}_{t}({s}_{t},{a}_{t}^{{\prime} })-\frac{\alpha }{2}\times {{{{\rm{RPE}}}}}_{t}\,(\,{{{\rm{only\; when}}}}\,{r}_{t}=0)$$

(30)

where the reward prediction error (RPE) is the difference between the reward r_t (0 or 1 depending on the realized outcome) at the trial t and the action value of chosen action a_t at t. ${a}_{t}^{{\prime} }$ represents the unchosen action at t and 0≤α≤1 is a learning rate parameter. The model comparison and simulation results are shown in Supplementary Fig. 12

Arbitration-weight-decay model

As a simple alternative to active dynamic arbitration models, we implement models with a decaying arbitration weight that gradually places greater weight on the value-based decision-making system. The model implementation is identical to that of the fixed arbitration model, except that the arbitration weight decays over the course of the task. In these models, the arbitration weight is a function of the trial index t. For example, in the case of exponential decay

$${w}_{q,t}={w}_{q}*{w}_{d}^{t}$$

(31)

where 0 < w_d≤1; and in the case of hyperbolic decay,

$${w}_{q,t}={w}_{q}\frac{1}{1+{w}_{d}\times t}$$

(32)

where 0 < w_d. These models thus have 8 free parameters in total (β, α, b_pinch, b_clench, b_poke, k, w_q, and w_d)

Alternative parameterization of affordance compatibility

To address potential concerns regarding the parametric assumptions of affordance compatibility, we tested three additional parameterization methods based on post-task survey data: (1) squared affordance scores, (2) log-transformed affordance scores, and (3) a binarized version where the maximum affordance score of pinch, clench, or poke was set to 1, and all other scores were set to 0.

Consistent results across all parameterizations confirmed that the performance-based arbitration model provided the best fit to both behavioral and fMRI datasets (See Supplementary Fig. 23). Posterior predictive checks were conducted as well using the three performance-based arbitration models with alternative parameterizations. These models successfully captured observed patterns such as initial exploration bias, learning curves, and slopes. Statistical analyses, including mixed-effects GLM regressions of ΔP (performance difference) on trial progression and rewarded trials, further supported the robustness of the model’s predictive accuracy and its insensitivity to specific parameterization choices (See Supplementary Figs. 24 and 25).

Model recovery and parameter recovery analyses

We conducted a model recovery analysis across the nine models to ensure that the underlying cognitive mechanism that generated data can be reliably identified using the task design. Using the fMRI version of the task, which has half the number of trials compared to the behavior-only version, each of the nine models was simulated 60 times with the estimated parameters from the real fMRI participants’ data. We then fit the models to each simulated behavior using CBM toolkit and did model comparisons based on log evidence which take into account the number of parameters. Each simulated data was labeled with the best-fitting model, and we calculated the probability of the identified model being the true generative model (Supplementary Table 4). It is noteworthy that the probability of the best-fit model being the true generative model for the performance-based and the reliability-based arbitration models were 0.89 and 0.79 each which implies that these models were reliably distinguishable through the model comparison process.

Additionally, we conducted a parameter recovery analysis on the performance-based and the reliability-based arbitration models which were employed for fMRI analyses, to ensure that the model-based variables reliably reflect the underlying cognitive mechanisms. Using the fMRI version of the task which has 480 trials in total, we generated 100 simulated data from each model, with parameters sampled from Gaussian distributions based on sample means and variances of the estimated parameters from the actual fMRI participants data. We estimated the model parameters using CBM toolkit and calculated correlations between the true generative parameters and the estimated parameters. The performance-based arbitration model had a mean Pearson correlation of r = 0.76 between true and estimated parameters, while the reliability-based arbitration model had a mean Pearson correlation of r = 0.53 (See Supplementary Fig. 28 for details). For further analysis on parameter identifiability and potential overparameterization, please refer to Note 3 in the supplementary materials.

Behavior general linear model analyses

We conducted mixed-effect GLM analyses on the RT data from the behavior and fMRI studies to examine the effect of choosing affordance-compatible actions on RTs (Fig. 2a,f). As the RT is influenced by both the affordance-compatibility of the response and the value learning process, we incorporated a set of independent variables in the analyses: indicator variables for the affordance-compatibility of the response, whether the response was correct, whether the trial was in a congruent or incongruent condition, whether the trial was in a high or low condition, a categorical variable representing the movement type of the response (i.e., pinch, clench or poke) and a continuous variable representing the trial index. The dependent variable was RT, which was logarithmically transformed to make it normally distributed. The slopes and intercepts were estimated as random effects for each participant and the fixed-effect coefficients are reported in (Supplementary Table 1)

In addition, we performed mixed-effect GLM analyses to evaluate the impact of affordance-value congruency on the learning curves (Fig. 2d,e,i,j and Fig. 3f,g,l,m). The dependent variable was the difference between congruent and incongruent conditions in terms of frequencies of choosing correct actions, which were extracted for each trial index or the number of rewarded trials so far, for each subject. We included a continuous variable representing the trial index or the number of rewarded trials so far, as regressors in the analyses. The slopes and intercepts were estimated as random effects for each subject and the fixed-effect coefficients are reported in (Supplementary Table 3)

We used the mixedlm function from the statsmodels 0.12.2 package in Python 3.7.7. The package calculated z statistics of each coefficient by dividing the estimates of coefficients with standard errors. Using the z statistics, the p-values were calculated with respect to a standard normal distribution.

fMRI data acquisition

fMRI data were acquired at the Caltech Brain Imaging Center (Pasadena, CA), using a Siemens Prisma 3T scanner with a 32-channel radio-frequency coil. The functional scans were conducted using a multi-band echo-planar imaging (EPI) sequence with 72 slices, -30 degrees slice tilt from AC-PC line, 192 mm × 192 mm field of view, 2 mm isotropic resolution, repetition time (TR) of 1.12 s, echo time (TE) of 30ms, multi-band acceleration of 4, 54-degree flip angle, in-plane acceleration factor 2, echo spacing of 0.56 ms, and EPI factor of 96. Following each run, both positive and negative polarity EPI-based field maps were collected using similar parameters to the functional sequence, but with a single band, TR of 5.13 s, TE of 41.40 ms, and 90-degree flip angle. T1-weighted and T2-weighted structural images were also acquired for each participant with 0.9 mm isotropic resolution and 230 mm × 230 mm field of view. For the T1-weighted scan, TR of 2.55 s, TE of 1.63 ms, inversion time (TI) of 1.15 s, flip angle of 8 degrees, and in-plane acceleration factor 2 were used. The T2-weighted scan was acquired with TR of 3.2 s, TE of 564 ms, and in-plane acceleration factor of 2.

fMRI data preprocessing

Results included in this manuscript come from preprocessing performed using fMRIPrep 20.2.6^{99,100,RRID:SCR_016216]}, which is based on Nipype 1.7.0^{101,102,RRID:SCR_002502]}.

Anatomical data preprocessing

A total of 1 T1-weighted (T1w) images were found within the input BIDS dataset.The T1-weighted (T1w) image was corrected for intensity non-uniformity (INU) with N4BiasFieldCorrection¹⁰³, distributed with ANTs 2.3.3^{104,RRID:SCR_004757]}. The T1w-reference was then skull-stripped with a Nipype implementation of the antsBrainExtraction.sh workflow (from ANTs), using OASIS30ANTs as target template. Brain tissue segmentation of cerebrospinal fluid (CSF), white-matter (WM) and gray-matter (GM) was performed on the brain-extracted T1w using fast^{105,FSL 5.0.9,RRID:SCR_002823,]}. Brain surfaces were reconstructed using recon-all^{106,FreeSurfer 6.0.1,RRID:SCR_001847,]}, and the brain mask estimated previously was refined with a custom variation of the method to reconcile ANTs-derived and FreeSurfer-derived segmentations of the cortical gray-matter of Mindboggle^{107,RRID:SCR_002438,]}. Volume-based spatial normalization to one standard space (MNI152NLin2009cAsym) was performed through nonlinear registration with antsRegistration (ANTs 2.3.3), using brain-extracted versions of both T1w reference and the T1w template. The following template was selected for spatial normalization: ICBM 152 Nonlinear Asymmetrical template version 2009c^{108,RRID:SCR_008796; TemplateFlow ID:MNI152NLin2009cAsym]}.

Functional data preprocessing

For each of the 6 BOLD runs per subject (across all tasks and sessions), the following preprocessing was performed. First, a reference volume and its skull-stripped version were generated by aligning and averaging 1 single-band references (SBRefs). A B0-nonuniformity map (or fieldmap) was estimated based on two (or more) echo-planar imaging (EPI) references with opposing phase-encoding directions, with 3dQwarp¹⁰⁹ (AFNI 20160207). Based on the estimated susceptibility distortion, a corrected EPI (echo-planar imaging) reference was calculated for a more accurate co-registration with the anatomical reference. The BOLD reference was then co-registered to the T1w reference using bbregister (FreeSurfer) which implements boundary-based registration¹¹⁰. Co-registration was configured with six degrees of freedom. Head-motion parameters with respect to the BOLD reference (transformation matrices, and six corresponding rotation and translation parameters) are estimated before any spatiotemporal filtering using mcflirt^{111,FSL 5.0.9,]}. BOLD runs were slice-time corrected to 0.52s (0.5 of slice acquisition range 0s-1.04s) using 3dTshift from AFNI 20160207^{109,RRID:SCR_005927]}. First, a reference volume and its skull-stripped version were generated using a custom methodology of fMRIPrep. The BOLD time-series (including slice-timing correction when applied) were resampled onto their original, native space by applying a single, composite transform to correct for head-motion and susceptibility distortions. These resampled BOLD time-series will be referred to as preprocessed BOLD in original space, or just preprocessed BOLD. The BOLD time-series were resampled into standard space, generating a preprocessed BOLD run in MNI152NLin2009cAsym space. First, a reference volume and its skull-stripped version were generated using the custom methodology of fMRIPrep. Several confounding time-series were calculated based on the preprocessed BOLD: framewise displacement (FD), DVARS and three region-wise global signals. FD was computed using two formulations following Power (absolute sum of relative motions,¹¹²) and Jenkinson (relative root mean square displacement between affines,¹¹¹). FD and DVARS are calculated for each functional run, both using their implementations in Nipype (following the definitions by ref. ¹¹²). The three global signals are extracted within the CSF, the WM, and the whole-brain masks. Additionally, a set of physiological regressors were extracted to allow for component-based noise correction^113CompCor. Principal components are estimated after high-pass filtering the preprocessed BOLD time-series (using a discrete cosine filter with 128s cut-off) for the two CompCor variants: temporal (tCompCor) and anatomical (aCompCor). tCompCor components are then calculated from the top 2% variable voxels within the brain mask. For aCompCor, three probabilistic masks (CSF, WM and combined CSF+WM) are generated in anatomical space. The implementation differs from that of Behzadi et al. in that instead of eroding the masks by 2 pixels in BOLD space, the aCompCor masks subtract a mask of pixels that likely contain a volume fraction of GM. This mask is obtained by dilating a GM mask extracted from FreeSurfer’s aseg segmentation, and it ensures components are not extracted from voxels containing a minimal fraction of GM. Finally, these masks are resampled into BOLD space and binarized by thresholding at 0.99 (as in the original implementation). Components are also calculated separately within the WM and CSF masks. For each CompCor decomposition, the k components with the largest singular values are retained, such that the retained components’ time series are sufficient to explain 50 percent of variance across the nuisance mask (CSF, WM, combined, or temporal). The remaining components are dropped from consideration. Head-motion estimates calculated in the correction step were also placed within the corresponding confounds file. The confound time series derived from head motion estimates and global signals were expanded with the inclusion of temporal derivatives and quadratic terms for each¹¹⁴. Frames that exceeded a threshold of 0.5 mm FD or 1.5 standardised DVARS were annotated as motion outliers. All resamplings were performed with a single interpolation step by combining all the pertinent transformations (i.e. head-motion transform matrices, susceptibility distortion correction when available, and co-registrations to anatomical and output spaces). Gridded (volumetric) resamplings were performed using antsApplyTransforms (ANTs), configured with Lanczos interpolation to minimize the smoothing effects of other kernels¹¹⁵. Non-gridded (surface) resamplings were performed using mri_vol2surf (FreeSurfer).

Many internal operations of fMRIPrep use Nilearn 0.6.2^{116,RRID:SCR_001362]}, mostly within the functional processing workflow. For more details of the pipeline, see the section corresponding to workflows in fMRIPrep’s documentation.

Whole brain general linear model analysis

FSL (FMRIB Software Library) 6.0 software package was used to analyze the fMRI data. Following the preprocessing using fMRIPrep, the fMRI data was convolved with a 3D Gaussian smoothing kernel (8.0mm FWHM) using FSL SUSAN. Subsequently, BOLD signals for each voxel were scaled to ensure that the mean BOLD signal of each voxel is 100. Before running GLM analyses, first 4 volumes were discarded and a high-pass filter with a cutoff 128s was applied. Framewise displacement, global signal, global signal derivative, 6 head-motion parameters (x, y, z translations and rotations), and temporal CompCor from fMRIPrep were included as nuisance variables in every analysis. Stick regressors that represent onsets of stimulus, fixation cross and outcome were also included in the GLMs. The response, or the hand movement, was modeled using a parametric regressor detailed in the following section. We used the fixed-effect higher-level modeling for individual-level inference that averages across blocks and FSL FLAME1 for group-level inference.

Hand movement parametric regressor

In order to minimize potential confounding effects that may arise from using natural hand gestures as the action in the experiment, we designed a hand movement regressor based on 2-dimensional 21 key points for the right hand extracted from the hand video using Openpose. This regressor was included in all of the analyses.

First, video frames were resized into 162 × 108 pixels to fit the Openpose net resolution -1 × 122. By utilizing the BODY_25 model from the Openpose, key points were extracted frame by frame with the output resolution setting -1 × 80. Next, the key points were weighted-moving-averaged with a window of 20 frames (about 500ms) to reduce the noise stemming from Openpose’s estimation error. The confidence scores of Openpose estimations were utilized as the weights in order to mitigate the impact of uncertain estimations. Then, the first principal component of the weighted-moving-averaged 42-dimensional data (21 × 2) was calculated and used as the parametric regressor that models the hand movement. In all of our GLM analyses, the hand movement regressor consistently identified the left primary motor cortex, left premotor cortex, left primary somatosensory cortex, and bilateral inferior parietal lobule as the regions associated with the right-hand movement (Supplementary Fig. 17).

Identifying decision-making regions

A GLM analysis was conducted to investigate the regions associated with the affordance-based and value-based decision-making, as well as the action selection which is the integration of those two systems (GLM1). The chosen action’s affordance-compatibility score (Aff(s_t, a_t)), chosen action’s value (Q_t(s_t, a_t)), the action selection probability of chosen action (P_t(a_t∣s_t)) from the performance-based arbitration model models were included as parametric regressors at the onsets of stimuli. A parametric regressor of the reward prediction error was also included at the onsets of outcomes. Another GLM analysis using model-based parameters from the reliability-based arbitration model was conducted as well (GLM2). The results were cluster corrected with a cluster-defining threshold of z = 3.1.

Identifying arbitration regions

Two GLM analyses were conducted to identify regions related to arbitration between value-based and affordance-based decision-making. One GLM analysis utilized arbitration-related parameters obtained from the performance-based arbitration model (GLM3) and the other one used those from the reliability-based arbitration model (GLM4).

GLM3 included performances of the value-based and affordance-based decision-making systems (Perf_q,t(s_t), Perf_aff,t(s_t)), and the difference between those two (Perf_aff,t(s_t) − Perf_q,t(s_t)) as parametric regressors at the onsets of stimuli. Parametric regressors of the performance prediction errors of value-based and affordance-based policies each were also included at the onsets of outcomes in the GLM3.

In GLM4, reliabilities of the value-based and affordance-based decision-making systems (χ_q,t(s_t), χ_aff,t(s_t)), and the difference between those two (χ_aff,t(s_t) − χ_q,t(s_t)) were included as parametric regressors at the onsets of stimuli. A parametric regressor of the affordance prediction error was included as well at the onsets of outcomes in the GLM4. The results were cluster corrected with a cluster-defining threshold z = 3.1.

Neural correlates of affordance-incompatible action execution

To identify neural correlates that are activated more when executing affordance-incompatible actions compared to affordance-compatible actions^11,12, a model-free GLM analysis was conducted (GLM5). GLM5 included stick regressors representing the stimuli identities at the stimulus onsets, 2 regressors representing whether the affordance and response were compatible or not at the response onsets, and a parametric regressor of reward at the outcome onsets. While the contrast between the affordance response compatibility regressors have not survived the cluster correction with a cluster-defining threshold z = 3.1, Supplementary Fig. 17g shows the uncorrected results with a threshold set at p < 0.001, corresponding to z≥3.1.

Neural representation strength analysis

To calculate the extent to which the identified regions from GLM analyses can be explained by the corresponding cognitive variables, we computed the mean z-statistics for those specific variables across the voxels within the corresponding group-level regions. The regions were defined using the survived clusters from GLM1,2,3 and 4 (For the details, see Fig. 4 and Supplementary Fig. 18). We then compared the mean z-statistics for each individual with the frequency of choosing the most rewarding action.

Similarly, the increased BOLD activity for executing affordance-incompatible actions compared to executing affordance-compatible actions was calculated using the contrast between the affordance-response compatibility regressors from GLM5. The z-statistics of the contrast were averaged across the voxels within functionally-defined regions of interest (ROI). The ROIs were defined in the same way as in the previous analyses. We then compared the average z-statistics for each individual with the frequency of choosing the affordance compatilble action or the reaction time effect which is the relative increase in reaction time when choosing affordance-incompatible actions compared to affordance-compatible actions (RT effect $=\frac{{{{{\rm{RT}}}}}_{{{{\rm{incomp}}}}}-{{{{\rm{RT}}}}}_{{{{\rm{comp}}}}}}{{{{{\rm{RT}}}}}_{{{{\rm{comp}}}}}}$).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The behavioral data, including choice and reaction time data, used in this manuscript are available at https://doi.org/10.5281/zenodo.17481352¹¹⁷. Group-level z-statistic maps from the GLM analyses can be accessed at https://neurovault.org/collections/22137/.

Code availability

The code used for the task, computational model fitting and behavioral analyses in this manuscript is available at https://doi.org/10.5281/zenodo.17481352¹¹⁷.

References

Glimcher, P. W. & Fehr, E. Neuroeconomics: Decision Making and The Brain 1st edn, Vol. 556 (Academic Press, 2013).
Rangel, A., Camerer, C. & Montague, P. R. A framework for studying the neurobiology of value-based decision making. Nat. Rev. Neurosci. 9, 545–556 (2008).
Article CAS PubMed PubMed Central Google Scholar
Sanfey, A. G., Loewenstein, G., McClure, S. M. & Cohen, J. D. Neuroeconomics: cross-currents in research on decision-making. Trends Cogn. Sci. 10, 108–116 (2006).
Article PubMed Google Scholar
Montague, P., Dayan, P. & Sejnowski, T. A framework for mesencephalic dopamine systems based on predictive Hebbian learning. J. Neurosci. 16, 1936–1947 (1996).
Article CAS PubMed PubMed Central Google Scholar
Schultz, W., Dayan, P. & Montague, P. R. A neural substrate of prediction and reward. Science 275, 1593–1599 (1997).
Article CAS PubMed Google Scholar
O’Doherty, J. P., Dayan, P., Friston, K. J., Critchley, H. & Dolan, R. J. Temporal difference models and reward-related learning in the human brain. Neuron 38, 329 – 337 (2003).
PubMed Google Scholar
Gibson, J. J. The Ecological Approach to Visual Perception: Classic Edition 1st edn, Vol. 316 (Psychology press, 2014).
Cisek, P. Cortical mechanisms of action selection: the affordance competition hypothesis. Philos. Trans. R. Soc. B. Biol. Sci. 362, 1585 – 1599 (2007).
Article Google Scholar
Pezzulo, G. & Cisek, P. Navigating the affordance landscape: feedback control as a process model of behavior and cognition. Trends Cogn. Sci. 20, 414 – 424 (2016).
Article PubMed Google Scholar
Ellis, R. & Tucker, M. Micro-affordance: the potentiation of components of action by seen objects. Br. J. Psychol. (Lond., Engl. : 1953) 91 (Pt 4), 451 – 471 (2000).
Google Scholar
Grèzes, J., Tucker, M., Armony, J., Ellis, R. & Passingham, R. E. Objects automatically potentiate action: an fMRI study of implicit processing. Eur. J. Neurosci. 17, 2735–2740 (2003).
Article PubMed Google Scholar
Zhang, Z. et al. Neural correlates of hand-object congruency effects during action planning. J. Cogn. Neurosci. 33, 1487–1503 (2021).
Article PubMed Google Scholar
Pastor-Bernier, A. & Cisek, P. Neural correlates of biased competition in premotor cortex. J. Neurosci. Off. J. Soc. Neurosci. 31, 7083 – 7088 (2011).
Article Google Scholar
Cisek, P. & Pastor-Bernier, A. On the challenges and mechanisms of embodied decisions. Philos. Trans. R. Soc. B Biol. Sci. 369, 20130479 (2014).
Article Google Scholar
Camille, N. et al. The involvement of the orbitofrontal cortex in the experience of regret. Science 304, 1167–1170 (2004).
Article ADS CAS PubMed Google Scholar
Lohrenz, T., McCabe, K., Camerer, C. F. & Montague, P. R. Neural signature of fictive learning signals in a sequential investment task. Proc. Natl. Acad. Sci. USA 104, 9493–9498 (2007).
Article ADS CAS PubMed PubMed Central Google Scholar
Verguts, T. & Notebaert, W. Hebbian learning of cognitive control: dealing with specific and nonspecific adaptation. Psychol. Rev. 115, 518–525 (2008).
Article PubMed Google Scholar
Botvinick, M. & Braver, T. Motivation and cognitive control: from behavior to neural mechanism. Annu. Rev. Psychol. 66, 83–113 (2015).
Article PubMed Google Scholar
Braem, S. et al. Measuring adaptive control in conflict tasks. Trends Cogn. Sci. 23, 769–783 (2019).
Article PubMed PubMed Central Google Scholar
Niv, Y. et al. Reinforcement learning in multidimensional environments relies on attention mechanisms. J. Neurosci. Off. J. Soc. Neurosci. 35, 8145 – 8157 (2015).
Article Google Scholar
O’Doherty, J. P. et al. Why and how the brain weights contributions from a mixture of experts. Neurosci. Biobehav. Rev. 123, 14–23 (2021).
Article PubMed PubMed Central Google Scholar
Shenhav, A., Botvinick, M. & Cohen, J. The expected value of control: an integrative theory of anterior cingulate cortex function. Neuron 79, 217–240 (2013).
Article CAS PubMed PubMed Central Google Scholar
Matsumoto, K. & Tanaka, K. Conflict and cognitive control. Science 303, 969–970 (2004).
Article CAS PubMed Google Scholar
Botvinick, M. M., Braver, T. S., Barch, D. M., Carter, C. S. & Cohen, J. D. Conflict monitoring and cognitive control. Psychol.Rev. 108, 624 – 652 (2001).
Article PubMed Google Scholar
Yeung, N., Botvinick, M. M. & Cohen, J. D. The neural basis of error detection: conflict monitoring and the error-related negativity. Psychol. Rev. 111, 931 – 959 (2004).
Article PubMed Google Scholar
Lee, S. W., Shimojo, S. & O’Doherty, J. P. Neural computations underlying arbitration between model-based and model-free learning. Neuron 81, 687 – 699 (2014).
Article PubMed PubMed Central Google Scholar
Charpentier, C. J., Iigaya, K. & O’Doherty, J. P. A neuro-computational account of arbitration between choice imitation and goal emulation during human observational learning. Neuron 106, 687−699.e7 (2020).
Precup, D., Sutton, R. S. & Singh, S. Eligibility traces for off-policy policy evaluation. In Proceedings of the Seventeenth International Conference on Machine Learning (ICML 2000), (eds.Langley, P.) 759–766 (Morgan Kaufmann, 2000).
Horvitz, D. G. & Thompson, D. J. A generalization of sampling without replacement from a finite universe. J. Am. Stat. Assoc. 47, 663–685 (1952).
Article MathSciNet Google Scholar
Bonner, M. F. & Epstein, R. A. Coding of navigational affordances in the human visual system. Proc. Natl. Acad. Sci. USA 114, 4793–4798 (2017).
Article PubMed PubMed Central Google Scholar
Sakagami, M. & Pan, X. Functional role of the ventrolateral prefrontal cortex in decision making. Curr. Opin. Neurobiol. 17, 228–233 (2007).
Article CAS PubMed Google Scholar
Kravitz, D. J., Saleem, K. S., Baker, C. I., Ungerleider, L. G. & Mishkin, M. The ventral visual pathway: an expanded neural framework for the processing of object quality. Trends Cogn. Sci. 17, 26–49 (2013).
Article PubMed Google Scholar
Polanen, V. V. & Davare, M. Interactions between dorsal and ventral streams for controlling skilled grasp. Neuropsychologia 79, 186–191 (2015).
Article PubMed PubMed Central Google Scholar
Dolan, R. J. & Dayan, P. Goals and habits in the brain. Neuron 80, 312 – 325 (2013).
Article PubMed PubMed Central Google Scholar
Wunderlich, K., Rangel, A. & O’Doherty, J. P. Neural computations underlying action-based decision making in the human brain. Proc. Natl. Acad. Sci. USA 106, 17199 – 17204 (2009).
Article PubMed PubMed Central Google Scholar
Hare, T. A., Schultz, W., Camerer, C. F., O’Doherty, J. P. & Rangel, A. Transformation of stimulus value signals into motor commands during simple choice. Proc. Natl. Acad. Sci. USA 108, 18120–18125 (2011).
Article ADS CAS PubMed PubMed Central Google Scholar
Davare, M., Kraskov, A., Rothwell, J. C. & Lemon, R. N. Interactions between areas of the cortical grasping network. Curr. Opin. Neurobiol. 21, 565–570 (2011).
Article CAS PubMed PubMed Central Google Scholar
Rizzolatti, G. & Luppino, G. The cortical motor system. Neuron 31, 889–901 (2001).
Article CAS PubMed Google Scholar
Borra, E., Gerbella, M., Rozzi, S. & Luppino, G. The macaque lateral grasping network: a neural substrate for generating purposeful hand actions. Neurosci. Biobehav. Rev. 75, 65–90 (2017).
Article PubMed Google Scholar
Andersen, R. A. Multimodal integration for the representation of space in the posterior parietal cortex. Philos. Trans. R. Soc. Lond. Ser. B: Biol. Sci. 352, 1421–1428 (1997).
Article ADS CAS Google Scholar
Shadmehr, R., Reppert, T. R., Summerside, E. M., Yoon, T. & Ahmed, A. A. Movement Vigor as a Reflection of Subjective Economic Utility. Trends Neurosci. 42, 323–336 (2019).
Article CAS PubMed PubMed Central Google Scholar
Nachev, P., Kennard, C. & Husain, M. Functional role of the supplementary and pre-supplementary motor areas. Nat. Rev. Neurosci. 9, 856–869 (2008).
Article CAS PubMed Google Scholar
Botvinick, M. M., Cohen, J. D. & Carter, C. S. Conflict monitoring and anterior cingulate cortex: an update. Trends Cogn. Sci. 8, 539–546 (2004).
Article PubMed Google Scholar
Miller, E. K. The prefontral cortex and cognitive control. Nat. Rev. Neurosci. 1, 59–65 (2000).
Article CAS PubMed Google Scholar
Behrmann, M., Geng, J. J. & Shomstein, S. Parietal cortex and attention. Curr. Opin. Neurobiol. 14, 212–217 (2004).
Article CAS PubMed Google Scholar
Chen, Q., Garcea, F. E. & Mahon, B. Z. The representation of object-directed action and function knowledge in the human brain. Cereb. Cortex 26, 1609 – 1618 (2016).
Article PubMed Google Scholar
Castiello, U. The neuroscience of grasping. Nat. Rev. Neurosci. 6, 726–736 (2005).
Article CAS PubMed Google Scholar
Johnson-Frey, S. H. The neural bases of complex tool use in humans. Trends Cogn. Sci. 8, 71 – 78 (2004).
Article PubMed Google Scholar
Fagg, A. H. & Arbib, M. A. Modeling parietal-premotor interactions in primate control of grasping. Neural Netw. Off. J. Int. Neural Netw. Soc. 11, 1277 – 1303 (1998).
Google Scholar
Platt, M. L. & Glimcher, P. W. Neural correlates of decision variables in parietal cortex. Nature 400, 233 – 238 (1999).
Article PubMed Google Scholar
Dorris, M. C. & Glimcher, P. W. Activity in posterior parietal cortex is correlated with the relative subjective desirability of action. Neuron 44, 365 – 378 (2004).
Article PubMed Google Scholar
Andersen, R. A. & Cui, H. Intention, action planning, and decision making in parietal-frontal circuits. Neuron 63, 568 – 583 (2009).
Article PubMed Google Scholar
Hommel, B., Müsseler, J., Aschersleben, G. & Prinz, W. The theory of event coding (TEC): a framework for perception and action planning. Behav. Brain Sci. 24, 849–878 (2001).
Article CAS PubMed Google Scholar
Hommel, B. Event files: feature binding in and across perception and action. Trends Cogn. Sci. 8, 494–500 (2004).
Article PubMed Google Scholar
Rizzolatti, G., Riggio, L., Dascola, I. & Umiltá, C. Reorienting attention across the horizontal and vertical meridians: Evidence in favor of a premotor theory of attention. Neuropsychologia 25, 31–40 (1987).
Article CAS PubMed Google Scholar
Craighero, L. & Rizzolatti, G. Chapter 31 - the premotor theory of attention. In Neurobiology of Attention, (eds. Itti, L., Rees, G. & Tsotsos, J. K.) 181–186 (Academic Press, Burlington, 2005).
Symes, E., Ellis, R. & Tucker, M. Dissociating object-based and space-based affordances. Vis. Cognition 12, 1337–1361 (2005).
Article Google Scholar
Iani, C., Baroni, G., Pellicano, A. & Nicoletti, R. On the relationship between affordance and Simon effects: are the effects really independent?. J. Cogn. Psychol. 23, 121–131 (2011).
Article Google Scholar
Pappas, Z. Dissociating Simon and affordance compatibility effects: Silhouettes and photographs. Cognition 133, 716–728 (2014).
Article PubMed Google Scholar
Proctor, R. W. & Miles, J. D. Chapter six does the concept of affordance add anything to explanations of stimulus-response compatibility effects?. Psychol. Learn. Motiv. 60, 227–266 (2014).
Article Google Scholar
Bub, D. N., Masson, M. E. J. & Noordenne, M. V. Motor representations evoked by objects under varying action intentions. J. Exp. Psychol.: Hum. Percept. Perform. 47, 53–80 (2021).
PubMed Google Scholar
Ferguson, T. D., Bub, D. N., Masson, M. E. J. & Krigolson, O. E. The role of cognitive control and top-down processes in object affordances. Attention Percept. Psychophys. 83, 2017−2032 (2021).
Heuer, A., Ohl, S. & Rolfs, M. Memory for action: a functional view of selection in visual working memory. Vis. Cognition 28, 388–400 (2020).
Article Google Scholar
Olivers, C. N. & Roelfsema, P. R. Attention for action in visual working memory. Cortex 131, 179–194 (2020).
Article PubMed Google Scholar
Ede, F. V. Visual working memory and action: functional links and bi-directional influences. Vis. Cognition 28, 401–413 (2020).
Article Google Scholar
Dickinson, A. Actions and habits: the development of behavioural autonomy. Philos. Trans. R. Soc. Lond. B. Biol. Sci. 308, 67–78 (1985).
Article ADS Google Scholar
Tricomi, E., Balleine, B. W. & O’Doherty, J. P. A specific role for posterior dorsolateral striatum in human habit learning. Eur. J. Neurosci. 29, 2225–2232 (2009).
Article PubMed PubMed Central Google Scholar
McNamee, D., Liljeholm, M., Zika, O. & O’Doherty, J. P. Characterizing the associative content of brain structures involved in habitual and goal-directed actions in humans: a multivariate fMRI study. J. Neurosci. 35, 3764–3771 (2015).
Article CAS PubMed PubMed Central Google Scholar
Wolpert, D. M., Diedrichsen, J. & Flanagan, J. R. Principles of sensorimotor learning. Nat. Rev. Neurosci. 12, 739–751 (2011).
Article CAS PubMed Google Scholar
Cos, I., Duque, J. & Cisek, P. Rapid prediction of biomechanical costs during action decisions. J. Neurophysiol. 112, 1256–1266 (2014).
Article PubMed Google Scholar
Canaveral, C. A., Lata, W., Green, A. M. & Cisek, P. Biomechanical costs influence decisions made during ongoing actions. J. Neurophysiol. 132, 461–469 (2024).
Article PubMed PubMed Central Google Scholar
Christopoulos, V., Bonaiuto, J. & Andersen, R. A. A biologically plausible computational theory for value integration and action selection in decisions with competing alternatives. PLoS Comput. Biol. 11, e1004104 (2015).
Article ADS PubMed PubMed Central Google Scholar
Christopoulos, V. & Schrater, P. R. Dynamic integration of value information into a common probability currency as a theory for flexible decision making. PLoS Comput. Biol. 11, e1004402 (2015).
Article ADS PubMed PubMed Central Google Scholar
Kable, J. W. & Glimcher, P. W. The neurobiology of decision: consensus and controversy. Neuron 63, 733–745 (2009).
Article CAS PubMed PubMed Central Google Scholar
Sakreida, K. et al. Affordance processing in segregated parieto-frontal dorsal stream sub-pathways. Neurosci. Biobehav. Rev. 69, 89–112 (2016).
Article PubMed Google Scholar
Marini, F., Breeding, K. A. & Snow, J. C. Distinct visuo-motor brain dynamics for real-world objects versus planar images. NeuroImage 195, 232–242 (2019).
Article PubMed Google Scholar
Freud, E. et al. Getting a grip on reality: Grasping movements directed to real objects and images rely on dissociable neural representations. Cortex 98, 34–48 (2018).
Article PubMed Google Scholar
Martin, A. The representation of object concepts in the brain. Annu. Rev. Psychol. 58, 25 – 45 (2007).
Article PubMed Google Scholar
Gallivan, J. P., McLean, A. & Culham, J. C. Neuroimaging reveals enhanced activation in a reach-selective brain area for objects located within participants’ typical hand workspaces. Neuropsychologia 49, 3710–3721 (2011).
Article PubMed Google Scholar
Rice, N. J., Valyear, K. F., Goodale, M. A., Milner, A. D. & Culham, J. C. Orientation sensitivity to graspable objects: an fMRI adaptation study. NeuroImage 36, T87–T93 (2007).
Article PubMed Google Scholar
Valyear, K. F., Culham, J. C., Sharif, N., Westwood, D. & Goodale, M. A. A double dissociation between sensitivity to changes in object identity and object orientation in the ventral and dorsal visual streams: a human fMRI study. Neuropsychologia 44, 218–228 (2006).
Article PubMed Google Scholar
Gallivan, J. P., Cavina-Pratesi, C. & Culham, J. C. Is that within reach? FMRI reveals that the human superior parieto-occipital cortex encodes objects reachable by the hand. J. Neurosci. 29, 4381–4391 (2009).
Article CAS PubMed PubMed Central Google Scholar
Symes, E., Ellis, R. & Tucker, M. Visual object affordances: object orientation. Acta Psychol. 124, 238–255 (2007).
Article Google Scholar
Tucker, M. & Ellis, R. On the relations between seen objects and components of potential actions. J. Exp. Psychol. Hum. Percept. Perform. 24, 830 – 846 (1998).
Article PubMed Google Scholar
Osiurak, F., Rossetti, Y. & Badets, A. What is an affordance? 40 years later. Neurosci. Biobehav. Rev. 77, 403–417 (2017).
Article PubMed Google Scholar
Yi, S. & O’Doherty, J. P. Computational and neural mechanisms underlying the influence of action affordances on value learning. bioRxiv https://doi.org/10.1101/2023.07.21.550102 (2023).
Everitt, B. J. & Robbins, T. W. Drug addiction: updating actions to habits to compulsions ten years on. Annu. Rev. Psychol. 67, 23–50 (2016).
Article PubMed Google Scholar
Goldstein, R. Z. & Volkow, N. D. Dysfunction of the prefrontal cortex in addiction: neuroimaging findings and clinical implications. Nat. Rev. Neurosci. 12, 652–669 (2011).
Article CAS PubMed PubMed Central Google Scholar
Kober, H. et al. Prefrontal–striatal pathway underlies cognitive regulation of craving. Proc. Natl. Acad. Sci.USA 107, 14811–14816 (2010).
Article ADS CAS PubMed PubMed Central Google Scholar
Klatzky, R. L., McCloskey, B., Doherty, S., Pellegrino, J. & Smith, T. Knowledge about hand shaping and knowledge about objects. J. Mot. Behav. 19, 187–213 (1987).
Article CAS PubMed Google Scholar
Cao, Z., Hidalgo Martinez, G., Simon, T., Wei, S. & Sheikh, Y. A. Openpose: Realtime multi-person 2d pose estimation using part affinity fields. IEEE Transactions on Pattern Analysis and Machine Intelligence (IEEE, 2019).
Simon, T., Joo, H., Matthews, I. & Sheikh, Y. Hand keypoint detection in single images using multiview bootstrapping. In 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 4645−4653 (IEEE, 2017).
Cao, Z., Simon, T., Wei, S.-E. & Sheikh, Y. Realtime multi-person 2d pose estimation using part affinity fields. In IEEE Transactions on Pattern Analysis and Machine Intelligence, 172−186 (IEEE, 2017).
Wei, S.-E., Ramakrishna, V., Kanade, T. & Sheikh, Y. Convolutional pose machines. In 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 4724−4732 (CVPR, 2016).
Piray, P., Dezfouli, A., Heskes, T., Frank, M. J. & Daw, N. D. Hierarchical Bayesian inference for concurrent model fitting and comparison for group studies. PLoS Comput. Biol. 15, e1007043–34 (2019).
Article Google Scholar
Ahn, W.-Y., Krawitz, A., Kim, W., Busemeyer, J. R. & Brown, J. W. A model-based fmri analysis with hierarchical bayesian parameter estimation. J. Neurosci. Psychol. Econ. 4, 95−110 (2013).
Stephan, K. E., Penny, W. D., Daunizeau, J., Moran, R. J. & Friston, K. J. Bayesian model selection for group studies. NeuroImage 46, 1004–1017 (2009).
Article PubMed Google Scholar
Botvinick, M. M., Huffstetler, S. & McGuire, J. T. Effort discounting in human nucleus accumbens. Cogn. Affect. Behav. Neurosci. 9, 16–27 (2009).
Article PubMed PubMed Central Google Scholar
Esteban, O. et al. fMRIPrep: a robust preprocessing pipeline for functional MRI. Nat. Methods 16, 111−116 (2018).
Esteban, O. et al. fmriprep. https://fmriprep.org/en/stable/ (2018).
Gorgolewski, K. et al. Nipype: a flexible, lightweight and extensible neuroimaging data processing framework in python. Front. Neuroinform. 5, 13 (2011).
Article PubMed PubMed Central Google Scholar
Gorgolewski, K. J. et al. Nipype. https://nipype.readthedocs.io/en/latest/ (2018).
Tustison, N. J. et al. N4itk: Improved n3 bias correction. IEEE Trans. Med. Imaging 29, 1310–1320 (2010).
Article ADS PubMed PubMed Central Google Scholar
Avants, B., Epstein, C., Grossman, M. & Gee, J. Symmetric diffeomorphic image registration with cross-correlation: Evaluating automated labeling of elderly and neurodegenerative brain. Med. Image Anal. 12, 26–41 (2008).
Article CAS PubMed Google Scholar
Zhang, Y., Brady, M. & Smith, S. Segmentation of brain MR images through a hidden markov random field model and the expectation-maximization algorithm. IEEE Trans. Med. Imaging 20, 45–57 (2001).
Article ADS CAS PubMed Google Scholar
Dale, A. M., Fischl, B. & Sereno, M. I. Cortical surface-based analysis: I. segmentation and surface reconstruction. NeuroImage 9, 179–194 (1999).
Article CAS PubMed Google Scholar
Klein, A. et al. Mindboggling morphometry of human brains. PLoS Comput. Biol. 13, e1005350 (2017).
Article PubMed PubMed Central Google Scholar
Fonov, V., Evans, A., McKinstry, R., Almli, C. & Collins, D. Unbiased nonlinear average age-appropriate brain templates from birth to adulthood. NeuroImage 47, S102 (2009).
Cox, R. W. & Hyde, J. S. Software tools for analysis and visualization of fmri data. NMR Biomed. 10, 171–178 (1997).
Article CAS PubMed Google Scholar
Greve, D. N. & Fischl, B. Accurate and robust brain image alignment using boundary-based registration. NeuroImage 48, 63–72 (2009).
Article PubMed Google Scholar
Jenkinson, M., Bannister, P., Brady, M. & Smith, S. Improved optimization for the robust and accurate linear registration and motion correction of brain images. NeuroImage 17, 825–841 (2002).
Article PubMed Google Scholar
Power, J. D. et al. Methods to detect, characterize, and remove motion artifact in resting state fmri. NeuroImage 84, 320–341 (2014).
Article PubMed Google Scholar
Behzadi, Y., Restom, K., Liau, J. & Liu, T. T. A component based noise correction method (CompCor) for BOLD and perfusion based fmri. NeuroImage 37, 90–101 (2007).
Article PubMed Google Scholar
Satterthwaite, T. D. et al. An improved framework for confound regression and filtering for control of motion artifact in the preprocessing of resting-state functional connectivity data. NeuroImage 64, 240–256 (2013).
Article PubMed Google Scholar
Lanczos, C. Evaluation of noisy data. J. Soc. Ind. Appl. Math. Ser. B Numer. Anal. 1, 76–85 (1964).
Article MathSciNet Google Scholar
Abraham, A. et al. Machine learning for neuroimaging with scikit-learn. Front. Neuroinform. 8, 14 (2014).
Yi, S. & O’Doherty, J. P. Computational and neural mechanisms underlying the influence of action affordances on value learning. bioRxiv https://doi.org/10.1101/2023.07.21.550102 (2025).

Download references

Acknowledgements

We thank Shinsuke Shimojo, Jeff Cockburn, Vincent Man and Seungyong Moon for discussion and suggestions, Weilun Ding, Thomas Henning, Seokyoung Min, Jihong Min, Areum Kim, HyeongChan Jo, Serim Ryou and Selene Xu for their help in implementing the task. Funding: This work was supported by a graduate innovator grant award (2022) from Caltech’s Tianqiao and Chrissy Chen Institute for Neuroscience to S.Y.

Author information

Authors and Affiliations

Division of the Humanities and Social Sciences, California Institute of Technology, 1200 E California Blvd, Pasadena, 91125, CA, USA
Sanghyun Yi & John P. O’Doherty

Authors

Sanghyun Yi
View author publications
Search author on:PubMed Google Scholar
John P. O’Doherty
View author publications
Search author on:PubMed Google Scholar

Contributions

S.Y. and J.P.O. conceived and designed the study, S.Y. performed experiments and S.Y. and J.P.O. analyzed and discussed results. S.Y. and J.P.O. wrote the manuscript.

Corresponding author

Correspondence to Sanghyun Yi.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Communications thanks Vassilios Christopoulos, Mark Thornton, Konstantinos Tsetsos, and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Supplementary Information (download PDF )

Reporting Summary (download PDF )

Transparent Peer Review file (download PDF )

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Cite this article

Yi, S., O’Doherty, J.P. Computational and neural mechanisms underlying the influence of action affordances on value learning. Nat Commun 17, 1096 (2026). https://doi.org/10.1038/s41467-025-67858-3

Download citation

Received: 28 March 2024
Accepted: 10 December 2025
Published: 08 January 2026
Version of record: 28 January 2026
DOI: https://doi.org/10.1038/s41467-025-67858-3

Subjects

Abstract

Similar content being viewed by others

Neuro-computational mechanisms and individual biases in action-outcome learning under moral conflict

Arithmetic value representation for hierarchical behavior composition

Neurocomputational mechanisms of affected beliefs

Introduction

Results

Effects of affordance on reaction times and action selection

Affordance influences value learning

Dynamic meta-level control merging affordance-based and value-based decision-making best explains behavior

Neural correlates of affordance, value-learning, and action selection

Neural implementation of the meta-level controller

Better task performance is linked to a more robust representation of arbitration variables in meta-level controller regions

Discussion

Methods

Participants

Stimuli

Task

Response decoding

Computational modeling of behavior

Reinforcement learning model

Bayesian learning model

Affordance as a prior model

Affordance as a bias model

Fixed arbitration model

Affordance as a cost model

Conflict-based arbitration model

Reliability-based arbitration model

Performance-based arbitration model

Models with counterfactual value update

Arbitration-weight-decay model

Alternative parameterization of affordance compatibility

Model recovery and parameter recovery analyses

Behavior general linear model analyses

fMRI data acquisition

fMRI data preprocessing

Anatomical data preprocessing

Functional data preprocessing

Whole brain general linear model analysis

Hand movement parametric regressor

Identifying decision-making regions

Identifying arbitration regions

Neural correlates of affordance-incompatible action execution

Neural representation strength analysis

Reporting summary

Data availability

Code availability

References

Acknowledgements

Author information

Authors and Affiliations

Contributions

Corresponding author

Ethics declarations

Competing interests

Peer review

Peer review information

Additional information

Supplementary information

Supplementary Information (download PDF )

Reporting Summary (download PDF )

Transparent Peer Review file (download PDF )

Rights and permissions

About this article

Cite this article

Share this article

Search

Quick links
