Introduction

Globally, over 6 billion metric tons of plastic waste had been generated by 2015, and estimates show a rise to ~12 billion tons by 20501. Fragmentation of this waste2,3 produces microplastics (MPs, 1–5000 μm) and nanoplastics (NPs, <1 μm) that are potentially hazardous to human health4,5,6. Recent estimates suggest that humans ingest ~0.1–5.0 g of these plastic particles weekly7 and inhale ~6.5–9.0 μg/kg body weight daily8. MPs and NPs intentionally produced for various applications such as drug carriers9 and those released from disposable plastic infusion tubes and bags10 also find their way into our bloodstream. Such significant exposures from different routes mean high risks and therefore, a quantitative understanding of the absorption, distribution, and excretion of these plastic particles through various exposure pathways is critical and urgent6.

Despite extensive research on the biodistribution and elimination of MPs and NPs, ongoing debate persists regarding their ability to cross mammalian biological barriers. For instance, while some studies report no systemic uptake (i.e., no barrier traversal) of MPs and NPs following oral exposure11,12, others have detected them in multiple organs13,14. Moreover, particles as large as several micrometers have been reported to traverse the blood-brain barrier (BBB)15, the urinary system barriers16, and the placental barrier17, even though these barriers are known to be permeable only to nano-sized particles18. These discrepancies may arise from the use of fluorescence labeling techniques, which can introduce artifacts due to dye leaching19. Similar issues are encountered with non-carbon isotope20,21,22 and heavy metal23,24 labeling methods. In addition, contamination of MPs or NPs during sample collection and digestion, as well as matrix interference, cannot be ruled out. Consequently, current findings are largely qualitative, and possible methodological artifacts may affect their validity.

Here, we accurately quantify the absorption, distribution, and excretion of 20 nm and 100 nm polystyrene (PS20 and PS100) NPs in pregnant Sprague Dawley (SD) rats, employing 14C-labeling alongside verification techniques such as gel permeation chromatography (GPC) and stimulated Raman scattering microscopy (SRS). We focus on NPs, whose smaller size compared to MPs may lead to greater health impacts23. PS, as a representative of conventional polymers, has been most frequently examined. By labeling the PS backbone with 14C isotope25,26,27,28, we exclude the possibility of label leaching, making 14C labeling the most reliable method for quantifying the tissue distribution and elimination of PS NPs. To explore the effects of exposure routes on the biodistribution of PS NPs, rats are administered radio-labeled particles via oral gavage (OG), intratracheal aerosolization (ITA), or intravenous injection (IVI). Their distribution in the urine, faeces, gastrointestinal (GI) tract, lungs, blood, thoracic and abdominal aorta, liver, spleen, brain, heart, kidneys, residual tissues, and maternal transfer via placenta and breast milk is quantified and then simulated by a physiologically based toxicokinetic (PBTK) model. Detailed information about the comparable physicochemical properties of 14C- and their unlabeled counterparts is provided in Supplementary Text and Fig. S1.

Results and Discussion

Potential elimination of PS NPs through urine and faeces

One day after administering 0.84 mg of 14C-labeled PS NPs (1.9 × 1014 particles of PS20 and 1.5 × 1012 particles of PS100) to each rat, a notable amount of radioactivity was detected in the urine (Fig. 1a). However, the daily urinary excretion of 14C declined rapidly over time, as indicated by the quickly decreasing slope of the cumulative percentage curve. After 5 days, no more radioactivity was detected in the urine and the total amount of 14C excreted through urine accounted for 0.08–0.21% of the initial dose. GPC results of urine further indicated that the radioactivity primarily stemmed from small molecules resembling the residual mono- and oligomers (i.e., 14C-labeled styrene monomer and short oligomers remaining from PS NP synthesis) present in the PS NP preparation (Fig. S2). As PS NPs are relatively inert, the urination results suggest that the residual mono- and oligomers adsorbed on the surface of PS NPs (0.3–0.4% of the total dose) were not completely removed by diafiltration. These residual mono- and oligomers rapidly dissociated from the PS NPs and were excreted in urine, regardless of the location of the PS NPs in the rats. Despite significant renal accumulation of PS NPs (Fig. S3a), their absence in the urine implies that neither PS20 nor PS100 is excreted via urine, likely due to the physiological pore size limit (<10 nm) for urinary system barriers29,30.

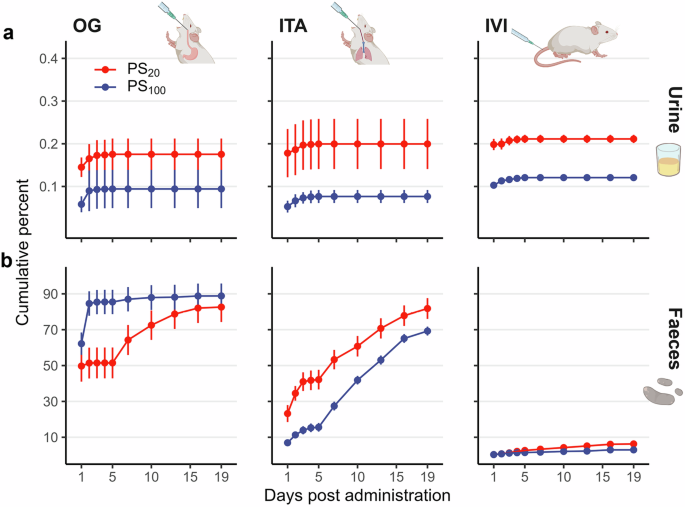

Fig. 1: Potential elimination of PS NPs through urine and faeces.
Fig. 1: Potential elimination of PS NPs through urine and faeces.
Full size image

The cumulative percentage of 14C in the a urine and b faeces on days 1–19 post the administration of PS20 or PS100 via oral gavage (OG), intratracheal aerosolization (ITA), or intravenous injection (IVI). All data (mean ± standard deviation, n = 3) are displayed as the cumulative percentage of 14C radioactivity in the specific excreta normalized to the total radioactivity of 14C administered to the rats. All data points include error bars, some of which are small and obscured by the data point symbols.

In contrast to urine, a substantial proportion of PS NPs was excreted through faeces, as verified by the same MW distribution of the 14C-labeled compounds in faeces and PS NPs themselves (Fig. S2). Within the first day, the faecal excretion of PS NPs administered via OG was the most significant, constituting 49.7–62.2% of the initial dose, followed by ITA with 6.94–22.2%, and IVI with only 0.35% (Fig. 1b). Initially high, daily faecal excretion of PS NPs from OG and ITA declined sharply until day 5. Afterward, there was a significant increase, followed by a gradual decrease or stabilization. This phenomenon suggests biphasic excretion of both PS NPs from different compartments within the rats. In contrast, the daily excretion of PS NPs via IVI remained relatively constant, with the slope of the cumulative percentage curve unchanged over the 19-day period. Moreover, a higher percentage of PS100 was excreted through faeces following OG compared to PS20, whereas the opposite trend was observed for ITA and IVI (p < 0.05, two-way ANOVA).

The observed higher faecal excretion of PS100 compared to PS20 following OG (Fig. 1b) suggests a reduced absorption of PS100 through the GI tract. The rapid faecal excretion of PS NPs administered via ITA indicates that a portion of the particles in the lungs were efficiently cleared by mucociliary transport up the airway, eventually into the pharynx and the GI tract31. Further, the mucociliary clearance rate for PS20 is higher than that for PS100, indicating that not only micrometer-sized particles but also extremely small particles (e.g., less than 100 nm) can be readily cleared. The minimal but relatively constant faecal excretion of PS NPs following IVI is attributable to the challenges faced by the NPs in transferring from the bloodstream to the GI tract.

Distribution of PS NPs in different tissues and blood

Due to the rapid faecal excretion following OG, with PS100 being excreted more rapidly than PS20, only 40.8% (34.6%) of the initial PS20 (PS100) doses retained in the GI tract 1 day post administration, decreasing consecutively to 7.61% (3.73%) after 19 days (Fig. 2a). Following ITA, PS20 was more efficiently eliminated through mucociliary clearance than PS100, leading to higher levels of PS20 in the GI tract (Fig. 2a). Specifically, a maximum value was observed on day 5, indicating that it takes time for PS NPs to transport from the lungs to the GI tract. In contrast to OG and ITA, PS NPs administered via IVI had the lowest overall presence in the GI tract (Fig. 2a). Furthermore, following IVI, the amount of PS20 in the GI tract was lower than that of PS100 (p < 0.05, two-way ANOVA), as PS20 was excreted more rapidly via faeces for this administration route (Fig. 1b). The MW distribution of the 14C-labeled compounds accumulated in the GI tract and other tissues or body fluids was the same as that of PS NPs themselves (Fig. S2), confirming the presence of PS NPs.

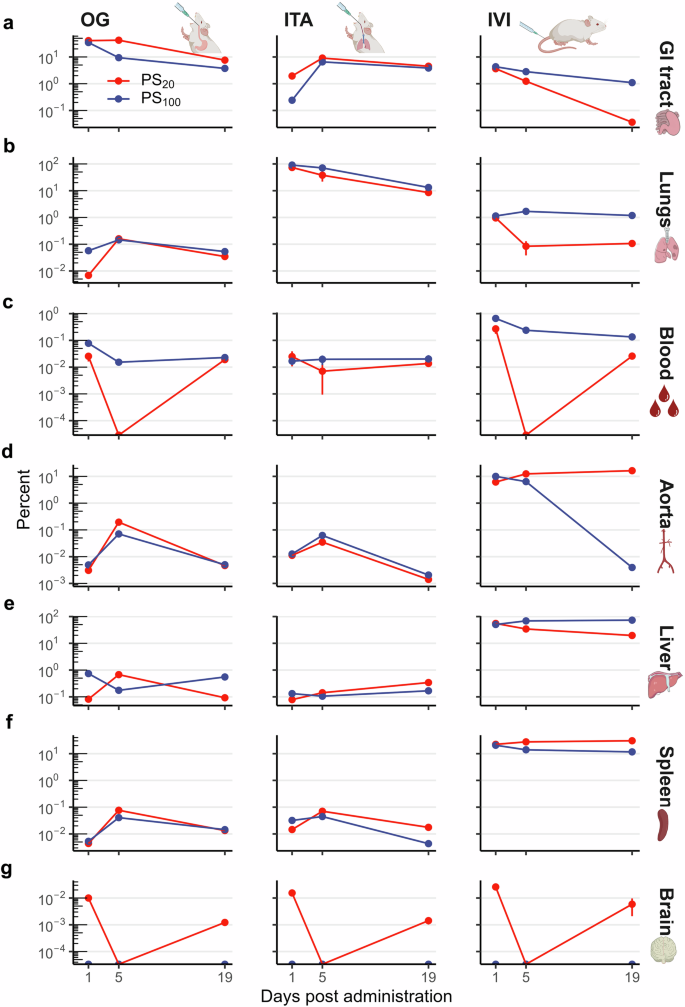

Fig. 2: Distribution of PS NPs in different tissues and blood.
Fig. 2: Distribution of PS NPs in different tissues and blood.
Full size image

The percentage of 14C in the a gastrointestinal (GI) tract, b lungs, c blood, d thoracic and abdominal aorta, e liver, f spleen, and g brain on days 1, 5, and 19 post the administration of PS20 or PS100 via oral gavage (OG), intratracheal aerosolization (ITA), or intravenous injection (IVI). All data (mean ± standard deviation, n = 3) are displayed as the percentage of 14C radioactivity in specific tissues or blood normalized to the total radioactivity of 14C administered to the rats. Data points partially obscured below the x-axis represent values below the limit of quantification [(2.8 × 10-4)% of initial dose]. All data points include error bars, some of which are small and obscured by the data point symbols.

Despite the considerable faecal excretion of PS NPs administered via ITA, the majority (73.7–90.8%) accumulated in the lungs within the first day post-administration, with a subsequent decline over time (Fig. 2b). The temporal reduction of PS NPs in the lungs is attributed to clearance mechanisms such as mucociliary transport, phagocytosis by alveolar macrophages, and lymphatic transport32. Although lower than ITA, significant lung accumulation was observed for PS NPs administered through IVI (0.08–1.69%) and OG (0.007–0.16%). The proportions obtained herein seem low. But they were orders of magnitude higher than the limit of quantification (2.8 × 10−4)% and represented a huge number (1.1 × 108–3.2 × 1012) of PS NPs. Across all administration routes, a greater overall proportion of PS100 was retained in the lungs compared to PS20 (p < 0.05, two-way ANOVA), which may be due to the more rapid transport of PS20 from lungs to faeces (Fig. 1b).

Although PS NPs were introduced directly to the bloodstream in the IVI treatment, only a minuscule proportion of PS20 (0.27%) and PS100 (0.66%) remained in the blood 1 day post administration (Fig. 2c). This finding implies that PS NPs may be rapidly sequestered from the blood into certain tissues (e.g., liver and spleen), due to the high rate of blood circulation in rats33. Additionally, a significant amount of PS NPs was also adsorbed on blood vessels, likely through a combination of non-specific physical interactions (such as van der Waals forces, electrostatic and hydrophobic interactions) and hemodynamic effects that enhance particle-endothelium contact. For instance, 6.15–16.3% of PS20 and 0.004–10.0% of PS100 were adsorbed on the thoracic and abdominal aorta within 19 days post-IVI (Fig. 2d). This adsorption may explain the previously reported presence of NPs in carotid artery plaques of patients with asymptomatic carotid artery disease34. Compared to IVI, blood concentrations of PS NPs (≤ 0.08%) were significantly (p < 0.05, two-way ANOVA) lower following OG and ITA administration, as PS NPs from these two routes needed to cross biological barriers (e.g., intestinal and blood-air barriers) before entering the blood. The low levels of PS NPs in the blood suggest a primary role for the circulatory system in transporting these particles rather than in their accumulation.

In line with the swift removal of PS NPs from the bloodstream post-IVI, a substantial fraction accumulated in the liver, with 55.3% of PS20 and 50.5% of PS100 present 1 day post administration, levels that significantly (p < 0.05, one-way ANOVA) changed to 19.6% and 73.4% by day 19 (Fig. 2e). The decreasing trend for PS20 may be attributed to their redistribution within the animal, supported by their time-dependent increase in the spleen (Fig. 2f), thoracic and abdominal aorta (Fig. 2d), and residual tissues (Fig. S3b). For instance, the proportion of PS20 in the spleen increased from 22.3% to 30.4% over 19 days post-IVI (Fig. 2f). In contrast, the increasing levels of PS100 and their greater accumulation in the liver compared to PS20 at later time points suggest weaker penetration and transport ability for PS10018,35. The distinct difference in hepatic accumulation between PS20 and PS100 explains their opposing trend over time in the spleen (Fig. 2f), thoracic and abdominal aorta (Fig. 2d), and residual tissues (Fig. S3b). The hepatic accumulation of PS NPs from IVI was further verified by SRS (Fig. 3), according to their specific aromatic C-H stretching vibrations at 3061 cm−1. For OG and ITA routes, the liver contained much lower proportions of PS NPs than IVI, preventing visualization by SRS. However, significant accumulation of both PS20 and PS100 administered through these two routes in the liver indicates that they can cross the intestinal and blood-air barriers. Absorption in the GI tract likely occurs through endocytosis by microfold cells in Peyer’s patches36 and enterocytes in the villous epithelium18,37. The significant extrapulmonary translocation of PS NPs administered via ITA to the liver (Fig. 2e), with PS20 exhibiting greater (p < 0.05, t-test) overall translocation than PS100, indicated size-dependent translocation across the lung epithelium31,38.

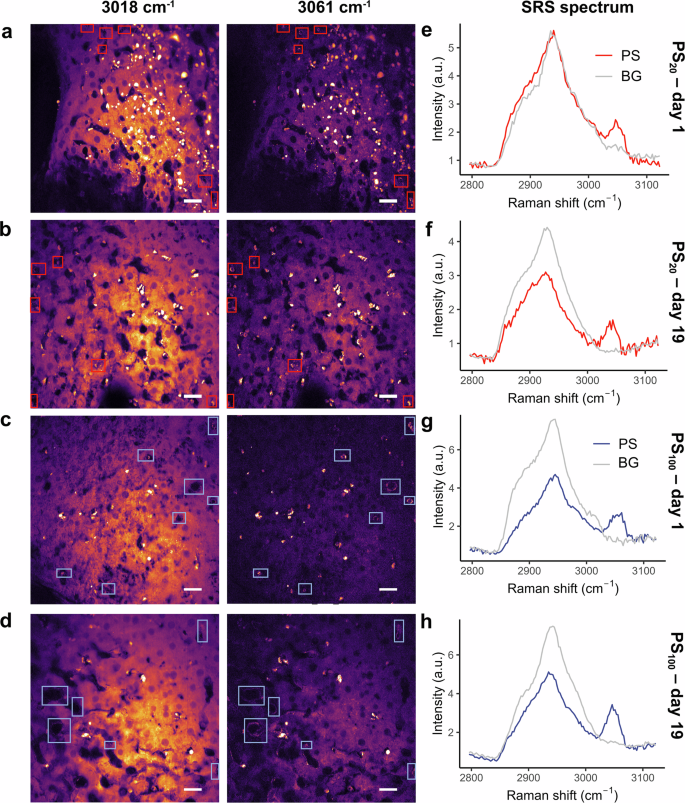

Fig. 3: Distribution of PS NPs in the liver as imaged by SRS.
Fig. 3: Distribution of PS NPs in the liver as imaged by SRS.
Full size image

The SRS signal intensity at a Raman shift of 3061 cm−1 (corresponding to the peak of the PS SRS spectrum) and 3018 cm−1 (representing the pre-peak minimum of the PS SRS spectrum) for the liver sections on days a, c 1 and b, d 19 following intravenous injection of a, b PS20 and c, d PS100. Potential accumulation of PS20 and PS100 was highlighted within red and blue rectangles, respectively. e–h The Raman spectra of the rectangular areas in a–d, confirming the presence of PS. The Raman spectra of the tissue background (BG) were also included in e–h for comparison. The background signal intensity at 3018 cm−1 was higher than that at 3061 cm−1 due to the strong Raman signal of C-H from biomolecules (e.g., lipids). Each figure was replicated in over 20 independent experiments, with similar results. Scale bars, 20 μm.

Detectable levels of PS20 were also found in the brain 1 day post administration, as verified by GPC (Fig. S2), representing 0.01%, 0.02%, and 0.03% of the initial dose from OG, ITA, and IVI, respectively (Fig. 2g). While PS20 were not detected in the brain after 5 days, a notable presence was observed again on day 19 post-administration, suggesting their repeated uptake into and clearance from the brain via the bloodstream, as evidenced by similar time-dependent variations in blood levels (Fig. 2c). In contrast, PS100 were not detected in the brain at any time point, regardless of the administration route. The blood-brain barrier BBB serves as a selective semi-permeable interface that shields the brain from harmful substances in the bloodstream, permitting only the passive diffusion of small, lipid-soluble molecules below 400–600 Da39. Nevertheless, particles may traverse the BBB through paracellular diffusion, transcellular transport, and transcytosis40,41. Moreover, PS20 in the brain can be rapidly cleared via the paravascular and ancillary pathways42. Therefore, our study indicates that only PS20 may be sufficiently small to cross the BBB.

Besides the tissues above, the heart, despite its central role in circulating blood33, exhibited extremely low accumulation of PS NPs (0.0003–0.1%) (Fig. S3c), suggesting the difficulty of PS NPs to cross or adsorb on the atrial and ventricular walls. Nevertheless, a substantial amount of PS NPs was detected in other residual tissues of the rat, including skin, bone, muscle, and blood vessels (excluding the thoracic and abdominal aorta), with PS20 ranging from 0.23% to 23.9% and PS100 from 0.26% to 8.42% (Fig. S3b). The adsorption of PS NPs onto blood vessels other than the thoracic and abdominal aorta mentioned above may be an important cause for this distribution.

Maternal transfer of PS NPs via placenta and breast milk

Maternal transfer of PS NPs to offspring may take place through two primary mechanisms: translocation across the placental barrier during pregnancy and via lactation postpartum43. For the former, all three administration routes resulted in comparable placental accumulation of PS NPs, with PS20 (0.03–0.11%) showing a higher (p < 0.05, t-test) degree of accumulation than PS100 (0.005–0.044%) 1 day post administration (Fig. 4a). Further, a notable accumulation of PS20 (0.05–0.07%) but no PS100 was detected in the fetuses, indicating a size-dependent transfer of PS NPs from the placenta to the fetus (Fig. 4b).

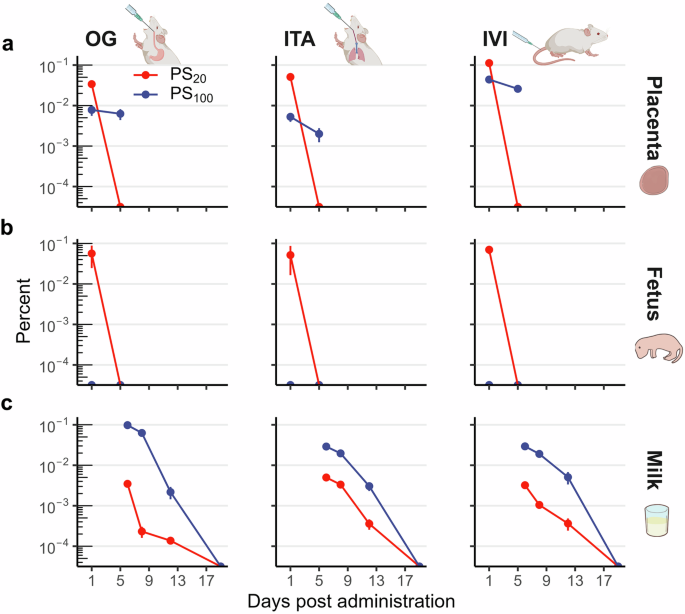

Fig. 4: Maternal transfer of PS NPs.
Fig. 4: Maternal transfer of PS NPs.
Full size image

The percentage of 14C in the a placenta, b fetus, and c milk on days 1–19 post the administration of PS20 or PS100 via oral gavage (OG), intratracheal aerosolization (ITA), or intravenous injection (IVI). As delivery occurred on day 5 post-administration, there are only two time points (days 1 and 5) for the distribution of PS NPs in the a placenta and b fetus. Since the x-axis denotes the time elapsed post-administration of PS NPs and delivery occurred on day 5 post-administration, the time points in c correspond to days 1, 3, 7, and 14 postpartum (i.e., days 6, 8, 12, and 19 post-administration). All data (mean ± standard deviation, n = 3) are displayed as the percentage of 14C radioactivity in the placenta, fetus, or milk normalized to the total radioactivity of 14C administered to the rats. Data points partially obscured below the x-axis represent values below the limit of quantification [(2.8 × 10−4)% of initial dose]. All data points include error bars, some of which are small and obscured by the data point symbols.

In addition to the materno-fetal transfer, a considerable presence of PS20 and PS100 was detected in rat milk (Fig. 4c). Under this condition, ~0.03–0.1% of the initial PS100 dose was excreted through milk 1 day postpartum (i.e., day 6 post administration in Fig. 4c), whereas the milk content of PS20 was significantly (p < 0.05, two-way ANOVA) lower at 0.003–0.005%. Moreover, the concentration of PS NPs in milk diminished rapidly over time, with no detectable NPs in milk 14 days after delivery (i.e., day 19 post administration in Fig. 4c). Comparing the two maternal transfer pathways, materno-fetal transfer predominantly contributed to offspring accumulation of PS20, while lactation was the only route for PS100 accumulation. These findings suggest that the blood-milk barrier permits a broader size range of PS NPs compared to the placental barrier44.

PBTK modeling results of PS NP distribution in rats

To elucidate the link between external dose and internal distribution, we simulated the biodistribution and elimination data of PS NPs using a particle-based PBTK model (Figs. S4 and S5)45. Figure S6 shows good agreement between observed and predicted values, with most observed-to-predicted ratios within a factor of 2, indicating the model’s robust predictive capacity. The derived PBTK parameters (Table S1) align with the biodistribution results of PS20 and PS100 described above. For instance, among the three administration routes, OG demonstrates the highest tissue/plasma distribution coefficient in the GI tract (PGI), ITA exhibits the highest coefficient in the lung (PLu), and IVI shows the highest coefficient in the liver (PLi), respectively. The substantial variation in distribution coefficients across tissues underscores their distinct permeability to PS NPs, which also depends on the administration route. A previous study46 on PBTK modeling of PS NPs via OG reported much lower KGIb (3.4–4.2 × 10−5 h−1) and PLi (1 × 10−4) compared to our observations (0.02–0.17 h−1 and 0.016–0.34). Given their data were based on positron emission tomography of 89Zr-labeled PS NPs47, our results highlight the need for reliable quantification methods to accurately predict the biological distribution of PS NPs.

In summary, the quantitative data obtained in our study reveal the critical impact of administration routes on the biodistribution of PS NPs. Notably, PS NPs administered orally were excreted in faeces, whereas those introduced intravenously accumulated predominantly in the liver and spleen, and those delivered through the respiratory tract accumulated mainly in the lungs. For orally administered PS NPs, despite rapid faecal excretion, their potential to affect the GI tract and gut microbiota warrants attention. In contrast, inhaled PS NPs require assessment of their impact on the lungs, while intravenously introduced PS NPs warrant examination of their effects on the liver and spleen. Regardless of the administration routes, we also found significant systemic accumulation of PS NPs in various tissues, indicating their ability to traverse various biological barriers in mammals. Our results underscore the need to comprehensively examine the impact of NPs across different organs and to look out for potential systemic effects. Beyond administration routes, we also found that particle size significantly influences the biodistribution of PS NPs. Of the two sizes examined, only PS20 may cross the BBB, potentially leading to neurotoxicity. Whereas PS20 were transferred maternally through both the placenta and breast milk, PS100 were detected only in breast milk. This differential transfer is likely to form distinct NP distribution patterns and lead to size-dependent effects in the offspring. Future research should explore the molecular mechanisms by which differently-sized PS NPs cross various biological barriers.

Although our experiments were conducted in rats, the exposure routes parallel those relevant to humans, including ingestion, inhalation, and intravenous delivery. These parallels generate testable hypotheses for human studies: ingestion-focused work should assess GI and microbiome effects, inhalation studies should examine pulmonary outcomes, and intravenous exposure studies should investigate hepatic and splenic responses. Furthermore, the evidence for size-dependent maternal transfer highlights the need to consider vulnerable populations such as pregnant individuals, fetuses, and infants. The possibility of smaller PS NPs to cross the BBB further suggests that future human biomonitoring and risk assessments should stratify by particle size. Collectively, these translational insights emphasize the importance of investigating NP behavior under human-relevant exposure scenarios while avoiding over-extrapolation from animal data.

Method

Preparation of PS NPs and characterization

Both PS20 and PS100 were synthesized via microemulsion polymerization26. The process involved heating 10 mL of 1% w/v sodium dodecyl sulfate (SDS) to 67 °C, followed by the addition of 0.35 mL of 14C-labeled styrene (407 MBq/g, alpha carbon labeled, Moravek, USA). After thorough mixing, 0.8 mL of 4.5% w/v potassium persulfate was added to initiate a 2-h polymerization and PS20 were thus obtained. Synthesis of PS100 followed a similar method but with a lower SDS concentration of 0.016% w/v. Unlabeled PS NPs were also synthesized following the same method. Diafiltration through a 10-kDa regenerated cellulose membrane removed any soluble impurities in the PS NPs. The hydrodynamic diameter of the PS NPs was measured by a dynamic light scattering particle sizer (Zetasizer Nano S90, Malvern, UK), their morphology visualized using transmission electron microscopy (JEM-200CX, JEOL, Japan), and their chemical composition verified through Raman (Xplora, Horiba, France) and Fourier transform infrared (FTIR, Nexus 870, Nicolet, USA) spectroscopy.

Exposure experiment

Exposure and sample collection

Fifty-four pregnant Sprague-Dawley rats (SPF grade, 11 weeks old, gestational day 15) were purchased from Nanjing Qinglongshan Biotechnology Co., Ltd [Animal Production License No. SCXK (Su) 2024-0001]. The animals were housed under controlled conditions (23–25 °C, 50–60% humidity, 12-h light/12-h dark cycle) with ad libitum access to food and water. All experimental protocols were reviewed and approved by the Animal Ethical and Welfare Committee of Nanjing University (Approval No.: IACUC-D2211002) and conducted in accordance with the 3R principles and the Regulations for the Administration of Laboratory Animals.

The 54 rats were randomly assigned to six treatments, each receiving a single dose (0.84 mg) of 14C-labeled PS20 or PS100 via OG, ITA, or IVI. Single dose (acute exposure) was applied instead of multiple doses (chronic exposure) to clearly discern the distribution profile of PS NPs. The applied dose falls within the reported range for MP intake in humans48 and the dosage (342 kBq/animal) of 14C is also at the lower end of the range employed in previous rat studies49. Our preliminary experiments further showed that this dosage of 14C-labeled PS NPs had negligible effects on the rats. ITA was selected over traditional intratracheal or intranasal instillation methods due to its closer simulation of natural inhalation processes and its reduced likelihood of direct NP migration from the nasal cavity to the laryngopharynx and subsequent entry into the GI tract. Following exposure, the rats were singly housed in metabolic cages with continuous access to food and water. The metabolic cages separated faeces and urine, with faecal pellets sliding down through a grid into a collection channel and urine being funneled into a separate receptacle to prevent cross-contamination. Their faeces and urine were collected daily. The collection containers and funnels were cleaned with tetrahydrofuran (THF) between each collection. In our preliminary experiment, THF cleaning had been found to be able to reduce the residual 14C radioactivity below detection limit. This experiment spanned 19 days, with three time points (days 1, 5, and 19), two of which (days 1 and 5) preceded delivery.

At each time point, three rats from each treatment were humanely euthanized through intraperitoneal injection of pentobarbital sodium (100 mg/kg). Blood was first collected via abdominal aorta, and the blood vessel was emptied in case of cross-contamination. Afterward, various tissues, including the GI tract (esophagus, stomach, small and large intestines, and the content inside), lungs with trachea, thoracic and abdominal aorta, liver, spleen, brain, heart, kidneys, residual tissues, as well as placenta and fetus (on days 1 and 5 only), were harvested with different scissors, which were cleaned by THF before the dissection of the next rat. The aluminum foil on the lab bench was changed as well. Offspring were also collected on days 6, 8, 12, and 19 post administration (i.e., days 1, 3, 7, and 14 postpartum) for milk sampling from the stomach. All collected samples were immediately frozen in liquid nitrogen and subsequently stored at −80 °C. Prior to analysis, the samples were freeze-dried and ground into fine powders in different agate mortars (i.e., different mortars for different tissues), which was cleaned by THF at least three times between each sample.

Total radioactivity determination

A wet combustion method was used to quantify the PS NP content in the collected excreta, tissues, and body fluids. Briefly, 20 mg of freeze-dried sample powder was placed into one arm of an H-shaped glass tube, followed by the addition of 0.8 g of potassium dichromate and 10 mL of sulfuric acid. The arms of the tube were sealed with rubber stoppers, and the contents were stirred for 30 min. The tube was then autoclaved at 121 °C for 2 h and allowed to cool to room temperature. Subsequently, 1 mL of 4 M NaOH was injected into the opposite arm of the tube to capture the 14CO2 generated. After continuous stirring for an additional 24 h, the NaOH solution was extracted and mixed with 3 mL of scintillation cocktail (Gold Star; Meridian Biotechnologies Ltd, Epsom, UK). The radioactivity of the samples was measured by liquid scintillation counting (LSC, LS6500, Beckman Coulter, Brea, USA). The PS NP content was then calculated based on the radioactivity of 14C and total weight of the excreta, tissues, and body fluids. Due to the inability to collect all postpartum milk from the rats, the dry weight of milk was approximated to be 8.0 grams per day50. The recovery yields for the wet combustion method used to quantify 14C radioactivity were 100 ± 5% (Table S2). These yields were determined using 20 mg of freeze-dried tissues or body fluids from rats not exposed to PS NPs, to which known amounts (33 Bq) of 14C-labeled PS NPs were added. Moreover, the mass balance analysis showed that 91.3% to 100.8% of the initial 14C dose was accounted for in excreta, tissues, and body fluids across various particle sizes and administration routes (Tables S3 and S4).

Measurement of MW distribution

The MW distribution of the 14C-labeled compounds within the excreta, tissues, and body fluids was determined using GPC (PL-GPC120, Agilent Technologies, USA). For this purpose, 0.1–0.5 g of freeze-dried powder from each sample was mixed with 20 mL of THF, sonicated for 30 min, and centrifuged at 3900 × g for 15 min. The resulting supernatant was concentrated through rotary evaporation and then analyzed by GPC equipped with a PL-gel MIXED-C column (5 µm, 300 mm × 7.5 mm). The column was maintained at 40 °C, with THF as the mobile phase at a flow rate of 1 mL/min. Fractions were collected every 0.25 min, and the radioactivity of the eluent was determined by LSC. For reference, the MW distribution of the 14C-labeled PS20 and PS100 was similarly assessed, along with that of the residual mono- and oligomers which were removed from both PS NPs via diafiltration through a 10-kDa regenerated cellulose membrane as mentioned before.

PBTK modeling of the biodistribution data of PS NPs

The biodistribution results of 14C-labeled PS20 and PS100 were simulated using a particle-based PBTK model45. Unlike traditional PBTK models for small molecules, this particle-based approach accounts for endocytosis in tissues such as lungs, spleen, liver, and kidneys, assuming permeability-limited rather than perfusion-limited distribution of PS NPs. Figure S4 illustrates the initial compartmentalization of rats into ten distinct compartments: lungs, spleen, liver, GI tract, kidneys, heart, brain, placenta, mammary gland, and the residual tissues. The lungs, spleen, liver, and kidneys were each further subdivided into three sub-compartments: capillary blood, tissue, and phagocytic cells (PCs). PCs are hypothesized to be the primary cells responsible for PS NP uptake, exerting a significant influence on their transport and circulation. Other organs and compartments were divided into capillary blood and tissue sub-compartments. To incorporate the administration routes of ITA and OG, the model integrated the extrathoracic region into the lung compartment and the gut lumen into the GI tract. The model also established the transfer of PS NPs between the placenta and the fetus and accounted for milk secretion in the mammary gland compartment. All compartments are interconnected through the circulatory system, with the exchange of PS NPs between blood and tissues occurring via a permeability-limited process.

The partitioning of PS NPs between capillary blood, tissues, and PCs (when applicable) within each compartment at time t was mainly characterized by the following equations,

$$\frac{{{\rm{d}}A}_{{\rm{blood}}\_{\rm{com}}}}{{\rm{d}}t}= {Q}_{\rm{com}}\times \left({C}_{{\rm{art}}}-{C}_{{\rm{blood}}\_{\rm{com}}}\right)-{{PA}}_{\rm{com}}\\ \times \left({C}_{{\rm{blood}}\_{\rm{com}}}-\frac{{C}_{{\rm{tissue}}\_{\rm{com}}}}{{P}_{{\rm{com}}}}\right)$$
(1)
$$\frac{{{dA}}_{{\rm{tissue}}\_{\rm{com}}}}{{\rm{d}}t}= {{PA}}_{{\rm{com}}}\times \left({C}_{{\rm{blood}}\_{\rm{com}}}-\frac{{C}_{{\rm{tissue}}\_{\rm{com}}}}{{P}_{\rm{com}}}\right)\\ -\left({K}_{{\rm{up}}\_{\rm{com}}}\times {A}_{{\rm{tissue}}\_{\rm{com}}}-{K}_{{\rm{re}}\_{\rm{com}}}\times {A}_{{\rm{PC}}\_{\rm{com}}}\right)$$
(2)
$$\frac{{{dA}}_{{\rm{PC}}\_{\rm{com}}}}{{\rm{d}}t}={K}_{{\rm{up}}\_{\rm{com}}}\times {A}_{{\rm{tissue}}\_{\rm{com}}}-{K}_{{\rm{re}}\_{\rm{com}}}\times {A}_{{\rm{PC}}\_{\rm{com}}}$$
(3)

Where Ablood_com, Atissue_com, and APC_com denote the mass (ng) of PS NPs in the capillary blood, tissues, and PCs of each compartment, respectively. Cart represents the concentration (ng/kg) of PS NPs in arterial blood, while Cblood_com and Ctissue_com are the mass concentrations (ng/kg) of PS NPs in the capillary blood and tissues of each compartment. Qcom (kg/h) signifies the blood flow rate in each compartment, Pcom is the tissue-blood partition coefficient of each compartment, Kup_com (1/h) and Kre_com (1/h) are the uptake and release rate constants of PS NPs by PCs of the respective compartment. The permeability area cross product PAcom (kg/h) for each compartment is calculated as the product of Qcom and the permeability coefficient between capillary blood and tissue (PAC). The rats in the model had an average body weight of 0.45 kg, and the physiological parameters used for these calculations are detailed in Table S5.

The model was calibrated and differential equations were solved using SimBiology® (v24.2) within MATLAB™ 2024b (The MathWorks, Inc., Natick, MA, USA), employing the ode15s solver. Kinetic parameters were derived by fitting the data with the Fit Data function in SimBiology®, utilizing the lsqnonlin algorithm with a proportional error model. The accuracy of the PBTK model was assessed by comparing observed and predicted values.

SRS imaging

Similar to the exposure experiment above, an additional cohort of 6 rats were exposed to 0.84 mg per rat of unlabeled PS20 or PS100 via IVI in triplicate. A control treatment was also included without exposure to PS NPs. On day 1 or 19 post administration, each rat was subjected to anesthesia, followed by cannulation of the aorta through the left ventricle51. Subsequently, the arterial system was rapidly flushed with 150 mL of saline, after which 250 mL of a 4% paraformaldehyde solution (w/v, pH = 7.40) was perfused. The liver was then embedded in agarose, and sections of 100 μm thickness were sliced for further analysis by SRS. The ability of SRS to visualize the bioaccumulation and biodistribution of PS NPs had been verified in the previous study from our group52.

The SRS system integrated a dual-output femtosecond (fs) laser (InSight X3, Spectra-Physics, Newport, USA), which provides pump (800 nm, ~120 fs) and Stokes (1045 nm, ~220 fs) beams with an 80 MHz repetition rate. The intensity of the 1045 nm Stokes beam was modulated by an acousto-optical modulator (1205-C, Isomet, USA) at 2.5 MHz. The pump and Stokes pulses were both chirped to ~3 ps by a 75 cm long SF57 glass rod, and were spatially overlapped by a dichroic mirror (DMSP1000L, Thorlabs, USA). The temporal overlap between pump and Stokes pulses was ensured by a time delay line in the Stokes beam. Laser beams were scanned by a two-axis galvanometer (GVS002, Thorlabs, USA) for SRS imaging. The SRS signal was detected by a photodiode and resonant amplifier, demodulated by a lock-in amplifier (HF2Ll, Zurich Instruments, Switzerland) at 2.5 MHz. Imaging utilized a 60× objective (N.A. 1.2, UPLSAPO 60XW) with laser powers of 40 mW for the pump and 80 mW for the Stokes beam. The dwell time was set at 20 µs, and the field of view was 200 × 200 μm2 with 400×400 pixels. The SRS spectra were acquired by adjusting the delay time of the Stokes laser.

Statistical analysis

Statistical analyzes were conducted to assess several key aspects of our findings, including the time-dependent distribution of PS20 and PS100, the differences between these two size variants, and the effects of various administration routes on the biodistribution of both PS NPs. Significant differences (p < 0.05) were based on the results of a one-way or two-way analysis of variance with post-hoc multiple comparisons (Tukey or Tamhane; IBM SPSS Statistics 22.0, NY, USA). The normality (Kolmogorov–Smirnov and Shapiro–Wilk tests) and homogeneity of variance (Levene’s test) of the data were determined during the analysis of variance. Student’s t-test was used to test the significant difference between two treatments.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
