Introduction

Transition metal-catalyzed asymmetric hydrogenation (AH) has been widely explored due to its practicality in industrial production, particularly in pharmaceutical companies1. Since the first industrial application of Rh/DIPAMP by Knowles in 1974, and its subsequent recognition with the Nobel Prize in 2001, asymmetric hydrogenation has experienced a golden era of research centered around noble transition metals, such as ruthenium, rhodium, and iridium2,3,4,5,6,7,8,9. A significant shift occurred around 2010, when chemists began focusing on earth-abundant transition metals, such as manganese, iron, cobalt, nickel, and copper10,11,12,13,14,15,16,17,18,19. Among these, iron stands out as a promising candidate for replacing noble transition metals in industrial applications, owing to its status as the second most abundant metal in the Earth’s crust and negligible toxicity to humans20. Although several sophisticated iron complexes have been developed for asymmetric hydrogenation21,22,23,24,25,26, the quest for highly efficient and practical chiral Fe-catalysts, with the ultimate goal of industrial application, continues unabated.

Due to the smaller 3d orbitals and higher electronegativity of iron compared to its congener ruthenium, iron-based catalysts exhibit distinct catalytic behaviors. For instance, iron is more likely to undergo single-electron transfer processes and possesses complex valency and spin states27. Consequently, chemists have recognized that the classical catalytic modes of ruthenium cannot be directly and simply replicated with iron, which is often perceived as inferior in performance28. However, a notable exception is the Fe-cyclopentadienone (Fe-CPD) complex (Fig. 1a), which displays a similar concerted catalytic mode and comparable reactivity to its ruthenium analog, Shvo’s catalyst29. Although Fe-cyclopentadienone was initially synthesized in the 1950s30 and further explored by Pearson and Knölker in the 1990s31,32,33, its catalytic potential was largely overlooked until 2007, when Guan and co-workers demonstrated. It's high efficiency in the hydrogenation of ketones34,35. Fe-CPD offers several advantages, including being inexpensive, low in toxicity, easily accessible, phosphine-free, and air-stable. The catalytic mode of Fe-CPD can be attributed to a bifunctional active intermediate, consisting of a Lewis acidic iron center and a Lewis basic oxygen center (Fig. 1a). Based on this bifunctional catalytic model, a wide range of catalytic transformations involving hydrogenation and dehydrogenation have been developed36,37,38,39,40,41,42,43.

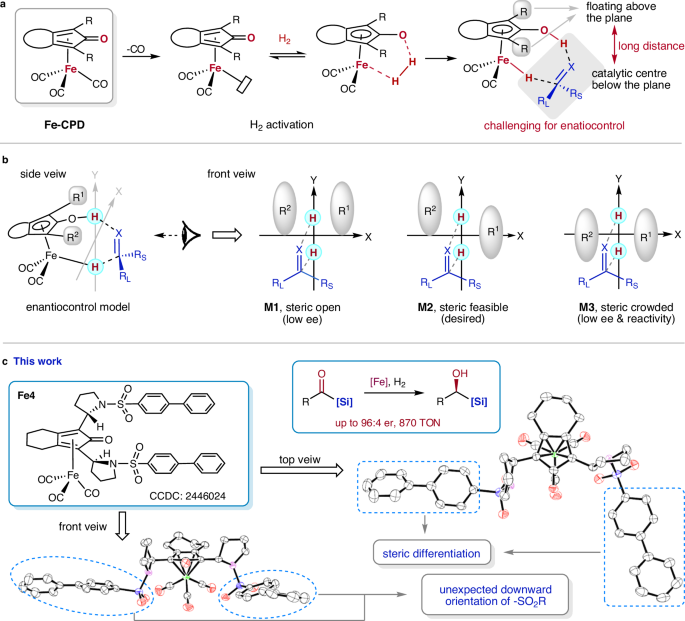

Fig. 1: Overview of the development of Fe-CPDs and our work.
Fig. 1: Overview of the development of Fe-CPDs and our work.
Full size image

a Introduction to the Catalytic Model of Fe-CPD, categorized as a bifunctional catalyst, along with an explanation of the challenges in constructing an enantioselective Fe-CPD. b Rational analysis of the steric requirements for chiral Fe-CPD in the asymmetric hydrogenation of polar double bonds. c Our work: a newly developed Fe-CPD features the desired downward extension of the side arms and the steric difference formed, and its performance in asymmetric hydrogenation of acylsilanes. CPD, cyclopentadienone.

Despite the extensive application of Fe-CPD in various non-asymmetric transformations, the development of enantioselective reactions using chiral Fe-CPD has lagged far behind. The primary reason is the lack of an efficient chiral Fe-CPD catalyst, due to the difficulty in designing an effective chiral pocket around the iron active center. Addressing the challenge of designing an efficient enantioselective Fe-CPD, the Wills group noted that the limited enantioselectivity may result from the long distance between the side arms of the cyclopentadienone ring and the substituents of the substrate in the proposed reduction model (Fig. 1a)44.

Fe-CPD-catalyzed asymmetric transformations primarily rely on two strategies: 1) the introduction of a chiral cocatalyst and 2) the design of a chiral cyclopentadienone (CPD) backbone. The first strategy has been effective in limited instances, as it requires specific recognition between the substrate and the chiral cocatalyst, such as imines and chiral phosphoric acid catalysts45,46,47. The second strategy is more appealing due to the direct chiral recognition between the substrate and the chiral Fe-CPD, which is expected to have broader and more general applications. Significant efforts have been devoted to developing chiral CPD backbones, yet no substantial breakthroughs have been achieved, particularly at the practical application level44,48,49,50,51. To date, the highest enantiomeric excess (e.e.) value achieved is 77%, obtained through the asymmetric hydrogenation of a specific ketone, although this method lacks substrate generality49.

Given the bifunctional catalytic mode of Fe-CPD, a visionary enantiocontrol model for the asymmetric hydrogenation of polar double bonds, such as ketones and imines, can be established (Fig. 1b, left). The current challenge of designing an efficient enantioselective catalyst can be explained by model M1, which features open steric hindrance in front of the catalytically active iron center, making effective enantio-differentiation difficult (Fig. 1b). This conclusion is supported by the crystal structures of catalysts described in earlier reports44,48,49,50,51. Based on the concerted enantiocontrol model, we are able to figure out a desired and sterically feasible model M2 and an undesired, sterically crowded model M3 (Fig. 1b). In this work, we report an chiral Fe-CPD catalyst that simultaneously positions steric side arms downward to the CPD plane and creates two distinct steric environments in front of the catalytically active iron center (illustrated with Fe4, Fig. 1c). This type of catalyst demonstrates excellent performance in the asymmetric hydrogenation of acylsilanes, achieving up to a 96:4 enantiomeric ratio (e.r.) and a turnover number (TON) of 870. Moreover, a slight modification of the catalyst enables highly efficient asymmetric transfer hydrogenation, using i-PrOH as the hydrogen source.

Results and discussion

Catalyst design and test

At the outset of our study, we aimed to incorporate naturally abundant chiral scaffolds, such as amino acids, into the Fe-CPD framework (Fig. 2a). The chiral aldehyde precursor (P1), which can be readily synthesized from L-proline, was treated with the dimethyl (1-diazo-2-oxopropyl)phosphonate (Bestmann-Ohira reagent) to produce the corresponding alkyne P2. Following -Boc removal and the installation of –SO2Ar, P3 was obtained, which then underwent a nucleophilic reaction with a diiodide to yield the dialkyne P4. The final Fe1–12 complexes were easily synthesized through the coordination of P4 with Fe2(CO)9. This synthetic route offers several advantages, including the easy availability of starting materials, high yields, friendly operation, and all products are air-stable. A notable feature is the production of a single diastereomer of the final Fe-complex, which significantly simplifies the isolation process. Starting from the common synthon P2, the final complexes Fe1–12 achieved a global yield ranging from 12% to 46% (see Supplementary Information). Consequently, this type of catalyst holds potential for large-scale production.

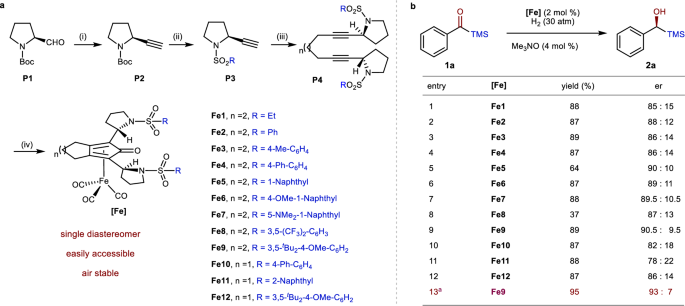

Fig. 2: Preparation of chiral Fe-CPDs and the catalytic asymmetric hydrogenation of acylsilane.
Fig. 2: Preparation of chiral Fe-CPDs and the catalytic asymmetric hydrogenation of acylsilane.
Full size image

a Synthetic route for the Fe-CPDs, reaction conditions: (i) Dimethyl (1-diazo-2-oxopropyl)phosphonate, K2CO3, MeOH. (ii) TFA, DCM; then RSO2Cl, NEt3. (iii) LDA, 1,3-diiodopropane/1,4-diiodobutane, THF. (iv) Fe2(CO)9, toluene, reflux. b asymmetric hydrogenation of 1a, reaction conditions: 1a (0.2 mmol), [Fe] (2 mol %), Me₃NO (4 mol %), toluene (0.3 mL), H2 (30 atm), 80 °C, 12 h. ai-PrOH/H2O (0.48: 0.12 mL), 60 °C.

Compared to the extensively studied alkyl-aryl ketone substrates, acylsilanes have only been sporadically explored in asymmetric hydrogenation, despite the silyl group’s potential for diverse transformations and biological activities. The classical Ru-TsDPEN catalyst has been shown to be effective with aryl acylsilanes but less so with alkyl acylsilanes52. Ohkuma et al. successfully applied the Ru-diphosphine-diamine catalytic system for the asymmetric hydrogenation, but limited to the bulkier -TBS substituent, possibly due to the existence of a strong base, which may cause the Brook-rearrangement53. We were also keen to apply our newly developed Fe-CPDs for the asymmetric hydrogenation of acylsilanes, addressing the existing unresolved challenges. Under H2 (30 atm) at 80 °C, a preliminary screening of Fe1–12 revealed that Fe9 gave the best enantioselectivity (Fig. 2b, entries 1–12). These results indicate that a six-membered ring backbone is superior to a five-membered ring backbone (entry 4 vs. 10 and entry 9 vs. 12). Moreover, the different types of R substituents on the sulfonyl group do not significantly influence either catalytic reactivity or enantioselectivity. Further optimization, involving a solvent change to iPrOH/H2O and a temperature reduction to 60 °C, resulted in the best enantiomeric ratio (e.r.) of 93:7 with high yield (entry 13).

Substrate scope exploration

With the optimized reaction conditions in hand, we primarily evaluated the substrate scope of Fe-catalyzed asymmetric hydrogenation of aryl acylsilanes (Fig. 3). First, changing the silyl groups from -TMS to -TES and -TBS resulted in a slight decrease in the er (2a–c). Second, while the electronic properties of different substituents did not affect substrate activity, they did have a slight influence on the er, with electron-rich groups generally exhibiting higher enantioselectivity (e.g., 2d–e vs. 2v–w). Third, substitutions at the ortho-position showed poorer enantiocontrol than those at the para- and meta-positions (2d–f vs. 2g and 2s–t vs. 2 u). Additionally, heteroaromatic rings such as thiophenyl and furanyl were well tolerated (2z and 2aa). Notably, some bioactive drugs and natural product-derived acylsilanes were also successfully hydrogenated with high enantioselectivity and reactivity (2ab–ae). Overall, the aryl acylsilane substrates demonstrated high generality with respect to the catalytic system.

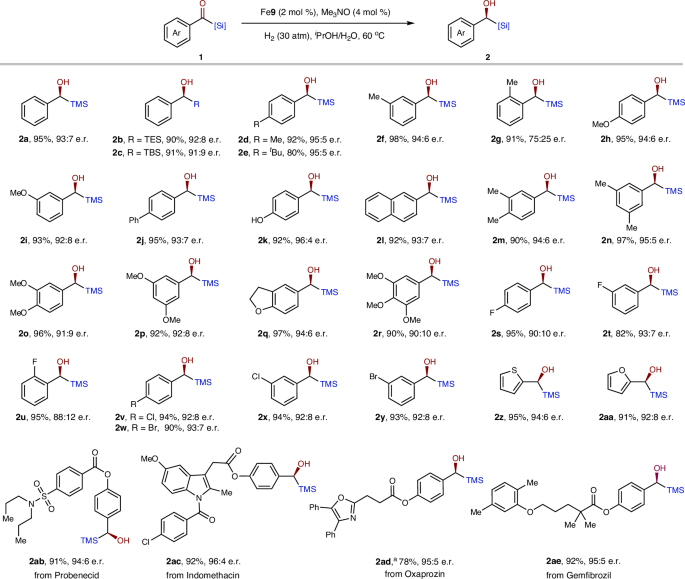

Fig. 3: Asymmetric hydrogenation of aryl acylsilanes.
Fig. 3: Asymmetric hydrogenation of aryl acylsilanes.
Full size image

Reaction conditions: 1 (0.5 mmol), Fe9 (2 mol %), Me3NO (4 mol %), H2 (30 atm), iPrOH/H2O (1.2: 0.3 mL), 60 °C, 12 h. Isolated yields. aFe9 (4 mol %).

The robustness of this catalytic system was further demonstrated by its successful application to alkyl- and alkenyl-acylsilanes, which have been challenging for the classical Ru-TsDPEN catalyst52. With slight modification of the catalyst, specifically Fe5, a variety of alkyl- and alkenyl-acylsilanes were efficiently and selectively hydrogenated to the corresponding alcohols (Fig. 4). Notably, aryl- and oxygen-substituted acylsilanes (4a–i) exhibited higher enantioselectivity compared to bare or fluoro-substituted alkyl acylsilanes (4k–l). Of particular note, the alkenyl-acylsilanes achieved high enantiomeric ratios without affecting the alkenyl groups (4m–n).

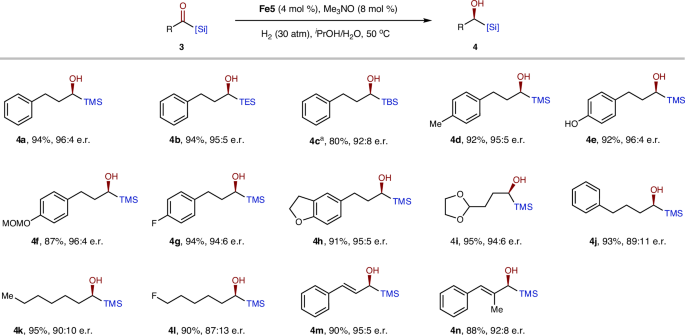

Fig. 4: Asymmetric hydrogenation of alkyl and alkenyl acylsilanes.
Fig. 4: Asymmetric hydrogenation of alkyl and alkenyl acylsilanes.
Full size image

Reaction conditions: 3 (0.5 mmol), Fe5 (4 mol %), Me3NO (8 mol %), H2 (30 atm), iPrOH/H2O (1.2: 0.3 mL), 50 °C, 12 h. Isolated yields. a80 °C.

Gram-scale synthesis and derivatizations

To further evaluate the robustness of this catalytic system, a turnover number (TON) test was conducted with gram-scales (Fig. 5a). Under a S/C ratio of 1000 at 80 °C, we achieved full conversion with an isolated yield of 87% and a slightly reduced er of 91:9 (Fig. 5a). The low yield is due to the slow decomposition of 2a in water, which produces benzaldehyde54. Lowering the temperature to 70 °C resulted in decreased catalytic reactivity, as an incomplete reaction was observed with S/C = 500. However, a successful gram-scale synthesis was achieved with an S/C ratio of 300 at 70 °C, yielding 86% with an er of 92:8, thereby demonstrating the potential practicality of this catalytic system. Furthermore, the chiral silyl alcohol 2a can be readily transformed into the corresponding amino product 5a via a Mitsunobu reaction (Fig. 5b). Another intriguing application is the use of the silyl alcohol as a chiral auxiliary, initially demonstrated by Linderman et al.55. The TMS-protected 5b was able to induce formylcyclohexane (CyCHO) to form an oxocarbenium ion intermediate, which can be enantioselectively attacked by allyltrimethylsilane (Allyl-TMS), yielding 5c with two chiral centers (Fig. 5b).

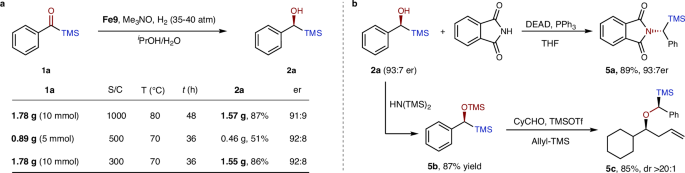

Fig. 5: Gram-scale synthesis and derivatizations.
Fig. 5: Gram-scale synthesis and derivatizations.
Full size image

a Turnover number test and gram-scale synthesis. b Derivatizations of 2a. S/C, substrate/catalyst; DEAD, Diethyl azodicarboxylate.

Mechanistic studies

Next, experimental and DFT studies were conducted using Fe4, which has been crystallographically characterized, as the standard model to elucidate the catalytic mechanism and enantiocontrol insight (Fig. 6). Initially, when D2 was used in place of H2 for the hydrogenation of 1a, 11% of H atoms were detected at the benzylic position, suggesting possible Fe-H formation, potentially arising from hydrogen transfer from i-PrOH (Fig. 6a, entry 1). The transfer hydrogenation process was conclusively confirmed by using i-PrOH as the sole hydrogen source, resulting in the successful isolation of the desired product with 10% yield (entry 3). Furthermore, entries 1–2 suggest that the reaction with D2 proceeds more slowly compared to H2. A more precise experiment employing H2/D2 (1:1) indicated a kinetic difference between H2 and D2, with an estimated kinetic isotope effect (KIE) of around 1.5 (entry 4). Combined with DFT calculations, it is proposed that H2 activation is the rate-determining step (see the Supplementary Information).

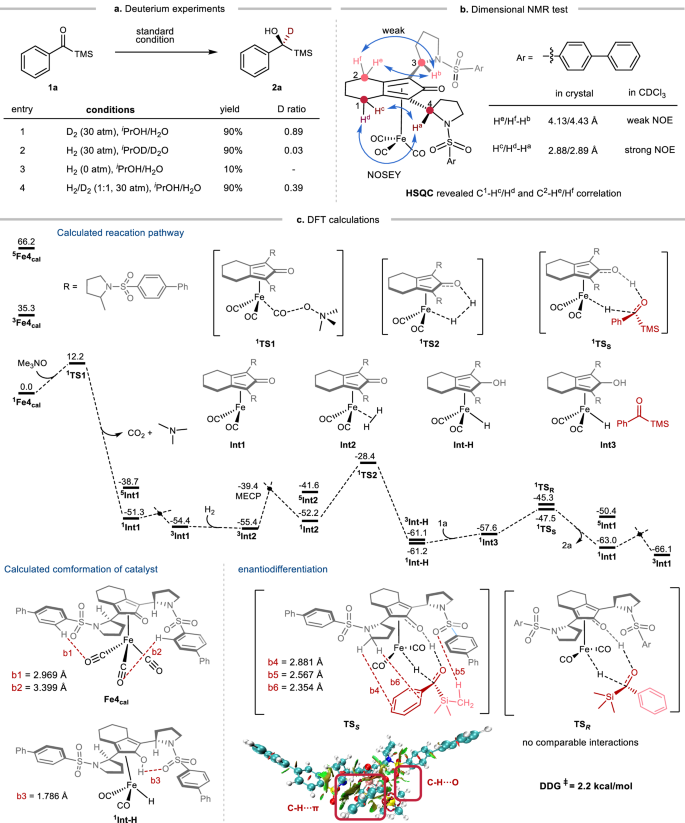

Fig. 6: Mechanistic studies based on Fe4.
Fig. 6: Mechanistic studies based on Fe4.
Full size image

a Deuterium experiments indicate the presence of transfer hydrogenation and a kinetic isotope effect (KIE) in the catalytic system. b Dimensional NMR tests reveal that Fe4 maintains similar 3D structures in both solid and solution states. c DFT calculations of reaction pathway. Calculations identify additional stabilizing factors, such as hydrogen bonds, that help stabilize the 3D structure of Fe4. The calculated transition states, TSS and TSR, show that the C–H···O contact (b₆ = 2.354 Å) is the major contributor to enantiocontrol.

The crystal structure of Fe4 has satisfied all the requirements of the design principle (Fig. 1c, M2), with the two ArSO2− side arms oriented downward relative to the CPD plane, creating a steric difference in front of the catalytic center. However, concerns may arise regarding the potential flexibility of this configuration in solution, which could undermine the previous hypotheses. To investigate the rigidity of the structure, a dimensional NMR test in CDCl3 was conducted (Fig. 6b). The 1H–1H NOESY signal intensities between Hc/Hd–Ha and He/Hf–Hb are positively correlated with the corresponding distances measured in the crystal structure (see the Supplementary Information for details), indicating that the structure in solution closely resembles of the crystal state. Actually, this structural arrangement can be rationalized by comparing the steric hindrance of the –CH2− and –NSO2Ar groups adjacent to C3 or C4. Although the physical volume of N–SO2Ar is larger than CH2, the –SO2Ar group can extend peripherally to the Fe center to avoid steric repulsion. In other words, the tetrahedral geometry of –CH2− is less effective at preventing proximity to the Fe center compared to the pyramidal geometry of –NSO2Ar. Furthermore, DFT optimized Fe4 (Fe4cal) reveals additional stabilization factors arising from C–H···O interactions (b₁ = 2.969 Å, b₂ = 3.399 Å, Fig. 6c) between CO ligands and hydrogens on side arms.

A detailed mechanistic understanding of the reaction was achieved through density functional theory (DFT) calculations (Fig. 6c, Supplementary Data 1). The Fe4 complex was confirmed to adopt singlet ground states (1Fe4cal), with other spin states exhibiting significantly higher Gibbs free energies (3Fe4cal 35.3 kcal·mol−1 and 5Fe4cal 66.2 kcal·mol−1). First, the pre-catalyst 1Fe4cal is activated with Me₃NO by removal of one CO, followed by a spin crossover via the minimum energy crossing point (MECP) to afford the more stable triplet intermediate ³Int1. Then, H2 associates to Fe to form the triplet intermediate ³Int2, which then undergoes a spin inversion through MECP (−39.4 kcal mol−1) to produce the singlet intermediate ¹Int2. Next, H2 is cleaved to form ¹Int-H, which step experiences a free energy elevation of 27.0 kcal·mol−1, representing the rate-determining step. Examination of the critical intermediate 1Int-H reveals a strong hydrogen bond (b₃ = 1.786 Å, Fig. 6c) between O–H···O = S, which helps preserve the chiral pocket. Finally, 1a is hydrogenated by 1Int-H via a concerted transition state (TSS = 13.7 kcal·mol−1 and TSR = 15.9 kcal·mol−1, Fig. 6c) to yield the desired product 2a.

To gain a deeper understanding of the enantiocontrol, non-covalent interaction (NCI) analysis of the enantiodetermining transition state TSS revealed critical stabilizing interactions, including C–H···π (b₄ = 2.881 Å, b₅ = 2.567 Å) and C–H···O (b₆ = 2.354 Å) contacts (Fig. 6c). While both aryl- and alkyl-acylsilanes are attacked by Fe-H from the same face, we believe that the C–H···O contact is more significant in the enantiocontrol transition state56,57. In contrast, the disfavored transition state TSR lacked comparable interactions, providing a structural basis for the observed enantiocontrol in the Fe-CPD catalytic system. Interestingly, this weak interaction is not observed when the -TMS group in 1a is replaced with a -tBu group, aligning well with experimental observation (up to 75:25 er for tert-butyl phenyl ketone, see Supplementary Information). This difference may be attributed to the smaller atomic diameter of carbon compared to silicon (Supplementary Fig. 12).

Asymmetric transfer hydrogenation

Inspired by the deuterium experiments (Fig. 6a), we became interested in adapting this catalytic system for a more user-friendly transfer asymmetric hydrogenation process. Initially, the original Fe9 (2 mol %) exhibited low catalytic activity for the transfer hydrogenation of 1a using iPrOH as the hydrogen donor, achieving a yield of 30% of 2a in 12 h. Funk et al. demonstrated that replacing one of the three CO ligands with a weakly coordinating nitrile ligand could significantly enhance catalyst performance58. Consequently, we prepared the Fe5-PhCN and Fe9-PhCN complexes to test their efficacy in asymmetric transfer hydrogenation. To our delight, the PhCN-ligated complexes exhibited excellent catalytic activity at a slightly elevated temperature (70 °C) in a mixed solvent of iPrOH/H2O (15:1) (Fig. 7). The enantiomeric ratios (e.r.) were very similar to those observed in H2-promoted hydrogenation, with only a slight decrease due to the higher temperature, indicating the formation of the same Fe–H intermediate and hydrogenation transition state. The successful implementation of the asymmetric transfer hydrogenation process further enhances the practicality of this catalytic system, particularly in laboratory settings.

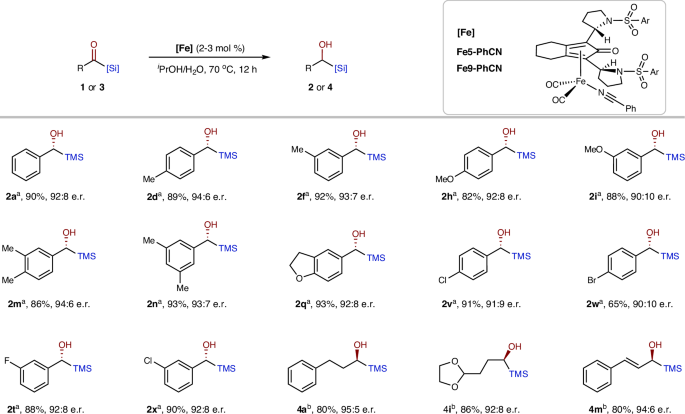

Fig. 7: Asymmetric transfer hydrogenation of acylsilanes.
Fig. 7: Asymmetric transfer hydrogenation of acylsilanes.
Full size image

Reaction conditions: 1 or 3 (0.3 mmol), [Fe] (2-3 mol %), iPrOH/H2O (1.5: 0.1 mL), 70 °C, 12 h. Isolated yields. a(−)-Fe9-PhCN (2 mol %) was used, (−)-Fe9 means the enantiomer of the previous Fe9. bFe5-PhCN (3 mol %) was used.

In conclusion, we have successfully developed a new chiral Fe-cyclopentadienone catalyst. This new Fe-complex is characterized by two side arms oriented downward toward the cyclopentadienone plane, and these arms are able to create a steric difference in front of the catalytically active Fe-center. This structural feature was thoroughly explored and explained through experimental and DFT studies. This type of Fe-complex demonstrated excellent catalytic reactivity and selectivity in the asymmetric hydrogenation of acylsilanes, whether aryl- or alkyl-substituted. The broad substrate scope and successful gram-scale synthesis underscore the practicality of this catalytic system. Overall, this study represents a significant breakthrough in the development of chiral Fe-cyclopentadienone catalysts, which may be further applied in various bifunctional asymmetric catalytic transformations in the future.

Methods

General procedure for catalytic hydrogenation using H2

Under a nitrogen atmosphere, a 5-mL glass vial equipped with a magnetic stir bar was charged with Fe9 (9.7 mg, 2 mol %), solvent (1.2 mL iPrOH and 0.3 mL H₂O), Me₃NO (1.5 mg, 0.02 mmol, 4 mol %), and substrate 1 (0.5 mmol, 1.0 equiv.). The vial was then transferred to a 50-mL autoclave, which was purged with H₂ twice (charging with 10 atm H₂ and slowly releasing the H₂ each time). The autoclave was subsequently charged with H₂ to a pressure of 30 atm. The autoclave was stirred and heated in an oil bath at 60 °C for 12 h. After cooling to ambient temperature, the H₂ was carefully released. The solvent was then removed under reduced pressure, and the residue was purified by silica gel column chromatography to obtain the desired product 2.

General procedure for catalytic transfer hydrogenation using iPrOH

Under a nitrogen atmosphere, a 4-mL glass vial with a screw cap and a magnetic stir bar was charged with Fe9-PhCN (6.3 mg, 2 mol %), solvent (1.5 mL iPrOH and 0.1 mL H₂O), and substrate 1 (0.3 mmol, 1.0 equiv.). The vial was tightly sealed with the screw cap. The mixture was stirred and heated in an oil bath at 70 °C for 12 h. After cooling to room temperature, the solvent was removed under reduced pressure, and the residue was purified by silica gel column chromatography to obtain the desired product 2.
