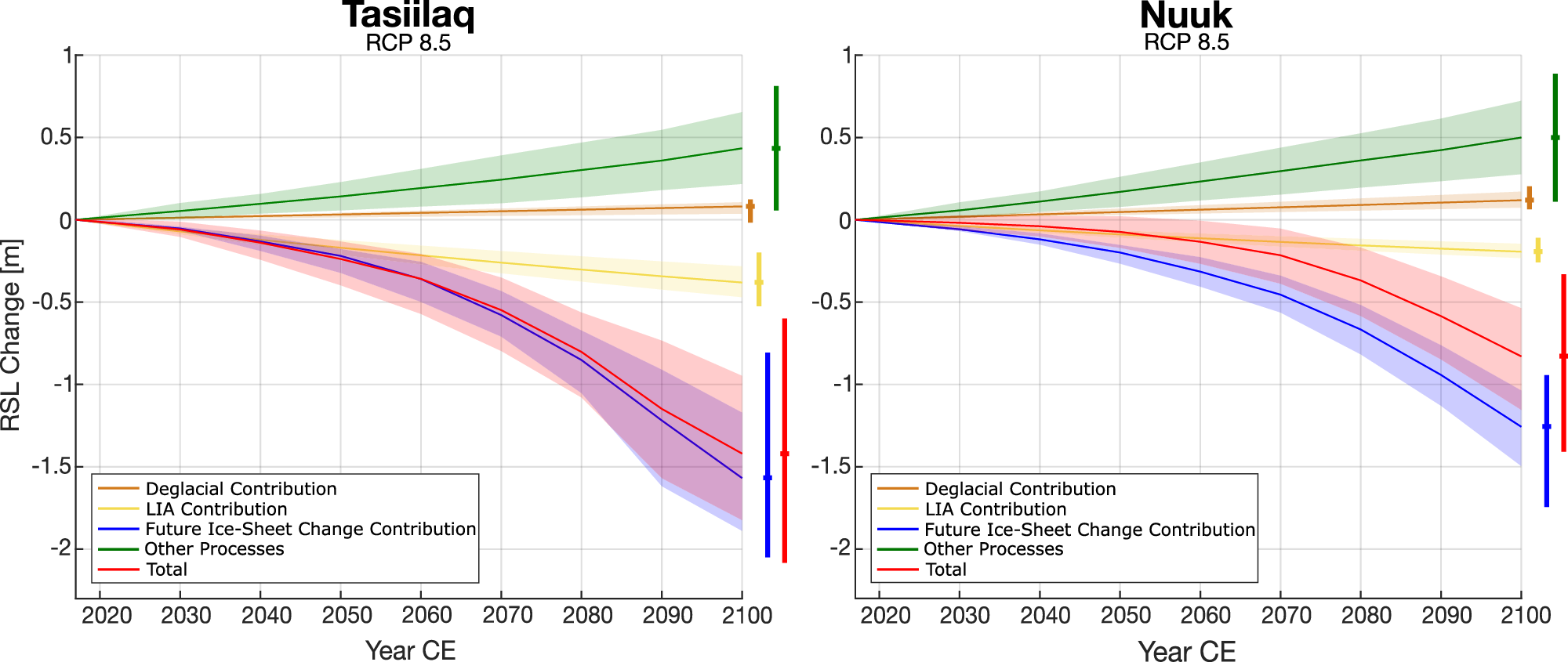

Fig. 6: Contributions to relative sea-level (RSL) change over the 21st century in Tasiilaq and Nuuk.
From: Projections of 21st-century sea-level fall along coastal Greenland
GIA associated with deglacial ice change (orange), Little Ice Age ice change (yellow), projected ice-sheet change (blue), and processes unrelated to ice-sheet change and associated GIA (green) all contribute to the total change in RSL (red) projected in Tasiilaq and Nuuk under RCP 8.5. The solid line represents the ensemble median, and the shaded region is the likely range (17th–83rd percentile). The bars on the right represent the 5th-95th percentile ranges of projected RSL at 2100 CE. Projections are relative to 2017 CE.
