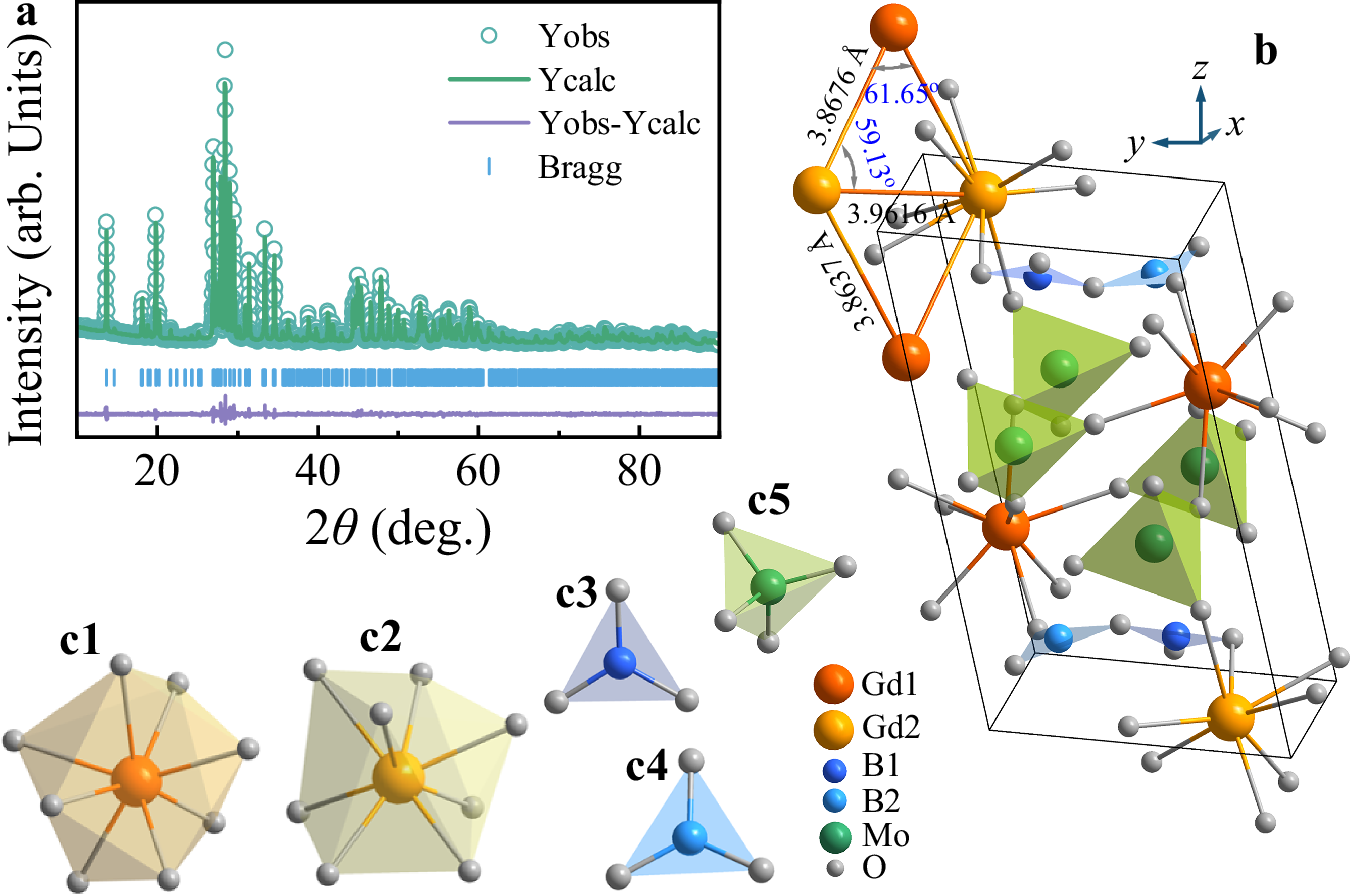

Fig. 1: Structural features of Gd2B2MoO9.
From: Refrigeration down to 0.16 K using a frustrated magnet Gd2B2MoO9
a Experimental and Rietveld-refined powder X-ray diffraction (XRD) profiles indicate the high-quality of the studied sample. b Crystal structure diagram shows the formation of a geometrically frustrated (GF) diamond lattice by the nearest Gd-Gd atoms. c1–c5 Local nearest oxygen coordination environments of Gd1, Gd2, B1, B2, and Mo atoms, respectively.
