Introduction

Freshwater shortages and food crises are intertwined global challenges, as highlighted in Sustainable Development Goals 2 and 61,2,3. With the world’s population growing and climate change intensifying, many countries and regions are experiencing varying degrees of water and food insecurity (Supplementary Fig. 1). It is thus crucial to address the above issues by integrating multidisciplinary approaches and formulating effective policy frameworks, thereby ensuring the sustainable use of water resources and the stability of food production4,5,6,7. Nitrate, a substance that embodies both resource value and environmental pollution, is widely distributed in natural environments8,9. It plays essential roles across industry, agriculture, and natural ecosystems10,11, but improper use or excessive discharge will lead to various environmental and health problems (Supplementary Fig. 2)12,13. At present, nitrate production relies predominantly on traditional energy-intensive processes, including ammonia synthesis (Haber-Bosch process) and ammonia oxidation (Ostwald process)14. These processes necessitate high temperatures and pressures, resulting in substantial energy consumption and greenhouse gas emissions10,15. Therefore, efficient recovery and reintegration of nitrates into the industrial cycle or agricultural utilization could help mitigate water pollution and reduce synthesis energy demands16,17,18.

Recently, various innovative designs for high-concentration nitrate recovery and upgrading have emerged, including electrocatalysis, electrodialysis, reverse osmosis, ion exchange, adsorption, and biological treatment19,20,21. For example, a layered double hydroxide/copper foam hybrid electrocatalyst can effectively reduce nitrate to ammonia under mild conditions, achieving an impressive conversion rate of 98.5%22. Additionally, a porous carbon film derived from eggshell biowaste can selectively adsorb nitrate under an electric field, with a maximum nitrate adsorption capacity of 2.4 × 10−3 mmol m−2 23. However, recovering low-concentration nitrates from surface water remains a significant challenge due to cost and energy consumption. Meanwhile, these technologies are limited to removing single pollutants, which cannot yet transform complex and contaminated water bodies into clean water or safe water sources for human use. Developing processes that can simultaneously recover nitrates and purify water remains a significant challenge.

Interfacial solar-driven evaporation technology is an emerging energy conversion approach that enables efficient solvent evaporation under ambient conditions by localizing heat at the gas-liquid interface24,25. This technology holds significant promise for applications in seawater desalination, wastewater treatment, medical sterilization, and other fields26,27,28. In response to the escalating energy-resource-environment trilemma, recent research has shifted toward integrated water resource recovery29,30, where interfacial evaporation systems coupled with selective adsorbents can simultaneously extract water molecules and valuable ions (e.g., lithium ion, uranium ion). Unlike conventional adsorption methods, interfacial solar-driven evaporation technology eliminates energy-intensive pretreatment steps, enabling direct solar-powered enrichment of low-concentration target ions and making it promising for the co-extraction of low-concentration nitrate from surface water. The key challenge lies in developing high-performance adsorbents that balance photothermal conversion and selective nitrate capture. Traditional nitrate adsorbents, such as kaolin31, zeolite32, ion-exchange resins33, and modified chitosan34, suffer from poor light absorption and complex synthesis, whereas broad-spectrum adsorbents like activated carbon exhibit low selectivity and weak adsorption capacity35,36. Thus, selecting advanced adsorbents that combine high photothermal efficiency with targeted nitrate affinity is critical. Among potential candidates, polypyrrole (PPy) stands out due to its unique performance advantages37.

Some sun-loving plants exhibit a marked light-dependent nitrate adsorption behavior, that is, slower nitrate adsorption kinetics in the dark than under illumination38. Inspired by this, we develop a bioinspired photothermal nitrate recovery platform (BPEP, Fig. 1a). Because PPy can grow controllably on various substrates through a simple self-assembly process39, we fabricate a polypyrrole-coated bacterial cellulose hydrogel (BCBH/PPy) via in situ polymerization. Compared to conventional substrates, hydrogel-based evaporators offer reduced evaporation enthalpy, potentially surpassing thermodynamic limits, while BCBH’s freeze-drying-free synthesis ensures scalability40. Owing to these advantages, we demonstrate the performance of BPEP by using BCBH/PPy as a model material. To the best of our knowledge, BPEP demonstrates a previously unexplored design for simultaneously recovering clean water and nitrate. The BPEP can enhance nitrate recovery through evaporation-induced multi-field (temperature, flow, and concentration) under solar irradiation (Fig. 1b). Specifically, the thermal localization design of BPEP induces distinct temperature and concentration gradient distributions from the evaporation interface to the bulk solution (Fig. 1b-I, II). Compared to the initial conditions, the localized concentration and temperature fields synergistically enhance nitrate adsorption (Fig. 1b-I, II), as evidenced by both kinetic and thermodynamic analyses. Furthermore, the evaporation process accelerates the transport of nitrate ions in both the top and bottom layers of BPEP (Fig. 1b-III), thereby increasing the collision probability between nitrate anions and adsorption sites. Due to its selective adsorption properties, BPEP exhibits a strong affinity for nitrate ions while showing limited capture efficiency for other competing ions. The above mechanisms will be elaborated in detail in the following sections. The potential to convert nitrates into harmless substances or high-value products through biochemical or catalytic reactions is also demonstrated. These results position BPEP as a promising platform for addressing the water-food-energy nexus by integrating with existing treatment technologies.

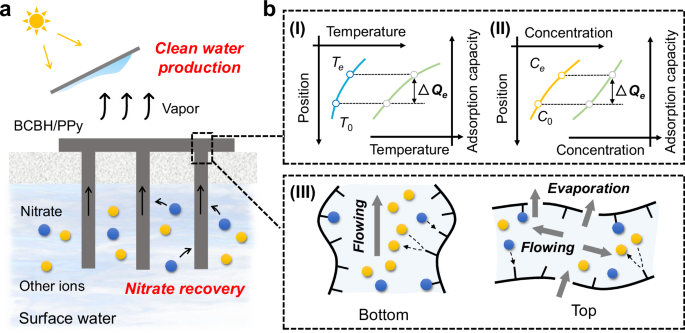

Fig. 1: The design inspiration of BPEP.
Fig. 1: The design inspiration of BPEP.
Full size image

a Schematic diagram of BPEP recovering nitrate and producing clean water under light conditions. b Evaporation-induced multi-field enhanced nitrate recovery mechanism: (I) Temperature field; (II) Concentration field; and (III) Flowing field. The value of each physical quantity increased along the direction of the arrow. T0-initial temperature; Te-evaporation interface temperature; C0-initial concentration; Ce-evaporation interface concentration; ΔQe-adsorption capacity increment.

Results and discussion

Fabrication and characterization

The main functional component of BPEP was BCBH/PPy, which served as a light-absorber and nitrate adsorbent. BCBH/PPy was prepared by a simple fermentation and in-situ coating method (Fig. 2a)40. After purification, bacterial cellulose hydrogel (BCBH) showed a loose, porous structure composed of cellulose fibers with diameters ranging from 30 ~ 50 nm. These pores served as transport channels for water, vapor, and salt ions (Fig. 2b). Meanwhile, these interlocked cellulose fibers endowed the excellent mechanical properties of BCBH (Supplementary Fig. 3). In comparison, the structure of BCBH/PPy showed minimal changes, with numerous nanoparticles on the fibers (Fig. 2c). BCBH/PPy also demonstrated excellent hydrophilicity (Supplementary Fig. 4). Although X-ray diffraction (XRD) spectra indicated little difference between the BCBH and BCBH/PPy (Fig. 2d), the X-ray photoelectron spectroscopy (XPS) survey revealed the presence of nitrogen element in BCBH/PPy at a binding energy of approximately 399.8 eV (Fig. 2e). The functional groups of BCBH and BCBH/PPy were further characterized by Raman spectra (Fig. 2f). The typical band at 1588 cm−1 corresponded to the symmetric stretching mode of the C = C skeletal structure, absent in the pyrrole (Py) monomer41,42,43. The peak at 1336 cm−1 represented the PPy ring-stretching mode44,45,46. These findings collectively verified the successful coating of PPy on BCBH.

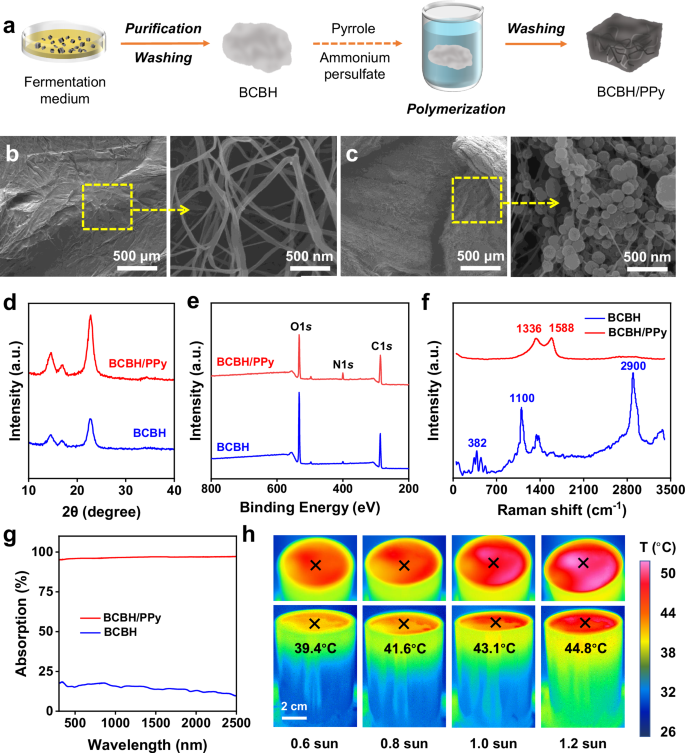

Fig. 2: Fabrication and characteristics of BCBH and BCBH/PPy.
Fig. 2: Fabrication and characteristics of BCBH and BCBH/PPy.
Full size image

a Schematic diagram of the fabrication process. b SEM images of BCBH. c SEM images of BCBH/PPy. d XRD patterns; e XPS curves; f Raman curves; and g The UV-Vis-NIR absorption spectra of BCBH and BCBH/PPy. h The IR photos of BPEP under different solar fluxes.

The structural diagram of BPEP was shown in Supplementary Fig. 5. BCBH/PPy, as the absorber in the BPEP, held a high average optical absorption of around 97% across the full solar spectrum (Fig. 2g). The selective adsorption mechanism of nitrate by BCBH/PPy will be discussed in detail below. The evaporation performance of BPEP was evaluated using a custom device (Supplementary Fig. 6). As the solar flux increased from 0.6 suns to 1.2 suns, the steady-state temperature of the BPEP surface rose from 39.4 to 44.8 °C (Fig. 2h), while the bottom water remained at a low temperature (Fig. 2h, Supplementary Fig. 7). The excellent heat localization capability of BPEP can be attributed to its physical thermal insulation layer (polystyrene foam). This structure effectively suppresses heat conduction into the bulk water, confining thermal energy mainly to the gas-liquid interface. The COMSOL simulation verified the heat localization design (Supplementary Fig. 8). As a result, the most absorbed heat is utilized for steam generation rather than being dissipated as sensible heat in the water47, thereby achieving high-efficiency evaporation under solar irradiation. Note that the surface temperature of dry BCBH/PPy rapidly exceeded 80 °C under 1 sun illumination (Supplementary Fig. 9), demonstrating excellent photothermal conversion. A thermos-gravimetric analysis (TGA) was conducted to examine the contents of BCBH and BCBH/PPy components, as well as their transformation processes (Supplementary Fig. 10). The carbonization of BCBH/PPy began at approximately 300 °C and ended at around 560 °C, demonstrating that BCBH/PPy remained thermally stable during the evaporation process.

Solar-driven co-recovery performance

Figure 3a showed that BCBH/PPy presented a higher stable temperature of 45.7 °C over pure water and BCBH under 1.2 sun. Meanwhile, the evaporation rate of BCBH/PPy was 2.01 kg m−2 h−1, ca 3.7 and 1.7 times that of pure water and BCBH, respectively (Fig. 3b). As the solar flux increased from 0.6 sun to 1.2 sun, the evaporation rate increased from 1.12 to 2.01 kg m−2 h−1 (Fig. 3c). The impressive evaporation rate can be attributed to the low evaporation enthalpy of BCBH/PPy (Supplementary Fig. 11). BCBH/PPy contained numerous hydrophilic groups that engage in noncovalent interactions with water molecules through hydrogen bonding and electrostatic repulsion, significantly enhancing the content of intermediate water and reducing evaporation enthalpy30. Raman spectroscopy was employed to confirm this hypothesis (Fig. 3d), revealing the presence of free water and intermediate water in BCBH/PPy, with a ratio of 1.7. Unless otherwise specified, BPEP will refer to BPEP based on BCBH/PPy.

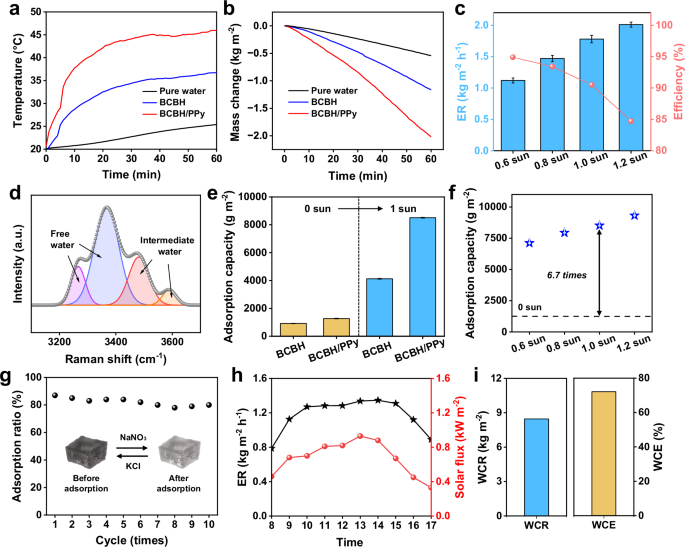

Fig. 3: The solar-driven evaporation and nitrate recovery performance.
Fig. 3: The solar-driven evaporation and nitrate recovery performance.
Full size image

a The temperature rising curves of pure water, BCBH and BCBH/PPy under 1.2 sun. b The mass change curves of pure water, BCBH and BCBH/PPy under 1.2 sun. c The evaporation rate (ER) and efficiency of BPEP under different solar fluxes. Error bars represent the standard deviations from three-time measurements. d Raman curves of BCBH/PPy. e The nitrate adsorption capacity of BPEP under different conditions. Error bars represent the standard deviations from three-time measurements. f The nitrate adsorption capacity of BPEP under different solar fluxes. Error bars represent the standard deviations from three-time measurements. g The cyclic nitrate adsorption ratio. Inset: Cyclic adsorption process of nitrates by BPEP. h The evaporation rate and solar flux in outdoor experiments. i The WCR and WCE in outdoor experiments.

We next evaluated the nitrate adsorption performance of BPEP under 1 sun illumination. Notably, BPEP exhibited significantly enhanced adsorption capacity under light irradiation compared to dark conditions (Fig. 3e), regardless of whether BCBH or BCBH/PPy was employed as the absorber. Specifically, when utilizing BCBH/PPy as the photothermal absorber, BPEP achieved a remarkable nitrate adsorption capacity of 8510 g m−2 under 1 sun illumination, approximately 6.7 times that observed in the dark (Fig. 3e). Furthermore, as the solar flux was intensified from 0.6 to 1.2 suns, the nitrate adsorption performance demonstrated from 7111 to 9318 g m−2 (Fig. 3f). We further excluded the effect of different ions on the nitrate adsorption performance. The results showed that common ions had little effect on the nitrate adsorption capacity of BPEP (Supplementary Fig. 12). BPEP can maintain a high adsorption capacity of at least 5908 g m−2 at different pH values (Supplementary Fig. 13). The cyclic adsorption experiment revealed that after 10 cycles, BPEP still retained approximately 80% of its initial nitrate adsorption capacity (Fig. 3g). Meanwhile, the UV-Vis spectrum of the post-10th cycle solution revealed no significant absorbance differences compared to the initial nitrate solution (Supplementary Fig. 14), also demonstrating the good cyclic stability of BCBH/PPy.

The actual nitrate recovery performance of BPEP was validated through outdoor experiments. The outdoor experiments used water from an urban river, with sampling sites located at 114.1°E and 22.5°N, as shown in Supplementary Fig. 15. The outdoor setup was depicted in Supplementary Fig. 16. The outdoor device’s top layer is constructed with an acrylic sheet, enabling over 95% transmittance to minimize light loss (Supplementary Fig. 17). The evaporation performance of BPEP outdoors was generally positively correlated with solar flux, with the maximum evaporation rate reaching 1.35 kg m−2 h−1 (Fig. 3h). The daily water collection rate (WCR) of the outdoor device was 8.46 kg m−2, and the daily water collection efficiency (WCE) was about 72.1% (Fig. 3i). After one day of outdoor testing, BPEP could reduce the nitrate concentration in an urban river from 33.7 to 1.1 mg L−1, with the corresponding nitrate recovery of around 25.9 mg m−2 (Supplementary Fig. 18). Note that the nitrate recovery capacity of BPEP outdoors was significantly lower than that under 1 sun indoors, which can be attributed to the lower nitrate concentration in surface water. The economic performance of BPEP was evaluated (The details can be found in Supplementary Note 1). The fabrication cost of BPEP was 5.39 $ m−2, with the evaporation cost efficiency of BPEP about 2.99 $ h kg−1.

In addition, BPEP can also desalinate seawater and treat wastewater. Thanks to the effective salt transfer properties (Supplementary Fig. 19) and intermittent operation mode39,47,48, BPEP enabled stable evaporation of seawater over 15 cycles (Supplementary Fig. 20). The obtained distilled water meets the drinking water limit stipulated by the World Health Organization (WHO) (Supplementary Fig. 21). The intermittent operation design theoretically allowed BPEP unlimited use in seawater, provided that the BCBH/PPy degradation was not considered. For higher-concentration brine, BPEP’s average evaporation performance would be degraded. Taking NaCl solution as an example, when the concentration rose to 20 wt%, the evaporation rate of BPEP decreased from 1.77 to 1.65 kg m−2 h−1 (Supplementary Table 1). The evaporation enthalpy of BPEP also decreased from 1.83 to 1.64 MJ kg−1 with increasing salinity (Supplementary Table 1), consistent with the reported work49. According to Eq. (2), this reduction directly contributed to the decline in evaporation efficiency (Supplementary Table 1). Nevertheless, it is essential to emphasize that BPEP primarily targets eutrophic surface water, where salinity typically remains below 3.5 wt%. Under these realistic conditions, BPEP maintains excellent evaporation performance. Additionally, BPEP demonstrated effective purification in industrial dyeing wastewater and urban domestic sewage. Specifically, the removal ratios of chemical oxygen demand (COD), total organic carbon (TOC), and total dissolved solids (TDS) all exceeded 99% (Supplementary Table 2). In brief, the above results showed that BPEP can produce clean water from actual water sources (e.g., surface water, seawater, practical wastewater, etc.).

Mechanism for enhanced nitrate recovery

The enhanced nitrate recovery performance of BPEP mainly resulted from the selective adsorption properties of the PPy coating and the multi-field effects generated by the interfacial evaporation process, with the underlying mechanisms as follows:

  1. (1)

    Nitrate-selective adsorption mechanism of PPy coating: The adsorption process was mainly governed by electrostatic interaction and hydrogen bonding. Density functional theory (DFT) calculations showed an adsorption energy of −0.34 eV for nitrate on PPy, confirming the thermodynamic spontaneity of the adsorption process (Fig. 4a). Note that PPy existed as a three-dimensional structure in the DFT calculation, allowing for the spontaneous adsorption of nitrate ions at multiple accessible sites (Supplementary Fig. 22). XPS spectra further confirmed the adsorption mechanism. Before adsorption, the N1s peak at 399.8 eV (Fig. 4b) was associated with benzenoid amine (-NH-)50. After nitrate adsorption, the novel N1s peaks appeared at 406.7 eV (Fig. 4c), corresponding to the nitrate51. Moreover, the decrease and shift in the binding energy of benzenoid amine suggested that this group was responsible for nitrate adsorption. The adsorption mechanism likely involved electrostatic attraction or coordination between the functional groups and nitrate23,52. The O1s peak for initial BCBH/PPy at 532.6 eV (Fig. 4c) was indexed to −OH53. After nitrate adsorption, the O1s spectrum showed a novel peak at 530.5 eV (Fig. 4c), corresponding to the C = O, probably attributed to the redistribution of electron clouds in PPy molecules54. Meanwhile, the −OH functional group contents were lower than those before adsorption, indicating that hydrogen bonds were formed during the adsorption process37. The dual adsorption mechanism of the PPy coating synergistically enhances the nitrate-selective recovery efficiency.

  2. (2)

    Evaporation-induced flowing field. The interfacial evaporation process significantly enhances ion transport within the BPEP system, increasing the collision frequency between target nitrate ions and active adsorption sites. To quantify this effect, we performed COMSOL simulations comparing the spatial distribution of nitrate concentrations in the BPEP absorber under 1-sun illumination with dark conditions (simulation details are provided in the Supplementary Information). As demonstrated in Fig. 4d–I, solar-driven evaporation significantly enhances BPEP’s nitrate adsorption capacity, with a maximum increase of 5.2 times at the extract sampled location compared to the dark conditions (Fig. 4d–II). From a kinetic perspective, interfacial evaporation generates localized temperature and concentration gradients at the gas-liquid interface, triggering the Marangoni effect. This phenomenon induces microvortices that disrupt the static diffusion boundary layer, enabling continuous delivery of nitrate ions to adsorption sites while minimizing mass-transfer resistance. Consequently, the nitrate concentration within BPEP exhibits a distinct gradient along the flow direction (Fig. 4d–II).

  3. (3)

    Evaporation-induced localized concentration field. Interfacial evaporation drives the preferential escape of water molecules at the gas-liquid interface, leading to a significant accumulation of target ions (nitrate ions) in the evaporation region. Thermodynamically, adsorption represents a redistribution equilibrium of solutes (nitrate ions) between the solution phase and the adsorbent interface, governed by the mass action law. Consistent with Le Chatelier’s principle, an increase in bulk ion concentration shifts the equilibrium toward adsorption, as the system responds by enhancing adsorption capacity to push the equilibrium toward adsorption. Our experiments demonstrated the above regulatory mechanism: under dark conditions, elevating the initial nitrate concentration from 25 to 150 mg L−1 improved BPEP’s adsorption capacity by ~8 times (Fig. 4e). Kinetically, the adsorption rate is governed by ion mass transfer from the bulk phase to the interface. The evaporation-sustained high-concentration microenvironment circumvents the dilution-induced mass transfer limitations inherent to conventional adsorption systems. Fick’s first law further elucidates this process, defining the diffusion flux ( J) as Eq. (1) where D was the diffusion coefficient; and the \(\frac{{\mbox{d}}C}{{\mbox{d}}x}\) was the concentration gradient. This gradient-driven enhancement in diffusion kinetics accelerated adsorption dynamics.

    $$J=-D\frac{{\mbox{d}}C}{{\mbox{d}}x}$$
    (1)

    Both the temperature and the nitrate concentration at the evaporation interface increased under solar illumination. In Fig. 4e, f, the conditions at the evaporation interface before illumination were marked as point I, whereas those after illumination were marked as point II. After 12 h of illumination under 1 sun, the nitrate concentration at the evaporation interface (point II in Fig. 4e) was approximately 2.3 times that of the initial concentration (point I in Fig. 4e), whereas the corresponding nitrate adsorption capacity increased by only 1.9 times. Considering that the nitrate adsorption capacity of BPEP under 1 sun illumination is about 6.7 times greater than that in the dark (Fig. 3e), it can be concluded that the concentration field is not the dominant factor contributing to the enhanced nitrate recovery under solar irradiation.

  4. (4)

    Evaporation-induced localized temperature field. Due to the thermal localization design, the top temperature of BPEP is relatively high (~43.1 °C under 1 sun). Increasing the temperature can appropriately improve the adsorption capacity, rising from 1289 g m−2 (point I in Fig. 4f) to 1458 g m−2 (point II in Fig. 4f). Therefore, the concentration field is not the dominant factor contributing to the enhanced nitrate recovery under solar irradiation, either. From a kinetic view, elevating the temperature enhances nitrate adsorption through two key mechanisms: (A) The Stokes-Einstein equation predicts that higher temperatures substantially decrease solution viscosity while increasing the diffusion coefficient of ions, thereby accelerating their transport to adsorption sites. (B) Simultaneously, the elevated temperature reduces the thickness of the diffusion boundary layer (δ), further improving mass transfer efficiency. Thermodynamically, an increase in temperature lowers the activation energy barrier, particularly benefiting ion exchange processes. Although the direct impact of temperature rise on nitrate adsorption capacity may appear limited, it’s crucial to emphasize that solar irradiation effects generate not just a localized temperature field but also induce coupled flowing and concentration fields at the interface.

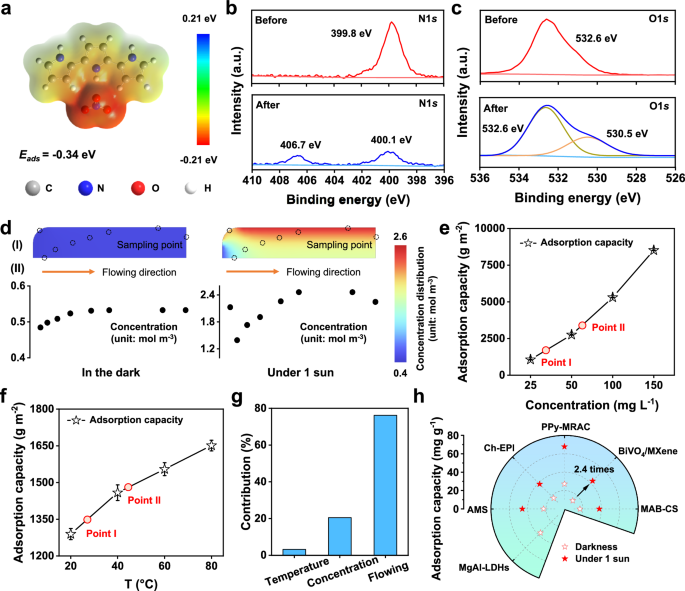

Fig. 4: The enhanced nitrate recovery mechanism.
Fig. 4: The enhanced nitrate recovery mechanism.
Full size image

a The surface electrostatic potential distribution ‌‌and adsorption energy between PPy and nitrate. b N1s and c O1s spectra of the BCBH/PPy before and after nitrate adsorption. d The nitrate adsorption simulation by COMSOL software: I-The concentration distribution of nitrate on BPEP under 1 sun illumination and dark conditions following adsorption. The ‘flowing direction’ represents the direction of solution flow, and the ‘sampling point’ represents a randomly distributed point. II-The nitrate concentration of the sample points on BPEP under 1 sun illumination and dark conditions following adsorption. e The nitrate adsorption capacity of BPEP under different initial nitrate concentrations in the dark. The conditions at the evaporation interface before illumination are marked as point I, whereas those after illumination are marked as point II in Fig. 4e, f. Error bars represent the standard deviations from three-time measurements. f The nitrate adsorption capacity of BPEP under different concentrations in the dark. Error bars represent the standard deviations from three-time measurements. g The contribution of various factors in enhancing nitrate recovery under 1 sun. h The nitrate recovery capacity of BPEP based on other reported adsorbents under 1 sun: MgAl-LDHs74; AMS75; Ch-EPI76; PPy-MRAC37; BiVO4/MXene77; MAB-CS78.

In brief, the synergistic interaction of these multiple fields (flowing, concentration, and temperature) creates a dynamic adsorption environment, thus leading to a remarkable improvement in nitrate adsorption kinetics. The contribution ratios of the localized temperature field, concentration field, and flowing field can be calculated using Eqs. (9, 10)25,26, which yield values of 3.2%, 20.5%, and 76.3%, respectively (Fig. 4g). The calculated details are provided in the Supplementary Information. Note that BCBH/PPy was used as a concept proof to examine the performance and mechanism of BPEP here. To verify the universality of BPEP’s structure feature and nitrate recovery mechanism, we used six reported nitrate adsorbents to fabricate BPEP. The sources of these adsorbents can be found in the legend to Fig. 4h. The fabricated details were provided in the Supplementary Information. The BPEP without any nitrate adsorbent loading exhibited negligible nitrate adsorption capability. As expected, solar irradiation significantly improved nitrate adsorption across all tested materials (Fig. 4h). These findings confirm that our proposed multi-field synergy effect is broadly applicable to diverse nitrate adsorbents, further underscoring its theoretical innovation and general relevance.

Finally, the nitrate recovery capacity of BPEP decreased by approximately 90% in 20 wt% NaCl solution. The nitrate adsorption by BCBH primarily relies on electrostatic interactions and hydrogen bonding. Since both Cl− and NO3− are anions, they compete for adsorption sites on the PPy surface. Consequently, in high-concentration NaCl solutions (e.g., 20 wt%), BPEP is indeed ineffective due to overwhelming Cl- competition. However, BPEP maintains over 90% nitrate adsorption efficiency in ~3.5 wt% NaCl solutions (Supplementary Fig. 12), which aligns well with its intended application for nitrate recovery from surface water (typically <3.5 wt% salinity). To enhance applicability in extreme environments, future work can focus on developing advanced nitrate adsorbents with increased tolerance to high salinity.

Discussion

Some issues need further discussion: (1) Our work focuses on developing a composite system that can simultaneously produce freshwater and recover nitrate, which has not been reported before to our knowledge. Currently, we have utilized a two-dimensional (2D) evaporation structure to validate our design. To explain the higher evaporation rate of 2D-BPEP compared to the thermodynamic limit, we employed the reduced evaporation enthalpy hypothesis here. Note that some recent studies show that evaporation enthalpy may be intrinsically thermodynamically invariant55,56. We fully acknowledge the open mechanism, but conclusively addressing this issue demands in situ molecular-level evidence, which exceeds the scope of our work. The primary objective of this work is not to resolve the fundamental debate on evaporation thermodynamics. By focusing on the practical implications, we aim to advance sustainable resource recovery technology while inviting the broader research community to further investigate its mechanisms.

Additionally, developing a three-dimensional (3D) evaporation structure (Supplementary Fig. 23) can further increase the evaporation rate. Specifically, after 60 min of 1 sun illumination, the temperature increase in the bottom water for BPEP with three-dimensional evaporation structures (3D-BPEP) was less than that of pure water and BPEP with 2D evaporation structures (2D-BPEP) (Supplementary Fig. 24). This suggests that 3D-BPEP exhibited better heat localization with reduced heat loss47,57. Therefore, benefiting from the above effect, along with the environmental energy effect and larger evaporation area, 3D-BPEP demonstrated improved evaporation performance (Supplementary Fig. 25)58,59. Regarding nitrate recovery performance, we systematically evaluated 3D-BPEP at various tilt angles (Supplementary Table 3). The experimental data demonstrated a significant improvement in nitrate recovery capacity with increasing angle of 3D-BPEP. Meanwhile, 3D-BPEP consistently outperformed 2D-BPEP across all tested angles, further validating the advantages of the 3D design. Since evaporation-induced multi-field (including thermal, concentration, and flowing fields) coupling effect can promote nitrate adsorption, the improved evaporation performance of 3D-BPEP further amplifies these multi-field effects, thereby increasing the nitrate adsorption capacity. The detailed mechanism may involve a complex balance between the multi-field interactions and the intrinsic properties of the adsorbent. However, exploring this mechanism in depth is beyond the scope of the present study and will be addressed in future work. In brief, the 3D-BPEP demonstrates superior evaporation performance compared to many reported solar evaporators (Supplementary Table 4). Note that the conventional evaporation and crystallization process cannot produce the pure nitrate owing to the pollution of other co-existing matters. More importantly, because nitrate concentrations in surface water are typically low, little nitrate can be recovered by simple evaporation. In comparison, BPEP uniquely enables the simultaneous recovery of clean water and nitrate, a capability absent in previous evaporators (Supplementary Table 4).

(2) By recovering nitrate from wastewater or surface water through BPEP, we can fully leverage the dual nature of nitrate as both a pollutant and a resource (Fig. 5a). The nitrate in BPEP can be desorbed by KCl solution and converted into KNO3. From a pollution control perspective, the as-obtained KNO3 can be converted into N2 through biochemical processes such as denitrification60. Specifically, after 12 h of reaction in the sequencing batch reactor, the nitrate extracted by BPEP could be degraded entirely (Fig. 5b). From a resource perspective, high-concentration potassium nitrate can be used directly for phase change energy storage and fertilizer; and also employed as raw materials for bulk chemical processes, drug synthesis, and fuel production61,62,63. These nitrates can be converted into various chemicals, such as ammonia and urea, through advanced photo-, electric-, and bio-catalytic processes64,65,66. Note that the above catalytic process yields less at low nitrate concentrations67,68. Integrating these technologies with BPEP can address this challenge through the adsorption-enrichment-recycling process of BPEP. As an example, in the electrochemical method (details provided in the Supplementary Information), as the nitrate concentration increased from 50 to 400 mg L−1, the ammonia yield rate nearly increased sevenfold (Fig. 5c, Supplementary Table 5), with the nitrate conversion ratio also improving. This demonstrates that increasing the nitrate concentration via BPEP effectively enhances nitrate conversion. It is well known that ammonia can accelerate plant growth. We used the ammonia solution to irrigate Pakchoi to demonstrate the practical application of the fabricated ammonia (Details can be found in Supplementary Information). We monitored the growth over 14 days, comparing Pakchoi irrigated with the fabricated ammonia solution or deionized water. The addition of the fabricated ammonia solution resulted in improved growth (Fig. 5d, e). After 14 days, the height of the Pakchoi with the addition of ammonia solution reached 7.15 cm, while the height of those without the ammonia solution was only 4.35 cm (Fig. 5e). These results indicate that the fabricated ammonia can be effectively used as a fertilizer. Note that the above conversion of nitrate in BPEP to nitrogen or ammonia involved two entirely different processes: the biochemical conversion to nitrogen via denitrification, and the electrochemical reduction to ammonia. These two processes did not interfere with each other since they are different systems. The specific conversion process should be flexibly selected according to practical requirements. Overall, BPEP not only addresses nitrate pollution but also facilitates the resource utilization of nitrates in wastewater and surface water through an optimal integration of modern technologies, thereby accelerating progress towards the Sustainable Development Goals.

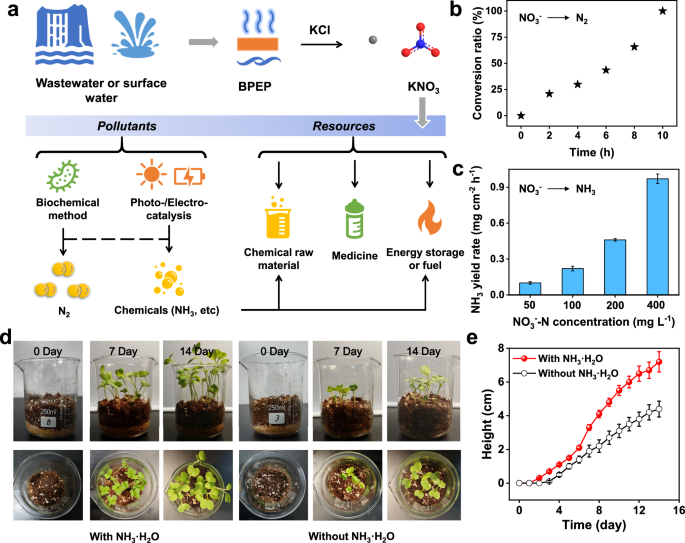

Fig. 5: Discussion on BPEP.
Fig. 5: Discussion on BPEP.
Full size image

a Resource utilization pathway of nitrate based on BPEP. b Nitrate conversion in sequencing batch reactor. c Ammonia (NH3) yield rate under different concentrations of nitrate. Noted that the ammonia was produced electrochemically from the recovered nitrate by BPEP. Error bars represent the standard deviations from three-time measurements. d The digital photos of the Pakchoi in its growing process with or without fabricated ammonia solution added. e The height changes of the Pakchoi in its growing process with or without fabricated ammonia solution added.

Methods

Preparation of BCBH and BCBH/PPy

The preparation procedure of BCBH/PPy and BCBH was illustrated in Fig. 2a. BCBH was obtained by incubating glucosacetic xylose in a fermentation medium at 30 °C for 4–7 days40. After fermentation, the resulting BCBH was washed with deionized water until the pH reached 7 and then stored for later use. BCBH/PPy was obtained by polymerizing Py on BCBH39,69. Typically, 2.28 g of ammonium persulphate (APS) and 0.7 mL of Py were separately dispersed in 100 mL of deionized water to form solution A and solution B, respectively. A piece of BCBH (20 cm2) was placed in a culture dish, followed by the addition of 10 mL of solution A and 5 mL of solution B. After reacting at 4 °C for 24 h, the resulting BCBH/PPy was thoroughly washed with deionized water to obtain the final product.

Solar-driven evaporation measurement

The structural diagram of BPEP was shown in Supplementary Fig. 5. BCBH/PPy was the absorber of BPEP. The experimental setup for solar-driven evaporation was shown in Supplementary Fig. 6. From Supplementary Fig. 26, it can be concluded that the output spectrum of the solar simulator with an AM 1.5 G filter closely matched the standard AM 1.5 G solar spectrum. The evaporation rate was determined by measuring the mass change of the BPEP over time. The evaporation efficiency was calculated based on Eq. (2)70,71, where \(\dot{{m}}\) was the evaporation rate (kg m−2 h−1); \({h}_{{lv}}\) was the enthalpy change of liquid to vapor (sensible heat and evaporation enthalpy) (MJ kg−1); and \({q}_{{solar}}\) was the solar flux (kW m−2).

$$\eta=\frac{\dot{m}\cdot {h}_{{lv}}}{{q}_{{solar}}}$$
(2)

The enthalpy change (hlv) of liquid to vapor was calculated based on Eq. (3), where \({h}_{{ee}}\) was the evaporation enthalpy obtained by DSC measurements (MJ kg−1) and \({{h}}_{{sh}}\) was the sensible heat (MJ kg−1).

$${h}_{lv}={h}_{ee}+{h}_{sh}$$
(3)

The evaporation enthalpy (\({h}_{{ee}}\)) could be calculated with Eq. (4)72,73, where \({E}_{s}\) was the specific energy (MJ kg−1); \({m}_{t}\) was the total mass of the measuring sample (g); \({m}_{w}\) was the mass of water in the measuring sample (g).

$${h}_{{\rm{ee}}}=\frac{{E}_{s}\cdot {m}_{t}}{{m}_{w}}$$
(4)

The specific energy (\({E}_{s}\)) could be calculated by the integral value of specific power and time, which was equal to the integral area in Supplementary Fig. 11.

The sensible heat (\({h}_{{sh}}\)) could be calculated by Eq. (5), where \({C}_{p,l}\) was the heat capacity of the bulk solution (J K−1 g−1); \({T}_{0}\) was the initial temperature of the bulk solution (K); \({T}_{1}\) was the steady-state temperature of the bulk solution (obtained from Fig. 2h, Supplementary Fig. 7).

$${h}_{sh}=\int _{{T}_{0}}^{{T}_{1}}{C}_{p,l}{{{\rm{d}}}}T$$
(5)

Outdoor experiments were conducted at the Central South University. The solar flux and evaporation rate were manually recorded from 8:00 a.m. to 5:00 p.m. The mass loss of BPEP was recorded every 1 h to calculate the outdoor evaporation rate. The water at the device’s bottom was weighed to calculate the WCR. The WCE was calculated by the ratio of WCR and the mass of evaporated water.

The long-term solar desalination was conducted in an intermittent operation mode48. The ion concentrations in the seawater (from the East China Sea) and condensed water were measured by inductively coupled plasma optical emission spectroscopy (ICP-OES 730, Agilent). The wastewater treatment experiments were conducted in the industrial dyeing wastewater and urban domestic sewage (from Changsha Water Industry Group Co., Ltd). The pristine wastewater and condensed water were evaluated by the COD, TOC, and TDS value. The removal ratio (\(\varphi\)) of COD, TOC, and TDS was calculated by Eq. (6), where \({S}_{0}\) and \({S}_{t}\) were the COD, TOC, or TDS value of the original wastewater and condensed water, respectively.

$$\varphi=\frac{{{S}_{0}-S}_{t}}{{S}_{0}}$$
(6)

Nitrate adsorption measurement

Except for the cyclic adsorption-desorption experiments, all nitrate adsorption experiments can be considered continuous operation processes. Unless investigating the effect of adsorption conditions (temperature, concentration, pH, etc.) on adsorption performance, the uniform initial conditions for all adsorption experiments were as follows: the initial concentration of nitrate solution is 30 ppm; the initial adsorption temperature is 25 °C; the initial pH is 7. For the nitrate adsorption experiments under lightless conditions, the samples (BCBH/PPy and BCBH) were immersed in an appropriate amount of sodium nitrate solution. The adsorption experiments were conducted under static conditions for 24 h to ensure adsorption saturation. After the designated adsorption time, the solution was filtered through a 0.22 μm filter membrane. The residual nitrate concentration in the solution was measured using ion chromatography (Dionex, ICS-5000 + , USA). The nitrate adsorption capacity was calculated using Eq. (7).

$$q=\frac{({C}_{0}-{C}_{t})}{S}\times V$$
(7)

Where q (g m−2) was the adsorption capacity; C0 (mg L−1) was the initial concentration of nitrate; Ct (mg L−1) was the residual nitrate concentration after adsorption; V (L) was the volume of the sodium nitrate solution; and S (m2) was the sample area. The adsorption ratio (AR) was calculated based on Eq. (8):

$${AR}=\frac{{C}_{0}-{C}_{t}}{{C}_{0}}$$
(8)

For the nitrate adsorption experiments under solar irradiation, the solution below BPEP was sodium nitrate solution. The measured scheme was similar to the dark-field adsorption experiment. The cyclic adsorption performance was evaluated through batch experiments with the following initial conditions: nitrate concentration was 30 ppm, adsorption temperature was 25 °C, and solar flux was 1 sun. The operating time of each adsorption experiment was set to 24 h. After each cycle test, the BCBH/PPy was removed from the BPEP and then soaked in a 10 wt% KCl solution, followed by 12 h of shaking. Afterward, the BCBH/PPy was washed with deionized water to neutralize it and then placed back into BPEP for conducting further adsorption experiments.

The relative contributions of various factors to enhanced nitrate adsorption under solar irradiation were quantitatively assessed as follows25,26:

$${{ED}}_{i}=\frac{{q}_{i}-{q}_{d}}{{q}_{S}-{q}_{d}}$$
(9)

Where \({{ED}}_{i}\) was contribution of each factor to enhanced nitrate adsorption; \({q}_{i}\) was the adsorption capacity in the dark under different conditions (such as varying concentration or temperature); \({q}_{s}\) was the adsorption capacity under solar irradiation; \({q}_{d}\) was the adsorption capacity in the dark at 25 °C. The contribution of the flowing field to enhanced nitrate adsorption was calculated using Eq. (10), where \({{ED}}_{F}\), \({{ED}}_{T}\), and \({{ED}}_{C}\) were the contributions of the flowing field, temperature field, and concentration field.

$${{ED}}_{F}=100\%-{{ED}}_{T}-{{ED}}_{C}$$
(10)

The nitrate adsorption capacity in outdoor experiments was calculated by Eq. (7).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
