Fig. 6: Theoretical analysis of the origin of chirality.

From: Giant unusual anisotropic magnetoresistance enabled by hole-electron resonance in van der Waals heterostructures

Fig. 6: Theoretical analysis of the origin of chirality.

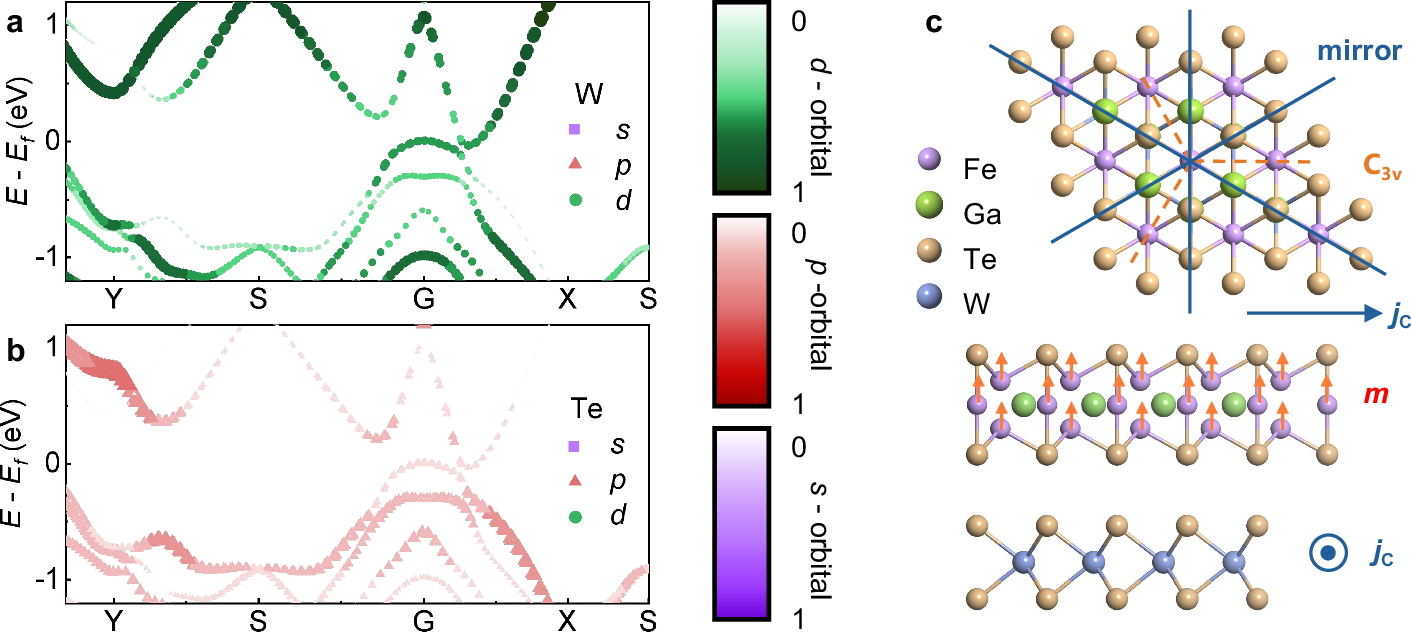

a The SOC distribution of W atoms and b Te atoms in WTe2. Purple, red, and green points correspond to s-, p-, and d-orbitals, respectively, with the size and the color intensity of the data points indicating the relative SOC strength. c Crystal structure and symmetry of the WTe2/Fe3GaTe2 interface. The upper panel shows a top view along the c-axis, while the lower panel presents the cross-sectional view.
