Fig. 3: Synthesis and characterization of camouflaged nanorobots.

From: Camouflaged nanorobots target and regulate macrophage subcellular organelle crosstalk patterns to promote neural regeneration

Fig. 3: Synthesis and characterization of camouflaged nanorobots.

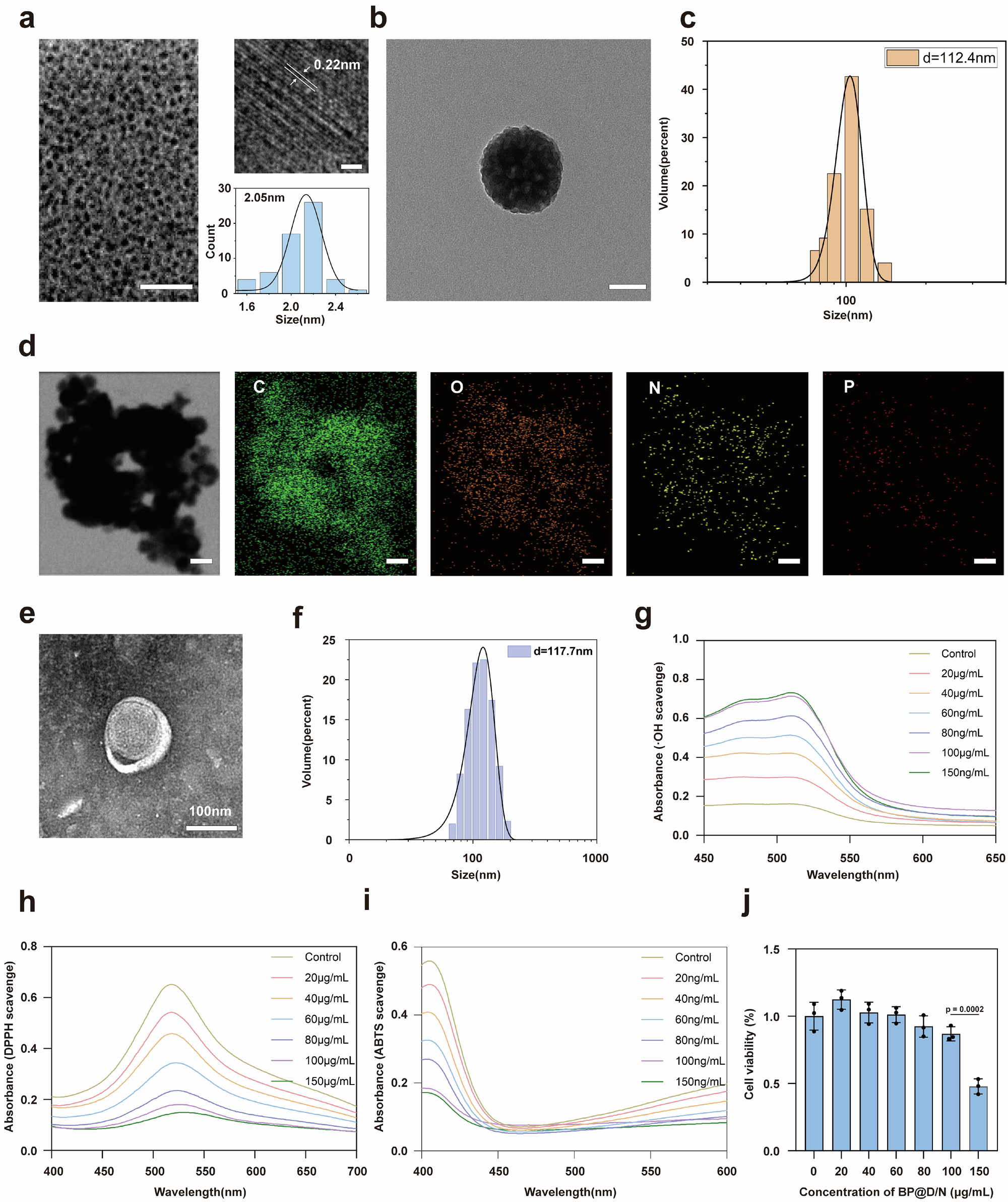

a TEM images of BPQDs (scale bars=20 nm, zoomed scale bars=1 nm and 3 independent experiments). b TEM images of BP@D (scale bars=50 nm, 3 independent experiments). c DLS results of BP@D (3 independent experiments). d Elemental mapping results of BP@D (scale bars=100 nm, 3 independent experiments). e TEM images of BP@D/N (scale bars=100 nm, 3 independent experiments). f DLS results of BP@D/N (3 independent experiments). g ·OH scavenging ability of BP@D/N (3 independent experiments). h DPPH scavenging ability of BP@D/N (3 independent experiments). i Total antioxidant capacity of BP@D/N (3 independent experiments). j Cell viability at different concentrations of BP@D/N (n = 3 independent experiments). The data were represented as mean ± SD. Statistical significance was calculated by one-way ANOVA with Tukey’s post hoc test. Source data are provided as a Source Data file.
