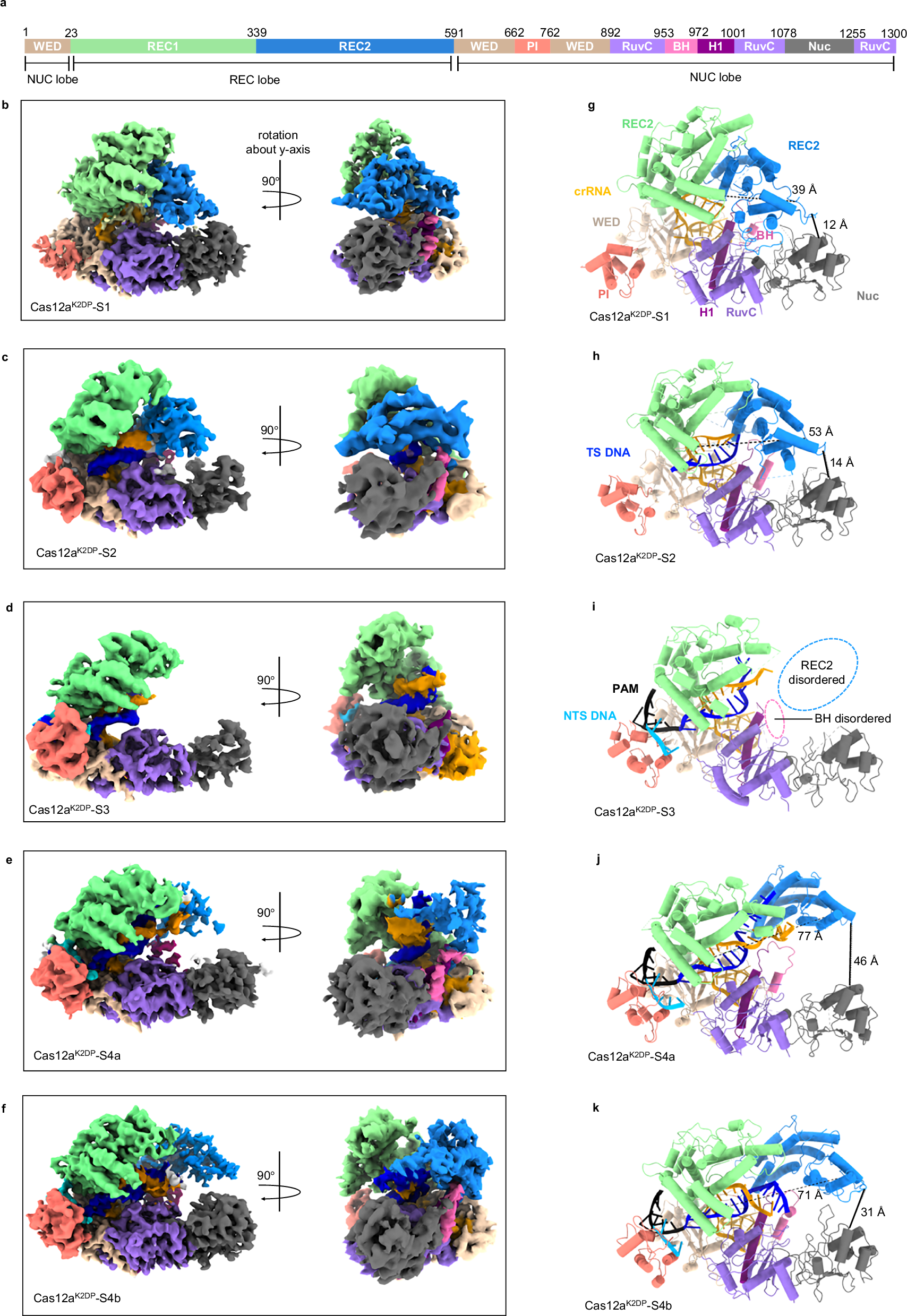

Fig. 1: FnoCas12a^KD2P possesses conformational states with similarities and differences compared to those for FnoCas12a^WT.
