Fig. 6: Mutations that impair OM lipid homeostasis alter the PL profiles for purified native OMs.

From: Phospholipid composition strongly affects the assembly of β barrel proteins into purified bacterial outer membranes

Fig. 6: Mutations that impair OM lipid homeostasis alter the PL profiles for purified native OMs.The alt text for this image may have been generated using AI.

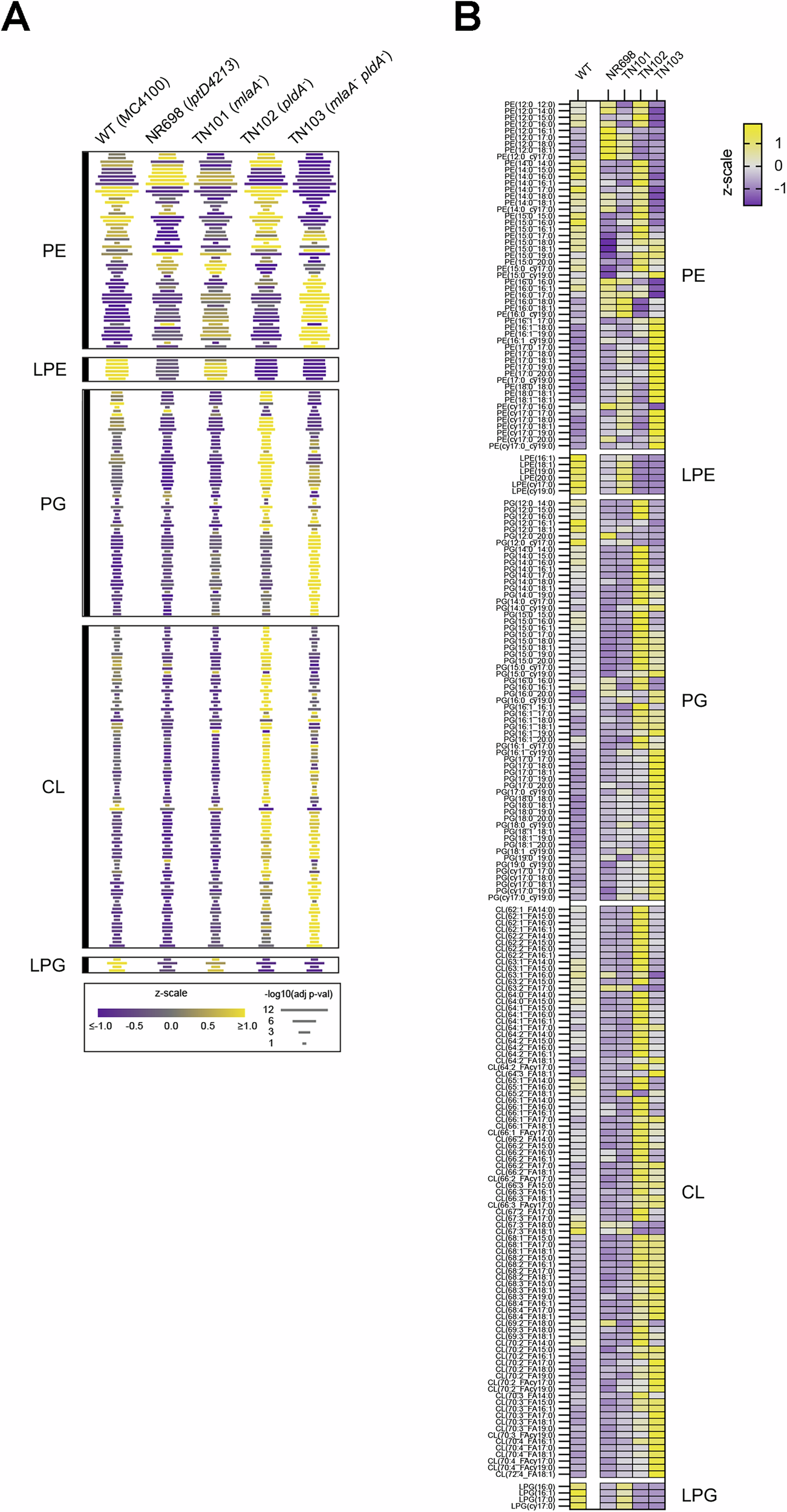

A Comparison of the OM phospholipidome across strains by one-way ANOVA. Lipids that passed a filter for multiple comparisons using the Benjamini Hochberg method set at an FDR of 10% are displayed. The color of each bar reflects the z-scaled abundance within the OM dataset and the length of each row of bars reflects the negative base 10 logarithm of the ANOVA p-value and is thus shared across all strains for a specific lipid. Lipids are organized first according to lipid class and then according to ascending acyl chain length within each lipid class. B The same analysis displayed in A is shown but was expanded to display individual lipids.
